Spring-cloud-netflix: Eureka Server is Up. But dashboard is not coming

[duraikutty]

Hi ,

Spring boot 2.1.3.RELEASE
Java 1.8
Spring Cloud version Greenwich.SR1

Eureka server is up. But, I am not able to view the Eureka server dashboard.

[spencergibb]

Please provide details of the problem, including the version of Spring Cloud that you are using. If possible, please provide a test case or sample application that reproduces the problem. This makes it much easier for us to diagnose the problem and to verify that we have fixed it.

What url are you accessing? What is your configuration?

[duraikutty]

Hi,

1.Spring boot 2.1.3.RELEASE
2.Java 1.8
3.Spring Cloud version - Greenwich.SR1

pom.xml
`
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
4.0.0

org.springframework.boot
spring-boot-starter-parent
2.1.3.RELEASE


com.durai
apps
0.0.1-SNAPSHOT
apps
Eureka Server for Spring Boot

<properties>
    <java.version>1.8</java.version>
    <spring-cloud.version>Greenwich.SR1</spring-cloud.version>
</properties>

<dependencies>
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>

<dependencyManagement>
    <dependencies>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>
    </dependencies>
</dependencyManagement>

<build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
        </plugin>
    </plugins>
</build>

`

`package com.durai.apps;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@EnableEurekaServer
@SpringBootApplication
public class ApplicationBootrap {

public static void main(String[] args) {
    SpringApplication.run(ApplicationBootrap.class, args);
}

}`

`server.port=8761

eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false

logging.level.com.netflix.eureka=OFF
logging.level.com.netflix.discovery=OFF`

logs
2019-04-03 15:50:08.162 INFO 8200 --- [ Thread-13] o.s.c.n.e.server.EurekaServerBootstrap : Initialized server context
2019-04-03 15:50:08.178 INFO 8200 --- [ Thread-13] e.s.EurekaServerInitializerConfiguration : Started Eureka Server
2019-04-03 15:50:08.196 INFO 8200 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port(s): 8761 (http) with context path ''
2019-04-03 15:50:08.196 INFO 8200 --- [ main] .s.c.n.e.s.EurekaAutoServiceRegistration : Updating port to 8761
2019-04-03 15:50:08.198 INFO 8200 --- [ main] com.durai.apps.ApplicationBootrap : Started ApplicationBootrap in 6.106 seconds (JVM running for 7.333)
2019-04-03 15:50:22.743 INFO 8200 --- [nio-8761-exec-1] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring DispatcherServlet 'dispatcherServlet'
2019-04-03 15:50:22.743 INFO 8200 --- [nio-8761-exec-1] o.s.web.servlet.DispatcherServlet : Initializing Servlet 'dispatcherServlet'
2019-04-03 15:50:22.750 INFO 8200 --- [nio-8761-exec-1] o.s.web.servlet.DispatcherServlet : Completed initialization in 7 ms

We are not able to view dashboard of eureka server.

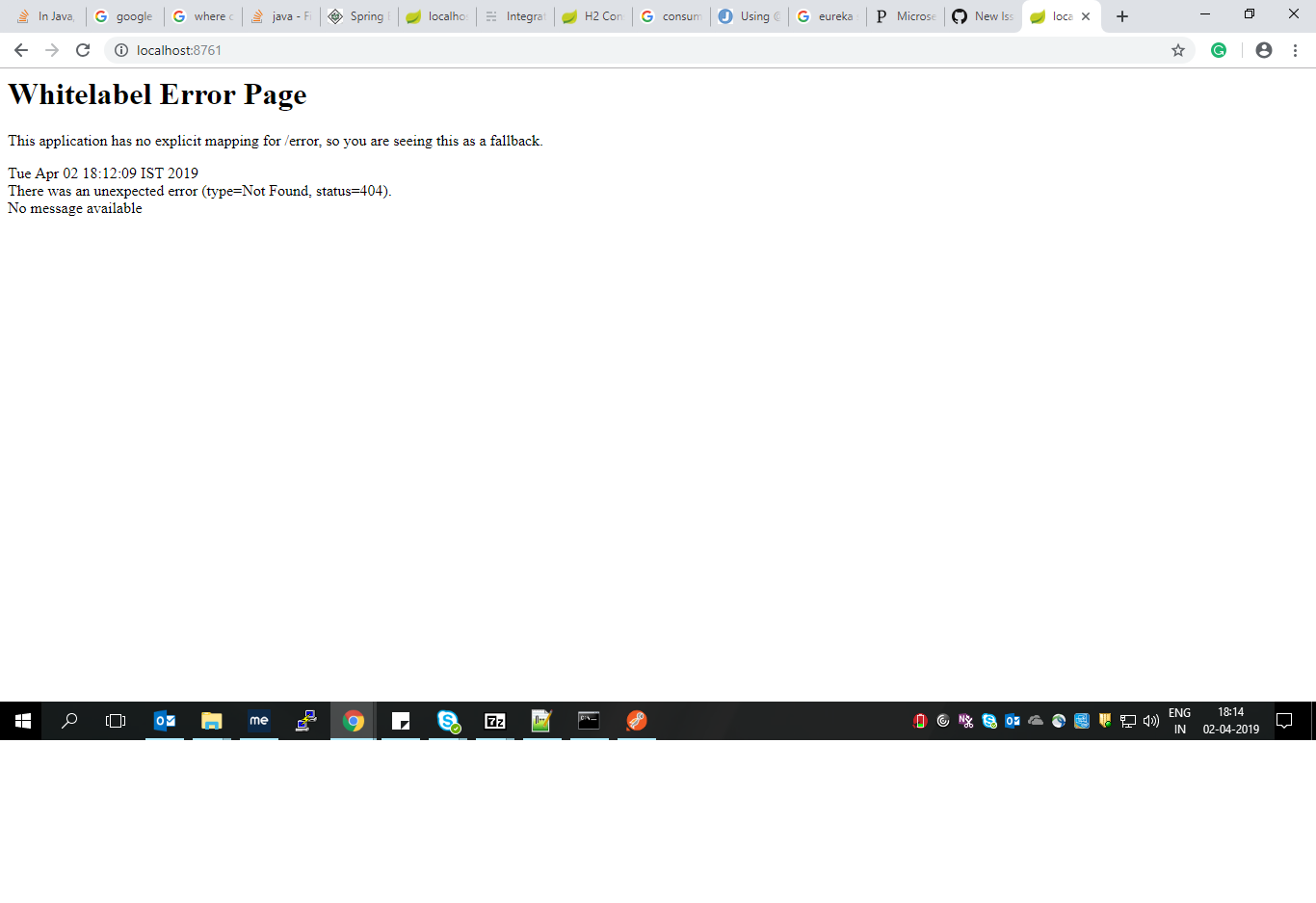

Whitelabel Error Page is showing.

[Tataraovoleti]

I m having same issue.
When i access http://localhost:8761/eureka/ getting 404 error

But my remaining services are able to register themselves with eureka registry. The only problem i could see dashboard is not coming up.

[OlgaMaciaszek]

Hello, @duraikutty @Tataraovoleti I have tried recreating the issue against the provided versions of Spring Cloud and Spring Boot and it worked ok for me. Maybe there's sth more you've missed while providing us your setup? In order to verify what is happening, I would suggest to temporarily set the logging level for Spring to DEBUG and check if any more details for the 404 can be found there.

If that does not help, please provide a minimal, complete, verifiable example that reproduces the issue.

[Tataraovoleti]

Hi @OlgaMaciaszek ,

build.gradle

`
plugins {
id 'org.springframework.boot' version '2.1.4.RELEASE'
id 'java'
}

apply plugin: 'io.spring.dependency-management'

group = 'com.tata.auth'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = '1.8'

repositories {
mavenCentral()
}

ext {
set('springCloudVersion', 'Greenwich.SR1')
}

dependencies {
implementation 'org.springframework.boot:spring-boot-starter-web'
implementation 'org.springframework.cloud:spring-cloud-starter-netflix-eureka-server'
implementation 'org.springframework.cloud:spring-cloud-starter-sleuth'
testImplementation 'org.springframework.boot:spring-boot-starter-test'
}

dependencyManagement {
imports {
mavenBom "org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}"
}
}
`

application.yml

spring: application: name: eureka-server server: port: 8761 logging: level: org.springframework.security: DEBUG eureka: client: fetch-registry: false register-with-eureka: false serviceUrl: defaultZone: http://localhost:8761/eureka/

and main class is annotated with
@SpringBootApplication
@EnableEurekaServer

[OlgaMaciaszek]

@Tataraovoleti I've recreated this setup (See the eureka-test-2.zip) and I can run it and launch the dashboard without any issues. We will really need either more info from the logs or a demo that reproduces the issue (github repo link or zip) to further verify it.

[spring-projects-issues]

If you would like us to look at this issue, please provide the requested information. If the information is not provided within the next 7 days this issue will be closed.

[spring-projects-issues]

Closing due to lack of requested feedback. If you would like us to look at this issue, please provide the requested information and we will re-open the issue.

[duckShooter]

I'm using Spring Boot 2.2.0 M3
This what i a get when i set the logging level of spring web to DEBUG

java.io.FileNotFoundException: class path resource [templates/] cannot be resolved to absolute file path because it does not reside in the file system: jar:file:/C:/Users/xx/.m2/repository/org/springframework/cloud/spring-cloud-netflix-eureka-server/2.2.0.BUILD-SNAPSHOT/spring-cloud-netflix-eureka-server-2.2.0.BUILD-20190620.080605-611.jar!/templates/
    at org.springframework.util.ResourceUtils.getFile(ResourceUtils.java:217) ~[spring-core-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.core.io.AbstractFileResolvingResource.getFile(AbstractFileResolvingResource.java:154) ~[spring-core-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.ui.freemarker.FreeMarkerConfigurationFactory.getTemplateLoaderForPath(FreeMarkerConfigurationFactory.java:345) [spring-context-support-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.ui.freemarker.FreeMarkerConfigurationFactory.createConfiguration(FreeMarkerConfigurationFactory.java:297) [spring-context-support-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.web.servlet.view.freemarker.FreeMarkerConfigurer.afterPropertiesSet(FreeMarkerConfigurer.java:120) [spring-webmvc-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.invokeInitMethods(AbstractAutowireCapableBeanFactory.java:1842) [spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.initializeBean(AbstractAutowireCapableBeanFactory.java:1779) [spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:593) [spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:515) [spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:320) [spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222) ~[spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:318) [spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:199) [spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:868) ~[spring-beans-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:877) ~[spring-context-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:549) ~[spring-context-5.2.0.M2.jar:5.2.0.M2]
    at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:142) ~[spring-boot-2.2.0.M3.jar:2.2.0.M3]
    at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:782) ~[spring-boot-2.2.0.M3.jar:2.2.0.M3]
    at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:404) ~[spring-boot-2.2.0.M3.jar:2.2.0.M3]
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:319) ~[spring-boot-2.2.0.M3.jar:2.2.0.M3]
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:1275) ~[spring-boot-2.2.0.M3.jar:2.2.0.M3]
    at org.springframework.boot.SpringApplication.run(SpringApplication.java:1263) ~[spring-boot-2.2.0.M3.jar:2.2.0.M3]
    at prolog.sim.ducktap.discoveryservice.DiscoveryServiceApplication.main(DiscoveryServiceApplication.java:12) ~[classes/:na]

This happens when using the most recent build (24/6/2019)
Downgrading to previous build versions works i.e. (10/6/2019)

[ryanjbaxter]

Sounds like a bad jar, try cleaning your maven repo and try again

[avanish29]

Hi @OlgaMaciaszek ,

build.gradle

`
plugins {
id 'org.springframework.boot' version '2.1.4.RELEASE'
id 'java'
}

apply plugin: 'io.spring.dependency-management'

group = 'com.tata.auth'
version = '0.0.1-SNAPSHOT'
sourceCompatibility = '1.8'

repositories {
mavenCentral()
}

ext {
set('springCloudVersion', 'Greenwich.SR1')
}

dependencies {
implementation 'org.springframework.boot:spring-boot-starter-web'
implementation 'org.springframework.cloud:spring-cloud-starter-netflix-eureka-server'
implementation 'org.springframework.cloud:spring-cloud-starter-sleuth'
testImplementation 'org.springframework.boot:spring-boot-starter-test'
}

dependencyManagement {
imports {
mavenBom "org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}"
}
}
`

application.yml

spring: application: name: eureka-server server: port: 8761 logging: level: org.springframework.security: DEBUG eureka: client: fetch-registry: false register-with-eureka: false serviceUrl: defaultZone: http://localhost:8761/eureka/

and main class is annotated with
@SpringBootApplication
@EnableEurekaServer

@Tataraovoleti I had the same issue after looking log file I can figure out the issue, you may have static and template folder inside your resource, Below is log highlighted for the same:

2019-07-22 15:40:22.623 DEBUG 24180 --- [nio-8080-exec-4] o.s.web.servlet.DispatcherServlet : GET "/", parameters={}
2019-07-22 15:40:22.624 DEBUG 24180 --- [nio-8080-exec-4] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped to org.springframework.cloud.netflix.eureka.server.EurekaController#status(HttpServletRequest, Map)
2019-07-22 15:40:22.627 DEBUG 24180 --- [nio-8080-exec-4] o.s.w.s.v.ContentNegotiatingViewResolver : Selected 'text/html' given [text/html, application/xhtml+xml, image/webp, image/apng, application/signed-exchange;v=b3, application/xml;q=0.9, /;q=0.8]
2019-07-22 15:40:22.627 DEBUG 24180 --- [nio-8080-exec-4] o.s.w.servlet.view.InternalResourceView : View name 'eureka/status', model {time=Mon Jul 22 15:40:22 CEST 2019, basePath=/, dashboardPath=, currentTime=2019-07-22T15:40:22 +0200, upTime=00:00, environment=test, datacenter=default, registry=org.springframework.cloud.netflix.eureka.server.InstanceRegistry@7609fcf4, isBelowRenewThresold=true, replicas=[localhost=http://localhost:8080/eureka/], apps=[], statusInfo=com.netflix.eureka.util.StatusInfo@4f4804ba, instanceInfo={ipAddr=10.222.38.14, status=UP}, applicationStats={registered-replicas=http://localhost:8080/eureka/, available-replicas=, unavailable-replicas=http://localhost:8080/eureka/,}, org.springframework.validation.BindingResult.registry=org.springframework.validation.BeanPropertyBindingResult: 0 errors, org.springframework.validation.BindingResult.statusInfo=org.springframework.validation.BeanPropertyBindingResult: 0 errors}
2019-07-22 15:40:22.627 DEBUG 24180 --- [nio-8080-exec-4] o.s.w.servlet.view.InternalResourceView : Forwarding to [eureka/status]
2019-07-22 15:40:22.628 DEBUG 24180 --- [nio-8080-exec-4] o.s.web.servlet.DispatcherServlet : "FORWARD" dispatch for GET "/eureka/status", parameters={}
2019-07-22 15:40:22.633 DEBUG 24180 --- [nio-8080-exec-4] o.s.w.s.handler.SimpleUrlHandlerMapping : Mapped to ResourceHttpRequestHandler ["classpath:/META-INF/resources/", "classpath:/resources/", "classpath:/static/", "classpath:/public/", "/"]
2019-07-22 15:40:22.636 DEBUG 24180 --- [nio-8080-exec-4] o.s.w.s.r.ResourceHttpRequestHandler : Resource not found
2019-07-22 15:40:22.636 DEBUG 24180 --- [nio-8080-exec-4] o.s.web.servlet.DispatcherServlet : Exiting from "FORWARD" dispatch, status 404
2019-07-22 15:40:22.636 DEBUG 24180 --- [nio-8080-exec-4] o.s.web.servlet.DispatcherServlet : Completed 404 NOT_FOUND
2019-07-22 15:40:22.637 DEBUG 24180 --- [nio-8080-exec-4] o.s.web.servlet.DispatcherServlet : "ERROR" dispatch for GET "/error", parameters={}
2019-07-22 15:40:22.637 DEBUG 24180 --- [nio-8080-exec-4] s.w.s.m.m.a.RequestMappingHandlerMapping : Mapped to org.springframework.boot.autoconfigure.web.servlet.error.BasicErrorController#errorHtml(HttpServletRequest, HttpServletResponse)
2019-07-22 15:40:26.268 DEBUG 24180 --- [nio-8080-exec-4] o.s.w.s.v.ContentNegotiatingViewResolver : Selected 'text/html' given [text/html, text/html;q=0.8]
2019-07-22 15:40:26.268 DEBUG 24180 --- [nio-8080-exec-4] o.s.web.servlet.DispatcherServlet : Exiting from "ERROR" dispatch, status 404
2019-07-22 15:40:32.975 INFO 24180 --- [a-EvictionTimer] c.n.e.registry.AbstractInstanceRegistry : Running the evict task with compensationTime 0ms

[JainNaveen94]

Hi to all,
I am facing the same issue,
Could any one help me out there.

Resolved [feign.RetryableException: connect timed out executing GET http://currency-exchange-service/currency-exchange/from/USD/to/INR] occured

here, i didn't get why http://currency-exchange-service/currency-exchange/from/USD/to/INR called instead http://localhost:8000/currency-exchange/from/USD/to/INR

[kfrajtak]

If you generate the Spring project using Spring Initializer the dashboard won't open ending in "Whitelabel Error Page".
No need for MVP, just go there and generate it.

[komal3770]

spring.freemarker.template-loader-path= classpath:/templates/
spring.freemarker.prefer-file-system-access= false

Add this lines in application.properties and error will be gone
