Snapcast: UTF-8 device names don't write to console correctly

[vjdw]

Describe the bug
On Windows when the audio device name includes UTF-8 characters then snapclient -l prints a corrupt version of the device name.

Steps to Reproduce

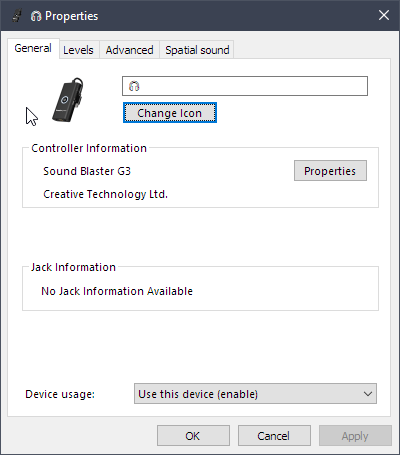

1. On Windows open "Additional device properties" for an audio device.
2. Change the name of the device to a UTF-8 character for example 🎧
3. Run snapclient -l
4. The 🎧 character in the device name gets output as Ýá╝Ý¥º

Environment details

• OS: Windows 10
• Snapcast version 0.22.0

This affects the player list in Snap.Net as described here.

[vjdw]

I think using setlocale(LC_ALL, ".UTF8") as described in this issue might solve this. I've been trying to test this but have given up trying to get snapcast to build on Windows :-(

[badaix]

Could be fixed 55f7d05
Please try with the development snapshot in actions

[stijnvdb88]

Looks like we were reading the same StackOverflow article @badaix ! :D I tried this the other day but it caused some weird behaviour - tried again now from develop branch and it seems the same. The "weird behaviour" being that snapclient -l appears to print nothing in Windows command prompt now (PowerShell too), though if you pipe the output to a file it does show up. Still with the wrong encoding, though...

@vjdw could you tell us which part of the build process you're having trouble with? I wrote some notes here a while back but it sounds like those may need some updating :)

[stijnvdb88]

Had a second look now, removing the setvbuf() call fixes that weird behaviour I mentioned, and I was wrong about the encoding. Greek characters come out fine, even without SetConsoleOutputCP(CP_UTF8); - but the character OP is using doesn't.

Just to confirm that this is possible, with https://github.com/frgnca/AudioDeviceCmdlets, the character comes out fine after being piped to a file (not in PowerShell itself because the default font doesn't have that character)

Edit: forgot to mention that setLocale didn't do the trick either :)

[badaix]

@stijnvdb88 I don't know how important the setbuf is regarding "chopping up UTF-8 byte sequences". Maybe a std::flush would also fix the weird behavior?
Agree, the build process issue it the more interesting one :)
I was following the Windows compile how-to when I've added the Windows workflow file. There is a difference in the call to cmake:

cmake -S . -B build -G "Visual Studio 16 2019" -DCMAKE_TOOLCHAIN_FILE="$env:VCPKG_INSTALLATION_ROOT/scripts/buildsystems/vcpkg.cmake" -DVCPKG_TARGET_TRIPLET="x64-windows" -DCMAKE_BUILD_TYPE="Release"don

vs

cmake .. -DCMAKE_TOOLCHAIN_FILE=<vcpkg_dir>/scripts/buildsystems/vcpkg.cmake

I don't know if the DVCPKG_TARGET_TRIPLET and -G parameters are needed or not (don't remember where it is coming from, maybe I've copied it from stijnvdb88's travis.yml file)

[vjdw]

@vjdw could you tell us which part of the build process you're having trouble with? I wrote some notes here a while back but it sounds like those may need some updating :)

@stijnvdb88 Yes thanks, those are the notes I've been using. I haven't used vcpkg or cmake before so I'm probably doing something obviously wrong. When I run

vcpkg.exe install libflac libvorbis soxr opus boost-asio --triplet x64-windows

There are no warning or errors, it says, for example

[...]
Package libflac:x64-windows is already installed
[...]
The package libflac:x64-windows provides CMake targets:
[...]

When I run

cmake.exe .. -DCMAKE_TOOLCHAIN_FILE=../../vcpkg/scripts/buildsystems/vcpkg.cmake

I get this output, which tells me dependencies are missing (and then the build fails in the next step because of that)

-- Selecting Windows SDK version 10.0.18362.0 to target Windows 10.0.19042.
-- REQUIRED (missing: FLAC_INCLUDE_DIRS FLAC_LIBRARIES)
-- REQUIRED (missing: OGG_INCLUDE_DIRS OGG_LIBRARIES)
-- REQUIRED (missing: VORBIS_INCLUDE_DIRS VORBIS_LIBRARIES)
-- REQUIRED (missing: OPUS_INCLUDE_DIRS OPUS_LIBRARIES)
-- REQUIRED (missing: SOXR_INCLUDE_DIRS SOXR_LIBRARIES)
-- Configuring done
-- Generating done
-- Build files have been written to: C:/Users/vince/source/snapcast/build

vcpkg is downloading the packages, so why can't cmake can't find them?

[stijnvdb88]

@vjdw oh, cmake might be defaulting those libraries to x86...and obviously not finding them since we're explicitly downloading just the x64 ones :D that would also explain why we have -DVCPKG_TARGET_TRIPLET="x64-windows" in the build routines as badaix mentioned - definitely needs updating in the documentation! Does it work if you set -DVCPKG_TARGET_TRIPLET="x64-windows" in the cmake command?

[vjdw]

Does it work if you set -DVCPKG_TARGET_TRIPLET="x64-windows" in the cmake command?

@stijnvdb88 That gives

CMake Warning:
  Manually-specified variables were not used by the project:
    VCPKG_TARGET_TRIPLET

and just to see what happens I put set(VCPKG_TARGET_TRIPLET "x64-windows") in both CMakeLists.txt and vcpkg.cmake but it had no effect, I still get the missing package errors.

[vjdw]

@stijnvdb88 I have the build working! I inserted the following on line 12 in CMakeLists.txt

include("C:/Users/vince/source/vcpkg/scripts/buildsystems/vcpkg.cmake")

Now I can exeriement with setlocale, but it sounds like you guys have already shown it's not that simple.

[stijnvdb88]

great!! not sure why that line would be required, -DCMAKE_TOOLCHAIN_FILE= should've taken care of that...unless it didn't like the relative path?

an extra set of eyes will be more than useful! I'm starting to think the issue might not be the output, but the way we read it from wasapi.

in wasapi_player.cpp, we use wstring_convert like this:

hr = properties->GetValue(PKEY_Device_FriendlyName, &deviceName);
desc.description = wstring_convert<codecvt_utf8<wchar_t>, wchar_t>().to_bytes(deviceName.pwszVal);

tried changing that to codecvt_utf8_utf16 earlier today in case the api is actually giving us utf16 there, but still no joy. Either way I think you're onto something with the setlocale, I keep running into that when trying to find more info about how to deal with emojis

Edit: just out of curiosity @vjdw , could you try -DCMAKE_TOOLCHAIN_FILE=../vcpkg/scripts/buildsystems/vcpkg.cmake ? (going up one less dir from the working directory than before). it just occurred to me now that cmake is probably not using the current working directory (/build) as a starting point, but rather the directory we pass to cmake (/..) 😄

[vjdw]

Think I've got it.

In wasapi_player.cpp:

using converter = wstring_convert<codecvt_utf8_utf16<wchar_t>, wchar_t>;
desc.description = converter{}.to_bytes(deviceName.pwszVal);

Plus the call to SetConsoleOutputCP(CP_UTF8) in snapclient.cpp.

You also need to use something like Windows Terminal because a standard Powershell console doesn't know how to display the glyphs.

Snap.Net Player still isn't right, but at least it's now displaying an ASCII representation of the UTF-8 which is something to work with.

[stijnvdb88]

haha well done! seems I had the solution without realizing it, good idea to use something other than Powershell!
As for Snap.Net, try the development branch - that part got fixed this morning :)

[badaix]

@vjdw will you make a PR for this?

[vjdw]

@vjdw will you make a PR for this?

Yes, I'll put something together.

[badaix]

thanks, it's merged :+1:
What about snapclient.cpp:

            // Set console code page to UTF-8 so console known how to interpret string data
            SetConsoleOutputCP(CP_UTF8);
            // Enable buffering to prevent VS from chopping up UTF-8 byte sequences
            setvbuf(stdout, nullptr, _IOFBF, 1000);

Can this get removed? The second line or both?

[vjdw]

No, I found that the first line is required so that the console knows that it's dealing with UTF-8. Remember that you also need to be using a modern console to see the unicode characters, e.g. Microsoft Terminal with Powershell Core.

From what I've read the second line is also recommended as per the comment. Also frequent flushes are recommended to avoid the buffer filling and then one unicode character's bytes can become split over 2 flushes, if that makes sense? In this case I think we're ok because we don't write very much to stdout and then exit which flushes buffers anyway.

[badaix]

I'm just afraid of the weird behavior that stijnvdb88 observed, so I tend to remove it, but I'm not sure.

[vjdw]

You could remove setvbuf and I doubt it will cause any problems. As long as you think we can keep SetConsoleOutputCP?

[badaix]

Yes, from my understanding SetConsoleOutputCP is required, so we will keep it. Then I will remove the second line (the setvbuf). I don't think that the "chopping" will affect us, since there are only very few utf-8 characters logged in Snapclient.
Sorry for asking what's necessary and what not, I don't have a Windows machine (just one in the office without development environment).

[stijnvdb88]

@badaix I think it's fine now actually - I had a quick look at the build after @vjdw 's PR here https://github.com/badaix/snapcast/actions/runs/399079795 and snapclient --list works okay :) it seems somehow the setvbuf call by itself caused that weird behaviour, but in combination with the PR it's alright again.

could you confirm this @vjdw?

[badaix]

ok, great, I will leave it in

[vjdw]

I can confirm I've tested it and I don't see any weirdness!
