Skywalking: Integration test before 5.0.0 beta2 release

Created on 27 Jun 2018  路  11Comments  路  Source: apache/skywalking

Hi, everyone,

I think 5.0.0 beta2 features prvovided and bugs fixed. Now, please start integration test for our next release. This will be the last feature provided version before 5.0.0 GA.

Let's stable our release for GA. @ascrutae @candyleer @liuhaoyang

Thanks everyone contributes to the community.

high priority
Source
picture wu-sheng

Most helpful comment

All test had passed, and all issue had been fixed. I think that the 5.0.0-beta2 is ready for release.

picture ascrutae on 29 Jun 2018
🎉2

All 11 comments

The process of test case as following: portal service receive key from http request, and it call the cache query service and query the key on the mysql service. finally update the cache by the new key. BTW, there are three layer on cache service: Redis, embed h2 database and mongo DB. The call graph as following:

wx20170412-163927 2x

Portal Server: Entry of test case. Portal Server run in tomcat container.

Cache Server: Cache service provide query and update cache. and it run in motan.
NOTE: It will start H2 database when the server start

Persistence Server: Persistence service provide query data from mysql, and it initial data when persistence service start. it run in Dubbo with rest protocol.

ascrutae picture ascrutae on 27 Jun 2018

Report @ 2018/06/27

the prefix description of Issue:

|prefix|description|
|:---|:---|
|[AGENT] | This prefix represent that this issue is an agent issue|
|[COLLECTOR]| This prefix represent that this issue is a collector issue|
|[UI]| This prefix represent that this issue is an UI issue|
|[UNKNOWN]| This prefix represent that everyone should pay attention to this issue|
|[APP_STANDBY]| This prefix represent that this issue happened after server started|
|[APP_SERVICE_PROVIDED]|This prefix represent that this issue happened after call service|

Issue

Topology

  • [COLLECTOR] The topology is incorrect.
    expect: the 192.168.5.38:20880 node and 192.168.5.38:18002 node don't display in topology.

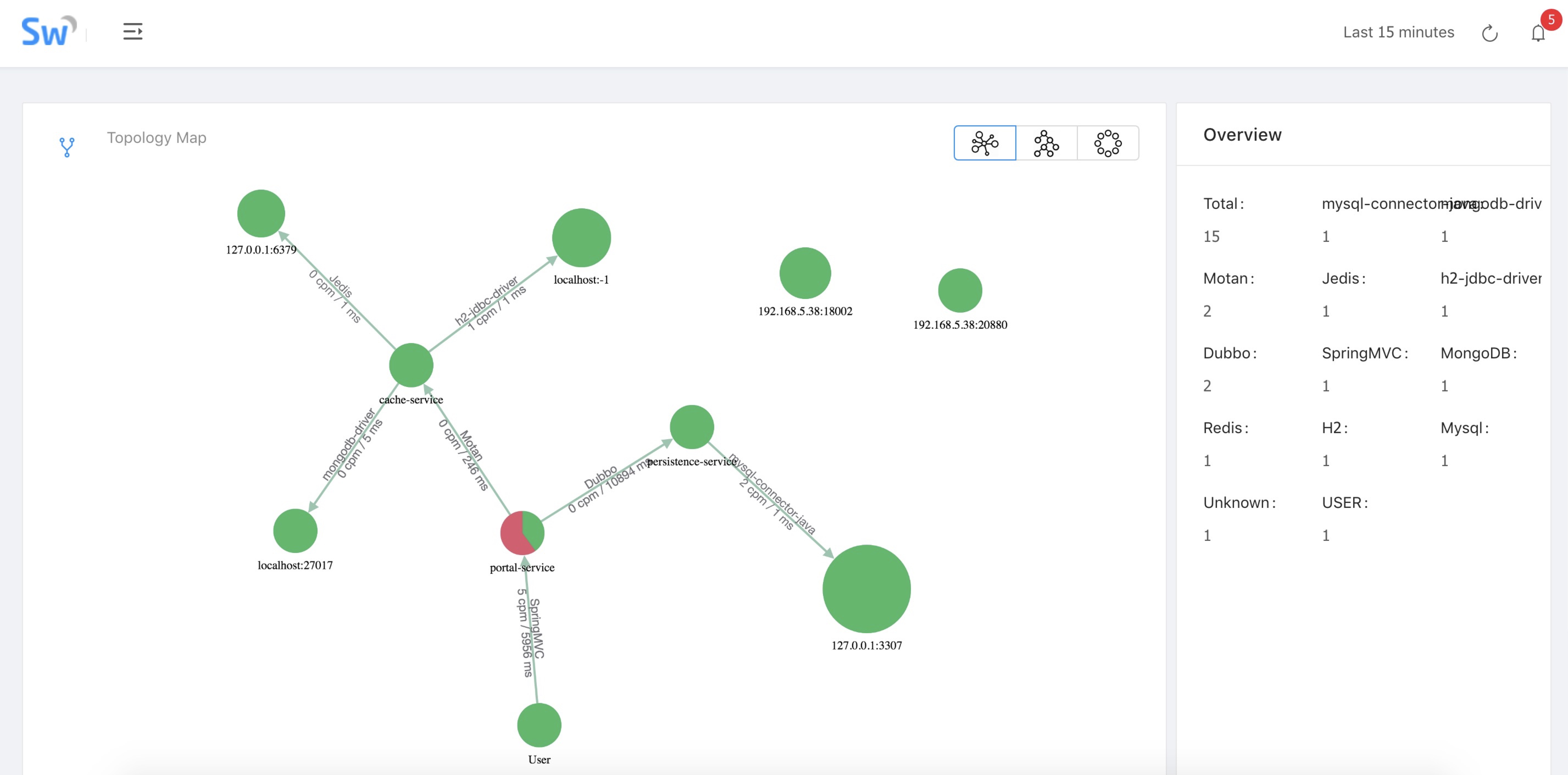

    Screen snapshot:
    327851530075795_ pic_hd

api: /api/topology

request:

{"variables":{"duration":{"start":"2018-06-27 1247","end":"2018-06-27 1302","step":"MINUTE"}},"query":"\n    query Topology($duration: Duration!) {\n      getClusterTopology(duration: $duration) {\n        nodes {\n          id\n          name\n          type\n          ... on ApplicationNode {\n            sla\n            cpm\n            avgResponseTime\n            apdex\n            isAlarm\n            numOfServer\n            numOfServerAlarm\n            numOfServiceAlarm\n          }\n        }\n        calls {\n          source\n          target\n          isAlert\n          callType\n          cpm\n          avgResponseTime\n        }\n      }\n    }\n  "}

response:

{"data":{"getClusterTopology":{"nodes":[{"id":"-5","name":"localhost:27017","type":"mongodb-driver","sla":100,"cpm":2,"avgResponseTime":5,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-4","name":"192.168.5.38:18002","type":"Motan","sla":100,"cpm":4,"avgResponseTime":246,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-3","name":"127.0.0.1:6379","type":"Jedis","sla":100,"cpm":3,"avgResponseTime":1,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-2","name":"localhost:-1","type":"h2-jdbc-driver","sla":100,"cpm":6,"avgResponseTime":1,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-1","name":"persistence-service","type":"Dubbo","sla":100,"cpm":0,"avgResponseTime":10894,"apdex":50,"isAlarm":false,"numOfServer":1,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"2","name":"cache-service","type":"Motan","sla":100,"cpm":0,"avgResponseTime":77,"apdex":100,"isAlarm":false,"numOfServer":1,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"3","name":"portal-service","type":"SpringMVC","sla":40,"cpm":0,"avgResponseTime":5956,"apdex":75,"isAlarm":false,"numOfServer":1,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"4","name":"127.0.0.1:3307","type":"mysql-connector-java","sla":100,"cpm":4,"avgResponseTime":2,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"5","name":"192.168.5.38:20880","type":"Dubbo","sla":100,"cpm":2,"avgResponseTime":11532,"apdex":0,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-5","name":"localhost:27017","type":"MongoDB"},{"id":"-3","name":"127.0.0.1:6379","type":"Redis"},{"id":"-2","name":"localhost:-1","type":"H2"},{"id":"4","name":"127.0.0.1:3307","type":"Mysql"},{"id":"1","name":"User","type":"Unknown","sla":100,"cpm":0,"avgResponseTime":0,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"1","name":"User","type":"USER"}],"calls":[{"source":"3","target":"2","isAlert":false,"callType":"Motan","cpm":0,"avgResponseTime":246},{"source":"3","target":"-1","isAlert":false,"callType":"Dubbo","cpm":0,"avgResponseTime":10894},{"source":"3","target":"2","isAlert":false,"callType":"Motan","cpm":0,"avgResponseTime":77},{"source":"3","target":"-1","isAlert":false,"callType":"Dubbo","cpm":0,"avgResponseTime":11532},{"source":"2","target":"-5","isAlert":false,"callType":"mongodb-driver","cpm":0,"avgResponseTime":5},{"source":"2","target":"-3","isAlert":false,"callType":"Jedis","cpm":0,"avgResponseTime":1},{"source":"2","target":"-2","isAlert":false,"callType":"h2-jdbc-driver","cpm":0,"avgResponseTime":1},{"source":"-1","target":"4","isAlert":false,"callType":"mysql-connector-java","cpm":0,"avgResponseTime":2},{"source":"1","target":"3","isAlert":false,"callType":"SpringMVC","cpm":5,"avgResponseTime":5956},{"source":"1","target":"3","isAlert":false,"callType":"","cpm":0,"avgResponseTime":5956}]}}}

~### Service~
~* [COLLECTOR] [UI] Some trouble with the protocol between UI and collector.~

~api: /api/service/search~

~request:~

~{"variables":{"keyword":""},"query":"\n query SearchService($keyword: String!) {\n searchService(keyword: $keyword, topN: 10) {\n key: id\n label: name\n }\n }\n "}~

~response:~
~{"errors":[{"message":"Validation error of type MissingFieldArgument: Missing field argument applicationId"}]}~

Application

  • [COLLECTOR] The topology is incorrect.

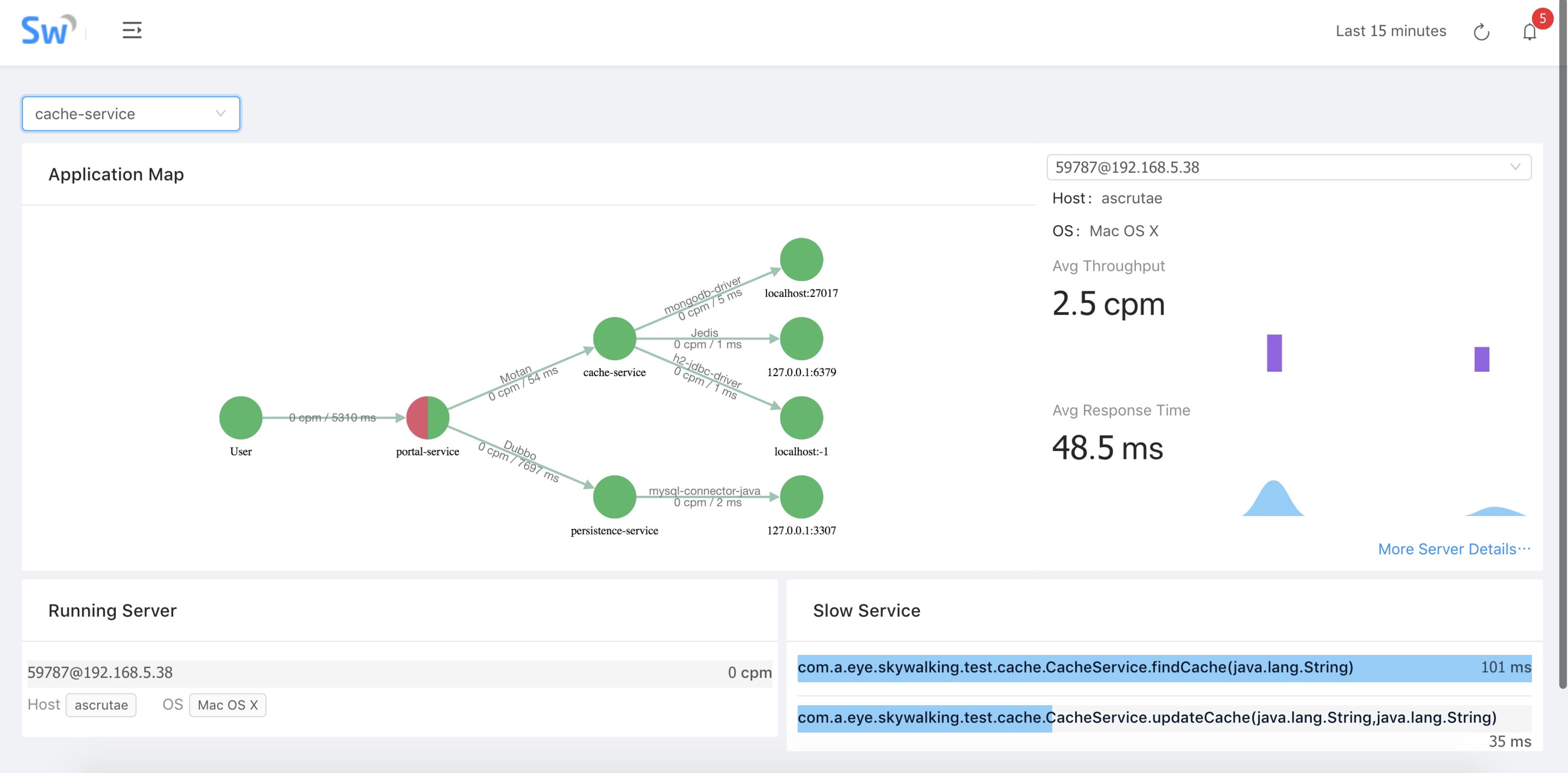

screen snapshot:
327911530076342_ pic_hd

api: /api/application

request:

{"variables":{"duration":{"start":"2018-06-27 1254","end":"2018-06-27 1309","step":"MINUTE"},"applicationId":"2"},"query":"\n  query Application($applicationId: ID!, $duration: Duration!) {\n    getSlowService(applicationId: $applicationId, duration: $duration, topN: 10) {\n      key: id\n      label: name\n      value: avgResponseTime\n    }\n    getServerThroughput(applicationId: $applicationId, duration: $duration, topN: 999999) {\n      key: id\n      osName\n      host\n      pid\n      ipv4\n      value: cpm\n    }\n    getApplicationTopology(applicationId: $applicationId, duration: $duration) {\n      nodes {\n        id\n        name\n        type\n        ... on ApplicationNode {\n          sla\n          cpm\n          avgResponseTime\n          apdex\n          isAlarm\n          numOfServer\n          numOfServerAlarm\n          numOfServiceAlarm\n        }\n      }\n      calls {\n        source\n        target\n        isAlert\n        callType\n        cpm\n        avgResponseTime\n      }\n    }\n  }\n"}

response:

{"data":{"getSlowService":[{"key":"4","label":"com.a.eye.skywalking.test.cache.CacheService.findCache(java.lang.String)","value":101},{"key":"9","label":"com.a.eye.skywalking.test.cache.CacheService.updateCache(java.lang.String,java.lang.String)","value":35}],"getServerThroughput":[{"key":"3","osName":"Mac OS X","host":"ascrutae","pid":59787,"ipv4":["192.168.5.38","172.16.2.88"],"value":0}],"getApplicationTopology":{"nodes":[{"id":"-5","name":"localhost:27017","type":"mongodb-driver","sla":100,"cpm":4,"avgResponseTime":5,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-3","name":"127.0.0.1:6379","type":"Jedis","sla":100,"cpm":5,"avgResponseTime":1,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-2","name":"localhost:-1","type":"h2-jdbc-driver","sla":100,"cpm":10,"avgResponseTime":1,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-1","name":"persistence-service","type":"Dubbo","sla":100,"cpm":0,"avgResponseTime":7265,"apdex":66,"isAlarm":false,"numOfServer":1,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"2","name":"cache-service","type":"Motan","sla":100,"cpm":0,"avgResponseTime":54,"apdex":100,"isAlarm":false,"numOfServer":1,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"3","name":"portal-service","type":"Tomcat","sla":50,"cpm":0,"avgResponseTime":5310,"apdex":75,"isAlarm":false,"numOfServer":1,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"4","name":"127.0.0.1:3307","type":"mysql-connector-java","sla":100,"cpm":6,"avgResponseTime":2,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"-5","name":"localhost:27017","type":"MongoDB"},{"id":"-3","name":"127.0.0.1:6379","type":"Redis"},{"id":"-2","name":"localhost:-1","type":"H2"},{"id":"4","name":"127.0.0.1:3307","type":"Mysql"},{"id":"1","name":"User","type":"Unknown","sla":100,"cpm":0,"avgResponseTime":0,"apdex":100,"isAlarm":false,"numOfServer":0,"numOfServerAlarm":0,"numOfServiceAlarm":0},{"id":"1","name":"User","type":"USER"}],"calls":[{"source":"3","target":"2","isAlert":false,"callType":"Motan","cpm":0,"avgResponseTime":171},{"source":"3","target":"-1","isAlert":false,"callType":"Dubbo","cpm":0,"avgResponseTime":7265},{"source":"3","target":"2","isAlert":false,"callType":"Motan","cpm":0,"avgResponseTime":54},{"source":"3","target":"-1","isAlert":false,"callType":"Dubbo","cpm":0,"avgResponseTime":7697},{"source":"2","target":"-5","isAlert":false,"callType":"mongodb-driver","cpm":0,"avgResponseTime":5},{"source":"2","target":"-3","isAlert":false,"callType":"Jedis","cpm":0,"avgResponseTime":1},{"source":"2","target":"-2","isAlert":false,"callType":"h2-jdbc-driver","cpm":0,"avgResponseTime":1},{"source":"-1","target":"4","isAlert":false,"callType":"mysql-connector-java","cpm":0,"avgResponseTime":2},{"source":"1","target":"3","isAlert":false,"callType":"Tomcat","cpm":-6,"avgResponseTime":5310},{"source":"1","target":"3","isAlert":false,"callType":"","cpm":0,"avgResponseTime":5310}]}}}

Trace

  • [COLLECTOR] [UI] Some trouble with the protocol between UI and collector.

api: /api/trace

request:

{"variables":{"condition":{"traceState":"ALL","queryOrder":"BY_START_TIME","paging":{"pageNum":1,"pageSize":20,"needTotal":true},"queryDuration":{"start":"2018-06-27 1258","end":"2018-06-27 1313","step":"MINUTE"}}},"query":"\n  query BasicTraces($condition: TraceQueryCondition) {\n    queryBasicTraces(condition: $condition) {\n      traces {\n        key: segmentId\n        operationName\n        duration\n        start\n        isError\n        traceIds\n      }\n      total\n    }\n  }\n"}

response:

{"errors":[{"message":"Validation error of type FieldUndefined: Field 'operationName' in type 'BasicTrace' is undefined"}]}

NOTE: Here is the ES Data

ascrutae picture ascrutae on 27 Jun 2018

The issues in Trace and Service belong to UI.

hanahmily picture hanahmily on 27 Jun 2018

@ascrutae You didn't update submodule skywalking-ui, causing graphql schema of Service didn't be synchronized.

hanahmily picture hanahmily on 27 Jun 2018

Sorry, this is my mistake. @hanahmily
But after I updated the latest code, The issue about the Trace page still happened, The issue about Service page don't happened but an new issue about Service page is coming, Here is the information about this issue.

Service

  • [COLLECTOR] [UI] Some trouble with the protocol between UI and collector.
    api: /api/service

request:

{"variables":{"serviceId":"-4","traceCondition":{"applicationId":"-2","operationName":"/cache/{key}","queryDuration":{"start":"2018-06-27 2014","end":"2018-06-27 2029","step":"MINUTE"},"paging":{"pageNum":1,"pageSize":20,"needTotal":false}}},"query":"\n  query Service($serviceId: ID!, $duration: Duration!, $traceCondition: TraceQueryCondition!) {\n    getServiceResponseTimeTrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    getServiceThroughputTrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    getServiceSLATrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    getTrace(condition: $traceCondition) {\n      traces {\n        key: segmentId\n        operationName\n        duration\n        start\n        isError\n        traceIds\n      }\n      total\n    }\n    getServiceTopology(serviceId: $serviceId, duration: $duration) {\n      nodes {\n        id\n        name\n        type\n        ... on ServiceNode {\n          sla\n          calls\n          numOfServiceAlarm\n        }\n      }\n      calls {\n        source\n        target\n        isAlert\n        callType\n        cpm\n        avgResponseTime\n      }\n    }\n  }\n"}

Response:

{"errors":[{"message":"Validation error of type FieldUndefined: Field 'getTrace' in type 'Query' is undefined"},{"message":"Validation error of type VariableTypeMismatch: Variable type doesn't match"}]}
ascrutae picture ascrutae on 27 Jun 2018

Report @ 2018/06/28

Service

  • [COLLECTOR] [UI] Some trouble with the protocol between UI and collector.

API: /api/service

Request:

{"variables":{"serviceId":"5","traceCondition":{"applicationId":"-2","operationName":"/cache/{key}","queryDuration":{"start":"2018-06-28 1244","end":"2018-06-28 1259","step":"MINUTE"},"traceState":"ALL","queryOrder":"BY_DURATION","paging":{"pageNum":1,"pageSize":20,"needTotal":false}}},"query":"\n  query Service($serviceId: ID!, $duration: Duration!, $traceCondition: TraceQueryCondition!) {\n    getServiceResponseTimeTrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    getServiceThroughputTrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    getServiceSLATrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    queryBasicTraces(condition: $traceCondition) {\n      traces {\n        key: segmentId\n        operationName\n        duration\n        start\n        isError\n        traceIds\n      }\n      total\n    }\n    getServiceTopology(serviceId: $serviceId, duration: $duration) {\n      nodes {\n        id\n        name\n        type\n        ... on ServiceNode {\n          sla\n          calls\n          numOfServiceAlarm\n        }\n      }\n      calls {\n        source\n        target\n        isAlert\n        callType\n        cpm\n        avgResponseTime\n      }\n    }\n  }\n"}

Response:

{"errors":[{"message":"Validation error of type FieldUndefined: Field 'operationName' in type 'BasicTrace' is undefined"}]}

Trace

  • [COLLECTOR] Some trouble with the trace query api .
    API: /api/trace

* Error Log*:

2018-06-28 13:04:58,489 - graphql.execution.SimpleDataFetcherExceptionHandler -527885 [qtp942217109-159] WARN  [] - Exception while fetching data (/queryBasicTraces) : java.util.ArrayList cannot be cast to java.lang.String
java.lang.ClassCastException: java.util.ArrayList cannot be cast to java.lang.String
    at org.apache.skywalking.apm.collector.storage.es.dao.ui.SegmentDurationEsUIDAO.loadTop(SegmentDurationEsUIDAO.java:109) ~[collector-storage-es-provider-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at org.apache.skywalking.apm.collector.ui.service.SegmentTopService.loadTop(SegmentTopService.java:60) ~[collector-ui-jetty-provider-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at org.apache.skywalking.apm.collector.ui.query.TraceQuery.queryBasicTraces(TraceQuery.java:80) ~[collector-ui-jetty-provider-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at org.apache.skywalking.apm.collector.ui.query.TraceQueryMethodAccess.invoke(Unknown Source) ~[reflectasm-1.11.3.jar:5.0.0-beta2-SNAPSHOT]
    at com.coxautodev.graphql.tools.MethodFieldResolverDataFetcher.get(MethodFieldResolver.kt:132) ~[graphql-java-tools-4.3.0.jar:?]
    at graphql.execution.ExecutionStrategy.fetchField(ExecutionStrategy.java:219) [graphql-java-6.0.jar:?]
    at graphql.execution.ExecutionStrategy.resolveField(ExecutionStrategy.java:165) [graphql-java-6.0.jar:?]
    at graphql.execution.AsyncExecutionStrategy.execute(AsyncExecutionStrategy.java:55) [graphql-java-6.0.jar:?]
    at graphql.execution.Execution.executeOperation(Execution.java:154) [graphql-java-6.0.jar:?]
    at graphql.execution.Execution.execute(Execution.java:98) [graphql-java-6.0.jar:?]
    at graphql.GraphQL.execute(GraphQL.java:546) [graphql-java-6.0.jar:?]
    at graphql.GraphQL.parseValidateAndExecute(GraphQL.java:488) [graphql-java-6.0.jar:?]
    at graphql.GraphQL.executeAsync(GraphQL.java:463) [graphql-java-6.0.jar:?]
    at graphql.GraphQL.execute(GraphQL.java:394) [graphql-java-6.0.jar:?]
    at org.apache.skywalking.apm.collector.ui.jetty.handler.GraphQLHandler.execute(GraphQLHandler.java:100) [collector-ui-jetty-provider-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at org.apache.skywalking.apm.collector.ui.jetty.handler.GraphQLHandler.doPost(GraphQLHandler.java:93) [collector-ui-jetty-provider-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at org.apache.skywalking.apm.collector.server.jetty.JettyJsonHandler.doPost(JettyJsonHandler.java:61) [server-component-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at javax.servlet.http.HttpServlet.service(HttpServlet.java:707) [javax.servlet-api-3.1.0.jar:3.1.0]
    at org.apache.skywalking.apm.collector.server.jetty.JettyJsonHandler.service(JettyJsonHandler.java:108) [server-component-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at javax.servlet.http.HttpServlet.service(HttpServlet.java:790) [javax.servlet-api-3.1.0.jar:3.1.0]
    at org.apache.skywalking.apm.collector.server.jetty.JettyJsonHandler.service(JettyJsonHandler.java:112) [server-component-5.0.0-beta2-SNAPSHOT.jar:5.0.0-beta2-SNAPSHOT]
    at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:841) [jetty-servlet-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:543) [jetty-servlet-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:188) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1239) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:168) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:481) [jetty-servlet-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:166) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1141) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:141) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.Server.handle(Server.java:564) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:320) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:251) [jetty-server-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:279) [jetty-io-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:110) [jetty-io-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.io.ChannelEndPoint$2.run(ChannelEndPoint.java:124) [jetty-io-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.util.thread.Invocable.invokePreferred(Invocable.java:122) [jetty-util-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.util.thread.strategy.ExecutingExecutionStrategy.invoke(ExecutingExecutionStrategy.java:58) [jetty-util-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.util.thread.strategy.ExecuteProduceConsume.produceConsume(ExecuteProduceConsume.java:201) [jetty-util-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.util.thread.strategy.ExecuteProduceConsume.run(ExecuteProduceConsume.java:133) [jetty-util-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:672) [jetty-util-9.4.2.v20170220.jar:9.4.2.v20170220]
    at org.eclipse.jetty.util.thread.QueuedThreadPool$2.run(QueuedThreadPool.java:590) [jetty-util-9.4.2.v20170220.jar:9.4.2.v20170220]
    at java.lang.Thread.run(Thread.java:745) [?:1.8.0_152-ea]

Request:

{"variables":{"condition":{"traceState":"ALL","queryOrder":"BY_START_TIME","queryDuration":{"start":"2018-06-28 1247","end":"2018-06-28 1302","step":"MINUTE"},"paging":{"pageNum":1,"pageSize":20,"needTotal":true}}},"query":"\n  query BasicTraces($condition: TraceQueryCondition) {\n    queryBasicTraces(condition: $condition) {\n      traces {\n        key: segmentId\n        operationNames\n        duration\n        start\n        isError\n        traceIds\n      }\n      total\n    }\n  }\n"}

Response:

{"data":{},"errors":[{"message":"Exception while fetching data (/queryBasicTraces) : java.util.ArrayList cannot be cast to java.lang.String"}]}
ascrutae picture ascrutae on 28 Jun 2018

Report @ 2018/06/28

Service

  • [UI] Some trouble with the protocol between UI and collector.
    API: /api/service

Request:

{"variables":{"serviceId":"9","traceCondition":{"applicationId":"-1","operationName":"com.a.eye.skywalking.test.cache.CacheService.updateCache(java.lang.String,java.lang.String)","queryDuration":{"start":"2018-06-28 1859","end":"2018-06-28 1914","step":"MINUTE"},"traceState":"ALL","queryOrder":"BY_DURATION","paging":{"pageNum":1,"pageSize":20,"needTotal":false}}},"query":"\n  query Service($serviceId: ID!, $duration: Duration!, $traceCondition: TraceQueryCondition!) {\n    getServiceResponseTimeTrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    getServiceThroughputTrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    getServiceSLATrend(serviceId: $serviceId, duration: $duration) {\n      trendList\n    }\n    queryBasicTraces(condition: $traceCondition) {\n      traces {\n        key: segmentId\n        operationNames\n        duration\n        start\n        isError\n        traceIds\n      }\n      total\n    }\n    getServiceTopology(serviceId: $serviceId, duration: $duration) {\n      nodes {\n        id\n        name\n        type\n        ... on ServiceNode {\n          sla\n          calls\n          numOfServiceAlarm\n        }\n      }\n      calls {\n        source\n        target\n        isAlert\n        callType\n        cpm\n        avgResponseTime\n      }\n    }\n  }\n"}

Response:

{"errors":[{"message":"Variable 'duration' has coerced Null value for NonNull type 'Duration!'"}]}

NOTE: Here is the ES

ascrutae picture ascrutae on 28 Jun 2018

All test had passed, and all issue had been fixed. I think that the 5.0.0-beta2 is ready for release.

ascrutae picture ascrutae on 29 Jun 2018
🎉2

http://49.4.12.44:8080/#/monitor/dashboard has been updated. And let's wait one or two days, for giving @liuhaoyang @candyleer some time to test before release.

wu-sheng picture wu-sheng on 29 Jun 2018

I have done the test, and the .NET Core Agent works well with the collector.

liuhaoyang picture liuhaoyang on 29 Jun 2018
👍1

I have checked online service on http://49.4.12.44:8080/, seems all components working great.

hanahmily picture hanahmily on 29 Jun 2018
🎉1
