Saleor: Additional Cloud Deployment Options

[raybesiga]

Is it possible to add guides for deployment on alternative cloud services?

I really like Heroku but I have an issue with how pricey it is to have SSL with a custom domain. Ideally, I would also like to host my Saleor instance on a different cloud provider, say Digital Ocean or Google Cloud Compute.

Does anyone have a written guide for alternative cloud deployments?

This is only a request. Thank you.

[patrys]

There's a Dockerfile in the repository so you can readily deploy to any Docker-capable cloud (including Google Cloud). You can also follow our deployment docs and Django's standard deployment procedures to get it running on any host, physical or virtual, as long as it's running Linux.

[raybesiga]

Hi @patrys so I can deploy to any Docker capable cloud with Linux but I would still have to use AWS for the media files, right? I hope this is not a dumb question.

[patrys]

You're not forced to use S3, it's just convenient to do so, especially if you're deploying the Docker container to AWS infrastructure and can utilize features like Elastic Load Balancer and CloudFront. You can however use local media directory (and map it to a volume outside of your Docker container as Docker storage is volatile) or use a different backend from django-storages.

We would very much welcome a pull request that adds some of this information to our docs 😉

[raybesiga]

Noted @patrys I will update the docs once I am able to a solid deployment and have documented it.

[jdivins]

Hi @raybesiga have you already got a solid deployment, and a documentation of it?
Thank you!

[raybesiga]

Hi @jdivins I am about to make a new deployment in about 10 days on both Heroku and AWS. I will make sure to document it thoroughly and then share that in a PR. Regards.

[jdivins]

And what about Google Cloud? I have found https://cloud.google.com/python/django/ could be a good start point?

[raybesiga]

This is a great option as well but I have not explored it. Do you have any experience with it @jdivins?

[jdivins]

Not with saleor. Maybe with the documentation https://cloud.google.com/python/django/ and with the saleor deployment documentation we can achieve it, if anyone hasn't done it yet.

[raybesiga]

Do you want to start on it? I am a little busy at the moment but maybe I can join to help down the line @jdivins

[jdivins]

Sorry for no response @raybesiga I am waiting for this PR #2702 It was a recomendation of @stephenmoloney in this issue: #2694

[stephenmoloney]

I'm currently working on a saleor helm chart. It's still WIP. You can find the work here
https://github.com/stephenmoloney/saleor-helm/tree/master/deployment/helm

I will update the PR #2702 once I've completed the roadmap.

[jdivins]

Thank you very much @stephenmoloney !

[chetabahana]

By GCP we can do it on GAE Flexible Environtment with _custom runtimes_.

1. Build image with docker and place it to _GCR_. Name it: saleor and tag: latest
   (I use _Codefresh_. You can get US$ 500 credits on Google Free Tier there)
2. Create Postgres in Cloud SQL. Add user/password/database: saleor
3. Then you may try to deploy at your _Console Cloudshell_ like this:

$ git clone https://github.com/mirumee/saleor.git
$ cd saleor
$ sudo cat <<EOF app.yaml >/dev/null
env: flex
runtime: custom
entrypoint: safe_load(stream)
env_variables:
  SECRET_KEY: [DJANGO_SECRET_KEY]
  ALLOWED_HOSTS: [PROJECT_ID].appspot.com
  DATABASE_URL: 'postgresql://saleor:[email protected]:5432/saleor'
beta_settings:
  cloud_sql_instances: [PROJECT_ID]:[REGION]:[CLOUD_SQL_INSTANCE_NAME]=tcp:5432
EOF
$ gcloud app deploy --image-url=gcr.io/[PROJECT_ID]/saleor:latest
$ gcloud app instances enable-debug

Akses app instances by SSH :

Then run:

~$ sudo docker exec -it gaeapp /bin/bash
root@id:/app# python manage.py migrate
root@id:/app# python manage.py populatedb
root@id:/app# python manage.py createsuperuser
root@id:/app# exit

Point your browser to https://[PROJECT_ID].appspot.com

In case any problem please see the step on database connection or docker containers for more details.

[chuanman2707]

By GCP we can do it on GAE Flexible Environtment with _custom runtimes_.

1. Build image with docker and place it to _GCR_. Name it: saleor and tag: latest
   (I use _Codefresh_. You can get US$ 500 credits on Google Free Tier there)
2. Create Postgres in Cloud SQL. Add user/password/database: saleor
3. Then you may try to deploy at your _Console Cloudshell_ like this:

$ git clone https://github.com/mirumee/saleor.git
$ cd saleor
$ sudo cat <<EOF app.yaml >/dev/null
env: flex
runtime: custom
entrypoint: safe_load(stream)
env_variables:
  SECRET_KEY: [DJANGO_SECRET_KEY]
  ALLOWED_HOSTS: [PROJECT_ID].appspot.com
  DATABASE_URL: 'postgresql://saleor:[email protected]:5432/saleor'
beta_settings:
  cloud_sql_instances: [PROJECT_ID]:[REGION]:[CLOUD_SQL_INSTANCE_NAME]=tcp:5432
EOF
$ gcloud app deploy --image-url=gcr.io/[PROJECT_ID]/saleor:latest --version=v1
$ gcloud app instances enable-debug
Akses app instances by SSH :~$ sudo docker exec -it gaeapp /bin/bash
root@id:/app# python manage.py migrate
root@id:/app# python manage.py populatedb
root@id:/app# python manage.py createsuperuser
root@id:/app# exit

Point your browser to https://[PROJECT_ID].appspot.com

Hey,
I'm following exactly what you did, but got a problem with python manage.py migrate step.
django.db.utils.OperationalError: could not connect to server: Connection timed out Is the server running on host "xxxxxxxxxxxx" and accepting TCP/IP connections on port 5432?
Seem like my app engine couldn't connect to cloud SQL.

[chetabahana]

Hey,
I'm following exactly what you did, but got a problem with python manage.py migrate step.

  Is the server running on host "xxxxxxxxxxxx" and accepting
  TCP/IP connections on port 5432?```
Seem like my app engine couldn't connect to cloud SQL.

@chuanman2707
Here are some points to check connection:

• To run Cloud SQL, you need to Enable Billing and SQL Admin API
• Follow Quickstart to create PostgreSQL on Cloud SQL.
• Make user: saleor with password: saleor and database: saleor
• Check connection to the instance using gcloud sql

~$ gcloud sql connect [CLOUD_SQL_INSTANCE_NAME] --user=saleor

• The response should be like this

Whitelisting your IP for incoming connection for 5 minutes...done.
Connecting to database with SQL user [saleor].
Password for user saleor: _
psql (9.6.10)
SSL connection (protocol: TLSv1.2, cipher: ECDHE-RSA-AES128-GCM-SHA256,
bits: 128, compression: off)
Type "help" for help.

saleor=> \q

• Describe the instance using command below and copy the value of: connectionName

~$ gcloud sql instances describe [CLOUD_SQL_INSTANCE_NAME]

• Put the value in beta_settings of your app.yaml to enable the proxy via TCP port:

beta_settings:
  cloud_sql_instances: [PROJECT_ID]:[REGION]:[CLOUD_SQL_INSTANCE_NAME]=tcp:5432

• Check the port of Cloud Proxy by Enable Debugging the Instance

~$ gcloud app instances enable-debug

• Connect to the instance via SSH button that is shown in your console


• Run this command to obtain docker containers that are running:

<user>@<instance_id>: $ sudo docker ps

It will show that one of containers is running sql-proxy for Cloud SQL

CONTAINER ID        IMAGE                                    COMMAND
ba72d25928cd        gcr.io/[PROJECT_ID]/saleor                "uwsgi --ini /app/sa…"
c0fdcc8ecab0        gcr.io/google-appengine/api-proxy        "/proxy"

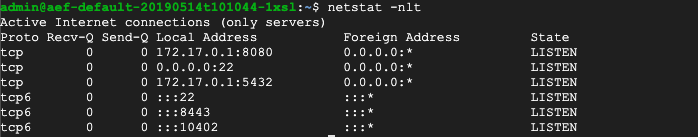

• Run netstat command to check the address of the container that running proxy

<user>@<instance_id>: $ netstat -nlt

It will response like this:

Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 172.17.0.1:8080         0.0.0.0:*               LISTEN
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN
tcp        0      0 172.17.0.1:5432         0.0.0.0:*               LISTEN
tcp6       0      0 :::22                   :::*                    LISTEN
tcp6       0      0 :::8443                 :::*                    LISTEN
tcp6       0      0 :::10402                :::*                    LISTEN

• Check the connection to Cloud SQL via psql to the local address of the port: 5432

<user>@<instance_id>: $ psql postgresql://saleor:[email protected]:5432/saleor
saleor-# \q

• Put the local address on env_variable of DATABASE_URL in your app.yaml:

DATABASE_URL: postgresql://saleor:[email protected]:5432/saleor

• Redeploy the image

~$ gcloud app deploy --image-url=gcr.io/[PROJECT_ID]/saleor:latest

• When the connection is in place you shall be able to migrate via the SSH

<user>@<instance_id>: $ sudo docker exec -it gaeapp /bin/bash
root@id:/app# python manage.py migrate
root@id:/app# python manage.py populatedb
root@id:/app# python manage.py createsuperuser
root@id:/app# exit

Note:

• ~$ means the terminal is on your cloud shell or on your local pc
• <user>@<instance_id>: $ means the terminal when connected to your instance
• root@id:/app# means the terminal when acsessing docker container that is running in your instance

[chuanman2707]

@chetabahana thanks mate i think i found my mistake, in DATABASE_URL instead of putting exactly 172.17.0.1 i did put my cloud sql public ip in there.
by the way do you know how to serves static files using google cloud storages bucket ? it would be nice if you have tutorial to do so.

[chetabahana]

@chetabahana thanks mate i think i found my mistake, in DATABASE_URL instead of putting exactly 172.17.0.1 i did put my cloud sql public ip in there.
by the way do you know how to serves static files using google cloud storages bucket ? it would be nice if you have tutorial to do so.

@chuanman2707
I'm working on it but in the mean time you may follow PR#2626 which detail can be viewed _here_.

[acabezasg]

By GCP we can do it on GAE Flexible Environtment with _custom runtimes_.

1. Build image with docker and place it to _GCR_. Name it: saleor and tag: latest
   (I use _Codefresh_. You can get US$ 500 credits on Google Free Tier there)
2. Create Postgres in Cloud SQL. Add user/password/database: saleor
3. Then you may try to deploy at your _Console Cloudshell_ like this:

$ git clone https://github.com/mirumee/saleor.git
$ cd saleor
$ sudo cat <<EOF app.yaml >/dev/null
env: flex
runtime: custom
entrypoint: safe_load(stream)
env_variables:
  SECRET_KEY: [DJANGO_SECRET_KEY]
  ALLOWED_HOSTS: [PROJECT_ID].appspot.com
  DATABASE_URL: 'postgresql://saleor:[email protected]:5432/saleor'
beta_settings:
  cloud_sql_instances: [PROJECT_ID]:[REGION]:[CLOUD_SQL_INSTANCE_NAME]=tcp:5432
EOF
$ gcloud app deploy --image-url=gcr.io/[PROJECT_ID]/saleor:latest
$ gcloud app instances enable-debug
Akses app instances by SSH :~$ sudo docker exec -it gaeapp /bin/bash
root@id:/app# python manage.py migrate
root@id:/app# python manage.py populatedb
root@id:/app# python manage.py createsuperuser
root@id:/app# exit

Point your browser to https://[PROJECT_ID].appspot.com

@chetabahana
I followed all the steps but I'm stuck in the command:

$ sudo docker exec -it gaeapp /bin/bash

Error: No such container: gaeapp

Could there be any solution? please

[chetabahana]

@chetabahana
I followed all the steps but I'm stuck in the command:

$ sudo docker exec -it gaeapp /bin/bash

Error: No such container: gaeapp

Could there be any solution? please

@acabezasg
Make sure you run the command by connecting to the instance via SSH

You may follow the detail step on how to connect then run this to check the Containers

$ sudo docker ps

Look at <NAMES>, it might be the name is not gaeapp .
$ sudo docker exec -it <NAMES> /bin/bash

You could also run it using <CONTAINER ID> like so:
$ sudo docker exec -it ba72d25928cd /bin/bash

[acabezasg]

@chetabahana
I followed all the steps but I'm stuck in the command:
$ sudo docker exec -it gaeapp /bin/bash
Error: No such container: gaeapp
Could there be any solution? please

@acabezasg
Make sure you run the command by connecting to the instance via SSH

You may follow the detail step on how to connect then run this to check the Containers

$ sudo docker ps

Look at <NAMES>, it might be the name is not gaeapp .
$ sudo docker exec -it <NAMES> /bin/bash

You could also run it using <CONTAINER ID> like so:
$ sudo docker exec -it ba72d25928cd /bin/bash

@chetabahana

great! that works. Now I have another error :(

admin@saleor ~/urpi-final $ python manage.py migrate
Traceback (most recent call last):
File "manage.py", line 8, in
from django.core.management import execute_from_command_line
ImportError: No module named django.core.management

[chetabahana]

@chetabahana

great! that works. Now I have another error :(

admin@saleor ~/urpi-final $ python manage.py migrate
Traceback (most recent call last):
File "manage.py", line 8, in
from django.core.management import execute_from_command_line
ImportError: No module named django.core.management

@acabezasg
It may be caused by the image, try using mine..
$ gcloud app deploy --image-url=chetabahana/saleor

[acabezasg]

@chetabahana
great! that works. Now I have another error :(
admin@saleor ~/urpi-final $ python manage.py migrate
Traceback (most recent call last):
File "manage.py", line 8, in
from django.core.management import execute_from_command_line
ImportError: No module named django.core.management

@acabezasg
It may be caused by the image, try using mine..
$ gcloud app deploy --image-url=chetabahana/saleor

@chetabahana
Hello! Now that puts this

I think that's not the id of the container (41a7397fa030). but it's the only id that comes out when i put "sudo docker ps"

I think it's supposed to be this

sorry for bothering :(

[chetabahana]

@acabezasg
The output of $ sudo docker ps in your terminal was not what is expected.

When looking in to your terminal screen, it seems that you haven't connected to your instance via SSH.

Let's put this way:

• Ensure to enable debugging on your instance after deploying your docker image.

$ gcloud app instances enable-debug

• Click this link to go to your console page:
  https://console.cloud.google.com/appengine/instances

• Wait till the page is completely loaded. Then select it to your instance name.

• Go to the bottom of page. Find the SSH button at the far right.


• Click the button. It will open a SSH terminal. Wait till SSH is connected.

• Make sure your terminal is prompted to your instance id that is shown in your console page :

#The prompt shall be one of the followings:
<user>@<google_app_engine_instance_id>: ~$
<user_gmail_com>@<google_app_engine_instance_id>:~$

#For example, in the above case it will be:
<user>@aef-default-20161110t131742-jf76:~$
<user_gmail_com>@aef-default-20161110t131742-jf76:~$

• Put the $ sudo docker ps command. Your terminal screen shall be responded similar like this:

chetabahana_gmail_com@aef-default-20161110t131742-jf76:~$ sudo docker ps
CONTAINER ID        IMAGE                                    COMMAND                  CREATED             STATUS              PORTS                                                                  NAMES
ba72d25928cd        gcr.io/chetabahana/saleor                "uwsgi --ini /app/sa…"   5 hours ago         Up 5 hours          8000/tcp, 172.17.0.1:8080->8080/tcp                                    gaeapp
c0fdcc8ecab0        gcr.io/google-appengine/api-proxy        "/proxy"                 5 hours ago         Up 5 hours                                                                                 api
829f7a631c00        gcr.io/google-appengine/nginx-proxy      "/var/lib/nginx/bin/…"   5 hours ago         Up 5 hours          8080/tcp, 0.0.0.0:8443->8443/tcp, 8090/tcp, 0.0.0.0:10402->10402/tcp   nginx_proxy
00b8be4f0ef4        gcr.io/google-appengine/iap-watcher      "./start_iap_watcher…"   5 hours ago         Up 5 hours                                                                                 iap_watcher
b671d1701612        gcr.io/google-appengine/fluentd-logger   "/opt/google-fluentd…"   5 hours ago         Up 5 hours                                                                                 fluentd_logger

[acabezasg]

@chetabahana
hello again! going forward.

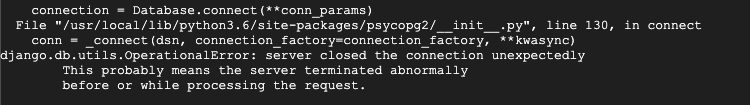

great, now when I put "python manage.py migrate"

It put that error

[chetabahana]

@acabezasg
Glad that you have resolve your previous case.
For the new error please follow another step that I have explained regarding Database Connection.

[chuanman2707]

@acabezasg
Glad that you have resolve your previous case.
For the new error please follow another step that I have explained regarding Database Connection.

Hey just wondering did you figure out the way to serve static files using cloud bucket ?

[acabezasg]

@acabezasg
Me alegro de que haya resuelto su caso anterior.
Para el nuevo error, siga otro paso que he explicado con respecto a la conexión de base de datos .

@chetabahana agaiin hahaha.

I follow all the steps, but I have an error in the command:

$ psql postgresql://saleor:[email protected]:5432/saleor

thank you very much for your help

[chetabahana]

@chetabahana agaiin hahaha.

I follow all the steps, but I have an error in the command:

$ psql postgresql://saleor:[email protected]:5432/saleor

thank you very much for your help

@acabezasg

Never mind. I am glad to help.
Please show me your app.yaml file and the respond of this command:

~$ gcloud sql connect [CLOUD_SQL_INSTANCE_NAME] --user=saleor

also

<user>@<instance_id>: $ netstat -nlt

[acabezasg]

@chetabahana agaiin hahaha.
I follow all the steps, but I have an error in the command:
$ psql postgresql://saleor:[email protected]:5432/saleor

thank you very much for your help

@acabezasg

Never mind. I am glad to help.
Please show me your app.yaml file and the respond of this command:

~$ gcloud sql connect [CLOUD_SQL_INSTANCE_NAME] --user=saleor

also

<user>@<instance_id>: $ netstat -nlt

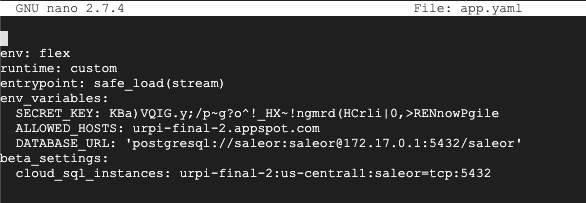

@chetabahana

there is :(

[chetabahana]

@chuanman2707

Hey just wondering did you figure out the way to serve static files using cloud bucket ?

Yes. By using _Cygwin/Venv_ finally I got the way to serve the files using Google Storage as below:

• DEBUG need to be set to False (run in --production mode).
• Static files (templates/webpack) wiil remain serve using Django static
• Media files (images) are generated by celery to cloud bucket and served from there.

env_variables:
  DEBUG: False
  ALLOWED_HOSTS: .appspot.com
  GS_MEDIA_BUCKET_NAME: [NAME]
  SECRET_KEY: [DJANGO_SECRET_KEY]
  REDIS_URL: redis://[Redis-IP]:6379/0
  CELERY_BROKER_URL: redis://[Redis-IP]:6379/1
  DATABASE_URL: postgres://saleor:saleor@[IP]:5432/saleor
  GOOGLE_APPLICATION_CREDENTIALS: /srv/the/path/to/json/key/file

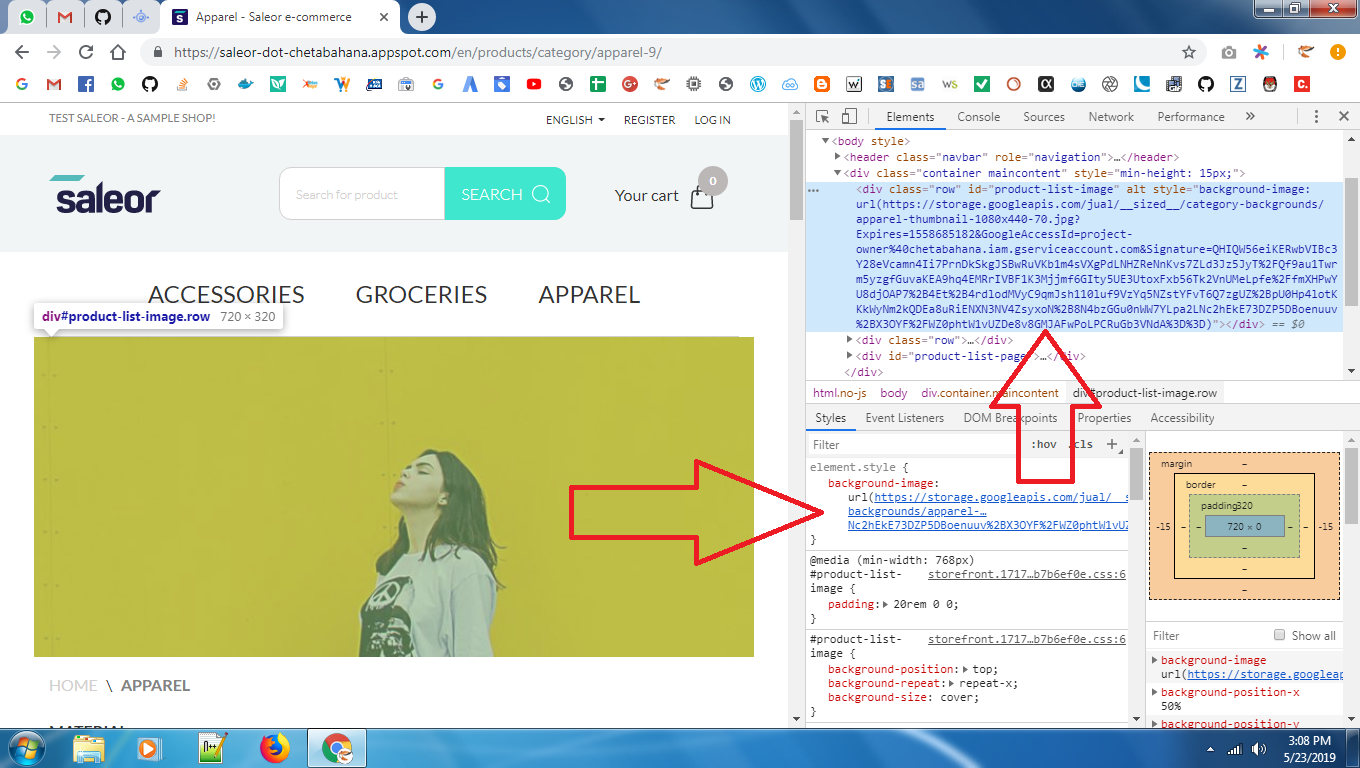

You may see the image url when Saleor is running with Google bucket. They will present as _Signed URLs_:

You can go ahead using this feature as it have been set by a pull request along with documentation.

[chetabahana]

@chetabahana

there is :(

@acabezasg
Everything are in order. It should be connected actually. Let me think what the problem is.

It could be a typo. Please make sure [region] in beta_settings is

not

nor

[acabezasg]

us-centrall

@chetabahana
there is like us-central1

[acabezasg]

@chetabahana Unfortunately I could not solve the problem :(

[chetabahana]

@acabezasg
I have been thinking it is blocked by Firewall Rules or SSL
Try to expose IP Address on Cloud SQL Server (disable sslmode).

$ psql "sslmode=disable dbname=saleor user=saleor hostaddr=[INSTANCE_IP]"

By the way please ensure that you have enabling Cloud SQL Admin API and Service Account Role.

[acabezasg]

@chetabahana
a question. I have to put that command in the SSH?

[chetabahana]

@chetabahana
a question. I have to put that command in the SSH?

@acabezasg
Yes. Akses app instances by SSH, then locate the psql

<root>@<instance_id> $ locate psql
/usr/lib/postgresql/9.6/bin/psql
<root>@<instance_id> $ export PATH=/usr/lib/postgressql/9.6/bin:$PATH
<root>@<instance_id> $ psql "sslmode=disable dbname=saleor user=saleor hostaddr=172.17.0.1"
<root>@<instance_id> $ psql postgresql://saleor:[email protected]:5432/saleor
<root>@<instance_id> $sudo docker exec -it gaeapp /bin/bash
root@id:/app# python manage.py migrate
root@id:/app# python manage.py populatedb
root@id:/app# python manage.py createsuperuser
root@id:/app# exit

[acabezasg]

@chetabahana

and if I get the answer -bash: psql: command not found?

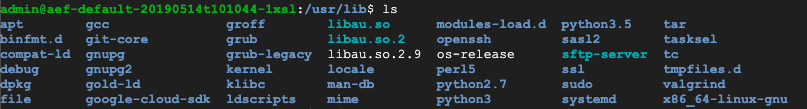

in the path /usr/lib/ is not: /postgressql

[chetabahana]

Actualy psql is not a must. It is used only to test the connection.
In your path there is google-cloud-sdk, means you could use gcloud

[acabezasg]

@chetabahana
finally after all these days I was able to do the deploy hahaha. really thank you very much, you are the best

[chetabahana]

@chetabahana
finally after all these days I was able to do the deploy hahaha. really thank you very much, you are the best

@acabezasg
Really nice to hear that, I was also face the same when begin to learn on Google AppEngine (GAE). You can go forward to explore more on GCP such as using bucket, integrate Celery by running Docker Compose on Google Compute (GCE), or even play with Load Balancing and HELM Charts on Google Kubernetes (GKE).

[acabezasg]

@chetabahana
Hello again! a question. if I want to put two or more allowed hosts, where do I put them?

[chetabahana]

@chetabahana
Hello again! a question. if I want to put two or more allowed hosts, where do I put them?

@acabezasg
You can put them in the environtment variable separated by using comma like below:

ALLOWED_HOSTS: 127.0.0.1, localhost, .appspot.com, .example.com

Moreover if you put a dot (.domain.com) as above then it will allow all sub-domains under that domain.

[acabezasg]

@chetabahana
One last thing, how do I redirect the domain to https? already has ssl but I can not get it to redirect from http to https

[chetabahana]

@chetabahana
One last thing, how do I redirect the domain to https? already has ssl but I can not get it to redirect from http to https

@acabezasg
Actually Google will maintain _an automatic renewal of ssl certificate_ for your domain free of charge as long you use the cloud services so you don't need to get one.

You just need to verify the domain:

$ gcloud domains verify example.com

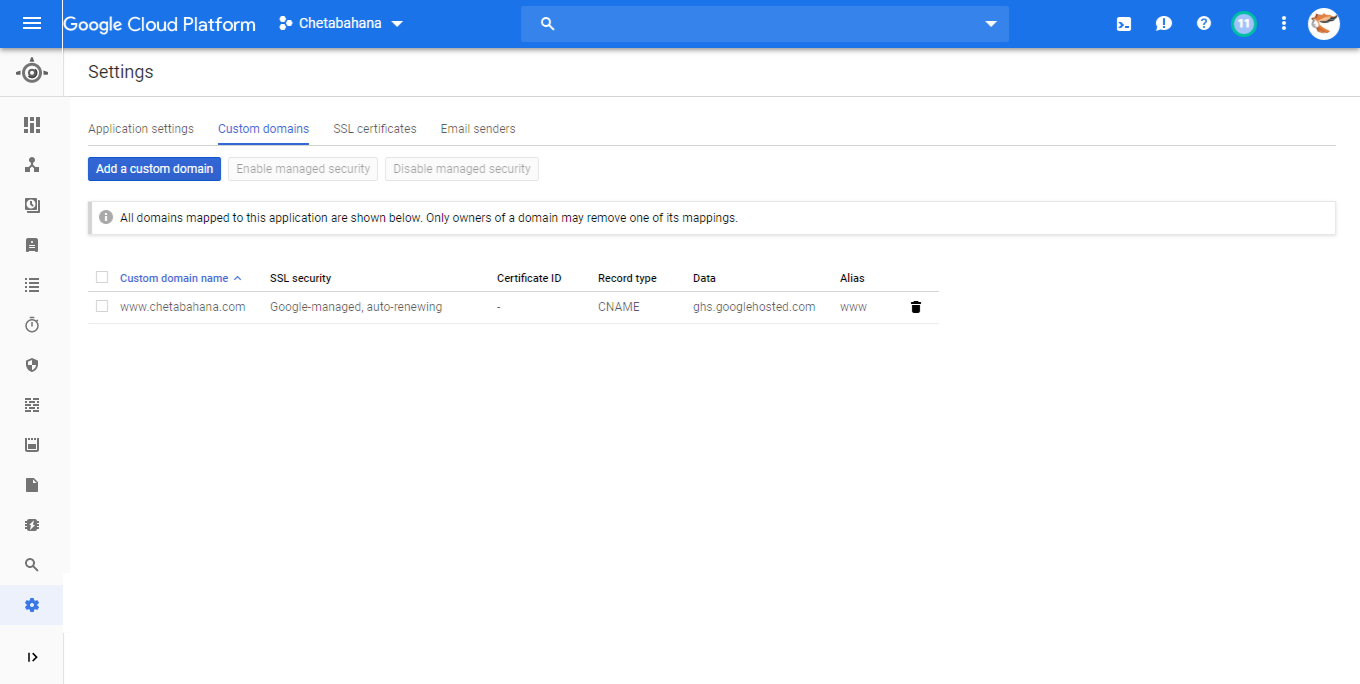

Then set a CNAME record to ghs.googlehosted.com and _add it_ in to the AppEngine.s domain page.

[acabezasg]

@chetabahana

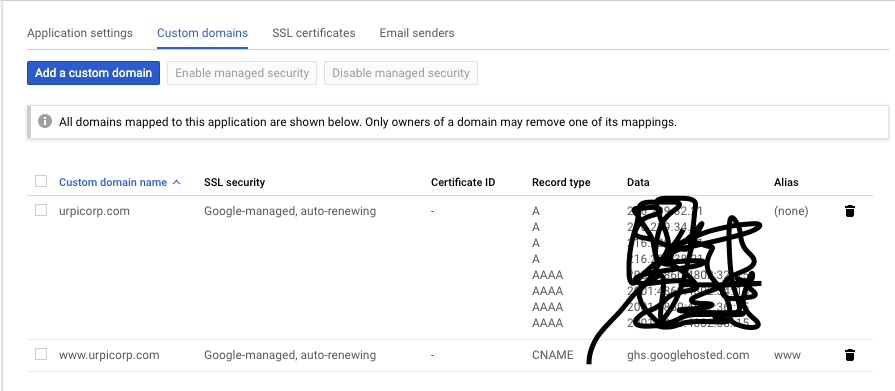

I already did it but it does not redirect to https

[chetabahana]

@acabezasg
Try to add "secure: always" to your yaml file

handlers:
- url: /.*
  secure: always
  redirect_http_response_code: 301
  script: auto

In case the domain is purchased or transferred to _Google Domain_ then you could do the redirect in G-Suite under the Synthetic records section:

[acabezasg]

@chetabahana hi!
that worked, but then caused a loop on the web, will it be because I did it in both ways? by google cloud domains and by the domain panel of app engine?

[chetabahana]

@acabezasg

I think in your case the secure always is the right option. I have read somewhere that redirect setting by fiil in A and AAAA in dns panel is deprecated in vapor of G Suite.

[Gugure]

Do you guys know how to add the saleor storefront (PWA) through google cloud?

[stale[bot]]

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. Thank you for your contributions.
