Runtime: HttpClient on net5 should fallback to TLS1.2 with Windows Insider builds

[zivkan]

Description

I'm on the NuGet team, and several customers (internal and external) have reported problems doing a restore and being unable to connect to api.nuget.org. I created a gist to test using HttpClientHandler with various SslProtocols values: https://gist.github.com/zivkan/5291f507c8c5724d41a18357b7afcd30

Here NuGet's customers reported their results: https://github.com/NuGet/Home/issues/9893#issuecomment-672187595

We can see that SslProtocols.None, which is supposed to be "use operating system defaults" works on netcoreapp3.1, but fails on net5.0. Therefore it appears that net5.0 is no longer using TLS 1.2 by default.

Configuration

Please see the thread on NuGet/Home: https://github.com/NuGet/Home/issues/9893#issuecomment-672187595

Regression?

yes, customers report that it works on netcoreapp3.1, but not net5.0.

Other information

Explicitly configuring HttpClientHandler to use SslProtocols.Tls12 works for customers writing their own app, but it doesn't help customers trying to use NuGet when NuGet doesn't attempt to specify SslProtocols at all, leaving the default value.

@terrajobst was the first to report this problem to me, so if you need someone internal to help test/reproduce the problem, he might be able to help.

[msftbot[bot]]

Tagging subscribers to this area: @dotnet/ncl
See info in area-owners.md if you want to be subscribed.

[geoffkizer]

@wfurt Do you know what's going on here?

[tebeco]

to be more specific:

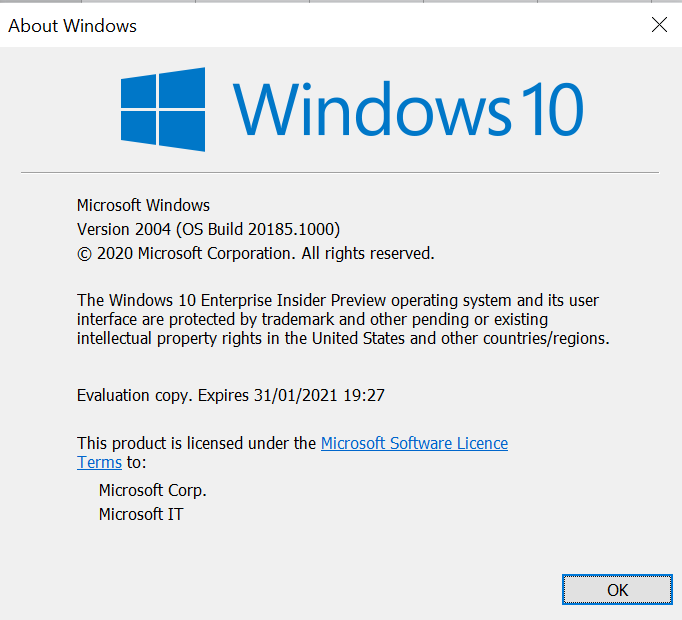

People with issue are using Windows Insider Build 20185 (not sure if it impact other build)

The RC1 used was 5.0.100-rc.1.20379.10 (nightly consumed by dotnet/AspNetCore on commit 983e7ed635f4d128edce4191b51869bd7be8aced)

| | rc1 net5.0 | rc1 netcoreapp3.1 | preview7 net5.0 | preview7 netcoreapp3.1 |
|-------|------------|-------------------|-----------------|------------------------|
| None | false | true | true | true |
| TLS12 | true | true | true | true |

        private static async Task<bool> TestProtocolAsync(SslProtocols protocol)
        {
            try
            {
                var httpMessageHandler = new HttpClientHandler()
                {
                    SslProtocols = protocol
                };
                var client = new HttpClient(httpMessageHandler);
                var request = new HttpRequestMessage(HttpMethod.Get, "https://api.nuget.org/v3/index.json");
                var response = await client.SendAsync(request);
                return true;
            }
            catch
            {
                return false;
            }
        }

[msftbot[bot]]

Tagging subscribers to this area: @dotnet/ncl
See info in area-owners.md if you want to be subscribed.

[wfurt]

not yet @geoffkizer. I could not reproduce on older Windows version. I'm in process of getting latest insider build.
This works on normal Windows versions AFAIK.

[karelz]

This is likely a regression in Insider builds of Windows. There is new API in Windows that allows us to go to TLS 1.3 -- that API (or our usage of it) stopped working properly on latest Insider builds ... @wfurt is investigating.
cc @blowdart

[tebeco]

This is likely a regression in Insider builds of Windows. There is new API in Windows that allows us to go to TLS 1.3

thx a lot @karelz for the follow up ;)

I'm curious why it still works with 5.0.x-preview7 SDK on that same Windows Build though.
Is it because Preview7 does not relies on that new API but Rc1 does ?

Also both Preview7 and Rc1 fails with explicit TLS 1.3.

This is an unknown world to me, I'm just being curious and might not be important to the resolution of this specific issue

[karelz]

The new API was fairly recent, so I don't think we use it in Preview7 just yet.
The old API does not support TLS 1.3 at all (it used to do it under an experimental switch over a range of Windows builds).

If the Windows API regressed for TLS 1.2, it might have regressed also for TLS 1.3 -- or our usage is wrong and it used to work and now it doesn't -- something to dig into.

[tebeco]

(thx)

[wfurt]

I was able to finally get local repro.
Hre is workaround:
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.3\Client
Setting Enabled=0 should fix it.

[Gnbrkm41]

Related: https://github.com/dotnet/sdk/issues/12741

I'm running insider builds as well, and didn't quite think it would be related with that. Interesting...

[Gnbrkm41]

Script (Run from elevated powershell instance):

$RegistryPath = "HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols"
$KeyName = "TLS 1.3"
$SubkeyName = "Client"
$PropertyName = "Enabled"
$PropertyType = "DWORD"
$PropertyValue = 0

# The TLS1.3 Key does not seem to exist by default.
$KeyPath = Join-Path $RegistryPath $KeyName
if (!(Test-Path $KeyPath))
{
    New-Item -Path $KeyPath
}

$SubkeyPath = Join-Path $KeyPath $SubkeyName
if (!(Test-Path $SubkeyPath))
{
    New-Item -Path $SubkeyPath
}

New-ItemProperty -Path $SubkeyPath -Name $PropertyName -PropertyType $PropertyType -Value $PropertyValue

You may need to restart your PC for the change to apply. After disabling TLS1.3 it seems to restore fine.

[Gnbrkm41]

Perhaps we can set DisabledByDefault to 1 instead of entirely disabling it? https://docs.microsoft.com/en-us/windows-server/security/tls/tls-registry-settings#tls-12

Edit: This also seems to work.

[wfurt]

I'm working with Windows team to trace this down. The None works as intended e.g. give the decision to the OS.
BTW earlier Windows versions had TLS13 disabled by default but that changed very recently and it us one unless you disable it. That will help finding bugs - like this. I think that is price for using latest dev builds.

[tebeco]

I see it as a win since this needs to be seen before november 12th ;)

[karelz]

Triage: Moving to 6.0 -- it should be fixed by OS change in next Insider build. We still want to make some change, but not critical.

[snickler]

Triage: Moving to 6.0 -- it should be fixed by OS change in next Insider build. We still want to make some change, but not critical.

Confirmed that it now functions properly on 10.0.20206 without disabling TLS 1.3

[wfurt]

great. thanks for confirmation. I still want to make some changes to improve the behavior so I'll leave this open.

[RehanSaeed]

I just hit this (raised https://github.com/dotnet/sdk/issues/14542) and wasted a day on it before stumbling on this closed issue. Now I just need to reinstall VS 😢.

The workaround works but turning off TLS 1.3 seems like a bad idea. Is there a long term fix?

[jkotas]

Is there a long term fix?

Update to latest Windows Insider build
