Runtime: Can AsyncMethodBuilder trust MoveNext?
AsyncXMethodBuilder Start<> can't inline as it uses a try+finally to restore the ExecutionContext
However, the generated state machine will always capture any exception and set it in the Task.
So... Question is can the MoveNext be trusted and the the try+finally removed?
Part of investigating https://github.com/dotnet/corefx/issues/18481
/cc @stephentoub
benaadams
All 33 comments
Interesting question.
Technically, no, as any IAsyncStateMachine implementation could be used with it, including hand-written ones, ones that purposefully rely on the lack of a finally there to mess with the EC state, etc.
That said, while in desktop I think that's crucial as there's security-related state stored in the EC, in core the only state stored is that for async locals, so the impact is significantly lessened. And the type is in the compiler services namespace, is really meant for compiler use, and thus should be able to be targeted at the patterns we expect of the compilers; folks (in particular me) do use ATMB manually sometimes as a struct-based TCS, but I've never used it for Start (other than in ValueTask's builder) and have trouble envisioning a real case where someone would want to.
I know Start shows up as a measurable cost in some workloads. How much is that lessened in, say, plaintext, if you remove the finally? This may be a case where we need to weigh the perfect against practice.
cc: @kouvel, @vancem
stephentoub
on 22 Apr 2017
Change would be something like this https://github.com/dotnet/coreclr/pull/11155
Will measure
benaadams
on 22 Apr 2017
We could also enhance the inliner so it could inline methods with EH. I've been looking for examples where this would be beneficial.
Initially we probably wouldn't have the heuristics right for these methods and so might not be able to find profitable cases automatically, but it would unblock aggressive inlining.
AndyAyersMS
on 22 Apr 2017
Andy, that would be excellent.
stephentoub
on 22 Apr 2017
The https://github.com/dotnet/coreclr/pull/11155 changes are significant; though split function checking for completed and not awaiting is a factor of 10 better. However my tests on that path don't deal with ExecutionContext.
Pre
Sync Chain Awaited (TP) 42.960 M 38.551 M 38.145 M 44.092 M 43.414 M
- Depth 2 45.323 M 44.743 M 45.622 M 45.640 M 45.760 M
- Depth 16 27.019 M 27.701 M 28.664 M 27.366 M 27.778 M
- Depth 64 26.210 M 26.123 M 25.907 M 24.435 M 24.762 M
- Depth 512 23.774 M 23.402 M 23.538 M 24.187 M 23.240 M
Sync Chain Awaited 45.061 M 67.391 M 85.997 M 65.965 M 3.664 M
- Depth 2 45.597 M 89.874 M 61.895 M 29.144 M 4.262 M
- Depth 16 26.697 M 55.823 M 51.840 M 87.253 M 4.045 M
- Depth 64 24.803 M 42.027 M 46.296 M 27.263 M 3.733 M
- Depth 512 22.570 M 43.876 M 63.615 M 31.899 M 3.346 M
Post
Sync Chain Awaited (TP) 53.784 M 55.157 M 55.556 M 56.010 M 53.125 M
- Depth 2 57.475 M 58.418 M 57.174 M 57.034 M 54.887 M
- Depth 16 44.613 M 45.206 M 45.441 M 45.169 M 43.569 M
- Depth 64 42.485 M 42.726 M 42.627 M 42.346 M 40.628 M
- Depth 512 41.049 M 41.723 M 41.588 M 41.480 M 39.786 M
Sync Chain Awaited 53.961 M 102.299 M 97.172 M 32.529 M 4.121 M
- Depth 2 55.467 M 106.942 M 108.917 M 33.131 M 3.675 M
- Depth 16 43.523 M 86.100 M 83.682 M 34.969 M 3.757 M
- Depth 64 40.600 M 81.042 M 86.022 M 31.465 M 3.964 M
- Depth 512 38.052 M 74.648 M 79.673 M 27.042 M 4.128 M
Pre
CachedTask Chain Await (TP) 40.848 M 40.176 M 40.816 M 39.404 M 40.033 M
- Depth 2 38.474 M 41.460 M 42.022 M 44.130 M 41.990 M
- Depth 16 26.572 M 27.443 M 28.260 M 27.699 M 25.754 M
- Depth 64 24.796 M 26.042 M 25.668 M 25.435 M 23.398 M
- Depth 512 22.138 M 21.985 M 23.241 M 21.709 M 22.541 M
CachedTask Chain Await 40.766 M 83.720 M 82.680 M 21.114 M 3.368 M
- Depth 2 43.358 M 79.131 M 50.984 M 34.616 M 4.524 M
- Depth 16 26.677 M 53.619 M 74.960 M 44.416 M 3.708 M
- Depth 64 24.115 M 48.153 M 109.730 M 75.999 M 3.649 M
- Depth 512 22.211 M 41.060 M 69.486 M 30.070 M 3.102 M
Post
CachedTask Chain Await (TP) 48.700 M 49.654 M 48.861 M 49.153 M 47.376 M
- Depth 2 53.677 M 53.917 M 53.908 M 53.631 M 51.225 M
- Depth 16 44.168 M 44.775 M 44.396 M 44.031 M 42.487 M
- Depth 64 40.736 M 41.158 M 41.348 M 40.852 M 39.682 M
- Depth 512 40.008 M 40.389 M 40.203 M 40.174 M 38.657 M
CachedTask Chain Await 47.808 M 93.415 M 99.891 M 35.489 M 4.107 M
- Depth 2 52.487 M 103.841 M 82.150 M 31.886 M 4.254 M
- Depth 16 43.525 M 85.042 M 96.839 M 37.454 M 4.135 M
- Depth 64 41.321 M 80.286 M 90.187 M 34.551 M 3.810 M
- Depth 512 39.434 M 71.079 M 97.535 M 32.088 M 3.843 M
Removed the try and EC switching, inline all that can be and is a little faster again but no where near the 10 fold difference by doing a completion check
benaadams
on 23 Apr 2017
Dropping the EC switching; and try finally as it was suggested that might be the main cost https://github.com/dotnet/roslyn/issues/10449#issuecomment-212026114 and inlining everything for one section (AsyncTaskMethodBuilder``1:Start(byref):this doesn't want to inline even with aggressive)
It seems the main cost is memory traffic?
Successfully inlined AsyncValueTaskMethodBuilder`1:Create():struct (22 IL bytes) (depth 1) [aggressive inline attribute]
Successfully inlined AsyncTaskMethodBuilder`1:Create():struct (10 IL bytes) (depth 2) [below ALWAYS_INLINE size]
Successfully inlined AsyncValueTaskMethodBuilder`1:Start(byref):this (13 IL bytes) (depth 1) [aggressive inline attribute]
Successfully inlined AsyncValueTaskMethodBuilder`1:get_Task():struct:this (27 IL bytes) (depth 1) [aggressive inline attribute]
Successfully inlined ValueTask`1:.ctor(int):this (15 IL bytes) (depth 2) [aggressive inline attribute]
**************** Inline Tree
Inlines into 0600001D OrderBook:GetTotalWorthValueTaskInt32AwaitAsync(int):struct:this
[1 IL=0018 TR=000015 06000018] [aggressive inline attribute] AsyncValueTaskMethodBuilder`1:Create():struct
[2 IL=0010 TR=000063 06003F8D] [below ALWAYS_INLINE size] AsyncTaskMethodBuilder`1:Create():struct
[3 IL=0047 TR=000039 06000019] [aggressive inline attribute] AsyncValueTaskMethodBuilder`1:Start(byref):this
[0 IL=0007 TR=000107 06003F8E] [FAILED: unprofitable inline] AsyncTaskMethodBuilder`1:Start(byref):this
[4 IL=0059 TR=000046 0600001E] [aggressive inline attribute] AsyncValueTaskMethodBuilder`1:get_Task():struct:this
[0 IL=0009 TR=000150 0600001F] [FAILED: noinline per IL/cached result] AsyncValueTaskMethodBuilder`1:GetTaskFromMethodBuilder():struct:this
[5 IL=0021 TR=000133 06000001] [aggressive inline attribute] ValueTask`1:.ctor(int):this
Budget: initialTime=255, finalTime=359, initialBudget=2550, currentBudget=2648
Budget: increased by 98 because of force inlines
Budget: initialSize=1613, finalSize=1613
; Assembly listing for method OrderBook:GetTotalWorthValueTaskInt32AwaitAsync(int):struct:this
; Emitting BLENDED_CODE for X64 CPU with AVX
; optimized code
; rsp based frame
; partially interruptible
; Final local variable assignments
;
; V00 this [V00,T01] ( 3, 3 ) ref -> rcx this class-hnd
; V01 RetBuf [V01,T00] ( 5, 5 ) byref -> rsi
; V02 arg1 [V02,T02] ( 3, 3 ) int -> r8
; V03 loc0 [V03 ] ( 9, 8 ) struct (72) [rsp+0x70] do-not-enreg[XSFB] must-init addr-exposed ld-addr-op
; V04 loc1 [V04 ] ( 2, 2 ) struct (32) [rsp+0x50] do-not-enreg[XSFB] must-init addr-exposed ld-addr-op
; V05 loc2 [V05,T03] ( 3, 3 ) struct (32) [rsp+0x30] do-not-enreg[SFB] must-init ld-addr-op
;* V06 tmp1 [V06 ] ( 0, 0 ) struct (24) zero-ref do-not-enreg[SB] ld-addr-op
; V07 tmp2 [V07 ] ( 5, 3.50) struct (16) [rsp+0x20] do-not-enreg[XS] must-init addr-exposed
;* V08 tmp3 [V08 ] ( 0, 0 ) struct (16) zero-ref
; V09 tmp4 [V09,T04] ( 2, 2 ) int -> rdx ld-addr-op
; V10 tmp5 [V10 ] ( 3, 2 ) ref -> [rsp+0x20] do-not-enreg[X] addr-exposed V07._task(offs=0x00) P-DEP
; V11 tmp6 [V11 ] ( 3, 2 ) int -> [rsp+0x28] do-not-enreg[X] addr-exposed V07._result(offs=0x08) P-DEP
; V12 tmp7 [V12,T05] ( 2, 1 ) ref -> rcx V08._task(offs=0x00) P-INDEP
; V13 tmp8 [V13,T06] ( 2, 1 ) int -> rdx V08._result(offs=0x08) P-INDEP
; V14 OutArgs [V14 ] ( 1, 1 ) lclBlk (32) [rsp+0x00]
;
; Lcl frame size = 184
G_M45286_IG01:
57 push rdi
56 push rsi
4881ECB8000000 sub rsp, 184
C5F877 vzeroupper
488BF1 mov rsi, rcx
488D7C2420 lea rdi, [rsp+20H]
B926000000 mov ecx, 38
33C0 xor rax, rax
F3AB rep stosd
488BCE mov rcx, rsi
488BF2 mov rsi, rdx
G_M45286_IG02:
48894C2470 mov gword ptr [rsp+70H], rcx
4489842480000000 mov dword ptr [rsp+80H], r8d
488D4C2430 lea rcx, bword ptr [rsp+30H]
G_M45286_IG03:
C4E17957C0 vxorpd xmm0, xmm0
C4E17A7F01 vmovdqu qword ptr [rcx], xmm0
C4E17A7F4110 vmovdqu qword ptr [rcx+16], xmm0
G_M45286_IG04:
33C9 xor rcx, rcx
488D542438 lea rdx, bword ptr [rsp+38H]
C4E17957C0 vxorpd xmm0, xmm0
C4E17A7F02 vmovdqu qword ptr [rdx], xmm0
48894A10 mov qword ptr [rdx+16], rcx
G_M45286_IG05:
C4E17A6F442430 vmovdqu xmm0, qword ptr [rsp+30H]
C4E17A7F842488000000 vmovdqu qword ptr [rsp+88H], xmm0
C4E17A6F442440 vmovdqu xmm0, qword ptr [rsp+40H]
C4E17A7F842498000000 vmovdqu qword ptr [rsp+98H], xmm0
G_M45286_IG06:
C7442478FFFFFFFF mov dword ptr [rsp+78H], -1
G_M45286_IG07:
C4E17A6F842488000000 vmovdqu xmm0, qword ptr [rsp+88H]
C4E17A7F442450 vmovdqu qword ptr [rsp+50H], xmm0
C4E17A6F842498000000 vmovdqu xmm0, qword ptr [rsp+98H]
C4E17A7F442460 vmovdqu qword ptr [rsp+60H], xmm0
G_M45286_IG08:
488D4C2458 lea rcx, bword ptr [rsp+58H]
488D542470 lea rdx, bword ptr [rsp+70H]
E8FBE6FFFF call AsyncTaskMethodBuilder`1:Start(byref):this
80BC248C00000000 cmp byte ptr [rsp+8CH], 0
7514 jne SHORT G_M45286_IG09
488D8C2488000000 lea rcx, bword ptr [rsp+88H]
488D542420 lea rdx, bword ptr [rsp+20H]
E887E6FFFF call AsyncValueTaskMethodBuilder`1:GetTaskFromMethodBuilder():struct:this
EB12 jmp SHORT G_M45286_IG10
G_M45286_IG09:
8B942488000000 mov edx, dword ptr [rsp+88H]
33C9 xor rcx, rcx
48894C2420 mov gword ptr [rsp+20H], rcx
89542428 mov dword ptr [rsp+28H], edx
G_M45286_IG10:
488D0E lea rcx, bword ptr [rsi]
488B542420 mov rdx, gword ptr [rsp+20H]
E87E09D05F call CORINFO_HELP_CHECKED_ASSIGN_REF
8B442428 mov eax, dword ptr [rsp+28H]
894608 mov dword ptr [rsi+8], eax
488BC6 mov rax, rsi
G_M45286_IG11:
4881C4B8000000 add rsp, 184
5E pop rsi
5F pop rdi
C3 ret
; Total bytes of code 262, prolog size 32 for method OrderBook:GetTotalWorthValueTaskInt32AwaitAsync(int):struct:this
; ============================================================
``asm
Marking <GetTotalWorthValueTaskInt32AwaitAsync>d__17:MoveNext():this as NOINLINE because of has exception handling
**************** Inline Tree
Inlines into 06003F8E AsyncTaskMethodBuilder1:Start(byref):this
[0 IL=0028 TR=000022 06000066] [FAILED: has exception handling]
Budget: initialTime=159, finalTime=159, initialBudget=1590, currentBudget=1590
Budget: initialSize=883, finalSize=883
; Assembly listing for method AsyncTaskMethodBuilder`1:Start(byref):this
; Emitting BLENDED_CODE for X64 CPU with AVX
; optimized code
; rsp based frame
; fully interruptible
; Final local variable assignments
;
;* V00 this [V00 ] ( 0, 0 ) byref -> zero-ref this
; V01 arg1 [V01,T00] ( 3, 3 ) byref -> rdx
;* V02 tmp0 [V02 ] ( 0, 0 ) ref -> zero-ref
;# V03 OutArgs [V03 ] ( 1, 1 ) lclBlk ( 0) [rsp+0x00]
;
; Lcl frame size = 0
G_M53769_IG01:
G_M53769_IG02:
488BCA mov rcx, rdx
48B8303D3EF0FA7F0000 mov rax, 0x7FFAF03E3D30
G_M53769_IG03:
48FFE0 rex.jmp rax
; Total bytes of code 16, prolog size 0 for method AsyncTaskMethodBuilder`1:Start(byref):this
; ============================================================
```asm
Successfully inlined OrderBook:get_Orders():ref:this (7 IL bytes) (depth 1) [below ALWAYS_INLINE size]
Successfully inlined List`1:get_Item(int):ref:this (27 IL bytes) (depth 1) [profitable inline]
Successfully inlined ValueTask`1:GetAwaiter():struct:this (12 IL bytes) (depth 1) [aggressive inline attribute]
Successfully inlined ValueTaskAwaiter`1:.ctor(struct):this (8 IL bytes) (depth 2) [aggressive inline attribute]
Successfully inlined ValueTaskAwaiter`1:get_IsCompleted():bool:this (12 IL bytes) (depth 1) [below ALWAYS_INLINE size]
Successfully inlined ValueTask`1:get_IsCompleted():bool:this (22 IL bytes) (depth 2) [profitable inline]
Successfully inlined Task:get_IsCompleted():bool:this (16 IL bytes) (depth 3) [below ALWAYS_INLINE size]
Successfully inlined Task:IsCompletedMethod(int):bool (11 IL bytes) (depth 4) [below ALWAYS_INLINE size]
Marking AsyncTaskMethodBuilder`1:AwaitUnsafeOnCompleted(byref,byref):this as NOINLINE because of has exception handling
Successfully inlined AsyncValueTaskMethodBuilder`1:AwaitUnsafeOnCompleted(byref,byref):this (21 IL bytes) (depth 1) [profitable inline]
Successfully inlined ValueTaskAwaiter`1:GetResult():int:this (32 IL bytes) (depth 1) [profitable inline]
Successfully inlined OrderBook:get_Orders():ref:this (7 IL bytes) (depth 1) [below ALWAYS_INLINE size]
Successfully inlined List`1:get_Count():int:this (7 IL bytes) (depth 1) [below ALWAYS_INLINE size]
Successfully inlined AsyncValueTaskMethodBuilder`1:SetResult(int):this (31 IL bytes) (depth 1) [profitable inline]
**************** Inline Tree
Inlines into 06000066 <GetTotalWorthValueTaskInt32AwaitAsync>d__17:MoveNext():this
[1 IL=0044 TR=000107 0600000E] [below ALWAYS_INLINE size] OrderBook:get_Orders():ref:this
[2 IL=0055 TR=000112 060038FA] [profitable inline] List`1:get_Item(int):ref:this
[0 IL=0009 TR=000252 060001EE] [FAILED: does not return] ThrowHelper:ThrowArgumentOutOfRange_IndexException()
[0 IL=0060 TR=000116 06000035] [FAILED: noinline per IL/cached result] Order:GetOrderWorthValueTaskInt32AwaitAsync():struct:this
[3 IL=0069 TR=000123 06000010] [aggressive inline attribute] ValueTask`1:GetAwaiter():struct:this
[4 IL=0006 TR=000271 0600002A] [aggressive inline attribute] ValueTaskAwaiter`1:.ctor(struct):this
[5 IL=0078 TR=000132 0600002B] [below ALWAYS_INLINE size] ValueTaskAwaiter`1:get_IsCompleted():bool:this
[6 IL=0006 TR=000298 06000009] [profitable inline] ValueTask`1:get_IsCompleted():bool:this
[7 IL=0014 TR=000326 06002291] [below ALWAYS_INLINE size] Task:get_IsCompleted():bool:this
[8 IL=0010 TR=000342 06002292] [below ALWAYS_INLINE size] Task:IsCompletedMethod(int):bool
[9 IL=0111 TR=000162 06000021] [profitable inline] AsyncValueTaskMethodBuilder`1:AwaitUnsafeOnCompleted(byref,byref):this
[0 IL=0015 TR=000372 06003F91] [FAILED: has exception handling] AsyncTaskMethodBuilder`1:AwaitUnsafeOnCompleted(byref,byref):this
[10 IL=0152 TR=000049 0600002C] [profitable inline] ValueTaskAwaiter`1:GetResult():int:this
[0 IL=0014 TR=000403 0600002D] [FAILED: noinline per IL/cached result] ValueTaskAwaiter`1:GetResultFromTask():int:this
[11 IL=0202 TR=000087 0600000E] [below ALWAYS_INLINE size] OrderBook:get_Orders():ref:this
[12 IL=0207 TR=000094 060038F4] [below ALWAYS_INLINE size] List`1:get_Count():int:this
[0 IL=0265 TR=000233 0600001D] [FAILED: within catch region] AsyncValueTaskMethodBuilder`1:SetException(ref):this
[13 IL=0287 TR=000208 0600001B] [profitable inline] AsyncValueTaskMethodBuilder`1:SetResult(int):this
[0 IL=0010 TR=000439 0600001C] [FAILED: noinline per IL/cached result] AsyncValueTaskMethodBuilder`1:SetResultFromTask(int):this
Budget: initialTime=939, finalTime=1183, initialBudget=9390, currentBudget=9402
Budget: increased by 12 because of force inlines
Budget: initialSize=6811, finalSize=7526
; Assembly listing for method <GetTotalWorthValueTaskInt32AwaitAsync>d__17:MoveNext():this
; Emitting BLENDED_CODE for X64 CPU with AVX
; optimized code
; rbp based frame
; fully interruptible
; Final local variable assignments
;
; V00 this [V00,T02] ( 27,435 ) byref -> [rbp+0x10] do-not-enreg[H] this
; V01 loc0 [V01,T20] ( 2, 2 ) int -> rcx
; V02 loc1 [V02,T07] ( 4,161 ) ref -> rbx class-hnd
; V03 loc2 [V03,T19] ( 3, 3 ) int -> r14
; V04 loc3 [V04,T12] ( 4, 82 ) int -> r14
; V05 loc4 [V05,T03] ( 5,224 ) int -> r15
; V06 loc5 [V06 ] ( 10,155 ) struct (16) [rbp-0x38] do-not-enreg[XSFB] must-init addr-exposed ld-addr-op
; V07 loc6 [V07 ] ( 4, 64 ) struct (16) [rbp-0x48] do-not-enreg[XS] must-init addr-exposed ld-addr-op
;* V08 loc7 [V08 ] ( 0, 0 ) ref -> zero-ref class-hnd
;* V09 tmp0 [V09 ] ( 0, 0 ) int -> zero-ref
;* V10 tmp1 [V10 ] ( 0, 0 ) int -> zero-ref
; V11 tmp2 [V11,T01] ( 2,512 ) int -> rcx
; V12 tmp3 [V12,T21] ( 2, 0 ) ref -> rdx class-hnd
; V13 tmp4 [V13,T06] ( 6,192 ) int -> rdx
; V14 tmp5 [V14,T08] ( 5,160 ) ref -> rcx class-hnd
; V15 tmp6 [V15 ] ( 3, 96 ) struct (16) [rbp-0x58] do-not-enreg[XSFB] must-init addr-exposed
;* V16 tmp7 [V16 ] ( 0, 0 ) struct (16) zero-ref ld-addr-op
; V17 tmp8 [V17,T04] ( 3,208 ) bool -> rax
; V18 tmp9 [V18,T13] ( 2, 64 ) ref -> rax ld-addr-op class-hnd
; V19 tmp10 [V19,T15] ( 2, 32 ) int -> rax
; V20 tmp11 [V20,T18] ( 4, 8 ) byref -> rcx
; V21 tmp12 [V21,T11] ( 3, 88 ) int -> rax
; V22 tmp13 [V22,T00] ( 2,512 ) ref -> rdx class-hnd
; V23 tmp14 [V23,T17] ( 5, 10 ) byref -> rcx
; V24 tmp15 [V24 ] ( 3, 32 ) ref -> [rbp-0x48] do-not-enreg[X] addr-exposed V07._task(offs=0x00) P-DEP
; V25 tmp16 [V25 ] ( 3, 32 ) int -> [rbp-0x40] do-not-enreg[X] addr-exposed V07._result(offs=0x08) P-DEP
; V26 tmp17 [V26,T14] ( 2, 32 ) ref -> rax V16._task(offs=0x00) P-INDEP
; V27 tmp18 [V27,T16] ( 2, 32 ) int -> rdx V16._result(offs=0x08) P-INDEP
; V28 tmp19 [V28,T05] ( 6,192 ) ref -> rcx
; V29 tmp20 [V29,T09] ( 4,128 ) ref -> rcx
; V30 tmp21 [V30,T10] ( 3, 96 ) byref -> rcx stack-byref
; V31 OutArgs [V31 ] ( 1, 1 ) lclBlk (32) [rsp+0x00]
; V32 PSPSym [V32 ] ( 1, 1 ) long -> [rbp-0x60] do-not-enreg[X] addr-exposed
;* V33 tmp24 [V33 ] ( 0, 0 ) byref -> zero-ref
;
; Lcl frame size = 88
G_M63166_IG01:
55 push rbp
4157 push r15
4156 push r14
57 push rdi
56 push rsi
53 push rbx
4883EC58 sub rsp, 88
C5F877 vzeroupper
488DAC2480000000 lea rbp, [rsp+80H]
488BF1 mov rsi, rcx
488D7DA8 lea rdi, [rbp-58H]
B90C000000 mov ecx, 12
33C0 xor rax, rax
F3AB rep stosd
488BCE mov rcx, rsi
488965A0 mov qword ptr [rbp-60H], rsp
48894D10 mov bword ptr [rbp+10H], rcx
G_M63166_IG02:
488B4D10 mov rcx, bword ptr [rbp+10H]
8B4908 mov ecx, dword ptr [rcx+8]
488B4510 mov rax, bword ptr [rbp+10H]
488B18 mov rbx, gword ptr [rax]
G_M63166_IG03:
85C9 test ecx, ecx
0F84F0000000 je G_M63166_IG14
4533F6 xor r14d, r14d
E968010000 jmp G_M63166_IG22
G_M63166_IG04:
488B4D10 mov rcx, bword ptr [rbp+10H]
33D2 xor edx, edx
89510C mov dword ptr [rcx+12], edx
E946010000 jmp G_M63166_IG21
G_M63166_IG05:
488B4D10 mov rcx, bword ptr [rbp+10H]
44897114 mov dword ptr [rcx+20], r14d
488B4B08 mov rcx, gword ptr [rbx+8]
488B5510 mov rdx, bword ptr [rbp+10H]
8B520C mov edx, dword ptr [rdx+12]
3B5118 cmp edx, dword ptr [rcx+24]
0F835C010000 jae G_M63166_IG23
G_M63166_IG06:
488B4908 mov rcx, gword ptr [rcx+8]
3B5108 cmp edx, dword ptr [rcx+8]
0F83A5000000 jae G_M63166_IG12
4863D2 movsxd rdx, edx
488B4CD110 mov rcx, gword ptr [rcx+8*rdx+16]
488D55B8 lea rdx, bword ptr [rbp-48H]
3909 cmp dword ptr [rcx], ecx
E8E6B3FFFF call Order:GetOrderWorthValueTaskInt32AwaitAsync():struct:this
488D45A8 lea rax, bword ptr [rbp-58H]
G_M63166_IG07:
C4E17957C0 vxorpd xmm0, xmm0
C4E17A7F00 vmovdqu qword ptr [rax], xmm0
G_M63166_IG08:
488B45B8 mov rax, gword ptr [rbp-48H]
8B55C0 mov edx, dword ptr [rbp-40H]
488D4DA8 lea rcx, bword ptr [rbp-58H]
488901 mov gword ptr [rcx], rax
895108 mov dword ptr [rcx+8], edx
G_M63166_IG09:
C4E17A6F45A8 vmovdqu xmm0, qword ptr [rbp-58H]
C4E17A7F45C8 vmovdqu qword ptr [rbp-38H], xmm0
G_M63166_IG10:
48837DC800 cmp gword ptr [rbp-38H], 0
7465 je SHORT G_M63166_IG13
488B45C8 mov rax, gword ptr [rbp-38H]
8B4034 mov eax, dword ptr [rax+52]
A900006001 test eax, 0x1600000
0F95C0 setne al
0FB6C0 movzx rax, al
G_M63166_IG11:
85C0 test eax, eax
0F8582000000 jne G_M63166_IG17
488B4510 mov rax, bword ptr [rbp+10H]
33D2 xor edx, edx
895008 mov dword ptr [rax+8], edx
488B4510 mov rax, bword ptr [rbp+10H]
488D7838 lea rdi, bword ptr [rax+56]
488D75C8 lea rsi, bword ptr [rbp-38H]
E85009D05F call CORINFO_HELP_ASSIGN_BYREF
48A5 movsq
488B4D10 mov rcx, bword ptr [rbp+10H]
3909 cmp dword ptr [rcx], ecx
488B4D10 mov rcx, bword ptr [rbp+10H]
4883C118 add rcx, 24
C6410501 mov byte ptr [rcx+5], 1
3909 cmp dword ptr [rcx], ecx
4883C108 add rcx, 8
488D55C8 lea rdx, bword ptr [rbp-38H]
4C8B4510 mov r8, bword ptr [rbp+10H]
E849E6FFFF call AsyncTaskMethodBuilder`1:AwaitUnsafeOnCompleted(byref,byref):this
E9E4000000 jmp G_M63166_IG27
G_M63166_IG12:
E8779FAC5F call CORINFO_HELP_RNGCHKFAIL
G_M63166_IG13:
B801000000 mov eax, 1
EBA6 jmp SHORT G_M63166_IG11
G_M63166_IG14:
488B4D10 mov rcx, bword ptr [rbp+10H]
4883C138 add rcx, 56
G_M63166_IG15:
C4E17A6F01 vmovdqu xmm0, qword ptr [rcx]
C4E17A7F45C8 vmovdqu qword ptr [rbp-38H], xmm0
G_M63166_IG16:
488B4D10 mov rcx, bword ptr [rbp+10H]
4883C138 add rcx, 56
C4E17957C0 vxorpd xmm0, xmm0
C4E17A7F01 vmovdqu qword ptr [rcx], xmm0
488B4D10 mov rcx, bword ptr [rbp+10H]
C74108FFFFFFFF mov dword ptr [rcx+8], -1
G_M63166_IG17:
48837DC800 cmp gword ptr [rbp-38H], 0
746C je SHORT G_M63166_IG24
488D4DC8 lea rcx, bword ptr [rbp-38H]
E8C8AFFFFF call ValueTaskAwaiter`1:GetResultFromTask():int:this
G_M63166_IG18:
488D4DC8 lea rcx, bword ptr [rbp-38H]
G_M63166_IG19:
C4E17957C0 vxorpd xmm0, xmm0
C4E17A7F01 vmovdqu qword ptr [rcx], xmm0
G_M63166_IG20:
488B4D10 mov rcx, bword ptr [rbp+10H]
448BF0 mov r14d, eax
44037114 add r14d, dword ptr [rcx+20]
488B4D10 mov rcx, bword ptr [rbp+10H]
448B790C mov r15d, dword ptr [rcx+12]
41FFC7 inc r15d
488B4D10 mov rcx, bword ptr [rbp+10H]
4489790C mov dword ptr [rcx+12], r15d
G_M63166_IG21:
488B4D10 mov rcx, bword ptr [rbp+10H]
8B490C mov ecx, dword ptr [rcx+12]
488B5308 mov rdx, gword ptr [rbx+8]
3B4A18 cmp ecx, dword ptr [rdx+24]
0F8CA6FEFFFF jl G_M63166_IG05
G_M63166_IG22:
488B4D10 mov rcx, bword ptr [rbp+10H]
448B7910 mov r15d, dword ptr [rcx+16]
418D4FFF lea ecx, [r15-1]
488B5510 mov rdx, bword ptr [rbp+10H]
894A10 mov dword ptr [rdx+16], ecx
4585FF test r15d, r15d
0F8F7CFEFFFF jg G_M63166_IG04
EB0A jmp SHORT G_M63166_IG25
G_M63166_IG23:
E81591E146 call ThrowHelper:ThrowArgumentOutOfRange_IndexException()
G_M63166_IG24:
8B45D0 mov eax, dword ptr [rbp-30H]
EB98 jmp SHORT G_M63166_IG18
G_M63166_IG25:
488B4D10 mov rcx, bword ptr [rbp+10H]
C74108FEFFFFFF mov dword ptr [rcx+8], -2
488B4D10 mov rcx, bword ptr [rbp+10H]
3909 cmp dword ptr [rcx], ecx
488B4D10 mov rcx, bword ptr [rbp+10H]
4883C118 add rcx, 24
80790500 cmp byte ptr [rcx+5], 0
740A je SHORT G_M63166_IG26
418BD6 mov edx, r14d
E8F9E3FFFF call AsyncValueTaskMethodBuilder`1:SetResultFromTask(int):this
EB07 jmp SHORT G_M63166_IG27
G_M63166_IG26:
448931 mov dword ptr [rcx], r14d
C6410401 mov byte ptr [rcx+4], 1
G_M63166_IG27:
488D65D8 lea rsp, [rbp-28H]
5B pop rbx
5E pop rsi
5F pop rdi
415E pop r14
415F pop r15
5D pop rbp
C3 ret
G_M63166_IG28:
55 push rbp
4157 push r15
4156 push r14
57 push rdi
56 push rsi
53 push rbx
4883EC28 sub rsp, 40
C5F877 vzeroupper
488B6920 mov rbp, qword ptr [rcx+32]
48896C2420 mov qword ptr [rsp+20H], rbp
488DAD80000000 lea rbp, [rbp+80H]
G_M63166_IG29:
488B4D10 mov rcx, bword ptr [rbp+10H]
C74108FEFFFFFF mov dword ptr [rcx+8], -2
488B4D10 mov rcx, bword ptr [rbp+10H]
3909 cmp dword ptr [rcx], ecx
488B4D10 mov rcx, bword ptr [rbp+10H]
4883C118 add rcx, 24
E8AEE3FFFF call AsyncValueTaskMethodBuilder`1:SetException(ref):this
488D05AFFFFFFF lea rax, G_M63166_IG27
G_M63166_IG30:
4883C428 add rsp, 40
5B pop rbx
5E pop rsi
5F pop rdi
415E pop r14
415F pop r15
5D pop rbp
C3 ret
; Total bytes of code 622, prolog size 50 for method <GetTotalWorthValueTaskInt32AwaitAsync>d__17:MoveNext():this
; ============================================================
C# for above
internal async ValueTask<int> GetTotalWorthValueTaskInt32AwaitAsync(int repeats)
{
int total = 0;
while (repeats-- > 0)
{
for (int i = 0; i < Orders.Count; i++)
{
total += await Orders[i].GetOrderWorthValueTaskInt32AwaitAsync(); // Maually Marked No-Inline
}
}
return total;
}
Adding a manual split with an inner function brings it more or less on par with the sync version (10-fold increase)
C#
internal Task<int> GetTotalWorthTaskInt32ManualCompletedAsync(int repeats)
{
// Main function
{
int total = 0;
while (repeats-- > 0)
{
for (int i = 0; i < Orders.Count; i++)
{
var task = Orders[i].GetOrderWorthTaskInt32ManualCompletedAsync();
if (!task.IsCompleted) return Awaited(task, total, i, repeats);
total += task.Result;
}
}
return Task.FromResult(total);
}
// Inner async function
async Task<int> Awaited(Task<int> task, int total, int i, int r)
{
total += await task;
while (++i < Orders.Count) // finish the inner loop
{
total += await Orders[i].GetOrderWorthTaskInt32ManualCompletedAsync();
}
while (r-- > 0) // finish the outer loop
{
for (i = 0; i < Orders.Count; i++)
{
total += await Orders[i].GetOrderWorthTaskInt32ManualCompletedAsync();
}
}
return total;
}
}
benaadams
on 23 Apr 2017
With the following asm
Successfully inlined OrderBook:get_Orders():ref:this (7 IL bytes) (depth 1) [below ALWAYS_INLINE size]
Successfully inlined List`1:get_Item(int):ref:this (27 IL bytes) (depth 1) [profitable inline]
Successfully inlined ValueTask`1:get_IsCompleted():bool:this (22 IL bytes) (depth 1) [profitable inline]
Successfully inlined Task:get_IsCompleted():bool:this (16 IL bytes) (depth 2) [below ALWAYS_INLINE size]
Successfully inlined Task:IsCompletedMethod(int):bool (11 IL bytes) (depth 3) [below ALWAYS_INLINE size]
Successfully inlined ValueTask`1:get_Result():int:this (22 IL bytes) (depth 1) [profitable inline]
Successfully inlined OrderBook:get_Orders():ref:this (7 IL bytes) (depth 1) [below ALWAYS_INLINE size]
Successfully inlined List`1:get_Count():int:this (7 IL bytes) (depth 1) [below ALWAYS_INLINE size]
Successfully inlined ValueTask`1:.ctor(int):this (15 IL bytes) (depth 1) [aggressive inline attribute]
**************** Inline Tree
Inlines into 06000020 OrderBook:GetTotalWorthValueTaskInt32ManualCompletedAsync(int):struct:this
[1 IL=0009 TR=000040 0600000E] [below ALWAYS_INLINE size] OrderBook:get_Orders():ref:this
[2 IL=0015 TR=000044 060038FA] [profitable inline] List`1:get_Item(int):ref:this
[0 IL=0009 TR=000134 060001EE] [FAILED: does not return] ThrowHelper:ThrowArgumentOutOfRange_IndexException()
[0 IL=0020 TR=000048 06000038] [FAILED: noinline per IL/cached result] Order:GetOrderWorthValueTaskInt32ManualCompletedAsync():struct:this
[3 IL=0028 TR=000055 06000009] [profitable inline] ValueTask`1:get_IsCompleted():bool:this
[4 IL=0014 TR=000159 06002291] [below ALWAYS_INLINE size] Task:get_IsCompleted():bool:this
[5 IL=0010 TR=000175 06002292] [below ALWAYS_INLINE size] Task:IsCompletedMethod(int):bool
[0 IL=0040 TR=000085 06000025] [FAILED: unprofitable inline] OrderBook:<GetTotalWorthValueTaskInt32ManualCompletedAsync>g__Awaited20_0(struct,int,int,int):struct:this
[6 IL=0049 TR=000066 0600000E] [profitable inline] ValueTask`1:get_Result():int:this
[0 IL=0009 TR=000214 0600000F] [FAILED: noinline per IL/cached result] ValueTask`1:GetResultFromTask():int:this
[7 IL=0062 TR=000029 0600000E] [below ALWAYS_INLINE size] OrderBook:get_Orders():ref:this
[8 IL=0067 TR=000032 060038F4] [below ALWAYS_INLINE size] List`1:get_Count():int:this
[9 IL=0084 TR=000108 06000001] [aggressive inline attribute] ValueTask`1:.ctor(int):this
Budget: initialTime=330, finalTime=472, initialBudget=3300, currentBudget=3316
Budget: increased by 16 because of force inlines
Budget: initialSize=2183, finalSize=2546
; Assembly listing for method OrderBook:GetTotalWorthValueTaskInt32ManualCompletedAsync(int):struct:this
; Emitting BLENDED_CODE for X64 CPU with AVX
; optimized code
; rsp based frame
; fully interruptible
; Final local variable assignments
;
; V00 this [V00,T06] ( 6, 34.50) ref -> rsi this class-hnd
; V01 RetBuf [V01,T13] ( 7, 4.50) byref -> rbx
; V02 arg1 [V02,T10] ( 5, 18.50) int -> registers
; V03 loc0 [V03,T11] ( 5, 18 ) int -> rbp
; V04 loc1 [V04,T02] ( 10, 74.50) int -> registers
; V05 loc2 [V05 ] ( 9, 57 ) struct (16) [rsp+0x40] do-not-enreg[XS] must-init addr-exposed ld-addr-op
; V06 loc3 [V06,T05] ( 3, 48 ) int -> rdi
;* V07 tmp1 [V07 ] ( 0, 0 ) struct (16) zero-ref
; V08 tmp2 [V08,T01] ( 5, 80 ) ref -> rcx class-hnd
; V09 tmp3 [V09,T08] ( 2, 16 ) bool -> rcx
; V10 tmp4 [V10,T07] ( 2, 32 ) ref -> rcx ld-addr-op class-hnd
; V11 tmp5 [V11,T12] ( 2, 16 ) int -> rcx
; V12 tmp6 [V12,T09] ( 3, 24 ) int -> rax
; V13 tmp7 [V13,T04] ( 2, 64 ) ref -> rcx class-hnd
; V14 tmp8 [V14 ] ( 7, 40.50) ref -> [rsp+0x40] do-not-enreg[X] addr-exposed V05._task(offs=0x00) P-DEP
; V15 tmp9 [V15 ] ( 5, 24.50) int -> [rsp+0x48] do-not-enreg[X] addr-exposed V05._result(offs=0x08) P-DEP
; V16 tmp10 [V16,T15] ( 2, 1 ) ref -> rax V07._task(offs=0x00) P-INDEP
; V17 tmp11 [V17,T16] ( 2, 1 ) int -> rbp V07._result(offs=0x08) P-INDEP
; V18 tmp12 [V18,T00] ( 6, 96 ) ref -> rcx
; V19 tmp13 [V19,T03] ( 4, 64 ) ref -> rcx
; V20 tmp14 [V20 ] ( 3, 4 ) struct (16) [rsp+0x30] do-not-enreg[XSB] must-init addr-exposed
; V21 tmp15 [V21,T14] ( 3, 3 ) byref -> rcx stack-byref
;* V22 tmp16 [V22,T17] ( 0, 0 ) ref -> zero-ref
;* V23 tmp17 [V23,T18] ( 0, 0 ) byref -> zero-ref
; V24 OutArgs [V24 ] ( 1, 1 ) lclBlk (48) [rsp+0x00]
;
; Lcl frame size = 80
G_M36646_IG01:
4156 push r14
57 push rdi
56 push rsi
55 push rbp
53 push rbx
4883EC50 sub rsp, 80
488BF1 mov rsi, rcx
488D7C2430 lea rdi, [rsp+30H]
B908000000 mov ecx, 8
33C0 xor rax, rax
F3AB rep stosd
488BCE mov rcx, rsi
488BF1 mov rsi, rcx
488BDA mov rbx, rdx
418BF8 mov edi, r8d
G_M36646_IG02:
33ED xor ebp, ebp
E9CD000000 jmp G_M36646_IG11
G_M36646_IG03:
33FF xor edi, edi
E9B6000000 jmp G_M36646_IG10
G_M36646_IG04:
4987FE xchg rdi, r14
488B4E08 mov rcx, gword ptr [rsi+8]
443B7118 cmp r14d, dword ptr [rcx+24]
0F83D9000000 jae G_M36646_IG13
G_M36646_IG05:
488B4908 mov rcx, gword ptr [rcx+8]
443B7108 cmp r14d, dword ptr [rcx+8]
0F83D1000000 jae G_M36646_IG14
4963D6 movsxd rdx, r14d
488B4CD110 mov rcx, gword ptr [rcx+8*rdx+16]
488D542440 lea rdx, bword ptr [rsp+40H]
3909 cmp dword ptr [rcx], ecx
E880ADFFFF call Order:GetOrderWorthValueTaskInt32ManualCompletedAsync():struct:this
488B4C2440 mov rcx, gword ptr [rsp+40H]
4885C9 test rcx, rcx
7457 je SHORT G_M36646_IG07
488B4C2440 mov rcx, gword ptr [rsp+40H]
8B4934 mov ecx, dword ptr [rcx+52]
F7C100006001 test ecx, 0x1600000
0F95C1 setne cl
0FB6C9 movzx rcx, cl
85C9 test ecx, ecx
753F jne SHORT G_M36646_IG07
488D4C2430 lea rcx, bword ptr [rsp+30H]
488B542440 mov rdx, gword ptr [rsp+40H]
488911 mov gword ptr [rcx], rdx
8B542448 mov edx, dword ptr [rsp+48H]
895108 mov dword ptr [rcx+8], edx
4489742420 mov dword ptr [rsp+20H], r14d
897C2428 mov dword ptr [rsp+28H], edi
488BCE mov rcx, rsi
488BD3 mov rdx, rbx
4C8D442430 lea r8, bword ptr [rsp+30H]
448BCD mov r9d, ebp
E83EA7FFFF call OrderBook:<GetTotalWorthValueTaskInt32ManualCompletedAsync>g__Awaited20_0(struct,int,int,int):struct:this
488BC3 mov rax, rbx
G_M36646_IG06:
4883C450 add rsp, 80
5B pop rbx
5D pop rbp
5E pop rsi
5F pop rdi
415E pop r14
C3 ret
G_M36646_IG07:
488B4C2440 mov rcx, gword ptr [rsp+40H]
4885C9 test rcx, rcx
740C je SHORT G_M36646_IG08
488D4C2440 lea rcx, bword ptr [rsp+40H]
E814ACFFFF call ValueTask`1:GetResultFromTask():int:this
EB04 jmp SHORT G_M36646_IG09
G_M36646_IG08:
8B442448 mov eax, dword ptr [rsp+48H]
G_M36646_IG09:
03E8 add ebp, eax
41FFC6 inc r14d
4987FE xchg rdi, r14
G_M36646_IG10:
488B4E08 mov rcx, gword ptr [rsi+8]
3B7918 cmp edi, dword ptr [rcx+24]
0F8C3EFFFFFF jl G_M36646_IG04
418BFE mov edi, r14d
G_M36646_IG11:
8D4FFF lea ecx, [rdi-1]
448BF1 mov r14d, ecx
85FF test edi, edi
0F8F26FFFFFF jg G_M36646_IG03
33C0 xor rax, rax
488903 mov gword ptr [rbx], rax
896B08 mov dword ptr [rbx+8], ebp
488BC3 mov rax, rbx
G_M36646_IG12:
4883C450 add rsp, 80
5B pop rbx
5D pop rbp
5E pop rsi
5F pop rdi
415E pop r14
C3 ret
G_M36646_IG13:
E81D8BE146 call ThrowHelper:ThrowArgumentOutOfRange_IndexException()
CC int3
G_M36646_IG14:
E8CF98AC5F call CORINFO_HELP_RNGCHKFAIL
CC int3
; Total bytes of code 298, prolog size 39 for method OrderBook:GetTotalWorthValueTaskInt32ManualCompletedAsync(int):struct:this
; ============================================================

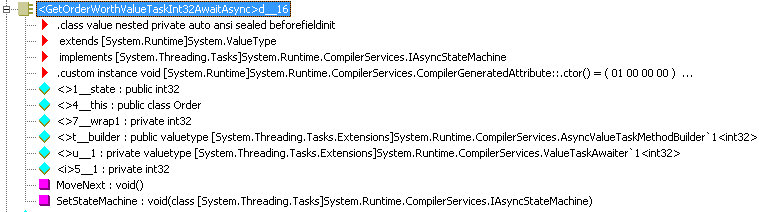

Statemachine captures
benaadams
on 23 Apr 2017
il for pre-start
.method assembly hidebysig instance class [System.Threading.Tasks.Extensions]System.Threading.Tasks.ValueTask`1<int32>
GetOrderWorthValueTaskInt32AwaitAsync() cil managed
{
.custom instance void [mscorlib]System.Runtime.CompilerServices.AsyncStateMachineAttribute::.ctor(class [mscorlib]System.Type)
= (
01 00 32 4f 72 64 65 72 2b 3c 47 65 74 4f 72 64 // ..2Order+<GetOrd
65 72 57 6f 72 74 68 56 61 6c 75 65 54 61 73 6b // erWorthValueTask
49 6e 74 33 32 41 77 61 69 74 41 73 79 6e 63 3e // Int32AwaitAsync>
64 5f 5f 31 36 00 00 // d__16..
)
// MetadataClassType(Order+<GetOrderWorthValueTaskInt32AwaitAsync>d__16)
.maxstack 2
.locals init (
[0] valuetype Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16' V_0,
[1] class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<int32> V_1
)
IL_0000: ldloca.s V_0
IL_0002: ldarg.0 // this
IL_0003: stfld class Order Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16'::'<>4__this'
IL_0008: ldloca.s V_0
IL_000a: call instance class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<!0/*int32*/> class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<int32>::Create()
IL_000f: stfld class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<int32> Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16'::'<>t__builder'
IL_0014: ldloca.s V_0
IL_0016: ldc.i4.m1
IL_0017: stfld int32 Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16'::'<>1__state'
IL_001c: ldloc.0 // V_0
IL_001d: ldfld class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<int32> Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16'::'<>t__builder'
IL_0022: stloc.1 // V_1
IL_0023: ldloca.s V_1
IL_0025: ldloca.s V_0
IL_0027: call instance void class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<int32>::Start<valuetype Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16'>(!!0/*valuetype Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16'*/&)
IL_002c: ldloca.s V_0
IL_002e: ldflda class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<int32> Order/'<GetOrderWorthValueTaskInt32AwaitAsync>d__16'::'<>t__builder'
IL_0033: call instance class [System.Threading.Tasks.Extensions]System.Threading.Tasks.ValueTask`1<!0/*int32*/> class [System.Threading.Tasks.Extensions]System.Runtime.CompilerServices.AsyncValueTaskMethodBuilder`1<int32>::get_Task()
IL_0038: ret
} // end of method Order::GetOrderWorthValueTaskInt32AwaitAsync
and asm
Successfully inlined AsyncValueTaskMethodBuilder`1:Create():struct (10 IL bytes) (depth 1) [aggressive inline attribute]
Marking AsyncTaskMethodBuilder`1:Start(byref):this as NOINLINE because of has exception handling
Successfully inlined AsyncValueTaskMethodBuilder`1:Start(byref):this (13 IL bytes) (depth 1) [aggressive inline attribute]
Successfully inlined AsyncValueTaskMethodBuilder`1:get_Task():struct:this (27 IL bytes) (depth 1) [aggressive inline attribute]
Successfully inlined ValueTask`1:.ctor(int):this (15 IL bytes) (depth 2) [aggressive inline attribute]
**************** Inline Tree
Inlines into 0600001D OrderBook:GetTotalWorthValueTaskInt32AwaitAsync(int):struct:this
[1 IL=0018 TR=000015 06000018] [aggressive inline attribute] AsyncValueTaskMethodBuilder`1:Create():struct
[2 IL=0047 TR=000039 06000019] [aggressive inline attribute] AsyncValueTaskMethodBuilder`1:Start(byref):this
[0 IL=0007 TR=000080 06003F96] [FAILED: has exception handling] AsyncTaskMethodBuilder`1:Start(byref):this
[3 IL=0059 TR=000046 0600001E] [aggressive inline attribute] AsyncValueTaskMethodBuilder`1:get_Task():struct:this
[0 IL=0009 TR=000123 0600001F] [FAILED: noinline per IL/cached result] AsyncValueTaskMethodBuilder`1:GetTaskFromMethodBuilder():struct:this
[4 IL=0021 TR=000106 06000001] [aggressive inline attribute] ValueTask`1:.ctor(int):this
Budget: initialTime=255, finalTime=329, initialBudget=2550, currentBudget=2624
Budget: increased by 74 because of force inlines
Budget: initialSize=1613, finalSize=1613
; Assembly listing for method OrderBook:GetTotalWorthValueTaskInt32AwaitAsync(int):struct:this
; Emitting BLENDED_CODE for X64 CPU with AVX
; optimized code
; rsp based frame
; partially interruptible
; Final local variable assignments
;
; V00 this [V00,T01] ( 3, 3 ) ref -> rcx this class-hnd
; V01 RetBuf [V01,T00] ( 5, 5 ) byref -> rsi
; V02 arg1 [V02,T02] ( 3, 3 ) int -> r8
; V03 loc0 [V03 ] ( 9, 8 ) struct (72) [rsp+0x50] do-not-enreg[XSFB] must-init addr-exposed ld-addr-op
; V04 loc1 [V04 ] ( 2, 2 ) struct (32) [rsp+0x30] do-not-enreg[XSFB] must-init addr-exposed ld-addr-op
;* V05 loc2 [V05 ] ( 0, 0 ) struct (32) zero-ref do-not-enreg[SB] ld-addr-op
; V06 tmp1 [V06 ] ( 5, 3.50) struct (16) [rsp+0x20] do-not-enreg[XS] must-init addr-exposed
;* V07 tmp2 [V07 ] ( 0, 0 ) struct (16) zero-ref
; V08 tmp3 [V08,T03] ( 2, 2 ) int -> rdx ld-addr-op
; V09 tmp4 [V09 ] ( 3, 2 ) ref -> [rsp+0x20] do-not-enreg[X] addr-exposed V06._task(offs=0x00) P-DEP
; V10 tmp5 [V10 ] ( 3, 2 ) int -> [rsp+0x28] do-not-enreg[X] addr-exposed V06._result(offs=0x08) P-DEP
; V11 tmp6 [V11,T04] ( 2, 1 ) ref -> rcx V07._task(offs=0x00) P-INDEP
; V12 tmp7 [V12,T05] ( 2, 1 ) int -> rdx V07._result(offs=0x08) P-INDEP
; V13 OutArgs [V13 ] ( 1, 1 ) lclBlk (32) [rsp+0x00]
;
; Lcl frame size = 152
G_M45285_IG01:
57 push rdi
56 push rsi
4881EC98000000 sub rsp, 152
C5F877 vzeroupper
488BF1 mov rsi, rcx
488D7C2420 lea rdi, [rsp+20H]
B91E000000 mov ecx, 30
33C0 xor rax, rax
F3AB rep stosd
488BCE mov rcx, rsi
488BF2 mov rsi, rdx
G_M45285_IG02:
48894C2450 mov gword ptr [rsp+50H], rcx
4489442460 mov dword ptr [rsp+60H], r8d
488D4C2468 lea rcx, bword ptr [rsp+68H]
C4E17957C0 vxorpd xmm0, xmm0
C4E17A7F01 vmovdqu qword ptr [rcx], xmm0
C4E17A7F4110 vmovdqu qword ptr [rcx+16], xmm0
C7442458FFFFFFFF mov dword ptr [rsp+58H], -1
G_M45285_IG03:
C4E17A6F442468 vmovdqu xmm0, qword ptr [rsp+68H]
C4E17A7F442430 vmovdqu qword ptr [rsp+30H], xmm0
C4E17A6F442478 vmovdqu xmm0, qword ptr [rsp+78H]
C4E17A7F442440 vmovdqu qword ptr [rsp+40H], xmm0
G_M45285_IG04:
488D4C2438 lea rcx, bword ptr [rsp+38H]
488D542450 lea rdx, bword ptr [rsp+50H]
E88BE6FFFF call AsyncTaskMethodBuilder`1:Start(byref):this
807C246C00 cmp byte ptr [rsp+6CH], 0
7511 jne SHORT G_M45285_IG05
488D4C2468 lea rcx, bword ptr [rsp+68H]
488D542420 lea rdx, bword ptr [rsp+20H]
E81DE6FFFF call AsyncValueTaskMethodBuilder`1:GetTaskFromMethodBuilder():struct:this
EB0F jmp SHORT G_M45285_IG06
G_M45285_IG05:
8B542468 mov edx, dword ptr [rsp+68H]
33C9 xor rcx, rcx
48894C2420 mov gword ptr [rsp+20H], rcx
89542428 mov dword ptr [rsp+28H], edx
G_M45285_IG06:
488D0E lea rcx, bword ptr [rsi]
488B542420 mov rdx, gword ptr [rsp+20H]
E8D708D05F call CORINFO_HELP_CHECKED_ASSIGN_REF
8B442428 mov eax, dword ptr [rsp+28H]
894608 mov dword ptr [rsi+8], eax
488BC6 mov rax, rsi
G_M45285_IG07:
4881C498000000 add rsp, 152
5E pop rsi
5F pop rdi
C3 ret
; Total bytes of code 189, prolog size 32 for method OrderBook:GetTotalWorthValueTaskInt32AwaitAsync(int):struct:this
I wanted to comment on the original question (about the try-finally in AsyncMethodBuilder inhibiting inlineing). (I realize there is this other issue with quick checks that seems to be much bigger (but also roughly unrelated), My comment only applies if after resolving that we still care about the question of inlining AsyncMethodBuilder.
While solving it by allowing the JIT to inline things with try-finally, I must admit that for me this is not a second best solution. Handling complexity is great, but even better is achieving the same value without the complexity. It seems to me that this boils down to what the contract is between AsyncMethodBuilder and the state machine. By simply stating that exceptions can't escape, we can avoid the need of the try-finally, and things get simpler. From what Stephen indicates, this seems OK (even custom state machines could achieve this without losing interestingly flexibility). I think that should be one the table (which is basically what Ben's original question was). I think that should be the proposal to beat (we should work through any details to get comfortable with it).
vancem
on 24 Apr 2017
ValueTask's custom builder uses AMB to achieve the correct EC semantics; which then the C# compiler builds its tasklike statemachine with; when again the finally is irrelevant.
Issue would arise if the statemachine was manually built (rather than via compiler so MoveNext didn't always catch) and AMB was used to achieve some behvaiour. However, you'd have to be violating the async contract - where failures are returned via failed tasks rather than directly throwing methods.
While the removal was obvious to me at the start; I now have a slight concern as @stephentoub highlights the SecurityContext.
People can and do store the current user in an AsyncLocal by adding HttpContextAccessor in ASP.NET and then using HttpContextAccessor.HttpContext.User.Identity. (Do they not perf? 馃槩)
Also people (accidentally) write async violating Async methods by throwing direct exceptions rather than rather than returning failed tasks. e.g.
Task NonAsyncMyAsync(int index)
{
if (index < 0)
{
throw new NakedException();
}
return RealAsync();
}
So I wonder if that could fall off the statemachine rails at some point? Though any true await should wrap that regardless in the compiler's catch?
benaadams
on 24 Apr 2017
Actually the Threadpool handling of EC should always guard against that.
Also user code is always wrapped by a compiler generated statemachine via an await.
benaadams
on 24 Apr 2017
@geoffkizer - this is the threadpool issue mentioned today.
vancem
on 26 Apr 2017
CC @kouvel
gkhanna79
on 26 Apr 2017
Long thread :( - @benaadams is it tracking only ThreadPool issue or are there more thing here?
Anything critical for 2.0? (i.e. not a regression against .NET Core 1.x and Desktop) Thanks for help ;-)
karelz
on 29 Apr 2017
Is more AsyncMethodBuilder than ThreadPool.
Don't think any regression or critical for 2.0
benaadams
on 29 Apr 2017
CC @kouvel @alexperovich
gkhanna79
on 29 Apr 2017
Thanks @benaadams! @kouvel @alexperovich feel free to move it to Reflection if you think it's appropriate ...
karelz
on 29 Apr 2017
From the stack trace in https://github.com/dotnet/corefx/issues/26754 the answer is no; so closing this
benaadams
on 1 Feb 2018
From the stack trace
Note that that stack trace isn't an exception, it's a fail fast from an assert.
stephentoub
on 1 Feb 2018
Note that that stack trace isn't an exception, it's a fail fast from an assert.
Ahhh... so it cuts through all the catches?
benaadams
on 1 Feb 2018
so it cuts through all the catches?
The process is basically just killed.
stephentoub
on 1 Feb 2018
benaadams reopened
That said, I still only think it's worthwhile considering removing the try/finally if there's a measurable throughput win to doing so, as it does sacrifice correctness. And from what you've told me, there isn't such a measurable throughput win.
stephentoub
on 1 Feb 2018
True :)
benaadams
on 1 Feb 2018
split function checking for completed and not awaiting is a factor of 10 better
Just to make sure I understand... what does this mean exactly?
geoffkizer
on 1 Feb 2018
Just to make sure I understand... what does this mean exactly?
I believe he means doing:
```C#
ValueTask
int result = vt.IsCompletedSuccessfully ? vt.Result : await vt;
instead of:
```C#
ValueTask<int> vt = ...;
int result = await vt;
Have to go all the way and move the async into different method; though the differences aren't as large anymore (in 2.1)
Method | Mean | Op/s |
------------------------------ |---------:|---------:|
Sync_Decimal | 10.99 us | 90,990.3 | sync
ValueTaskAsync_Decimal | 17.87 us | 55,972.8 | await vt
ValueTaskCheckedAsync_Decimal | 17.14 us | 58,327.0 | vt.IsCompletedSuccessfully ? vt.Result : await vt
HandCrankedAsync_Decimal | 14.57 us | 68,617.4 | split function
Split function
for (; i < count; i++)
{
task = GetValueTaskAsync(i);
if (!task.IsCompletedSuccessfully) break;
total += task.Result;
}
if (i < count)
{
return ContinueAsync(total, task, count, i);
}
Have to go all the way and move the async into different method
So presumably the benefits here are really just around the code quality inside an async method in general?
stephentoub
on 1 Feb 2018
So presumably the benefits here are really just around the code quality inside an async method in general?
Yeah, setup work, data on stack rather than register, exception handling etc
Difference is also relative to the size of the statemachine's data (how much goes to stack vs register)
Based on new understandings from the execution context rework; I wonder how much lives on stack due to the statemachine being a struct and how much due to enregistering being blocked by exception handling.
New things have reduced the differences like finally cloning, method builder rework and maybe EC changes. I was surprised how much closer sync and async were
benaadams
on 1 Feb 2018
I was surprised how much closer sync and async were
:smile:
stephentoub
on 1 Feb 2018
Related issues
omariom
路
3Comments
jamesqo
路
3Comments
GitAntoinee
路
3Comments
bencz
路
3Comments
matty-hall
路
3Comments
Most helpful comment
We could also enhance the inliner so it could inline methods with EH. I've been looking for examples where this would be beneficial.
Initially we probably wouldn't have the heuristics right for these methods and so might not be able to find profitable cases automatically, but it would unblock aggressive inlining.
