Rtl_433: HIDEKI Rain & Wind sensors

[10der]

Hi!
rain sensor always show me 202.3 mm

2018-12-01 19:15:23 :   HIDEKI Rain sensor
        Rolling Code:    0
        Channel:         4
        Battery:         OK
        Rain:    202.3 mm

Wind sensor show me strange values

/raw/rtl_433 : msg.payload : Object
object
time: "2018-12-02 03:36:36"
model: "HIDEKI Wind sensor"
rc: 0
channel: 4
battery: "LOW"
temperature_C: -110.5
windstrength: 1.77
winddirection: 135

(IMHO misarrange)

Thank you!

[zuckschwerdt]

Perhaps your sensor is not the HIDEKI type expected by the decoder?
Please provide the brand and model name of your sensor. Grab some samples (-a -t) and upload them, if possible with the values you expect (channel and approx. temp., others if you can read those from a head unit maybe). Also perhaps post the output (timings) of -A here.

[10der]

I am sorry, but here is proof what this device was working properly.
pls scroll down to the last message.
https://forums.homeseer.com/forum/lighting-primary-technology-plug-ins/lighting-primary-technology-discussion/z-wave-homeseer/107064-adding-qubino-z-wave-weather-station

[10der]

PS: two another "home" sensors decoded OK

2018-12-01 16:32:03 :   HIDEKI TS04 sensor
        Rolling Code:    10
        Channel:         1
        Battery:         OK
        Temperature:     0.8 C
        Humidity:        92 %

[10der]

I have simulated rain

Detected OOK package    @ 2018-12-02 19:54:41
2018-12-02 19:54:41 :   HIDEKI Rain sensor
        Rolling Code:    0
        Channel:         4
        Battery:         OK
        Rain:    205.1 mm
Analyzing pulses...
Total count:   65,  width: 79.18 ms             (19796 S)
Pulse width distribution:
 [ 0] count:   17,  width:  936 us [932;964]    ( 234 S)
 [ 1] count:   47,  width:  444 us [440;456]    ( 111 S)
 [ 2] count:    1,  width:   56 us [56;56]      (  14 S)
Gap width distribution:
 [ 0] count:   17,  width: 1016 us [1012;1024]  ( 254 S)
 [ 1] count:   47,  width:  528 us [524;536]    ( 132 S)
Pulse period distribution:
 [ 0] count:   11,  width: 1956 us [1948;1976]  ( 489 S)
 [ 1] count:   12,  width: 1464 us [1460;1472]  ( 366 S)
 [ 2] count:   41,  width:  976 us [968;984]    ( 244 S)
Level estimates [high, low]:   3749,      3
RSSI: -6.4 dB SNR: 29.7 dB Noise: -37.4 dB
Frequency offsets [F1, F2]:   -5819,      0     (-22.2 kHz, +0.0 kHz)
Guessing modulation: Pulse Width Modulation with sync/delimiter
Attempting demodulation... short_width: 444, long_width: 936, reset_limit: 1028, sync_width: 56
Use a flex decoder with -X 'n=name,m=OOK_PWM,s=444,l=936,r=1028,g=0,t=0,y=56'
pulse_demod_pwm(): Analyzer Device
bitbuffer:: Number of rows: 2
[00] {64} 1f fb 6c ce df ed fe f5
[01] { 0}                         :

[10der]

FIBARO HC2

[zuckschwerdt]

The timings look like the Hideki protocol, but the data doesn't seem to fit. Can you run rtl_433 -a -t and upload a sample file here?

[10der]

sorry. is not clear for me. what?
now device runed with
pi@raspberrypi:~ $ /home/pi/temp/rtl_433-master/build/src/rtl_433 -a -t -A
params is it ok?

[10der]

Hmm. from help

rtl_433 -a -t | Will run in analyze mode and save a test file per detected signal (g###_###M_###k.cu8). Format is uint8, 2 channels.

but no .cu8 files here. ¯_(ツ)_/¯

[10der]

btw, the rain sensor still sends me. Rain: 205.1 mm
maybe it's "accumulated" value from the day when the sensor was stared? but look like crazy

[zuckschwerdt]

Run only rtl_433 -a -t
It will output

*** Saving signal to file g001_433.92M_250k.cu8

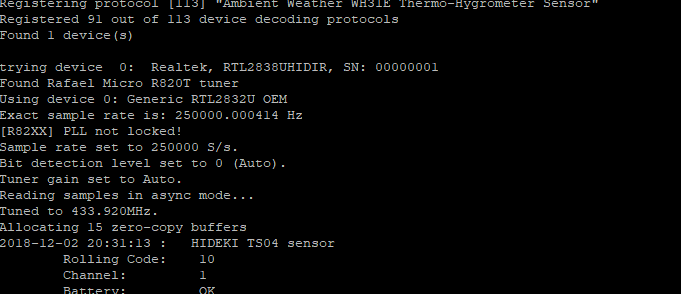

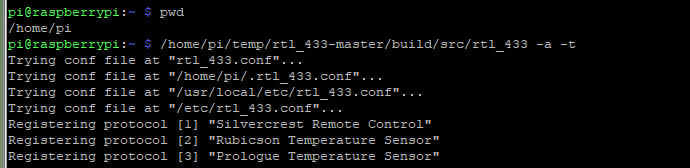

[10der]

so. what I did wrong?

[10der]

no
* Saving signal to file g001_433.92M_250k.cu8
msg

[zuckschwerdt]

Oh, I get it now. The signal is too weak for -a. Use rtl_433 -l 3000 -a -t
(I need to upgrade that -a -t thing someday soon :) )
If 3000 does not work try 2800 or 2500 or so.

[10der]

got it. on it!
Thank you!

[10der]

yay!

* Saving signal to file g001_433.92M_250k.cu8
* Writing data from 1503592, len 262144

attached
g001_433.92M_250k.cu8.zip

[zuckschwerdt]

Your pwd shows /home/pi. It should be there ;)

[10der]

yep, Sir!

[10der]

Qubino Weather Station.zip

[zuckschwerdt]

Great samples! I'll work through this tomorrow.

[10der]

thank you so much!

[zuckschwerdt]

(Use http://triq.net/iqs if you like to "see" the samples, looks very clear.)

[10der]

wow!

[10der]

but some notice here.
1) I have 5 sensors
2) 2 sensors at home and not reachable here
3) 2 sensors outdors and very interesting for me
4) 1 sensor you can ignore - it VERY ok!

 HIDEKI TS04 sensor
        Rolling Code:    10
        Channel:         1
        Battery:         OK
        Temperature:     -2.3 C
        Humidity:        86 %

5) HIDEKI Rain sensor and HIDEKI Rain sensor what I trying to solve...

[10der]

and last. wind sensor now is not acessable by two reasons.
1) no wind just now, at all :')
2) is too far from rpi and antenna

[zuckschwerdt]

The rain value is accumulated. The reading is correct. (0x125 = 203 ; 203 * 0.7 = 205.1)
I have added CRC checksum to the sensor now.

[odenisenko]

cool.
if not clear what is 203 but Ok.

[zuckschwerdt]

see also #891 -- the values and keys for wind and rain will change soon!

[zuckschwerdt]

203 is the raw data from the sensor. Each 1 from the sensor is 0.7mm rain.

[odenisenko]

thank you co much!

[eugen66]

Hi,
Im using this rain sensor but I wonder if it can be something I can do to calibrate, the sensor shows that it have rained over 45 cm today. I use it with Weewx and are checking the "raw" values from sensor via rtl_433, it has increased from 841,1 mm to over 880.....
