Rpcs3: Activision games have serious flickering problems

[Josivan88]

Activision games show many similar vertex problems:
Goldeneye 007 reloaded:

Log:

RPCS3.log.gz

RSX Capture:

https://drive.google.com/file/d/1WbJJ5Aq5gk-O7xaJxgBEGUF8QSLOedsx/view?usp=sharing

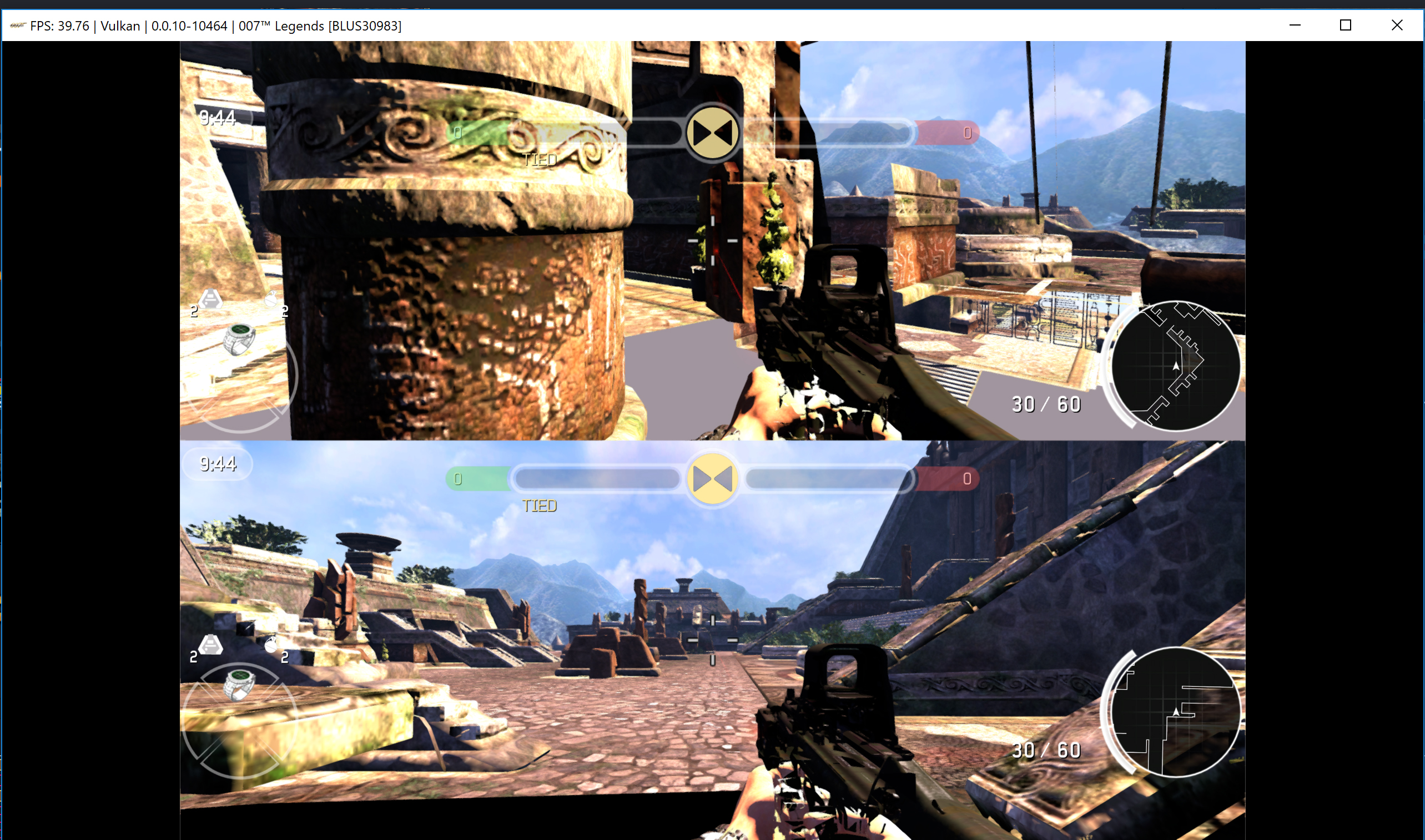

007 Legends

log:
RPCS3.log.gz

RSX Capture:
https://drive.google.com/file/d/1pn5DrJtJJ82F11RewPDb8yK25SMAW_e4/view?usp=sharing

Call of duty Black ops 3

Log:
RPCS3.log.gz

RSX Capture:
https://drive.google.com/file/d/1F2nPE3tGTDh0RP24ytWjX90Wz3-IQv_7/view?usp=sharing

It seems to be something more prominent in weapons. This problem is old and came for years with these games

PC specs:
i7 9700K
32Gb of DDR4 memory
1070 GTX

Any other info required I am here to help.

[Josivan88]

the problem still exists on 0.0.11-10661

[kd-11]

Known issue with Z values outside 0-1 range rendered with a clip volume that holds values outside the 0-1 range. Seen in games using a floating type Z buffer, I'll run some hardware tests to figure out the correct solution. Currently rpcs3 is still using a hack I added many years ago, but the Z data compression introduced forces the excess data to be crammed inside something less than 10 bits of Z precision which is not enough when used by an engine to render everything.

[kd-11]

I forgot I had already researched this at depth a few years back. On PS3 depth buffer can store values outside the 0-1 range without issue if the format is floating point. This is an nvidia-specific extension to OpenGL so I chose to use the range compression to try and mitigate the problem in a universal manner. I'll just add support for extended range wherever possible in hardware, not much I can do about hardware that does not support this.
EDIT: After looking into it a bit more, looks like NV_depth_buffer_float was incorporated by ARB and we actually use the extension for it so most of the groundwork seems to have already been done. I was right the first time. It is indeed NVIDIA-only on OpenGL. The good news is that AMD supports the correct extension to allow this to work in Vulkan.

[kd-11]

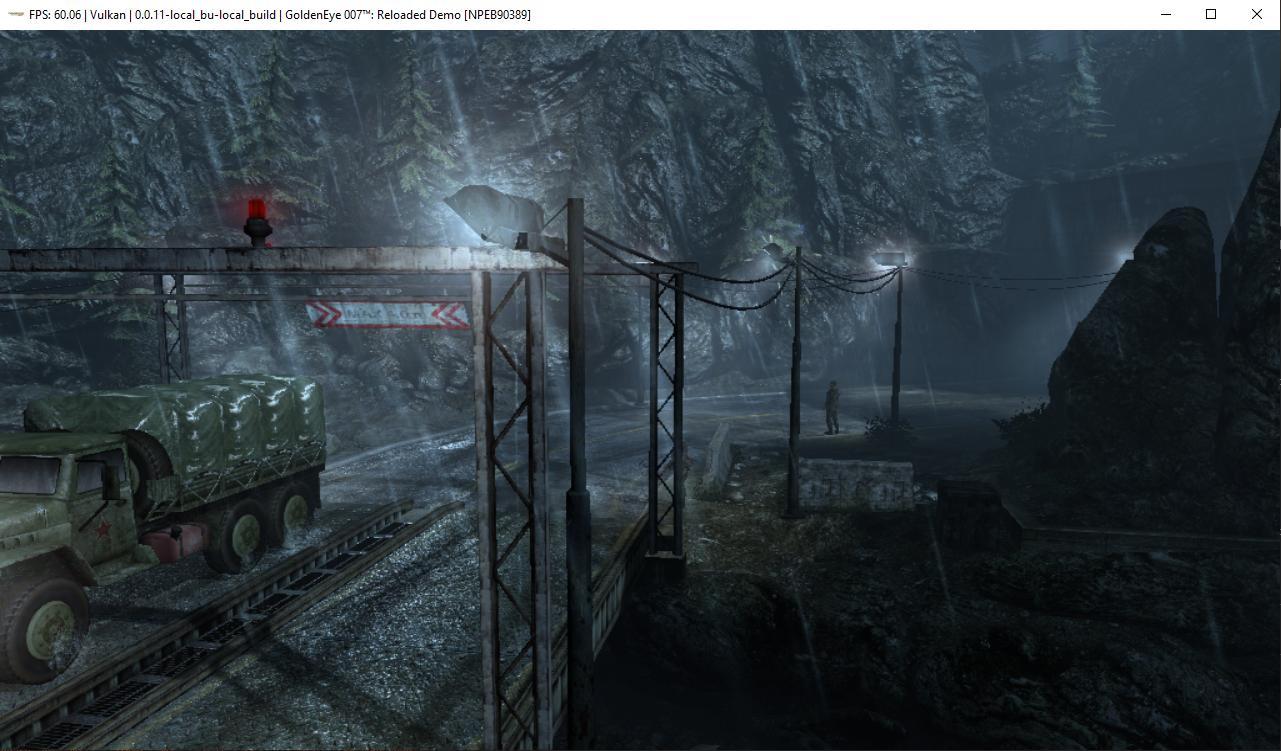

At least its doable. Running on AMD GPU in this screen:

Unfortunately there are multiple driver/hw requirements to get this working means multiple code paths must be implemented for this to work. Requires more effort than I anticipated, but should be ready in a few more days.

[Josivan88]

Is highly probable that Goldeneye 007 reloaded and 007 Legends will become fully playable with this fix

[kd-11]

Is highly probable that Goldeneye 007 reloaded and 007 Legends will become fully playable with this fix

Yes, at least graphics-wise there doesn't seem to be much that is broken.

[kd-11]

Implemented support for required features partially in https://github.com/RPCS3/rpcs3/pull/8741. Its a very large job, but its my fault for ignoring this rare set of features for so long as they were not used in many games.

[X4CD]

just tried to play Golden eye 007 reloaded and was getting graphical glitches, glad to see people are working on a fix!

[Josivan88]

Sorry for my mistake on the last post about COD BO3 in the last PR @kd-11
007 Legends have the flickering solved but screens become black or gray depending on the situation (it may or may not be related)

Log:
RPCS3.log.gz
RSX Capture:
BLUS30983_20200827162325_capture.zip

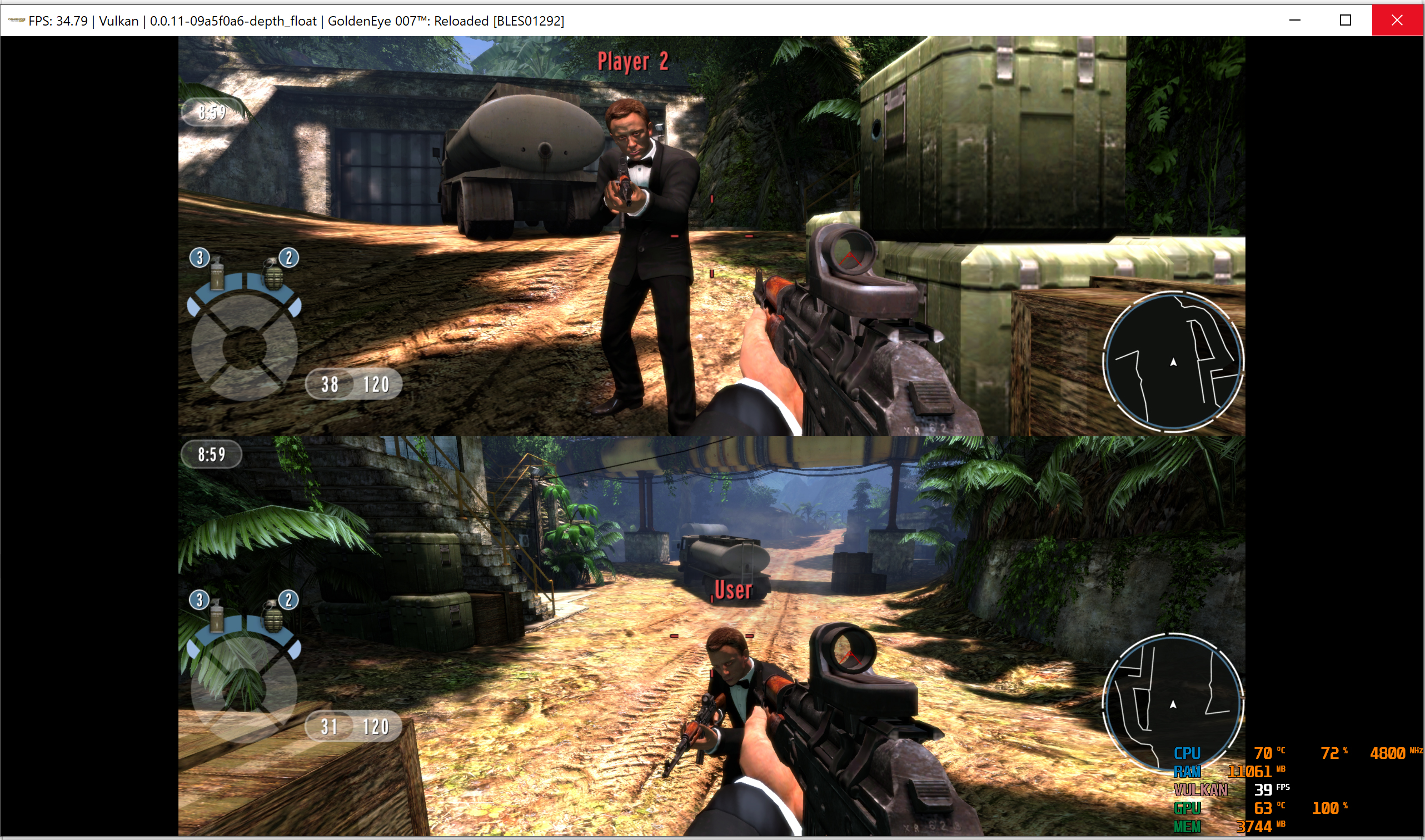

Goldeneye 007 reloaded seems to be pretty good and just waiting for ##8766 to be fully playable!

Call of duty black ops 3 is good too:

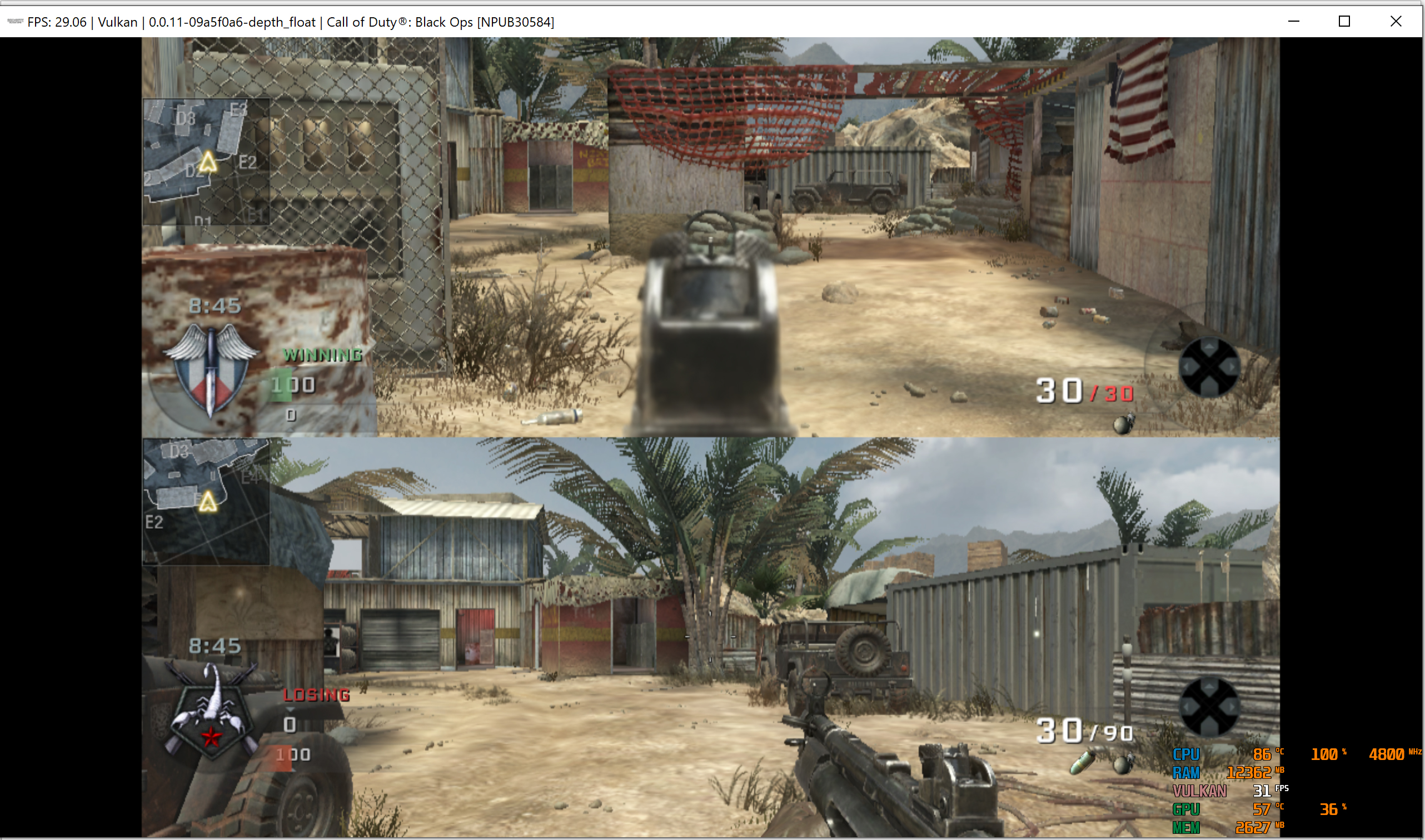

Call of duty black ops is near to perfect graphically now:
The weapon is not semi-transparent anymore
While targeting weapon is not excessively blurred anymore
Seems a little more stable now

[X4CD]

@Josivan88 how do you fix it, is it just a patch

[Josivan88]

@X4CD this is not the right place to ask for help, please contact me on RPCS3 discord server, moderator, please, clear these comments
