Revolution: MODX Tree shows "HTML" elements

[JoshuaLuckers]

Bug report

Summary

After the recent security patches (PR #14335) the MODX Tree applies html encoding to the node text.
For resources the text for nodes contains a span element surrounding the resource ID. This span element tells browsers that it should use the text direction "left-to-right". Because the text is encoded it shows the element as "regular" text.

Step to reproduce

Fetch the most recent MODX source from the 2.x branch and install it.
Open the manager and check the MODX Tree.

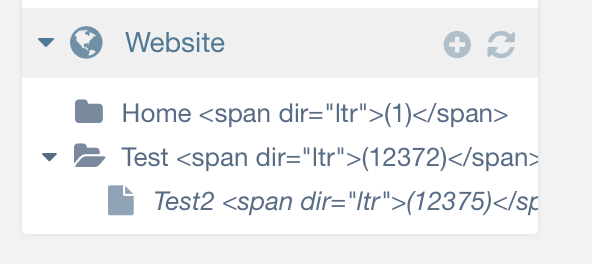

Observed behavior

Expected behavior

Tree elements for resources should not show the span element.

Environment

MODX 2.7.x-dev

[Ibochkarev]

I can reproduce this bug.
The problem was found, here is - https://github.com/modxcms/revolution/pull/14335/files#diff-5f9a4ceb2f6f68d22416f98adcc4fdb5R250

[JoshuaLuckers]

I'm not sure what's the best way to solve this issue. A quick and dirty workaround would be to use a find and replace for this particular element after the string is encoded.

Using a quick and dirty workaround is not something I prefer and it should be used as a last resort if it this issue prevents a 2.7.1 release.

[Mark-H]

If we can't run htmlEncode on n.text, then n.text has to be sanitised _before_ it gets to the client-side. That's probably in the getNodes processor. A find and replace would be very dirty ;)

[Ruslan-Aleev]

And here exactly need htmlEncode? For a resource heading, for example, htmlEncode is applied again - https://github.com/modxcms/revolution/pull/14335/files#diff-b7fb669b456b21ec201094399cdc918bR496

[Mark-H]

So that turned out to be more complicated than I expected, but #14361 should resolve this. Would appreciate help with testing that.
