Reactivesearch: dataField for List components

[botvsbot]

Issue Type:
docs issue/query

Description:
It is not straightforward as to how the dataField needs to be specified for List components. For example, in case of DataSearch, the following snippet works for my data:

<DataSearch
    componentId="searchbox"
    dataField={["test", "city"]}
 />

At the same time, all the examples in the manual have a dot-separated "raw" field in dataField property. So it is not straightforward as to how this needs to be specified. The following snippet does not work for me:

<MultiList
    componentId="citybox"
    dataField="city"
/>

Infact, none of the following options fixes the issue: "city.raw", "..city", ".city", ".city.raw", "..city.raw" etc. There are no errors displayed on the console but the MultiList component is not even displayed on the UI.

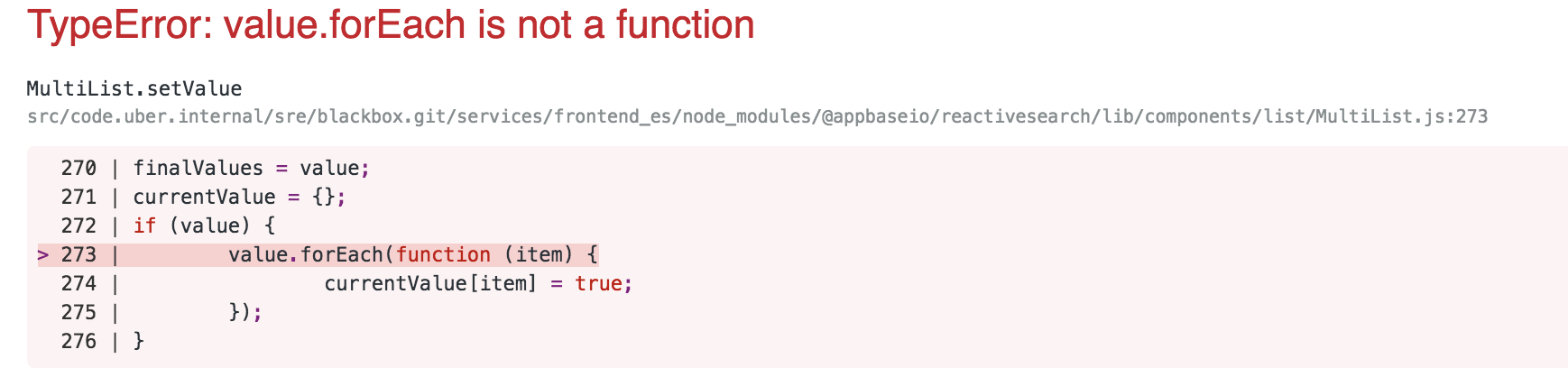

When I do a hard-coded query using the URL, http://localhost:3000/?citybox=san_francisco, it throws the following error
Screenshots:

Reactivesearch version: x.y.z
2.1.1

Browser: [all | Chrome XX | Firefox XX | Edge XX | IE XX | Safari XX | Mobile Chrome XX | Android X.X Web Browser | iOS XX Safari | iOS XX UIWebView | iOS XX WKWebView ]
Chrome

[divyanshu013]

Hi @botvsbot, can you post your mapping object? .raw here refers to a multifield in ES which is either not_analyzed or of type keyword. Reference

[botvsbot]

Hi @divyanshu013 , Thanks for your response. My field city was originally of type text. I would expect specifying the dataField as city.raw to consider it as keyword.

Nonetheless, changing the mapping to keyword fixes the issue:

{
  "my_index" : {
    "mappings" : {
      "test" : {
        "properties" : {
          "city" : {
            "type" : "keyword"
          },
        }
      }
    }
  }
}

I have a followup question. Does MultiList support filtering on multiple fields (similar to DataSearch)? Currently, I am not able to specify an array as the dataField param. What is the right component to be able to filter by multiple fields? I am not looking for text search, I am looking for an exact filter on the field keywords.

[divyanshu013]

The .raw multifield is what is used by appbase. Your ES might have a different name for the keyword field. I think we can also explain this in the docs better for the components using aggregations. Since MultiList does aggregation, it needs a keyword field.

As for your followup question, MultiList only supports aggregation on a single field. You can use ReactiveComponent to create your own component in order to handle multiple fields.

[botvsbot]

Thank you. Feel free to close this.

[grinono]

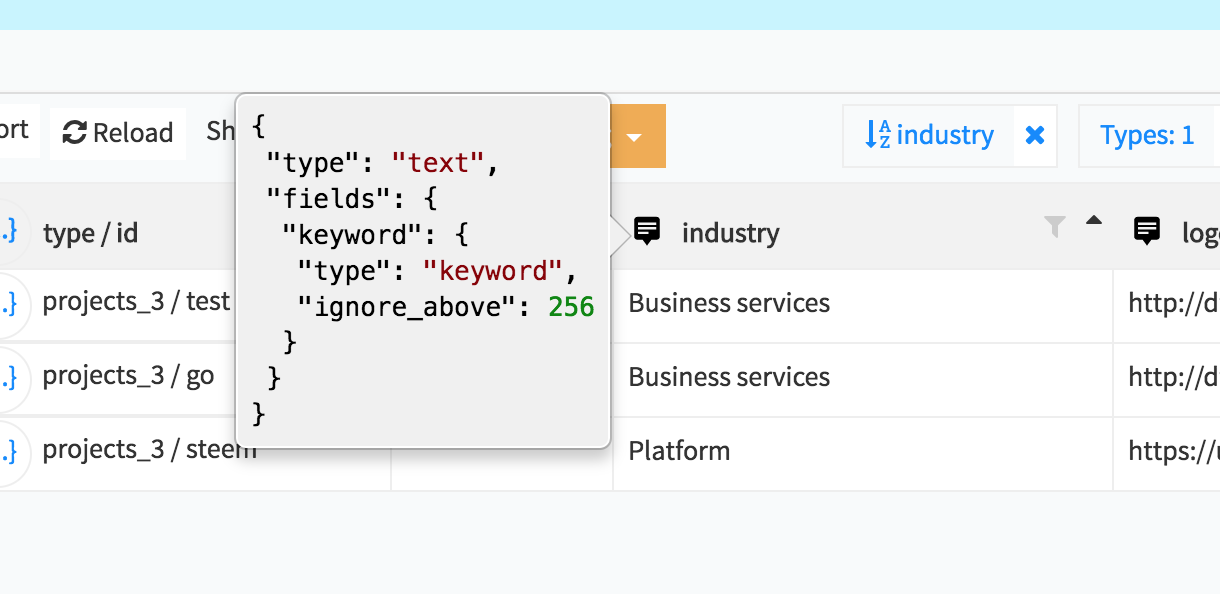

I'm having the same issue. The MultiList/SingleList components are not showing up at all. No error handling of any kind. i'm use appbase elesticsearch.

component Call
<SingleList componentId="industry" dataField="industry.raw" size={100} />

Any advice

[divyanshu013]

It seems like you've a keyword field not raw. Can you try the dataField as industry.keyword

[grinono]

thanks, that fixed it.

[grinono]

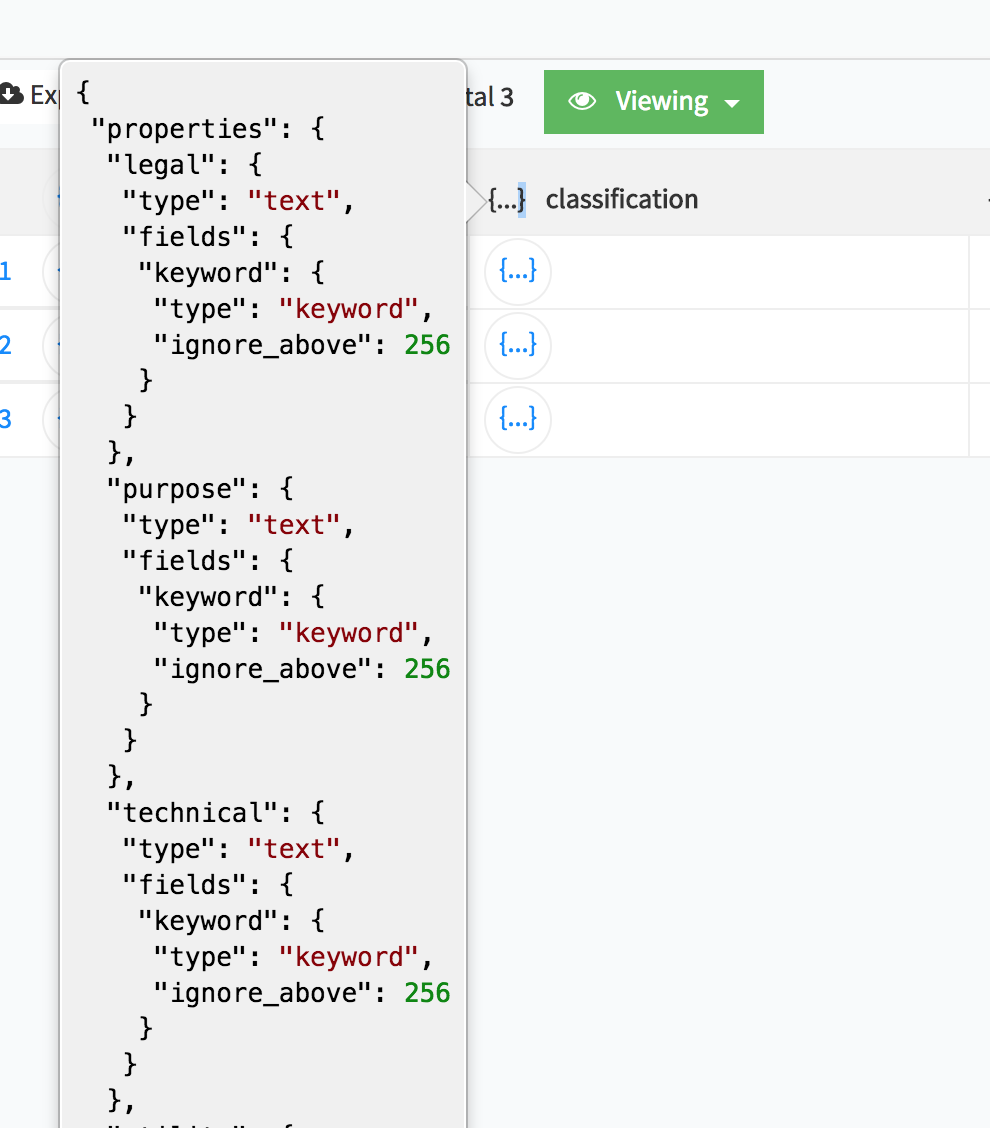

How to Specify for a JSON object?

dataField="classification.properties.legal.keyword"

is not returning anything

[divyanshu013]

Can you try classification.legal.keyword?

[grinono]

thanks again 👍
