React-native: [CameraRoll] Image Orientation Bug

[myusuf3]

This is blocking bug for us. I have seen a couple of issues and followed the suggest tips but I am still unable to get this image to render with proper orientation. This issue #1567 make reference to the bug and memory issues large camera rolls.

Here is an example of what I am talking about as you can see top image is rotated incorrectly. Doesn't happen with all images though oddly enough.

[myusuf3]

@a2 ping

[myusuf3]

@brentvatne ping

[brentvatne]

@myusuf3 - I'm not familiar with this part of the codebase, it sucks that it's a blocking issue for you :( perhaps @nicklockwood has some insight

[myusuf3]

That would be awesome @nicklockwood if you could provide some insight!

[nicklockwood]

I don't have time to investigate this fully right now, however I have a theory about what the issue is.

UIImage has a concept of orientation which may be being ignored when the image is drawn.

The orientation metadata means that images in the camera roll aren't necessarily stored "right-way-up" on disk, but are instead rotated to the correct angle when drawn by iOS. If we're not taking the orientation into account, it would explain why some images are rotated and others aren't.

[VonD]

@myusuf3 does the orientation appear differently on your thumbnails than it does on the Apple Photos app ?

[ide]

Some reading on orientation for those interested: http://www.daveperrett.com/articles/2012/07/28/exif-orientation-handling-is-a-ghetto/

[VonD]

@ide thanks for the article. nice read!

[myusuf3]

@VonD yes it does appear differently in both places. correct in the photos app and broken in our react application.

[VonD]

@myusuf3 OK, here's a little experiment : a photo of my keyboard taken in the 4 orientations. Below are two screenshots : on the top the Photos app, on the bottom my RN app. The orientations seem consistent. I'm using RN 0.6.0 + the patch provided here : #1567 , and the screenshots are from a device with ios 8.3. How does this test work for you ?

[myusuf3]

Is this the patch exactly? Just so we are clear.

  if ([imageTag hasPrefix:@"assets-library"]) {
    [[RCTImageLoader assetsLibrary] assetForURL:[NSURL URLWithString:imageTag] resultBlock:^(ALAsset *asset) {
      if (asset) {
        // ALAssetLibrary API is async and will be multi-threaded. Loading a few full
        // resolution images at once will spike the memory up to store the image data,
        // and might trigger memory warnings and/or OOM crashes.
        // To improve this, process the loaded asset in a serial queue.
        dispatch_async(RCTImageLoaderQueue(), ^{
          // Also make sure the image is released immediately after it's used so it
          // doesn't spike the memory up during the process.
          @autoreleasepool {
            ALAssetRepresentation *representation = [asset defaultRepresentation];
            ALAssetOrientation orientation = [representation orientation];
            UIImage *image = [UIImage imageWithCGImage:[asset thumbnail] scale:1.0f orientation:UIImageOrientationUp];
            RCTDispatchCallbackOnMainQueue(callback, nil, image);
          }
        });

This to me doesn't make sense since you are forcing all the images in the up orientation which should result in everything that wasn't take in up orientation to be broken.

[myusuf3]

@VonD ^^^ If so that doesn't solve the issue for me.

[a2]

@myusuf3 I mean I can't say for certain that will work. It was just a thought. My thought was that the -thumbnail method is documented as performing the rotation for you and having an Up image orientation.

[myusuf3]

So if I apply thumbnail [asset thumbnail] it will put everything in the up position once its done? @a2 Anyways I got that piece working and things in the application aren't flipped anymore. I was using a custom Image component in the camera roll screen. I will fix my PR #1842 to reflect it.

[ptmt]

@myusuf3 What's the status for orientation issue? Do you have a fork which works for you?

[nicklockwood]

This should be fixed now. If not, please re-open.

[ptmt]

@nicklockwood Orientation doesn't work for me on current master. When rnplay.org will update to 0.9.0 I'll post example there, maybe there is some misunderstanging.

[myusuf3]

@unknownexception I am still patching the file for it to work. I hoping to see if this #2008 was merged into 0.8.0 so we could ditch this patch we currently have in our code which works well. @nicklockwood can you confirm that PR was merged in?

[aroth]

@myusuf3 Changes from #2008 were committed to master on 7/21 (https://github.com/facebook/react-native/commit/9c73e2ff7aeac8c65f25472135e4c0410f797eea). @nicklockwood committed additional enhancements shortly thereafter (https://github.com/facebook/react-native/commit/85cb35c51439a17c0961cc80518d2e979d7279c0).

Merged into 0.9.0-rc. Please let us know if your issue is resolved.

[aroth]

@unknownexception @myusuf3 @nicklockwood I've created PR #2214 to resolve this. The original fix was overwritten by other recent camera roll enhancements.

[nicklockwood]

@aroth @myusuf3 can you provide some sample photos that show at the wrong orientation in the camera roll example? I've tried taking photos in all orientations with the camera, but they always show the right way up even without @aroth's fix, and I don't want to merge it unless I can verify that it works.

[aroth]

@nicklockwood Screenshots from device attached below (iPhone 6).

_Without fix on device_

_With fix on device_

[ptmt]

@aroth can confirm, that fixed some cases. Thank you for your fix.

[thomashermant]

I've got the same problem here.
My images get from CameraRoll has a bad orientation.

When I read message above seems to be fixed...
Do you have an idea when it will be in a released version?

Best regards,
Tom

ps: You are making an awesome job guys! Thank you!

[aroth]

@thomashermant The fix for this has been included in 0.11-rc.

https://github.com/facebook/react-native/releases

[myusuf3]

its not in 0.10.0? ugh.

[browniefed]

@brentvatne this is fixed already in .11. Close.

[pawellewandowski]

Reopen... I have the same problem in RN 0.43.

Reproduction:
I made 1 photos, next I close camera, reopen and made 2 photos:

[seancunningham]

Same problem, did you manage to resolve yours after the month or so?

[Iyoss]

@pawellewandowski Have you resolved this issue? I have this with RN 0.48.3 and 16.0.0-alpha.12

[jose920405]

Still hapenning in 0.51.0

https://stackoverflow.com/questions/48350067/image-orientation-issue-in-android-react-native

[ewein]

I'm getting this issue on iOS using React Native v0.52.0

[phillmill]

Getting this issue on Android, React Native 0.55

[phillmill]

Hey @jose920405 I see you used react-native-exif to fix your issue (in the stackoverflow article). I gave it a try, but the thing is, is it's telling me to rotate images 90 degrees correctly, but in other instances it's also telling me to rotate images that are _already_ correct.

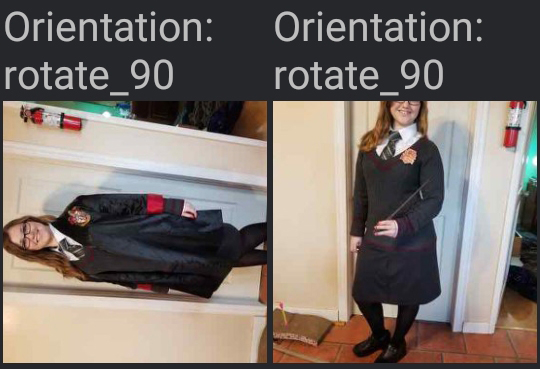

Below is a screenshot of two images, both of which are actually portrait images (and display as portrait in default gallery app). But as you can see, the Exif value says rotate 90 for both :S.

edit: this is on android / samsung galaxy s8+

[phillmill]

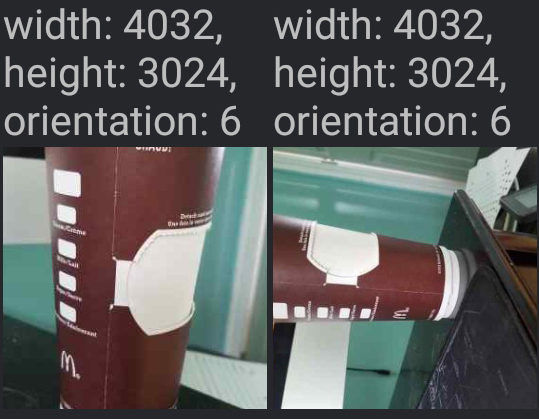

Here is some more context:

• Both photos below were taken as portrait
• Both are reporting dimensions of 4032x3024 (via CameraRoll.getPhotos())
• Both exif orientation values are "6" (which is supposed to mean rotate 90 degrees)
