React-native-screens: [native-stack] Header is out of the safe area on Android

[satya164]

_Moved from react-navigation/react-navigation#6797. Originally opened by @enheit_

---

Current Behavior

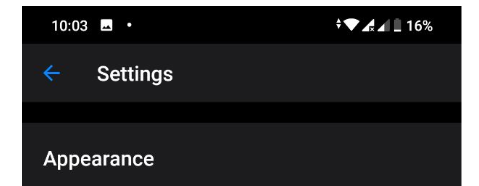

The header navigation is rendered beyond safe area on Android devices.

Expected Behavior

The header should be rendered in 'safe area'.

(this is how @react-navigation/stack works)

How to reproduce

Create a screen by using Screen.Stack from @react-navigation/native-stack

Your Environment

| software | version |
| ------------------------------ | ------- |
| iOS or Android | Android (v9)
| @react-navigation/native | ^5.0.0-alpha.33
| @react-navigation/native-stack | ^5.0.0
| react-native-screens | ^2.0.0-beta.2
| react-native | ~0.61.4
| expo | ~36.0.0
| node | v12.14.1
| npm or yarn | 6.13.4

[WoLewicki]

@enheit can you repro the issue in v. 2.4.0?

[Erc93]

Hi. I am getting the same issue and it looks like it still occurs in v2.4.0

[enheit]

@WoLewicki Issue is not reproducible in version 2.4.0 (Android v9)

I would recommend to verify on other Android versions & devices if it possible

[WoLewicki]

@Erc93 can you provide a reproduction with a minimal needed configuration that would show the issue?

[Erc93]

@WoLewicki
I just realised that I might be running into a separate but similar issue. I seem to be getting the problem when using import { createNativeStackNavigator } from "react-native-screens/native-stack"; to create my stack. Using the stack navigator from react-navigation seems to fix my issue.

Here is an example:
https://snack.expo.io/HqDtTeyzQ

[WoLewicki]

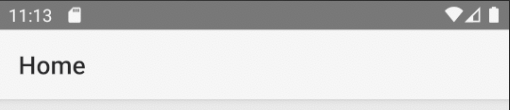

@Erc93 I cannot repro your issue with this configuration. It looks like the safe area is correctly applied on Android. Can you be more specific on how to reproduce the bug?

[Erc93]

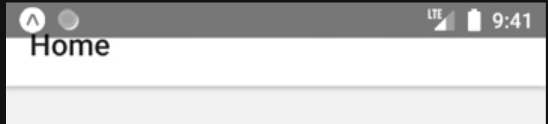

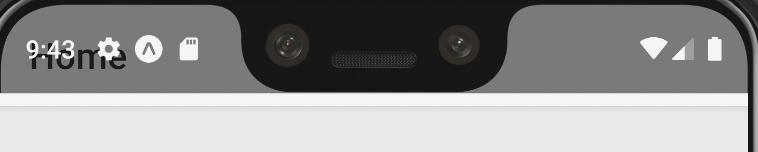

@WoLewicki I'm not sure why you cannot reproduce the issue. The issue seems to occur on both the Android device on the snack and on the Android Simulator for me.

The issue specifically happens when using createNativeStackNavigator from "react-native-screens/native-stack" to create the stack. If I replace this with createStackNavigator from "@react-navigation/stack", then the issue no longer happens.

I'm not quite sure if I am missing anything else to be able to reproduce the issue. I have tested the problem from Android 8.1 until 10 and it seems to happen on all of them. I'm also quite new to React Native so I apologise if I am being confusing.

[WoLewicki]

I think the problem might be that you are trying to do it in Expo Client, which has an older version of react-native-screens, where the bug still exists. Could you try making a bare RN project with newest react-native-screens and check if the issue exists there?

[Erc93]

@WoLewicki Yup you are right. I was using the Expo client the whole time. I created a bare project as you advised and the issue does not occur. Thanks for all the assistance!

[WoLewicki]

Ok so sadly all you can do with Expo client is to wait for the next release where the newer native code will be added. I am closing the issue since it is resolved.

[dougg0k]

I found a temp solution for Android while using Expo. In the Screen options, when declaring your header (left, center and right), you can add height and marginTop to it and that can help, maybe not in all cases though.

headerCenter: (props) => (
    <Text
      style={{
        color: "white",
        fontSize: 18,
        height: 40,
        marginTop: 30,
      }}
    >
      Title
    </Text>
  ),
