React-native-document-picker: [RFC] 3.0.0

[dantman]

I had a number of issues with the implementation of this library, enough that I ditched it and started working on my own document picker implementation internally to fit my needs.

I'd be willing to instead help overhaul this library if the community and package owner are willing to accept the changes I want to make.

• [x] iOS idea: The hfsTypeCode should be used to attempt to return a mime type. (hfsTypeCode doesn't seem to return anything) Use Apple's UTI handling to implicitly get a mime type from a file extension.
• [x] iOS bug: A callback should be called with an error instead of exiting and never responding.
• [x] iOS bug: Migrate from the deprecated UIDocumentMenuViewController to UIDocumentPickerViewController.
• [x] Android: ACTION_PICK should never be used, it is intended for choosing data from a media provider, not choosing any document of a mime type.
• [x] Android: ACTION_GET_CONTENT should be used by default instead of ACTION_OPEN_DOCUMENT to match the intent of the iOS behavior: iOS declares the mode as import rather than open, which matches the semantics of ACTION_GET_CONTENT (just reading/importing data) rather than ACTION_OPEN_DOCUMENT (long term persistent access to a document/editing of it).



  • [ ] Optional: We could provide an option to allow the user to choose between import/get_content mode and persistent open mode. Maybe a mode, forOpen: true, or persistent option.


• [x] Android: Intent handler should guard against nonexistent current activity and failure to show the document picker due to a throw.
• [x] Support multiple document selection: Do this with a second method that always returns a promise for an array to keep the possibility of supporting flow types (rename show -> pick and add pickMultiple). I already have code for this on Android. On iOS support for this is coming in iOS 11.
• [x] Return a Promise instead of using a callback: RN's native documentation recommends using promises for async js/native handling instead of callbacks (callbacks to native on iOS are marked as experimental). And almost all of react-navigation's own public APIs now use Promises instead of callbacks.
• [x] Errors returned by the library should include a string error code that makes it possible to identify the error.
• [x] Add a .isCancel(err) method to check if an error is due to the user canceling the document picking and actually bother to check for Activity.RESULT_CANCELED.
• [x] filetype is poorly named, refactor this to just type.
• [x] Android: A document picker should not implicitly download a file if it gets a network URL.
• [x] Android: Use getInt(sizeIndex) to get the file size, it should not be converted to a string and than parsed back into an int.
• [x] Android: Drop all file path and http handling from the document picker. Both ACTION_GET_CONTENT and ACTION_OPEN_DOCUMENT explicitly state that the URI returned by the intent must be a content: URI that can be used with a content provider.
• [x] Android: Update content resolver handler to use DocumentsContract.Document.COLUMN_MIME_TYPE on KitKat+ instead of just getType to get the mime type.
• [x] Change fileName to name: The DISPLAY_NAME on Android is not guaranteed to be a file name.
• [x] DocumentPickerUtil should use Platform.OS === 'ios' instead of Platform.OS === 'android'.
• [x] Default to an */*/allFiles when type is not defined.
• [x] Cleanup the public API: DocumentPicker should be the default export. And types selection should not be named "*Util" or require a verbose extra import. I recommend DocumentPicker.types.images. The function invocation can safely be dropped while still avoiding {type: DocumentPicker.types.somethingThatDoesNotExist} bugs and supporting "allFiles by default" by checking for types that are undefined but are present (ie: 'type' in opts is true but opts.type === undefined) and a similar test for arrays.
• [x] Android: Rename DocumentPicker.java to DocumentPickerModule.java and ReactNativeDocumentPicker.java to DocumentPickerPackage.java.
• [x] com.reactnativedocumentpicker is a poor namespace name that's a reverse domain that this project does not own, refactor the library to use a github repo based namespace.
• [x] Add a warning when native code is not available
• [x] Make sure a chooser is used on Android API level 18 where the new DocumentProvider picker is not available
• [x] #50 Fix make type option with more than 1 types work on Android

[Elyx0]

Hey, fellow canadian! I'm totally swamped and 100% open to contributors, RNDP really needs a v3 bump to work with the 2017 specs of various OS and provide more granularity. I've seen a lot of people fork it over time to add some little tweaks here and then without a MR back.

I've reviewed all your points and I agree with them, so I'm up for it!

[dantman]

Ok, most of these are required by one of the features in the app I'm writing for a client. So I'd be happy to work on this once I get them to prioritize features and get to that part of the list.

[dantman]

It too all day to write multiple file selection (I had to learn more Objective C than I ever wanted to know), but it's working now.

I was finally able to get files into the iOS simulator so I could test most of it. (requires signing in to iCloud and is quite unreliable in when files actually get synced, so that doesn't help for tests)

However while Apple is saying iOS 11 supports multiple file selection in the document picker, they haven't said how it works. I have no clue how to actually pick multiple files in the picker, even though I made certain I properly enabled it (explicitly passing true and defining the required delegate). So I can't test the actual selection of multiple documents.

However I'm sure the new delegates I implemented are working because I verified that iOS 11 exclusively calls the new didPickDocumentsAtURLs instead of the old didPickDocumentsAtURL even when you only have one file and I tested in iOS 11 and iOS 9.

[dantman]

@Elyx0 The only things left are to fix the license and figure out what you want to do about the outdated screenshot and questionable react-native-fs recommendations in the readme.

[Elyx0]

Update all the things!

[Elyx0]

Bumping, how are we doing on v3 <3 ?

[dantman]

@Elyx0 Same as before. Could you fix the license #76. What do you want to do about the questionable react-native-fs recommendations in the readme?

[armanatz]

Any news on v3 @Elyx0 @dantman?

[CptMaumau]

Can we safely use the v3 branch in the meantime?

[dantman]

Theoretically it should be completely functional.

[CptMaumau]

@dantman is there a way to supply a limit number of files for multi picker?

[dantman]

@CptMaumau I do not know of that being available as an option on any os.

[mjmasn]

@dantman re multiple file selection on Android, when using the Google Photos picker it only returns a single file despite allowing you to select many files, and the Google Drive picker only allows selecting and returning a single file.

It's a bit weird because you can access the same files in multiple ways and some work, some don't. Not sure how easy it would be to solve but I'm happy to take a look if you can point me in the right direction.

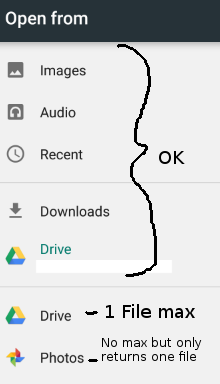

This screenshot might make it clearer. The first Drive item uses the standard file picker so does work with multiple files but the second Drive and Photos items use their own custom pickers which is probably why they don't work properly.

Either way I'm incredibly grateful for your changes for v3, nothing else I've found so far has worked at all for picking documents! Thanks :+1:

[javascriptmiracle]

When will release new version?

[dantman]

Issues needing solving for v3:

• Decide what to do about questionable "How to send it back ?" readme section
• Update screenshot
• Updated documentation
• Windows somehow got shoved into 3.0.0 instead of 3.1.0, so we need to make that stable
• Possibly need to integrate web version
• Fix the license tag
• We need people actually testing out and using v3, I suppose I should push a beta to the next tag once these other issues are handled

Right now I'm not working on the project that needs this for awhile, so that is limiting the development I can directly do on this until I return to it.

[javascriptmiracle]

@dantman
on ios the applications the plugin opens the explorer by default
can I open media files, photos like android app

[Elyx0]

You can go ahead and pick any open source license you see fit @dantman For the How to send it back, maybe we can put in place a Wiki instead but I really think it is going to be a recurring question amongst users

[dantman]

For the How to send it back, maybe we can put in place a Wiki instead but I really think it is going to be a recurring question amongst users

I just checked. React Native 0.54.0 has finally been released with Blob support!!! Once I get back to the project feature that needs this, I think we can come up with documentation that recommends how to use Blob instead and release v3 with a recommendation to use RN >= 0.52

@dantman
on ios the applications the plugin opens the explorer by default
can I open media files, photos like android app

I'm not clear on what you're asking. On iOS there should be a Back/Menu button to switch between document providers/storage locations, iCloud/on device/Drive/Dropbox/...

[javascriptmiracle]

I'm not clear on what you're asking. On iOS there should be a Back/Menu button to switch between document providers/storage locations, iCloud/on device/Drive/Dropbox/...

yes
can i open photos

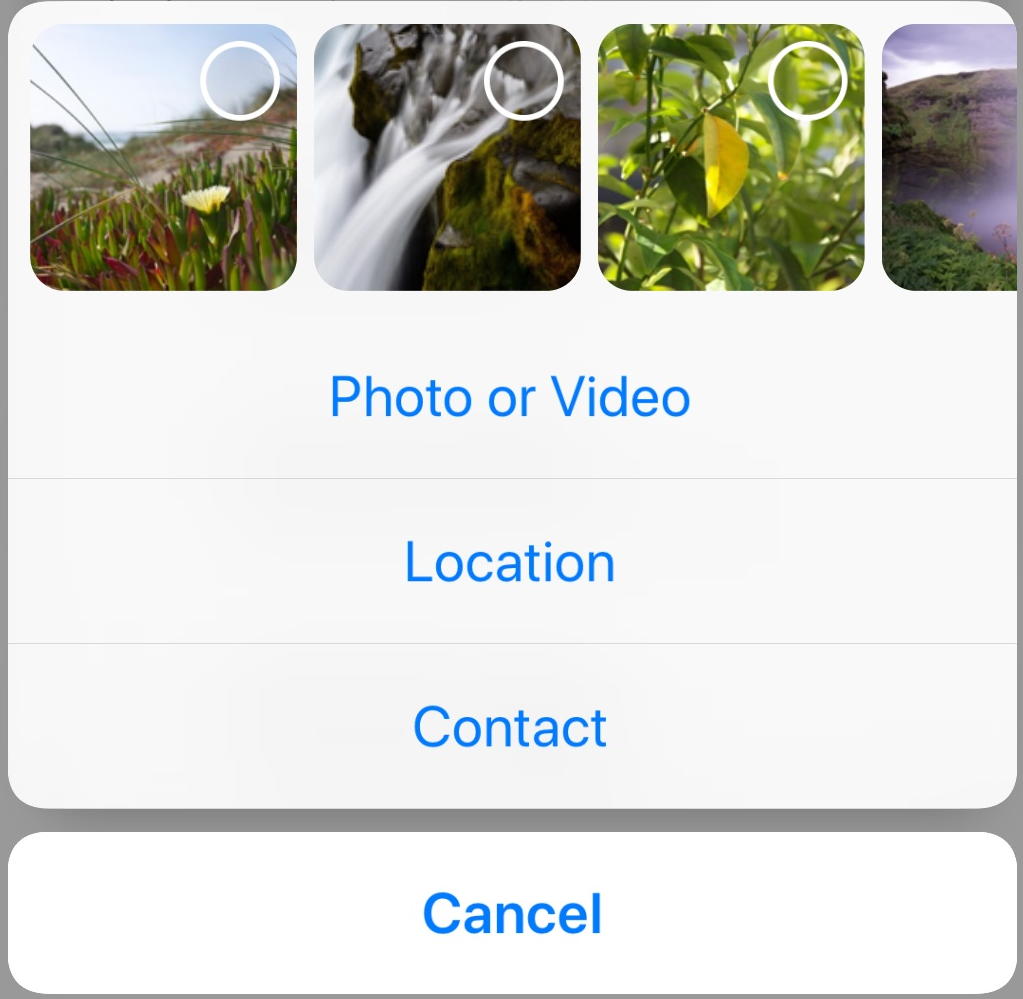

something like this

[dantman]

@javascriptmiracle Check out the sample code in #84

[MyGuySi]

@dantman I know it's already been asked but would you say the v3 branch is stable enough to use right now? Some of your improvements would really help, particularly handling the cancel action

[dantman]

@MyGuySi Yes, it was working fine when I wrote it. And the v2 code was so problematic any bugfixes should go straight to v3.

[vonovak]

how are we on the v3 release @dantman @Elyx0 ? What is blocking it?

[dantman]

• New screenshot
• RNFS documentation in the Readme needs to be replaced with an explanation on how to use fetch/blob/FormData/etc
• People need to actually test it out so we know it works

[piranna]

In my company we have extended react-native-document-picker to add option to pick images from the camera both for Android and iOS, and maybe we would extend it to also pick videos and audios, at least for Android. Web platform already does it in mobile due to how the input tag works (nobody has implemented this in desktop, I'm thinking if I should do a polyfill...) but didn't add this feature on Windows because that platform was not a requeriment of our client. Would this feature make the cut to be included in 3.0.0 if we do a pull-request?

[mjmasn]

@dantman can confirm v3 is working for us in production. Only issue I've come across is the one described in my comment above. Edit: I should add it's only Android builds we're doing currently, so no idea about iOS.

[dantman]

@piranna That depends on how you've "extended" the picker.

[piranna]

@piranna That depends on how you've "extended" the picker.

The changes are available at https://github.com/QuantumBA/react-native-document-picker/commits/example_re-start. The way is done is transparent to the user, by checking the requested mime type and if it's */* or image/* it shows a selector that allow both the file selector or the camera, and for picking the camera image is using the future-proof FileSelector API. I've added a new private flag to indicate if the camera image must to be stored in the images gallery or being private to the app itself. Appart from that, some improvements that could be added are an option to opt-in to pick camera images or just only filesystem files, to add support for the video and audio mime types, and a selector between using only the default system camera app or show Intents for all the installed camera apps. The iOS part was done by a work colleage, but seems similar options could be added.

The commits you'll see there have some extra work regarding the web platform support and added an example project that I did both for speed up debug process (the FileSelector has been a PITA because Android docs are wrong) but also as an usage example for the project, but I could be able to cherry-pick them and do independent pull-requests for them.

[piranna]

Another thing I was thinking too, since now the generation of the Intent is more complex and mostly agnostic of the app, is to move it to its own class so code gets cleaner, by separating the DocumentPickerModule from the Intent generation, how do you see it?

[heitorpr]

Hey guys im getting this error using android any tip?

RNFS.readFile Error: Permission Denial: reading com.google.android.apps.docs.storagebackend.StorageBackendContentProvider uri content://com.google.android.apps.docs.storage/document/acc=1;doc=17 from pid=25792, uid=10315 requires that you obtain access using ACTION_OPEN_DOCUMENT or related APIs
    at createErrorFromErrorData (841fc1ae-e32a-4f10-a24e-47d472e304cf:2051)
    at 841fc1ae-e32a-4f10-a24e-47d472e304cf:2003
    at MessageQueue.__invokeCallback (841fc1ae-e32a-4f10-a24e-47d472e304cf:2445)
    at 841fc1ae-e32a-4f10-a24e-47d472e304cf:2190
    at MessageQueue.__guardSafe (841fc1ae-e32a-4f10-a24e-47d472e304cf:2358)
    at MessageQueue.invokeCallbackAndReturnFlushedQueue (841fc1ae-e32a-4f10-a24e-47d472e304cf:2189)
    at t (RNDebuggerWorker.js:1)

[dantman]

@heitorpr Try using fetch and the Blob API instead of RNFS.

[heitorpr]

thx for quick answer but didnt work too...

item.uri = content://com.android.providers.downloads.documents/document/raw:/storage/emulated/0/Download/Digitalizar 4 de mai de 2017 11.35.pdf

  RNFetchBlob.fs.readFile(item.uri, 'base64')
    .then((data) => {
      console.log(data)
    })
    .catch(error => console.log(error))

Error: Permission Denial: reading com.android.providers.downloads.DownloadStorageProvider uri content://com.android.providers.downloads.documents/document/raw:/storage/emulated/0/Download/Digitalizar 4 de mai de 2017 11.35.pdf from pid=7801, uid=10104 requires that you obtain access using ACTION_OPEN_DOCUMENT or related APIs
    at createErrorFromErrorData (NativeModules.js:121)
    at NativeModules.js:78
    at MessageQueue.__invokeCallback (MessageQueue.js:398)
    at MessageQueue.js:137
    at MessageQueue.__guardSafe (MessageQueue.js:314)
    at MessageQueue.invokeCallbackAndReturnFlushedQueue (MessageQueue.js:136)
    at t (RNDebuggerWorker.js:1)

[dantman]

@heitorpr You aren't doing what I suggested. RNFetchBlob.fs.readFile is another filesystem utility just like RNFS. Also RNFetchBlob itself has a broken implementation for handling content:// URIs. And it's not even needed anymore because React Native has native support for the Blob API and fetching content:// URIs.

Please try using fetch(item.uri).then(res => res.blob()) to fetch the content:// URI using the browser [Fetch API] (https://developer.mozilla.org/en-US/docs/Web/API/Fetch_API) and use the browser Blob API to read the file data.

[heitorpr]

@dantman thank you very much for your support, but this problem was a huge mistake I did =). The fetch api help me to find it. It worked too.

To end this subject, the problem was with the URI at all. I was parsing the response of document-picker with: utf8.decode(unescape(uri)) when I removed it to Android System, the RNFS.readFile(item.uri, 'base64') started working again with version 2.9.12. Also to anyone that want to display a pdf file the uri provided by document-picker, worked with react-native-pdf: 3.0.16. Thank you very much and it was my mistake.

Thanks!

[antonsivogrivov]

@piranna and others, I have some miss-understanding. I need to implement photo, video and file picker in my app like in WhatsApp (I need only photo&video and Document options):

Can I do this with v3 branch or I should use https://github.com/QuantumBA/react-native-document-picker fork?

[piranna]

My fork currently only add support for camera pictures, I'm working on audio and camera video.

[piranna]

I have done several pull-requests using cherry-pick for the different features, so they can be easily reviewed and merged upstream:

• web platform
• example project
• Camera for Android
• Camera for iOS

Support for video and audio capturing depends on some changes done on support for Camera for Android, so I'll continue doing them in the example_re-start branch.

On a side note, with the changes I've done to add support for camera capturing, the code to create the Intent has got a lot more complex, but at the same time it's independent of the DocumentPicker Activity itself, so I was thinking to move it to its own class just for clarity. What do you think?

[CptMaumau]

Hi, we've encountered an issue with 3.0.
When selecting from the SD Card, the path has an issue. Up to the sd card it is fine but once the path reach inside the slash are encoded and after decoding they actually are : and we are getting a permission denied.
Example:

• before decoding: content://com.android.externalstorage.documents/document/0FF1-3314%3Ah20_workshop_proposal.hwp
• after decoding: content://com.android.externalstorage.documents/document/0FF1-3314:h20_workshop_proposal.hwp
  Tried to replace it with a slash but even this give us permission denied.

Has anyone run into this issue?

[dantman]

@CptMaumau

• How are you reading the file?
• React Native Document picker v3 just returns the URI that is provided to use by Android. Does that content: URI not work when resolved with the ContentResolver?
• : is a reserved character, it's not really unexpected for a provider to decide to encode it's usage in filenames
• The external storage provider uses : as a special character in the path segment, so of course user provided :s are escaped

[CptMaumau]

Using RNFS because we're still on RN 0.53

[dantman]

Then that's the issue, file system libraries should not be used to open URIs.

[CptMaumau]

Issue actually came from the fact we were decoding the Uri, we had to for iOS because of special characters in filename but decoding the uri seems to break in android when there's a specific path like this. So only decoding in iOS fixed the problem.
Thank you for you help and time.

[piranna]

Could you be able to provide the details? Probably DocumentPicker should do the decoding on iOS itself too...

[CptMaumau]

Sure, I work in a Korean company and when uploading files with Korean characters in the name we run into this problem. But it seems to be an iOS issue only.

[piranna]

Interesting... it should be just a matter of correctly using the Unicode characters, I think Apple HFS filesystem should work with utf-8 flawlessly. Can you provide a code snippet of how have you done the decoding on iOS?

[smithaitufe]

What methods are available with React Native Document Picker v3?
Is there anyway to specify that I want only pictures? only videos? and only audios?
How do we install this v3?

[piranna]

What methods are available with React Native Document Picker v3?
Is there anyway to specify that I want only pictures? only videos? and only audios?
How do we install this v3?

https://github.com/Elyx0/react-native-document-picker/tree/v3

[leoek]

@Elyx0 can we release this?

[Elyx0]

I'll want to coordinate with v3 contributors before releasing this if breaking changes happen

[leoek]

@Elyx0 understandable, are they aware that now could be a good be a good time to release v3? At least for me v3 seems to be stable :)

[jsamr]

Please add #202

[nabati]

What's the status on this, @Elyx0 @dantman ?

Can I help with something to facilitate this moving forward?

[Elyx0]

I merged V3 into master, let's address all the new bugs PR into master now :)

[vonovak]

thanks everyone for contributing, I'm closing this because the discussion is too long and not focused, plus v3 is public. If you have some problems, please open an issue.
