React-diagrams: Create arrow head in links

[matheusgaya]

I want to create something like this blue arrow:

I tried to customize the link, but had no success.
Can someone send me and example or help me with that?

Thanks!

[ganesh-sankey]

+1

[akhilesh-sankey]

+1

[silvacpp]

override link widget generatePoint function

generatePoint(pointIndex) {
const x = this.props.link.points[pointIndex].x
const y = this.props.link.points[pointIndex].y
return (
point-${this.props.link.points[pointIndex].id}}>
${x - 10},${y - 8} ${x},${y} ${x - 10},${y + 8}} fill={this.props.link.color} />
onMouseLeave={this.unsetSelected}
onMouseEnter={this.setSelected}
data-id={this.props.link.points[pointIndex].id}
data-linkid={this.props.link.id}
cx={x}
cy={y}
r={20}
opacity={0}
className={point ${this.bem('__point')}}
/>

)
}

[ganesh-sankey]

@silvacpp The above solution might not be proper since it only creates arrow head in one direction only.
and also when you try to connect out port to in port, it will not create arrow head at in port side.

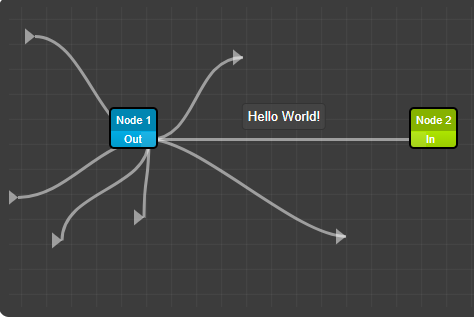

The result will be like this.

Instead we can override the generateLinkSegment method in DefaultLinkFactory.js. In that method, define marker with g tag and attach it to the path tag with markerEnd property. so it will take care of changing arrow head direction with link direction and also when you connect in port and out port, it will still create arrow head. also add marker sass property in DefaultLinkWidget sass file for visibility of it. also need to playaround with some css.
The final result will be

Still we need to wait for proper configurable solution for it. @dylanvorster

[roylo]

hi @ganesh-sankey could you kindly share your code of your example?

[ganesh-sankey]

@roylo the sample code provided below might not worked in all condition i.e only works in top down approach - making link from top node to down node. Also add negative margin left to port position in using css: .srd-default-port (not provided in below code).

I have forked this library and made changes to default node itsself and use that fork as node_module for my project.

we need to work on logic to handle arrow head in all conditions.

in DefaultLinkWidget.scss change the following:

  &-marker{
    fill: rgb(165,165,165) !important;
  }

  &--marker-selected{
    fill: rgb(50,50,50) !important;
    pointer-events:all;
  }

in DefaultLinkFactory.tsx change the following:

    generateLinkSegment(model: DefaultLinkModel, widget: DefaultLinkWidget, selected: boolean, path: string) {
        var markerId= Toolkit.UID();
        var markerEndUrl = "url(#"+markerId+")";
        return (
            <g>
                <defs>
                    <marker id={markerId} markerWidth="8" markerHeight="8" refX="3.5" refY="3"
                    orient="auto" markerUnits="strokeWidth">
                    <path d="M0,0 L0,6 L3.5,3 z" className={selected ? widget.bem("--marker-selected") : widget.bem("-marker")} />
                    </marker>
                </defs>
                <path
                    className={selected ? widget.bem("--path-selected") : ""}
                    fill= "none"
                    strokeWidth={model.width}
                    stroke={model.color}
                    d={path}
                    markerEnd={markerEndUrl}
                />
            </g>
        );
    }

[unsafecode]

Tried this approach, but I eventually get many errors related (likely) to the fact in no longer the root element, and label positioning breaks.

[zoii]

+1

[Nahuel92]

+1

[shamiln]

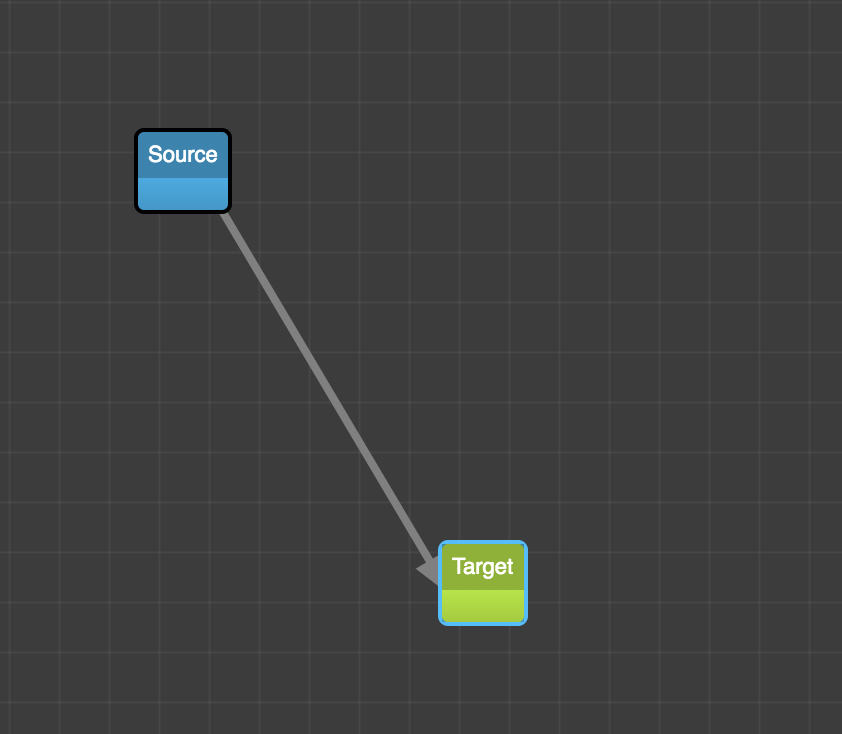

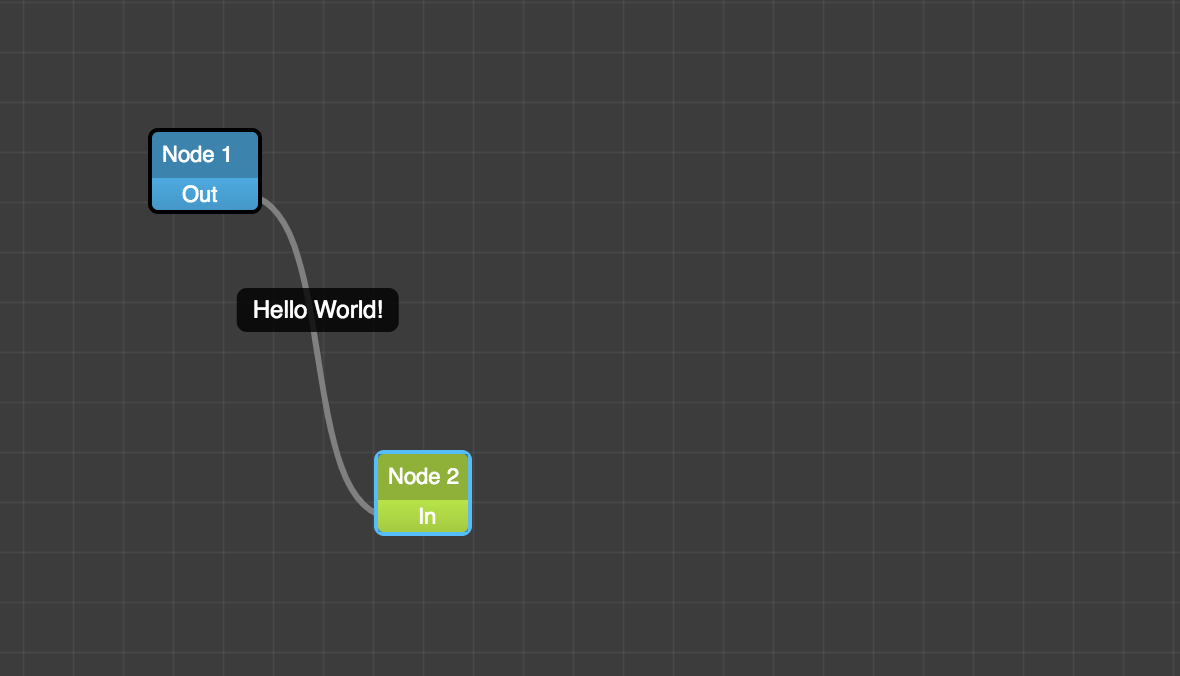

@matheusgaya @unsafecode Here is my workaround solution https://github.com/samnb/react-diagrams-arrowhead-dist

In ../demos/demo-simple/index.tsx call setMarkers(startMarker: bool, endMarker: bool)

    let link1 = port1.link(port2);
    (link1 as DefaultLinkModel).addLabel("Hello World!");
    (link1 as DefaultLinkModel).setMarkers(true, false);

[unsafecode]

@smlnbyv Would it be possible to refactor your PoC without forking the whole library, and instead write separate, pluggable Factories/Widgets?

[percyteng]

OK, so I've written a solution for this problem.

getAngle(px1, py1, px2, py2) {
    const x = px2-px1;
    const y = py2-py1;
    const hypotenuse = Math.sqrt(Math.pow(x, 2)+Math.pow(y, 2));
    let cos = x/hypotenuse;
    let radian = Math.acos(cos);
    let angle = 180/(Math.PI/radian);
    if (y<0) {
      angle = -angle;
    } else if ((y == 0) && (x<0)) {
      angle = 180;
    }
    return angle;
  }

generatePoint(pointIndex: number): JSX.Element {
    let {link} = this.props;
    let x = link.points[pointIndex].x;
    let y = link.points[pointIndex].y;
    const pointOne = link.points[pointIndex-1];
    const pointTwo = link.points[pointIndex];
    let angle = this.getAngle(pointOne.x, pointOne.y, pointTwo.x, pointTwo.y);

    return (
        <g key={"point-" + this.props.link.points[pointIndex].id}>
            {/* <circle
                cx={x}
                cy={y}
                r={5}
                className={
                    "point " +
                    this.bem("__point") +
                    (this.props.link.points[pointIndex].isSelected() ? this.bem("--point-selected") : "")
                }
            /> */}
            <circle
                onMouseLeave={() => {
                    this.setState({ selected: false });
                }}
                onMouseEnter={() => {
                    this.setState({ selected: true });
                }}
                data-id={this.props.link.points[pointIndex].id}
                data-linkid={this.props.link.id}
                cx={x}
                cy={y}
                r={5}
                opacity={.5}
                className={
                    "point " +
                    this.bem("__point") +
                    (this.props.link.points[pointIndex].isSelected() ? this.bem("--point-selected") : "")
                }
            />
            <polygon
                x={x-20}
                y={y+12}
                transform={`rotate(${angle}, ${x}, ${y})`}
                points={`${x - 10},${y - 8} ${x+3},${y} ${x - 10},${y + 8}`}

            />
        </g>
    );
}

[wamujlb]

You can also use this solution:

1. Add this markup to the container

<svg>
    <defs>
        <marker id={markerHead} markerWidth="6" markerHeight="4" refX="5" refY="2" orient="auto">
            <path d="M0,0 L0,4 L4,2 Z" style={{fill: "#b5d9fd"}} />
        </marker>

        <marker id={markerHeadInversed} markerWidth="6" markerHeight="4" refX="-1" refY="2" orient="auto">
            <path d="M4,0 L4,4 L0,2 Z" style={{fill: "#b5d9fd"}} />
        </marker>
    </defs>
</svg>

1. Check if the link is inversed, and pass the return value as prop to the linkSegment (create it):

getDirection(source: Object, target: Object): boolean {
    const difX = source.x - target.x,
        difY = source.y - target.y,
        isHorisontal = Math.abs(difX) > Math.abs(difY);

    return isHorisontal ? difX > 0 : difY > 0;
}

1. Use this function to set the style to the link path:

setPathMarker = (inversed: boolean): Object => {
    if(inversed) {
        return {
            markerStart: `url(#${markerHeadInversed})`
        }
    } else {
        return {
            markerEnd: `url(#${markerHead})`
        }
    }
}

Hope, that it'll help you.

Example (green dots - inPorts, blue - outPorts):

[DieByMacro]

You can also use this solution:

1. Add this markup to the container

<svg>
    <defs>
        <marker id={markerHead} markerWidth="6" markerHeight="4" refX="5" refY="2" orient="auto">
            <path d="M0,0 L0,4 L4,2 Z" style={{fill: "#b5d9fd"}} />
        </marker>

        <marker id={markerHeadInversed} markerWidth="6" markerHeight="4" refX="-1" refY="2" orient="auto">
            <path d="M4,0 L4,4 L0,2 Z" style={{fill: "#b5d9fd"}} />
        </marker>
    </defs>
</svg>

1. Check if the link is inversed, and pass the return value as prop to the `linkSegment` (create it):

getDirection(source: Object, target: Object): boolean {
    const difX = source.x - target.x,
        difY = source.y - target.y,
        isHorisontal = Math.abs(difX) > Math.abs(difY);

    return isHorisontal ? difX > 0 : difY > 0;
}

1. Use this function to set the style to the link path:

setPathMarker = (inversed: boolean): Object => {
    if(inversed) {
        return {
            markerStart: `url(#${markerHeadInversed})`
        }
    } else {
        return {
            markerEnd: `url(#${markerHead})`
        }
    }
}

Hope, that it'll help you.

Example (green dots - inPorts, blue - outPorts):

Hi @wamujlb , would you mind sharing where we can put those changes to the code, I'm also creating a custom link for my app and hopefully saved my day.

Thanks in advance,
Duc

[wamujlb]

Hi @DieByMacro

create a custom LinkSegment component

// @flow
import React, {PureComponent} from "react";

import LinkModel from "./Model";
import StepLabel from "../Label";
import {markerHead, markerHeadInversed} from "./markers.jsx"

type Props = {
    model: BotDetailEditFlowDiagramStepLinkModel,
    path: string,
    inversed: boolean,
}

import "./style.sass";

/**
 * Flow diagram Link segmet
 * @class LinkSegment
 */
class LinkSegment extends PureComponent<Props> {

    path: ?any;
    circle: ?any;
    animation: any;
    progress: number;
    style: Object;

    /**
     * Create `step` link segment
     * @method constructor
     * @param props - component props
     */
    constructor(props: Object) {
        super(props);
        this.progress = props.inversed ? 100 : 0;
        this.content = this.getTooltipContent();
        this.style = this.setPathMarker(props.inversed);
    }

    /**
     * Change path style if path direction changed
     * @method componentDidUpdate
     * @param prevProps - previous props
     */
    componentDidUpdate = (prevProps: Object) => {
        if (prevProps.inversed !== this.props.inversed) {
            this.style = this.setPathMarker(this.props.inversed);
        }
    }

    /**
     * Set link path marker head regarding to the link path direction
     * @method setPathMarker
     * @param inversed - is the path inversed
     * @return style object with marker
     */
    setPathMarker = (inversed: boolean): Object => {
        if(inversed) {
            return {
                markerStart: `url(#${markerHeadInversed})`
            }
        } else {
            return {
                markerEnd: `url(#${markerHead})`
            }
        }
    }

    // eslint-disable-next-line require-jsdoc
    render() {
        const {path, model} = this.props;

        return (
            <g className="link-segment">
                <path
                    className="link-segment__path"
                    ref={ref => this.path = ref}
                    strokeWidth={model.width}
                    strokeLinecap="round"
                    d={path}
                    style={this.style}
                />
                <path
                    className="link-segment__path link-segment__path_shadow"
                    onMouseEnter={this.onMouseEnter}
                    onMouseLeave={this.onMouseLeave}
                    strokeWidth={model.width * 5}
                    d={path}
                />
                <circle
                    className="link-segment__circle"
                    ref={ref => this.circle = ref}
                    r={model.width * 2}
                />
            </g>
        );
    }
}

export default LinkSegment;

---

Extend LinkWidget component and add these methods:

LinkWidget

// @flow
import React from "react";
import {
    DefaultLinkWidget,
    BaseWidgetProps,
    DiagramEngine,
} from "storm-react-diagrams";

import LinkModel from "./Model";

export type Props = {
    ...BaseWidgetProps,
    width?: number,
    smooth?: boolean,
    link: BotDetailEditFlowDiagramStepLinkModel,
    diagramEngine: DiagramEngine,
}

/**
 * Render only 1 link
 * LinkWidget
 */
class LinkWidget extends DefaultLinkWidget {

    /**
     * Get direction of the link
     * Useful for animation
     * @method getDirection
     * @param source - source port
     * @param target - target port
     * @return true if direction should be reversed
     */
    getDirection(source: Object, target: Object): boolean {
        const difX = source.x - target.x,
            difY = source.y - target.y,
            isHorisontal = Math.abs(difX) > Math.abs(difY);

        return isHorisontal ? difX > 0 : difY > 0;
    }

    /**
     * Generate link
     * @method generateLink
     * @param path - link path
     * @param extraProps - extra properties
     * @param id - link idea
     * @return Link path
     */
    generateLink(
        path: string,
        extraProps: any,
        id: string | number
    ): Element<"g"> {
        const { diagramEngine, link } = this.props,
            { selected } = this.state;

        let inversed = this.getDirection(link.sourcePort, link.targetPort);

        const Link = React.cloneElement(
            diagramEngine
                .getFactoryForLink(link)
                .generateLinkSegment(
                    link,
                    this,
                    selected || link.isSelected(),
                    path,
                    inversed,
                ),
            {
                ...extraProps,
                strokeLinecap: "round",
                "data-linkid": link.getID(),
                onContextMenu: event => {
                    if (!this.props.diagramEngine.isModelLocked(link)) {
                        event.preventDefault();
                        link.remove();
                    }
                }
            }
        );

        // Needed for the creating Labels
        const LinkClone = (
            <path
                strokeWidth={1}
                stroke="rgba(0,0,0,0)"
                d={path}
                ref={ref => ref && this.refPaths.push(ref)}
            />
        );

        return (
            <g key={"link-" + id}>
                {LinkClone}
                {Link}
            </g>
        );
    }
}

export default LinkWidget;

[DieByMacro]

Hi @wamujlb ,

Thanks for your instruction, I really appreciate that.

I've been working on a new Segment component and found out this weird behavior, if I create a new segment component and return its path like the way you did, the mouse hover on the link won't work like a _DefaultLinkWidget_ (I meant when you mouse over the link path, there won't be a blue dashing line). Things just get back to normal when I return a normal in _generateLinkSegment_ , do you happen to see this ?

Thanks,
Duc

[wamujlb]

It can be because of some CSS code. You can change my approach to make it
the same as you want to be

On Thu, Feb 7, 2019, 17:13 Duc Quach <[email protected] wrote:

Hi @wamujlb https://github.com/wamujlb ,

Thanks for your instruction, I really appreciate that.

I've been working on a new Segment component and found out this weird
behavior, if I create a new segment component and return its path like the
way you did, the mouse hover on the link won't work like a
DefaultLinkWidget (I meant when you mouse over the link path, there
won't be a blue dashing line). Things just get back to normal when I return
a normal in generateLinkSegment , do you happen to see this ?

Thanks,
Duc

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/projectstorm/react-diagrams/issues/183#issuecomment-461491497,
or mute the thread
https://github.com/notifications/unsubscribe-auth/AONu1DFi3urGshstWqF-pROwzDCnicIZks5vLFC-gaJpZM4SgzgC
.

[QuangHuy2705]

@matheusgaya @unsafecode Here is my workaround solution https://github.com/samnb/react-diagrams-arrowhead-dist

In ../demos/demo-simple/index.tsx call setMarkers(startMarker: bool, endMarker: bool)

  let link1 = port1.link(port2);
  (link1 as DefaultLinkModel).addLabel("Hello World!");
  (link1 as DefaultLinkModel).setMarkers(true, false);

Hi! I know it's been a while but can you please specify what part of the source code did you modify in order to get the marker appear? would really appreciate that.

[wamujlb]

@QuangHuy2705

I have added this method to the Link.

My link code

/**
 * Render only 1 link
 * @class MyLinkWidget
 */
class MyLinkWidget extends DefaultLinkWidget {

    /**
     * Get direction of the link
     * Useful for animation
     * @method getDirection
     * @param source - source port
     * @param target - target port
     * @return true if direction should be reversed
     */
    getDirection(source: Object, target: Object): boolean {
        const difX = source.x - target.x,
            difY = source.y - target.y,
            isHorisontal = Math.abs(difX) > Math.abs(difY);

        return isHorisontal ? difX > 0 : difY > 0;
    }

    /**
     * Generate link
     * @method generateLink
     * @param path - link path
     * @param extraProps - extra properties
     * @param id - link idea
     * @return Link path
     */
    generateLink(
        path: string,
        extraProps: any,
        id: string | number
    ): Element<"g"> {
        const { diagramEngine, link } = this.props,
            { selected } = this.state;

        let inversed = this.getDirection(link.sourcePort, link.targetPort);

        const Link = React.cloneElement(
            diagramEngine
                .getFactoryForLink(link)
                .generateLinkSegment(
                    link,
                    this,
                    selected || link.isSelected(),
                    path,
                    inversed,
                ),
            {
                ...extraProps,
                strokeLinecap: "round",
                "data-linkid": link.getID(),
                onContextMenu: event => {
                    if (!this.props.diagramEngine.isModelLocked(link)) {
                        event.preventDefault();
                        link.remove();
                    }
                }
            }
        );

        // Needed for the creating Labels
        const LinkClone = (
            <path
                strokeWidth={1}
                stroke="rgba(0,0,0,0)"
                d={path}
                ref={ref => ref && this.refPaths.push(ref)}
            />
        );

        return (
            <g key={"link-" + id}>
                {LinkClone}
                {Link}
            </g>
        );
    }
}

export default MyLinkWidget;

---

My link segment code

class MyLinkSegment extends PureComponent<Props> {

    static defaultProps: Object = {
        show: () => {},
        hide: () => {},
    }

    path: ?any;
    circle: ?any;
    animation: any;
    progress: number;
    content: BotDetailEditFlowDiagramStepLabel;
    style: Object;

    /**
     * Create `step` link segment
     * @method constructor
     * @param props - component props
     */
    constructor(props: Object) {
        super(props);
        this.progress = props.inversed ? 100 : 0;
        this.content = this.getTooltipContent();
        this.style = this.setPathMarker(props.inversed);
    }

    /**
     * Change path style if path direction changed
     * @method componentDidUpdate
     * @param prevProps - previous props
     */
    componentDidUpdate = (prevProps: Object) => {
        if (prevProps.inversed !== this.props.inversed) {
            this.style = this.setPathMarker(this.props.inversed);
        }
    }


    /**
     * Start animation on mouse enter
     * @method onMouseEnter
     * @param e - event
     */
    onMouseEnter = (e: Object) => {
        // @flow-ignore
        const length = this.path.getTotalLength(),
            step = 4 * 100 / length; // Move 100px for 1000ms

        this.progress = this.props.inversed ? 100 : 0; // reset progress

        // Show tooltip
        this.props.show({
            origin: { x: e.clientX, y: e.clientY },
            content: this.content,
        })

        this.animation = requestAnimationFrame(() => {
            this.animateCircle(length, step)
        });
    }

    /**
     * Cancel animation on mouse leave
     * @method onMouseLeave
     */
    onMouseLeave = () => {
        this.props.hide()
        cancelAnimationFrame(this.animation);
    }

    /**
     * Direction circle animation
     * @method animateCircle
     * @param length - path length
     * @param step - animation step
     */
    animateCircle = (length: number, step: number) => {
        const {inversed} = this.props;

        if(this.path && this.circle) {
            if(inversed) {
                this.progress -= step;
                if (this.progress < 0) {
                    this.progress = 100;
                }
            } else {
                this.progress += step;
                if (this.progress > 100) {
                    this.progress = 0;
                }
            }

            let point = this.path.getPointAtLength(
                Number.parseInt((length * (this.progress / 100.0)).toFixed())
            );

            // @flow-ignore
            this.circle.setAttribute("cx", "" + point.x);
            // @flow-ignore
            this.circle.setAttribute("cy", "" + point.y);

            this.animation = requestAnimationFrame(() => {
                this.animateCircle(length, step);
            });
        }
    }

    /**
     * Get Source step and Target step to show in tooltip
     * @method getTooltipContent
     * @return tooltip content
     */
    getTooltipContent = (): BotDetailEditFlowDiagramStepLabel => {
        const {t, model} = this.props,
            {source} = model.sourcePort.info,
            {responses} = model.extras;

        return (
            <BotDetailEditFlowDiagramStepLabel
                t={t}
                source={source}
                responses={responses}
            />
        )
    }

    /**
     * Set link path marker head regarding to the link path direction
     * @method setPathMarker
     * @param inversed - is the path inversed
     * @return style object with marker
     */
    setPathMarker = (inversed: boolean): Object => {
        if(inversed) {
            return {
                markerStart: `url(#${markerHeadInversed})`
            }
        } else {
            return {
                markerEnd: `url(#${markerHead})`
            }
        }
    }

    // eslint-disable-next-line require-jsdoc
    render() {
        const {path, model} = this.props;

        return (
            <g className="link-segment">
                <path
                    className="link-segment__path"
                    ref={ref => this.path = ref}
                    strokeWidth={model.width}
                    strokeLinecap="round"
                    d={path}
                    style={this.style}
                />
                <path
                    className="link-segment__path link-segment__path_shadow"
                    onMouseEnter={this.onMouseEnter}
                    onMouseLeave={this.onMouseLeave}
                    strokeWidth={model.width * 5}
                    d={path}
                />
                <circle
                    className="link-segment__circle"
                    ref={ref => this.circle = ref}
                    r={model.width * 2}
                />
            </g>
        );
    }
}

export default MyLinkSegment;

---

And put this SVGs in your diagram container (we need them in the linkSegment for arrows)

// @flow
import React, {PureComponent} from "react";

import type {Node, ChildrenArray} from "react";

export const markerHead = "markerHead",
    markerHeadInversed = "markerHeadInversed";

/**
 * Create container wrapper for the bot edit flow diagram
 * @function BotDetailEditFlowDiagramContainer
 * @return wrapper container
 */
class MyDiagramContainer extends PureComponent<Props> {

    // eslint-disable-next-line require-jsdoc
    render() {
        const {handleAddStep, handleZoomToFit, handleAutoDistribute, children} = this.props;

        return (
            <div className="bot-diagram">
                <div className="bot-diagram__content">{children}</div>
                <svg>
                    <defs>
                        <marker id={markerHead} markerWidth="6" markerHeight="4" refX="5" refY="2" orient="auto">
                            <path d="M0,0 L0,4 L4,2 Z" style={{fill: "#b5d9fd"}} />
                        </marker>

                        <marker id={markerHeadInversed} markerWidth="6" markerHeight="4" refX="-1" refY="2" orient="auto">
                            <path d="M4,0 L4,4 L0,2 Z" style={{fill: "#b5d9fd"}} />
                        </marker>
                    </defs>
                </svg>
            </div>
        )
    }
}

export default MyDiagramContainer;

And then just create a new Factory for this linkWidget. That's it.

[shamiln]

@unsafecode @matheusgaya @QuangHuy2705

Have a look at these files. You are welcome.

https://github.com/samnb/react-diagrams-arrowhead-dist/blob/master/src/defaults/models/DefaultLinkModel.ts (lines 22, 29, 73)

https://github.com/samnb/react-diagrams-arrowhead-dist/blob/master/src/defaults/widgets/DefaultLinkWidget.tsx (the function generateLink(...) and the lines 411 - 421)

https://github.com/samnb/react-diagrams-arrowhead-dist/blob/master/src/defaults/factories/DefaultLinkFactory.tsx (the lines 37 - 47)

[wamujlb]

@samnb

Haha))) Your name also Shamil. Never met someone with this name.

[QuangHuy2705]

@wamujlb @samnb you guys are the best! Thanks a ton!!

[shamiln]

@wamujlb Nice to meet you :)

[jbcurrie]

@unsafecode @matheusgaya @QuangHuy2705

Have a look at these files. You are welcome.

https://github.com/samnb/react-diagrams-arrowhead-dist/blob/master/src/defaults/models/DefaultLinkModel.ts (lines 22, 29, 73)

https://github.com/samnb/react-diagrams-arrowhead-dist/blob/master/src/defaults/widgets/DefaultLinkWidget.tsx (the function generateLink(...) and the lines 411 - 421)

https://github.com/samnb/react-diagrams-arrowhead-dist/blob/master/src/defaults/factories/DefaultLinkFactory.tsx (the lines 37 - 47)

Hey @samnb, I implemented the changes to the Default Link, Model, and Factory, but the arrow doesn't appear at all. Neither when drawing a new link, or when a link is connected. I used the simple demo boilerplate as well. Am I missing something? Should I change any other files?

[shamiln]

Hey @jbcurrie I'll check this out again.

[QuangHuy2705]

Hi! I have been working with the library for a while. your guides are also so great, the arrows are working fine. However, I noticed that when we select one of the nodes and press 'delete' button, the node is gone as if it were a text in a input field. Does anyone know a workaround for that? Thanks!

[sjw441500]

My way to solve this is using @silvacpp @percyteng methods by building new LinkSegment.

`

 arrow:SVGPolygonElement;
 mounted: boolean;
componentDidMount() {
    this.mounted = true;
    this.callback = () => {
        if (!this.arrow || !this.path) {
            return;
        }
        let point = this.path.getPointAtLength(this.path.getTotalLength());
        let startPoint = this.path.getPointAtLength(this.path.getTotalLength()*0.9);
        let angle=this.getAngle(startPoint.x,startPoint.y,point.x,point.y);
        this.arrow.setAttribute("points",`${point.x - 20},${point.y - 8} ${point.x+2},${point.y} ${point.x - 20},${point.y + 8}`);
        this.arrow.setAttribute("transform",`rotate(${angle}, ${point.x}, ${point.y})`);
        this.arrow.setAttribute("fill","#0057b8");
        if (this.mounted) {
            requestAnimationFrame(this.callback);
        }
    };
    requestAnimationFrame(this.callback);
}
componentWillUnmount() {
    this.mounted = false;
}

`

And in render function

<polygon id={id} ref={ ref=>{ this.arrow=ref; } }

Then build a new factory and register it to your engine.

I locate arrowhead position by
let point = this.path.getPointAtLength(this.path.getTotalLength());
This works well if you use straight line path.But with Bezier curves the path begin point and end point sometimes swaps which may dislocate the arrowhead.

[sjw441500]

My way to solve this is using @silvacpp @percyteng methods by building new LinkSegment.

`

 arrow:SVGPolygonElement;
 mounted: boolean;
componentDidMount() {
    this.mounted = true;
  this.callback = () => {
      if (!this.arrow || !this.path) {
          return;
        }
        let point = this.path.getPointAtLength(this.path.getTotalLength());
        let startPoint = this.path.getPointAtLength(this.path.getTotalLength()*0.9);
        let angle=this.getAngle(startPoint.x,startPoint.y,point.x,point.y);
        this.arrow.setAttribute("points",`${point.x - 20},${point.y - 8} ${point.x+2},${point.y} ${point.x - 20},${point.y + 8}`);
        this.arrow.setAttribute("transform",`rotate(${angle}, ${point.x}, ${point.y})`);
        this.arrow.setAttribute("fill","#0057b8");
      if (this.mounted) {
          requestAnimationFrame(this.callback);
      }
  };
  requestAnimationFrame(this.callback);
}
componentWillUnmount() {
  this.mounted = false;
}

`

And in render function

<polygon id={id} ref={ ref=>{ this.arrow=ref; } }

Then build a new factory and register it to your engine.

I locate arrowhead position by
let point = this.path.getPointAtLength(this.path.getTotalLength());
This works well if you use straight line path.But with Bezier curves the path begin point and end point sometimes swaps which may dislocate the arrowhead.

I solved this by calculate the distance between source port coordinate and the two points on each side of the path,and reverse it if necessary.

[khoaanh2212]

hi @wamujlb.
how can i create a new factory with new MyLinkWidget with my code like this.thanks.
```javascript
import React from 'react';
import {
DiagramWidget,
DiagramEngine,
// DefaultNodeFactory,
// DefaultLinkFactory,
DiagramModel,
DefaultNodeModel,
// DefaultPortModel,
// LinkModel,
} from 'storm-react-diagrams';
import styled from 'styled-components';
import 'storm-react-diagrams/dist/style.min.css';

const Wrapper = styled.div .srd-diagram { height: 80vh; background-color: rgb(60,60,60); } ;

class DemoOne extends React.Component {
constructor(props) {
super(props);
this.state = {};
}

componentWillMount() {
// 1) setup the diagram engine
this.engine = new DiagramEngine();
this.engine.installDefaultFactories();

// 2) setup the diagram model
const model = new DiagramModel();

// 3) create a default node
const node1 = new DefaultNodeModel('Node 1', 'rgb(0,192,255)');
const port1 = node1.addOutPort('Out');
node1.setPosition(100, 100);

// 4) create another default node
const node2 = new DefaultNodeModel('Node 2', 'rgb(192,255,0)');
const port2 = node2.addInPort('In');
node2.setPosition(400, 100);

// 5) link the 2 nodes together
const link1 = port1.link(port2);
link1.addLabel('Hello');

// 6) add the models to the root graph
model.addAll(node1, node2, link1);

// 7) load model into engine
this.engine.setDiagramModel(model);

}

render() {
return (



);
}
}

export default DemoOne;

[kevalbhatt]

HI I have implemented this example: http://projectstorm.cloud/react-diagrams/?path=/story/customization--custom-link-ends-arrows

And I am able to see the arrowhead but the issue is, now when I move or create new link it will not have a curved path.

Expected Link path curve with an arrowhead.

This is my example:

Hi, @dylanvorster @wamujlb @shamiln Could you please help me?
