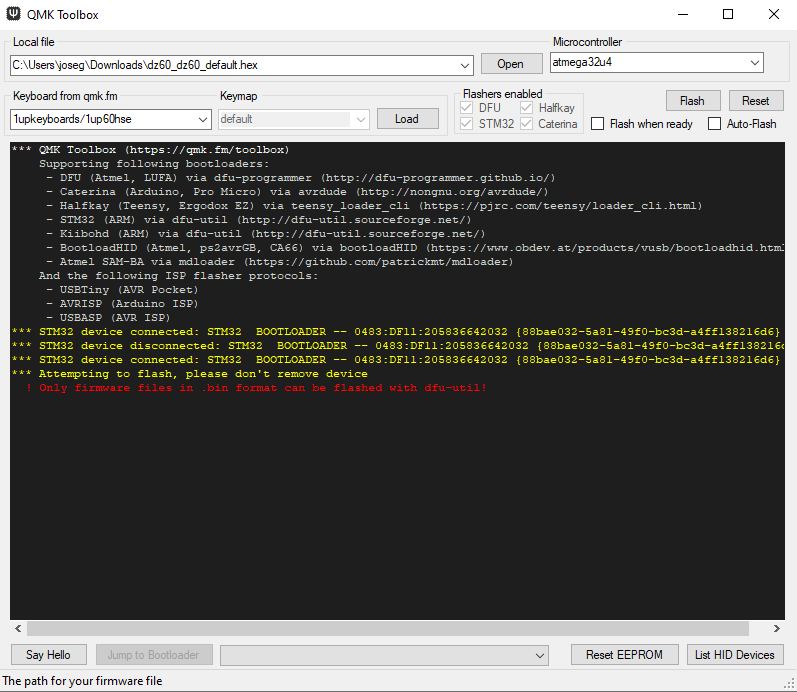

I was flashing my keyboard (dz60rgb) and when I open the softeare and tried to flash it said "! Only firmware files in .bin format can be flashed with dfu-util!" but everywhere I go download my firmwares it always downloads as hex files. Is there a way around this? Thanks.
zelinux0202
All 2 comments
The firmware for a dz60rgb is located here https://github.com/qmk/qmk_firmware/tree/master/keyboards/dztech/dz60rgb, and precompiled here https://qmk.fm/compiled/dztech_dz60rgb_default.bin. The file you were trying to flash is for the regular AVR based dz60 which is why you were having issues.
zvecr
on 29 Aug 2019
👍2
😄1
@zezoca1 this doesn't really seem like a bug, please close the issue if it's resolved. tl;dr your keyboard is ARM based not AVR so it doesn't use HEX files, it uses BIN.
yanfali
on 30 Aug 2019
