Projectreunion: UWP localhost access

[dpaulino]

Proposal: UWP localhost access

Summary

Currently, UWP apps running on desktop cannot access localhost. This makes it near impossible to build any type of app that lets the customer interact with localhost, such as HTTP clients. There is a workaround to allow UWP apps localhost access using checknetisolation, so it is technically possible, but it's just not supported out of the box for UWP apps. My proposal is to make localhost access possible for UWP apps without the workaround, perhaps via a capability that can be declared by the app.

Rationale

• This will unblock numerous scenarios for apps that require localhost access, such as Nightingale

Scope

| Capability | Priority |
| :---------- | :------- |
| UWP access localhost without workarounds | Must |
| UWP apps can request this ability by declaring a capability | Could |

Open Questions

Is there a security concern with allowing UWP apps targeting desktops to access localhost?

[sylveon]

Should the capability be restricted?

[dpaulino]

@sylveon Personally I'm okay with it being restricted, as long as it's not enterprise restricted like some capabilities.

[michael-hawker]

There's other use-cases too where the app interacts with other Win32 components as part of some broader ecosystem or tools for developers.

Definitely see a capability to enable this being a useful benefit for app developers.

[jonwis]

@mikebattista can you chime in with the IPC investigations you're working on?

I'm generally supportive of letting an app talk to a local socket. We'd probably want some kind of capability control - like the internet client capability - so users can prevent it.

Ideally we'd require the socket server to declare that it's OK to allow connections from UWPs to let the server provide access-control against low-IL processes. A naive read of WSAImpersonateSocketPeer suggests that a server could determine the caller via impersonation, but an app would have to do that.

[hansmbakker]

Other usecases:

• Plex app (media player) connecting to Plex server running on same device
• Client apps connecting to mqtt server running on same device --> for Windows IoT (Core) use cases

[mikebattista]

What's supported today is documented at https://docs.microsoft.com/en-us/windows/uwp/communication/interprocess-communication#loopback.

For packaged -> packaged scenarios, you can declaratively connect via loopback with capabilities and manifest declarations (without needing CheckNetIsolation).

Presumably enabling this for packaged -> unpackaged scenarios is what you're requesting here? Or is even the existing packaged -> packaged support not sufficient?

[sylveon]

For Nightingale the idea is packaged -> unpackaged, because the user will want to emit REST calls to a locally hosted API for testing.

[mikebattista]

Adding @bcaton who owns loopback.

[torynfarr]

I've been trying to get a UWP app running an HttpListener working when sent a POST HttpRequest from the same PC (targeting localhost or 127.0.0.1 port 4444) and haven't had much luck. My UWP "server" app works fine when receiving POST requests from other devices on my LAN, just not from the same PC that the UWP server app is running on.

I can take the exact same code from my UWP server app and put it into a console app and it receives POST requests from the same PC just fine (using the same curl command from a PowerShell terminal).

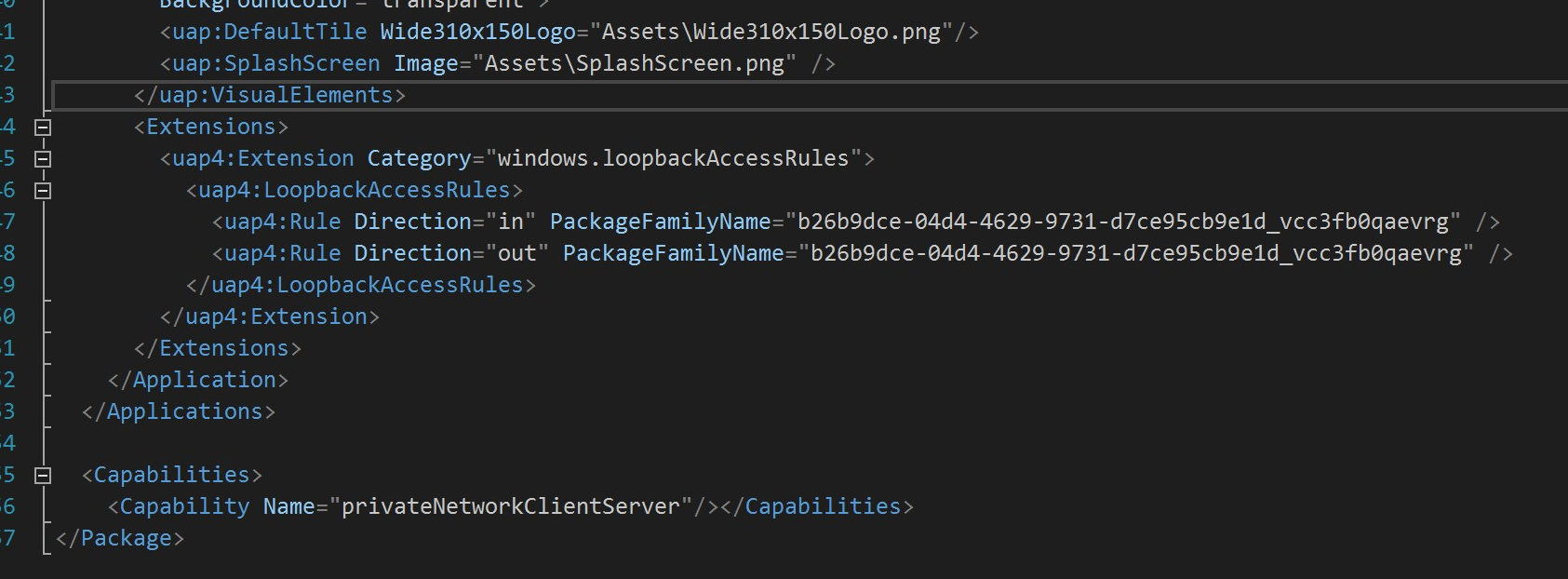

I tested a theory today that if both the client and server apps were UWP apps, both with in and out uap4 loopbackaccess rules added to their package manifests:

...both with the _privateNetworkClientServer_ capability checked / added in the package manifest.

And with loopback exemptions added for both client and server apps using CheckNetIsolation.exe

...that then, perhaps, the client app could communicate with the server app. Unfortunately it didn't work. The client app eventually times out and throws a vague exception _"One or more errors occurred. (An error occurred while sending the request.)"_

In addition to everything described above, during this test both the client and server apps were running in debug mode via Visual Studio 2019. In the _Debug_ section of the project properties for both apps, the _Allow local network loopback_ option is checked.

[dpaulino]

@mikebattista You mentioned before that packaged app -> packaged app should work, but it seems @torynfarr is trying that, and it doesn't seem to be working 🤔

[mikebattista]

@BCaton owns loopback and should be able to help you troubleshoot.

The first thing that jumps out at me is the in and out rules you shared list the same package family name. The client needs to list the server as an out rule and the server needs to list the client as an in rule.

[torynfarr]

@BCaton owns loopback and should be able to help you troubleshoot.

The first thing that jumps out at me is the in and out rules you shared list the same package family name. The client needs to list the server as an out rule and the server needs to list the client as an in rule.

Ooh I didn't realize that. I thought it wanted the package name of the app the manifest belonged to. I'll make that change in the two UWP apps and test again.

[torynfarr]

@BCaton owns loopback and should be able to help you troubleshoot.

The first thing that jumps out at me is the in and out rules you shared list the same package family name. The client needs to list the server as an out rule and the server needs to list the client as an in rule.

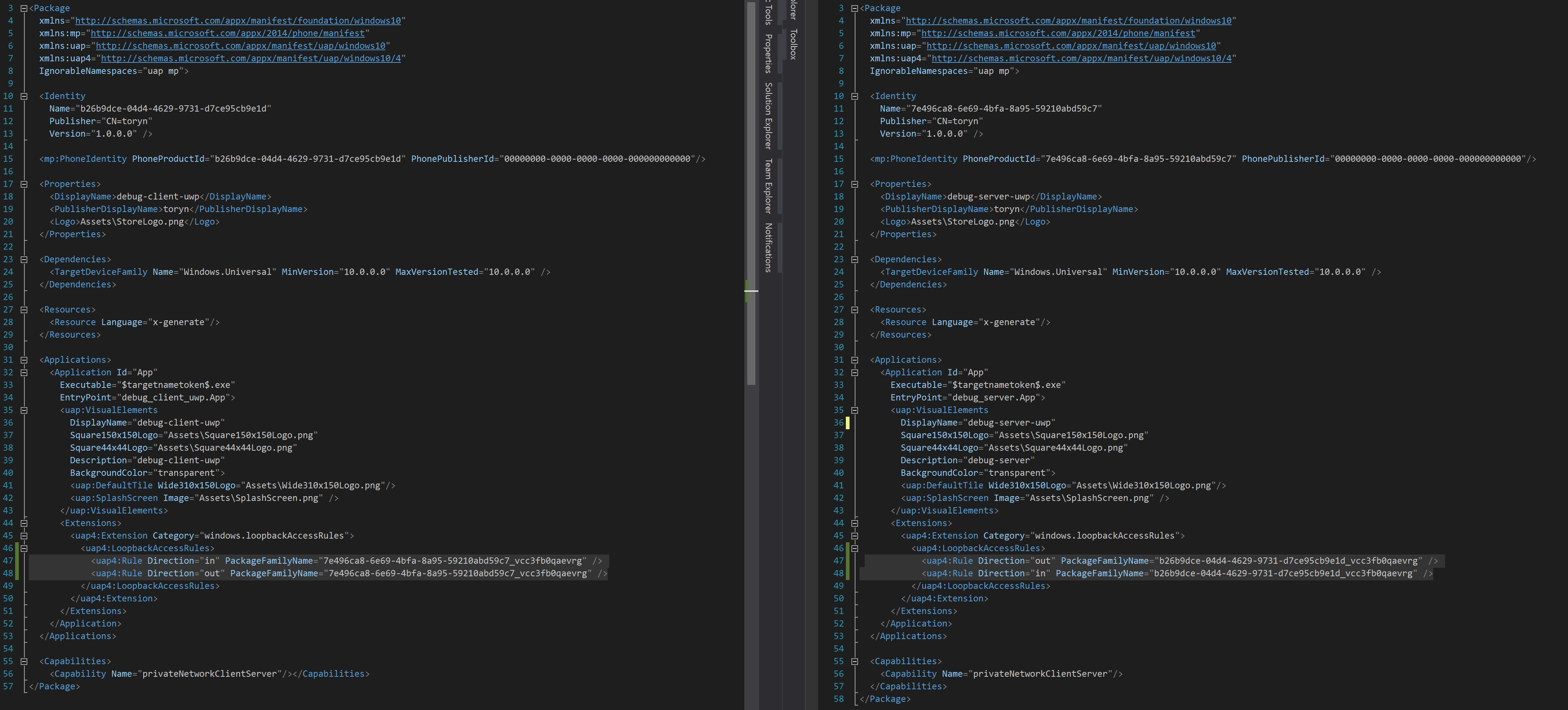

Okay, I have the server setup with an in rule which references the client's package family name. The client has an out rule with the server's package family name.

(client on the left, server on the right).

Same issue still occurs.

[torynfarr]

@BCaton owns loopback and should be able to help you troubleshoot.

The first thing that jumps out at me is the in and out rules you shared list the same package family name. The client needs to list the server as an out rule and the server needs to list the client as an in rule.

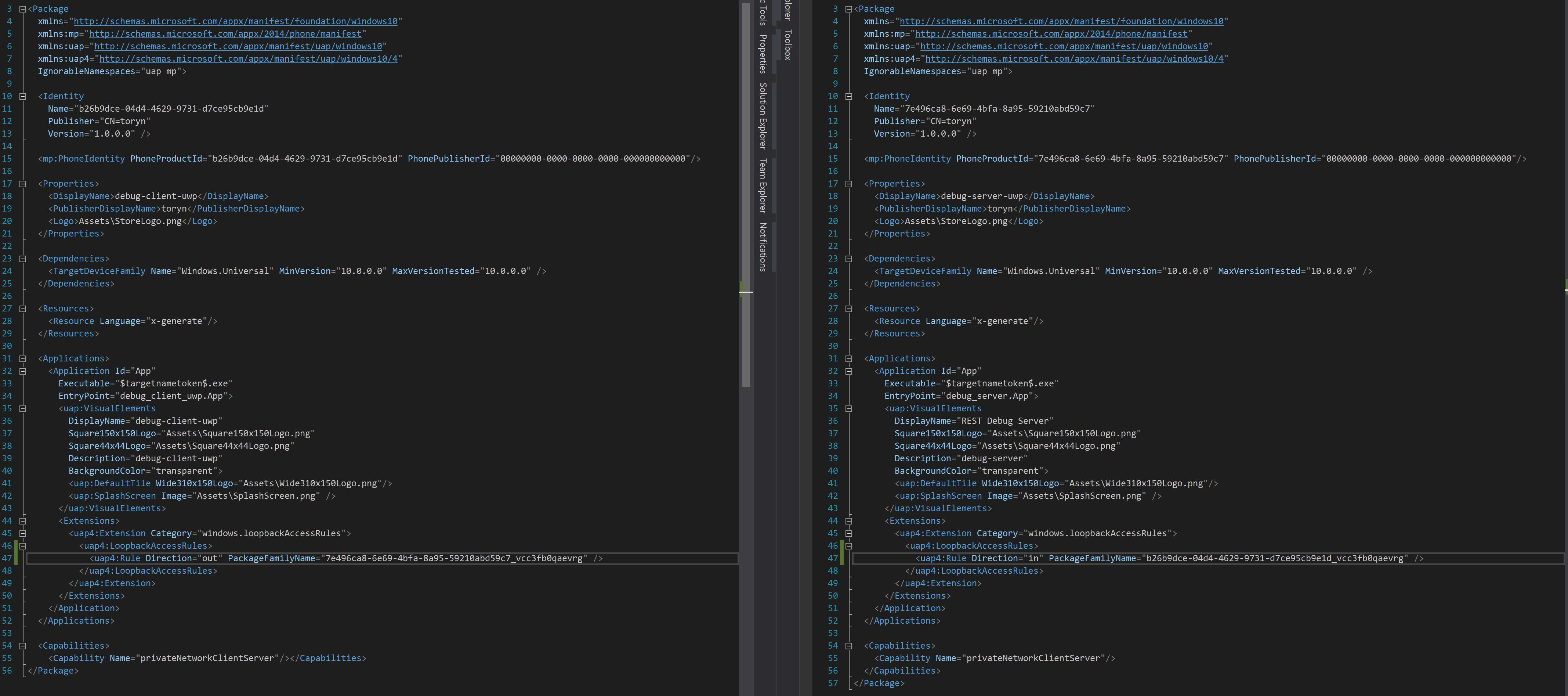

I also tried it like this, with the server having both in and out rules referencing the client's package family name and with the client having both in and out rules referencing the server's package family name (thinking that might be needed for the server to send back the HttpStatusCode.OK response to the client)

[Holo-Krzysztof]

@torynfarr thanks for reporting this. I've also hit this issue recently, nice to see that I'm not alone.

FWIW, I have tried this with the System.Net.Sockets API as well as UWP StreamSocket(Listener).
Both of them didn't work.

Interestingly, when attempting the connection and then closing the server app, the exception that is thrown on the client is different.

Usually, it is:

System.Exception: 'A connection attempt failed because the connected party did not properly respond after a period of time, or established connection failed because connected host has failed to respond.

When I try to connect and kill the server app before the request times out, I get:

System.Exception: 'No connection could be made because the target machine actively refused it.

Also, Resource Monitor shows that the server app is listening on IPv4 loopback, so the listening part does seem to work.

[mikebattista]

I've asked the loopback team to help investigate.

[Holo-Krzysztof]

Is there any news on this issue?

[BrCaton]

Traces taken during a repro of the issue would be very helpful to help isolate the cause. Can you gather the following:

1) Start the tracing:
Netsh trace start scenario=InternetClient_dbg report=di tracefile=nettrace.etl
Netsh wfp cap start keywords=19

2) Repro the issue:

3) Stop the traces:
Netsh wfp cap stop
Netsh trace stop

4) Gather the files:
Collect nettrace.etl and wfpdiag.cab

For additional info on troubleshooting UWP loopback issues see Troubleshooting UWP App Connectivity Issues

[stevewri]

@torynfarr - have you been able to gather traces? Is your packaged -> packaged scenario still not working?

[stevewri]

Apart from that issue, what I'm seeing here is the need to support packaged -> unpackaged. @mikebattista, is there anything more you need to clarify that proposal? If not, we can move this to the backlog.

[mikebattista]

@BrCaton would also be the one to triage and track that request as the owner of loopback.

[stevewri]

Thanks!

From: Mike Battista [e-mail]
Sent: Thursday, December 3, 2020 12:05 PM
To: microsoft/ProjectReunion [e-mail]
Cc: Steve Wright [e-mail]; Comment [e-mail]
Subject: Re: [microsoft/ProjectReunion] UWP localhost access (#113)

@BrCatonhttps://nam06.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2FBrCaton&data=04%7C01%7Cswright%40microsoft.com%7C999268aa00f8461782f408d897c6bb06%7C72f988bf86f141af91ab2d7cd011db47%7C0%7C1%7C637426227081753003%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C1000&sdata=JTNfW5GtV%2BK%2BNsJ0cGIfmDXPxgz%2FTGlVpocCQ6ZbXZI%3D&reserved=0 would also be the one to triage and track that request as the owner of loopback.

—
You are receiving this because you commented.
Reply to this email directly, view it on GitHubhttps://nam06.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fmicrosoft%2FProjectReunion%2Fissues%2F113%23issuecomment-738276644&data=04%7C01%7Cswright%40microsoft.com%7C999268aa00f8461782f408d897c6bb06%7C72f988bf86f141af91ab2d7cd011db47%7C0%7C1%7C637426227081763002%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C1000&sdata=7PU2%2Bt61OplDC5dlCrljEn%2Bgu27oA3WzyT%2FegfaqweY%3D&reserved=0, or unsubscribehttps://nam06.safelinks.protection.outlook.com/?url=https%3A%2F%2Fgithub.com%2Fnotifications%2Funsubscribe-auth%2FAPVPIIZYYBDSPIUAFQCJBULSS7VPFANCNFSM4O3HW2IA&data=04%7C01%7Cswright%40microsoft.com%7C999268aa00f8461782f408d897c6bb06%7C72f988bf86f141af91ab2d7cd011db47%7C0%7C1%7C637426227081763002%7CUnknown%7CTWFpbGZsb3d8eyJWIjoiMC4wLjAwMDAiLCJQIjoiV2luMzIiLCJBTiI6Ik1haWwiLCJXVCI6Mn0%3D%7C1000&sdata=JKL%2FDmOXWdZr5VYCvqavOgWB%2FK6XP0Wi8qd9PIL57W4%3D&reserved=0.

[torynfarr]

@torynfarr - have you been able to gather traces? Is your packaged -> packaged scenario still not working?

@stevewri Oh sorry about that, I didn't realize in your previous post you were asking me to perform the capture. I've gone ahead and captured the traffic and have attached it to this post.

netsh capture.zip

I also recorded some videos showing the issue. So, in this first video (which shows the steps I took while running the netsh capture) I'm using the curl command in the top left window to send an http POST request to my "Server" app running in the top right.

If received, my server app should configure the datagrid with the columns specified in the message. I'm sending the http POST request to http://192.168.86.41:4444 (my computer's local IP address). If I target that or http://localhost:4444 the result is the same. Eventually it times out with the message: _curl: (7) Failed to connect to localhost port 4444: Timed out_

Video - Targeting Local IP Address Directly.zip

If I were to send that same curl command from another PC on my network, the server app will respond appropriately. Or, as I demonstrate in this 2nd video, if I run my middleware "relay" app in a WSL terminal session (shown in the bottom left), I'm able to send the http POST request to the middleware and then the middleware (running in Ubuntu - WSL) is able to relay the message to my server app... presumably because it's coming from 127.0.0.1 rather than the same IP address the server is listening on (192.168.86.41).

Video - Targeting IP Address of WSL Ubuntu.zip

I could totally be misunderstanding some networking fundamentals here. Perhaps it's just not possible to send an http POST request from / to the same IP address that you're listening on... and that's just how it is (and not because of network isolation / loopback not being allowed).

I should also note, that my server app is the debug build, not the release build. I don't know if that would have an impact as far as the packaging and permissions go.

Lastly, if you'd like to try this out yourself, I posted the client, middleware, and server code here: https://github.com/torynfarr/logger

Hope that helps!

[cys920622]

What I'm trying to do (all on one machine):

• I have a UWP server listening to port ### for requests through a StreamSocketListener.
• I have a separate client UWP app hitting that server with requests using StreamSocket.ConnectAsync with localhost and port ###.

What I tried:

• Server and client code in _same UWP app project_ - this successfully writes and reads streams to /from the socket.
• Once the server and client are separated into their own projects, they now fail to contact each other.
• checknetisolation loopbackexempt -a with my "Package family name" as displayed in the appxmanifest - tried this for both the server and client.
• I see in my VS in "Debug properties" that "Allow local network loopback" is checked by default.

What I'm seeing:
Debugging shows this exception thrown by the client:

"A connection attempt failed because the connected party did not properly respond after a period of time, or established connection failed because connected host has failed to respond."

At one point it also said the server was actively refusing the connection, but it is now saying the above.

Couple relevant posts:
https://stackoverflow.com/questions/34589522/cant-see-localhost-from-uwp-app
https://stackoverflow.com/questions/54525530/loopback-isolation-removal-not-working-for-uwp-app

These seem to suggest that even with the workaround, hitting a localhost UWP server from a UWP client is impossible. @dpaulino did you ever find a solution to this...? I noticed you have a workaround here

I'm a total beginner to UWP development but it seems unlikely that this could actually be impossible - otherwise it would be quite difficult to develop the server and client side by side.

[Edit] The client was able to connect to the server on a private network through a VM that was running on the same machine.

[sgamescz]

What I'm trying to do (all on one machine):

I have same problem, same test...
If are server and client in ona aplication, works...
if are server and client in different aplications, it cannot connect from client to server.
but if i copy client to other pc, it connect ... its really really bad.

i need this, because i have server, and on same PC other 3rd application like client, and this client cannot connect to this server running on same machine :( its crazy....

[torynfarr]

What I'm trying to do (all on one machine):

I have same problem, same test...
If are server and client in ona aplication, works...
if are server and client in different aplications, it cannot connect from client to server.
but if i copy client to other pc, it connect ... its really really bad.

i need this, because i have server, and on same PC other 3rd application like client, and this client cannot connect to this server running on same machine :( its crazy....

@sgamescz My work around for this issue might help you. I created a .NET Core middleware app that basically just functions like a relay, passing data from the client app to the server app.

If you have WSL2 installed, you can run the middleware layer from an Ubuntu console session in Windows Terminal. Because the traffic is coming from a different IP address, the server app will be able to receive it.

Alternatively, you could run it in a VM or on another computer.

https://github.com/torynfarr/logger/tree/master/middleware
