Project-system: KeyNotFoundException in dependencies node

Created on 23 May 2019 · 10Comments · Source: dotnet/project-system

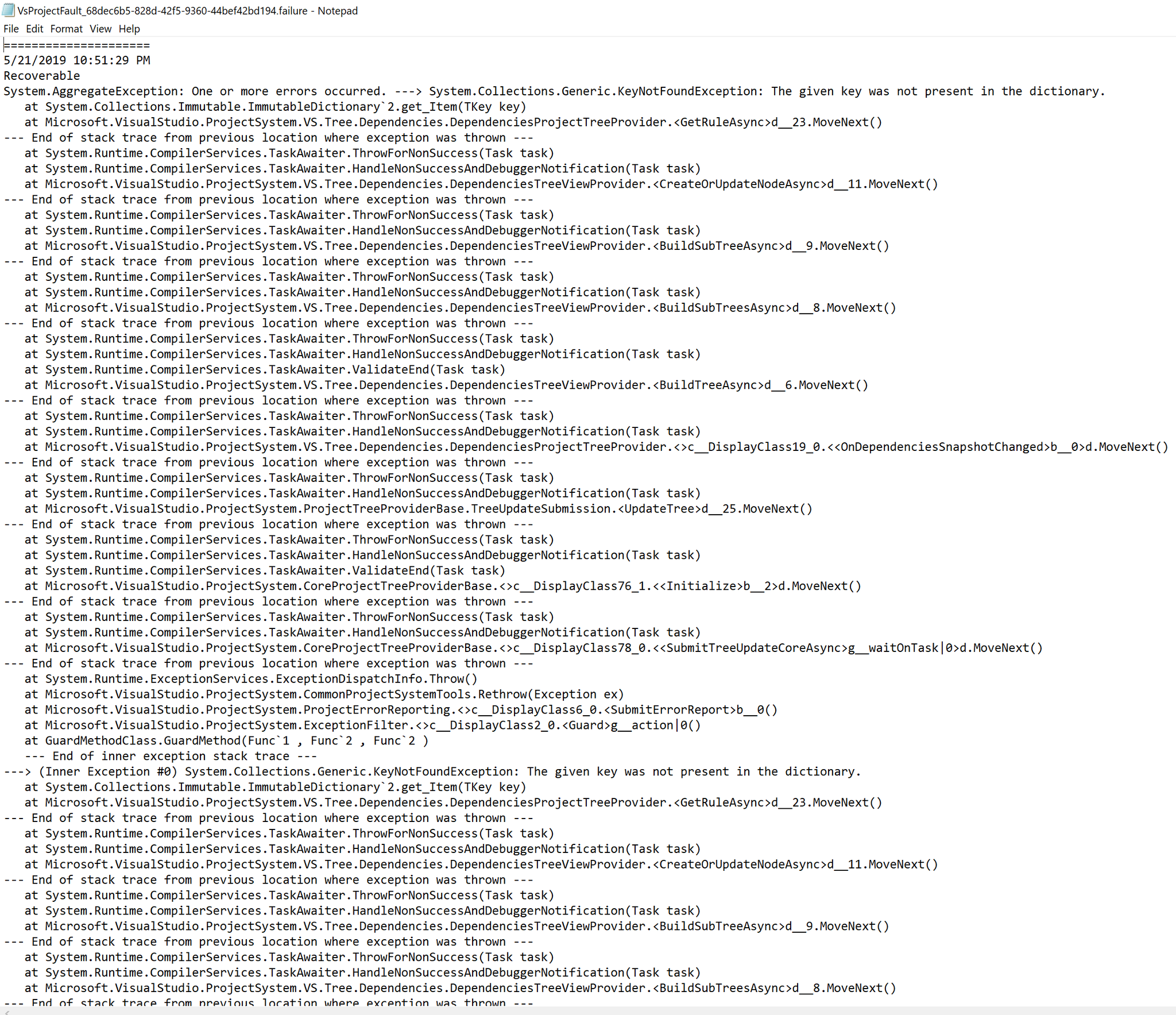

Reported by @dotMorten on Twitter:

https://twitter.com/dotMorten/status/1131241962470760449?s=03

I suspect the exception is being thrown here:

https://github.com/dotnet/project-system/blob/d179a81ff071bb53c9bd467f5849af1c7a6ed9d9/src/Microsoft.VisualStudio.ProjectSystem.Managed.VS/ProjectSystem/VS/Tree/Dependencies/DependenciesProjectTreeProvider.cs#L530

Bug

Source

drewnoakes

All 10 comments

The project I was building was https://github.com/Esri/arcgis-toolkit-dotnet but updated the msbuild.extras sdk to the latest version.

dotMorten on 23 May 2019

Same with https://github.com/xamarin/Essentials in 16.1

jamesmontemagno on 23 May 2019

👍1

@drewnoakes I've tentatively put this in 16.1 in case it's a 100% repro. I wonder if this related to some of the rule changes we've made in 16.1.

davkean on 23 May 2019

It may be related to culture too, @jamesmontemagno Are you on en-US? or something else?

davkean on 23 May 2019

of VS? en-US here

jamesmontemagno on 23 May 2019

@jamesmontemagno Are you sure the error is the same for Essentials? I see the following which is the MSBuildExtras issue:

System.AggregateException: One or more errors occurred. ---> NuGet.Frameworks.FrameworkException: Invalid framework identifier ''.
   at NuGet.Frameworks.NuGetFramework.GetShortFolderName(IFrameworkNameProvider mappings)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.<>c.<ToPackageSpec>b__11_0(TargetFrameworkInformation tfi)
   at System.Linq.Enumerable.WhereSelectArrayIterator`2.MoveNext()
   at System.Linq.Buffer`1..ctor(IEnumerable`1 source)
   at System.Linq.Enumerable.ToArray[TSource](IEnumerable`1 source)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.ToPackageSpec(ProjectNames projectNames, IEnumerable TargetFrameworks, String originalTargetFrameworkstr, String msbuildProjectExtensionsPath)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.ToDependencyGraphSpec(ProjectNames projectNames, IVsProjectRestoreInfo projectRestoreInfo, IVsProjectRestoreInfo2 projectRestoreInfo2)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.NominateProjectAsync(String projectUniqueName, IVsProjectRestoreInfo projectRestoreInfo, IVsProjectRestoreInfo2 projectRestoreInfo2, CancellationToken token)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.NominateProjectAsync(String projectUniqueName, IVsProjectRestoreInfo2 projectRestoreInfo, CancellationToken token)
   at Microsoft.VisualStudio.ProjectSystem.VS.PackageRestore.PackageRestoreInitiator.PackageRestoreInitiatorInstance.<NominateProjectRestoreAsync>d__12.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
   at Microsoft.VisualStudio.Threading.JoinableTask.<JoinAsync>d__68.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
   at Microsoft.VisualStudio.ProjectSystem.VS.PackageRestore.PackageRestoreInitiator.PackageRestoreInitiatorInstance.<OnRestoreInfoChangedAsync>d__11.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
   at Microsoft.VisualStudio.ProjectSystem.DataReceivingBlockSlim`1.<ProcessInputQueueAsync>d__5.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
   at Microsoft.VisualStudio.ProjectSystem.CommonProjectSystemTools.Rethrow(Exception ex)
   at Microsoft.VisualStudio.ProjectSystem.ProjectErrorReporting.<>c__DisplayClass6_0.<SubmitErrorReport>b__0()
   at Microsoft.VisualStudio.ProjectSystem.ExceptionFilter.<>c__DisplayClass2_0.<Guard>g__action|0()
   at GuardMethodClass.GuardMethod(Func`1 , Func`2 , Func`2 )
   --- End of inner exception stack trace ---
---> (Inner Exception #0) NuGet.Frameworks.FrameworkException: Invalid framework identifier ''.
   at NuGet.Frameworks.NuGetFramework.GetShortFolderName(IFrameworkNameProvider mappings)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.<>c.<ToPackageSpec>b__11_0(TargetFrameworkInformation tfi)
   at System.Linq.Enumerable.WhereSelectArrayIterator`2.MoveNext()
   at System.Linq.Buffer`1..ctor(IEnumerable`1 source)
   at System.Linq.Enumerable.ToArray[TSource](IEnumerable`1 source)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.ToPackageSpec(ProjectNames projectNames, IEnumerable TargetFrameworks, String originalTargetFrameworkstr, String msbuildProjectExtensionsPath)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.ToDependencyGraphSpec(ProjectNames projectNames, IVsProjectRestoreInfo projectRestoreInfo, IVsProjectRestoreInfo2 projectRestoreInfo2)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.NominateProjectAsync(String projectUniqueName, IVsProjectRestoreInfo projectRestoreInfo, IVsProjectRestoreInfo2 projectRestoreInfo2, CancellationToken token)
   at NuGet.SolutionRestoreManager.VsSolutionRestoreService.NominateProjectAsync(String projectUniqueName, IVsProjectRestoreInfo2 projectRestoreInfo, CancellationToken token)
   at Microsoft.VisualStudio.ProjectSystem.VS.PackageRestore.PackageRestoreInitiator.PackageRestoreInitiatorInstance.<NominateProjectRestoreAsync>d__12.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
   at Microsoft.VisualStudio.Threading.JoinableTask.<JoinAsync>d__68.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
   at Microsoft.VisualStudio.ProjectSystem.VS.PackageRestore.PackageRestoreInitiator.PackageRestoreInitiatorInstance.<OnRestoreInfoChangedAsync>d__11.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
   at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
   at Microsoft.VisualStudio.ProjectSystem.DataReceivingBlockSlim`1.<ProcessInputQueueAsync>d__5.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
   at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
   at Microsoft.VisualStudio.ProjectSystem.CommonProjectSystemTools.Rethrow(Exception ex)
   at Microsoft.VisualStudio.ProjectSystem.ProjectErrorReporting.<>c__DisplayClass6_0.<SubmitErrorReport>b__0()
   at Microsoft.VisualStudio.ProjectSystem.ExceptionFilter.<>c__DisplayClass2_0.<Guard>g__action|0()
   at GuardMethodClass.GuardMethod(Func`1 , Func`2 , Func`2 )<---

davkean on 23 May 2019

@jamesmontemagno After moving Essentials to <Project Sdk="MSBuild.Sdk.Extras/2.0.29"> and consuming my fix from https://github.com/dotnet/project-system/pull/4859, packages install failures and faults disappeared. Can you confirm that the fault you are seeing matches the exact stack from the original post or whether it's the one I posted?

davkean on 23 May 2019

@dotMorten Is Esri.ArcGISRuntime.Toolkit the solution that caused above? I cannot repro this, I've also tried switching language to something other than English to rule that out too.

davkean on 23 May 2019

👍1

@dotMorten I have also been unable to repro this.
