Ppsspp: [Android][GLES2][Mali] Sreen flickering some games using latest git build of ppsspp

[Gamemulatorer]

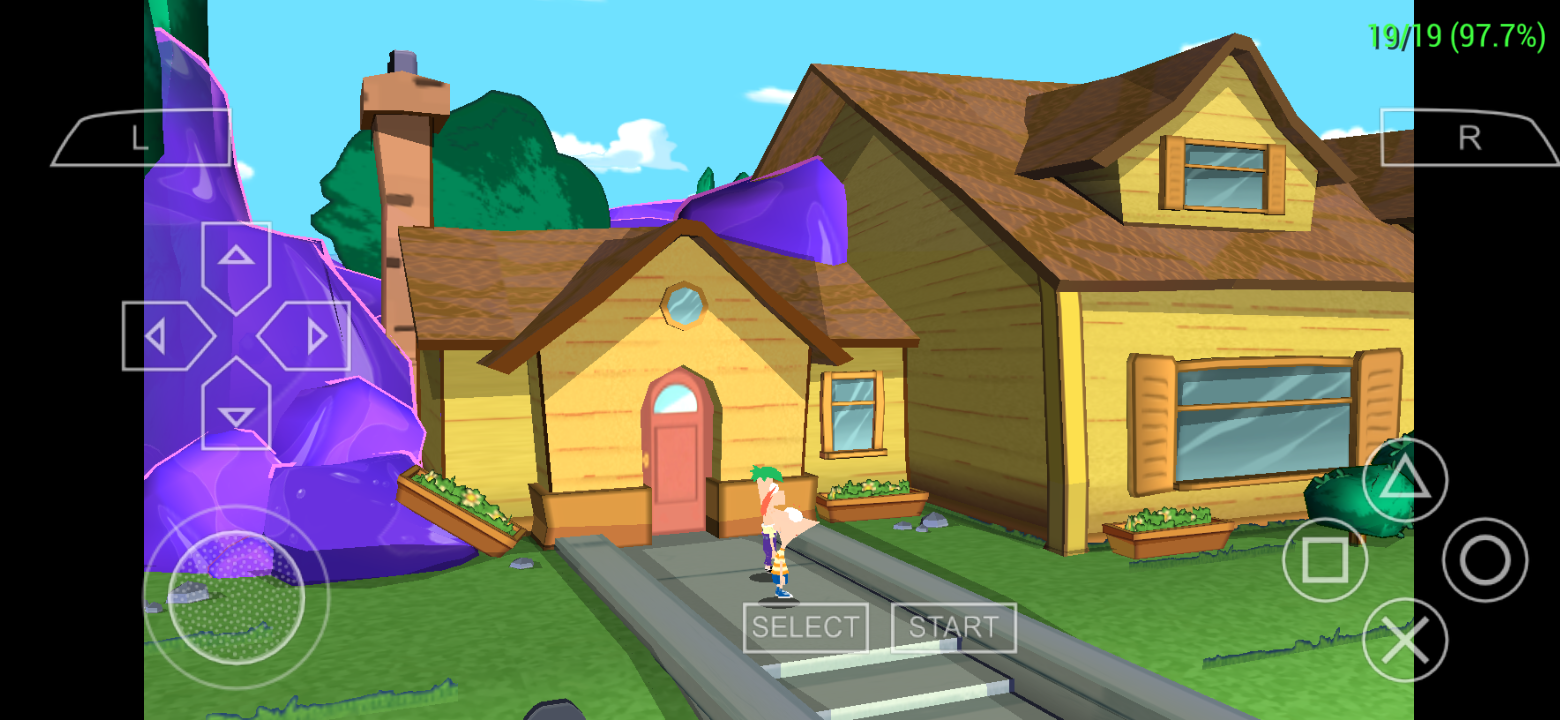

On the latest git build of ppsspp the screen is flickering in this game and I also notice it on other game(s) intro video

screen recording

•buffered rendering
•frameskipping off
•2x rendering resolution
•vertex cache off

Phineas and Ferb PSP.zip

ge dump

Phineas&Ferb.zip

What should happen?

No screen flickering using ppsspp v1.10.3 stable

What hardware, operating system, and PPSSPP version? On desktop, GPU matters for graphical issues.

Android 5.1
Mali-450 GPU
PPSSPP v1.10.3-107-g6e6cac6b9

[Gamemulatorer]

issue started in https://github.com/hrydgard/ppsspp/commit/9ebb402e4fa9900a9b94ed64814c4386e50c0437 last working build no screen flickering https://github.com/hrydgard/ppsspp/commit/bb6219e40202383f38f3439d7a3d78e2389024c9

[Panderner]

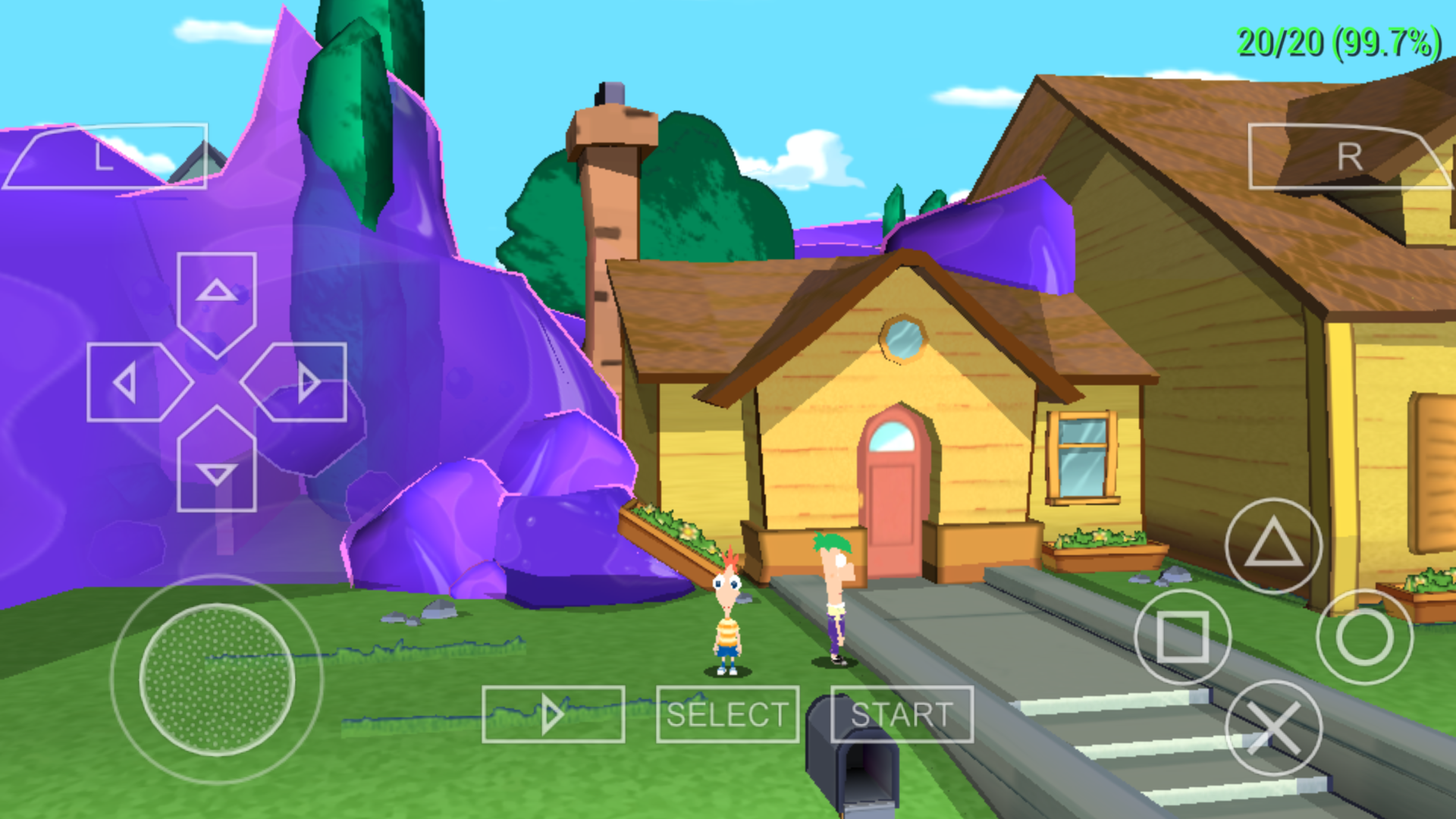

No flickering at all running on Realme C2 in latest git build.

[iota97]

Mhhhh, between the two commit there is this addition:

https://github.com/hrydgard/ppsspp/blob/6e6cac6b9b975819032b2911194ea8038a77a67b/ext/native/thin3d/thin3d_gl.cpp#L622-L629

boundTextures_ is an array, but boundSamplers_ is a vector instead, may need to use clear() as code check its size for loops?

-- Edit --
Here the declaration:
https://github.com/hrydgard/ppsspp/blob/6e6cac6b9b975819032b2911194ea8038a77a67b/ext/native/thin3d/thin3d_gl.cpp#L492-L493

-- Edit 2 --
It check for size and not null tho' so should be fine, my bad

[Gamemulatorer]

Using ppsspp v1.10.3-114 git build screen still flickering.

Logs

07-19 11:14:26.650 I/PPSSPP (20381): Creating 480 x 272 FBO using no depth
07-19 11:14:26.695 I/PPSSPP (20381): Creating 480 x 272 FBO using no depth
07-19 11:14:44.935 I/PPSSPP (20381): Creating 960 x 544 FBO using DEPTH24_STENCIL8 texture
07-19 11:15:05.421 I/PPSSPP (20381): Creating 960 x 544 FBO using DEPTH24_STENCIL8 texture
07-19 11:15:25.986 I/PPSSPPSizeManager(20381): SystemUiVisibilityChange! visibility=6 navigationHidden: true
07-19 11:15:25.986 I/PPSSPPSizeManager(20381): decorView: 1280x720
07-19 11:15:26.000 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:26.001 D/PPSSPPSizeManager(20381): checkDisplayMeasurements: checking now
07-19 11:15:26.008 I/PPSSPP (20381): NativeApp.setDisplayParameters(1280 x 720, dpi=300, refresh=56.06)
07-19 11:15:26.731 I/PPSSPP (20381): Screen toplevel: 0
07-19 11:15:26.806 I/PPSSPP (20381): Screen toplevel: 0
07-19 11:15:26.913 I/PPSSPP (20381): frameCommand 'uistate' 'pausemenu'
07-19 11:15:26.927 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.318 I/PPSSPPNativeActivity(20381): onPause
07-19 11:15:27.318 I/PPSSPP (20381): NativeApp.pause() - pausing audio
07-19 11:15:27.318 I/PPSSPP (20381): Calling OpenSLWrap_Shutdown_T...
07-19 11:15:27.318 I/PPSSPP (20381): OpenSLWrap_Shutdown - stopping playback
07-19 11:15:27.319 I/PPSSPP (20381): OpenSLWrap_Shutdown - deleting player object
07-19 11:15:27.320 I/PPSSPP (20381): OpenSLWrap_Shutdown - deleting mix object
07-19 11:15:27.320 I/PPSSPP (20381): OpenSLWrap_Shutdown - deleting engine object
07-19 11:15:27.320 I/PPSSPP (20381): OpenSLWrap_Shutdown - finished
07-19 11:15:27.320 I/PPSSPP (20381): Returned from OpenSLWrap_Shutdown_T ...
07-19 11:15:27.334 I/DefaultContextFactory(20381): eglDestroyContext = 1227, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.403 I/PPSSPPNativeActivity(20381): onPause completed
07-19 11:15:27.415 I/SurfaceView(20381): updateWindow -- onWindowVisibilityChanged, visibility = 8, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.416 I/SurfaceView(20381): Changes: creating=false format=false size=false visible=true left=false top=false mUpdateWindowNeeded=false mReportDrawNeeded=false redrawNeeded=false forceSizeChanged=false mVisible=true mRequestedVisible=false, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.416 I/SurfaceView(20381): Cur surface: Surface(name=null)/@0xb26faf4, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.434 I/SurfaceView(20381): New surface: Surface(name=null)/@0x2cc7621d, vis=false, frame=Rect(0, 0 - 1280, 720), this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.434 I/SurfaceView(20381): Callback --> surfaceDestroyed, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.434 I/SurfaceView(20381): surfaceDestroyed callback +, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.437 I/SurfaceView(20381): surfaceDestroyed callback -, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.437 I/SurfaceView(20381): surfaceDestroyed callback +, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ........ 0,0-1280,720}
07-19 11:15:27.438 I/SurfaceView(20381): surfaceDestroyed callback -, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......I. 0,0-1280,720}
07-19 11:15:27.440 V/SurfaceView(20381): Layout: x=0 y=0 w=1280 h=720, frame=Rect(0, 0 - 1280, 720), this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......I. 0,0-1280,720}
07-19 11:15:27.454 I/SurfaceView(20381): updateWindow -- setFrame, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.455 I/SurfaceView(20381): Changes: creating=false format=false size=true visible=false left=false top=false mUpdateWindowNeeded=false mReportDrawNeeded=false redrawNeeded=false forceSizeChanged=true mVisible=false mRequestedVisible=false, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.455 I/SurfaceView(20381): Cur surface: Surface(name=null)/@0xb26faf4, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.471 V/SurfaceView(20381): this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280} got resized: w=1280 h=720, cur w=-1 h=-1
07-19 11:15:27.495 I/SurfaceView(20381): New surface: Surface(name=null)/@0x2cc7621d, vis=false, frame=Rect(0, 0 - 720, 1280), this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.497 V/SurfaceView(20381): Layout: x=0 y=0 w=720 h=1280, frame=Rect(0, 0 - 720, 1280), this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.498 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.500 I/SurfaceView(20381): Changes: creating=false format=false size=false visible=false left=false top=false mUpdateWindowNeeded=true mReportDrawNeeded=false redrawNeeded=false forceSizeChanged=false mVisible=false mRequestedVisible=false, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.500 I/SurfaceView(20381): Cur surface: Surface(name=null)/@0xb26faf4, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.511 I/SurfaceView(20381): New surface: Surface(name=null)/@0x2cc7621d, vis=false, frame=Rect(0, 0 - 720, 1280), this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.514 V/SurfaceView(20381): Layout: x=0 y=0 w=720 h=1280, frame=Rect(0, 0 - 720, 1280), this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.517 D/PPSSPPSizeManager(20381): checkDisplayMeasurements: checking now
07-19 11:15:27.519 I/PPSSPP (20381): NativeApp.setDisplayParameters(720 x 1280, dpi=300, refresh=56.06)
07-19 11:15:27.519 I/PPSSPP (20381): RecalcDPI: display_xres=720 display_yres=1280
07-19 11:15:27.520 I/PPSSPP (20381): RecalcDPI: g_dpi=300.000000 g_dpi_scale_x=0.800000 g_dpi_scale_y=0.800000
07-19 11:15:27.521 I/PPSSPP (20381): RecalcDPI: dp_xscale=0.800000 dp_yscale=0.800000
07-19 11:15:27.521 I/PPSSPP (20381): RecalcDPI: dp_xres=576 dp_yres=1024
07-19 11:15:27.521 I/PPSSPP (20381): RecalcDPI: pixel_xres=1280 pixel_yres=720
07-19 11:15:27.522 I/PPSSPP (20381): NativeResized - setting flag
07-19 11:15:27.523 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.523 I/PPSSPPNativeActivity(20381): onStop - do nothing special
07-19 11:15:27.539 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:27.688 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:28.205 I/PPSSPPSizeManager(20381): SystemUiVisibilityChange! visibility=0 navigationHidden: false
07-19 11:15:28.205 I/PPSSPPSizeManager(20381): decorView: 720x1280
07-19 11:15:28.224 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}
07-19 11:15:28.224 D/PPSSPPSizeManager(20381): checkDisplayMeasurements: checking now
07-19 11:15:28.227 I/PPSSPP (20381): NativeApp.setDisplayParameters(720 x 1280, dpi=300, refresh=56.06)
07-19 11:15:28.450 I/SurfaceView(20381): updateWindow -- OnPreDrawListener, mHaveFrame = true, this = org.ppsspp.ppsspp.NativeGLView{1283e6e2 V.E..... ......ID 0,0-720,1280}

[Gamemulatorer]

No screen flickering on opengl 3.0+ using the latest git build so probably this issue only happen on opengl 2.0 :(

[Gamemulatorer]

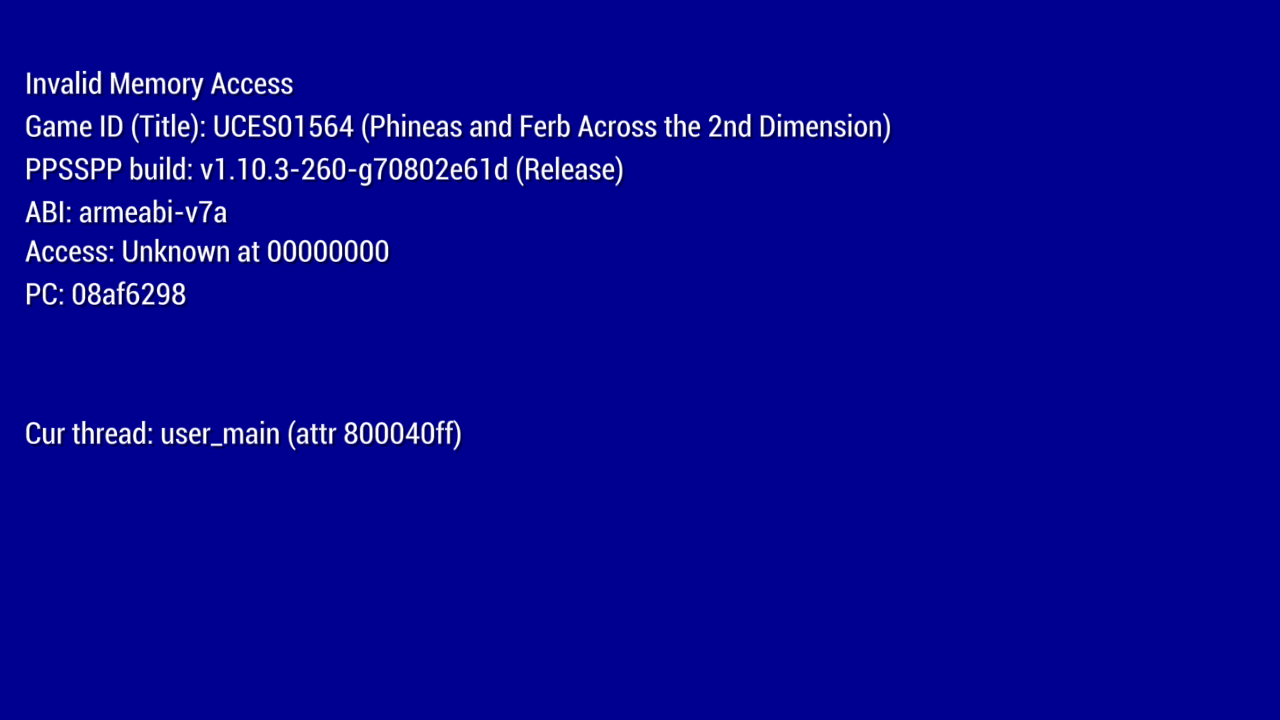

Tried ppsspp v1.10.3-249 but this game screen flickering issue still present I also experience this issue in other games like YGO Arc V Tag Force Special & Final Fantasy Crisis Core but only happen once or twice.

[310325]

Latest build,no flicker,but really slow,maybe GPU issue?

[Gamemulatorer]

Latest build,no flicker,but really slow,maybe GPU issue?

Because this is an opengl 2.0 issue

[Gamemulatorer]

I reset my ppsspp settings and it's fixed the screen flickering issue 🤔 but now it crashes when I click unthrottle for too long.

ppsspp_logs.zip

[Gamemulatorer]

The issue still present on the latest git build of ppsspp but only flicker when I press start button also yugioh arc v tag force special are affected by this screen flickering 😵
screenrecording+logcat.zip

[Panderner]

any affected games @Gamemulatorer?

[Gamemulatorer]

any affected games @Gamemulatorer?

https://github.com/hrydgard/ppsspp/issues/13157#issuecomment-665209896

[Gamemulatorer]

Just ot @hrydgard that in the latest git build render duplicate to 60hz is not highlighted when set to skip-buffered rendering. #12724

[Gamemulatorer]

Another bunch of game list that are affected by this screen flickering issue 😔

• Harvest Moon - Boy & Girl
• Harvest Moon - Hero of Leaf Valley
• Jax & Daxter - The Lost Frontier
• NFS Most Wanted 5-1-0
• Phantasy Star Portable
• SSX on Tour
• Tekken Dark Resurrection
• Armored Cored Portable ( slow flickering #11430)
• Beowulf
• Brave Story : Time Traveler
• Final Fantasy III
• God Eater Burst
• Puzzle Bubble Pocket

Can anyone with opengl 2.0 can also test if you experience the same issue I have both on my phone with Mali-400 & Mali-450 GPU.

[hrydgard]

Thanks, I've got a few of those (and a Galaxy S3 with Mali-400). Will investigate soon.

[Gamemulatorer]

Thanks, I've got a few of those (and a Galaxy S3 with Mali-400). Will investigate soon.

Thanks @hrydgard hope you will find the culprit of this issue :)

[Gamemulatorer]

the issue is getting weird :(
any update about this sir @hrydgard
On Aug 9, 2020 2:33 AM, "Henrik Rydgård" [e-mail] wrote:

Thanks, I've got a few of those. Will investigate soon.

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/hrydgard/ppsspp/issues/13157#issuecomment-670959786,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AI64R2TKPCXI3YG3RY35OCTR7WK6LANCNFSM4O5PAFBQ
.

[Gamemulatorer]

But I notice that when I minimize the ppsspp its temporarily fixed the issue but after a minute the flickering is back also this is happen sometimes (see image below)

[Gamemulatorer]

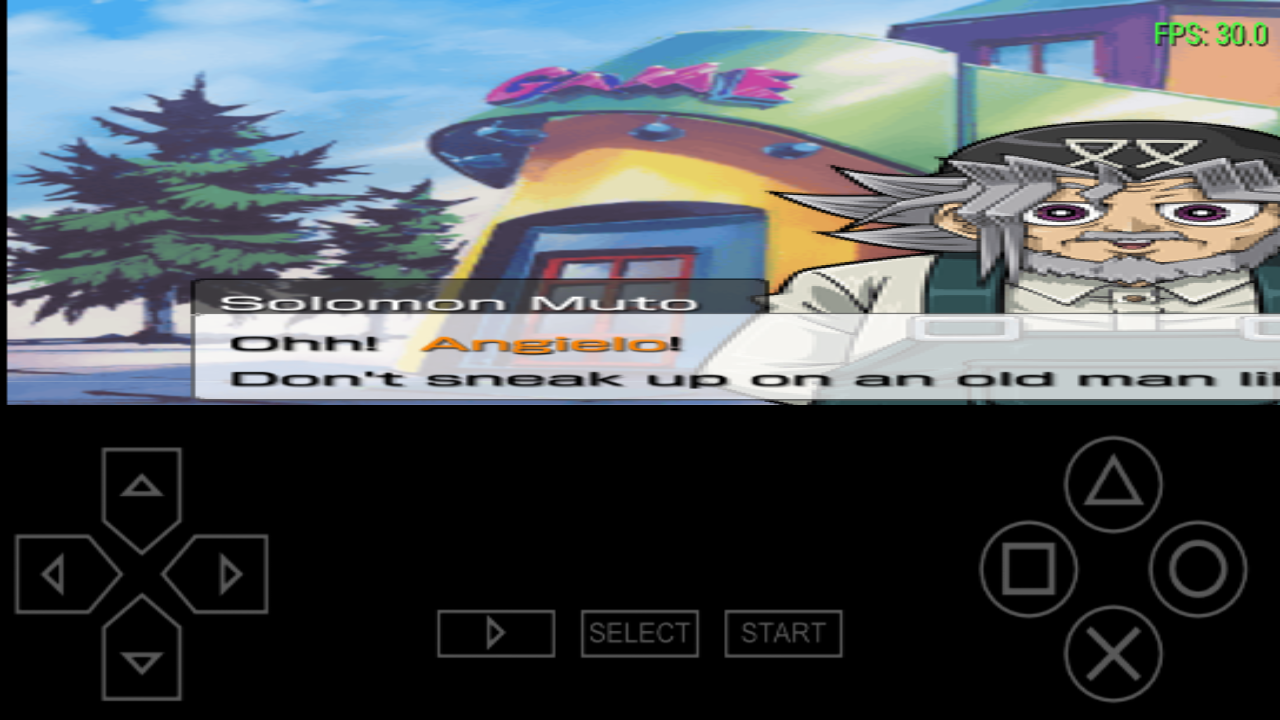

GE dump using latest git build.
22
z
:24:683 CRI Server M I[G3D]: UI/NativeApp.cpp:237 g_Config.screenRotation = 5
22:24:700 CRI Server M I[SYSTEM]: jni/app-android.cpp:679 NativeApp.resume() - resuming audio
22:24:745 CRI Server M I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(720 x 1280, dpi=300, refresh=56.06)
22:24:771 CRI Server M I[G3D]: jni/app-android.cpp:733 NativeApp.displayInit() restoring
22:24:771 CRI Server M I[SYSTEM]: jni/app-android.cpp:296 EmuThreadStop - stopping (displayInit)...
22:24:771 CRI Server M I[G3D]: jni/app-android.cpp:737 BeginAndroidShutdown. Looping until emu thread done...
ygo.zip

22:24:774 user_main N[SYSTEM]: Debugger/Record.cpp:518 Recording starting on display...
22:24:781 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 33.37ms / 30.0fps, actual = 106741.63ms (+106708.26ms) / 0.0fps
Kernel processing time: 5.53 ms
Slowest syscall: sceGeListEnQueue : 3.35 ms
Most active syscall: sceGeListEnQueue : 4.52 ms
DL processing time: 4.48 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2244 (20.000000 per vertex)
Commands per call level: 322 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 2
Textures active: 4, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 6, 5, 6

22:24:781 CRI Server M I[G3D]: UI/NativeApp.cpp:1093 Resized flag set - recalculating bounds
22:24:781 CRI Server M I[SYSTEM]: ui/screen.cpp:132 ScreenManager::resized(dp: 576x1024)
22:24:781 CRI Server M I[SYSTEM]: jni/app-android.cpp:274 QUIT_REQUESTED found, left loop. Setting state to STOPPED.
22:24:782 CRI Server M I[G3D]: GLES/GPU_GLES.cpp:313 GPU_GLES: DeviceLost
22:24:782 CRI Server M I[G3D]: Common/TextureCacheCommon.cpp:1603 Texture cached cleared from 4 textures
22:24:782 CRI Server M I[FRAMEBUF]: Common/FramebufferManagerCommon.cpp:1 Destroying FBO for 04088000 : 480 x 272 x 3
22:24:782 CRI Server M I[FRAMEBUF]: Common/FramebufferManagerCommon.cpp:1 Destroying FBO for 04000000 : 480 x 272 x 3
22:24:782 CRI Server M I[SYSTEM]: UI/NativeApp.cpp:934 NativeShutdownGraphics
22:24:783 CRI Server M I[SYSTEM]: UI/NativeApp.cpp:976 NativeShutdownGraphics done
22:24:783 CRI Server M I[G3D]: jni/app-android.cpp:742 Joining emu thread
22:24:783 CRI Server M I[G3D]: thin3d/GLRenderManager.cpp:249 GL submission thread paused. Frame=1
22:24:784 CRI Server M I[SYSTEM]: jni/app-android.cpp:283 Leaving emu thread
22:24:784 CRI Server M I[SYSTEM]: jni/app-android.cpp:303 EmuThreadJoin - joined
22:24:784 CRI Server M I[G3D]: thin3d/GLRenderManager.cpp:157 ThreadEnd
22:24:785 CRI Server M I[G3D]: jni/AndroidJavaGLContext.cpp:29 AndroidJavaEGLGraphicsContext::Shutdown
22:24:785 CRI Server M I[G3D]: jni/app-android.cpp:750 Shut down both threads. Now let's bring it up again!
22:24:786 CRI Server M I[G3D]: jni/AndroidJavaGLContext.cpp:16 AndroidJavaEGLGraphicsContext::InitFromRenderThread
22:24:786 CRI Server M I[SYSTEM]: jni/app-android.cpp:287 EmuThreadStart
22:24:786 CRI Server M I[G3D]: thin3d/GLRenderManager.cpp:117 Updating inflight frames to 2
22:24:787 CRI Server M I[G3D]: jni/app-android.cpp:768 Restored.
22:24:788 CRI Server M I[SYSTEM]: jni/app-android.cpp:253 Entering emu thread
22:24:788 CRI Server M I[SYSTEM]: jni/app-android.cpp:262 Runloop: Graphics context available! 0xb4334c00
22:24:788 CRI Server M I[SYSTEM]: UI/NativeApp.cpp:815 NativeInitGraphics
22:24:789 CRI Server M I[G3D]: gfx_es2/draw_text_android.cpp:30 Initializing TextDrawerAndroid with DPI scale 0.800000
22:24:789 CRI Server M I[G3D]: GLES/GPU_GLES.cpp:331 GPU_GLES: DeviceRestore
22:24:789 CRI Server M I[SYSTEM]: UI/NativeApp.cpp:884 NativeInitGraphics completed
22:24:789 CRI Server M I[SYSTEM]: jni/app-android.cpp:266 Graphics initialized. Entering loop.
22:24:797 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 16.68ms / 59.9fps, actual = 199.96ms (+183.28ms) / 5.0fps
Kernel processing time: 0.34 ms
Slowest syscall: __sceSasCore : 0.06 ms
Most active syscall: __sceSasCore : 0.11 ms
DL processing time: 0.00 ms
Draw calls: 0, flushes 0, clears 0
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 0 (0.000000 per vertex)
Commands per call level: 0 0 0 0
Vertices submitted: 0
Cached, Uncached Vertices Drawn: 0, 0
FBOs active: 0
Textures active: 0, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 0, 0, 0

22:25:107 user_main I[G3D]: thin3d/GLRenderManager.cpp:220 Running first frame (0)
22:25:107 user_main N[SYSTEM]: Debugger/Record.cpp:541 Recording complete on display
22:25:109 user_main N[G3D]: Debugger/Record.cpp:115 Recording filename: /storage/sdcard0/PSP/SYSTEM/DUMP/NPJH00142_0002.ppdmp
22:25:118 user_main N[SYSTEM]: Debugger/Record.cpp:405 Recording finished
22:25:119 user_main I[FRAMEBUF]: Common/FramebufferManagerCommon.cpp:3 Creating FBO for 04000000 (z: 04110000) : 480 x 272 x 3
22:25:129 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 16.68ms / 59.9fps, actual = 423.89ms (+407.21ms) / 2.4fps
Kernel processing time: 18.48 ms
Slowest syscall: sceDisplaySetFrameBuf : 11.99 ms
Most active syscall: sceDisplaySetFrameBuf : 11.99 ms
DL processing time: 6.02 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2242 (20.000000 per vertex)
Commands per call level: 321 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 1
Textures active: 1, decoded: 1 invalidated: 0
Readbacks: 0, uploads: 1
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:198 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 16.68ms / 59.9fps, actual = 160.64ms (+143.95ms) / 6.2fps
Kernel processing time: 0.37 ms
Slowest syscall: __sceSasCore : 0.06 ms
Most active syscall: __sceSasCore : 0.12 ms
DL processing time: 0.00 ms
Draw calls: 0, flushes 0, clears 0
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 0 (0.000000 per vertex)
Commands per call level: 0 0 0 0
Vertices submitted: 0
Cached, Uncached Vertices Drawn: 0, 0
FBOs active: 1
Textures active: 1, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:209 CRI Server M I[G3D]: thin3d/GLQueueRunner.cpp:457 Creating 960 x 544 FBO using DEPTH24_STENCIL8 texture
22:25:220 user_main I[FRAMEBUF]: Common/FramebufferManagerCommon.cpp:3 Creating FBO for 04088000 (z: 04110000) : 480 x 272 x 3
22:25:224 user_main I[SYSTEM]: jni/app-android.cpp:808 NativeApp.backbufferResize(720 x 1280)
22:25:224 user_main I[G3D]: jni/app-android.cpp:800 RecalcDPI: display_xres=720 display_yres=1280
22:25:225 user_main I[G3D]: jni/app-android.cpp:801 RecalcDPI: g_dpi=300.000000 g_dpi_scale_x=0.800000 g_dpi_scale_y=0.800000
22:25:225 user_main I[G3D]: jni/app-android.cpp:802 RecalcDPI: dp_xscale=0.800000 dp_yscale=0.800000
22:25:225 user_main I[G3D]: jni/app-android.cpp:803 RecalcDPI: dp_xres=576 dp_yres=1024
22:25:225 idle0 I[G3D]: jni/app-android.cpp:804 RecalcDPI: pixel_xres=720 pixel_yres=1280
22:25:225 ehscript I[G3D]: jni/app-android.cpp:821 Size change detected (previously 1280,720) - calling NativeResized()
22:25:225 user_main I[G3D]: UI/NativeApp.cpp:1367 NativeResized - setting flag
22:25:227 idle0 I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(720 x 1280, dpi=300, refresh=56.06)
22:25:228 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 16.68ms / 59.9fps, actual = 121.43ms (+104.75ms) / 8.2fps
Kernel processing time: 5.66 ms
Slowest syscall: sceGeListEnQueue : 4.96 ms
Most active syscall: sceGeListEnQueue : 5.21 ms
DL processing time: 5.16 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2242 (20.000000 per vertex)
Commands per call level: 321 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 2
Textures active: 1, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 1
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:228 CRI Server M I[G3D]: UI/NativeApp.cpp:1093 Resized flag set - recalculating bounds
22:25:228 CRI Server M I[SYSTEM]: ui/screen.cpp:132 ScreenManager::resized(dp: 576x1024)
22:25:235 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 33.37ms / 30.0fps, actual = 99.45ms (+66.08ms) / 10.1fps
Kernel processing time: 3.05 ms
Slowest syscall: sceGeListEnQueue : 2.00 ms
Most active syscall: sceGeListEnQueue : 2.13 ms
DL processing time: 2.10 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2242 (20.000000 per vertex)
Commands per call level: 321 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 2
Textures active: 1, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:242 CRI Server M I[G3D]: thin3d/GLQueueRunner.cpp:457 Creating 960 x 544 FBO using DEPTH24_STENCIL8 texture
22:25:268 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 33.37ms / 30.0fps, actual = 98.69ms (+65.32ms) / 10.1fps
Kernel processing time: 7.79 ms
Slowest syscall: sceGeListEnQueue : 6.59 ms
Most active syscall: sceGeListEnQueue : 6.82 ms
DL processing time: 6.73 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2242 (20.000000 per vertex)
Commands per call level: 321 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 2
Textures active: 1, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:285 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 33.37ms / 30.0fps, actual = 82.51ms (+49.14ms) / 12.1fps
Kernel processing time: 2.25 ms
Slowest syscall: sceGeListEnQueue : 0.52 ms
Most active syscall: sceGeListEnQueue : 0.81 ms
DL processing time: 0.75 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2242 (20.000000 per vertex)
Commands per call level: 321 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 2
Textures active: 1, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:295 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 33.37ms / 30.0fps, actual = 58.65ms (+25.28ms) / 17.1fps
Kernel processing time: 3.65 ms
Slowest syscall: sceGeListEnQueue : 2.53 ms
Most active syscall: sceGeListEnQueue : 2.68 ms
DL processing time: 2.64 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2242 (20.000000 per vertex)
Commands per call level: 321 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 2
Textures active: 1, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:309 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 33.37ms / 30.0fps, actual = 39.70ms (+6.33ms) / 25.2fps
Kernel processing time: 5.50 ms
Slowest syscall: sceGeListEnQueue : 3.13 ms
Most active syscall: sceGeListEnQueue : 3.54 ms
DL processing time: 3.47 ms
Draw calls: 4, flushes 3, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2242 (20.000000 per vertex)
Commands per call level: 321 0 0 0
Vertices submitted: 80
Cached, Uncached Vertices Drawn: 0, 80
FBOs active: 2
Textures active: 1, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 3, 2, 3

22:25:375 idle0 I[SYSTEM]: jni/app-android.cpp:808 NativeApp.backbufferResize(1280 x 720)
22:25:375 CRI Server M I[G3D]: jni/app-android.cpp:800 RecalcDPI: display_xres=720 display_yres=1280
22:25:375 idle0 I[G3D]: jni/app-android.cpp:801 RecalcDPI: g_dpi=300.000000 g_dpi_scale_x=0.800000 g_dpi_scale_y=0.800000
22:25:375 CRI Server M I[G3D]: jni/app-android.cpp:802 RecalcDPI: dp_xscale=0.800000 dp_yscale=0.800000
22:25:375 CRI Server M I[G3D]: jni/app-android.cpp:803 RecalcDPI: dp_xres=576 dp_yres=1024
22:25:375 CRI Server M I[G3D]: jni/app-android.cpp:804 RecalcDPI: pixel_xres=1280 pixel_yres=720
22:25:375 CRI Server M I[G3D]: jni/app-android.cpp:821 Size change detected (previously 720,1280) - calling NativeResized()
22:25:375 CRI Server M I[G3D]: UI/NativeApp.cpp:1367 NativeResized - setting flag
22:25:377 CRI Server M I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(1280 x 720, dpi=300, refresh=56.06)
22:25:377 CRI Server M I[G3D]: jni/app-android.cpp:800 RecalcDPI: display_xres=1280 display_yres=720
22:25:377 CRI Server M I[G3D]: jni/app-android.cpp:801 RecalcDPI: g_dpi=300.000000 g_dpi_scale_x=0.800000 g_dpi_scale_y=0.800000
22:25:377 CRI Server M I[G3D]: jni/app-android.cpp:802 RecalcDPI: dp_xscale=0.800000 dp_yscale=0.800000
22:25:377 CRI Server M I[G3D]: jni/app-android.cpp:803 RecalcDPI: dp_xres=1024 dp_yres=576
22:25:377 CRI Server M I[G3D]: jni/app-android.cpp:804 RecalcDPI: pixel_xres=1280 pixel_yres=720
22:25:377 CRI Server M I[G3D]: UI/NativeApp.cpp:1367 NativeResized - setting flag
22:25:403 CRI Server M I[G3D]: UI/NativeApp.cpp:1093 Resized flag set - recalculating bounds
22:25:403 CRI Server M I[SYSTEM]: ui/screen.cpp:132 ScreenManager::resized(dp: 1024x576)
22:25:410 idle0 I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(1280 x 720, dpi=300, refresh=56.06)
22:25:464 CRI Server M I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(1280 x 720, dpi=300, refresh=56.06)
22:25:729 CRI Server M I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(1280 x 720, dpi=300, refresh=56.06)
22:27:151 CRI Server M I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(1280 x 720, dpi=300, refresh=56.06)
22:32:155 CRI Server M I[SYSTEM]: jni/app-android.cpp:684 NativeApp.pause() - pausing audio
22:32:226 CRI Server M N[SCEDISP]: HLE/sceDisplay.cpp:532 Dropping frames - budget = 33.37ms / 30.0fps, actual = 50.05ms (+16.69ms) / 20.0fps
Kernel processing time: 1.67 ms
Slowest syscall: sceGeListEnQueue : 0.36 ms
Most active syscall: sceGeListEnQueue : 0.62 ms
DL processing time: 0.57 ms
Draw calls: 5, flushes 4, clears 2
Cached Draw calls: 0
Num Tracked Vertex Arrays: 0
GPU cycles executed: 2318 (20.000000 per vertex)
Commands per call level: 339 0 0 0
Vertices submitted: 82
Cached, Uncached Vertices Drawn: 0, 82
FBOs active: 2
Textures active: 2, decoded: 0 invalidated: 0
Readbacks: 0, uploads: 0
Vertex, Fragment, Programs loaded: 4, 3, 4

22:32:426 CRI Server M I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(720 x 1280, dpi=300, refresh=56.06)
22:32:427 CRI Server M I[G3D]: jni/app-android.cpp:800 RecalcDPI: display_xres=720 display_yres=1280
22:32:429 CRI Server M I[G3D]: jni/app-android.cpp:801 RecalcDPI: g_dpi=300.000000 g_dpi_scale_x=0.800000 g_dpi_scale_y=0.800000
22:32:430 CRI Server M I[G3D]: jni/app-android.cpp:802 RecalcDPI: dp_xscale=0.800000 dp_yscale=0.800000
22:32:430 CRI Server M I[G3D]: jni/app-android.cpp:803 RecalcDPI: dp_xres=576 dp_yres=1024
22:32:430 CRI Server M I[G3D]: jni/app-android.cpp:804 RecalcDPI: pixel_xres=1280 pixel_yres=720
22:32:430 CRI Server M I[G3D]: UI/NativeApp.cpp:1367 NativeResized - setting flag
22:33:413 CRI Server M I[G3D]: jni/app-android.cpp:1113 NativeApp.setDisplayParameters(720 x 1280, dpi=300, refresh=56.06

[unknownbrackets]

Did you rotate your5 device during that log? I see multiple resize events, and they're because it went from portrait to landscape and back.

If you set the orientation in the settings to a fixed orientation, does it help?

-[Unknown]

[Gamemulatorer]

Did you rotate your5 device during that log? I see multiple resize events, and they're because it went from portrait to landscape and back.

If you set the orientation in the settings to a fixed orientation, does it help?

-[Unknown]

No, I did not.
Rotation was set to landscape auto tried to set it on landscape only but it did not help.

[Gamemulatorer]

Closing this since opengl es 2.0 is not a top priority issue on ppsspp 😔

[hrydgard]

Open GL ES 2.0 is important. Don't close stuff because you're annoyed, I will get to it.

[Gamemulatorer]

Thanks hope you will improve further the opengl backend in the near future #13295

[hrydgard]

Given the stated range of working/not-working (you sure it's accurate?) it pretty much has to be https://github.com/hrydgard/ppsspp/pull/13138 . Having trouble reproducing on my Galaxy S3 with Mali-400 though... Hm. But there is some very faint flicker going on, looking at crisp edges. Maybe a filtering issue..

[hrydgard]

@Gamemulatorer one thing to check - if you set Postprocessing to Vignette or something, does it make a difference?

[Gamemulatorer]

Having trouble reproducing on my Galaxy S3 with Mali-400 though... Hm. But there is some very faint flicker going on, looking at crisp edges. Maybe a filtering issue..

I can reproduce this issue on both mali 400 and 450 gpu maybe a device issue 🤔

@Gamemulatorer one thing to check - if you set Postprocessing to Vignette or something, does it make a difference?

No difference still flickering 😔

GE Dump + Screenrecording
GEDump+Screenrecording.zip
Need for Speed Underground Rivals are also affected by this issue..

[hrydgard]

13301 is reported to fix this, closing.
