Powershell: Messy code with VSCode's reading from stdin

[imba-tjd]

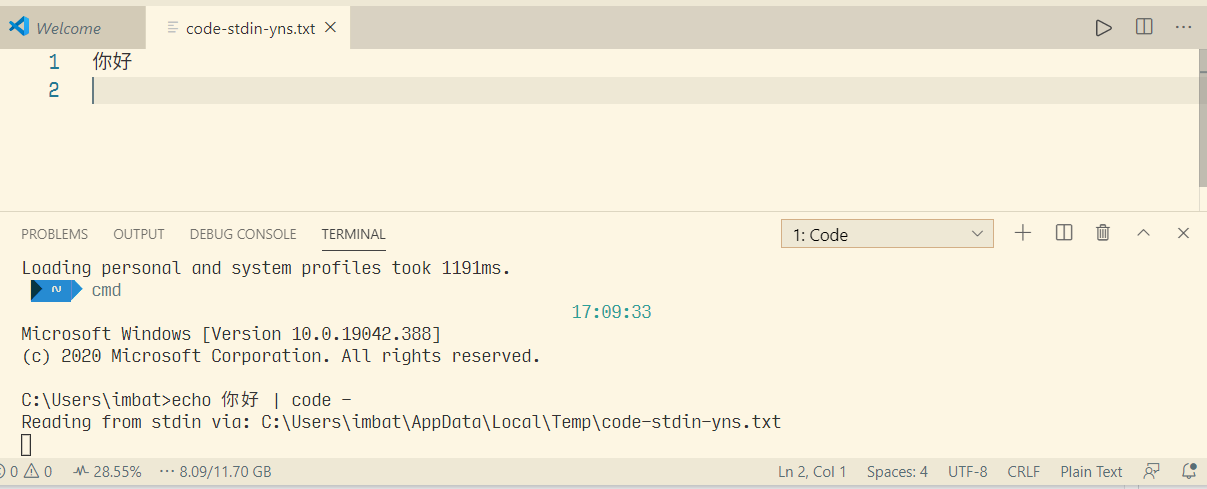

I'm using echo 你好 | code - but got messy code. The key point is that in cmd the command works.

I reported at https://github.com/microsoft/vscode/issues/102917 but he suggests opening an issue here. There are some more tests in that issue.

Environment data

Name                           Value
----                           -----
PSVersion                      7.1.0-preview.5
PSEdition                      Core
GitCommitId                    7.1.0-preview.5
OS                             Microsoft Windows 10.0.19042
Platform                       Win32NT
PSCompatibleVersions           {1.0, 2.0, 3.0, 4.0…}
PSRemotingProtocolVersion      2.3
SerializationVersion           1.1.0.1
WSManStackVersion              3.0

[bpasero]

I suggested to report the issue here only because the issue does not reproduce with cmd.exe it seems.

[iSazonov]

What does $OutputEncoding returns?

[imba-tjd]

Preamble          :
BodyName          : utf-8
EncodingName      : Unicode (UTF-8)
HeaderName        : utf-8
WebName           : utf-8
WindowsCodePage   : 1200
IsBrowserDisplay  : True
IsBrowserSave     : True
IsMailNewsDisplay : True
IsMailNewsSave    : True
IsSingleByte      : False
EncoderFallback   : System.Text.EncoderReplacementFallback
DecoderFallback   : System.Text.DecoderReplacementFallback
IsReadOnly        : True
CodePage          : 65001

For PS 5.1:

[iSazonov]

Perhaps a root of the issue is that code is based on chcp that is [Console]::OutputEncoding in PowerShell but PowerShell is using $OutputEncoding to communicate with external executables.

For a test you could assign CP936 value to $OutputEncoding.

/cc @mklement0

[imba-tjd]

Yeah, with $OutputEncoding=[System.Text.Encoding]::GetEncoding(936) both pwsh and PS 5.1 can get the correct result.

[iSazonov]

@imba-tjd Thanks for confirmation! I do not think we can resolve the issue automatically. Can you use Utf8 in console?

[imba-tjd]

Do you mean chcp 65001? That won't help with my case because VSC can't read chcp correctly but that's another thing.

For myself I can set $OutputEncoding in my pwsh profile but generally I think this issue should be fixed by VSC.

[iSazonov]

/cc @TylerLeonhardt for information.

[bpasero]

To clarify what VSCode is doing:

• we run chcp
• this is using node.js exec command which possibly is spawning cmd.exe and not powershell
• we read the output
• we have a map of supported encodings (see below)
• we try to find the encoding in the output
• we then pass this encoding into iconv-lite to convert the input string using this encoding to UTF-8

const windowsTerminalEncodings = {
    '437': 'cp437', // United States
    '850': 'cp850', // Multilingual(Latin I)
    '852': 'cp852', // Slavic(Latin II)
    '855': 'cp855', // Cyrillic(Russian)
    '857': 'cp857', // Turkish
    '860': 'cp860', // Portuguese
    '861': 'cp861', // Icelandic
    '863': 'cp863', // Canadian - French
    '865': 'cp865', // Nordic
    '866': 'cp866', // Russian
    '869': 'cp869', // Modern Greek
    '936': 'cp936', // Simplified Chinese
    '1252': 'cp1252' // West European Latin
};

I think the culprit here is - as I said - node.js exec is not using Powershell.

Is there maybe an environment variable in Powershell we could get the encoding from?

[mklement0]

tl;dr

The problem is that Visual Studio Code's CLI, code, doesn't pick up in-session changes to the active OEM code page, and seemingly always uses the _system's_ OEM code page.

Additionally, a fix to the PowerShell Integrated Console may be required - see https://github.com/PowerShell/vscode-powershell/issues/2816

---

The _PowerShell Integrated Console_ (the special shell that comes with the PowerShell extension) sets [console]::OutputEncoding invariably to UTF-8, irrespective of what the active OEM code page is.

Note that running a _regular PowerShell session_ in an integrated VSCode terminal does _not_ exhibit this behavior - it, like regular console / Windows Terminal windows, _consistently_ uses the active OEM code page for both [console]::InputEncoding and [console]::OutputEncoding.

While PowerShell itself by default respects the active OEM code page for _receiving data from_ external programs (via [console]::OutputEncoding), it does _not_ do so for sending data _to_ external programs, because the $OutputEncoding preference variable, which controls the encoding used, is set to a _fixed_ default value in both PowerShell editions:

• It is ASCII(!) encoding in _Windows PowerShell_ (which means that characters outside the 7-bit ASCII range are sent as literal ? chars.)

• It is more sensibly UTF-8 in _PowerShell [Core] v6+_, but note that it would always have made more sense to let $OutputEncoding default to _whatever the active OEM code page is_.

In the case at hand (a PowerShell [Core] session, _UTF-8_-encoded text is therefore piped to code.

That the PowerShell Integrated Console doesn't _also_ set the _input_ encoding - [console]::InputEncoding - to UTF-8 should be considered a bug, and this bug causes chcp not to recognize the intended change to 65001, the UTF-8 code page - see https://github.com/PowerShell/vscode-powershell/issues/2816

For _direct_ calls to chcp in the PowerShell Integrated Console, you can fix this problem by running
[console]::InputEncoding = [console]::OutputEncoding (afterwards, chcp reports 65001, but not that using chcp to _change_ the OEM code page doesn't work, because .NET _caches_ the [console] encodings); however, this alone is _not_ enough to fix the problem: code still only ever sees the _system_ OEM code page.

Therefore, the UTF-8-encoded text is misinterpreted as code page 936-encoded.

Here's a cmd.exe demonstration of the problem that shows that code is the culprit:

C:\> chcp 65001
C:\> echo €| code --verbose -
Running "chcp" to detect terminal encoding...
Reading from stdin via: C:\Users\jdoe\AppData\Local\Temp\code-stdin-xbt.txt
Marker file for --wait created: C:\Users\jdoe\AppData\Local\Temp\emsolgg
Detected raw terminal encoding: cp437

Note how cp437 (which happens to be the active OEM code page on my US-English system) is detected rather than 65001.

[imba-tjd]

As I understand, pwsh is using $OutputEncoding which is utf8 in | code -, and is different from chcp which relates to [Console]::xxx.
As for PS 5.1, it seems can't be solved under default settings because you said that's ? literal.

And the way VSC detects chcp is by starting a new session and run chcp, so it can't detect in-session changes.

[mklement0]

And the way VSC detects chcp is by starting a new session and run chcp, so it can't detect in-session changes.

Indeed it _doesn't_ detect it, but generally it _is_ possible for a _child_ process to correctly detect the console's active OEM code page - as evidenced by running chcp (which itself by definition runs in a child process) _directly_, after having run
[console]::InputEncoding = [console]::OutputEncoding = $OutputEncoding, and getting Active code page: 65001.

So the problem must be in _how_ chcp is invoked by VSCode / Node.js: the exec() function @bpasero mentions indeed involves a call to cmd.exe, but that doesn't explain the problem either, given that _direct_ execution of cmd /c chcp again is capable of picking up an in-session change.

It seems that the child process created by Node.js' exec() is disconnected from the console associated with the parent process. I personally don't know enough about Node.js to be able to tell if there's a solution.

If there is no solution, then the best -but suboptimal - workaround would be to check the process name of the parent process and _infer_ the value of $OutputEncoding from the originating executable file name (powershell -> ASCII; pwsh -> UTF-8) based on the assumption that the _default_ $OutputEncoding value is in effect - which, of course, isn't necessarily true.

[bpasero]

There is a bit more info here: https://nodejs.org/docs/v12.8.1/api/child_process.html#child_process_child_process_exec_command_options_callback

Especially check for shell docs.

Child Process | Node.js v12.8.1 Documentation

[mklement0]

Thanks, @bpasero.

I've realized that it isn't Node.js' exec() function that is the problem (as an aside: execFile() would be more efficient - no need to involve the shell).

For instance, the following works fine from cmd.exe:

C:\>chcp 65001
C:\>node -pe "require('child_process').execFileSync('chcp').toString()"
Active code page: 65001

Instead, I suspect that because Code.exe - the executable launched by the code.cmd batch file - is a Windows _GUI_-subsystem application, it is therefore disconnected from the caller's console.

Curiously, though, there's at least _some_ code in Code.exe that explicitly attaches to the caller's console, as evidenced by logging messages appearing there (asynchronously).

I see two potential solutions:

• If technically feasible: call chcp - or, preferably, the GetConsoleOutputCP WinAPI function in-process - from the part of Code.exe that has attached to the caller's console.

• Otherwise, set an environment variable in code.cmd that the Node.js code can later pick up; e.g.:

for /f "tokens=2 delims=:" %%v in ('chcp') do set CONSOLE_CP=%%v
set CONSOLE_CP=%CONSOLE_CP: =%

[mklement0]

Let me summarize (on the assumption that my analysis is correct):

• There is a problem with Visual Studio Code (code) itself (on Windows): irrespective of what shell is used, it currently cannot detect the caller's _active_ OEM code page, i.e., an in-session switch to a different code page.

• If the fix still requires a call to the chcp utility (as opposed to WinAPI function GetConsoleOutputCP()), then in order for the PowerShell Integrated Console to work properly, _it_ must fix https://github.com/PowerShell/vscode-powershell/issues/2816.

[bpasero]

@mklement0 thanks a lot for the analysis, I will go ahead and update https://github.com/microsoft/vscode/issues/102917 with your findings.

I would stay away in our code from relying on native Windows C-functions to call, because of the overhead of dragging in native modules via node.js. Ideally node.js would provide this, but until then I would like to keep using chcp.

I think the workaround as a user is to set VSCODE_CLI_ENCODING in the shell that pipes into VSCode. We support this environment variable as a way to explicitly set the encoding to pick.

[imba-tjd]

My concern is that even if VSC could get the correct active OEM code page, my initial question is still not solved, because pwsh uses $OutputEncoding, which is not equal to chcp's value by default (I'm using a normal console, not the PS extension provided).

[mklement0]

@imba-tjd, if you're running PowerShell as a regular shell in the integrated terminal, you can put the following into $PROFILE to make your session fully UTF-8 (would also work for the PowerShell Integrated Console):

# Make the console (terminal) use UTF-8 in all aspects.
[console]::InputEncoding = [console]::OutputEncoding = $OutputEncoding = [System.Text.Utf8Encoding]::new()
# Tell VSCode what stdin encoding to use.
$env:VSCODE_CLI_ENCODING='utf8'

[msftbot[bot]]

This issue has been marked as answered and has not had any activity for 1 day. It has been closed for housekeeping purposes.
