Powershell: Get-ChildItem -Recurse doesn't work on the OneDrive sync folder

[sba923]

Steps to reproduce

Get-ChildItem -Recurse $env:OneDrive

with PowerShell Core 6.2.0 outputs the same results as:

Get-ChildItem $env:OneDrive

In other words, the subfolders are not recursed into.

This can be verified easily with:

PS C:/Users/steph> (Get-ChildItem $env:OneDrive).Count 174 PS C:/Users/steph> (Get-ChildItem -Recurse $env:OneDrive).Count 174

This works properly with Windows PowerShell 5.1:

PS C:/Users/steph> (Get-ChildItem $env:OneDrive).Count 174 PS C:/Users/steph> (Get-ChildItem -Recurse $env:OneDrive).Count 158122

Expected behavior

Get-ChildItem -Recurse $env:OneDrive

should enumerate all files and folders in the OneDrive sync tree.

Actual behavior

Get-ChildItem -Recurse $env:OneDrive

enumerates only the files and folders at the root of the OneDrive sync tree.

Environment data

PS C:/Users/steph> $PSVersionTable

Name                           Value
----                           -----
PSVersion                      6.2.0
PSEdition                      Core
GitCommitId                    6.2.0
OS                             Microsoft Windows 10.0.17763
Platform                       Win32NT
PSCompatibleVersions           {1.0, 2.0, 3.0, 4.0…}
PSRemotingProtocolVersion      2.3
SerializationVersion           1.1.0.1
WSManStackVersion              3.0

PS C:/Users/steph> (gi "C:\Users\steph\AppData\Local\Microsoft\OneDrive\OneDrive.exe").VersionInfo

ProductVersion   FileVersion      FileName
--------------   -----------      --------
19.043.0304.0007 19.043.0304.0007 C:\Users\steph\AppData\Local\Microsoft\OneDrive\OneDrive.exe

OS Version: 10.0.17763.437

[iSazonov]

Related #9246

[sba923]

Hope this is not a side effect of #8745... I'll build a 6.2.0 without that change and see what I get.

[sba923]

I hate to say, but commenting out the one line that's the core of #8745:

NativeMethods.RtlSetProcessPlaceholderCompatibilityMode(NativeMethods.PHCM_EXPOSE_PLACEHOLDERS);

does "repair" Get-ChildItem -Recurse $env:OneDrive.

Now I have to investigate why exposing the placeholders breaks Get-ChildItem -Recurse.

[iSazonov]

For reference #8315

/cc @SteveL-MSFT for information. Perhaps we need help from Windows file system team to review the code.

[sba923]

Haven't checked the code yet, but it could be that PowerShell Core doesn't recurse into directories that are reparse points.

Here's what I get with Windows PowerShell:

````
PS C:/Users/steph> gci -rec $env:onedrive | ? { $_.fullname -match 'somedir' } | Select FullName, Attributes, @{Name='HexAttributes'; Expression={("0x{0:x}" -f $_.Attributes)}}

FullName Attributes HexAttributes
-------- ---------- -------------
C:\Users\steph\OneDrive\somedir Directory, ReparsePoint 0x00000410
C:\Users\steph\OneDrive\somedir\somefile1.txt 4199968 0x00401620
C:\Users\steph\OneDrive\somedir\somefile2.txt 4199968 0x00401620
````

The same thing in PowerShell Core 6.2.0 yields:

````
PS C:/Users/steph> gci -rec $env:onedrive | ? { $_.fullname -match 'somedir' } | Select FullName, Attributes, @{Name='HexAttributes'; Expression={("0x{0:x}" -f $_.Attributes)}}

FullName Attributes HexAttributes
-------- ---------- -------------
C:\Users\steph\OneDrive\somedir Directory, ReparsePoint 0x00000410
````

Whereas my private build of PowerShell Core 6.2.0 with the aforementioned line commented out yields:

````
PS netcoreapp2.1/win7-x64/publish> gci -rec $env:onedrive | ? { $_.fullname -match 'somedir' } | Select FullName, Attributes, @{Name='HexAttributes'; Expression={("0x{0:x}" -f $_.Attributes)}}

FullName Attributes HexAttributes
-------- ---------- -------------
C:\Users\steph\OneDrive\somedir Directory 0x00000010
C:\Users\steph\OneDrive\somedir\somefile1.txt 4194336 0x00400020
C:\Users\steph\OneDrive\somedir\somefile2.txt 4194336 0x00400020
````

To be continued...

[sba923]

After checking that .NET Core's EnumerateDirectories() behaves the same as .NET Framework's, I think I've found the culprit.

System.Management.Automation\namespaces\FileSystemProvider.cs contains the following logic for recursing into subdirectories:

````
// if "Hidden" is explicitly specified anywhere in the attribute filter, then override
// default hidden attribute filter.
if (Force || !hidden || isFilterHiddenSpecified || isSwitchFilterHiddenSpecified)
{
// We only want to recurse into symlinks if
// a) the user has asked to with the -FollowSymLinks switch parameter and
// b) the directory pointed to by the symlink has not already been visited,
// preventing symlink loops.
if (tracker == null)
{
if (InternalSymbolicLinkLinkCodeMethods.IsReparsePoint(recursiveDirectory))
{
continue;
}
}
else if (!tracker.TryVisitPath(recursiveDirectory.FullName))
{
WriteWarning(StringUtil.Format(FileSystemProviderStrings.AlreadyListedDirectory,
recursiveDirectory.FullName));
continue;
}

                            Dir(recursiveDirectory, recurse, depth - 1, nameOnly, returnContainers, tracker);
                        }

````

If I understand correctly, this means that, while Windows PowerShell seems to follow directory symbolic links (reparse points), PowerShell Core doesn't unless you specify -FollowSymlink.

This hypothesis is corroborated by what I get in PowerShell Core 6.2.0 when adding -FollowSymlink:

````
PS C:/Users/steph> gci -rec -FollowSymlink $env:onedrive | ? { $_.fullname -match 'somedir' } | Select FullName, Attributes, @{Name='HexAttributes'; Expression={("0x{0:x}" -f $_.Attributes)}}

FullName Attributes HexAttributes
-------- ---------- -------------
C:\Users\steph\OneDrive\somedir Directory, ReparsePoint 0x00000410
C:\Users\steph\OneDrive\somedir\somefile1.txt 4199968 0x00401620
C:\Users\steph\OneDrive\somedir\somefile2.txt 4199968 0x00401620
````

Where do we go from here? Close this issue as "by design", and document that PowerShell Core has a known incompatibility with / behavior change from Windows PowerShell 5.1?

[vexx32]

Yeah, I think this one's a fairly clear "by design". It should already be documented, but users of OneDrive mightn't often be aware that it makes such use of symlinks.

[iSazonov]

It come from #4020

[sba923]

Indeed, that's linked to that improvement to Get-ChildItem which results in "nicer" behavior with symlinks over Windows PowerShell.

Take the following structure with an intentional loop:

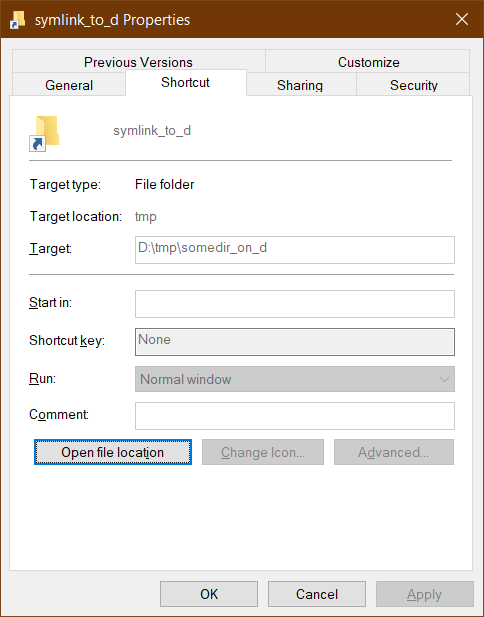

• c:\tmp\somedir_on_c\symlink_to_d is a true directory symlink to d:\tmp\somedir_on_d
• d:\tmp\somedir_on_d\symlink_to_c is a true directory symlink to c:\tmp\somedir_on_c

In Windows PowerShell, here's what you get with Get-ChildItem -Recurse C:\tmp\somedir_on_c\:

````
Directory: C:\tmp\somedir_on_c

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:58 real_subdir
d----l 2019-04-29 08:58 symlink_to_d
-a---- 2019-04-29 08:58 80 file1.txt

Directory: C:\tmp\somedir_on_c\real_subdir

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:58 80 file2.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:59 real_subfolder
d----l 2019-04-29 09:00 symlink_to_c
-a---- 2019-04-29 08:59 80 file3.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\real_subfolder

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:59 80 file4.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:58 real_subdir
d----l 2019-04-29 08:58 symlink_to_d
-a---- 2019-04-29 08:58 80 file1.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\real_subdir

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:58 80 file2.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\symlink_to_d

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:59 real_subfolder
d----l 2019-04-29 09:00 symlink_to_c
-a---- 2019-04-29 08:59 80 file3.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\symlink_to_d\real_subfolder

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:59 80 file4.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:58 real_subdir
d----l 2019-04-29 08:58 symlink_to_d
-a---- 2019-04-29 08:58 80 file1.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\real_subdir

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:58 80 file2.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:59 real_subfolder
d----l 2019-04-29 09:00 symlink_to_c
-a---- 2019-04-29 08:59 80 file3.txt

[…]

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlin
k_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:59 real_subfolder
d----l 2019-04-29 09:00 symlink_to_c
-a---- 2019-04-29 08:59 80 file3.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlin
k_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\symlink_to_c\symlink_to_d\real_subfolder

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:59 80 file4.txt
Get-ChildItem : The name of the file cannot be resolved by the system.

At line:1 char:1

• Get-ChildItem -Recurse C:\tmp\somedir_on_c\
• ~~~~~~~~~~~



  • CategoryInfo : ReadError: (C:\tmp\somedir_..._d\symlink_to_c:String) [Get-ChildItem], IOException


  • FullyQualifiedErrorId : DirIOError,Microsoft.PowerShell.Commands.GetChildItemCommand

    Get-ChildItem : The name of the file cannot be resolved by the system.



At line:1 char:1

• Get-ChildItem -Recurse C:\tmp\somedir_on_c\
• ~~~~~~~~~~~



  • CategoryInfo : ReadError: (C:\tmp\somedir_..._d\symlink_to_c:String) [Get-ChildItem], IOException


  • FullyQualifiedErrorId : DirIOError,Microsoft.PowerShell.Commands.GetChildItemCommand

    ````



Thanks to #4020, with PowerShell Core 6.2.0 you get:

````
Directory: C:\tmp\somedir_on_c

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:58 real_subdir
d----l 2019-04-29 08:58 symlink_to_d
-a---- 2019-04-29 08:58 80 file1.txt

Directory: C:\tmp\somedir_on_c\real_subdir

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:58 80 file2.txt
````

and if you add -FollowSymlink you get:

````
Directory: C:\tmp\somedir_on_c

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:58 real_subdir
d----l 2019-04-29 08:58 symlink_to_d
-a---- 2019-04-29 08:58 80 file1.txt

Directory: C:\tmp\somedir_on_c\real_subdir

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:58 80 file2.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d

Mode LastWriteTime Length Name
---- ------------- ------ ----
d----- 2019-04-29 08:59 real_subfolder
d----l 2019-04-29 09:00 symlink_to_c
-a---- 2019-04-29 08:59 80 file3.txt

Directory: C:\tmp\somedir_on_c\symlink_to_d\real_subfolder

Mode LastWriteTime Length Name
---- ------------- ------ ----
-a---- 2019-04-29 08:59 80 file4.txt
WARNING: Skip already-visited directory C:\tmp\somedir_on_c\symlink_to_d\symlink_to_c.
````

The problem with OneDrive is that it uses reparse points in a way that's not identical to true directory symlinks, and as of now I haven't been able to find a way to distinguish them from code (especially for directories that have just been created by the OneDrive client, and for which the user has _never_ explicitly tagged them as Free up space or Always keep on this device--see the old folder in the example below), whereas File Explorer clearly _does_ makes the difference:

````
PS C:\tmp\somedir_on_c> Get-Item C:\tmp\somedir_on_c\symlink_to_d\ | Select FullName, Attributes, @{Name='HexAttributes'; Expression={("0x{0:x}" -f $_.Attributes)}}

>

FullName Attributes HexAttributes
-------- ---------- -------------
C:\tmp\somedir_on_c\symlink_to_d\ Directory, ReparsePoint 0x00000410

PS C:\tmp\somedir_on_c> Get-Item C:\users\steph\onedrive\somedir\ | Select FullName, Attributes, @{Name='HexAttributes'; Expression={("0x{0:x}" -f $_.Attributes)}}

>

FullName Attributes HexAttributes
-------- ---------- -------------
C:\users\steph\onedrive\somedir\ 1049616 0x00100410

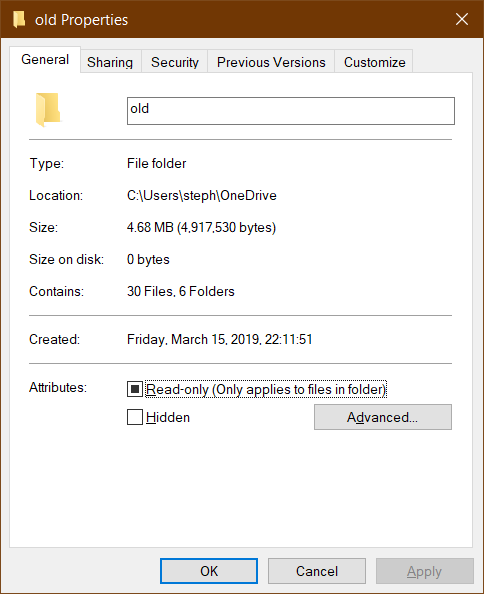

PS C:\tmp\somedir_on_c> Get-Item C:\users\steph\onedriveold | Select FullName, Attributes, @{Name='HexAttributes'; Expression={("0x{0:x}" -f $_.Attributes)}}

>

FullName Attributes HexAttributes
-------- ---------- -------------
C:\users\steph\onedriveold Directory, ReparsePoint 0x00000410
````

At this point I have the following two interrogations:

1. Where is the change of behavior of Get-ChildItem -Recurse between Windows PowerShell and PowerShell Core documented?
2. Would there be a way to have PowerShell Core "transparently" work with the OneDrive sync folder like Windows PowerShell does? This would require determining whether a directory reparse point is a directory symlink or a OneDrive directory placeholder, and IMVHO only the devs who own the OneDrive "Files on Demand" sync architecture know how to do that...

[iSazonov]

1. I think we had not documented issue for the old PR.
2. I guess Windows has special attributes for OneDrive and the attributes was enhanced in Windows 10 that's why I'm ping @SteveL-MSFT to ask Windows file system team for help. We have some issue for OnDrive.

[SteveL-MSFT]

I'll see if I can locate OneDrive owners to determine how to detect it is OneDrive.

As for the change in behavior, it's already documented: https://docs.microsoft.com/en-us/powershell/module/microsoft.powershell.management/get-childitem?view=powershell-6 (search for -FollowSymLink). If you think additional text is needed, please open an issue in the PowerShellDocs repo.

[sba923]

@SteveL-MSFT: what's especially important to be able to understand is how to tell that a folder that's just been created by the OneDrive client's initial setup (placeholder creation) and that has the exact same attributes (0x00000410) as a true directory symlink is not a directory symlink! Thanks for the links to the documentation I'll check it out and suggest improvements if needed via the PowerShellDocs repo.

Before I started working on #8315 and #8745 I did quite some reverse engineering of the new attributes / new usage of existing attributes, see this spreadsheet.
