Pmbootstrap: WiFi / Xorg / Audio on Google Nexus 4

Created on 29 May 2018 · 4Comments · Source: postmarketOS/pmbootstrap

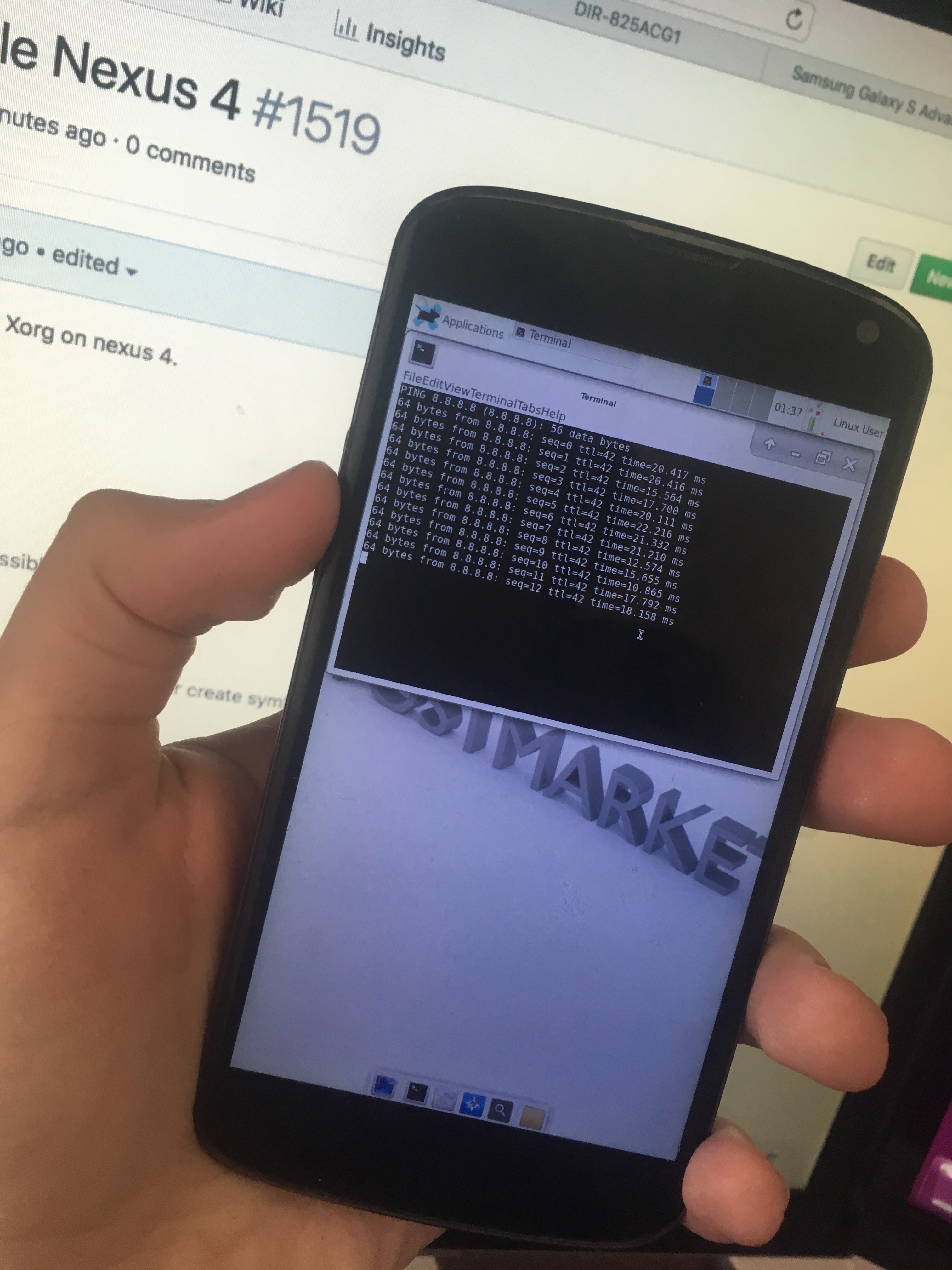

It's possible to enable WLAN / Xorg / Sound on nexus 4.

WLAN:
(to /lib | /system)
bltpwb.zip

Xorg:
(problem with offset - 24).
Precompiled lib for Ubuntu: (It's possible to create DIFF later)
libfbdevhw.so.zip
(/usr/lib/xorg/modules)

Because it was created for Ubuntu, you should copy (or create symlink)
/lib/ld-musl-armhf.so.1 -> /lib/ld-linux-armhf.so.3

Also you should disable ABI check (As it was compiled for old Xorg version)
Section "ServerFlags"
Option "IgnoreABI" "True"
EndSection

Audio:
Works OOB with Pulseaudio. You'll need just to place some UCM files in /usr/share/alsa/ucm (card mb too)
UCM files:
usr.zip

device enhancement

Source

erhoof

Most helpful comment

https://cgit.freedesktop.org/xorg/xserver/tree/hw/xfree86/fbdevhw/fbdevhw.c#n712

From the line 715 to 723 we need to remove fPtr offsets and replace them by the correct one.
It's important to set them after setting offsets in func fbdevhw.

erhoof on 1 Jun 2018

👍2

All 4 comments

erhoof on 29 May 2018

🎉2

Well done \o/ It would be nice if we could ship these improvements by default.

To do that, we would need to package it properly, which means compiling libfbdevhw from source for example. Would you like to look into that?

ollieparanoid on 29 May 2018

https://cgit.freedesktop.org/xorg/xserver/tree/hw/xfree86/fbdevhw/fbdevhw.c#n712

From the line 715 to 723 we need to remove fPtr offsets and replace them by the correct one.
It's important to set them after setting offsets in func fbdevhw.

erhoof on 1 Jun 2018

👍2

@erhoof it should work with nexus 7 2013 as it is the same chipset. I have a working xorg/wlan but no sound...
