Platformio-vscode-ide: ImportError: DLL load failed: The specified module could not be found

[TaniaAG]

Description of problem

Leave a comment...

BEFORE SUBMITTING, PLEASE SEARCH FOR DUPLICATES IN

• https://github.com/platformio/platformio-vscode-ide/issues

Configuration

VSCode: 1.31.1
PIO IDE: v1.6.0
System: Windows_NT, 10.0.17763, x64

Exception

Error: Traceback (most recent call last):
  File "<string>", line 1, in <module>
  File "<string>", line 38, in <module>
  File "<string>", line 38, in <module>
  File "<string>", line 18, in load_module
  File "<string>", line 9, in <module>
  File "C:\Users\milo4\.platformio\packages\contrib-pysite\twisted\internet\serialport.py", line 87, in <module>
    from twisted.internet._win32serialport import SerialPort
  File "C:\Users\milo4\.platformio\packages\contrib-pysite\twisted\internet\_win32serialport.py", line 19, in <module>
    import win32file, win32event
ImportError: DLL load failed: The specified module could not be found.

    at P.Promise (C:\Users\milo4\.vscode\extensions\platformio.platformio-ide-1.6.0\node_modules\platformio-node-helpers\dist\index.js:1:14992)
    at ChildProcess.h (C:\Users\milo4\.vscode\extensions\platformio.platformio-ide-1.6.0\node_modules\platformio-node-helpers\dist\index.js:1:5916)
    at ChildProcess.emit (events.js:182:13)
    at ChildProcess.cp.emit (C:\Users\milo4\.vscode\extensions\platformio.platformio-ide-1.6.0\node_modules\cross-spawn\lib\enoent.js:34:29)
    at maybeClose (internal/child_process.js:961:16)
    at Process.ChildProcess._handle.onexit (internal/child_process.js:248:5)

[samoooop]

I faced the same problem yesterday. I fixed by installing the required modules(pywin32 and PySerial). Since platformio using its own python 2.7 located in ~/.platformio/penv or C:\User\your-username\.platformio\penv, We have to install the missing modules using their copy of python which can be done by using these commands:

> cd C:\Users\your-username\.platformio\penv
> python.exe -m pip install PySerial pywin32

[vitormhenrique]

had the same issue @samoooop directions fixed for me!

[ivankravets]

What is your Python version and architecture? Do you use Python x32 for Windows amd64?

[LeoJhonSong]

What is your Python version and architecture? Do you use Python x32 for Windows amd64?

Yes I am using Windows AMD64 but python x64

I got similar issue starting PlatformIO in VSCode ⬇️

Error: Traceback (most recent call last):
  File "<string>", line 1, in <module>
  File "<string>", line 38, in <module>
  File "<string>", line 38, in <module>
  File "<string>", line 18, in load_module
  File "<string>", line 9, in <module>
  File "C:\Users\LeoJh\.platformio\packages\contrib-pysite\twisted\internet\serialport.py", line 87, in <module>
    from twisted.internet._win32serialport import SerialPort
  File "C:\Users\LeoJh\.platformio\packages\contrib-pysite\twisted\internet\_win32serialport.py", line 19, in <module>
    import win32file, win32event
ImportError: DLL load failed: �Ҳ���ָ����ģ�顣

    at P.Promise (C:\Users\LeoJh\.vscode\extensions\platformio.platformio-ide-1.6.0\node_modules\platformio-node-helpers\dist\index.js:1:14992)
    at ChildProcess.h (C:\Users\LeoJh\.vscode\extensions\platformio.platformio-ide-1.6.0\node_modules\platformio-node-helpers\dist\index.js:1:5916)
    at ChildProcess.emit (events.js:182:13)
    at ChildProcess.cp.emit (C:\Users\LeoJh\.vscode\extensions\platformio.platformio-ide-1.6.0\node_modules\cross-spawn\lib\enoent.js:34:29)
    at maybeClose (internal/child_process.js:961:16)
    at Process.ChildProcess._handle.onexit (internal/child_process.js:248:5)

My configuration is:

VSCode: 1.31.1
PIO IDE: v1.6.0
System: Win10, amd64
⚠️ Before the first time I installed PlatformIO in this computer, I have Anaconda installed and I added it to the path . The version of python added to the path is 3.7.0.

My Solution is:

I supoose this issue happens because the PlatformIO installer did not check if the pip it calls is for python2 or python3 since after the installation of PlatformIO I found a few packages are added to my anaconda root environment ( Python3.7.0 ). In the meanwhile, the exception I got seems like indicating that I am lack of some python2 packages.

So I removed the Python3.7.0 from the path, deleted all PlatformIO files in User\your-username\.platformio and User\your-username\.vscode\extensions\platformio.platformio-ide-1.6.0, then installed PlatformIO in VSCode again. Fortunately it works. 😄

Hope this do help you guys.

BTW, PlatformIO is so fantastic! I can know kick the bunch of IDEs away 😏 @ivankravets Thanks you and your team's great work ❤️

[ivankravets]

@LeoJhonSong thank you so much for the kind words and explanation. Maybe, issue is linked with Anaconda? Could you remove it from PATH and leave only official Python 2?

[LeoJhonSong]

@ivankravets I suppose it is because of pip but not Anaconda. I tried again with Anaconda , even python.exe (3.7.0 ) added to path but pip is not. it still works. 😏

[ivankravets]

Every time when you do Python modifications, you need to remove User\your-username\.platformio\penv folder. It will automatically pick up the valid Python based on your PATH.

You actually check that in developer console +> VSCode > Help > Toggle Developer Tools > Console.

Try to remove penv folder and open Console, you will see what installer does.

[LeoJhonSong]

@ivankravets really sorry for late reply. We are both right, I find conda and pip both matter 🤣
But as I see it, the point is still pip.

I tested two situations:

1. conda and pip are both added to PATH (Totally Failed)
2. conda and pip are both removed from PATH (Successfully Installed!)

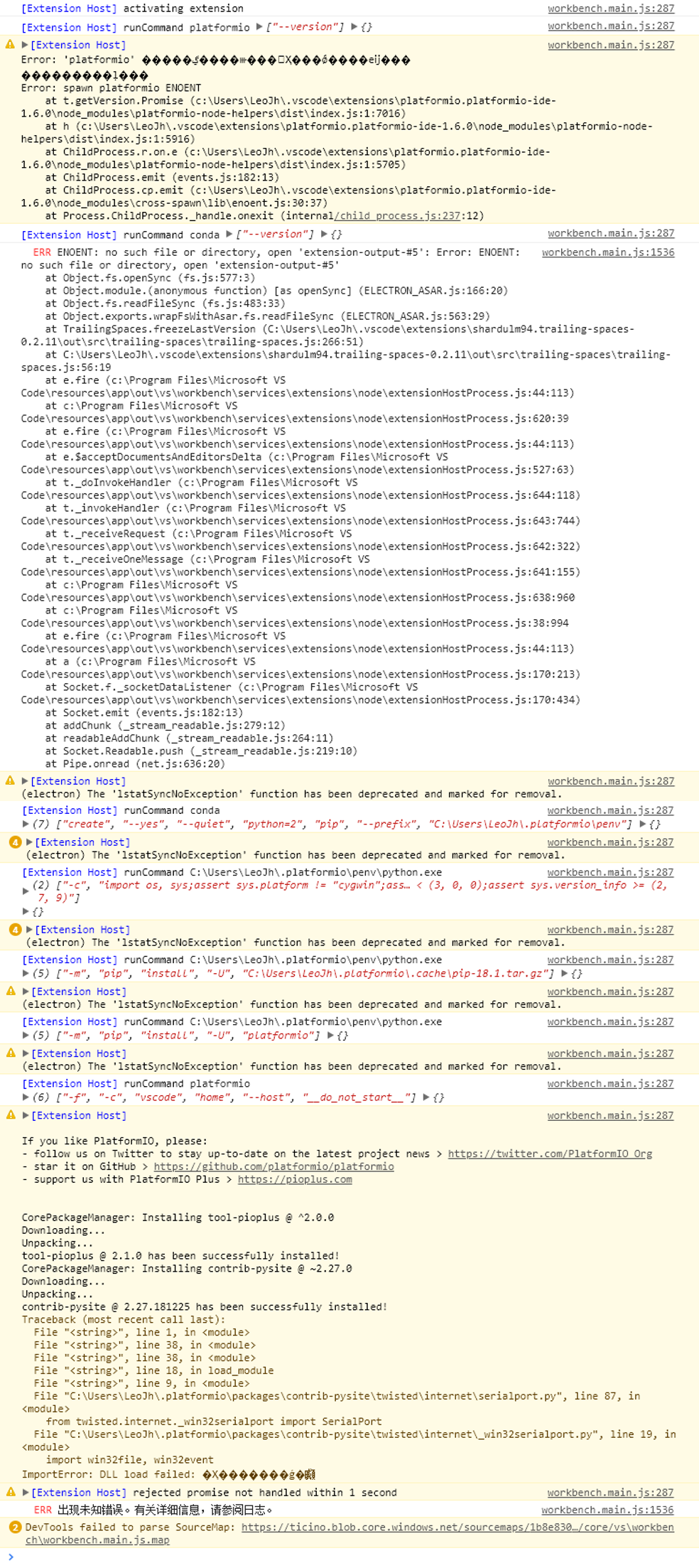

Here is the log of what happened when I start installing PlatformIO in VSCode:

with conda and pip

without conda without pip

So It seems to me that the installer goes like this:

try to find conda

• [YES]build python environment in User\your-username.platformiopenv and find pip



  • [YES]pip install platformio


  • [NO]install pip from User\your-username.platformio.cache and pip install platformio


• [NO]find virtualenv



  • [YES]build python environment in User\your-username.platformiopenv and find pip


  • [YES]pip install platformio


  • [NO]install pip from User\your-username.platformio.cache and pip install platformio


  • [NO]try pip install virtualenv


  • [SUCCEED]build python environment in User\your-username.platformiopenv and pip install platformio


  • [FAILED]install virtualenv from User\your-username.platformio.cache and build python environment in User\your-username.platformiopenv then install pip from User\your-username.platformio.cache and pip install platformio finally pip install platformio



the version of python is checked every time a python.exe is called, but it seems that the version of pip is never checked. So I think keep an eye on pip's version is the point. 😄

[TaniaAG]

I faced the same problem yesterday. I fixed by installing the required modules(pywin32 and PySerial). Since platformio using its own python 2.7 located in ~/.platformio/penv or C:\User\your-username\.platformio\penv, We have to install the missing modules using their copy of python which can be done by using these commands:

> cd C:\Users\your-username\.platformio\penv
> python.exe -m pip install PySerial pywin32

Thank you! It worked for me :)

[ivankravets]

Should be fixed in the latest release.
