Platformio-core: Defines added in extra_script are lost when using platform_packages
- [x] PlatformIO Core.
Configuration
Operating system: Windows (VS code)
PlatformIO Version 4.1.1b3
Description of problem
I use a Python script to set/add defines before building the project.
When using the "old" way to define a platform, the defines set in the Python script are present at compile time.
When using platform + platform_packages, they are lost.
This is the bug report of what I noticed here: https://github.com/platformio/platformio-core/issues/3239#issuecomment-558358080
Working:
platform = https://github.com/platformio/platform-espressif8266.git#feature/stage
Not working:
platform = espressif8266
platform_packages =
framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.1
If problems with PlatformIO Build System:
The content of platformio.ini:
[platformio]
[esp82xx_defaults]
build_flags = -D BUILD_GIT='"${sysenv.TRAVIS_TAG}"'
-D NDEBUG
-lstdc++ -lsupc++
-mtarget-align
-DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY
-DVTABLES_IN_FLASH
-DPUYA_SUPPORT=1
[esp82xx_2_5_x]
build_flags = -D BUILD_GIT='"${sysenv.TRAVIS_TAG}"'
-DNDEBUG
-mtarget-align
-DVTABLES_IN_FLASH
-fno-exceptions
-lstdc++
-DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH
-DPUYA_SUPPORT=1
-DCORE_POST_2_5_0
[esp82xx_2_6_x]
build_flags = ${esp82xx_2_5_x.build_flags}
-O2
-DBEARSSL_SSL_BASIC
-DCORE_POST_2_6_0
[core_2_6_0]
platform = https://github.com/Jason2866/platform-espressif8266.git#core_2_6_0
build_flags = ${esp82xx_2_6_x.build_flags}
-DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703
[core_2_6_1]
platform = https://github.com/Jason2866/platform-espressif8266.git#core_2_6_1
build_flags = ${esp82xx_2_6_x.build_flags}
-DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703
[core_stage]
platform = https://github.com/platformio/platform-espressif8266.git#feature/stage
build_flags = ${esp82xx_2_6_x.build_flags} -DARDUINO_ESP8266_RELEASE='"2.6.0-dev stage"'
[core_2_6_1_wifimesh]
platform = espressif8266
;platform_packages =
; framework-arduinoespressif8266 @ https://github.com/TD-er/Arduino.git#wifi_mesh_update_2.2
platform_packages =
framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.1
build_flags = ${esp82xx_2_6_x.build_flags}
-DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703
[common]
board_build.f_cpu = 80000000L
build_flags = -DHTTPCLIENT_1_1_COMPATIBLE=0
build_unflags = -DDEBUG_ESP_PORT
lib_deps = https://github.com/TD-er/ESPEasySerial.git
lib_ignore = ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS
;lib_ignore = ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR
lib_ldf_mode = chain
lib_archive = false
upload_speed = 115200
framework = arduino
board = esp12e
monitor_speed = 115200
;targets = size, checkprogsize
targets =
[env]
framework = ${common.framework}
lib_ldf_mode = ${common.lib_ldf_mode}
lib_archive = ${common.lib_archive}
lib_deps = ${common.lib_deps}
lib_ignore = ${common.lib_ignore}
upload_speed = ${common.upload_speed}
monitor_speed = ${common.monitor_speed}
targets = ${common.targets}
[regular_platform]
build_unflags =
build_flags = ${core_2_5_2.build_flags} ${common.build_flags}
platform = ${core_2_5_2.platform}
[beta_platform]
build_unflags =
build_flags = ${core_stage.build_flags} ${common.build_flags}
platform = ${core_stage.platform}
[esp8266_4M1M]
board = esp12e
board_build.flash_mode = dio
board_upload.maximum_size = 1044464
board_build.f_cpu = ${common.board_build.f_cpu}
build_unflags = ${regular_platform.build_unflags}
build_flags = -Wl,-Tesp8266.flash.4m1m.ld
; Environment for very simple build tests to assist in reporting issues.
[env:MCVE_ESP8266_4M1M]
platform = ${beta_platform.platform}
board = ${esp8266_4M1M.board}
board_build.f_cpu = ${esp8266_4M1M.board_build.f_cpu}
board_build.flash_mode = ${esp8266_4M1M.board_build.flash_mode}
build_unflags = ${esp8266_4M1M.build_unflags}
build_flags = ${esp8266_4M1M.build_flags} ${beta_platform.build_flags} -DPLUGIN_BUILD_CUSTOM
lib_ignore = ESP32_ping, ESP32WebServer
extra_scripts = pre:pre_extra_script_mcve.py
[env:spec_wifimesh_ESP8266_4M1M]
extends = esp8266_4M1M
framework = arduino
build_unflags =
platform = ${core_2_6_1_wifimesh.platform}
platform_packages = ${core_2_6_1_wifimesh.platform_packages}
build_flags = ${core_2_6_1_wifimesh.build_flags}
${esp8266_4M1M.build_flags}
-DPLUGIN_BUILD_CUSTOM
lib_ignore = ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS
extra_scripts = pre:pre_extra_script_mcve.py
The content of pre_extra_script_mcve.py:
Import("env")
import os
env.Append(CPPDEFINES=[
"PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703",
"ESPEASY_MCVE_BUILD"
# ,"NO_HTTP_UPDATER"
# ,("WEBSERVER_RULES_DEBUG", "0")
])
if os.path.isfile('src/Custom.h'):
env['CPPDEFINES'].append("USE_CUSTOM_H")
else:
env['CPPDEFINES'].extend([
"USES_P001", # Switch
"USE_SETTINGS_ARCHIVE"
])
print(env['CPPDEFINES'])
Source file to reproduce issue:
#include <Arduino.h>
void setup() {
#ifdef USES_P001
#warning "USES_P001 defined"
#else
#warning "USES_P001 NOT defined"
#endif
}
void loop() {
}
Additional info
Build output: (first line is the print statement of the Python script)
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
...
Compiling .pio\build\MCVE_ESP8266_4M1M\src\main.cpp.o
src\main.cpp:14:4: warning: #warning "USES_P001 defined" [-Wcpp]
#warning "USES_P001 defined"
^
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
...
Compiling .pio\build\spec_wifimesh_ESP8266_4M1M\FrameworkArduino\MD5Builder.cpp.o
src\main.cpp:16:6: warning: #warning "USES_P001 NOT defined" [-Wcpp]
#warning "USES_P001 NOT defined"
^
TD-er
All 45 comments

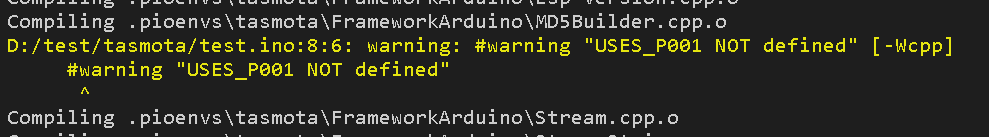

@TD-er Tried your test sketch (in my fast adapted Tasmota platformio.ini). It does work for me. with script enabled
script disabled
Jason2866
on 26 Nov 2019
@Jason2866 What PIO version do you use?
TD-er
on 26 Nov 2019
@Jason2866 In the platformio.ini file you linked, you have the [core_stage] defined after it is used for the first time.
The same for [core_active]
Can you swap those, to see if that makes a difference?
TD-er
on 26 Nov 2019
@TD-er Sorry i do not understand what you mean.
Jason2866
on 26 Nov 2019
In your platformio.ini:
Line 49:
[common]
framework = arduino
board = esp01_1m
board_build.flash_mode = dout
platform = ${core_active.platform}
platform_packages = ${core_active.platform_packages}
build_flags = ${core_active.build_flags}
common refers to core_active
Line 102:
[core_active]
...
platform = ${core_stage.platform}
build_flags = ${core_stage.build_flags}
platform_packages = ${core_stage.platform_packages}
core_active refers to core_stage
Line 194:
[core_stage]
Meaning, the definitions of the scope is after it is being referred to.
TD-er
on 26 Nov 2019
I made a repository for this, so it is easier to do more MCVE tests.
Can you check if this one does fail on your system too?
TD-er
on 26 Nov 2019
The test repo does work too for me
Jason2866
on 26 Nov 2019
And the other build, which is supposed to fail?
TD-er
on 26 Nov 2019

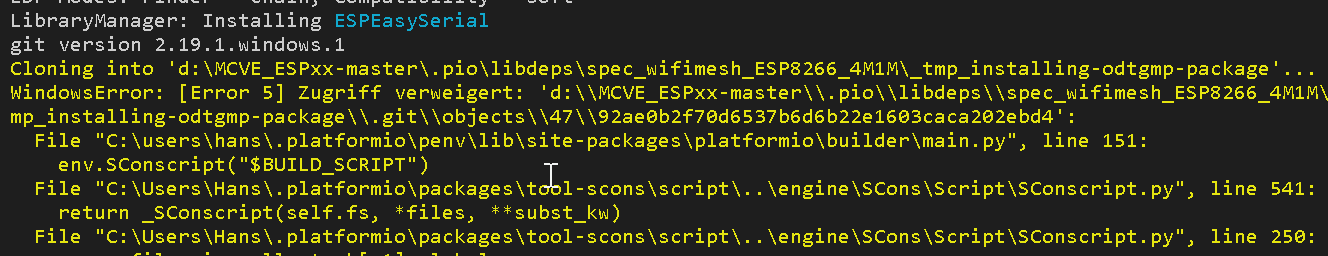

Does fail with installing with ESPEasySerial
Jason2866
on 26 Nov 2019
Well for the MCVE it is not needed, so that one can be removed from the build definitions
TD-er
on 26 Nov 2019

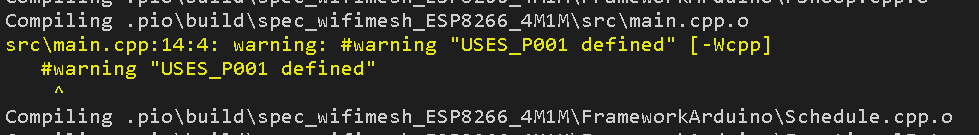

Works too
Jason2866
on 26 Nov 2019
What Python version do you run?
I have Python 3.8 here for my PIO builds.
TD-er
on 26 Nov 2019
Still on Python 2.7 for PlatformIO
Jason2866
on 26 Nov 2019
Built it on a clean install in Linux with Python 2.7 and that one also gives the same issue:
Compiling .pio/build/MCVE_ESP8266_4M1M/src/main.cpp.o
src/main.cpp:14:4: warning: #warning "USES_P001 defined" [-Wcpp]
#warning "USES_P001 defined"
^
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Esp.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Tone.cpp.o
src/main.cpp:16:6: warning: #warning "USES_P001 NOT defined" [-Wcpp]
#warning "USES_P001 NOT defined"
^
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Stream.cpp.o
Could someone prepare a simple "Blink/Hello" project with scripts to reproduce this issue?
ivankravets
on 26 Nov 2019
I am using Windows. Maybe that makes the difference?
Jason2866
on 26 Nov 2019
Could someone prepare a simple "Blink/Hello" project with scripts to reproduce this issue?
See: https://github.com/TD-er/MCVE_ESPxx
It has the same content as in this issue.
I could git clone, activate python venv and run pio run to see it fail.
TD-er
on 26 Nov 2019
I am using Windows. Maybe that makes the difference?
Me too.
- Windows 10 & Python 3.8
- Ubuntu 18.04 & venv running Python 2.7
TD-er
on 26 Nov 2019
@valeros could you reproduce this issue?
ivankravets
on 28 Nov 2019
Unfortunately, I cannot reproduce the issue. I cloned @TD-er repository then and compiled spec_wifimesh_ESP8266_4M1M environment. PlatformIO successfully cloned the framework and I can see:
src\main.cpp:14:4: warning: #warning "USES_P001 defined" [-Wcpp]
#warning "USES_P001 defined"
Tried on Windows with the following combinations: Python 2.7, 3.7, 3.8, PlatformIO 4.1.0, 4.1.1b4
@TD-er Am I missing something?
valeros
on 28 Nov 2019
Hmm that's very strange as I really cannot build it here.
I will try it later on a completely different computer.
TD-er
on 28 Nov 2019

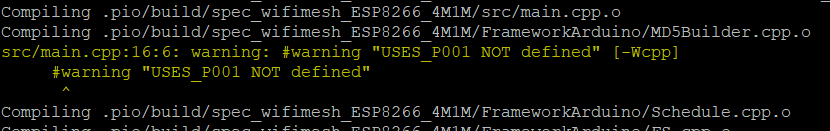

Just to show you the entire output, on a computer (Ubuntu 18.04), which was never used to build this test environment.
gijs@htpc-nuc:~/GitHub/TD-er$ git clone https://github.com/TD-er/MCVE_ESPxx.git
Cloning into 'MCVE_ESPxx'...
remote: Enumerating objects: 10, done.
remote: Counting objects: 100% (10/10), done.
remote: Compressing objects: 100% (8/8), done.
remote: Total 10 (delta 0), reused 7 (delta 0), pack-reused 0
Unpacking objects: 100% (10/10), done.
gijs@htpc-nuc:~/GitHub/TD-er$ cd MCVE_ESPxx/
gijs@htpc-nuc:~/GitHub/TD-er/MCVE_ESPxx$ ll
total 36
drwxrwxr-x 4 gijs gijs 4096 nov 28 23:13 ./
drwxrwxr-x 4 gijs gijs 4096 nov 28 23:13 ../
drwxrwxr-x 8 gijs gijs 4096 nov 28 23:13 .git/
-rw-rw-r-- 1 gijs gijs 104 nov 28 23:13 .gitignore
-rw-rw-r-- 1 gijs gijs 5600 nov 28 23:13 platformio.ini
-rw-rw-r-- 1 gijs gijs 667 nov 28 23:13 pre_extra_script_mcve.py
-rw-rw-r-- 1 gijs gijs 75 nov 28 23:13 README.md
drwxrwxr-x 2 gijs gijs 4096 nov 28 23:13 src/
gijs@htpc-nuc:~/GitHub/TD-er/MCVE_ESPxx$ source ~/.venv/python2.7/
bin/ lib/ local/ share/
gijs@htpc-nuc:~/GitHub/TD-er/MCVE_ESPxx$ source ~/.venv/python2.7/bin/activate
(python2.7) gijs@htpc-nuc:~/GitHub/TD-er/MCVE_ESPxx$ pio --version
PlatformIO, version 4.1.0
(python2.7) gijs@htpc-nuc:~/GitHub/TD-er/MCVE_ESPxx$ pio run
Processing MCVE_ESP8266_4M1M (platform: https://github.com/platformio/platform-espressif8266.git#feature/stage; board: esp12e; framework: arduino)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Verbose mode can be enabled via `-v, --verbose` option
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 (Stage) 2.3.0-alpha.2 #3500fb2 > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 2.50400.170719 (5.4.0), tool-esptool 1.413.0 (4.13), tool-esptoolpy 1.20600.0 (2.6.0), framework-arduinoespressif8266 8b3b600
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
LibraryManager: Installing ESPEasySerial
git version 2.17.1
Cloning into '/home/gijs/GitHub/TD-er/MCVE_ESPxx/.pio/libdeps/MCVE_ESP8266_4M1M/_tmp_installing-JDTHfs-package'...
ESPeasySerial @ 7ddbf6c has been successfully installed!
Found 28 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <ESPeasySerial> 1.0.13 #7ddbf6c
Building in release mode
Generating .pio/build/MCVE_ESP8266_4M1M/core/core_version.h
Generating LD script .pio/build/MCVE_ESP8266_4M1M/ld/local.eagle.app.v6.common.ld
Archiving .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduinoVariant.a
Indexing .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduinoVariant.a
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/StackThunk.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/libfe5/ESPeasySerial/ESPeasySerial_ESP8266.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/FunctionalInterrupt.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/src/main.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/HardwareSerial.cpp.o
src/main.cpp:14:4: warning: #warning "USES_P001 defined" [-Wcpp]
#warning "USES_P001 defined"
^
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Print.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/MD5Builder.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/libfe5/ESPeasySerial/ESPEasySerial_ESP8266_noSWserial.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/IPAddress.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Esp-frag.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/libfe5/ESPeasySerial/ESPEasySoftwareSerial.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/FSnoop.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Schedule.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Esp-version.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/libfe5/ESPeasySerial/ESPEasySerial_ESP32.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Esp.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/FS.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Stream.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/StreamString.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Tone.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Updater.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/WMath.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/WString.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/abi.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/base64.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/cbuf.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/cont.S.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/cont_util.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_app_entry_noextra4k.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_eboot_command.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_features.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_flash_utils.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_i2s.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_main.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_noniso.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_phy.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_postmortem.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_si2c.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_sigma_delta.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_spi_utils.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_timer.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_waveform.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_analog.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_digital.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pulse.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pwm.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_shift.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/crc32.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/debug.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/flash_hal.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/gdb_hooks.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/heap.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/libb64/cdecode.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/libb64/cencode.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/libc_replacements.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/sntp-lwip2.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_cache.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_check.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_gc.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_hydrogen.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_nucleus.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs_api.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/sqrt32.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/time.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/uart.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_info.c.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_integrity.c.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_local.c.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_malloc.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_poison.c.o
Archiving .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduino.a
Indexing .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduino.a
Linking .pio/build/MCVE_ESP8266_4M1M/firmware.elf
Retrieving maximum program size .pio/build/MCVE_ESP8266_4M1M/firmware.elf
Building .pio/build/MCVE_ESP8266_4M1M/firmware.bin
Checking size .pio/build/MCVE_ESP8266_4M1M/firmware.elf
Advanced Memory Usage is available via "PlatformIO Home > Project Inspect"
DATA: [=== ] 32.9% (used 26988 bytes from 81920 bytes)
PROGRAM: [== ] 23.8% (used 248348 bytes from 1044464 bytes)
Creating BIN file ".pio/build/MCVE_ESP8266_4M1M/firmware.bin" using ".pio/build/MCVE_ESP8266_4M1M/firmware.elf"
=============================================================================== [SUCCESS] Took 16.16 seconds ===============================================================================
Processing spec_wifimesh_ESP8266_4M1M (platform: espressif8266; board: esp12e; framework: arduino)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PackageManager: Installing framework-arduinoespressif8266
git version 2.17.1
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package'...
remote: Enumerating objects: 1684, done.
remote: Counting objects: 100% (1684/1684), done.
remote: Compressing objects: 100% (1440/1440), done.
remote: Total 1684 (delta 213), reused 836 (delta 77), pack-reused 0
Receiving objects: 100% (1684/1684), 23.34 MiB | 7.34 MiB/s, done.
Resolving deltas: 100% (213/213), done.
Submodule 'libraries/ESP8266SdFat' (https://github.com/earlephilhower/ESP8266SdFat.git) registered for path 'libraries/ESP8266SdFat'
Submodule 'libraries/LittleFS/lib/littlefs' (https://github.com/ARMmbed/littlefs.git) registered for path 'libraries/LittleFS/lib/littlefs'
Submodule 'libraries/SoftwareSerial' (https://github.com/plerup/espsoftwareserial.git) registered for path 'libraries/SoftwareSerial'
Submodule 'tools/esptool' (https://github.com/espressif/esptool.git) registered for path 'tools/esptool'
Submodule 'tools/pyserial' (https://github.com/pyserial/pyserial.git) registered for path 'tools/pyserial'
Submodule 'lwip2' (https://github.com/d-a-v/esp82xx-nonos-linklayer.git) registered for path 'tools/sdk/lwip2/builder'
Submodule 'tools/sdk/ssl/bearssl' (https://github.com/earlephilhower/bearssl-esp8266.git) registered for path 'tools/sdk/ssl/bearssl'
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/libraries/ESP8266SdFat'...
remote: Enumerating objects: 27, done.
remote: Counting objects: 100% (27/27), done.
remote: Compressing objects: 100% (24/24), done.
remote: Total 3705 (delta 10), reused 9 (delta 2), pack-reused 3678
Receiving objects: 100% (3705/3705), 10.21 MiB | 5.61 MiB/s, done.
Resolving deltas: 100% (2016/2016), done.
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/libraries/LittleFS/lib/littlefs'...
remote: Enumerating objects: 17, done.
remote: Counting objects: 100% (17/17), done.
remote: Compressing objects: 100% (15/15), done.
remote: Total 2306 (delta 8), reused 6 (delta 2), pack-reused 2289
Receiving objects: 100% (2306/2306), 1.30 MiB | 2.31 MiB/s, done.
Resolving deltas: 100% (1566/1566), done.
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/libraries/SoftwareSerial'...
remote: Enumerating objects: 44, done.
remote: Counting objects: 100% (44/44), done.
remote: Compressing objects: 100% (26/26), done.
remote: Total 1518 (delta 19), reused 34 (delta 13), pack-reused 1474
Receiving objects: 100% (1518/1518), 289.79 KiB | 963.00 KiB/s, done.
Resolving deltas: 100% (845/845), done.
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/tools/esptool'...
remote: Enumerating objects: 83, done.
remote: Counting objects: 100% (83/83), done.
remote: Compressing objects: 100% (63/63), done.
remote: Total 2108 (delta 40), reused 62 (delta 20), pack-reused 2025
Receiving objects: 100% (2108/2108), 7.63 MiB | 5.66 MiB/s, done.
Resolving deltas: 100% (1294/1294), done.
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/tools/pyserial'...
remote: Enumerating objects: 40, done.
remote: Counting objects: 100% (40/40), done.
remote: Compressing objects: 100% (40/40), done.
remote: Total 5941 (delta 20), reused 6 (delta 0), pack-reused 5901
Receiving objects: 100% (5941/5941), 1.68 MiB | 2.77 MiB/s, done.
Resolving deltas: 100% (4348/4348), done.
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/tools/sdk/lwip2/builder'...
remote: Enumerating objects: 137, done.
remote: Counting objects: 100% (137/137), done.
remote: Compressing objects: 100% (81/81), done.
remote: Total 1064 (delta 74), reused 100 (delta 50), pack-reused 927
Receiving objects: 100% (1064/1064), 514.32 KiB | 1.32 MiB/s, done.
Resolving deltas: 100% (618/618), done.
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/tools/sdk/ssl/bearssl'...
remote: Enumerating objects: 37, done.
remote: Counting objects: 100% (37/37), done.
remote: Compressing objects: 100% (29/29), done.
remote: Total 2795 (delta 17), reused 13 (delta 8), pack-reused 2758
Receiving objects: 100% (2795/2795), 1.73 MiB | 2.85 MiB/s, done.
Resolving deltas: 100% (2215/2215), done.
Submodule path 'libraries/ESP8266SdFat': checked out 'af4ed0c5ec3084cb3883df51ec2052791ca2bff2'
Submodule path 'libraries/LittleFS/lib/littlefs': checked out 'abd90cb84c818a663b584575b019258d01d0065e'
Submodule path 'libraries/SoftwareSerial': checked out '8f85d649000b5bbdde1862d879dba4f225dd3a51'
Submodule path 'tools/esptool': checked out '1319c49adb2fe99d2981151ff781930d6ed62729'
Submodule path 'tools/pyserial': checked out 'c54c81d933b847458d465cd77e96cd702ff2e7be'
Submodule path 'tools/sdk/lwip2/builder': checked out '354887a25f83064dc0c795e11704190845812713'
Submodule 'lwip2-src' (https://git.savannah.nongnu.org/git/lwip.git) registered for path 'tools/sdk/lwip2/builder/lwip2-src'
Cloning into '/home/gijs/.platformio/packages/_tmp_installing-kJ_Zod-package/tools/sdk/lwip2/builder/lwip2-src'...
remote: Counting objects: 52880, done.
remote: Compressing objects: 100% (12389/12389), done.
remote: Total 52880 (delta 39840), reused 52867 (delta 39833)
Receiving objects: 100% (52880/52880), 10.13 MiB | 1.98 MiB/s, done.
Resolving deltas: 100% (39840/39840), done.
Submodule path 'tools/sdk/lwip2/builder/lwip2-src': checked out '159e31b689577dbf69cf0683bbaffbd71fa5ee10'
Submodule path 'tools/sdk/ssl/bearssl': checked out '89454af34e3e61ddfc9837f3da5a0bc8ed44c3aa'
framework-arduinoespressif8266 @ 616fe43 has been successfully installed!
Verbose mode can be enabled via `-v, --verbose` option
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 1.7.3 #7507605 > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 1.40802.0 (4.8.2), tool-esptool 1.413.0 (4.13), framework-arduinoespressif8266 616fe43
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
LibraryManager: Installing ESPEasySerial
git version 2.17.1
Cloning into '/home/gijs/GitHub/TD-er/MCVE_ESPxx/.pio/libdeps/spec_wifimesh_ESP8266_4M1M/_tmp_installing-bHgiQ6-package'...
ESPeasySerial @ 7ddbf6c has been successfully installed!
Found 28 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <ESPeasySerial> 1.0.13 #7ddbf6c
Building in release mode
Generating .pio/build/spec_wifimesh_ESP8266_4M1M/core/core_version.h
fatal: No names found, cannot describe anything.
Generating LD script .pio/build/spec_wifimesh_ESP8266_4M1M/ld/local.eagle.app.v6.common.ld
Archiving .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduinoVariant.a
Indexing .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduinoVariant.a
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/StackThunk.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Esp-version.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/IPAddress.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Print.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/lib186/ESPeasySerial/ESPEasySerial_ESP8266_noSWserial.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/lib186/ESPeasySerial/ESPeasySerial_ESP8266.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/lib186/ESPeasySerial/ESPEasySerial_ESP32.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/src/main.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/MD5Builder.cpp.o
src/main.cpp:16:6: warning: #warning "USES_P001 NOT defined" [-Wcpp]
#warning "USES_P001 NOT defined"
^
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Schedule.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/FS.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/HardwareSerial.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Esp-frag.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/FunctionalInterrupt.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/lib186/ESPeasySerial/ESPEasySoftwareSerial.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Esp.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/FSnoop.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Stream.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/StreamString.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Tone.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Updater.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/WMath.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/WString.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/abi.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/base64.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/cbuf.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/cont.S.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/cont_util.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_app_entry_noextra4k.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_eboot_command.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_features.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_flash_utils.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_i2s.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_main.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_noniso.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_phy.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_postmortem.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_si2c.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_sigma_delta.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_spi_utils.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_timer.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_waveform.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_analog.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_digital.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pulse.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pwm.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_shift.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/crc32.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/debug.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/flash_hal.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/gdb_hooks.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/heap.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/libb64/cdecode.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/libb64/cencode.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/libc_replacements.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/sntp-lwip2.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_cache.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_check.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_gc.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_hydrogen.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_nucleus.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs_api.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/sqrt32.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/time.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/uart.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_info.c.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_integrity.c.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_local.c.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_malloc.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_poison.c.o
Archiving .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduino.a
Indexing .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduino.a
Linking .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf
Retrieving maximum program size .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf
Checking size .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf
Building .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.bin
Advanced Memory Usage is available via "PlatformIO Home > Project Inspect"
DATA: [=== ] 33.0% (used 27004 bytes from 81920 bytes)
PROGRAM: [== ] 21.2% (used 221864 bytes from 1044464 bytes)
Creating BIN file ".pio/build/spec_wifimesh_ESP8266_4M1M/firmware.bin" using ".pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf"
=============================================================================== [SUCCESS] Took 45.19 seconds ===============================================================================
Environment Status Duration
-------------------------- -------- ------------
MCVE_ESP8266_4M1M SUCCESS 00:00:16.163
spec_wifimesh_ESP8266_4M1M SUCCESS 00:00:45.195
================================================================================ 2 succeeded in 00:01:01.358 ================================================================================
*********************************************************************************************************************************************************************************************
There are the new updates for platforms (espressif8266)
Please update them via `platformio platform update` command.
If you want to manually check for the new versions without updating, please use `platformio platform update --dry-run` command.
*********************************************************************************************************************************************************************************************
(python2.7) gijs@htpc-nuc:~/GitHub/TD-er/MCVE_ESPxx$

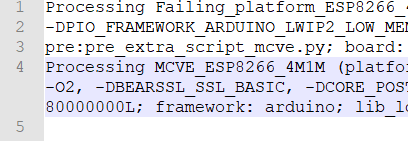

The "success build":
The "fail build":
So it really baffles me why anybody else is reporting it does build and I tried on 4 systems here and all fail.
TD-er
on 28 Nov 2019
Just to let you know, since core 2.6.2 was just released.
I also tested with that core, so I just added this line:
platform_packages =
framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2
And the same result:
src\main.cpp:16:6: warning: #warning "USES_P001 NOT defined" [-Wcpp]
#warning "USES_P001 NOT defined"
Compiling .pio\build\spec_wifimesh_ESP8266_4M1M\FrameworkArduino\Schedule.cpp.o
^
So just to make sure it is not in my own forked repo or anything.
TD-er
on 29 Nov 2019
That's really strange, but I still cannot reproduce the issue. I tried all the steps you described above on clean Ubuntu in a virtual box and here is my output:
(pio410) valeros@valeros-VirtualBox:/tmp$ git clone https://github.com/TD-er/MCVE_ESPxx.git
Cloning into 'MCVE_ESPxx'...
remote: Enumerating objects: 10, done.
remote: Counting objects: 100% (10/10), done.
remote: Compressing objects: 100% (8/8), done.
remote: Total 10 (delta 0), reused 7 (delta 0), pack-reused 0
Unpacking objects: 100% (10/10), done.
Checking connectivity... done.
(pio410) valeros@valeros-VirtualBox:/tmp$ cd MCVE_ESPxx/
(pio410) valeros@valeros-VirtualBox:/tmp/MCVE_ESPxx$ ll
total 36
drwxrwxr-x 4 valeros valeros 4096 谢懈褋 29 11:56 ./
drwxrwxrwt 11 root root 4096 谢懈褋 29 11:57 ../
drwxrwxr-x 8 valeros valeros 4096 谢懈褋 29 11:56 .git/
-rw-rw-r-- 1 valeros valeros 104 谢懈褋 29 11:56 .gitignore
-rw-rw-r-- 1 valeros valeros 5600 谢懈褋 29 11:56 platformio.ini
-rw-rw-r-- 1 valeros valeros 667 谢懈褋 29 11:56 pre_extra_script_mcve.py
-rw-rw-r-- 1 valeros valeros 75 谢懈褋 29 11:56 README.md
drwxrwxr-x 2 valeros valeros 4096 谢懈褋 29 11:56 src/
(pio410) valeros@valeros-VirtualBox:/tmp/MCVE_ESPxx$ python --version
Python 2.7.12
(pio410) valeros@valeros-VirtualBox:/tmp/MCVE_ESPxx$ pio --version
PlatformIO, version 4.1.0
(pio410) valeros@valeros-VirtualBox:/tmp/MCVE_ESPxx$ pio run
************************************************************************************************************************************************************************************************************
If you like PlatformIO, please:
- follow us on Twitter to stay up-to-date on the latest project news > https://twitter.com/PlatformIO_Org
- star it on GitHub > https://github.com/platformio/platformio
- try PlatformIO IDE for embedded development > https://platformio.org/platformio-ide
- support us with PlatformIO Plus > https://pioplus.com
************************************************************************************************************************************************************************************************************
Processing MCVE_ESP8266_4M1M (platform: https://github.com/platformio/platform-espressif8266.git#feature/stage; board: esp12e; framework: arduino)
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PlatformManager: Installing platform-espressif8266
git version 2.7.4
Cloning into '/home/valeros/.platformio/platforms/_tmp_installing-knq42C-package'...
remote: Enumerating objects: 103, done.
remote: Counting objects: 100% (103/103), done.
remote: Compressing objects: 100% (78/78), done.
remote: Total 103 (delta 55), reused 40 (delta 11), pack-reused 0
Receiving objects: 100% (103/103), 30.10 KiB | 0 bytes/s, done.
Resolving deltas: 100% (55/55), done.
Checking connectivity... done.
espressif8266 @ dc6771b has been successfully installed!
The platform 'https://github.com/platformio/platform-espressif8266.git#feature/stage' has been successfully installed!
The rest of packages will be installed automatically depending on your build environment.
PackageManager: Installing toolchain-xtensa @ ~2.40802.191122
Downloading [####################################] 100%
Unpacking [####################################] 100%
toolchain-xtensa @ 2.40802.191122 has been successfully installed!
PackageManager: Installing tool-esptool @ <2
tool-esptool @ 1.413.0 has been successfully installed!
PackageManager: Installing tool-esptoolpy @ ~1.20800.0
tool-esptoolpy @ 1.20800.0 has been successfully installed!
PackageManager: Installing framework-arduinoespressif8266
git version 2.7.4
Cloning into '/home/valeros/.platformio/packages/_tmp_installing-I9DqcZ-package'...
remote: Enumerating objects: 1636, done.
remote: Counting objects: 100% (1636/1636), done.
remote: Compressing objects: 100% (1395/1395), done.
remote: Total 1636 (delta 198), reused 833 (delta 75), pack-reused 0
Receiving objects: 100% (1636/1636), 23.23 MiB | 5.92 MiB/s, done.
Resolving deltas: 100% (198/198), done.
Checking connectivity... done.
Submodule 'libraries/ESP8266SdFat' (https://github.com/earlephilhower/ESP8266SdFat.git) registered for path 'libraries/ESP8266SdFat'
Submodule 'libraries/LittleFS/lib/littlefs' (https://github.com/ARMmbed/littlefs.git) registered for path 'libraries/LittleFS/lib/littlefs'
Submodule 'libraries/SoftwareSerial' (https://github.com/plerup/espsoftwareserial.git) registered for path 'libraries/SoftwareSerial'
Submodule 'tools/esptool' (https://github.com/espressif/esptool.git) registered for path 'tools/esptool'
Submodule 'tools/pyserial' (https://github.com/pyserial/pyserial.git) registered for path 'tools/pyserial'
Submodule 'lwip2' (https://github.com/d-a-v/esp82xx-nonos-linklayer.git) registered for path 'tools/sdk/lwip2/builder'
Submodule 'tools/sdk/ssl/bearssl' (https://github.com/earlephilhower/bearssl-esp8266.git) registered for path 'tools/sdk/ssl/bearssl'
Cloning into 'libraries/ESP8266SdFat'...
remote: Enumerating objects: 27, done.
remote: Counting objects: 100% (27/27), done.
remote: Compressing objects: 100% (24/24), done.
remote: Total 3705 (delta 10), reused 9 (delta 2), pack-reused 3678
Receiving objects: 100% (3705/3705), 10.21 MiB | 4.52 MiB/s, done.
Resolving deltas: 100% (2016/2016), done.
Checking connectivity... done.
Submodule path 'libraries/ESP8266SdFat': checked out 'b240d2231a117bbd89b79902eb54cae948ee2f42'
Cloning into 'libraries/LittleFS/lib/littlefs'...
remote: Enumerating objects: 17, done.
remote: Counting objects: 100% (17/17), done.
remote: Compressing objects: 100% (15/15), done.
remote: Total 2306 (delta 8), reused 6 (delta 2), pack-reused 2289
Receiving objects: 100% (2306/2306), 1.30 MiB | 1.67 MiB/s, done.
Resolving deltas: 100% (1566/1566), done.
Checking connectivity... done.
Submodule path 'libraries/LittleFS/lib/littlefs': checked out '6b65737715039ef92d348014316b575b52547019'
Cloning into 'libraries/SoftwareSerial'...
remote: Enumerating objects: 44, done.
remote: Counting objects: 100% (44/44), done.
remote: Compressing objects: 100% (26/26), done.
remote: Total 1518 (delta 19), reused 34 (delta 13), pack-reused 1474
Receiving objects: 100% (1518/1518), 289.79 KiB | 0 bytes/s, done.
Resolving deltas: 100% (845/845), done.
Checking connectivity... done.
Submodule path 'libraries/SoftwareSerial': checked out '3bfd18d428992b1924eebb28e333ee21d00e9ead'
Cloning into 'tools/esptool'...
remote: Enumerating objects: 83, done.
remote: Counting objects: 100% (83/83), done.
remote: Compressing objects: 100% (63/63), done.
remote: Total 2108 (delta 40), reused 62 (delta 20), pack-reused 2025
Receiving objects: 100% (2108/2108), 7.63 MiB | 4.87 MiB/s, done.
Resolving deltas: 100% (1294/1294), done.
Checking connectivity... done.
Submodule path 'tools/esptool': checked out 'de30f21a222ec62f5a023dd955439b4f57702768'
Cloning into 'tools/pyserial'...
remote: Enumerating objects: 40, done.
remote: Counting objects: 100% (40/40), done.
remote: Compressing objects: 100% (40/40), done.
remote: Total 5941 (delta 20), reused 6 (delta 0), pack-reused 5901
Receiving objects: 100% (5941/5941), 1.68 MiB | 2.09 MiB/s, done.
Resolving deltas: 100% (4348/4348), done.
Checking connectivity... done.
Submodule path 'tools/pyserial': checked out 'c54c81d933b847458d465cd77e96cd702ff2e7be'
Cloning into 'tools/sdk/lwip2/builder'...
remote: Enumerating objects: 137, done.
remote: Counting objects: 100% (137/137), done.
remote: Compressing objects: 100% (81/81), done.
remote: Total 1064 (delta 74), reused 100 (delta 50), pack-reused 927
Receiving objects: 100% (1064/1064), 514.32 KiB | 0 bytes/s, done.
Resolving deltas: 100% (618/618), done.
Checking connectivity... done.
Submodule path 'tools/sdk/lwip2/builder': checked out '354887a25f83064dc0c795e11704190845812713'
Submodule 'lwip2-src' (https://git.savannah.nongnu.org/git/lwip.git) registered for path 'lwip2-src'
Cloning into 'lwip2-src'...
remote: Counting objects: 52880, done.
remote: Compressing objects: 100% (12389/12389), done.
remote: Total 52880 (delta 39840), reused 52867 (delta 39833)
Receiving objects: 100% (52880/52880), 10.13 MiB | 2.30 MiB/s, done.
Resolving deltas: 100% (39840/39840), done.
Checking connectivity... done.
Submodule path 'tools/sdk/lwip2/builder/lwip2-src': checked out '159e31b689577dbf69cf0683bbaffbd71fa5ee10'
Cloning into 'tools/sdk/ssl/bearssl'...
remote: Enumerating objects: 37, done.
remote: Counting objects: 100% (37/37), done.
remote: Compressing objects: 100% (29/29), done.
remote: Total 2795 (delta 17), reused 13 (delta 8), pack-reused 2758
Receiving objects: 100% (2795/2795), 1.73 MiB | 2.09 MiB/s, done.
Resolving deltas: 100% (2215/2215), done.
Checking connectivity... done.
Submodule path 'tools/sdk/ssl/bearssl': checked out '89454af34e3e61ddfc9837f3da5a0bc8ed44c3aa'
framework-arduinoespressif8266 @ 22b2687 has been successfully installed!
CorePackageManager: Installing tool-scons @ ~2.20501.7
tool-scons @ 2.20501.190826 has been successfully installed!
Verbose mode can be enabled via `-v, --verbose` option
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 (Stage) 2.4.0-alpha.1 #dc6771b > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 2.40802.191122 (4.8.2), tool-esptool 1.413.0 (4.13), tool-esptoolpy 1.20800.0 (2.8.0), framework-arduinoespressif8266 22b2687
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
LibraryManager: Installing ESPEasySerial
git version 2.7.4
Cloning into '/tmp/MCVE_ESPxx/.pio/libdeps/MCVE_ESP8266_4M1M/_tmp_installing-3AutIn-package'...
ESPeasySerial @ 7ddbf6c has been successfully installed!
Found 28 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <ESPeasySerial> 1.0.13 #7ddbf6c
Building in release mode
Generating .pio/build/MCVE_ESP8266_4M1M/core/core_version.h
Generating LD script .pio/build/MCVE_ESP8266_4M1M/ld/local.eagle.app.v6.common.ld
Archiving .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduinoVariant.a
fatal: No names found, cannot describe anything.
Indexing .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduinoVariant.a
Compiling .pio/build/MCVE_ESP8266_4M1M/libce9/ESPeasySerial/ESPEasySoftwareSerial.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/libce9/ESPeasySerial/ESPEasySerial_ESP32.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/libce9/ESPeasySerial/ESPeasySerial_ESP8266.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/libce9/ESPeasySerial/ESPEasySerial_ESP8266_noSWserial.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/src/main.cpp.o
src/main.cpp:14:4: warning: #warning "USES_P001 defined" [-Wcpp]
#warning "USES_P001 defined"
^
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Esp-frag.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Esp-version.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Esp.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/FS.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/FSnoop.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/FunctionalInterrupt.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/HardwareSerial.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/IPAddress.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/MD5Builder.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Print.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Schedule.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/StackThunk.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Stream.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/StreamString.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Tone.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/Updater.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/WMath.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/WString.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/abi.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/base64.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/cbuf.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/cont.S.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/cont_util.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_app_entry_noextra4k.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_eboot_command.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_features.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_flash_utils.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_i2s.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_main.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_noniso.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_phy.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_postmortem.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_si2c.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_sigma_delta.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_spi_utils.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_timer.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_waveform.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_analog.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_digital.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pulse.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pwm.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_shift.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/crc32.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/debug.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/flash_hal.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/gdb_hooks.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/heap.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/libb64/cdecode.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/libb64/cencode.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/libc_replacements.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/sntp-lwip2.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_cache.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_check.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_gc.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_hydrogen.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_nucleus.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/spiffs_api.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/sqrt32.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/time.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/uart.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_info.c.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_integrity.c.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_local.c.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_malloc.cpp.o
Compiling .pio/build/MCVE_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_poison.c.o
Archiving .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduino.a
Indexing .pio/build/MCVE_ESP8266_4M1M/libFrameworkArduino.a
Linking .pio/build/MCVE_ESP8266_4M1M/firmware.elf
Building .pio/build/MCVE_ESP8266_4M1M/firmware.bin
Retrieving maximum program size .pio/build/MCVE_ESP8266_4M1M/firmware.elf
Checking size .pio/build/MCVE_ESP8266_4M1M/firmware.elf
Advanced Memory Usage is available via "PlatformIO Home > Project Inspect"
DATA: [=== ] 32.9% (used 26988 bytes from 81920 bytes)
PROGRAM: [== ] 23.8% (used 248356 bytes from 1044464 bytes)
Creating BIN file ".pio/build/MCVE_ESP8266_4M1M/firmware.bin" using ".pio/build/MCVE_ESP8266_4M1M/firmware.elf"
======================================================================================= [SUCCESS] Took 66.54 seconds =======================================================================================
Processing spec_wifimesh_ESP8266_4M1M (platform: espressif8266; board: esp12e; framework: arduino)
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
PackageManager: Installing framework-arduinoespressif8266
git version 2.7.4
Cloning into '/home/valeros/.platformio/packages/_tmp_installing-rYbkBb-package'...
remote: Enumerating objects: 1684, done.
remote: Counting objects: 100% (1684/1684), done.
remote: Compressing objects: 100% (1440/1440), done.
remote: Total 1684 (delta 213), reused 836 (delta 77), pack-reused 0
Receiving objects: 100% (1684/1684), 23.34 MiB | 6.46 MiB/s, done.
Resolving deltas: 100% (213/213), done.
Checking connectivity... done.
Submodule 'libraries/ESP8266SdFat' (https://github.com/earlephilhower/ESP8266SdFat.git) registered for path 'libraries/ESP8266SdFat'
Submodule 'libraries/LittleFS/lib/littlefs' (https://github.com/ARMmbed/littlefs.git) registered for path 'libraries/LittleFS/lib/littlefs'
Submodule 'libraries/SoftwareSerial' (https://github.com/plerup/espsoftwareserial.git) registered for path 'libraries/SoftwareSerial'
Submodule 'tools/esptool' (https://github.com/espressif/esptool.git) registered for path 'tools/esptool'
Submodule 'tools/pyserial' (https://github.com/pyserial/pyserial.git) registered for path 'tools/pyserial'
Submodule 'lwip2' (https://github.com/d-a-v/esp82xx-nonos-linklayer.git) registered for path 'tools/sdk/lwip2/builder'
Submodule 'tools/sdk/ssl/bearssl' (https://github.com/earlephilhower/bearssl-esp8266.git) registered for path 'tools/sdk/ssl/bearssl'
Cloning into 'libraries/ESP8266SdFat'...
remote: Enumerating objects: 27, done.
remote: Counting objects: 100% (27/27), done.
remote: Compressing objects: 100% (24/24), done.
remote: Total 3705 (delta 10), reused 9 (delta 2), pack-reused 3678
Receiving objects: 100% (3705/3705), 10.21 MiB | 5.85 MiB/s, done.
Resolving deltas: 100% (2016/2016), done.
Checking connectivity... done.
Submodule path 'libraries/ESP8266SdFat': checked out 'af4ed0c5ec3084cb3883df51ec2052791ca2bff2'
Cloning into 'libraries/LittleFS/lib/littlefs'...
remote: Enumerating objects: 17, done.
remote: Counting objects: 100% (17/17), done.
remote: Compressing objects: 100% (15/15), done.
remote: Total 2306 (delta 8), reused 6 (delta 2), pack-reused 2289
Receiving objects: 100% (2306/2306), 1.30 MiB | 2.10 MiB/s, done.
Resolving deltas: 100% (1566/1566), done.
Checking connectivity... done.
Submodule path 'libraries/LittleFS/lib/littlefs': checked out 'abd90cb84c818a663b584575b019258d01d0065e'
Cloning into 'libraries/SoftwareSerial'...
remote: Enumerating objects: 44, done.
remote: Counting objects: 100% (44/44), done.
remote: Compressing objects: 100% (26/26), done.
remote: Total 1518 (delta 19), reused 34 (delta 13), pack-reused 1474
Receiving objects: 100% (1518/1518), 289.79 KiB | 0 bytes/s, done.
Resolving deltas: 100% (845/845), done.
Checking connectivity... done.
Submodule path 'libraries/SoftwareSerial': checked out '8f85d649000b5bbdde1862d879dba4f225dd3a51'
Cloning into 'tools/esptool'...
remote: Enumerating objects: 83, done.
remote: Counting objects: 100% (83/83), done.
remote: Compressing objects: 100% (63/63), done.
remote: Total 2108 (delta 40), reused 62 (delta 20), pack-reused 2025
Receiving objects: 100% (2108/2108), 7.63 MiB | 5.38 MiB/s, done.
Resolving deltas: 100% (1294/1294), done.
Checking connectivity... done.
Submodule path 'tools/esptool': checked out '1319c49adb2fe99d2981151ff781930d6ed62729'
Cloning into 'tools/pyserial'...
remote: Enumerating objects: 40, done.
remote: Counting objects: 100% (40/40), done.
remote: Compressing objects: 100% (40/40), done.
remote: Total 5941 (delta 20), reused 6 (delta 0), pack-reused 5901
Receiving objects: 100% (5941/5941), 1.68 MiB | 2.22 MiB/s, done.
Resolving deltas: 100% (4348/4348), done.
Checking connectivity... done.
Submodule path 'tools/pyserial': checked out 'c54c81d933b847458d465cd77e96cd702ff2e7be'
Cloning into 'tools/sdk/lwip2/builder'...
remote: Enumerating objects: 137, done.
remote: Counting objects: 100% (137/137), done.
remote: Compressing objects: 100% (81/81), done.
remote: Total 1064 (delta 74), reused 100 (delta 50), pack-reused 927
Receiving objects: 100% (1064/1064), 514.32 KiB | 0 bytes/s, done.
Resolving deltas: 100% (618/618), done.
Checking connectivity... done.
Submodule path 'tools/sdk/lwip2/builder': checked out '354887a25f83064dc0c795e11704190845812713'
Submodule 'lwip2-src' (https://git.savannah.nongnu.org/git/lwip.git) registered for path 'lwip2-src'
Cloning into 'lwip2-src'...
remote: Counting objects: 52880, done.
remote: Compressing objects: 100% (12389/12389), done.
remote: Total 52880 (delta 39840), reused 52867 (delta 39833)
Receiving objects: 100% (52880/52880), 10.13 MiB | 3.70 MiB/s, done.
Resolving deltas: 100% (39840/39840), done.
Checking connectivity... done.
Submodule path 'tools/sdk/lwip2/builder/lwip2-src': checked out '159e31b689577dbf69cf0683bbaffbd71fa5ee10'
Cloning into 'tools/sdk/ssl/bearssl'...
remote: Enumerating objects: 37, done.
remote: Counting objects: 100% (37/37), done.
remote: Compressing objects: 100% (29/29), done.
remote: Total 2795 (delta 17), reused 13 (delta 8), pack-reused 2758
Receiving objects: 100% (2795/2795), 1.73 MiB | 2.11 MiB/s, done.
Resolving deltas: 100% (2215/2215), done.
Checking connectivity... done.
Submodule path 'tools/sdk/ssl/bearssl': checked out '89454af34e3e61ddfc9837f3da5a0bc8ed44c3aa'
framework-arduinoespressif8266 @ 616fe43 has been successfully installed!
Verbose mode can be enabled via `-v, --verbose` option
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 (Stage) 2.4.0-alpha.1 #dc6771b > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 2.40802.191122 (4.8.2), tool-esptool 1.413.0 (4.13), tool-esptoolpy 1.20800.0 (2.8.0), framework-arduinoespressif8266 616fe43
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
LibraryManager: Installing ESPEasySerial
git version 2.7.4
Cloning into '/tmp/MCVE_ESPxx/.pio/libdeps/spec_wifimesh_ESP8266_4M1M/_tmp_installing-NQHThL-package'...
ESPeasySerial @ 7ddbf6c has been successfully installed!
Found 28 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <ESPeasySerial> 1.0.13 #7ddbf6c
Building in release mode
Generating .pio/build/spec_wifimesh_ESP8266_4M1M/core/core_version.h
Generating LD script .pio/build/spec_wifimesh_ESP8266_4M1M/ld/local.eagle.app.v6.common.ld
Archiving .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduinoVariant.a
fatal: No names found, cannot describe anything.
Indexing .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduinoVariant.a
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/libfaa/ESPeasySerial/ESPEasySoftwareSerial.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/libfaa/ESPeasySerial/ESPEasySerial_ESP32.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/libfaa/ESPeasySerial/ESPeasySerial_ESP8266.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/libfaa/ESPeasySerial/ESPEasySerial_ESP8266_noSWserial.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/src/main.cpp.o
src/main.cpp:14:4: warning: #warning "USES_P001 defined" [-Wcpp]
#warning "USES_P001 defined"
^
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Esp-frag.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Esp-version.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Esp.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/FS.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/FSnoop.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/FunctionalInterrupt.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/HardwareSerial.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/IPAddress.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/MD5Builder.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Print.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Schedule.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/StackThunk.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Stream.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/StreamString.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Tone.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/Updater.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/WMath.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/WString.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/abi.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/base64.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/cbuf.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/cont.S.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/cont_util.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_app_entry_noextra4k.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_eboot_command.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_features.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_flash_utils.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_i2s.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_main.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_noniso.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_phy.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_postmortem.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_si2c.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_sigma_delta.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_spi_utils.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_timer.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_waveform.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_analog.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_digital.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pulse.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_pwm.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/core_esp8266_wiring_shift.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/crc32.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/debug.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/flash_hal.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/gdb_hooks.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/heap.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/libb64/cdecode.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/libb64/cencode.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/libc_replacements.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/sntp-lwip2.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_cache.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_check.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_gc.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_hydrogen.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs/spiffs_nucleus.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/spiffs_api.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/sqrt32.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/time.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/uart.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_info.c.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_integrity.c.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_local.c.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_malloc.cpp.o
Compiling .pio/build/spec_wifimesh_ESP8266_4M1M/FrameworkArduino/umm_malloc/umm_poison.c.o
Archiving .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduino.a
Indexing .pio/build/spec_wifimesh_ESP8266_4M1M/libFrameworkArduino.a
Linking .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf
Building .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.bin
Retrieving maximum program size .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf
Checking size .pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf
Advanced Memory Usage is available via "PlatformIO Home > Project Inspect"
DATA: [=== ] 32.9% (used 26988 bytes from 81920 bytes)
PROGRAM: [== ] 23.8% (used 248356 bytes from 1044464 bytes)
Creating BIN file ".pio/build/spec_wifimesh_ESP8266_4M1M/firmware.bin" using ".pio/build/spec_wifimesh_ESP8266_4M1M/firmware.elf"
======================================================================================= [SUCCESS] Took 47.03 seconds =======================================================================================
Environment Status Duration
-------------------------- -------- ------------
MCVE_ESP8266_4M1M SUCCESS 00:01:06.539
spec_wifimesh_ESP8266_4M1M SUCCESS 00:00:47.029
======================================================================================= 2 succeeded in 00:01:53.568 =======================================================================================
That's really strange.
So now we're at the level of comparing pip packages installed:
gijs@htpc-nuc:~$ source ~/.venv/python2.7/bin/activate
(python2.7) gijs@htpc-nuc:~$ pip freeze
alabaster==0.7.12
Babel==2.6.0
bottle==0.12.15
certifi==2018.11.29
chardet==3.0.4
click==5.1
colorama==0.4.1
CommonMark==0.5.4
docutils==0.14
idna==2.7
imagesize==1.1.0
Jinja2==2.10
MarkupSafe==1.1.0
marshmallow==2.20.5
packaging==18.0
pkg-resources==0.0.0
platformio==4.1.0
pyelftools==0.25
Pygments==2.3.0
pyparsing==2.3.0
pyserial==3.4
pytz==2018.7
recommonmark==0.4.0
requests==2.20.1
semantic-version==2.8.1
six==1.11.0
snowballstemmer==1.2.1
Sphinx==1.8.4
sphinx-bootstrap-theme==0.6.5
sphinxcontrib-websupport==1.1.0
tabulate==0.8.3
typing==3.6.6
urllib3==1.24.1
Can you cut/paste the pip freeze output and copy it to a file like requirements.txt and then run (from your Python env) pip install -r requirements.txt and run the build again?
TD-er
on 29 Nov 2019
@TD-er Here is the packages installed in my environment:
bottle==0.12.17
certifi==2019.11.28
chardet==3.0.4
Click==7.0
colorama==0.4.1
idna==2.8
marshmallow==2.20.5
platformio==4.1.0
pyelftools==0.25
pyserial==3.4
requests==2.22.0
semantic-version==2.8.3
tabulate==0.8.6
urllib3==1.25.7
But despite the huge difference between our environments, I still cannot reproduce this issue even with all packages from your requirements.txt (pip wasn't able to install pkg-resources so I removed it).
valeros
on 29 Nov 2019
What else can be of influence for these kind of bugs?
I do see it on Ubuntu 18.04 and Windows.
Linux has Python 2.7 and Windows Python 3.8
Tested with PIO 4.1 and 4.1.1b4 (and b5)
TD-er
on 29 Nov 2019
I'll try other systems maybe something will come up. Did you try a clean virtualenv only with the packages from my environment?
valeros
on 29 Nov 2019
No not yet, but I will try it using Vagrant.
TD-er
on 29 Nov 2019
It must have something to do with the Python libraries installed.
I did a clean install on Vagrant, which only installs the platformio packages and then runs the build.
Compiling .pio/build/Failing_platform_ESP8266_4M1M/src/main.cpp.o
src/main.cpp:14:4: warning: #warning "USES_P001 defined" [-Wcpp]
#warning "USES_P001 defined"
^
Generating LD script .pio/build/Failing_platform_ESP8266_4M1M/ld/local.eagle.app.v6.common.ld
See the vagrant script here: https://github.com/TD-er/MCVE_ESPxx
I will clear the Python virtual env here and see what packages should be upgraded to make it work.
TD-er
on 30 Nov 2019
Hmm, I made all packages in the virtual env in Windows the same as in my Vagrant and removed all installed frameworks in platformio.
But still:
Compiling .pio\build\Failing_platform_ESP8266_4M1M\lib17a\ESPeasySerial\ESPEasySerial_ESP32.cpp.o
src\main.cpp:16:6: warning: #warning "USES_P001 NOT defined" [-Wcpp]
#warning "USES_P001 NOT defined"
^
This is really frustrating, as it already has taken at least 30 hours already to get this to work. :(
TD-er
on 30 Nov 2019
See also the debug output on Windows:
Working build:
> Executing task: C:\Users\gijs\.platformio\penv\Scripts\platformio.exe run --verbose --environment MCVE_ESP8266_4M1M <
Processing MCVE_ESP8266_4M1M (platform: https://github.com/platformio/platform-espressif8266.git#feature/stage; extends: esp8266_4M1M; build_unflags: ; build_flags: -Wl,-Tesp8266.flash.4m1m.ld -D BUILD_GIT='""', -DNDEBUG, -mtarget-align, -DVTABLES_IN_FLASH, -fno-exceptions, -lstdc++, -DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH, -DPUYA_SUPPORT=1, -DCORE_POST_2_5_0, -O2, -DBEARSSL_SSL_BASIC, -DCORE_POST_2_6_0 -DARDUINO_ESP8266_RELEASE='"2.6.0-dev stage"' -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM; lib_ignore: ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS; extra_scripts: pre:pre_extra_script_mcve.py; board: esp12e; board_build.flash_mode: dio; board_upload.maximum_size: 1044464; board_build.f_cpu: 80000000L; framework: arduino; lib_ldf_mode: chain; lib_archive: False; lib_deps: https://github.com/TD-er/ESPEasySerial.git; upload_speed: 115200; monitor_speed: 115200; targets: )
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 (Stage) 2.3.0-alpha.2 #3500fb2 (git+https://github.com/platformio/platform-espressif8266.git#feature/stage) > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 2.40802.191122 (4.8.2), framework-arduinoespressif8266 22b2687 (git+https://github.com/esp8266/Arduino.git), tool-esptool 1.413.0 (4.13), tool-esptoolpy 1.20600.0 (2.6.0)
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
Ignored library C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\libraries\SD
Ignored library C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\libraries\SDFS
More details about "Library Compatibility Mode": https://docs.platformio.org/page/librarymanager/ldf.html#ldf-compat-mode
Found 28 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <ESPeasySerial> 1.0.13 #7ddbf6c [git+https://github.com/TD-er/ESPEasySerial.git] (C:\GitHub\TD-er\MCVE_ESPxx\.pio\libdeps\MCVE_ESP8266_4M1M\ESPeasySerial)
Building in release mode
"c:\users\gijs\.platformio\penv\scripts\python.exe" "C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\tools\makecorever.py" -b "C:\GitHub\TD-er\MCVE_ESPxx\.pio\build\MCVE_ESP8266_4M1M" -p "C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910" -v 2.7.0-dev
xtensa-lx106-elf-gcc -CC -E -P -DVTABLES_IN_FLASH C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\tools\sdk\ld\eagle.app.v6.common.ld.h -o .pio\build\MCVE_ESP8266_4M1M\ld\local.eagle.app.v6.common.ld
xtensa-lx106-elf-ar rc .pio\build\MCVE_ESP8266_4M1M\libFrameworkArduinoVariant.a
xtensa-lx106-elf-g++ -o .pio\build\MCVE_ESP8266_4M1M\FrameworkArduino\StackThunk.cpp.o -c -fno-rtti -std=c++11 -mtarget-align -fno-exceptions -O2 -Os -mlongcalls -mtext-section-literals -falign-functions=4 -U__STRICT_ANSI__ -ffunction-sections -fdata-sections -fno-exceptions -Wall -DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703 -DESPEASY_MCVE_BUILD -DUSES_P001 -DUSE_SETTINGS_ARCHIVE -DPLATFORMIO=40101 -DESP8266 -DARDUINO_ARCH_ESP8266 -DARDUINO_ESP8266_ESP12 -DBUILD_GIT=\"\" -DNDEBUG -DVTABLES_IN_FLASH -DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH -DPUYA_SUPPORT=1 -DCORE_POST_2_5_0 -DBEARSSL_SSL_BASIC -DCORE_POST_2_6_0 "-DARDUINO_ESP8266_RELEASE=\"2.6.0-dev stage\"" -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM -DF_CPU=80000000L -D__ets__ -DICACHE_FLASH -DARDUINO=10805 -DARDUINO_BOARD=\"PLATFORMIO_ESP12E\" -DFLASHMODE_DIO -DLWIP_OPEN_SRC -DNONOSDK22x_190703=1 -DTCP_MSS=536 -DLWIP_FEATURES=0 -DLWIP_IPV6=0 -I.pio\build\MCVE_ESP8266_4M1M\core -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\tools\sdk\include -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\tools\sdk\libc\xtensa-lx106-elf\include -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\cores\esp8266 -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\tools\sdk\lwip2\include -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\variants\nodemcu C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266@src-31d658a59f41540201fc3726a1394910\cores\esp8266\StackThunk.cpp
Failing build:
> Executing task: C:\Users\gijs\.platformio\penv\Scripts\platformio.exe run --verbose --environment Failing_platform_ESP8266_4M1M <
Processing Failing_platform_ESP8266_4M1M (platform: espressif8266; platform_packages: framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2; extends: esp8266_4M1M; build_unflags: ; build_flags: -Wl,-Tesp8266.flash.4m1m.ld -D BUILD_GIT='""', -DNDEBUG, -mtarget-align, -DVTABLES_IN_FLASH, -fno-exceptions, -lstdc++,
-DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH, -DPUYA_SUPPORT=1, -DCORE_POST_2_5_0, -O2, -DBEARSSL_SSL_BASIC, -DCORE_POST_2_6_0, -DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703 -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM; lib_ignore: ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS; extra_scripts:
pre:pre_extra_script_mcve.py; board: esp12e; board_build.flash_mode: dio; board_upload.maximum_size: 1044464; board_build.f_cpu: 80000000L; framework: arduino; lib_ldf_mode: chain; lib_archive: False; lib_deps: https://github.com/TD-er/ESPEasySerial.git; upload_speed: 115200; monitor_speed: 115200; targets: )
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 1.7.3 #7507605 (git+https://github.com/TD-er/platform-espressif8266.git#patch/v1.7.3_Puya) > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 1.40802.0 (4.8.2), framework-arduinoespressif8266 bc204a9 (git+https://github.com/esp8266/Arduino.git#2.6.2), tool-esptool 1.413.0 (4.13)
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
Ignored library C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\libraries\SD
Ignored library C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\libraries\SDFS
More details about "Library Compatibility Mode": https://docs.platformio.org/page/librarymanager/ldf.html#ldf-compat-mode
Found 28 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <ESPeasySerial> 1.0.13 #7ddbf6c [git+https://github.com/TD-er/ESPEasySerial.git] (C:\GitHub\TD-er\MCVE_ESPxx\.pio\libdeps\Failing_platform_ESP8266_4M1M\ESPeasySerial)
Building in release mode
"c:\users\gijs\.platformio\penv\scripts\python.exe" "C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\tools\makecorever.py" -b "C:\GitHub\TD-er\MCVE_ESPxx\.pio\build\Failing_platform_ESP8266_4M1M" -p "C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266" -v 2.6.2
xtensa-lx106-elf-gcc -CC -E -P -DVTABLES_IN_FLASH C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\tools\sdk\ld\eagle.app.v6.common.ld.h -o .pio\build\Failing_platform_ESP8266_4M1M\ld\local.eagle.app.v6.common.ld
xtensa-lx106-elf-ar rc .pio\build\Failing_platform_ESP8266_4M1M\libFrameworkArduinoVariant.a
xtensa-lx106-elf-g++ -o .pio\build\Failing_platform_ESP8266_4M1M\FrameworkArduino\StackThunk.cpp.o -c -fno-rtti -fno-exceptions -std=c++11 -fno-rtti -std=c++11 -Os -mlongcalls -mtext-section-literals -falign-functions=4 -ffunction-sections -fdata-sections -mtarget-align -fno-exceptions -O2 -Os -mlongcalls -mtext-section-literals -falign-functions=4 -U__STRICT_ANSI__ -ffunction-sections -fdata-sections -fno-exceptions -Wall -DF_CPU=80000000L -D__ets__ -DICACHE_FLASH -DPLATFORMIO=40101 -DESP8266 -DARDUINO_ARCH_ESP8266 -DARDUINO_ESP8266_ESP12 -DBUILD_GIT=\"\" -DNDEBUG -DVTABLES_IN_FLASH -DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH -DPUYA_SUPPORT=1 -DCORE_POST_2_5_0 -DBEARSSL_SSL_BASIC -DCORE_POST_2_6_0 -DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703 -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM -DF_CPU=80000000L -D__ets__ -DICACHE_FLASH -DARDUINO=10805 -DARDUINO_BOARD=\"PLATFORMIO_ESP12E\" -DFLASHMODE_DIO -DLWIP_OPEN_SRC -DNONOSDK22x_190703=1 -DTCP_MSS=536 -DLWIP_FEATURES=0 -DLWIP_IPV6=0 -U__STRICT_ANSI__ -I.pio\build\Failing_platform_ESP8266_4M1M\core -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\tools\sdk\include -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\tools\sdk\libc\xtensa-lx106-elf\include -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\cores\esp8266 -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\tools\sdk\lwip2\include -IC:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\variants\nodemcu C:\Users\gijs\.platformio\packages\framework-arduinoespressif8266\cores\esp8266\StackThunk.cpp
Hmm I found something that looks different when building the same env on Vagrant and Windows.
Vagrant (working) build:
=
(python3.8) vagrant@vagrant:~/GitHub/TD-er/MCVE_ESPxx$ pio run --verbose --environment Failing_platform_ESP8266_4M1M
Processing Failing_platform_ESP8266_4M1M (platform: espressif8266; platform_packages: framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2; extends: esp8266_4M1M; build_unflags: ; build_flags: -Wl,-Tesp8266.flash.4m1m.ld -D BUILD_GIT='""', -DNDEBUG, -mtarget-align, -DVTABLES_IN_FLASH, -fno-exceptions, -lstdc++, -DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH, -DPUYA_SUPPORT=1, -DCORE_POST_2_5_0, -O2, -DBEARSSL_SSL_BASIC, -DCORE_POST_2_6_0, -DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703 -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM; lib_ignore: ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS; extra_scripts: pre:pre_extra_script_mcve.py; board: esp12e; board_build.flash_mode: dio; board_upload.maximum_size: 1044464; board_build.f_cpu: 80000000L; framework: arduino; lib_ldf_mode: chain; lib_archive: False; lib_deps: https://github.com/TD-er/ESPEasySerial.git; upload_speed: 115200; monitor_speed: 115200; targets: )
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 (Stage) 2.4.0-alpha.1 #dc6771b (git+https://github.com/platformio/platform-espressif8266.git#feature/stage) > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 2.40802.191122 (4.8.2), framework-arduinoespressif8266 bc204a9 (git+https://github.com/esp8266/Arduino.git#2.6.2), tool-esptool 1.413.0 (4.13), tool-esptoolpy 1.20800.0 (2.8.0)
Windows (Failing build):
> Executing task: C:\Users\gijs\.platformio\penv\Scripts\platformio.exe run --verbose --environment Failing_platform_ESP8266_4M1M <
Processing Failing_platform_ESP8266_4M1M (platform: espressif8266; platform_packages: framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2; extends: esp8266_4M1M; build_unflags: ; build_flags: -Wl,-Tesp8266.flash.4m1m.ld -D BUILD_GIT='""', -DNDEBUG, -mtarget-align, -DVTABLES_IN_FLASH, -fno-exceptions, -lstdc++,
-DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH, -DPUYA_SUPPORT=1, -DCORE_POST_2_5_0, -O2, -DBEARSSL_SSL_BASIC, -DCORE_POST_2_6_0, -DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703 -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM; lib_ignore: ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS; extra_scripts:
pre:pre_extra_script_mcve.py; board: esp12e; board_build.flash_mode: dio; board_upload.maximum_size: 1044464; board_build.f_cpu: 80000000L; framework: arduino; lib_ldf_mode: chain; lib_archive: False; lib_deps: https://github.com/TD-er/ESPEasySerial.git; upload_speed: 115200; monitor_speed: 115200; targets: )
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
['PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703', 'ESPEASY_MCVE_BUILD', 'USES_P001', 'USE_SETTINGS_ARCHIVE']
CONFIGURATION: https://docs.platformio.org/page/boards/espressif8266/esp12e.html
PLATFORM: Espressif 8266 1.7.3 #7507605 (git+https://github.com/TD-er/platform-espressif8266.git#patch/v1.7.3_Puya) > Espressif ESP8266 ESP-12E
HARDWARE: ESP8266 80MHz, 80KB RAM, 1019.98KB Flash
PACKAGES: toolchain-xtensa 1.40802.0 (4.8.2), framework-arduinoespressif8266 bc204a9 (git+https://github.com/esp8266/Arduino.git#2.6.2), tool-esptool 1.413.0 (4.13)
Any idea where the toolchain-xtensa is defined?
TD-er
on 30 Nov 2019
OK, I think I may have found what's wrong here....
I copy/paste the output of the Processing... line to Notepad++ and noticed something strange:
For whatever reason, the lines on the failing platform are split into several lines.
On the Vagrant environment they are also single line.
Windows:
Processing Failing_platform_ESP8266_4M1M (platform: espressif8266; platform_packages: framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2; extends: esp8266_4M1M; build_unflags: ; build_flags: -Wl,-Tesp8266.flash.4m1m.ld -D BUILD_GIT='""', -DNDEBUG, -mtarget-align, -DVTABLES_IN_FLASH, -fno-exceptions, -lstdc++,
-DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH, -DPUYA_SUPPORT=1, -DCORE_POST_2_5_0, -O2, -DBEARSSL_SSL_BASIC, -DCORE_POST_2_6_0, -DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703 -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM; lib_ignore: ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS; extra_scripts:
pre:pre_extra_script_mcve.py; board: esp12e; board_build.flash_mode: dio; board_upload.maximum_size: 1044464; board_build.f_cpu: 80000000L; framework: arduino; lib_ldf_mode: chain; lib_archive: False; lib_deps: https://github.com/TD-er/ESPEasySerial.git; upload_speed: 115200; monitor_speed: 115200; targets: )
Processing MCVE_ESP8266_4M1M (platform: https://github.com/platformio/platform-espressif8266.git#feature/stage; extends: esp8266_4M1M; build_unflags: ; build_flags: -Wl,-Tesp8266.flash.4m1m.ld -D BUILD_GIT='""', -DNDEBUG, -mtarget-align, -DVTABLES_IN_FLASH, -fno-exceptions, -lstdc++, -DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH, -DPUYA_SUPPORT=1, -DCORE_POST_2_5_0, -O2, -DBEARSSL_SSL_BASIC, -DCORE_POST_2_6_0 -DARDUINO_ESP8266_RELEASE='"2.6.0-dev stage"' -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM; lib_ignore: ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS; extra_scripts: pre:pre_extra_script_mcve.py; board: esp12e; board_build.flash_mode: dio; board_upload.maximum_size: 1044464; board_build.f_cpu: 80000000L; framework: arduino; lib_ldf_mode: chain; lib_archive: False; lib_deps: https://github.com/TD-er/ESPEasySerial.git; upload_speed: 115200; monitor_speed: 115200; targets: )
Vagrant:
Processing Failing_platform_ESP8266_4M1M (platform: espressif8266; platform_packages: framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2; extends: esp8266_4M1M; build_unflags: ; build_flags: -Wl,-Tesp8266.flash.4m1m.ld -D BUILD_GIT='""', -DNDEBUG, -mtarget-align, -DVTABLES_IN_FLASH, -fno-exceptions, -lstdc++, -DPIO_FRAMEWORK_ARDUINO_LWIP2_LOW_MEMORY_LOW_FLASH, -DPUYA_SUPPORT=1, -DCORE_POST_2_5_0, -O2, -DBEARSSL_SSL_BASIC, -DCORE_POST_2_6_0, -DPIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703 -DHTTPCLIENT_1_1_COMPATIBLE=0 -DPLUGIN_BUILD_CUSTOM; lib_ignore: ESP32_ping, ESP32WebServer, IRremoteESP8266, HeatpumpIR, SD(esp8266), SDFS; extra_scripts: pre:pre_extra_script_mcve.py; board: esp12e; board_build.flash_mode: dio; board_upload.maximum_size: 1044464; board_build.f_cpu: 80000000L; framework: arduino; lib_ldf_mode: chain; lib_archive: False; lib_deps: https://github.com/TD-er/ESPEasySerial.git; upload_speed: 115200; monitor_speed: 115200; targets: )
I've just finally found a time and tested on my machine. Everything works as expected. What do I recommend to try?
1) Avoid direct using Python's list in SCons environment. See https://github.com/TD-er/MCVE_ESPxx/blob/master/pre_extra_script_mcve.py#L22 . It's correct to use env.Append(CPPDEFINES=["MACRO1", ("MARCO_NAME", 34)])
2) Avoid using nono-official dev/platforms. They can REPLACE PRE-defined variables. That's why you do not see custom PRE changes.
ivankravets
on 30 Nov 2019
@TD-er you are using and define here https://github.com/TD-er/platform-espressif8266/blob/develop/platform.json the (old) extensa build chain.
You have to update!
Jason2866
on 30 Nov 2019
2. Avoid using nono-official dev/platforms. They can REPLACE PRE-defined variables. That's why you do not see custom PRE changes.
Hmm not sure what you mean by this.
The whole idea of the platform_packages parameter was to be able to refer to a branch or tag right?
So my latest platform definition in the MCVE repo has:
[core_2_6_2_packages]
platform = espressif8266
platform_packages =
framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2
Is this a "non-official platform" ?
This is also a reply to @Jason2866 who replied while I was typing ;)
TD-er
on 30 Nov 2019
This points to old stuff (git+https://github.com/TD-er/platform-espressif8266.git#patch/v1.7.3_Puya)
Jason2866
on 30 Nov 2019
This points to old stuff
(git+https://github.com/TD-er/platform-espressif8266.git#patch/v1.7.3_Puya)
But that's not used in this way of addressing the platform.
As mentioned, the last tests I ran all today were using the https://github.com/esp8266/Arduino.git#2.6.2
TD-er
on 30 Nov 2019
framework-arduinoespressif8266 @ https://github.com/esp8266/Arduino.git#2.6.2 does NOT install or change the extensa build chain. It will use what you have in your setup!
Jason2866
on 30 Nov 2019
And where is that defined?
TD-er
on 30 Nov 2019
@TD-er could you try to debug this issue on your machine step-by-step? It's very difficult to catch errors if you did a lot of changes.
1) Try using official dev/platform and framework from our registry
- They try to use
platform_packages = ... - etc, etc
ivankravets
on 30 Nov 2019
👍1
platform = [email protected]
Will force to use core 2.6.2 and latest build chain
Jason2866
on 30 Nov 2019
🚀1
🎉1
👍1
platform = [email protected]
This does seem to do the trick on my Windows PC.
Tried several other platform_packages = things and it now does state every time my USES_P001 is defined.
@ivankravets
I did change the pre_extra_script.py to do the following:
cppdefines=[
"PIO_FRAMEWORK_ARDUINO_ESPRESSIF_SDK22x_190703",
"ESPEASY_MCVE_BUILD"
# ,"NO_HTTP_UPDATER"
# ,("WEBSERVER_RULES_DEBUG", "0")
]
if os.path.isfile('src/Custom.h'):
cppdefines.append("USE_CUSTOM_H")
else:
cppdefines.extend([
"USES_P001", # Switch
"USE_SETTINGS_ARCHIVE"
])
env.Append(CPPDEFINES=cppdefines)
Is this how you meant your point nr. 1?
TD-er
on 30 Nov 2019
Is this how you meant your point nr. 1?
Yes, this is the correct way. Please note that you can call env.Append() as many times as you need. See other useful API, such as Append/Prepend, AppendUnique, etc. https://scons.org/doc/production/HTML/scons-user.html#idm1682
ivankravets
on 30 Nov 2019
Was this page helpful?
0 / 5 - 0 ratings
Related issues
gianiaz
路
4Comments
simonvanderveldt
路
3Comments
424778940z
路
5Comments
positron96
路
5Comments
probonopd
路
6Comments
Most helpful comment
platform = [email protected]Will force to use core 2.6.2 and latest build chain
