Pixi.js: pixi autoload normal from spriteIlluminator

[djmisterjon]

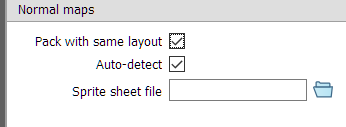

i changed my way of loading the normal in PIXI v4 with spriteIlluminator and texturePackers.
This seems to work , did you already think about including that (natively) for the v5?

I do not know if I proceeded in the right way because I had a lot of difficulty in debugging the spritesheetParser.
If there are suggestions on something cleaner I am a taker. :)

it allow to access to a normal texture like this
PIXI.Sprite(sheet.textures["image"] diff
PIXI.Sprite(sheet.textures_n["image"] normal

exports.default = function () {
    return function spritesheetParser(resource, next) {
        var imageResourceName = resource.name + '_image';

        // skip if no data, its not json, it isn't spritesheet data, or the image resource already exists
        if (!resource.data || resource.type !== _resourceLoader.Resource.TYPE.JSON || !resource.data.frames || this.resources[imageResourceName]) {
            next();

            return;
        }

        var loadOptions = {
            crossOrigin: resource.crossOrigin,
            metadata: resource.metadata.imageMetadata,
            parentResource: resource
        };

        var resourcePath = getResourcePath(resource, this.baseUrl);

        // load the image for this sheet
        this.add(imageResourceName, resourcePath, loadOptions, function onImageLoad(res) {
            if (res.error) {
                next(res.error);

                return;
            }

            var spritesheet = new _core.Spritesheet(res.texture.baseTexture, resource.data, resource.url);

            spritesheet.parse(function () {
                resource.spritesheet = spritesheet;
                resource.textures = spritesheet.textures;
                next();
            });
        });

///******************* LOAD NORMAL

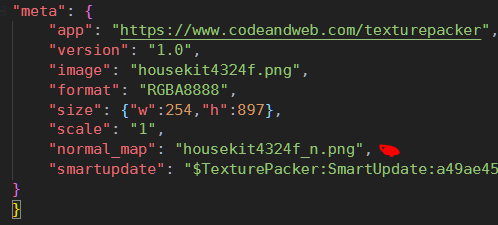

        if(resource.data.meta.normal_map){
            // load the image normals for this sheet
            this.add(imageResourceName+"_n", resourcePath.replace('.png','_n.png'), loadOptions, function onImageLoad(res) {
                if (res.error) {
                    next(res.error);
                    return;
                };
                var spritesheet = new _core.Spritesheet(res.texture.baseTexture, resource.data, resource.url);
                spritesheet.parse(function () {
                    resource.textures_n = Object.assign({},spritesheet.textures);
                    //resource.spritesheet.baseTexture_n = Object.assign({},spritesheet.baseTexture);
                },{normal:'_n'}); // pass option normal
            });
        };

    };

// add options normal
    Spritesheet.prototype.parse = function parse(callback,option={}) {
        this._batchIndex = 0;
        this._callback = callback;

        if (this._frameKeys.length <= Spritesheet.BATCH_SIZE) {
            this._processFrames(0,option);
            this._processAnimations();
            this._parseComplete();
        } else {
            this._nextBatch();
        }
    };

    // lets also add the frame to pixi's global cache for fromFrame and fromImage functions
    _.Texture.addToCache(this.textures[i], i+(option.normal||''));

[englercj]

I'm pretty sure this can be a separate middleware that runs after the spritesheet parser, rather than putting it into the spritesheet parser in pixi's core.

[djmisterjon]

did you have example, my old way look like this , and it too mutch code for nothing.
I wish I could do without this, permanently so that pixi manages himself this kind of process with texturePacker
Normal and multi-pack animation work but i don't like how i proceed.
It should be done in ts in pixjs?:(

    /** start load scenes stuff */
    loadScene(SCENE){
        const dataSheets = this.isValidJson(this.DATA.scene[SCENE]);
        if(!dataSheets){ return this.load() }; // break and continue next scene

        const loader = new PIXI.loaders.Loader();
        dataSheets.forEach(fileName => {
            if(fileName.contains('-')){ // is multipack
                this.LINKS[fileName.split('-')[0]].forEach(pack => {
                    loader.add(pack.name, pack.path);
                });
            }else{ loader.add(fileName, this.LINKS[fileName]) }
        });
        loader.load();
        loader.onProgress.add((loader, res) => {
            !['json','webm'].contains(res.extension) && delete loader.resources[res.name];
            this.txtLog = res.url;
        });
        loader.onComplete.add((loader, res) => { this.loadNormals(SCENE,res) });
        !loader.loading && loader.onComplete._tail._fn(); // force continue if nothing to load;
    };

    /** load les png normal si besoin */
    loadNormals(SCENE,RES_D) {
        const loader = new PIXI.loaders.Loader();
        Object.values(RES_D).filter((res)=>res.extension === 'json').forEach(res => {
            if(res.data.meta && res.data.meta.normal_map){
                loader.add(res.name, res.url.replace('.json','_n.png'));
            };
        });
        loader.load();
        loader.onProgress.add((loader, res) => { this.txtLog = res.url });
        loader.onComplete.add((loader, res) => { this.loadEnd(SCENE,RES_D,res) });
        !loader.loading && loader.onComplete._tail._fn();
    };

    /** computing result */
    loadEnd(SCENE,RES_D,RES_N) {
        const data2 = this.data2;
        this.createNormals(RES_D,RES_N);
        this.combineMultiPack(RES_D,RES_N);
        Object.values(RES_D).forEach(res_d => {
            const name = res_d.name.contains('-0')? res_d.name.split('-')[0] : res_d.name;
            data2[name] = new _dataBase(SCENE,res_d,RES_N && RES_N[res_d.name]);
            SCENE === 'Scene_Boot' && Object.defineProperty( data2, name, {enumerable: false}); // protect data from destroy
        });
        this.load();
    };

thand create textures

    createNormals(RES_D,RES_N){
        if(!RES_N){return};
        // .clone(); ? check if we need clone or just link ?
        for (let i=0, k=Object.keys(RES_D), l=k.length; i<l; i++) {
            const res_d = RES_D[k[i]];
            const res_n = RES_N[k[i]];
            if(!res_n){ continue };
            const textures_n = {};
            for (const key in res_d.textures) {
                const tex = res_d.textures[key];
                const frame = tex.frame;
                const orig = tex.orig;
                const trim = tex.trim;
                const rot = res_d.data.frames[key].rotated ? 2 : 0; // base.data.rotated ? 2 : 0 ?
                const n = textures_n[key] = new PIXI.Texture(res_n.texture.baseTexture, frame, orig, trim, rot, res_d.data.frames[key].anchor);
                n.textureCacheIds = [key+'_n'];
            };
            res_n.textures = textures_n;
        };
    };

[djmisterjon]

I give you a concrete example with your bunny mascot.
it's an all in one scenario.
Animation + multi-pack + normals
In theory, we should only had to load the file bunnyAniSheets-0.json
And PIXI should automatically compute and load the multi-pack, animations and normals attached in the json. meta.

https://www.dropbox.com/s/hxuec99g2j98r3s/bunnyPack.zip

"animations": {
    "bunny": ["bunny_00069","bunny_00070","bunny_00071","bunny_00073","bunny_00074","bunny_00075","bunny_00076","bunny_00077","bunny_00078","bunny_00079","bunny_00080","bunny_00081","bunny_00082","bunny_00083","bunny_00084","bunny_00085"]
},
"meta": {
    "app": "https://www.codeandweb.com/texturepacker",
    "version": "1.0",
    "image": "bunnyAniSheets-0.png",
    "format": "RGBA8888",
    "size": {"w":488,"h":488},
    "scale": "1",
    "normal_map": "bunnyAniSheets-0_n.png",
    "related_multi_packs": [ "bunnyAniSheets-1.json", "bunnyAniSheets-2.json", "bunnyAniSheets-3.json", "bunnyAniSheets-4.json", "bunnyAniSheets-5.json" ],
    "smartupdate": "$TexturePacker:SmartUpdate:8f6e33909450e6d322971ce1e0f96e75:ad7c7a02c4cc9f091c958b4b3d663332:dddbeb199181f6df386015d3e1348488$"
}

@CodeAndWeb

[englercj]

I just meant the part you added to the parser middleware could just be a separate middleware in your own code rather than changing the one in pixi's library.

For example:

    loader.use(function spritesheetNormalsParser(resource, next) {
        var imageResourceName = resource.name + '_image_n';

        // skip if no data, its not json, it isn't spritesheet data, or the image resource already exists
        if (!resource.data || resource.type !== _resourceLoader.Resource.TYPE.JSON || !resource.data.frames || this.resources[imageResourceName]) {
            next();

            return;
        }

        var loadOptions = {
            crossOrigin: resource.crossOrigin,
            metadata: resource.metadata.imageMetadata,
            parentResource: resource
        };

        var resourcePath = getResourcePath(resource, this.baseUrl).replace('.png','_n.png');

        if(resource.data.meta.normal_map){
            // load the image normals for this sheet
            this.add(imageResourceName, resourcePath, loadOptions, function onImageLoad(res) {
                if (res.error) {
                    next(res.error);
                    return;
                };
                var spritesheet = new _core.Spritesheet(res.texture.baseTexture, resource.data, resource.url);
                spritesheet.parse(function () {
                    resource.textures_n = Object.assign({},spritesheet.textures);
                    //resource.spritesheet.baseTexture_n = Object.assign({},spritesheet.baseTexture);
                },{normal:'_n'}); // pass option normal
            });
        };

    });

And now you have a normals parser middleware in your own code without changes to pixi itself.

[djmisterjon]

ho thank you so much for the tips , this will help me

[ivanpopelyshev]

We'll look into adding it in one of plugins later.

[djmisterjon]

hey thanks ivan this will be cool

[djmisterjon]

grrr ok after hours to debug about loader.pre and loader.use

Many problems with scope and dynamic multi-packs and normal parentResource constraint....

        const loader = new PIXI.loaders.Loader();
        loader.use(function spritesheetNormalsParser(resource, next) {
            const sourceName = resource.name.split('_image')[0];
            const parentJSON = this.resources[sourceName];
            const normalSuffix = parentJSON.data.meta.normal_map.split(parentJSON.name)[1].split('.png')[0];
            const imageResourceName = sourceName+"_image"+normalSuffix;
            if(parentJSON.data.meta.normal_map && !this.resources[imageResourceName] ){
                //const normalSuffix = parentJson.data.meta.normal_map.split(parentJson.name)[1].split('.png')[0];
                const resourcePath = resource.url.replace(parentJSON.data.meta.image,parentJSON.data.meta.normal_map);
                const loadOptions = {
                    crossOrigin: resource.crossOrigin,
                    metadata: resource.metadata.imageMetadata,
                    parentResource: resource
                };
                this.add(imageResourceName, resourcePath, loadOptions, function onImageLoad(res) {
                    if (res.error) { return next(res.error) };
                    var spritesheet = new PIXI.Spritesheet(res.texture.baseTexture, resource.data, res.url);
                    spritesheet.parse(function () {
                        resource.spritesheet = spritesheet;
                        resource.textures = spritesheet.textures;
                        next();
                    });
                });
            }else{
                return next();
            }
        });

At least i have tried, but I will rather return back to my old ways that uses 3 loaders and combines resources once completed.
thanks anyway for the time for help.
