Operator-sdk: TypeMeta : Kind + ApiVersion are empty

[cmoulliard]

Bug

When I create a Component's custom resource, the component is well created and the MetaData well defined (Kind, ApiVersion)

oc get cp/fruit-client -o yaml
apiVersion: component.k8s.io/v1alpha1
kind: Component
metadata:
  name: fruit-client
  namespace: my-spring-app
spec:
  deployment: innerloop
  exposeService: true
  runtime: springboot
  version: 1.5.16

but when the reconcile's function of the controller fetch the Component, then the Kind, ApiVersion fields are empty

What is the root cause of this issue ?

Environment

okd : 3.11
operator-sdk : v0.1.1+git

Project

Code of the API : https://github.com/snowdrop/component-operator/tree/operator-0.1.1/pkg/apis
Code of the controller : https://github.com/snowdrop/component-operator/blob/operator-0.1.1/pkg/controller/component/handler.go#L94

[cmoulliard]

I have debugged the code and what I can say is that if the Component has already been cached, then we will get it with the fields set but if the obj has not been yet cached (= when it is created the first time), then the fields are empty ....

[odra]

which operator sdk cli version did you use to generate the project?

[cmoulliard]

generate

As mentioned into my ticket, I used v0.1.1 to regenerate the API of my project.

[cmoulliard]

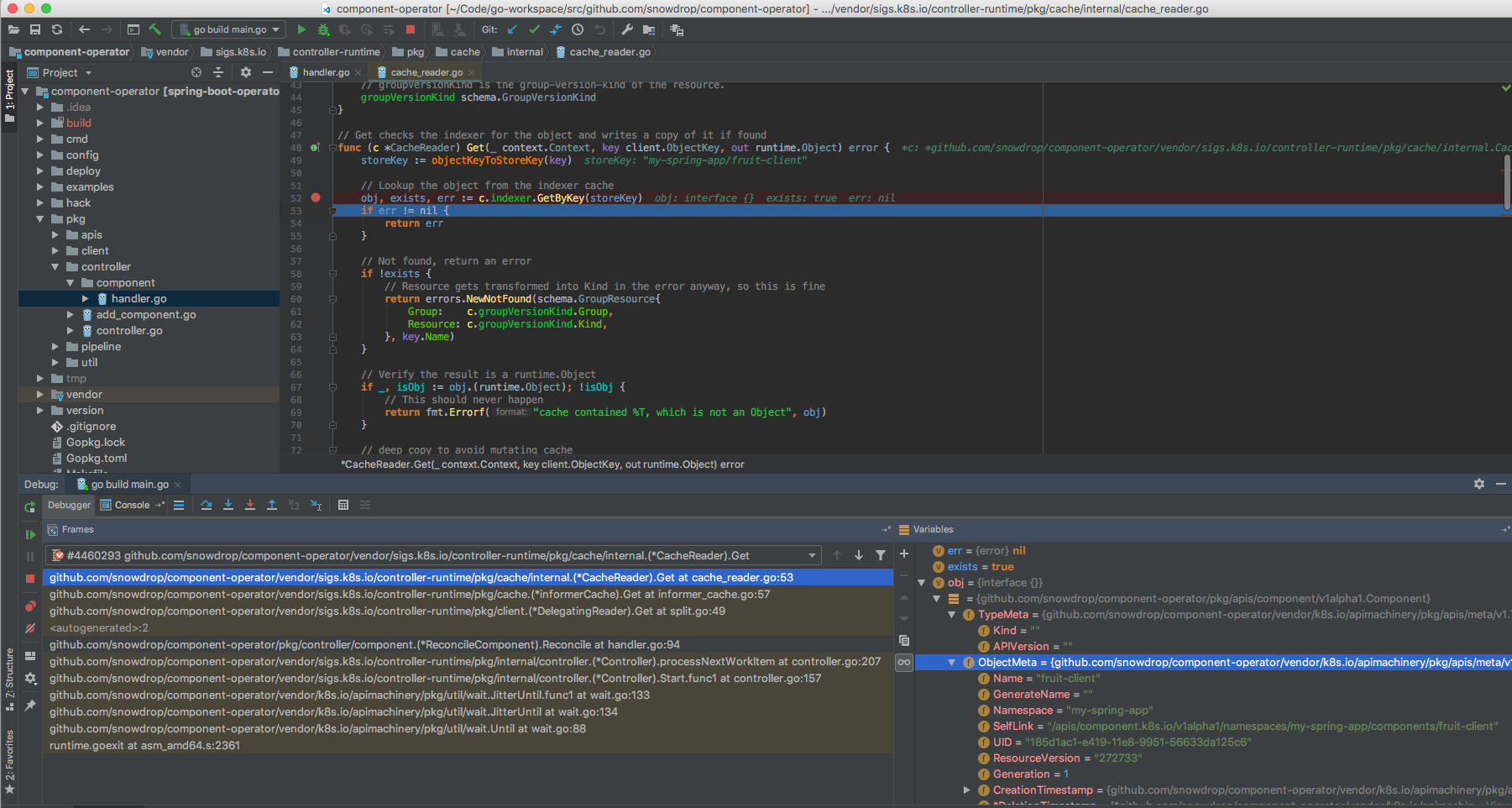

BTW, I confirm that when the first time the object is retrieved [1] from the cache of the reader, then the fields are empty.

// Get checks the indexer for the object and writes a copy of it if found
func (c *CacheReader) Get(_ context.Context, key client.ObjectKey, out runtime.Object) error {
    storeKey := objectKeyToStoreKey(key)

    // Lookup the object from the indexer cache
    obj, exists, err := c.indexer.GetByKey(storeKey) // TypeMeta/Kind and ApiVersion = ""

[1] https://goo.gl/oM6exr

Question :

• Do we have an issue during deepCopy process ?
• Should we open a ticket for the kubernetes controller-runtime project ?

[lilic]

cc @hasbro17 You might know more about this.

[shawn-hurley]

1. Yes, if this is something that you can not live without then you will need to submit a bug to controller runtime.
2. Can you please explain the use case? Why is it is important to you that these fields are set? I can help get this change upstream if I understand the use case and why you need it.

[cmoulliard]

2. Why is it is important to you that these fields are set?

This is needed by some OpenShift's resources when they are created (DeploymentConfig, Route, ImageStream,....)

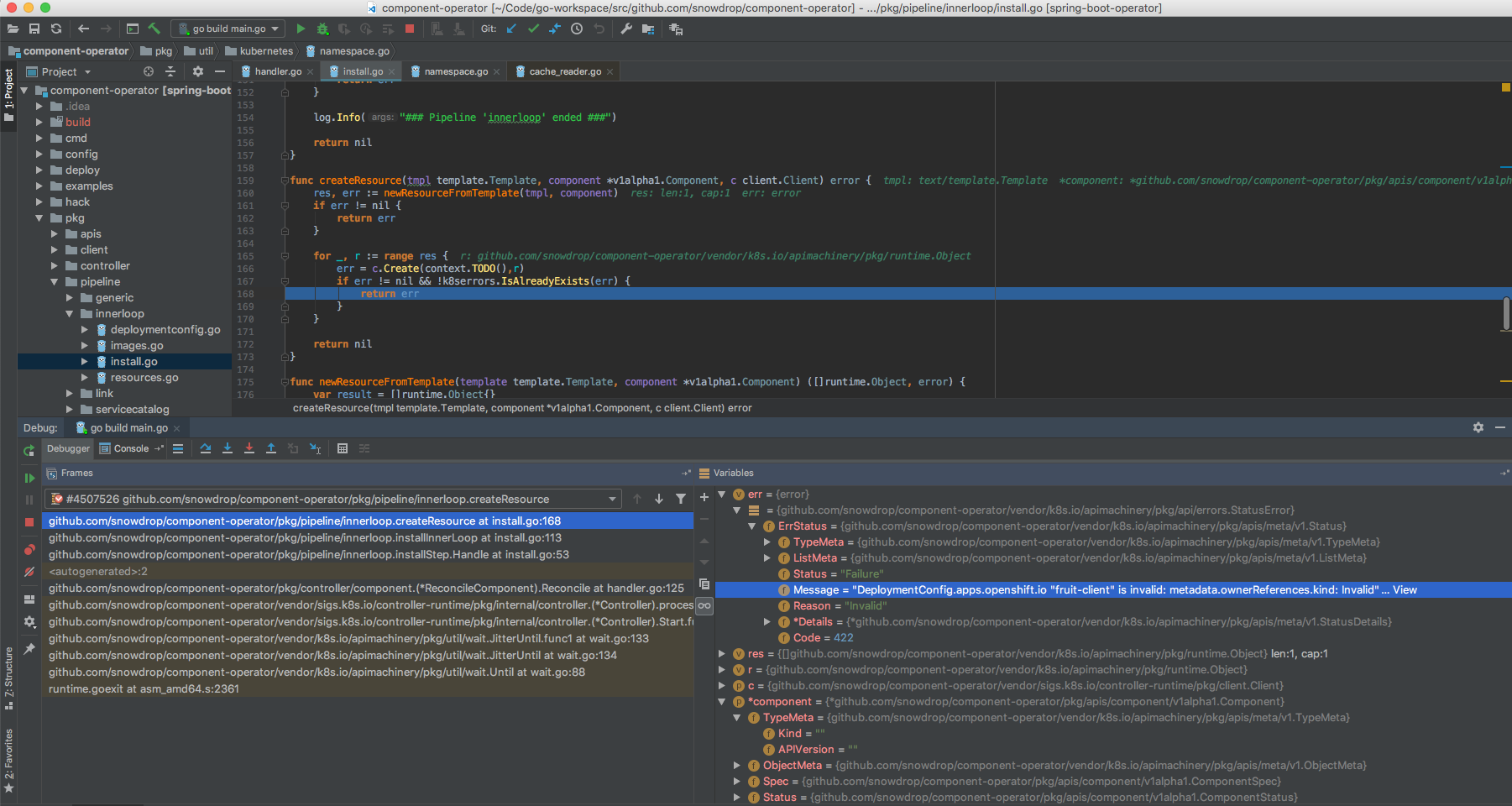

Error DeploymentConfig.apps.openshift.io "fruit-client" is invalid: metadata.ownerReferences.kind: Invalid value: "": kind must not be empty is generated here - https://goo.gl/SuzM9p

[cmoulliard]

1. if this is something that you can not live without then you will need to submit a bug to controller runtime.

Ticket created : https://github.com/kubernetes-sigs/controller-runtime/issues/202

[shawn-hurley]

@cmoulliard pushed a PR to controller-runtime kubernetes-sigs/controller-runtime#203

[cmoulliard]

Well done @shawn-hurley :-) I will retest it.

[lli-hiya]

I had the same issue. When I create my CR, which should create a deployment, the controller is complaining about that deployment has missing field in its ownerReferences:

"[metadata.ownerReferences.apiVersion: Invalid value: \"\": version must not be empty, metadata.ownerReferences.kind: Invalid value: \"\": kind must not be empty]"

I added some debug code to my controller and found that after I called this function:
err := r.client.Get(context.TODO(), request.NamespacedName, my-cr-object), my-cr-object's API_Version and Kind will always be "", while other fields are correct.

I looked at the actual my-cr-object in my k8s cluster and all fields are correct there. So I suspect that there is some bug in this part: r.client.Get(context.TODO(), request.NamespacedName, my-cr-object)

[hasbro17]

Waiting on the next release for the controller-runtime that includes the fix for this:
https://github.com/kubernetes-sigs/controller-runtime/pull/212

[cmoulliard]

The PR of Shawn has been merged top of the master branch of controller-runtime but v0.1.8 is not yet out.

[cmoulliard]

I created a ticket to have more info about release's cadence and milestones of controller-runtime. https://github.com/kubernetes-sigs/controller-runtime/issues/231

[openshift-bot]

Issues go stale after 90d of inactivity.

Mark the issue as fresh by commenting /remove-lifecycle stale.
Stale issues rot after an additional 30d of inactivity and eventually close.
Exclude this issue from closing by commenting /lifecycle frozen.

If this issue is safe to close now please do so with /close.

/lifecycle stale

[lilic]

@cmoulliard do you know of the progress of this upstream?

[openshift-bot]

Stale issues rot after 30d of inactivity.

Mark the issue as fresh by commenting /remove-lifecycle rotten.
Rotten issues close after an additional 30d of inactivity.
Exclude this issue from closing by commenting /lifecycle frozen.

If this issue is safe to close now please do so with /close.

/lifecycle rotten
/remove-lifecycle stale

[AlexNPavel]

This was resolved in an older release of controller-runtime, so this should be resolved in the SDK as well

/close

[openshift-ci-robot]

@AlexNPavel: Closing this issue.

In response to this:

This was resolved in an older release of controller-runtime, so this should be resolved in the SDK as well

/close

Instructions for interacting with me using PR comments are available here. If you have questions or suggestions related to my behavior, please file an issue against the kubernetes/test-infra repository.

[msvechla]

@AlexNPavel are you sure this has been resolved? I'm hitting the same issue on operator-sdk v0.10.0 / controller-runtime v0.1.12

[tliron]

Sorry, but this issue has not yet been resolved. A workaround is to check the Kind is empty, and if so to do a DeepCopy and set it explicitly:

if cr.Kind == "" {
    cr = cr.DeepCopy()
    cr.APIVersion, cr.Kind = CustomResourceGVK.ToAPIVersionAndKind()
}

[camilamacedo86]

HI @tliron,

Could you please, let us know if you check it with the latest version of SDK 0.15.1? Note that it was solved in the latest versions according to @AlexNPavel.

[tliron]

Thanks for the attention, @camilamacedo86 ! Upon closer look I don't think the issue is in the Operator SDK, but rather in k8s.io/client-go v0.17.1. Do you have insight into what is going on? How was this underlying issue solved in the Operator SDK?

[camilamacedo86]

Hi @tliron,

The SDK uses the controller-runtime as dep. The controller-runtime is who is responsible to provide the client which will be used in the controllers to CRUD the resources in the cluster. In this way see:

@AlexNPavel answers;

This was resolved in an older release of controller-runtime, so this should be resolved in the SDK as well

In this way, in the latest versions of SDK, it is using the latest versions of controller-runtime which has this fixed.

[shinji62]

@tliron I am wondering where you are putting

if cr.Kind == "" {
    cr = cr.DeepCopy()
    cr.APIVersion, cr.Kind = CustomResourceGVK.ToAPIVersionAndKind()
}

For us we are stuck with Operator 0.17.1 which suppose to fix the issue as it's using sigs.k8s.io/controller-runtime 0.5.8 but still kind and APIVersion are empty.

[tliron]

@shinji62 I put that code immediately after I do a "get" from the indexer.

[shinji62]

For me I don't get the ToAPIVersionAndKind function.. not sure how to get that.

[tliron]

Sorry, it is pseudo-code. You need to get you APIVersion-Group-Kind combination from somewhere. You can even provide them as strings directly in case you know exactly which resource you are retrieving.
