Openrct2: Issues with "Set starting positions for people" in scenario editor

[Hummel95]

Windows 10, 64 Bit
v0.2.4
8351a04

I have issues with the "Set starting positions for people" function in the scenario editor.

It is permitted to set a starting position on a path:

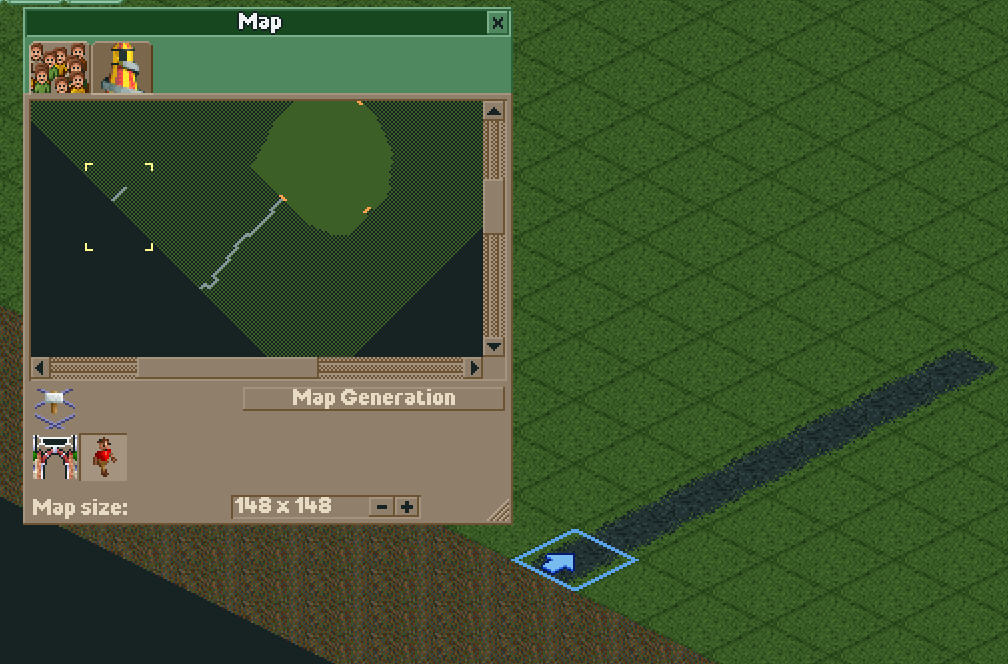

When I build a path and press the "Set starting positions for people" button a starting position is automatically created:

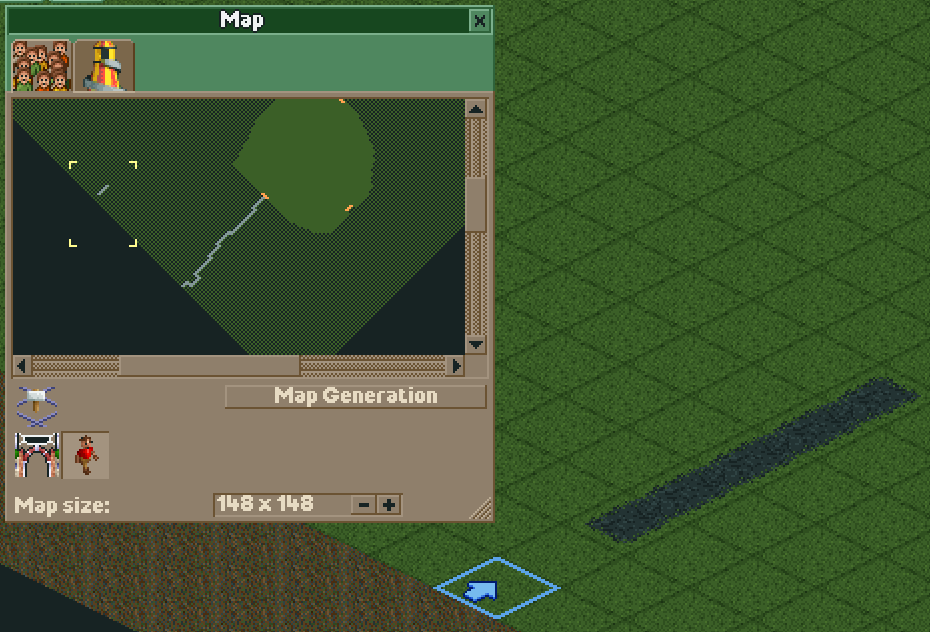

When I delete the path the starting position is still there:

The behavior is identical for manually created starting positions.

Also, I am unable to delete starting positions with right-click (though I don't think this is necessary when the removal of a path also removes the starting position).

• [?] Reproducible in RCT2 (vanilla)?
• [No] Specific to multiplayer?

[Hummel95]

I tried something simple and added

            // Remove the spawn point (if there is one in the current tile)
            gPeepSpawns.erase(
                std::remove_if(
                    gPeepSpawns.begin(), gPeepSpawns.end(),
                    [x = _loc.x, y = _loc.y](const auto& spawn) { return floor2(spawn.x, 32) == x && floor2(spawn.y, 32) == y; }),
                gPeepSpawns.end());

(copied from Map.cpp clear_elements_at function)
to the FootpathRemoveAction.hpp file

GameActionResult::Ptr Execute() const override
    {
        GameActionResult::Ptr res = std::make_unique<GameActionResult>();
        res->Cost = 0;
        res->Expenditure = ExpenditureType::Landscaping;
        res->Position = { _loc.x + 16, _loc.y + 16, _loc.z };

        if (!(GetFlags() & GAME_COMMAND_FLAG_GHOST))
        {
            footpath_interrupt_peeps(_loc);
            footpath_remove_litter(_loc);
        }

        TileElement* footpathElement = GetFootpathElement();
        if (footpathElement != nullptr)
        {
            footpath_queue_chain_reset();
            auto bannerRes = RemoveBannersAtElement(_loc, footpathElement);
            if (bannerRes->Error == GA_ERROR::OK)
            {
                res->Cost += bannerRes->Cost;
            }
            footpath_remove_edges_at(_loc, footpathElement);
            map_invalidate_tile_full(_loc);
            tile_element_remove(footpathElement);
            footpath_update_queue_chains();

            // Remove the spawn point (if there is one in the current tile)
            gPeepSpawns.erase(
                std::remove_if(
                    gPeepSpawns.begin(), gPeepSpawns.end(),
                    [x = _loc.x, y = _loc.y](const auto& spawn) { return floor2(spawn.x, 32) == x && floor2(spawn.y, 32) == y; }),
                gPeepSpawns.end());

        }
        else
        {
            return MakeResult(GA_ERROR::INVALID_PARAMETERS, STR_CANT_REMOVE_FOOTPATH_FROM_HERE);
        }

        res->Cost += GetRefundPrice(footpathElement);

        return res;
    }

The spawn point is removed when the footpath is removed but the game crashes when I place multiple spawning points.
Sadly, I cannot find any crashreports in my application data - do I need to enable those first?

[duncanspumpkin]

Crashreports are only generated on builds from the CI's. You don't need them if you have a developer enviroment as you can just use your debugger. I don't quite see why the above code would crash but one thing is you should only call the despawner on non ghost footpaths.

[Hummel95]

Alright, I found the following with my debugger:

I think I'll stop here - I have no idea what ghost footpaths are and I didn't want to dig myself too deep into the code. 😃

[duncanspumpkin]

Hmm very interesting that code would never work. It deletes what it is pointing to then dereferences it. Instead it should have taken a copy of the data before deleting it.

[duncanspumpkin]

Okay so we have fixed that bug. I'm not sure why your code triggered it though. @Hummel95 Either way rebase your changes on the latest and see if it still happens.

[Hummel95]

When setting the spawn points I encountered the following artifact:

I guess I create a separate bug for this?

Fix helped, everything is working now (though I'd be nice to remove the spawn points with a right click)

[duncanspumpkin]

That's a map invalidation issue I'm surprised it's not working correctly. I'll look into that later

[duncanspumpkin]

Ah i see what you have done. You need to invalidate the tile before deleting it. Create a pr with your changes and I'll point out what needs changed to fix the invalidation.

[frutiemax]

In some cases, you might want to spawn people in the middle of the map, and not just at the edge of the map! At least, it would be a plus for me, i.e. you could hide the spawn point into a building and peeps would spawn at the middle of the park without walking 2 miles. There are many parks at NE where they actually hide the outsides of the park with black tiles...

[ocalhoun6]

@frutiemax: Maybe spin this off into its own issue (or straight into a PR)?

I think it's a great idea, but it's probably outside the scope of this issue.
