Onedrive-api-docs: Plus signs in file and folder names

[Tekki]

The behavior of plus signs (+) in file and folder names is unpredictable. We read in the documentation (https://github.com/OneDrive/onedrive-api-docs/blob/master/misc/addressing.md):

• according to 'OneDrive reserved characters', the plus sign is not reserved
• 'URI path characters' lists the plus sign under the characters that don't have to be encoded

This happens when we try to create a file 'One+Two.txt':

• request ...root:/Documents/One+Two.txt:/content creates a file named 'One Two.txt'
• ...root:/Documents/One%2BTwo.txt:/content creates the same 'One Two.txt'
• ...root:/Documents/One%252BTwo.txt:/content creates 'One%2BTwo.txt'

Any attempt to access a folder with trailing + results in an 'invalidRequest' error with message 'Path (...) contains invalid trailing character.'

[Tekki]

Comparing with the OneDrive API (api.onedrive.com/v1.0): On both, the OneDrive API and the Graph API it is possible to create a folder with a trailing '+'. Using the OneDrive API a file file can be added to this folder if the plus in the path is percent encoded (...root:/Documents/Folder%2B/Testfile.txt:/content). _(this is not correct, sorry)_ The Graph API answers with the error message mentioned above. On the OneDrive API too it is impossible to create a file with a '+' in the name.

[ificator]

My apologies for the delay, I didn't spot this issue getting assigned to me :).

I want to make sure I have this correct, as unfortunately there are numerous endpoints that could be factoring in to URL issues. Here's what I see:

OneDrive Business
PUT ...root:/Documents/One+Two.txt:/content creates a file named One+Two.txt
PUT ...root:/Documents/One%2BTwo.txt:/content creates a file named One+Two.txt

OneDrive Consumer
PUT ...root:/Documents/One+Two.txt:/content creates a file named One Two.txt
^ We actually have a fix for this rolling out soon
PUT ...root:/Documents/One%2BTwo.txt:/content creates a file named One+Two.txt

Graph targeting OneDrive Business
PUT ...root:/Documents/One+Two.txt:/content creates a file named One+Two.txt
PUT ...root:/Documents/One%2BTwo.txt:/content creates a file named One+Two.txt

Graph targeting OneDrive Consumer
PUT ...root:/Documents/One+Two.txt:/content creates a file named One Two.txt
PUT ...root:/Documents/One%2BTwo.txt:/content creates a file named One Two.txt
^ Both of these are the result of the OneDrive Consumer issue that I mentioned we fixed above - graph appears to translate the %2B to + when it sends the request to us which is why it behaves differently

I'm going to take note to update this issue when that fix gets resolved, and then we can take another look and see if there's any other strange behavior.

[Tekki]

This fix has rolled out, hasn't it? From my point of view everything works as expected now.

[ificator]

Yup, it looks like the deployment finished this morning :)

[screen-saksrepo]

Hi
I'm using OneDrive connector in a Logic App and found the same issue, as of Oct. 2020. The + sign in a filename is replaced by a single space when trying to get the content. However, the filenames are well picked up when listing the folder content. See pictures attached.

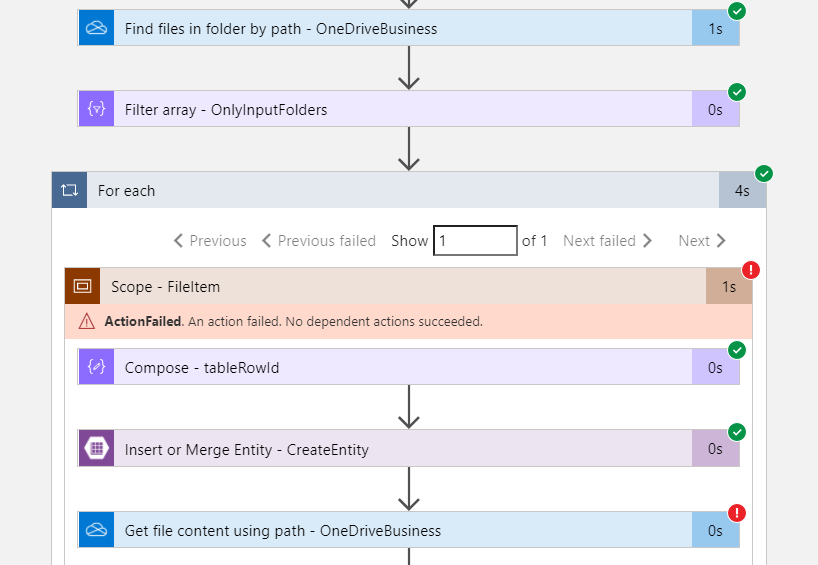

logic app overview:

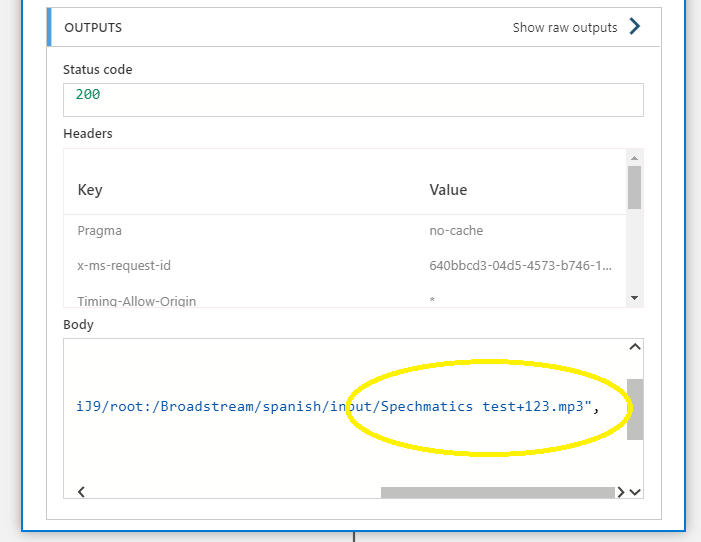

list files actions output (correct):

get content action (incorrect path):

Thank you
Fernando
