Okd: OKD 4.4 bootstrap hangs if manifests customized

[stratus-ss]

Problem Statement: When editing the CVO or Ingress Controller manifests, the bootstrap hangs on reboot.

Environment: Libvirt using bare metal Fedora CoreOS initramfs and kernel image

Technologies for Infrastructure: DNSMasq, HAProxy, Firewalld, Apache 2.4.37, PXE Boot

OpenShift Versions:

[root@gateway ignition]# openshift-install version
openshift-install 4.4.0-0.okd-2020-01-28-022517
built from commit 7ca0817244033e5f543541def5b18ea1bac440f7
release image registry.svc.ci.openshift.org/origin/release@sha256:2350fee6c0d8a980d499b7bbb3ba20137ffa58416bc1381304596772957f7836

[root@gateway ignition]# oc version
Client Version: 4.4.0-0.okd-2020-01-28-022517

Fedora CoreOS Images:

fedora-coreos-31.20200210.3.0-live-initramfs.x86_64.img
fedora-coreos-31.20200210.3.0-live-kernel-x86_64
fedora-coreos-31.20200210.3.0-metal.x86_64.raw.xz
fedora-coreos-31.20200210.3.0-metal.x86_64.raw.xz.sig

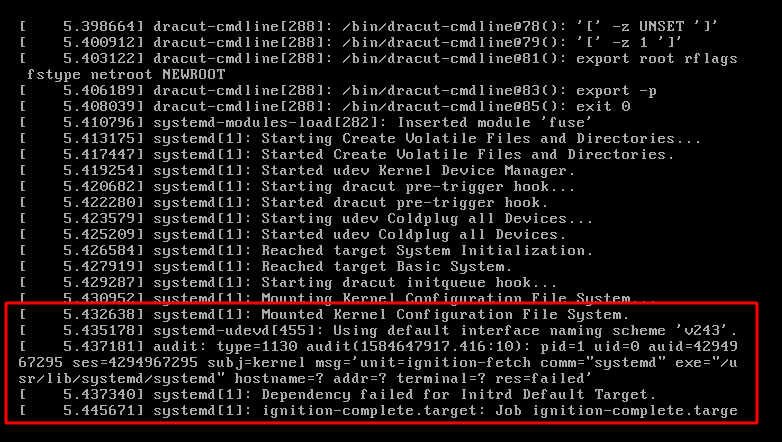

Bootstrap hangs like this after the initial reboot:

Attempted updates:

cvo manifest:

apiVersion: config.openshift.io/v1
kind: ClusterVersion
metadata:
  creationTimestamp: "2020-03-11T00:04:31Z"
  generation: 3
  name: version
  resourceVersion: "219704"
  selfLink: /apis/config.openshift.io/v1/clusterversions/version
  uid: 9e43c10d-9b3f-4f13-8a25-2e13f9b3ff34
spec:
  channel: stable-4.3
  clusterID: e8ed9a0e-a25c-45c0-a800-963fe9050774
  overrides:
  - group: apps/v1
    kind: Deployment
    name: etcd-quorum-guard
    namespace: openshift-machine-config-operator
    unmanaged: true
  upstream: https://api.openshift.com/api/upgrades_info/v1/graph

ingress operator

apiVersion: config.openshift.io/v1
kind: Ingress
metadata:
  creationTimestamp: null
  name: cluster
spec:
  domain: ${INGRESS_WILDCARD}
  nodePlacement:
    nodeSelector:
      matchLabels:
        node-role.kubernetes.io/infra: "true"

Steps to reproduce:

• download the oc client locally
• run the extract command

oc adm release extract --tools registry.svc.ci.openshift.org/origin/release:4.4.0-0.okd-2020-01-28-022517

• make a unique dir and create the install-config.yaml

mkdir $(date %+F)
cd $(date %+F)

cat << EOF > install-config.yaml.bak
apiVersion: v1
baseDomain: ${BASE_DOMAIN}
compute:
- hyperthreading: Enabled
  name: worker
  replicas: ${NUMBER_OF_WORKER_VMS}
controlPlane:
  hyperthreading: Enabled
  name: master
  replicas: ${NUMBER_OF_MASTER_VMS}
metadata:
  name: ${CLUSTER_NAME}
networking:
  clusterNetwork:
  - cidr: ${CLUSTER_NETWORK}
    hostPrefix: 23
  networkType: OpenShiftSDN
  serviceNetwork:
  - ${SERVICE_NETWORK}
platform:
  none: {}
fips: false
pullSecret: ${PULL_SECRET}
sshKey: ${SSH_KEY}
EOF

• generate the manifests

openshift-install create manifests

• make edits
• create the ignition configs

 openshift-install create ignition-configs

• put the files in the apache directory

cp *.ign /var/www/html/ignition

• set the ownership and selinux contexts

chown -R apache. /var/www/html
restorecon -Rvv /var/www/html

• launch the vm and wait for it to hang.

I cannot run must-gather as the vm doesn't respond to SSH and hasn't started pulling pods or bringing up the API yet.

I have tried first one manifest edit, then the other, then both at the same time. This issue is not present in OpenShift Container Platform 4.3. I have run the same process using documented process for OCP4.

In addition, with the exact same setup, simply running

openshift-install create ignition-configs

instead of even creating the manifests allows the bootstrap to install as expected

[vrutkovs]

Can you check if bootstrap node ever requests bootstrap.ign from apache?

[stratus-ss]

I do indeed see initial GETs to the apache server before the bootstrap hangs

10.120.120.99 - - [11/Mar/2020:12:50:55 -0400] "GET /fedcos/installer-kernel HTTP/1.1" 200 10293960 "-" "iPXE/1.0.0+ (de45)"
10.120.120.99 - - [11/Mar/2020:12:50:55 -0400] "GET /fedcos/installer-initramfs.img HTTP/1.1" 200 643005729 "-" "iPXE/1.0.0+ (de45)"
10.120.120.99 - - [11/Mar/2020:12:51:17 -0400] "GET /ignition/bootstrap.ign HTTP/1.1" 200 292072 "-" "curl/7.66.0"
10.120.120.99 - - [11/Mar/2020:12:51:17 -0400] "GET /fedcos/metal.raw.gz.sig HTTP/1.1" 200 543 "-" "reqwest/0.9.24"
10.120.120.99 - - [11/Mar/2020:12:51:17 -0400] "GET /fedcos/metal.raw.gz HTTP/1.1" 200 469157248 "-" "reqwest/0.9.24"

[vrutkovs]

Interesting

@dustymabe @cgwalters any ideas how to debug a hanging FCOS machine?

[timbrd]

This happens to me as well.
We install okd on a vsphere infrastructure though, so I guess this is a provider independent problem. Installing ocp with the exact same configuration works flawlessly.

We are happy to help debugging the issue.

[vrutkovs]

This seems to be a FCOS issue, few steps to try:

• Use latest stable FCOS from https://getfedora.org/en/coreos/download/
  OKD is using an older image, but we can bump if that fixes the issue

• Add rd.debug kernel arg
  This should make dracut to output more information

• Check previous output in the console (preferably from serial console)

  Previous units may have produced some useful info

[timbrd]

This seems to be a FCOS issue, few steps to try:

* Use latest stable FCOS from https://getfedora.org/en/coreos/download/
  OKD is using an older image, but we can bump if that fixes the issue

Same problem when using the current fcos image (VMware, 31.20200223.3.0).

* Add `rd.debug` kernel arg
  This should make dracut to output more information

I added the kernel parameters rd.shell and rd.debug

There are a few error messages, but I could not find anything interesting (I guess the emergency service is not relevant for the issue).

* Check previous output in the console (preferably from serial console)
  Previous units may have produced some useful info

[vrutkovs]

Any output before these screens? Seems all services are stopped at 2.6.0118, but what happens before that?

[timbrd]

Sorry, there were some messages missing indeed.

You find the full debug log attached. Since the issue might be caused by a ignition config version mismatch, I also uploaded the ignition config of the machine.

[ 5.8720[ 6.141473] ignition[637]: failed to fetch config: unsupported config version

https://gist.github.com/timbrd/9e4408b4188dddb03ae48c81b4918c24

[vrutkovs]

Well, right, "version": "2.1.0" is not valid.

Make sure you're using OKD installer, no other files are in the destination directory and produced ignition files have "version": "3.0.0"

[slauger]

Hi @vrutkovs,

because of limitations in VMware vSphere (limited number of characters in guestinfo.ignition.config.data) there is no way to way to directly use the Ignition config from the installer (at least the one for the boostrap node). Instead you have to create a shorter version, which includes the installer ignition config via HTTP, hosted on your external webserver.

{
  "ignition": {
    "config": {
      "append": [
        {
          "source": "http://webserver.example.com/worker.ign",
          "verification": {}
        }
      ]
    },
    "timeouts": {},
    "version": "2.1.0"
  },

Thats the way how i currently deploy OCP 4.3 on vSphere with UPI. This is also the way how you would set a static hostname or ip address (see https://github.com/openshift/installer/blob/master/docs/user/vsphere/install_upi.md#hostname).

How should such a configuration look like for ignition version 3.0.0? I could't find any docs for this. Could you give us a short hint?

[vrutkovs]

See https://github.com/coreos/ignition spec

Two things different from OCP 4.4 (which is on Ignition v2):

• version 3.0.0
• ignition.config.append is replaced with ignition.config.merge

Other than that it should work identically

[stratus-ss]

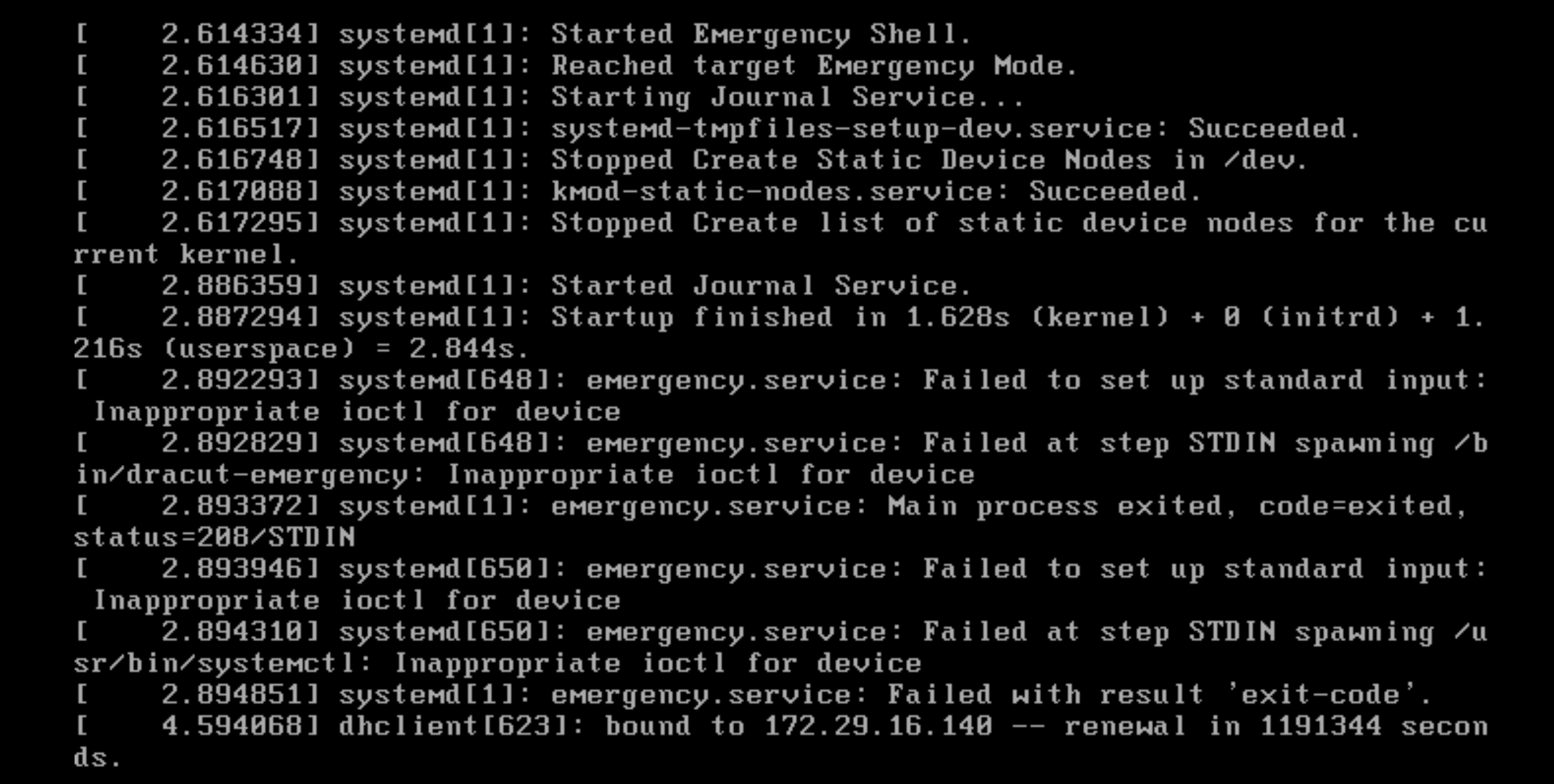

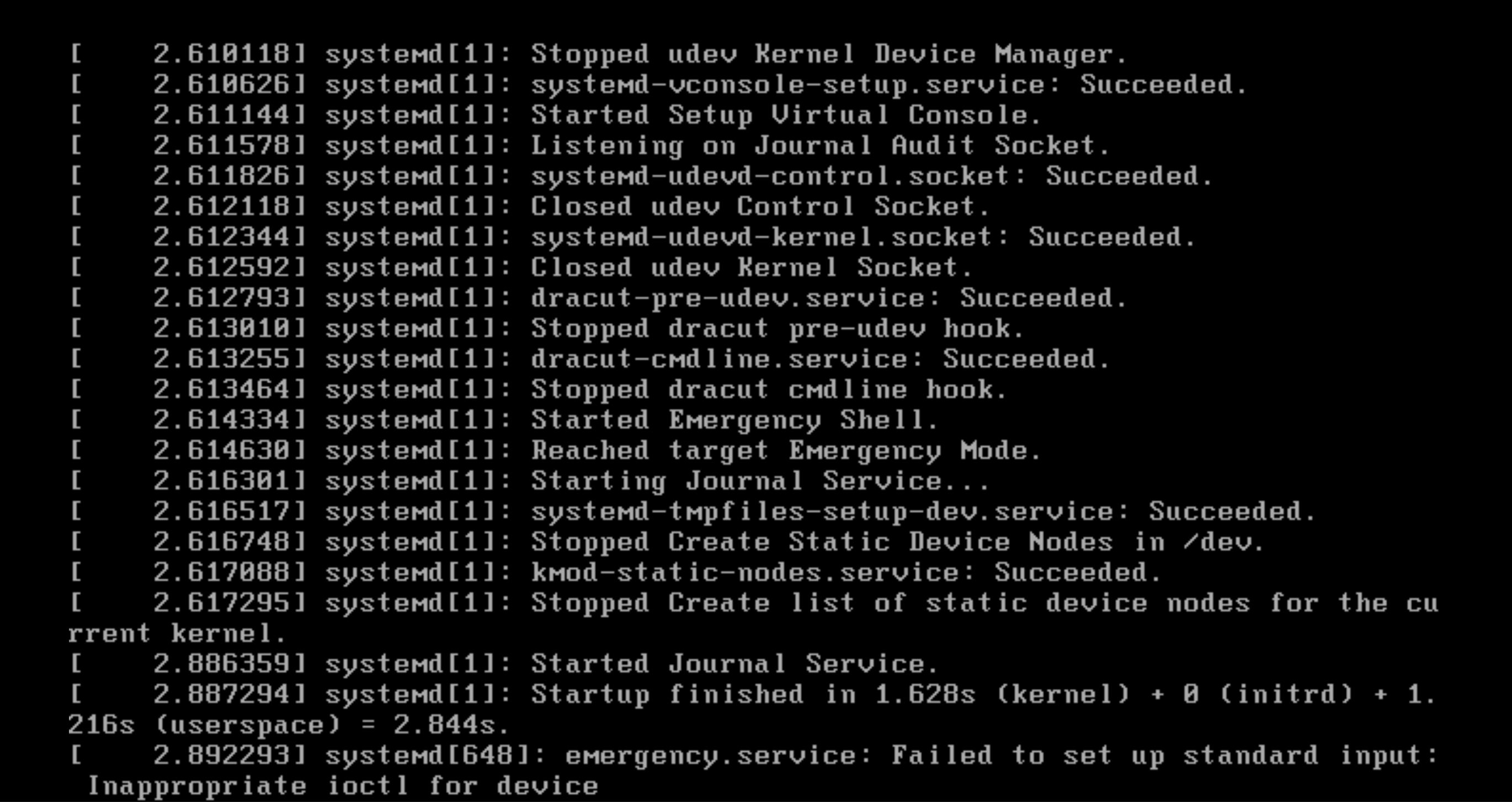

Using the latest images with rd.debug:

[slauger]

Using the latest images with rd.debug:

A failed unit "unit-ignition-fetch" sounds like that the download of the ignition file failed.

I could confirm that FCOS gets stuck during bootup if either the ignition file is inaccessible (HTTP errors, missing CA certificate when using HTTPS) or invalid (broken json, invalid or unkown fields in the ignition config). This also applies to RHCOS. You should double check your access logs and ignition configuration here.

After fixing my ignition config (2.1.0 to 3.0.0 and ignition.config.append to ignition.config.merge) the bootstrap finished.
