Octolapse: In test mode works fine but not when printing

[Caballete007]

If this is a feature request describe it here

FEATURE_REQUEST_DESCRIPTION_GOES_HERE

Version of Octolapse

Octolapse Version: 0.3.4

Version of OctoPrint

OctoPrint Version: 1.3.11

When you ran into the problem, did you have diagnostic logging enabled?

Diagnostic Logging was Enabled: YES

Test Mode

https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

Full diagnostic Live Print

https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

What were you doing when the problem occurred

1. STEP_ONE_GOES_HERE
2. STEP_TWO_GOES_HERE
3. STEP_...

What should have happened?

First my printer is a CR-10s Pro with Marlin B7 and my slicer is Cura 4.2.1. When Octolapse is in test mode works fine and do all the movements needed for a time-lapse. The extruder moves back left for the snapshot all the time.

What happened instead?

When it start printing after the first snapshot the extruder stops idle on top of the print for proximally 10 seconds, then continue the print and do that until ends. I tried different setups for the printer in Octolapse trying tostados eliminate the idle on top of the print without luck. I watch almost all youtube looking for answers including yours. I think maybe is a special settings for my printer model but there is nothing in the internet that fit my setup imo. Thanks

Operating System running OctoPrint and Octolapse

OS Name: Windows 10

Os Version: Latest

Printer model & used firmware incl. version

Printer Model: CR-10s Pro
Printer Firmware Version: Marlin B7

Browser and version of browser, operating system running browser

Browser: BROWSER_VERSION_GOES_HERE
Browser OS: BROWSER_OS_GOES_HERE

Link to the gcode file you were printing when the problem occurred

Link to Gcode File: https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

Link to settings.json

Link to settings.json with all passwords removed: https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

Link to plugin_octolapse.log

Link to plugin_octolapse.log: https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

Link to octoprint.log

Link to octoprint.log: https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

Link to contents of Javascript console in the browser

Link to javascript console output: LINK_GOES_HERE

Screenshots and/or videos of the problem:

Screenshot/Video Links: LINKs_GO_HERE

Please consider becoming a patron

If you like this project, please support my work by becoming a patron, and consider adding a 'star' to the repository. It takes a lot of time and effort to maintain the project and respond to issues. The cost of test prints, software, cameras, printer parts, etc. can quickly add up, so every bit helps.

You can find various videos and tutorials by subscribing to my Youtube channel. You can also follow me on Twitter.

[FormerLurker]

I'll need additional info to solve your issue. Please fill in the form above.

[Caballete007]

Hi
I already submit the information. If you need something else let me know. Thank you.

[FormerLurker]

HI!

Your printer profile settings look fine, fyi. I see you added G90 to the top of your gcode at some point, that was a good call.

There were some really odd errors about threading exceptions in your log. It might be a good idea to disable your other plugins while running a test of Octolapse (in live mode, not test mode). If it works you can re-enable the other plugins and see if you have any issues with live print then.

However, what I see mostly where you cancel prints in the log (presumably because it's stalled out) is that your printer is reporting communication problems (I think):

2019-08-07 18:59:56,631 Queuing Command: Command Type:None, gcode:M400, cmd: M400, tags: set(['trigger:printer.commands', 'plugin:octolapse', 'source:plugin', 'snapshot_gcode'])
2019-08-07 18:59:56,633 Queuing Command: Command Type:None, gcode:M114, cmd: M114, tags: set(['trigger:printer.commands', 'plugin:octolapse', 'source:plugin', 'snapshot_gcode'])
2019-08-07 18:59:56,774 Received from printer: line:  *******RTS_HandleData********
2019-08-07 18:59:56,775 Received from printer: line:
2019-08-07 18:59:56,784 Received from printer: line:
2019-08-07 18:59:56,785 Received from printer: line:   recdat.data[0] ==4
2019-08-07 18:59:57,274 Queuing Command: Command Type:temperature_poll, gcode:M105, cmd: M105, tags: set(['trigger:comm.poll_temperature'])
2019-08-07 18:59:57,539 Received from printer: line:   recdat.addr ==4098== Checkkey==0  *******RTS_HandleData********
2019-08-07 18:59:57,541 Received from printer: line:
2019-08-07 18:59:57,552 Received from printer: line:
2019-08-07 18:59:57,559 Received from printer: line:   recdat.data[0] ==3
2019-08-07 18:59:58,524 Received from printer: line:   recdat.addr ==4158== Checkkey==11echo:busy: processing
2019-08-07 19:00:00,338 Received from printer: line:  *******RTS_HandleData********
2019-08-07 19:00:00,347 Received from printer: line:
2019-08-07 19:00:00,355 Received from printer: line:
2019-08-07 19:00:00,375 Received from printer: line:   recdat.data[0] ==102
2019-08-07 19:00:00,614 Received from printer: line:   recdat.addr ==4172== Checkkey==15  *******RTS_HandleData********
2019-08-07 19:00:00,624 Received from printer: line:
2019-08-07 19:00:00,635 Received from printer: line:
2019-08-07 19:00:00,652 Received from printer: line:   recdat.data[0] ==202
2019-08-07 19:00:00,654 Received from printer: line:   recdat.addr ==4172== Checkkey==15echo:busy: processing
2019-08-07 19:00:00,893 Received from printer: line:  *******RTS_HandleData********
2019-08-07 19:00:00,896 Received from printer: line:
2019-08-07 19:00:00,900 Received from printer: line:
2019-08-07 19:00:00,906 Received from printer: line:   recdat.data[0] ==302
2019-08-07 19:00:01,330 Received from printer: line:   recdat.addr ==4172== Checkkey==15  *******RTS_HandleData********
2019-08-07 19:00:01,335 Received from printer: line:
2019-08-07 19:00:01,339 Received from printer: line:
2019-08-07 19:00:01,350 Received from printer: line:   recdat.data[0] ==402

I've never seen output quite like that before. I suspect this is something specific to the B7 firmware you installed, but that's really just a guess. Whatever it's doing there it took quite a while to complete. Note that when this happened, Octolapse was sending some snapshot movements, but nothing unusual at all. Then later during the same snapshot process this starts to happen:

2019-08-07 19:00:02,609 Sent to printer: Command Type:None, gcode:M400, cmd: M400, tags: set(['trigger:printer.commands', 'plugin:octolapse', 'source:plugin', 'snapshot_gcode'])
2019-08-07 19:00:04,606 Received from printer: line:echo:busy: processing
2019-08-07 19:00:06,603 Received from printer: line:echo:busy: processing
2019-08-07 19:00:08,605 Received from printer: line:echo:busy: processing
2019-08-07 19:00:10,095 Received from printer: line:  *******RTS_HandleData********
2019-08-07 19:00:10,110 Received from printer: line:
2019-08-07 19:00:10,121 Received from printer: line:
2019-08-07 19:00:10,131 Received from printer: line:   recdat.data[0] ==3
2019-08-07 19:00:10,138 Received from printer: line:   recdat.addr ==4166== Checkkey==15echo:enqueueing "G28"
2019-08-07 19:00:10,146 Received from printer: line:echo:enqueueing "G1 F100 Z10.2"
2019-08-07 19:00:10,152 Received from printer: line:
2019-08-07 19:00:10,163 Received from printer: line: RTSUpdate Waitway4
2019-08-07 19:00:10,171 Received from printer: line: RTSUpdate Waitway4
2019-08-07 19:00:10,180 Received from printer: line: RTSUpdate Waitway4
2019-08-07 19:00:10,191 Received from printer: line: RTSUpdate Waitway4

That is REALLY REALLY strange, and it continues with the Waitway4 stuff for many seconds until you canceled the print (it would have been interesting to see how long that would have gone, and what the printer would have reported had you NOT cancelled. Might be worth trying again).

So, as you can see from the log above, Octolapse sends an M400 (wait for all movements to finish), which it uses to determine when the printer is in position, then some normal looking 'busy: processing' messages are sent, then some odd stuff after. Do you notice the echo:enqueueing "G1 F100 Z10.2"? That command is NOT in your gcode file and was NOT generated by Octolapse. Did that come from Octoprint somehow or from the control panel on your printer? I've looked at a lot of logfiles in my day, and have never seen anything like this.

Much later in the log I see this:

2019-08-08 19:41:10,733 Received from printer: line:  *******RTS_HandleData********
2019-08-08 19:41:10,750 Received from printer: line:
2019-08-08 19:41:10,753 Received from printer: line:
2019-08-08 19:41:10,763 Received from printer: line:   recdat.data[0] ==241
2019-08-08 19:41:10,775 Received from printer: line:   recdat.addr ==4104== Checkkey==3
2019-08-08 19:41:10,783 Received from printer: line:   stopping ==
2019-08-08 19:41:10,797 Received from printer: line://action:cancel

Unfortunately the print is cancelled then, so I can't see what would have happened. Maybe there is someone who knows more about the firmware you have installed who could explain what is going on with these messages?

I'm not quite sure where to go from here. Most of the snapshots I see in the file look normal enough (though it's hard to tell since I'm not sure what the gcode queue within the printer looks like when Octolapse starts), but a few are really wacky. Do you have linear advance enabled? I do see that most of the crazy stuff happens after M400 is sent, and on my MK2 I occasionally see longer than usual pauses with linear advance enabled. I didn't see it in your gcode, but maybe it is defaulted somewhere.

[Caballete007]

Hi
I'm going to run a live mode printing without the plugins now. where I can find if I have enable or disable linear advance?

"I'm not quite sure where to go from here. Most of the snapshots I see in the file look normal enough (though it's hard to tell since I'm not sure what the gcode queue within the printer looks like when Octolapse starts), but a few are really wacky. Do you have linear advance enabled?"
How I look for this? Thank you

[FormerLurker]

It is controlled via firmware or gcode. You can add a M900 K0 command to your start gcode to ensure it is off.

[Caballete007]

Already start the live printing and add the commands please take a look at the picture and let me know if it's ok . Still doing the same if you want I will finish it and send you the log. Thank you

https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

[FormerLurker]

Yes, it looks good. Just make sure you allow the print to continue through a couple of these long delays.

[Caballete007]

Send: N1505 G1 X146.701 Y149.195 E28.3812699
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: ok N1499 P0 B0
Send: N1506 G1 X146.988 Y148.435 E28.40693103
Recv: ok N1500 P0 B0
Send: N1507 G1 X147.455 Y147.755 E28.43299109
Recv: ok N1501 P0 B0
Send: N1508 M10527
Recv: ok N1502 P0 B0
Send: N1509 G1 X148.062 Y147.215 E28.4586697
Recv: ok N1503 P0 B0
Send: N1510 G1 X148.789 Y146.83 E28.4846686
Recv: ok N1504 P0 B0
Send: N1511 G1 X149.58 Y146.633 E28.5104189
Recv: ok N1505 P0 B0
Send: N1512 G1 X150.4 Y146.629 E28.5363296
Recv: ok N1506 P0 B0
Send: N1513 G1 X151.194 Y146.821 E28.56213108
Recv: ok N1507 P0 B0
Send: N1514 G1 X151.92 Y147.201 E28.5880380
Recv: ok T:210.00 /210.00 B:70.00 /70.00 @:67 B@:30
Send: N1515 M204 S2000100
Recv: ok N1509 P0 B0
Send: N1516 M205 X20 Y2022
Recv: ok N1510 P0 B0
Send: N1517 G0 F7200 X152.146 Y146.867118
Recv: ok N1511 P0 B0
Send: N1518 M204 S1500111
Recv: ok N1512 P0 B0
Send: N1519 M205 X10 Y1025
Recv: ok N1513 P0 B0
Send: N1520 G1 F600 X152.834 Y147.473 E28.61753
Recv: ok N1514 P0 B0
Send: N1521 G1 X153.356 Y148.223 E28.64587110
Recv: ok N1515 P0 B0
Send: N1522 G1 X153.684 Y149.082 E28.67492105
Recv: ok N1516 P0 B0
Send: N1523 G1 X153.797 Y149.986 E28.70371106
Recv: ok N1517 P0 B0
Send: N1524 G1 X153.688 Y150.91 E28.7331180
Recv: ok N1518 P0 B0
Send: N1525 G1 X153.364 Y151.763 E28.76194103
Recv: ok N1519 P0 B1
Send: N1526 G1 X152.848 Y152.511 E28.79065100
Recv: ok N1520 P0 B0
Send: N1527 G1 X152.169 Y153.116 E28.81938107
Recv: ok N1521 P0 B0
Send: N1528 G1 X151.344 Y153.552 E28.84887110
Recv: ok N1522 P0 B0
Send: N1529 G1 X150.458 Y153.771 E28.8777198
Recv: ok N1523 P0 B0
Send: N1530 G1 X149.552 Y153.771 E28.90633104
Recv: ok N1524 P0 B0
Send: N1531 G1 X148.654 Y153.552 E28.93554111
Recv: ok N1525 P0 B0
Send: N1532 G1 X147.844 Y153.127 E28.96444111
Recv: ok N1526 P0 B0
Send: N1533 G1 X147.165 Y152.525 E28.99311107
Recv: ok N1527 P0 B0
Send: N1534 G1 X146.644 Y151.776 E29.0219498
Recv: ok N1528 P0 B0
Send: N1535 G1 X146.316 Y150.918 E29.0509799
Recv: ok N1529 P0 B0
Send: N1536 G1 X146.203 Y150.014 E29.07975103
Recv: ok N1530 P0 B0
Send: N1537 G1 X146.31 Y149.1 E29.1088387
Recv: ok N1531 P0 B0
Send: N1538 G1 X146.632 Y148.245 E29.137794
Recv: ok N1532 P0 B0
Send: N1539 G1 X147.152 Y147.489 E29.16669106
Recv: ok N1533 P0 B0
Send: N1540 G1 X147.832 Y146.883 E29.19547108
Recv: ok N1534 P0 B0
Send: N1541 G1 X148.643 Y146.454 E29.22446100
Recv: ok N1535 P0 B0
Send: N1542 G1 X149.53 Y146.233 E29.2533483
Recv: ok N1536 P0 B0
Send: N1543 G1 X150.448 Y146.229 E29.2823598
Recv: ok N1537 P0 B0
Send: N1544 G1 X151.336 Y146.444 E29.31122106
Recv: ok N1538 P0 B0
Send: N1545 G1 X152.146 Y146.867 E29.34009109
Recv: ok N1539 P0 B0
Send: N1546 M204 S200098
Recv: ok N1540 P0 B0
Send: N1547 M205 X20 Y2018
Recv: ok N1541 P0 B0
Send: N1548 G0 F7200 X151.897 Y147.229123
Recv: ok N1542 P0 B0
Send: N1549 G0 X151.817 Y147.37626
Recv: ok N1543 P0 B0
Send: N1550 G1 F2700 E24.340099
Recv: ok N1544 P0 B0
Send: N1551 G0 F0 X151.817 Y147.376 Z1.622
Recv: ok N1545 P0 B0
Send: N1552 G0 F7200 X147.996 Y147.996120
Recv: ok N1546 P0 B0
Send: N1553 M106 S198.372
Recv: ok N1547 P0 B0
Send: N1554 M204 S1500103
Recv: ok N1548 P0 B0
Send: N1555 M205 X10 Y1017
Recv: ok N1549 P0 B0
Send: N1556 G1 F2700 E29.340092
Recv: ok N1550 P0 B0
Send: N1557 G1 F800 X152.003 Y152.003 E29.5191556
Recv: ok N1551 P0 B0
Send: N1558 M204 S2000109
Recv: ok N1552 P0 B0
Send: N1559 M205 X20 Y2029
Recv: ok N1553 P0 B0
Send: N1560 M10521
Recv: ok N1554 P0 B0
Send: N1561 G0 F7200 X147.994 Y152.005125
Recv: ok N1555 P0 B0
Send: N1562 M204 S150098
Recv: ok N1556 P0 B0
Send: N1563 M205 X10 Y1020
Recv: ok N1557 P0 B0
Send: N1564 G1 F800 X152.005 Y147.994 E29.6983856
Recv: ok N1558 P0 B0
Send: N1565 M204 S200099
Recv: ok N1559 P0 B0
Send: N1566 M205 X20 Y2017
Recv: ok T:210.00 /210.00 B:70.00 /70.00 @:67 B@:30
Send: N1567 G0 F7200 X151.693 Y147.534119
Recv: ok N1561 P0 B0
Send: N1568 M204 S1500104
Recv: ok N1562 P0 B0
Send: N1569 M205 X10 Y1030
Recv: ok N1563 P0 B0
Send: N1570 G1 F800 X152.229 Y148.006 E29.7209456
Recv: ok N1564 P0 B0
Send: N1571 G1 X152.641 Y148.596 E29.74368103
Recv: ok N1565 P0 B0
Send: N1572 G1 X152.901 Y149.278 E29.7667499
Recv: ok N1566 P0 B1
Send: N1573 G1 X152.99 Y149.992 E29.7894891
Recv: ok N1567 P0 B0
Send: N1574 G1 X152.906 Y150.716 E29.81251108
Recv: ok N1568 P0 B0
Send: N1575 G1 X152.65 Y151.391 E29.8353291
Recv: ok N1569 P0 B0
Send: N1576 G1 X152.246 Y151.976 E29.8577898
Recv: ok N1570 P0 B0
Send: N1577 G1 X151.714 Y152.45 E29.8803110
Recv: ok N1571 P0 B0
Send: N1578 G1 X151.052 Y152.8 E29.90396107
Recv: ok N1572 P0 B0
Send: N1579 G1 X150.363 Y152.971 E29.92639111
Recv: ok N1573 P0 B0
Send: N1580 G1 X149.654 Y152.971 E29.94879108
Recv: ok N1574 P0 B0
Send: N1581 G1 X148.934 Y152.796 E29.972287
Recv: ok N1575 P0 B0
Send: N1582 G1 X148.304 Y152.465 E29.99469103
Recv: ok N1576 P0 B0
Send: N1583 G1 X147.763 Y151.986 E30.01752109
Recv: ok N1577 P0 B0
Send: N1584 G1 X147.361 Y151.408 E30.03977108
Recv: ok N1578 P0 B0
Send: N1585 G1 X147.099 Y150.721 E30.063111
Recv: ok N1579 P0 B0
Send: N1586 G1 X147.01 Y150.008 E30.0857110
Recv: ok N1580 P0 B0
Send: N1587 G1 X147.092 Y149.295 E30.1083899
Recv: ok N1581 P0 B0
Send: N1588 G1 X147.344 Y148.622 E30.13109101
Recv: ok N1582 P0 B0
Send: N1589 G1 X147.76 Y148.018 E30.1542687
Recv: ok N1583 P0 B0
Send: N1590 G1 X148.287 Y147.548 E30.17657101
Recv: ok N1584 P0 B0
Send: N1591 G1 X148.93 Y147.208 E30.1995583
Recv: ok N1585 P0 B0
Send: N1592 G1 X149.629 Y147.033 E30.22232110
Recv: ok N1586 P0 B0
Send: N1593 G1 X150.35 Y147.029 E30.2451102
Recv: ok N1587 P0 B0
Send: N1594 G1 X151.05 Y147.198 E30.2678687
Recv: ok N1588 P0 B0
Send: N1595 G1 X151.693 Y147.534 E30.29078100
Recv: ok N1589 P0 B0
Send: N1596 M204 S2000111
Recv: ok N1590 P0 B0
Send: N1597 M205 X20 Y2031
Recv: ok N1591 P0 B0
Send: N1598 G0 F7200 X151.919 Y147.2122
Recv: ok N1592 P0 B0
Send: N1599 M204 S1500102
Recv: ok N1593 P0 B0
Send: N1600 M205 X10 Y1018
Recv: ok N1594 P0 B0
Send: N1601 G1 F800 X152.531 Y147.739 E30.3165551
Recv: ok N1595 P0 B0
Send: N1602 G1 X152.998 Y148.409 E30.34235105
Recv: ok N1596 P0 B0
Send: N1603 G1 X153.292 Y149.179 E30.368481
Recv: ok N1597 P0 B0
Send: N1604 G1 X153.393 Y149.988 E30.3941696
Recv: ok N1598 P0 B0
Send: N1605 G1 X153.297 Y150.813 E30.420484
Recv: ok N1599 P0 B0
Send: N1606 G1 X153.007 Y151.577 E30.44622102
Recv: ok N1600 P0 B0
Send: N1607 G1 X152.547 Y152.244 E30.47182109
Recv: ok N1601 P0 B0
Send: N1608 G1 X151.943 Y152.782 E30.49738111
Recv: ok N1602 P0 B0
Send: N1609 G1 X151.198 Y153.176 E30.52401111
Recv: ok N1603 P0 B0
Send: N1610 G1 X150.411 Y153.371 E30.54963104
Recv: ok N1604 P0 B0
Send: N1611 G1 X149.604 Y153.371 E30.57513111
Recv: ok N1605 P0 B0
Send: N1612 G1 X148.794 Y153.174 E30.6014799
Recv: ok N1606 P0 B0
Send: N1613 G1 X148.074 Y152.796 E30.6271696
Recv: ok N1607 P0 B0
Send: N1614 G1 X147.464 Y152.256 E30.652988
Recv: ok N1608 P0 B0
Send: N1615 G1 X147.003 Y151.593 E30.67842102
Recv: ok N1609 P0 B0
Send: N1616 G1 X146.708 Y150.82 E30.7045683
Recv: ok N1610 P0 B0
Send: N1617 G1 X146.607 Y150.012 E30.73029106
Recv: ok N1611 P0 B0
Send: N1618 G1 X146.701 Y149.198 E30.75618107
Recv: ok N1612 P0 B0
Send: N1619 G1 X146.987 Y148.435 E30.7819396
Recv: ok N1613 P0 B0
Send: N1620 G1 X147.455 Y147.755 E30.80801102
Recv: ok N1614 P0 B0
Send: N1621 G1 X148.06 Y147.215 E30.8336480
Recv: ok N1615 P0 B0
Send: N1622 G1 X148.784 Y146.832 E30.85952105
Recv: ok N1616 P0 B0
Send: N1623 G1 X149.579 Y146.633 E30.88541101
Recv: ok N1617 P0 B0
Send: N1624 G1 X150.398 Y146.629 E30.91129106
Recv: ok N1618 P0 B0
Send: N1625 G1 X151.192 Y146.821 E30.937190
Recv: ok N1619 P0 B0
Send: N1626 G1 X151.919 Y147.2 E30.963106
Recv: ok N1620 P0 B0
Send: N1627 M204 S2000102
Recv: ok N1621 P0 B0
Send: N1628 M205 X20 Y2024
Recv: ok N1622 P0 B0
Send: N1629 G0 F7200 X152.144 Y146.866123
Recv: ok N1623 P0 B0
Send: N1630 M204 S1500102
Recv: ok N1624 P0 B0
Send: N1631 M205 X10 Y1016
Recv: ok N1625 P0 B0
Send: N1632 G1 F600 X152.833 Y147.472 E30.99256
Recv: ok N1626 P0 B0
Send: N1633 G1 X153.355 Y148.222 E31.0208797
Recv: ok N1627 P0 B0
Send: N1634 G1 X153.683 Y149.08 E31.0498982
Recv: ok N1628 P0 B0
Send: N1635 G1 X153.796 Y149.984 E31.07868102
Recv: ok N1629 P0 B0
Send: N1636 G1 X153.688 Y150.91 E31.1081483
Recv: ok N1630 P0 B0
Send: N1637 G1 X153.364 Y151.763 E31.13697104
Recv: ok N1631 P0 B0
Send: N1638 G1 X152.849 Y152.509 E31.1656196
Recv: ok N1632 P0 B0
Send: N1639 G1 X152.17 Y153.115 E31.1943787
Recv: ok N1633 P0 B0
Send: N1640 G1 X151.344 Y153.552 E31.2238998
Recv: ok N1634 P0 B0
Send: N1641 G1 X150.458 Y153.771 E31.25273104
Recv: ok N1635 P0 B0
Send: N1642 G1 X149.554 Y153.771 E31.281387
Recv: ok N1636 P0 B0
Send: N1643 G1 X148.654 Y153.552 E31.31056110
Recv: ok N1637 P0 B0
Send: N1644 G1 X147.844 Y153.127 E31.33947100
Recv: ok N1638 P0 B0
Send: N1645 M10517
Recv: ok N1639 P0 B0
Send: N1646 G1 X147.165 Y152.526 E31.36812108
Recv: ok N1640 P0 B0
Send: N1647 G1 X146.645 Y151.778 E31.396988
Recv: ok N1641 P0 B0
Send: N1648 G1 X146.317 Y150.919 E31.42596100
Recv: ok N1642 P0 B0
Send: N1649 G1 X146.204 Y150.016 E31.45471111
Recv: ok N1643 P0 B0
Send: N1650 G1 X146.31 Y149.101 E31.4838189
Recv: ok N1644 P0 B0
Send: N1651 G1 X146.63 Y148.248 E31.5126102
Recv: ok T:209.92 /210.00 B:70.00 /70.00 @:69 B@:30
Send: N1652 G1 X147.15 Y147.492 E31.5415987
Recv: ok N1646 P0 B0
Send: N1653 G1 X147.83 Y146.885 E31.5703986
Recv: ok N1647 P0 B0
Send: N1654 G1 X148.642 Y146.455 E31.59943110
Recv: ok N1648 P0 B0
Send: N1655 G1 X149.529 Y146.233 E31.62832105
Recv: ok N1649 P0 B0
Send: N1656 G1 X150.446 Y146.229 E31.6572999
Recv: ok N1650 P0 B0
Send: N1657 G1 X151.334 Y146.444 E31.68616108
Recv: ok N1651 P0 B0
Send: N1658 G1 X152.144 Y146.866 E31.71502103
Recv: ok N1652 P0 B0
Send: N1659 M204 S2000111
Recv: ok N1653 P0 B0
Send: N1660 M205 X20 Y2020
Recv: ok N1654 P0 B0
Send: N1661 G0 F7200 X151.896 Y147.228115
Recv: ok N1655 P0 B0
Send: N1662 G0 X151.785 Y147.35420
Recv: ok N1656 P0 B0
Send: N1663 G1 F2700 E26.715027
Recv: ok N1657 P0 B0
Send: N1664 G0 F0 X151.785 Y147.354 Z1.825
Recv: ok N1658 P0 B0
Send: N1665 G0 F7200 X147.712 Y147.712127
Recv: ok N1659 P0 B0
Send: N1666 M106 S226.779
Recv: ok N1660 P0 B0
Send: N1667 M204 S1500100
Recv: ok N1661 P0 B0
Send: N1668 M205 X10 Y1028
Recv: ok N1662 P0 B0
Send: N1669 G1 F2700 E31.7150211
Recv: ok N1663 P0 B0
Send: N1670 G1 F800 X152.286 Y152.286 E31.9194158
Recv: ok N1664 P0 B0
Send: N1671 M8341
Recv: ok N1665 P0 B0
Recv: ok N1666 P0 B0
Send: N1672 G1 E-5.00000 F2700.0004
Recv: ok N1667 P0 B0
Send: N1673 G9134
Recv: ok N1668 P0 B0
Send: N1674 G1 Z0.200 F1806.00061
Send: N1675 G9037
Recv: ok N1669 P0 B0
Send: N1676 G1 X3.000 Y297.000 F7200.000109
Recv: ok N1670 P0 B0
Recv: ok N1671 P0 B0
Send: N1677 M40016
Send: N1678 M11431
Recv: ok N1672 P0 B0
Recv: ok N1673 P0 B0
Recv: ok N1674 P0 B0
Recv: ok N1675 P0 B0
Recv: ok N1676 P0 B1
Recv: echo:busy: processing
Recv: ok N1677 P15 B2
Recv: X:3.00 Y:297.00 Z:2.00 E:26.92 Count X:240 Y:23760 Z:800
Recv: ok N1678 P15 B3
Recv: wait
Send: N1679 G1 X152.286 Y152.28616
Recv: ok N1679 P14 B3
Send: N1680 G9146
Recv: ok N1680 P14 B3
Send: N1681 G1 Z-0.200 F1806.00026
Send: N1682 G1 E5.00000 F4.80031
Send: N1683 G9044
Recv: ok N1681 P13 B3
Send: N1684 M8234
Send: N1685 G1 F800.00082
Recv: ok N1682 P12 B3
Recv: ok N1683 P12 B3
Recv: ok N1684 P12 B3
Send: N1686 M204 S2000109
Recv: ok N1685 P12 B3
Send: N1687 M205 X20 Y2029
Send: N1688 G0 F7200 X147.711 Y152.288125
Recv: ok N1686 P12 B3
Send: N1689 M204 S1500100
Recv: ok N1687 P12 B3
Send: N1690 M205 X10 Y1027
Recv: ok N1688 P11 B3
Recv: ok N1689 P11 B3
Send: N1691 G1 F800 X152.288 Y147.711 E32.1239357
Recv: ok N1690 P11 B3
Send: N1692 M204 S2000104
Recv: ok N1691 P10 B3
Send: N1693 M205 X20 Y2024
Recv: ok N1692 P10 B3
Send: N1694 G0 F7200 X151.918 Y147.199119
Send: N1695 M204 S1500105
Recv: ok N1693 P10 B3
Send: N1696 M205 X10 Y1029
Recv: ok N1694 P9 B3
Recv: ok N1695 P9 B3
Send: N1697 G1 F800 X152.53 Y147.738 E32.149749
Recv: ok N1696 P9 B3
Send: N1698 G1 X152.997 Y148.407 E32.17548101
Send: N1699 G1 X153.292 Y149.179 E32.20159102
Recv: ok N1697 P8 B3
Recv: ok N1698 P7 B3
Send: N1700 G1 X153.393 Y149.986 E32.22729108
Send: N1701 G1 X153.297 Y150.813 E32.253683
Recv: ok N1699 P6 B3
Send: N1702 G1 X153.007 Y151.577 E32.27942109
Recv: ok N1700 P5 B3
Send: N1703 G1 X152.548 Y152.243 E32.30498108
Recv: ok N1701 P4 B3
Send: N1704 G1 X151.941 Y152.784 E32.33067100
Recv: ok N1702 P3 B3
Send: N1705 G1 X151.201 Y153.176 E32.3571398
Recv: ok N1703 P2 B3
Recv: ok N1704 P1 B3
Send: N1706 G1 X150.411 Y153.371 E32.38284100
Recv: ok N1705 P0 B3
Send: N1707 G1 X149.605 Y153.371 E32.4083197
Send: N1708 G1 X148.795 Y153.174 E32.43465110
Recv: ok N1706 P0 B1
Send: N1709 G1 X148.072 Y152.795 E32.46044107
Recv: ok N1707 P0 B1
Send: N1710 G1 X147.467 Y152.259 E32.4859899
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: echo:busy: processing
Recv: ok N1708 P0 B1
Send: N1711 M10517
Recv: ok N1709 P0 B1
Send: N1712 G1 X147.003 Y151.593 E32.51163109
Recv: ok N1710 P0 B1
Recv: ok T:210.00 /210.00 B:70.00 /70.00 @:69 B@:31
Send: N1713 G1 X146.708 Y150.821 E32.53774102
Send: N1714 G1 X146.607 Y150.014 E32.5634499
Recv: ok N1712 P0 B3
Send: N1715 G1 X146.701 Y149.201 E32.589392
Recv: ok N1713 P0 B2
Send: N1716 G1 X146.988 Y148.435 E32.6151496
Recv: ok N1714 P0 B1
Send: N1717 G1 X147.453 Y147.757 E32.64112100
Recv: ok N1715 P0 B1
Send: N1718 G1 X148.059 Y147.216 E32.6667998
Recv: ok N1716 P0 B1
Send: N1719 G1 X148.783 Y146.833 E32.69267107
Recv: ok N1717 P0 B1
Send: N1720 G1 X149.579 Y146.634 E32.7185996
Recv: ok N1718 P0 B1
Send: N1721 G1 X150.397 Y146.629 E32.74444102
Recv: ok N1719 P0 B2
Send: N1722 G1 X151.191 Y146.82 E32.7702486
Recv: ok N1720 P0 B1
Send: N1723 G1 X151.918 Y147.199 E32.79615110
Recv: ok N1721 P0 B1
Send: N1724 M204 S2000100
Recv: ok N1722 P0 B1
Send: N1725 M205 X20 Y2020
Recv: ok N1723 P0 B1
Recv: ok N1724 P0 B2
Send: N1726 G0 F7200 X152.143 Y146.865113
Send: N1727 M204 S150097
Recv: ok N1725 P0 B3
Send: N1728 M205 X10 Y1025
Recv: ok N1726 P0 B1
Send: N1729 G1 F600 X152.832 Y147.471 E32.8251459
Recv: ok N1727 P0 B2
Recv: ok N1728 P0 B3
Send: N1730 G1 X153.354 Y148.22 E32.8539980
Send: N1731 G1 X153.683 Y149.08 E32.8830882
Recv: ok N1729 P0 B2
Send: N1732 G1 X153.796 Y149.982 E32.91181100
Recv: ok N1730 P0 B1
Send: N1733 G1 X153.688 Y150.91 E32.9413384
Recv: ok N1731 P0 B1
Send: N1734 G1 X153.364 Y151.763 E32.97016106
Recv: ok N1732 P0 B1
Send: N1735 G1 X152.85 Y152.508 E32.9987690
Recv: ok N1733 P0 B1
Send: N1736 G1 X152.171 Y153.114 E33.0275198
Recv: ok N1734 P0 B1
Send: N1737 G1 X151.344 Y153.552 E33.05708105
Recv: ok N1735 P0 B1
Send: N1738 G1 X150.458 Y153.771 E33.0859298
Recv: ok N1736 P0 B1
Send: N1739 G1 X149.556 Y153.771 E33.1144296
Recv: ok N1737 P0 B1
Send: N1740 G1 X148.654 Y153.552 E33.14375107
Recv: ok N1738 P0 B1
Send: N1741 G1 X147.844 Y153.127 E33.17265111
Recv: ok N1739 P0 B1
Send: N1742 G1 X147.165 Y152.525 E33.20133101
Recv: ok N1740 P0 B1
Send: N1743 G1 X146.646 Y151.78 E33.2300194
Recv: ok N1741 P0 B1
Send: N1744 G1 X146.317 Y150.92 E33.2591183
Recv: ok N1742 P0 B1
Send: N1745 G1 X146.204 Y150.018 E33.28783107
Recv: ok N1743 P0 B2
Send: N1746 G1 X146.31 Y149.104 E33.316999
Recv: ok N1744 P0 B1
Send: N1747 G1 X146.63 Y148.25 E33.34572108
Recv: ok N1745 P0 B1
Send: N1748 G1 X147.149 Y147.493 E33.37472111
Recv: ok N1746 P0 B1
Send: N1749 G1 X147.829 Y146.886 E33.40352109
Recv: ok N1747 P0 B1
Send: N1750 G1 X148.641 Y146.456 E33.43255110
Recv: ok N1748 P0 B1
Send: N1751 G1 X149.529 Y146.234 E33.46148107
Recv: ok N1749 P0 B1
Send: N1752 G1 X150.444 Y146.229 E33.49039110
Recv: ok N1750 P0 B1
Send: N1753 G1 X151.333 Y146.443 E33.5192899
Recv: ok N1751 P0 B1
Send: N1754 G1 X152.143 Y146.865 E33.5481497
Recv: ok N1752 P0 B1
Send: N1755 M204 S200098
Recv: ok N1753 P0 B1
Send: N1756 M205 X20 Y2016
Recv: ok N1754 P0 B1
Recv: ok N1755 P0 B2
Send: N1757 G0 F7200 X151.895 Y147.227123
Send: N1758 G0 X151.784 Y147.35326
Recv: ok N1756 P0 B3
Send: N1759 G1 F2700 E28.5481412
Recv: ok N1757 P0 B1
Send: N1760 G0 F0 X151.784 Y147.353 Z215
Recv: ok N1758 P0 B1
Send: N1761 G0 F7200 X147.996 Y147.996122
Recv: ok N1759 P0 B1
Send: N1762 M106 S25587
Recv: ok N1760 P0 B1
Send: N1763 M204 S150097
Recv: ok N1761 P0 B1
Recv: ok N1762 P0 B2
Send: N1764 M205 X10 Y1017
Send: N1765 G1 F2700 E33.548149
Recv: ok N1763 P0 B3
Recv: ok N1764 P0 B3
Send: N1766 G1 F800 X152.001 Y152.001 E33.72719
Send: N1767 M204 S200099
Recv: ok N1765 P0 B3
Send: N1768 M205 X20 Y2029
Recv: ok N1766 P0 B1
Send: N1769 G0 F7200 X147.996 Y152.003115
Recv: ok N1767 P0 B2
Recv: ok N1768 P0 B3
Send: N1770 M204 S150099
Send: N1771 M205 X10 Y1021
Recv: ok N1769 P0 B2
Recv: ok N1770 P0 B3
Send: N1772 G1 F800 X152.004 Y147.995 E33.90627
Send: N1773 M10521
Recv: ok N1771 P0 B3
Send: N1774 M204 S200097
Recv: ok N1772 P0 B2
Send: N1775 M205 X20 Y2017
Recv: ok T:210.00 /210.00 B:70.00 /70.00 @:70 B@:31
Send: N1776 G0 F7200 X151.685 Y147.528127
Recv: ok N1774 P0 B3
Recv: ok N1775 P0 B3
Send: N1777 M204 S1500100
Send: N1778 M205 X10 Y1028
Recv: ok N1776 P0 B3
Send: N1779 G1 F800 X152.23 Y148.007 E33.929139
Recv: ok N1777 P0 B3
Recv: ok N1778 P0 B3
Send: N1780 G1 X152.639 Y148.593 E33.95171111
Send: N1781 G1 X152.9 Y149.276 E33.97481110
Recv: ok N1779 P0 B3
Send: N1782 G1 X152.99 Y149.988 E33.9974987
Recv: ok N1780 P0 B1
Send: N1783 G1 X152.906 Y150.716 E34.02064101
Recv: ok N1781 P0 B1
Send: N1784 G1 X152.65 Y151.392 E34.0434892
Recv: ok N1782 P0 B1
Send: N1785 G1 X152.249 Y151.97 E34.0657189
Recv: ok N1783 P0 B1
Send: N1786 G1 X151.707 Y152.455 E34.08869101
Recv: ok N1784 P0 B2
Send: N1787 G1 X151.058 Y152.8 E34.1119199
Recv: ok N1785 P0 B3
Send: N1788 G1 X150.364 Y152.971 E34.134592
Recv: ok N1786 P0 B1
Send: N1789 G1 X149.656 Y152.971 E34.15687111
Recv: ok N1787 P0 B1
Send: N1790 G1 X148.936 Y152.796 E34.18028102
Recv: ok N1788 P0 B1
Send: N1791 G1 X148.304 Y152.465 E34.20282106
Recv: ok N1789 P0 B1
Send: N1792 G1 X147.767 Y151.99 E34.2254880
Recv: ok N1790 P0 B1
Send: N1793 G1 X147.361 Y151.408 E34.247994
Recv: ok N1791 P0 B1
Send: N1794 G1 X147.1 Y150.724 E34.27103111
Recv: ok N1792 P0 B1
Send: N1795 G1 X147.01 Y150.012 E34.2937185
Recv: ok N1793 P0 B2
Send: N1796 G1 X147.092 Y149.3 E34.31635104
Recv: ok N1794 P0 B1
Send: N1797 G1 X147.345 Y148.622 E34.33922111
Recv: ok N1795 P0 B1
Send: N1798 G1 X147.752 Y148.027 E34.362111
Recv: ok N1796 P0 B1
Send: N1799 G1 X148.289 Y147.548 E34.38473109
Recv: ok N1797 P0 B1
Send: N1800 G1 X148.928 Y147.21 E34.4075893
Recv: ok N1798 P0 B1
Send: N1801 G1 X149.628 Y147.034 E34.43038100
Recv: ok N1799 P0 B1
Send: N1802 G1 X150.348 Y147.029 E34.45313108
Recv: ok N1800 P0 B1
Send: N1803 G1 X151.051 Y147.199 E34.47599107
Recv: ok N1801 P0 B1
Send: N1804 G1 X151.685 Y147.528 E34.49855110
Recv: ok N1802 P0 B1
Send: N1805 M204 S2000104
Recv: ok N1803 P0 B1
Send: N1806 M205 X20 Y2026
Recv: ok N1804 P0 B1
Send: N1807 G0 F7200 X151.912 Y147.195117
Recv: ok N1805 P0 B2
Send: N1808 M204 S150099
Recv: ok N1806 P0 B3
Send: N1809 M205 X10 Y10*21

[Caballete007]

I uploaded another log file. 9/10
https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

[Caballete007]

Hi

The instructions that I follow for my Octolapse setup including a few things from your video and comments were from this video: https://youtu.be/CjOIxKxb3h8.
Maybe you saw it before.
There is something that I added following his instructions that I have not seen in other videos and comments and is this, in the script of my printer in Cura and to Snapshot command in the printer settings in Octolapse:
Change the snapshot command to ‘G4 P1’ in the printer profile. Add this to the layer change script in Simplify3D or the After layer change gcode in Slic3r. For Cura, it is more complicated:
A- Extensions - Post Processing - Modify G-code
B- Add a script - Search and replace
C- Then enter:
(;LAYER:).{1,}
G4 P1
Tick ‘Úse Regular Expressions

Under the video he wrote step by step the instructions and settings that we should use.

[FormerLurker]

I just sat down to look at the log you uploaded yesterday (plugin_octolapse.log), but noticed that logging seemed to be turned off :(

I hate to ask, but can you try it again, but this time make sure you use the full diagnostic live print debug profile? Something very small would suffice (a calibration cube or something like that).

Regarding the instructions, in the log I reviewed you were using the layer trigger, so the above instructions wouldn't apply. However, I do see the G4 P1 command. On my printer this would be ok (it would pause for 1MS. Not good.. not terrible :)

Maybe remove that gcode from your layer change script too, just in case. I'm not sure how your firmware is configured (and don't really know that much about it to be honest...)

If we can't figure anything out, I have one more idea: We could manually add M400 and M114 commands to your layer change script, run the gcode without Octolapse, and see if your printer has the same problems. I'll wait to see your logfile first, but if neither of these work I suppose we could try upgrading to the Alpha version of Octolapse (v0.4) and see if that helps. However, I'm reasonably sure it has something to do with the firmware, but I could be wrong.

[Caballete007]

I just sat down to look at the log you uploaded yesterday (plugin_octolapse.log), but noticed that logging seemed to be turned off :(

How I turn this on?

[FormerLurker]

Set your debug profile in Octolapse to 'Live Print - Full Diagnostic' (or whatever is the closest, I don't have an installed version of 0.3.4 in front of me). It was definitely turned on during the first log you uploaded.

[Caballete007]

2019-08-11 18:52:27,739 Print Start Detected. Command: M110 N0, Tags:set(['trigger:comm.start_print', 'source:job', 'trigger:comm.reset_line_numbers'])
2019-08-11 18:52:27,740 Print start detected, attempting to start timelapse.
2019-08-11 18:52:27,759 Printer event received:PrinterStateChanged.
2019-08-11 18:52:27,819 Printer event received:PrintStarted.
2019-08-11 18:52:28,073 Camera settings applied without error.
2019-08-11 18:52:28,075 Camera settings applied without error.
2019-08-11 18:52:28,092 Extruder Triggers - OnExtrudingStart:True, OnExtruding:True, OnPrimed:True, OnRetractingStart:None OnRetracting:None, OnPartiallyRetracted:False, OnRetracted:True, ONDetractingStart:False, OnDetracting:False, OnDetracted:False
2019-08-11 18:52:28,101 Creating Layer Trigger - TriggerHeight:0.4 (none = layer change), RequiresZHop:False
2019-08-11 18:52:28,102 Print Started - Timelapse Started.
2019-08-11 18:52:28,112 Queuing Command: Command Type:None, gcode:M110, cmd: M110 N0, tags: set(['trigger:comm.start_print', 'source:job', 'trigger:comm.reset_line_numbers'])
2019-08-11 18:52:28,113 Queuing Command: Command Type:None, gcode:M140, cmd: M140 S70, tags: set(['fileline:1', 'source:file', 'filepos:222'])
2019-08-11 18:52:28,116 Extruder Changed: E:0.0, Retraction:0 IsExtruding:False-False, IsExtrudingStart:False-False, IsPrimed:False-True, IsRetractingStart:False-False, IsRetracting:False-False, IsPartiallyRetracted:False-False, IsRetracted:False-False, IsDetractingStart:False-False, IsDetracting:False-False, IsDetracted:False-False
2019-08-11 18:52:28,132 Printer event received:PrinterStateChanged.
2019-08-11 18:52:28,145 Sent to printer: Command Type:None, gcode:M110, cmd: M110 N0, tags: set(['trigger:comm.start_print', 'source:job', 'trigger:comm.reset_line_numbers'])
2019-08-11 18:52:28,150 Sent to printer: Command Type:None, gcode:M140, cmd: M140 S70, tags: set(['fileline:1', 'source:file', 'filepos:222'])
2019-08-11 18:52:28,154 Received from printer: line:ok N0 P15 B3

2019-08-11 18:52:28,160 Queuing Command: Command Type:None, gcode:M105, cmd: M105, tags: set(['source:file', 'filepos:228', 'fileline:2'])
2019-08-11 18:52:28,168 Received from printer: line:ok N1 P15 B3

2019-08-11 18:52:28,170 Queuing Command: Command Type:None, gcode:M190, cmd: M190 S70, tags: set(['source:file', 'fileline:3', 'filepos:238'])
2019-08-11 18:52:28,176 Sent to printer: Command Type:None, gcode:M105, cmd: M105, tags: set(['source:file', 'filepos:228', 'fileline:2'])
2019-08-11 18:52:28,190 Sent to printer: Command Type:None, gcode:M190, cmd: M190 S70, tags: set(['source:file', 'fileline:3', 'filepos:238'])
2019-08-11 18:52:28,193 Received from printer: line:ok T:215.83 /215.00 B:64.35 /70.00 @:63 B@:127

2019-08-11 18:52:28,197 Queuing Command: Command Type:None, gcode:M104, cmd: M104 S215, tags: set(['source:file', 'fileline:4', 'filepos:249'])
2019-08-11 18:52:28,208 Sent to printer: Command Type:None, gcode:M104, cmd: M104 S215, tags: set(['source:file', 'fileline:4', 'filepos:249'])
2019-08-11 18:52:28,211 Received from printer: line: T:215.83 /215.00 B:64.35 /70.00 @:63 B@:127 W:?

2019-08-11 18:52:29,215 Received from printer: line: T:215.00 /215.00 B:64.52 /70.00 @:75 B@:127 W:?

2019-08-11 18:52:30,211 Received from printer: line:echo:busy: processing

2019-08-11 18:52:30,234 Received from printer: line: T:215.00 /215.00 B:64.68 /70.00 @:72 B@:127 W:?

2019-08-11 18:52:31,206 Received from printer: line: T:214.53 /215.00 B:64.84 /70.00 @:78 B@:127 W:?

2019-08-11 18:52:32,197 Received from printer: line:echo:busy: processing

2019-08-11 18:52:32,207 Received from printer: line: T:214.38 /215.00 B:65.00 /70.00 @:79 B@:127 W:?

2019-08-11 18:52:33,204 Received from printer: line: T:214.38 /215.00 B:65.16 /70.00 @:77 B@:127 W:?

2019-08-11 18:52:34,190 Received from printer: line:echo:busy: processing

2019-08-11 18:52:34,210 Received from printer: line: T:214.45 /215.00 B:65.32 /70.00 @:75 B@:127 W:?

2019-08-11 18:52:35,200 Received from printer: line: T:214.73 /215.00 B:65.48 /70.00 @:69 B@:127 W:?

2019-08-11 18:52:36,194 Received from printer: line:echo:busy: processing

2019-08-11 18:52:36,207 Received from printer: line: T:215.00 /215.00 B:65.64 /70.00 @:64 B@:127 W:?

2019-08-11 18:52:37,219 Received from printer: line: T:215.00 /215.00 B:65.80 /70.00 @:64 B@:127 W:?

2019-08-11 18:52:38,224 Received from printer: line:echo:busy: processing

2019-08-11 18:52:38,228 Received from printer: line: T:215.10 /215.00 B:65.93 /70.00 @:63 B@:127 W:?

2019-08-11 18:52:39,210 Received from printer: line: T:215.36 /215.00 B:66.07 /70.00 @:58 B@:127 W:?

2019-08-11 18:52:40,198 Received from printer: line:echo:busy: processing

2019-08-11 18:52:40,210 Received from printer: line: T:215.83 /215.00 B:66.19 /70.00 @:50 B@:127 W:?

2019-08-11 18:52:41,196 Received from printer: line: T:215.83 /215.00 B:66.33 /70.00 @:51 B@:127 W:?

2019-08-11 18:52:42,188 Received from printer: line:echo:busy: processing

2019-08-11 18:52:42,204 Received from printer: line: T:215.83 /215.00 B:66.46 /70.00 @:51 B@:127 W:?

2019-08-11 18:52:43,196 Received from printer: line: T:215.89 /215.00 B:66.62 /70.00 @:50 B@:127 W:?

2019-08-11 18:52:44,215 Received from printer: line:echo:busy: processing

2019-08-11 18:52:44,228 Received from printer: line: T:215.83 /215.00 B:66.78 /70.00 @:51 B@:127 W:?

2019-08-11 18:52:45,205 Received from printer: line: T:215.47 /215.00 B:66.94 /70.00 @:57 B@:127 W:?

2019-08-11 18:52:46,191 Received from printer: line:echo:busy: processing

2019-08-11 18:52:46,207 Received from printer: line: T:215.00 /215.00 B:67.10 /70.00 @:65 B@:127 W:?

2019-08-11 18:52:47,201 Received from printer: line: T:215.00 /215.00 B:67.26 /70.00 @:64 B@:127 W:?

2019-08-11 18:52:48,189 Received from printer: line:echo:busy: processing

2019-08-11 18:52:48,205 Received from printer: line: T:215.00 /215.00 B:67.42 /70.00 @:63 B@:127 W:?

2019-08-11 18:52:49,194 Received from printer: line: T:215.00 /215.00 B:67.58 /70.00 @:62 B@:127 W:?

2019-08-11 18:52:50,212 Received from printer: line:echo:busy: processing

2019-08-11 18:52:50,224 Received from printer: line: T:214.96 /215.00 B:67.74 /70.00 @:62 B@:127 W:?

2019-08-11 18:52:51,206 Received from printer: line: T:214.73 /215.00 B:67.90 /70.00 @:66 B@:127 W:?

2019-08-11 18:52:52,193 Received from printer: line:echo:busy: processing

2019-08-11 18:52:52,208 Received from printer: line: T:214.49 /215.00 B:68.06 /70.00 @:70 B@:127 W:?

2019-08-11 18:52:53,202 Received from printer: line: T:214.41 /215.00 B:68.23 /70.00 @:71 B@:127 W:?

2019-08-11 18:52:54,189 Received from printer: line:echo:busy: processing

2019-08-11 18:52:54,206 Received from printer: line: T:214.53 /215.00 B:68.39 /70.00 @:68 B@:127 W:?

2019-08-11 18:52:55,200 Received from printer: line: T:214.65 /215.00 B:68.55 /70.00 @:66 B@:127 W:?

2019-08-11 18:52:56,209 Received from printer: line:echo:busy: processing

2019-08-11 18:52:56,214 Received from printer: line: T:214.96 /215.00 B:68.71 /70.00 @:61 B@:127 W:?

2019-08-11 18:52:57,208 Received from printer: line: T:215.00 /215.00 B:68.84 /70.00 @:61 B@:127 W:?

2019-08-11 18:52:58,217 Received from printer: line:echo:busy: processing

2019-08-11 18:52:58,219 Received from printer: line: T:215.00 /215.00 B:69.02 /70.00 @:61 B@:127 W:9

2019-08-11 18:52:59,201 Received from printer: line: T:215.00 /215.00 B:69.14 /70.00 @:61 B@:127 W:8

2019-08-11 18:53:00,191 Received from printer: line:echo:busy: processing

2019-08-11 18:53:00,208 Received from printer: line: T:215.00 /215.00 B:69.27 /70.00 @:62 B@:127 W:7

2019-08-11 18:53:01,205 Received from printer: line: T:215.00 /215.00 B:69.37 /70.00 @:62 B@:127 W:6

2019-08-11 18:53:02,189 Received from printer: line:echo:busy: processing

2019-08-11 18:53:02,208 Received from printer: line: T:215.00 /215.00 B:69.53 /70.00 @:62 B@:115 W:5

2019-08-11 18:53:03,198 Received from printer: line: T:215.00 /215.00 B:69.68 /70.00 @:62 B@:82 W:4

2019-08-11 18:53:04,212 Received from printer: line:echo:busy: processing

2019-08-11 18:53:04,224 Received from printer: line: T:215.00 /215.00 B:69.73 /70.00 @:62 B@:100 W:3

2019-08-11 18:53:05,206 Received from printer: line: T:215.00 /215.00 B:69.84 /70.00 @:62 B@:72 W:2

2019-08-11 18:53:06,193 Received from printer: line:echo:busy: processing

2019-08-11 18:53:06,214 Received from printer: line: T:215.00 /215.00 B:69.84 /70.00 @:62 B@:97 W:1

2019-08-11 18:53:07,200 Received from printer: line: T:215.00 /215.00 B:69.97 /70.00 @:62 B@:49 W:0

2019-08-11 18:53:08,128 Received from printer: line:ok N3 P15 B2

2019-08-11 18:53:08,135 Queuing Command: Command Type:None, gcode:M113, cmd: M113 S2, tags: set(['trigger:comm.set_busy_protocol_interval'])
2019-08-11 18:53:08,163 Sent to printer: Command Type:None, gcode:M113, cmd: M113 S2, tags: set(['trigger:comm.set_busy_protocol_interval'])
2019-08-11 18:53:08,167 Received from printer: line:ok N4 P15 B3

2019-08-11 18:53:08,173 Queuing Command: Command Type:None, gcode:M105, cmd: M105, tags: set(['filepos:255', 'source:file', 'fileline:5'])
2019-08-11 18:53:08,186 Received from printer: line:wait

2019-08-11 18:53:08,214 Sent to printer: Command Type:None, gcode:M105, cmd: M105, tags: set(['filepos:255', 'source:file', 'fileline:5'])
2019-08-11 18:53:08,219 Queuing Command: Command Type:None, gcode:M109, cmd: M109 S215, tags: set(['source:file', 'fileline:6', 'filepos:266'])
2019-08-11 18:53:08,229 Sent to printer: Command Type:None, gcode:M109, cmd: M109 S215, tags: set(['source:file', 'fileline:6', 'filepos:266'])
2019-08-11 18:53:08,230 Received from printer: line:ok N5 P15 B3

2019-08-11 18:53:08,233 Queuing Command: Command Type:None, gcode:M82, cmd: M82, tags: set(['source:file', 'filepos:296', 'fileline:7'])
2019-08-11 18:53:08,234 Received M82 - Switching Extruder to Absolute Coordinates
2019-08-11 18:53:08,256 Received from printer: line:ok T:215.00 /215.00 B:69.99 /70.00 @:62 B@:54

2019-08-11 18:53:08,260 Queuing Command: Command Type:None, gcode:M201, cmd: M201 X500.00 Y500.00 Z100.00 E5000.00, tags: set(['fileline:8', 'source:file', 'filepos:367'])
2019-08-11 18:53:08,276 Sent to printer: Command Type:None, gcode:M82, cmd: M82, tags: set(['source:file', 'filepos:296', 'fileline:7'])
2019-08-11 18:53:08,284 Sent to printer: Command Type:None, gcode:M201, cmd: M201 X500.00 Y500.00 Z100.00 E5000.00, tags: set(['fileline:8', 'source:file', 'filepos:367'])
2019-08-11 18:53:08,290 Received from printer: line: T:215.00 /215.00 B:69.99 /70.00 @:62 B@:54 W:?

2019-08-11 18:53:09,235 Received from printer: line: T:215.00 /215.00 B:69.97 /70.00 @:62 B@:76 W:9

2019-08-11 18:53:10,230 Received from printer: line: T:215.00 /215.00 B:70.00 /70.00 @:62 B@:70 W:8

2019-08-11 18:53:10,237 Received from printer: line:echo:busy: processing

2019-08-11 18:53:11,229 Received from printer: line: T:215.00 /215.00 B:70.00 /70.00 @:62 B@:76 W:7

2019-08-11 18:53:12,231 Received from printer: line: T:215.00 /215.00 B:70.00 /70.00 @:62 B@:82 W:6

2019-08-11 18:53:12,251 Received from printer: line:echo:busy: processing

2019-08-11 18:53:13,233 Received from printer: line: T:215.00 /215.00 B:70.00 /70.00 @:62 B@:85 W:5

2019-08-11 18:53:14,233 Received from printer: line: T:215.00 /215.00 B:70.00 /70.00 @:62 B@:88 W:4

2019-08-11 18:53:14,245 Received from printer: line:echo:busy: processing

2019-08-11 18:53:15,218 Received from printer: line: T:215.00 /215.00 B:70.10 /70.00 @:62 B@:39 W:3

2019-08-11 18:53:16,235 Received from printer: line: T:215.00 /215.00 B:70.02 /70.00 @:62 B@:80 W:2

2019-08-11 18:53:16,248 Received from printer: line:echo:busy: processing

2019-08-11 18:53:17,230 Received from printer: line: T:215.00 /215.00 B:70.10 /70.00 @:62 B@:39 W:1

2019-08-11 18:53:18,231 Received from printer: line: T:215.00 /215.00 B:70.01 /70.00 @:62 B@:84 W:0

2019-08-11 18:53:18,244 Received from printer: line:ok N7 P15 B1

2019-08-11 18:53:18,255 Queuing Command: Command Type:None, gcode:M203, cmd: M203 X500.00 Y500.00 Z10.00 E50.00, tags: set(['filepos:431', 'source:file', 'fileline:9'])
2019-08-11 18:53:18,269 Sent to printer: Command Type:None, gcode:M203, cmd: M203 X500.00 Y500.00 Z10.00 E50.00, tags: set(['filepos:431', 'source:file', 'fileline:9'])
2019-08-11 18:53:18,277 Received from printer: line:ok N8 P15 B2

2019-08-11 18:53:18,289 Queuing Command: Command Type:None, gcode:M204, cmd: M204 P500.00 R1000.00 T500.00, tags: set(['source:file', 'fileline:10', 'filepos:503'])
2019-08-11 18:53:18,299 Sent to printer: Command Type:None, gcode:M204, cmd: M204 P500.00 R1000.00 T500.00, tags: set(['source:file', 'fileline:10', 'filepos:503'])
2019-08-11 18:53:18,314 Received from printer: line:ok N9 P15 B3

2019-08-11 18:53:18,316 Queuing Command: Command Type:None, gcode:M205, cmd: M205 X8.00 Y8.00 Z0.40 E5.00, tags: set(['source:file', 'fileline:11', 'filepos:545'])
2019-08-11 18:53:18,330 Sent to printer: Command Type:None, gcode:M205, cmd: M205 X8.00 Y8.00 Z0.40 E5.00, tags: set(['source:file', 'fileline:11', 'filepos:545'])
2019-08-11 18:53:18,334 Received from printer: line:wait

2019-08-11 18:53:18,345 Queuing Command: Command Type:None, gcode:M220, cmd: M220 S100, tags: set(['fileline:12', 'source:file', 'filepos:572'])
2019-08-11 18:53:18,357 Sent to printer: Command Type:None, gcode:M220, cmd: M220 S100, tags: set(['fileline:12', 'source:file', 'filepos:572'])
2019-08-11 18:53:18,372 Received from printer: line:ok N10 P15 B3

2019-08-11 18:53:18,377 Queuing Command: Command Type:None, gcode:M221, cmd: M221 S100, tags: set(['fileline:13', 'source:file', 'filepos:599'])
2019-08-11 18:53:18,390 Sent to printer: Command Type:None, gcode:M221, cmd: M221 S100, tags: set(['fileline:13', 'source:file', 'filepos:599'])
2019-08-11 18:53:18,392 Received from printer: line:ok N11 P15 B3

2019-08-11 18:53:18,411 Queuing Command: Command Type:None, gcode:M900, cmd: M900 K0, tags: set(['source:file', 'fileline:14', 'filepos:608'])
2019-08-11 18:53:18,422 Received from printer: line:ok N12 P15 B3

2019-08-11 18:53:18,424 Queuing Command: Command Type:None, gcode:G90, cmd: G90, tags: set(['source:file', 'fileline:15', 'filepos:613'])
2019-08-11 18:53:18,429 Sent to printer: Command Type:None, gcode:M900, cmd: M900 K0, tags: set(['source:file', 'fileline:14', 'filepos:608'])
2019-08-11 18:53:18,435 Received G90 - Switching to absolute x,y,z coordinates.
2019-08-11 18:53:18,453 Received from printer: line:ok N13 P15 B3

2019-08-11 18:53:18,456 Queuing Command: Command Type:None, gcode:G28, cmd: G28, tags: set(['source:file', 'fileline:16', 'filepos:624'])
2019-08-11 18:53:18,457 Received G28 -
2019-08-11 18:53:18,458 Sent to printer: Command Type:None, gcode:G90, cmd: G90, tags: set(['source:file', 'fileline:15', 'filepos:613'])
2019-08-11 18:53:18,471 Sent to printer: Command Type:None, gcode:G28, cmd: G28, tags: set(['source:file', 'fileline:16', 'filepos:624'])
2019-08-11 18:53:18,479 Received from printer: line:ok N14 P15 B3

2019-08-11 18:53:18,488 Queuing Command: Command Type:None, gcode:M420, cmd: M420 S1 Z2, tags: set(['source:file', 'fileline:17', 'filepos:681'])
2019-08-11 18:53:18,492 A position altering command has been detected. Fetching and updating position. Position Command: M420 S1 Z2
2019-08-11 18:53:18,494 Octolapse is requesting a position.
2019-08-11 18:53:18,494 Printer event received:Home.
2019-08-11 18:53:18,498 homing to payload:None.
2019-08-11 18:53:18,506 Queuing Command: Command Type:None, gcode:M400, cmd: M400, tags: set(['trigger:printer.commands', 'plugin:octolapse', 'source:plugin', 'snapshot_gcode'])
2019-08-11 18:53:18,508 Received from printer: line:echo:Unknown command: "M900 K0"

[FormerLurker]

Hmm.. your firmware doesn't understand M900. Are you sure it's marlin, or did I misunderstand you :) In any case, take that out.

[Caballete007]

Sorry for asking but how i take that out?
From Cura Start Gcode?

[FormerLurker]

Yes, if M900 is in there, rip it out :)

[Caballete007]

I will do and try again avfull diagnostic live print.

[FormerLurker]

Thank you so much. Sorry for all this printing/logging I'm putting you through! What I really need is a CR-10S. I'm helping 3 different folks (including you) with this printer, and there are 3 totally different and seemingly unrelated problems. How?! lol

[Caballete007]

I appreciate all what you're doing for me thanks a lot.
Im learning and having fun too.

[Caballete007]

2019-08-11 18:58:22,509 Queuing Command: Command Type:None, gcode:G1, cmd: G1 X148.795 Y153.174 E39.01659, tags: set(['fileline:1923', 'source:file', 'filepos:54138'])
2019-08-11 18:58:22,511 Received G1
2019-08-11 18:58:22,514 Position Change - G1 X148.795 Y153.174 E39.01659 - Absolute Move From(X:149.609,Y:153.371,Z:2.4,E:68.99013) - To(X:148.795,Y:153.174,Z:2.4,E:69.01659)
2019-08-11 18:58:22,516 Triggered E:0.02646, Retraction:0 IsExtruding:True-True, IsExtrudingStart:False-None, IsPrimed:False-None, IsRetracting:False-None, IsRetracted:False-None, IsDetracting:False-None, IsTriggered:True
2019-08-11 18:58:22,520 Sent to printer: Command Type:None, gcode:G1, cmd: G1 X148.795 Y153.174 E39.01659, tags: set(['fileline:1923', 'source:file', 'filepos:54138'])
2019-08-11 18:58:22,556 Received from printer: line:ok N2027 P0 B0

2019-08-11 18:58:22,561 Queuing Command: Command Type:None, gcode:G1, cmd: G1 X148.072 Y152.795 E39.04239, tags: set(['source:file', 'filepos:54170', 'fileline:1924'])
2019-08-11 18:58:22,564 Received G1
2019-08-11 18:58:22,565 Position Change - G1 X148.072 Y152.795 E39.04239 - Absolute Move From(X:148.795,Y:153.174,Z:2.4,E:69.01659) - To(X:148.072,Y:152.795,Z:2.4,E:69.04239)
2019-08-11 18:58:22,565 Triggered E:0.0258, Retraction:0 IsExtruding:True-True, IsExtrudingStart:False-None, IsPrimed:False-None, IsRetracting:False-None, IsRetracted:False-None, IsDetracting:False-None, IsTriggered:True
2019-08-11 18:58:22,566 Sent to printer: Command Type:None, gcode:G1, cmd: G1 X148.072 Y152.795 E39.04239, tags: set(['source:file', 'filepos:54170', 'fileline:1924'])
2019-08-11 18:58:22,605 Received from printer: line:ok N2028 P0 B0

2019-08-11 18:58:22,606 Queuing Command: Command Type:None, gcode:G1, cmd: G1 X147.476 Y152.266 E39.06757, tags: set(['source:file', 'fileline:1925', 'filepos:54202'])
2019-08-11 18:58:22,609 Received G1
2019-08-11 18:58:22,612 Position Change - G1 X147.476 Y152.266 E39.06757 - Absolute Move From(X:148.072,Y:152.795,Z:2.4,E:69.04239) - To(X:147.476,Y:152.266,Z:2.4,E:69.06757)
2019-08-11 18:58:22,613 Triggered E:0.02518, Retraction:0 IsExtruding:True-True, IsExtrudingStart:False-None, IsPrimed:False-None, IsRetracting:False-None, IsRetracted:False-None, IsDetracting:False-None, IsTriggered:True
2019-08-11 18:58:22,614 Sent to printer: Command Type:None, gcode:G1, cmd: G1 X147.476 Y152.266 E39.06757, tags: set(['source:file', 'fileline:1925', 'filepos:54202'])
2019-08-11 18:58:22,664 Received from printer: line:ok N2029 P0 B0

2019-08-11 18:58:22,669 Queuing Command: Command Type:None, gcode:G1, cmd: G1 X147.002 Y151.59 E39.09365, tags: set(['source:file', 'fileline:1926', 'filepos:54233'])
2019-08-11 18:58:22,671 Received G1
2019-08-11 18:58:22,672 Position Change - G1 X147.002 Y151.59 E39.09365 - Absolute Move From(X:147.476,Y:152.266,Z:2.4,E:69.06757) - To(X:147.002,Y:151.59,Z:2.4,E:69.09365)
2019-08-11 18:58:22,674 Triggered E:0.02608, Retraction:0 IsExtruding:True-True, IsExtrudingStart:False-None, IsPrimed:False-None, IsRetracting:False-None, IsRetracted:False-None, IsDetracting:False-None, IsTriggered:True
2019-08-11 18:58:22,678 Sent to printer: Command Type:None, gcode:G1, cmd: G1 X147.002 Y151.59 E39.09365, tags: set(['source:file', 'fileline:1926', 'filepos:54233'])
2019-08-11 18:58:22,719 Received from printer: line:ok N2030 P0 B0

2019-08-11 18:58:22,722 Queuing Command: Command Type:None, gcode:G1, cmd: G1 X146.729 Y150.878 E39.11775, tags: set(['source:file', 'fileline:1927', 'filepos:54265'])
2019-08-11 18:58:22,724 Received G1
2019-08-11 18:58:22,724 Position Change - G1 X146.729 Y150.878 E39.11775 - Absolute Move From(X:147.002,Y:151.59,Z:2.4,E:69.09365) - To(X:146.729,Y:150.878,Z:2.4,E:69.11775)
2019-08-11 18:58:22,725 Triggered E:0.0241, Retraction:0 IsExtruding:True-True, IsExtrudingStart:False-None, IsPrimed:False-None, IsRetracting:False-None, IsRetracted:False-None, IsDetracting:False-None, IsTriggered:True
2019-08-11 18:58:22,726 Sent to printer: Command Type:None, gcode:G1, cmd: G1 X146.729 Y150.878 E39.11775, tags: set(['source:file', 'fileline:1927', 'filepos:54265'])
2019-08-11 18:58:22,762 Received from printer: line:ok N2031 P0 B0

[FormerLurker]

Can you upload the whole plugin_octolapse.log file to your github repo please? It does look like logging is working now!

[Caballete007]

Done

[FormerLurker]

I'm seeing quite a few resend requests, but it looks like it recovers pretty quickly. You might have some usb cable issues (not sure if that is what's causing your issue though).

If you have some time, can you take a video of what the printer is doing when it stalls? I think that might help too.

FYI, I don't have a lot more time today to work on this, but I'll try to squeeze in as much as possible. I know how popular the CR-10S is, so I really want to get it to work. Maybe creality would send me one :)

[Caballete007]

Thats a good idea Lol! I will upload a video. Thank you

[Caballete007]

Done.
https://github.com/Caballete007/In-test-mode-works-fine-but-not-when-printing-369

[FormerLurker]

OH man, it happens AFTER the extruder has returned! I re-read your initial issue, and you explained this, but I just didn't understand it. I'll re-review the logs later (probably tomorrow) with this in mind. That was extremely useful, thanks!

[Caballete007]

Ok. Appreciate all you have done. Have a good night!

[Caballete007]

Hi
I hope you doing good. Please when you have time let me know when we can fix this. Thank you. Jeff

[FormerLurker]

Hey, I've reviewed your logs so many times I feel like I'm familiar with the print! I was SO SO confused as to what was happening (the last time I took a look was this past weekned), but a fresh set of eyes has yielded the solution I think.

I see this gcode in your snapshot commands: G1 E5.00000 F4.800 Look at the feedrate on that command. It is incredibly low (4.8 millimeters per MINUTE). In theory this should take 62.5 seconds to complete, but there is probably some minimum speed that your steppers can handle. (prob somewhere around 30mm/min), so it is taking around 10 seconds to complete. From the logs I can't tell how long that command takes to run, but after many more gcodes are sent, I can see the printer eventually responds with a busy message because the gcode command queue is full.

Take a look at your slicer settings and change your deretraction speed (set it to the retraction speed probably). That should fix it.

The next version of octolapse sucks the slicer settings right out of your gcode file, hopefully elliminating this kind of issue. I'm editing the release notes for V0.4rc1dev0 right now, which will be the first new release in over 9 months. With any luck (and I doubt I'll have any), there will be few issues and the production release will be soon to follow!

Let me know if that works (I suspect it will)!

[Caballete007]

Hi my friend
I will try this in the weekend and let you know. Just install a BiTouch and I was setting everything up.
Appreciate your fast response. I let you know when I try your fix. Have a great weekend!

[Caballete007]

I was looking to my settings in Cura and I have the retraction speed set to 45mm/s. What setting you want me to try? Thank you.

I couldn't wait! LOL!!!!

[FormerLurker]

HA! I get that way sometimes too, lol.

So, your Cura settings are probably fine, but your Octolapse settings are not. I suspect a typo. Make sure you 'Retraction Prime Speed' within the Octolapse printer profile is set like so:

Let me know what was there originally please. I will be here most of the day in case you have more problems!

[Caballete007]

Hi
I just took a look at that setting it was 1.8 I don’t know where I got that number. I think I never found that setting in Cura or maybe Cura name it differently and I mess things up. I’m going to try with 45 and let you know. Thanks again.

[FormerLurker]

Ohhhh boy, I'm 99.9% sure changing that will solve the problem! So glad. I'm awaiting your response with great anticipation!

[Caballete007]

Hi
LOL. Now it won't print. Out of luck .

8:23octoprint.log
8:23plugin_octolapse.log

[FormerLurker]

While I look at the log, can you elaborate on what you mean when you say "it won't print?" Was there an error message? Is it just that nothing happens when you click print? Something else?

[FormerLurker]

I see your printer is still complaining about the M400 K0 command. Remove that since your firmware or printer does not support linear advance. I don't think that caused your issue though.

However, it looks like something happened during your home command. Your printer is homing (and Octolapse requests a position when this process completes). It looks to have tried to home for over 30 seconds, then your printer threw this error:

2019-08-23 21:34:37,580 Received from printer: line:Not SD printing
2019-08-23 21:34:37,837 Received from printer: line:  *******RTS_HandleData********
2019-08-23 21:34:37,844 Received from printer: line:
2019-08-23 21:34:37,849 Received from printer: line:
2019-08-23 21:34:37,870 Received from printer: line:   recdat.data[0] ==241
2019-08-23 21:34:37,876 Received from printer: line:   recdat.addr ==4104== Checkkey==3
2019-08-23 21:34:37,879 Received from printer: line:   stopping ==
2019-08-23 21:34:37,884 Received from printer: line://action:cancel

I saw this same error in an earlier log you sent me. Looks like some other problem is going on with your firmware/usb/serial communication.

For now try going to your printer profile and disabling Position Auto-Detection and see if that helps.

[Caballete007]

Sorry I didn't explain my self. When gets the PLA temp the extruder moves to the center left of the bed and stops there. Position Auto-Detection is in Octolapse?

[FormerLurker]

Yes, that looks correct!

[Caballete007]

Good Morning. Is doing the same as yesterday. I found an error check the picture, I fix it adding .1 to the 45 (45.1). Have a great day!

8:24octoprint.log
8:24plugin_octolapse.log

[FormerLurker]

Just ignore that. There is an option within the snapshot profile settings called Feature Detection that works best when all slicer speeds are unique, but if you are not using it (layer change high quality) you will be fine. That has been removed from the next version because people are always confused by those messages.

[Caballete007]

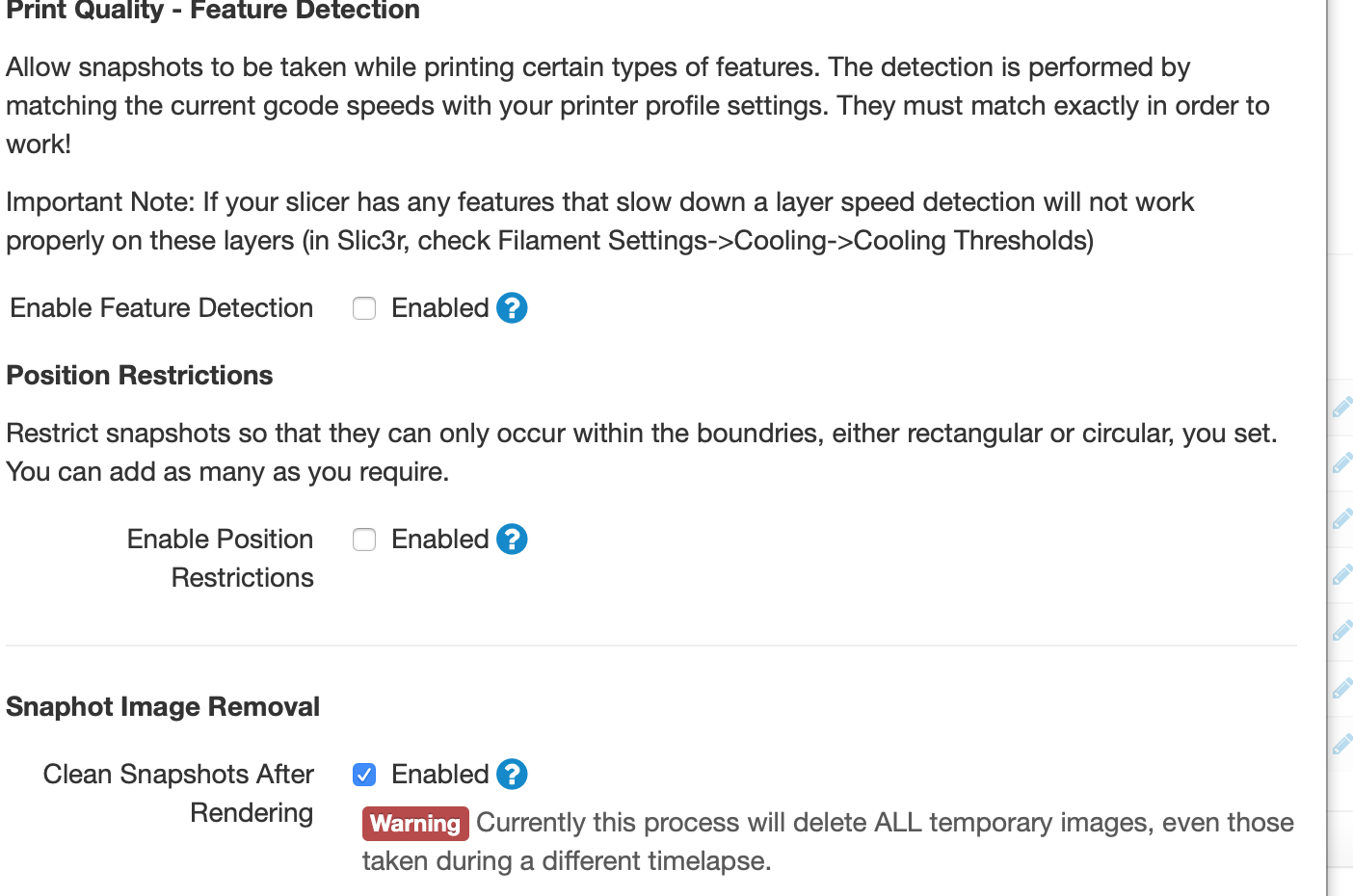

Im sending a few pics of my configuration. The setting that you mention is disable do you want me to enable it?

[Caballete007]

i cancel the printer in octolapse and i have to turn off the printer and disconnect the pi to make it work. It won't stop and go to the printer main menu.

[FormerLurker]

@Caballete007,

No, do not enable feature detection.

I am looking through your log and see that your printer is sending the following message over and over at a pretty high rate of speed:

RTSUpdate Waitway1

The majority of the log is filled with this message. I have never seen it before and don't know what it means. I searched through the marlin github repository and can't find this message even within the source code! Also, you mention you are using Marlin B7 firmware. I'm guessing that is some kind of Creality3d fork of Marlin? I can't find any source code for this, and am unable to figure out what that message means.

It could be that M400 just isn't supported, but it was sort of working before!

I'm really confused. Maybe if I can find the firmware source code I could get to the bottom of this. Is is possible that some other plugin is creating a conflict? It wouldn't hurt to disable all other plugins and see if the problem remains.

[Caballete007]

All the plugins are disabled. If something else comes to your mind let me know. Im going to play with this a bit more, if something else comes to your mind let me know. Thanks a lot my friend

[FormerLurker]

Of course I will! I'd really like to get this working for you. We could try the beta version if you want. Im heading out for about 5 hours, but could help you get that working if you are interested.

[Caballete007]

Ok. Just let me know. Have a great day. Im very thankful of all your help.

[FormerLurker]

If you want to get a head start, take a look at this post: https://www.patreon.com/posts/new-development-29363149

In step one, use this URL instead of the one listed there: https://github.com/FormerLurker/Octolapse/archive/devel.zip

By the way, I'm glad to help!

[Caballete007]

Hey
I haven't forgot you. Yes I will try that version. I let you know after the installation. Thanks again.

[FormerLurker]

@Caballete007, any update about your issue? I'm marking it 'Waiting for Response', and will consider it closed if I don't hear back from you. Thank you for posting your issue, and enjoy Octolapse!

[Caballete007]

HiI have not work with it yet. I had a surgery lately and still in recovery. Please don’t close this yet. I will get in touch with you as soon I feel better. Thank you. Jeffrey

Sent from Yahoo Mail for iPhone

On Monday, October 7, 2019, 12:16 PM, FormerLurker [e-mail] wrote:

@Caballete007, any update about your issue? I'm marking it 'Waiting for Response', and will consider it closed if I don't hear back from you. Thank you for posting your issue, and enjoy Octolapse!

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub, or mute the thread.

[FormerLurker]

@Caballete007, no problem, and I hope your recuperation is speedy and that your recovery is 100%! I'm looking forward to hearing back from you!

[Caballete007]

Thanks 🙏

Sent from Yahoo Mail for iPhone

On Monday, October 7, 2019, 12:46 PM, FormerLurker [e-mail] wrote:

@Caballete007, no problem, and I hope your recuperation is speedy and that your recovery is 100%! I'm looking forward to hearing back from you!

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub, or mute the thread.

[FormerLurker]

Hey, how is it going? I hope your recuperation is going well.

[FormerLurker]

I believe this issue must be resolved, so I'm going to go ahead and close it. Feel free to post a new one at any time, and thanks for your contributions!
