Nswag: SwaggerUi3: Execute button not working if parameter is IFormFile

[ptr1120]

Hello,

when using an IFormFile parameter on an operation as a parameter (FileUpload) the "Execute" button in swagger UI3 is not working. I can see no error on the browser console. The Filepicker is working as expected but clicking on Execute makes no operation.
I am using AspCore 2.2., NSwag 12.3.1, OpenApi 3.0.
Controller:

[Route("test")]
[ApiController]
public class TestController : ControllerBase
{
    [HttpPost, Route("upload")]
    public IActionResult Upload([SwaggerFile]IFormFile file)
    {
        return Ok();
    }
}

Openapi spec

 "/test/upload": {
      "post": {
        "tags": [
          "Test"
        ],
        "operationId": "Test_Upload",
        "parameters": [
          {
            "type": "file",
            "name": "file",
            "in": "formData",
            "schema": {
              "type": "string",
              "format": "binary",
              "nullable": true
            },
            "nullable": true
          }
        ],
        "responses": {
          "200": {
            "description": "",
            "content": {
              "application/octet-stream": {
                "schema": {
                  "type": "string",
                  "format": "binary"
                }
              }
            }
          }
        }
      }
    }
  },

Any ideas?

Thank you and best regards,
Peter

[dbartumeu]

I'm having the same issue

[RicoSuter]

Maybe a swagger ui 3 problem? Is the spec correct?

[dbartumeu]

No the problem is the specification changed.

In OpenApi 2 this is the definition of a file upload:

/api/Upload/excel:
    post:
      tags:
        - Upload
      operationId: Upload_Import
      parameters:
        - type: file
          name: file
          in: formData
          schema:
            type: string
            format: binary
            nullable: true
          nullable: true
      responses:
        '200':
          description: ''
          content:
            application/octet-stream:
              schema:
                type: string
                format: binary

but this is the definition in OpenApi 3:

  /api/Upload/excel:
    post:
      tags:
        - Upload
      operationId: Upload_Import
      requestBody:
        content:
          multipart/form-data:
            schema:
              type: object
              properties:
                file:
                  type: string
                  format: binary
      responses:
        '200':
          description: ''
          content:
            application/octet-stream:
              schema:
                type: string
                format: binary

[dbartumeu]

This is what is being genereted right now:

And this is what needs to be generated

[GeorgDangl]

Is there any news on this issue? I've just encountered it after upgrading to NSwag v13, so I'd appreciate any workarounds😊

[GeorgDangl]

The UI can be fixed with the following post process:

foreach (var operation in x.Operations)
{
    var fileParameters = operation.Operation.Parameters.Where(p => p.Type == NJsonSchema.JsonObjectType.File).ToList();
    if (fileParameters.Any())
    {
        operation.Operation.RequestBody = new OpenApiRequestBody();
        var requestBodyContent = new OpenApiMediaType();
        requestBodyContent.Schema = new NJsonSchema.JsonSchema();
        requestBodyContent.Schema.Type = NJsonSchema.JsonObjectType.Object;
        foreach (var fileParameter in fileParameters)
        {
            requestBodyContent.Schema.Properties.Add(fileParameter.Name, new NJsonSchema.JsonSchemaProperty
            {
                Type = NJsonSchema.JsonObjectType.String,
                Format = "binary",
                Description = fileParameter.Description
            });
            operation.Operation.Parameters.Remove(fileParameter);
        }
        operation.Operation.RequestBody.Content.Add("multipart/form-data", requestBodyContent);
    }
}

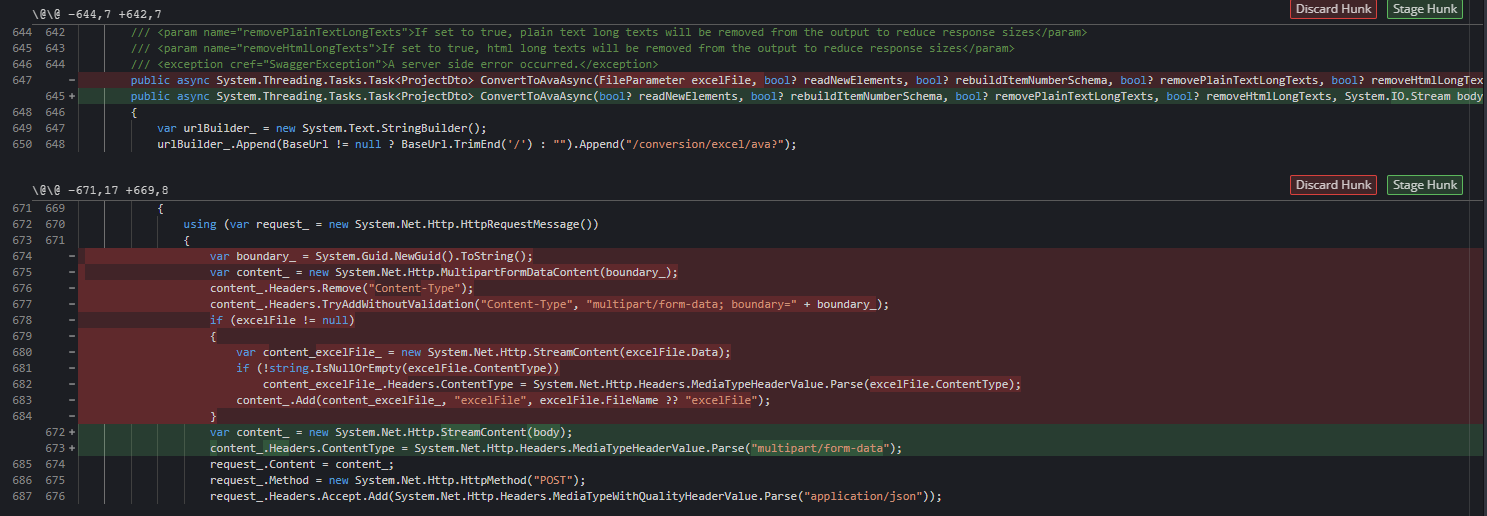

However, this fails when C# code is generated. First, it replaces the named FileParameter with a Stream body argument. Also, the generated client doesn't send the content-type boundary, so it can not be parsed as an IFormFile in the backend.

@RicoSuter, do you have any ideas?

[RicoSuter]

@GeorgDangl did you switch from Swagger 2.0 to OpenAPI 3.0?

[GeorgDangl]

Yeah, I did initially. But for now, I switched back again to Swagger 2.0.

I can confirm the findings of @dbartumeu, file parameters can only be described in the request body in OpenAPI 3.0, no longer as parameters with type file.
Applying the post process transformation I described above solved the problem, but the C# generator then produced code that did not include the request boundary in the multipart body.

So all in all, I decided to switch back to Swagger 2.0. I've found it to be much more stable with other generators as well and I don't yet have the requirement to support OpenAPI 3.0. I've got an app that produces clients for C#, TypeScript, JavaScript, Java, PHP and Python and everything seems to work fine with Swagger 2.0 for now.

[SamJongenelen]

Can confirm, pretty annoying. Workaround for me is indeed using .UseSwaggerDocument() instead of .UseOpenApiDocument() .

edit: really can't use the workaround, as OAuth2 starts failing when I use Swagger2.0

Edit2: the workaround with custom post processor works

[srudin]

Seems like the new release 13.6.0 has broken something. I was able to get the file upload working with the workaround posted above by @GeorgDangl but after upgrading from 13.5.0 to 13.6.0 it no longer works. I decided to stay with the olde version for now.

Having said that I admit that I have no idea whether the file upload also works with code generated from the specification (of either version). There is another issue around this (https://github.com/RicoSuter/NSwag/issues/2673) and I feel it has not been resolved yet. It would be nice to get a proper solution on this soon - are there any plans on that @RicoSuter ?

[LennartKoot]

For version 13.6 I found a new workaround. Using the [FromForm] attribute the generated spec just needs a small adjustment in post process.

public class FormDataModel {
   public IFormFile UploadFile {get; set; }
}

[HttpPost]
public IActionResult Upload([FromForm]FormDataModel form) {
   // Do something
}

The generated spec will be

/Upload
  post:
    operationId: Upload
    requestBody:
      content:
        multipart/form-data:
          schema:
            properties:
              UploadFile:
                type: string
                format: binary

The only thing missing is type: object directly underneath schema.
I don't know why the previous mentioned workaround doesn't work anymore, as it seems to also set the schema type to NJsonSchema.JsonObjectType.Object. But using below code at post process in combination with [FromForm] does produce a correct spec.

foreach (var operation in x.Operations)
{
    var content = operation.Operation.RequestBody?.Content;
    if (content != null && content.TryGetValue("multipart/form-data", out var schema) {
        schema.Schema.Type = NJsonSchema.JsonObjectType.Object;
    }
}

And this should produce:

/Upload
  post:
    operationId: Upload
    requestBody:
      content:
        multipart/form-data:
          schema:
            type: object        <- This was missing
            properties:
              UploadFile:
                type: string
                format: binary

[emmanuelmathot]

Same issue for me with a simple [Fromform] object and binding variables to property. The workaround of @LennartKoot worked for me.
