Nlog: Appsettings layout render not work in .NET Core 2.2 and IIS in process hosting

[McMlok]

Hello,

we get exception when we run NLog in .NET Core 2.2 and inprocess hosting in IIS.

Exception:
Error Error parsing layout appsettings will be ignored. Exception: System.Reflection.TargetInvocationException: Exception has been thrown by the target of an invocation. ---> System.IO.FileNotFoundException: The configuration file 'appsettings.json' was not found and is not optional. The physical path is 'c:\windows\system32\inetsrv\appsettings.json'.

NLog version: 4.5.11
NLog.Web.AspNetCore version: 4.7.1

Platform: .NET Core 2.2

Current NLog config (xml or C#, if relevant)

<nlog>
  <targets>
        <target xsi:type="Mail" name="Errors"
                subject="Unhandled Error"
                body="Timestamp: ${longdate:universalTime=true}${newline}Message: ${message}${newline}${appsettings:name=aplicationName}"
                to="..."
                from="..."
                smtpServer=".."
                smtpPort="25"/>
  </targets>
</nlog>

• What is the current result?
  Target is completly ignored
• What is the expected result?
  Target works
• Are there any workarounds? yes/no
  Yes, host app out of IIS process, or set values directly in nlog.config

[McMlok]

Full Stack:
2019-02-01 09:42:02.1408 Error Error parsing layout appsettings will be ignored. Exception:

System.Reflection.TargetInvocationException: Exception has been thrown by the target of an invocation. ---> System.IO.FileNotFoundException: The configuration file 'appsettings.json' was not found and is not optional. The physical path is 'c:\windows\system32\inetsrv\appsettings.json'.
   at Microsoft.Extensions.Configuration.FileConfigurationProvider.Load(Boolean reload)
   at Microsoft.Extensions.Configuration.FileConfigurationProvider.Load()
   at Microsoft.Extensions.Configuration.ConfigurationRoot..ctor(IList`1 providers)
   at Microsoft.Extensions.Configuration.ConfigurationBuilder.Build()
   at NLog.Appsettings.Standard.AppSettingsLayoutRenderer..ctor()
   --- End of inner exception stack trace ---
   at System.RuntimeTypeHandle.CreateInstance(RuntimeType type, Boolean publicOnly, Boolean wrapExceptions, Boolean& canBeCached, RuntimeMethodHandleInternal& ctor)
   at System.RuntimeType.CreateInstanceSlow(Boolean publicOnly, Boolean wrapExceptions, Boolean skipCheckThis, Boolean fillCache)
   at System.Activator.CreateInstance(Type type, Boolean nonPublic, Boolean wrapExceptions)
   at NLog.Internal.FactoryHelper.CreateInstance(Type t)
   at NLog.Config.Factory`2.TryCreateInstance(String itemName, TBaseType& result)
   at NLog.Config.LayoutRendererFactory.TryCreateInstance(String itemName, LayoutRenderer& result)
   at NLog.Config.Factory`2.CreateInstance(String name)
   at NLog.Layouts.LayoutParser.GetLayoutRenderer(ConfigurationItemFactory configurationItemFactory, String name)

[snakefoot]

Issue you might have with custom layout-renders should probably be reported to the correct owner:

https://github.com/linmasaki/NLog.Appsettings.Standard

But I can recommend that you stop using ${appsettings}, but instead upgrade to NLog.Web.AspNetCore ver. 4.8.0 and use the ${configsetting}:

https://github.com/NLog/NLog/wiki/ConfigSetting-Layout-Renderer

[Oskar987]

@snakefoot I tried to use ${configsetting} with the right version of packages, but it doesn't work. Instead of log files in the correct place, files were created in the project folder.

appsettings.json

{
  "Path": "C:\\logs",
}

nlog.config

<target name="fileLog" xsi:type="File"
            fileName="${configsetting:name=Path}${shortdate}.log"
            encoding="utf-8"
            layout="[${longdate}][${machinename}][${level}] ${message} ${exception}"  />

[snakefoot]

How do you register the loaded IConfiguration? Do you call UseNLog or call AddNLog with IConfiguration parameter?

[Oskar987]

In program.cs:
```c#
public static void Main(string[] args)
{
var logger = NLogBuilder.ConfigureNLog("nlog.config").GetCurrentClassLogger();

```c#
public static IWebHostBuilder BuildWebHost(string[] args) =>
            WebHost.CreateDefaultBuilder(args)
                .UseStartup<Startup>()
                .UseUrls("-----------")
                .ConfigureLogging(logging =>
                {
                    logging.ClearProviders();
                    logging.SetMinimumLevel(LogLevel.Trace);
                }).UseNLog();

[Oskar987]

How do you register the loaded IConfiguration? Do you call UseNLog or call AddNLog with IConfiguration parameter?

Can you provide a link with an example of how to call UseNLog with IConfiguration parameter?

[304NotModified]

https://github.com/NLog/NLog.Extensions.Logging/blob/f009ec166256707f6887e65536d9d63f14894bbb/examples/NetCore2/ConsoleExample/Program.cs#L47-L58

```c#
var config = new ConfigurationBuilder()
.SetBasePath(System.IO.Directory.GetCurrentDirectory())
.AddJsonFile("appsettings.json", optional: true, reloadOnChange: true)
.Build();

        // configure Logging with NLog
        services.AddLogging(loggingBuilder =>
        {
            loggingBuilder.ClearProviders();
            loggingBuilder.SetMinimumLevel(Microsoft.Extensions.Logging.LogLevel.Trace);
            loggingBuilder.AddNLog(config);
        });

```

[Oskar987]

it doesn't help me((

screenshot

```c#
var builder = new ConfigurationBuilder()
.SetBasePath(env.ContentRootPath)
.AddJsonFile("appsettings.json", optional: false, reloadOnChange: true)
.AddJsonFile($"appsettings.{env.EnvironmentName}.json", optional: true)
.AddEnvironmentVariables();
Configuration = builder.Build();

```c#
services.AddLogging(loggingBuilder =>
            {
                loggingBuilder.ClearProviders();
                loggingBuilder.SetMinimumLevel(Microsoft.Extensions.Logging.LogLevel.Trace);
                loggingBuilder.AddNLog(Configuration);
            });`

[snakefoot]

It is only AddNLog that requires the parameter. UseNLog expects that WebHost.CreateDefaultBuilder has loaded the IConfiguration so it is available. Guess you have to debug the code and ensure the lookups done by UseNLog are successful.

[snakefoot]

Try to enable the NLog InternalLogger and see if there are warnings or errors while loading the configuration.

[snakefoot]

Think some fixes are needed in the helper methods for NLog.Web.AspNetCore so they also register the config-items in NLog.Extension.Logging.dll

[304NotModified]

I tested this locally in IIS express, and it works for me. @Oskar987 could you please try the same code example in IIS express? And maybe after that in IIS.

update you need probably some config/package changes. This will show the full set-up, but see also next post.

• branch "configsetting-test" (https://github.com/NLog/NLog.Web/tree/configsetting-test) (https://github.com/NLog/NLog.Web/commit/cebb003a43866b5a4598e0d4a7daa5e2eea58d05)
• project ASP.NET Core 2 - VS2017

• nlog.config

  <?xml version="1.0" encoding="utf-8" ?>
  <nlog xmlns="http://www.nlog-project.org/schemas/NLog.xsd"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      autoReload="true"
      throwConfigExceptions="true"
      internalLogLevel="info"
      internalLogFile="c:\temp\internal-nlog-AspNetCore2.txt">

  <extensions>
  <add assembly="NLog.Extensions.Logging"/>
  </extensions>

  <!-- the targets to write to -->
  <targets>
      <!-- write logs to file  -->
      <target xsi:type="File" name="allfile" fileName="c:\temp\mode-${configsetting:mode}.log"
              layout="${longdate}|${event-properties:item=EventId_Id:whenEmpty=0}|${uppercase:${level}}|${logger}|${message} ${exception:format=tostring}" />
  </targets>

  <!-- rules to map from logger name to target -->
  <rules>
      <!--All logs, including from Microsoft-->
      <logger name="*" minlevel="Trace" writeTo="allfile" />

  </rules>
  </nlog>


• appsettings.config

  {
      "Logging": {
          "IncludeScopes": false,
          "LogLevel": {
              "Default": "Trace",
              "Microsoft": "Information"
          }
      },
      "mode": "test"
  }


• program.cs

  ```c#
  using System;
  using Microsoft.AspNetCore;
  using Microsoft.AspNetCore.Hosting;
  using Microsoft.Extensions.Configuration;
  using Microsoft.Extensions.Logging;
  using NLog.Web;

  namespace NLog.Web.AspNetCore2.Example
  {
  public static class Program
  {
  public static void Main(string[] args)
  {
  var logger = NLog.Web.NLogBuilder.ConfigureNLog("nlog.config").GetCurrentClassLogger();
  try
  {
  logger.Debug("init main");
  BuildWebHost(args).Build().Run();
  }
  catch (Exception exception)
  {
  //NLog: catch setup errors
  logger.Error(exception, "Stopped program because of exception");
  throw;
  }
  finally
  {
  // Ensure to flush and stop internal timers/threads before application-exit (Avoid segmentation fault on Linux)
  NLog.LogManager.Shutdown();
  }
  }

      public static IWebHostBuilder BuildWebHost(string[] args) =>
          WebHost.CreateDefaultBuilder(args)
              .UseStartup<Startup>()
              .ConfigureLogging(logging =>
              {
                  logging.ClearProviders();
                  logging.SetMinimumLevel(Microsoft.Extensions.Logging.LogLevel.Trace);
              })
              .UseNLog();  // NLog: Setup NLog for Dependency injection
  }


  }

  packages: (csproj)

  ```xml
  <ItemGroup>
      <PackageReference Include="Microsoft.AspNetCore.App" />
      <PackageReference Include="NLog.Extensions.Logging" Version="1.4.0" />
      <PackageReference Include="NLog.Web.AspNetCore" Version="4.8.0" />
      <PackageReference Include="NLog" Version="4.5.11" />
  </ItemGroup>

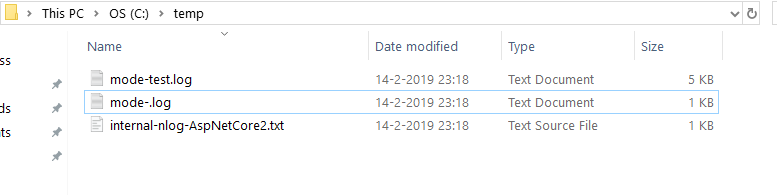

files:

it makes in the very first start "mode-.log" but after that everything get logged in "mode-test.log"

[304NotModified]

OK I think I found the problem

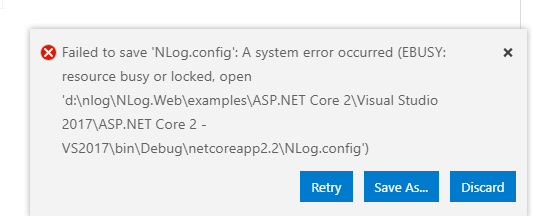

• for some reasons VS 2017 won't always (but sometimes it does) update my nlog.config in bin folder (e.g. bin\Debug\netcoreapp2.2), so be warned.

• you need this:

  1: in nlog.config

  <extensions>
      <add assembly="NLog.Extensions.Logging"/>
  </extensions>



  2: and for some reason you also need to install the "NLog.Extensions.Logging" package directly:

  <PackageReference Include="NLog.Extensions.Logging" Version="1.4.0" />



  Not sure why the latter is needed... (it's the same version as the dependency of NLog.Web.AspNetCore Version 4.8.0

  so total:

  <ItemGroup>
      <PackageReference Include="Microsoft.AspNetCore.App" />
      <PackageReference Include="NLog.Extensions.Logging" Version="1.4.0" />
      <PackageReference Include="NLog.Web.AspNetCore" Version="4.8.0" />
      <PackageReference Include="NLog" Version="4.5.11" />
  </ItemGroup>


[304NotModified]

• for some reasons VS 2017 won't always (but sometimes it does) update my nlog.config in bin folder (e.g. bin\Debug\netcoreapp2.2), so be warned.

that's maybe this:

[snakefoot]

Created #3129 to improve user-experience for NLog 4.6

[StefH]

@304NotModified

Your solution does not work correctly for me because your statement:

it makes in the very first start "mode-.log" but after that everything get logged in "mode-test.log"

is causing issues for me.

When you execute this code:
``` c#
var logger = NLog.Web.NLogBuilder.ConfigureNLog("nlog.config").GetCurrentClassLogger();

All targets present in the nlog.config file are initialized, so in my case the `AzureTableStorage` (from `NLog.Extensions.AzureTables`) gets initialized with connectionString value **${configsetting:AzureTableStorageOptions.ConnectionString}** which fails because it's not valid.

Only after when this code runs:
``` c#
var builder = new ConfigurationBuilder()
    .SetBasePath(env.ContentRootPath)
    .AddJsonFile("appsettings.json", optional: false, reloadOnChange: true)
    .AddJsonFile($"appsettings.{env.EnvironmentName}.json", optional: true)
    .AddEnvironmentVariables();

Configuration = builder.Build();

// https://github.com/NLog/NLog/wiki/ConfigSetting-Layout-Renderer
ConfigSettingLayoutRenderer.DefaultConfiguration = Configuration;

everthing is initialized correctly.

My complete nlog.config as reference:

<?xml version="1.0"?>
<nlog xmlns="http://www.nlog-project.org/schemas/NLog.xsd"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" internalLogFile="logs/nlog.txt" internalLogLevel="Warn" autoReload="true" throwConfigExceptions="true" throwExceptions="true">

  <extensions>
    <add assembly="NLog.Extensions.Logging"/>
    <add assembly="NLog.Web.AspNetCore"/>
    <add assembly="NLog.Extensions.AzureTables" />
  </extensions>

  <targets>
    <target type="AzureTableStorage"
            name="AzureTable"
            machineName="DataReceiver"
            tableName="QboxLogging"
            correlationId="${aspnet-TraceIdentifier}"
            connectionString="${configsetting:AzureTableStorageOptions.ConnectionString}"
            layout="${longdate:universalTime=true} | ${level} | ${logger} | ${message} | ${exception:format=tostring:innerFormat=tostring:maxInnerExceptionLevel=10}"
    />
    <target name="Console"
            xsi:type="ColoredConsole"
            layout="${longdate:universalTime=true} | ${level} | ${logger} | ${aspnet-TraceIdentifier} | ${message} | ${exception:format=tostring:innerFormat=tostring:maxInnerExceptionLevel=10}"
    />
    <target name="File"
            xsi:type="File"
            fileName="logs/${shortdate}.log"
            layout="${longdate:universalTime=true} | ${level} | ${logger} | ${aspnet-TraceIdentifier} | ${message} | ${exception:format=tostring:innerFormat=tostring:maxInnerExceptionLevel=10}"
    />
  </targets>
  <rules>
    <logger name="*" minlevel="Info" writeTo="AzureTable" />
    <logger name="*" minlevel="Debug" writeTo="File" />
    <logger name="*" minlevel="Debug" writeTo="Console" />
  </rules>
</nlog>

[snakefoot]

@StefH Thank you for pointing out the clunky way of handling appsettings together with NLog.config. Created https://github.com/NLog/NLog.Extensions.Logging/issues/265 about improving this.

[snakefoot]

@StefH Have now made some progress with NLog 4.7 so one can do this with NLog.Web.AspNetCore in NetCore3:

var logger = NLog.LogManager.Setup().LoadNLogConfigFromAppSettings().LogFactory.GetCurrentClassLogger();

It will load AppSettings.json, configure ${configsetting} and also pre-register the NLog-config-types from NLog.Web.AspNetCore-assembly.

Proof-of-concept made here https://github.com/NLog/NLog.Web/pull/540

[StefH]

Thanks for your work, however my application is still using .NET Core 2.1 (https://github.com/StefH/QboxNext/tree/master/src-server/QboxNext.Server.DataReceiver) and I don't have the time yet to modify the application.
Also I'm using a custom version from NLog.Extensions.AzureStorage, so I also have to double check that one.

[snakefoot]

@StefH I was hoping to get some input on the proof-on-concept-API. Not so much on the testing.

This how you would do it on NetCore2 (and also possible on NetCore3):

c# var builder = new ConfigurationBuilder() .SetBasePath(basePath ?? Directory.GetCurrentDirectory()) .AddJsonFile("appsettings.json", optional: false, reloadOnChange: true) .AddJsonFile($"appsettings.{environment}.json", optional: true) .AddEnvironmentVariables(); var config = builder.Build(); var logger = NLog.LogManager.Setup().LoadNLogConfigFromSection(config).LogFactory.GetCurrentClassLogger();

[snakefoot]

NLog.Web.AspNetCore ver 4.9.3 has been released, and now you can do this:

var logger = NLog.LogManager.Setup().LoadConfigurationFromAppSettings().GetCurrentClassLogger();

That replaces the old style:

var logger = NLog.Web.NLogBuilder.ConfigureNLog("nlog.config").GetCurrentClassLogger();
