Ngx-quill: Inline vs class

[zrilo]

Hi,

I would like to set my ngx-quill editor to inline styles instead of classes

I am aware of this: http://quilljs.com/playground/#class-vs-inline-style

I have attempted to do this within the constraints of the ngx-quill editor but it always saves as classes instead of inline style

Could you please help

Thanks

[KillerCodeMonkey]

you can do it like in the example, but instead of accessing "Quill" directly you can import it.

Look in the ngx-quill-example repo:
https://github.com/KillerCodeMonkey/ngx-quill-example/blob/master/src/app.component.ts

Example to use div blocks instead of p-tags:

// override p with div tag
import * as Quill from 'quill';
const Parchment = Quill.import('parchment');
let Block = Parchment.query('block');

Block.tagName = 'DIV';
// or class NewBlock extends Block {}; NewBlock.tagName = 'DIV';
Quill.register(Block /* or NewBlock */, true);

There you see the import of Quill an the usage of Quill.register. So everything you need :).
You can do this for example in your base-component so that all uses of quill editor behave the same.

[zrilo]

Cheers, worked perfectly.

As a suggestion for possible improvement, it would be nice to specify whether you wanted style or classes via an input on the editor component.

Thanks

---

From: Bengt Weiße [e-mail]
Sent: Tuesday, 14 March 2017 6:11:07 PM
To: KillerCodeMonkey/ngx-quill
Cc: Marcus Diamond; Author
Subject: Re: [KillerCodeMonkey/ngx-quill] Inline vs class (#18)

you can do it like in the example, but instead of accessing "Quill" directly you can import it.

Look in the ngx-quill-example repo:
https://github.com/KillerCodeMonkey/ngx-quill-example/blob/master/src/app.component.ts

Example to use div blocks instead of p-tags:

// override p with div tag
import * as Quill from 'quill';
const Parchment = Quill.import('parchment');
let Block = Parchment.query('block');

Block.tagName = 'DIV';
// or class NewBlock extends Block {}; NewBlock.tagName = 'DIV';
Quill.register(Block /* or NewBlock */, true);

There you see the import of Quill an the usage of Quill.register. So everything you need :).
You can do this for example in your base-component so that all uses of quill editor behave the same.

—
You are receiving this because you authored the thread.
Reply to this email directly, view it on GitHubhttps://github.com/KillerCodeMonkey/ngx-quill/issues/18#issuecomment-286339979, or mute the threadhttps://github.com/notifications/unsubscribe-auth/AP58mzRWfn8im7B54pf_H5z_P0a7A2UCks5rlj2LgaJpZM4McCNi.

[KillerCodeMonkey]

yeah the problem is that another developer asks if i could implement a better way to add custom fonts, and so on.

So everything you have to directly configure through Quill will do not make it in ngx-quill ;)

[andlcool]

Thanks. Was following your example and it does work.

Any idea where to get the list of attributors that we can import. I was looking at the indent function but couldn't figure out how to make the styling inline. Thanks.

[KillerCodeMonkey]

I do not know this exactly. But you can take a look in the quilljs repository:
all the parchment stuff lives here: https://github.com/quilljs/quill/tree/develop/blots

[dzena]

Hello,
I am a bit confused. In case of adding a new font or use inline styling instead class, we need to change HTML (in case of adding a font, we need to access the <select> tag where fonts are listed as options and CSS code as well to add a new font) code of the quill. I don't know how do I access and change the original HTML.
It is not enough to do only:

import * as Quill from 'quill';

let FontAttributor = Quill.import( 'formats/font' );
FontAttributor.whitelist = [
  'sans serif', 'serif', 'monospace', 'roboto'
];

let SizeStyle = Quill.import( 'attributors/style/size' );

Quill.register( FontAttributor, true );
Quill.register( SizeStyle, true );

Could somebody share a code snippet?

I'm trying not to build the complete custom toolbar, rather modify the original.

[KillerCodeMonkey]

i think you have to build up your toolbar on your own :( :
http://quilljs.com/playground/#custom-fonts

[dzena]

I was afraid also. That is potentially a lot of code. e.g. In the API I don't see how can I get all of the available colours. So that means i need to write all of them manually. And I am afraid that there are some other similar cases as this one (where i need to specify a lot of options manually).
Thanks for the quick feedback. :)

[KillerCodeMonkey]

in any other case: please ask such question in the quilljs repository.
I only build this wrapper angular stuff and i do not know very much about how to configure or how to get quill specific stuff. Sounds strange, but so it is :D

[dzena]

Understand. Thanks again.
Cheers :)

[neural22]

@KillerCodeMonkey I'm trying to use the style inline. As suggested I tried to do:

import * as Quill from 'quill';
let SizeStyle = Quill.import( 'attributors/style/size' );
Quill.register( SizeStyle, true );

but Quill.import return me an error (Quill is undefined). Then I tried use this code

const Quill = require('quill');
let SizeStyle = Quill.import( 'attributors/style/size' );
Quill.register( SizeStyle, true );

But now the change of the font size is broken.
Do you have any idea about what is going on?

[KillerCodeMonkey]

@neural22 are you using @types/quill?

if not simply import Quill from 'quill'
if so:

import * as QuillNamespace from 'quill';
let Quill: any = QuillNamespace;

types are broken since.. i do not know

require should be avoided :)

[neural22]

@KillerCodeMonkey I know require is to be avoided.. it was just a shot.
import * as Quill from 'quill'; does not work for me... so I don't know what to do

[KillerCodeMonkey]

are you using @types for quill? check my last comment ;)

[neural22]

Thanks for your comment @KillerCodeMonkey , I inserted "@types/quill": "1.3.3" in my dependencies but nothing is changed.
with

import Quill from 'quill';
let SizeStyle = Quill.import( 'attributors/style/size' );
Quill.register( SizeStyle, true );

I receive that error:

[KillerCodeMonkey]

you need to read my comment carefully --> import Quill from 'quill' without types.
and if you are using them, then:

import * as QuillNamespace from 'quill';
let Quill: any = QuillNamespace;

it is important to override the namespace with any type :)

Check out the quilleditorcomponent here in the repo (with typings) or the appcomponent of my demo repo (without typings)

[neural22]

Ok now I don't receive any error.. but if I try to change the font size it's not working, Normal style continue to be selected.
Trying to debugging.

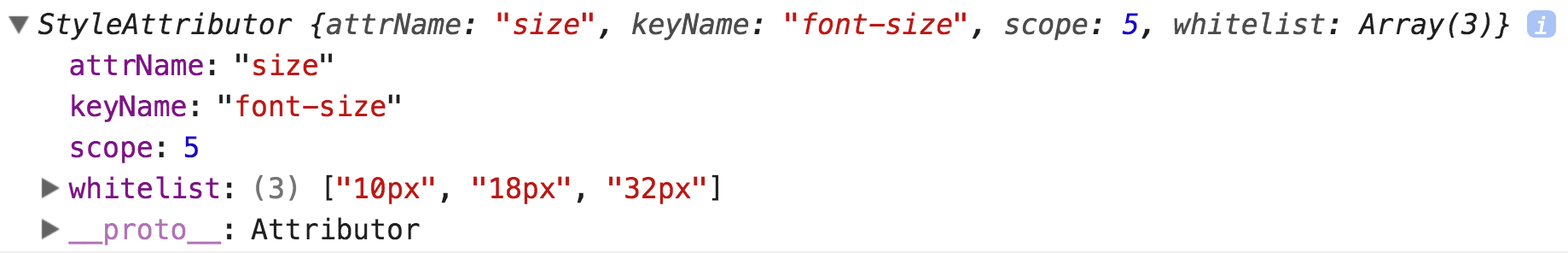

This is my StyleSize variable, is it normal?

[KillerCodeMonkey]

this should be asked in quilljs repo. never tried it.
but my be you need to change the existing sizes like i did with the fonts:

// Add fonts to whitelist
var Font = Quill.import('formats/font');
// We do not add Aref Ruqaa since it is the default
Font.whitelist = ['mirza', 'aref', 'sans-serif', 'monospace', 'serif'];
Quill.register(Font, true);

[fortysixcode]

Hey, I got the same problem as @neural22. I've checked out the https://github.com/KillerCodeMonkey/ngx-quill-example project to see if it works (it does). I then compared the example project with the one I'm working on and it seems that i have finally got it to work. I have added the @types as a dependency (not as dev!) and then used

import * as QuillNamespace from 'quill';
let Quill: any = QuillNamespace;

So I ended up with something like this:

"dependencies": {
   ...
    "@types/quill": "^1.3.3",
    "ngx-quill": "^2.2.0",
    "quill": "^1.3.6",
   ...
},

Using inline style for alignment seems to also be working as expected:

let AlignStyle = Quill.import('attributors/style/align');
Quill.register(AlignStyle, true);

Maybe this helps someone out there ;)

[neural22]

many thanks @forty6and2 it worked for the alignment, still not working for the font size... probably there's a bug somewhere. At least now I know I'm doing the right thing.

[maniwadhwa26]

@neural22
I think Port for TypeScript is having some king of Bug! Anyway I was able to find a work around. If you still looking for the solution, Following worked for me -

In Component File, I defined the default Modules (defaultModules) for Toolbar but with replaced 'size' values.

export class AppComponent {

  quillValue;
  emptyArray = [];
  defaultModules = {
    toolbar: [
      ['bold', 'italic', 'underline', 'strike'],
      ['blockquote', 'code-block'],
      [{ 'header': 1 }, { 'header': 2 }],
      [{ 'list': 'ordered'}, { 'list': 'bullet' }],
      [{ 'script': 'sub'}, { 'script': 'super' }],
      [{ 'indent': '-1'}, { 'indent': '+1' }],
      [{ 'direction': 'rtl' }],
      [{ 'size': ['10px', false, '18px', '32px'] }],
      [{ 'header': [1, 2, 3, 4, 5, 6, false] }],
      [{ color: this.emptyArray.slice() },{ background: this.emptyArray.slice() }],
      [{ 'font': [' sans-serif', 'monospace', 'serif']}],
      [{ 'align': '' }],
      ['clean'],
      ['link', 'image', 'video']
    ]
  };

New Values ==>

'size' = ['10px', false, '18px', '32px']

Then in the Constructor while registering new Size Style, add Pixel Values here as well in the whitelist array.

let SizeStyle = quill.import( 'attributors/style/size' );
SizeStyle.whitelist =  ['10px', false, '18px', '32px'];
quill.register( SizeStyle, false );

Now we need to tell quill editor to use our defined modules. In Html File, add [modules] property to quill-editor in the following way -

<quill-editor [(ngModel)]="quillValue" [modules]="defaultModules"></quill-editor>

Almost Done ! Just one last thing. In global style.css file or any component css file ( your wish), add the following -

.ql-picker.ql-size .ql-picker-label[data-value="10px"]::before,
.ql-picker.ql-size .ql-picker-item[data-value="10px"]::before {
    content: 'Small' !important;
}
.ql-picker.ql-size .ql-picker-label[data-value='']::before,
.ql-picker.ql-size .ql-picker-item[data-value='']::before {
    content: 'Normal';
}
.ql-picker.ql-size .ql-picker-label[data-value="18px"]::before,
.ql-snow .ql-picker.ql-size .ql-picker-item[data-value="18px"]::before {
    content: 'Large' !important;
}
.ql-snow .ql-picker.ql-size .ql-picker-label[data-value="32px"]::before,
.ql-snow .ql-picker.ql-size .ql-picker-item[data-value="32px"]::before {
    content: 'Huge' !important;
}

This CSS will Add the Small,Normal,Large,Huge values in the Dropdown of Size Select in the toolbar.

You can check out the working of the same at the following repo -
https://github.com/maniwadhwa26/angular-test-project
