Ngx-charts: Word-cut off in Horizontal Bar Chart Y-Axis

[kriscoleman]

I'm submitting a ...

• [x] bug report
• [ ] feature request
• [x] support request

Current behavior

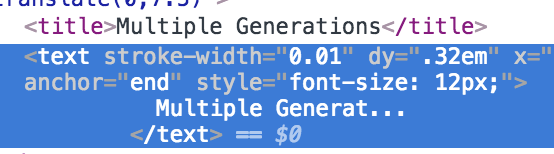

I am using ngx-charts on a project and it's amazing! My client however does have some really long dynamic titles that need to be shown in the y-axis of the charts, and these titles can get cut off. I've tried to style the y-axis, but I've also determined that the text elements it's generating has the '...' ellipses, so the titles are being trimmed; it's not overflow.

Expected behavior
Is there a way to adjust this so the y-axis could be wider? My bars are really long and don't need to be so long, I could sacrifice some bar width to make the y-axis wider. If I manage to do that, what about the stripped text? Is there a way I can control the logic for stripping the text?

Reproduction of the problem
Make a horizontal bar chart and feed it with names that are long (max: 96 chars in my case)

What is the motivation / use case for changing the behavior?
More flexibility in styling charts.

Please tell us about your environment:
MacOS, VSCode, npm, angular-cli

• ngx-charts version: 7.3.0

• Angular version: 5.2.0

• Browser: all

• Language: TS

Thanks! this is a wonderful library!

[kriscoleman]

I did some diving in the source and found some good news about the y-axis width, but not so much the y-axis text trimming. I think I have a solution though!

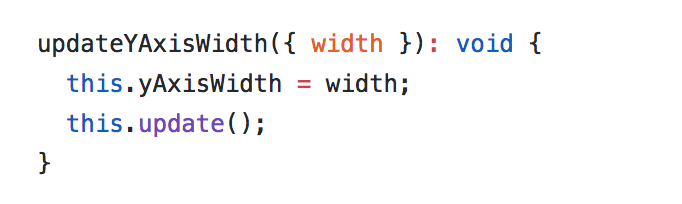

This is on the bar-horizontal.component and might help with the y-axis width:

As for the text trimming, it looks like there isn't a way (that I see currently) to change the behavior of the text trimming up at declaration.

I traced it down to the y-axis-ticks.component. When generating the y-axis labels, it uses the full tick text for the title (which is shown on hover) but only a trimmed tick for the text block. When it calls the trim-helper to trim the label, it doesn't pass in a max value and instead uses the default of 16 chars:

https://github.com/swimlane/ngx-charts/blob/master/src/common/axes/y-axis-ticks.component.ts
https://github.com/swimlane/ngx-charts/blob/master/src/common/trim-label.helper.ts

The max-length param in the trim-helper might be leveraged if we could introduce a maxTickLength input to the y-axis-tick.component. Then expose that up into the charts that use y-axis.component to wire it all up (the time consuming part). Expose it as y-label-max-length attribute in the charts or something. Could maybe have that behave with a default of 16 too. Then if no max is defined, it'll default to trim-helper's 16, else we can increase it as needed.

Am I missing something innocuous, or do you think this is the right track? If so, I might be able to contribute on this if necessary. Thanks!

[kriscoleman]

Any interest in fixing this?

I can volunteer to take a stab at it myself even, I just don't want to spend the time on a PR if I don't know it'll be reviewed/completed. I'd also like to speak with the team to make sure the approach I take jives with the way the team likes to do things.

Let me know! Thanks

[kriscoleman]

@marjan-georgiev Heya, any interest in this?

[marjan-georgiev]

Hi @kriscoleman, yes, we can solve this by adding two inputs to all of the charts that use the y-axis component:

maxYAxisTickLength: number = 16;
trimYAxisTicks: boolean = true;

The rest of the implementation is what you suggested - pass those down to the y-axis-ticks component and add the length as an option to the trimLabel function in ticks.helper.ts.

If you're willing to create a PR for this, I'd be happy to review and accept it.

[kriscoleman]

@marjan-georgiev thanks for the response and feedback!

I'd be happy to contribute. I'll get a pr ready as soon as I find time. Thanks!

[clapis]

Hi @kriscoleman, I was in need of the same feature, so I went ahead and created a PR for this. Hope you hadn't started on it. :)

https://github.com/swimlane/ngx-charts/pull/870

[kriscoleman]

I admittedly got too busy and needed it again today, so went to start it, and saw this!
Thanks! Hope that PR is complete soon! I might just have to install your branch's version in the meantime.

[diego-fustes]

Hi, I'm suffering the same problem. I'd appreciate that the PR is accepted asap. Thanks

[marjan-georgiev]

Merged the PR, will be in the next release. Thanks all!
