Nativebase: TabHeading with Image and text both not changing the style in Tab

Created on 12 Feb 2018 · 3Comments · Source: GeekyAnts/NativeBase

Hi!
I m using Tabs in my app from Native base but its not working if i use TabHeading instead of String only.
Tab style not changed.

If I use only string instead of adding List in heading inside Tab then its work properly.
below is the working code with string
`

<Tab tabStyle= { { backgroundColor: ColorConstant.BRANDDARK}}  textStyle={{color: ColorConstant.BRANDPRIMARY}} activeTabStyle={{backgroundColor: ColorConstant.BRANDPRIMARY }} activeTextStyle={{color: ColorConstant.BRANDWHITE , fontWeight: 'bold'}} heading="List">
          <Tab1 />
        </Tab>
<Tab tabStyle= { { backgroundColor: ColorConstant.BRANDDARK  }}  textStyle={{color: ColorConstant.BRANDPRIMARY}} activeTabStyle={{backgroundColor: ColorConstant.BRANDPRIMARY }} activeTextStyle={{color: ColorConstant.BRANDWHITE, fontWeight: 'bold'}} heading="Grid">
          <Tab2 />
        </Tab>
      </Tabs>`

react-native, react and native-base version

"native-base": "^2.3.8",
"react": "16.0.0",
"react-native": "0.51.0",

Expected behaviour

Tabs color should be changed

Actual behaviour

Tabs color not changed

Steps to reproduce (code snippet or screenshot)

<Tab tabStyle= { { backgroundColor: ColorConstant.BRANDDARK}}  textStyle={{color: ColorConstant.BRANDPRIMARY}} activeTabStyle={{backgroundColor: ColorConstant.BRANDPRIMARY }} activeTextStyle={{color: ColorConstant.BRANDWHITE , fontWeight: 'bold'}} heading={ <TabHeading ><Icon name="list" /><Text>List</Text></TabHeading>}>
          <Tab1 />
        </Tab>
<Tab tabStyle= { { backgroundColor: ColorConstant.BRANDDARK  }}  textStyle={{color: ColorConstant.BRANDPRIMARY}} activeTabStyle={{backgroundColor: ColorConstant.BRANDPRIMARY }} activeTextStyle={{color: ColorConstant.BRANDWHITE, fontWeight: 'bold'}} heading={ <TabHeading ><Icon name="grid" /><Text>Grid</Text></TabHeading>}>
          <Tab2 />
        </Tab>
      </Tabs>

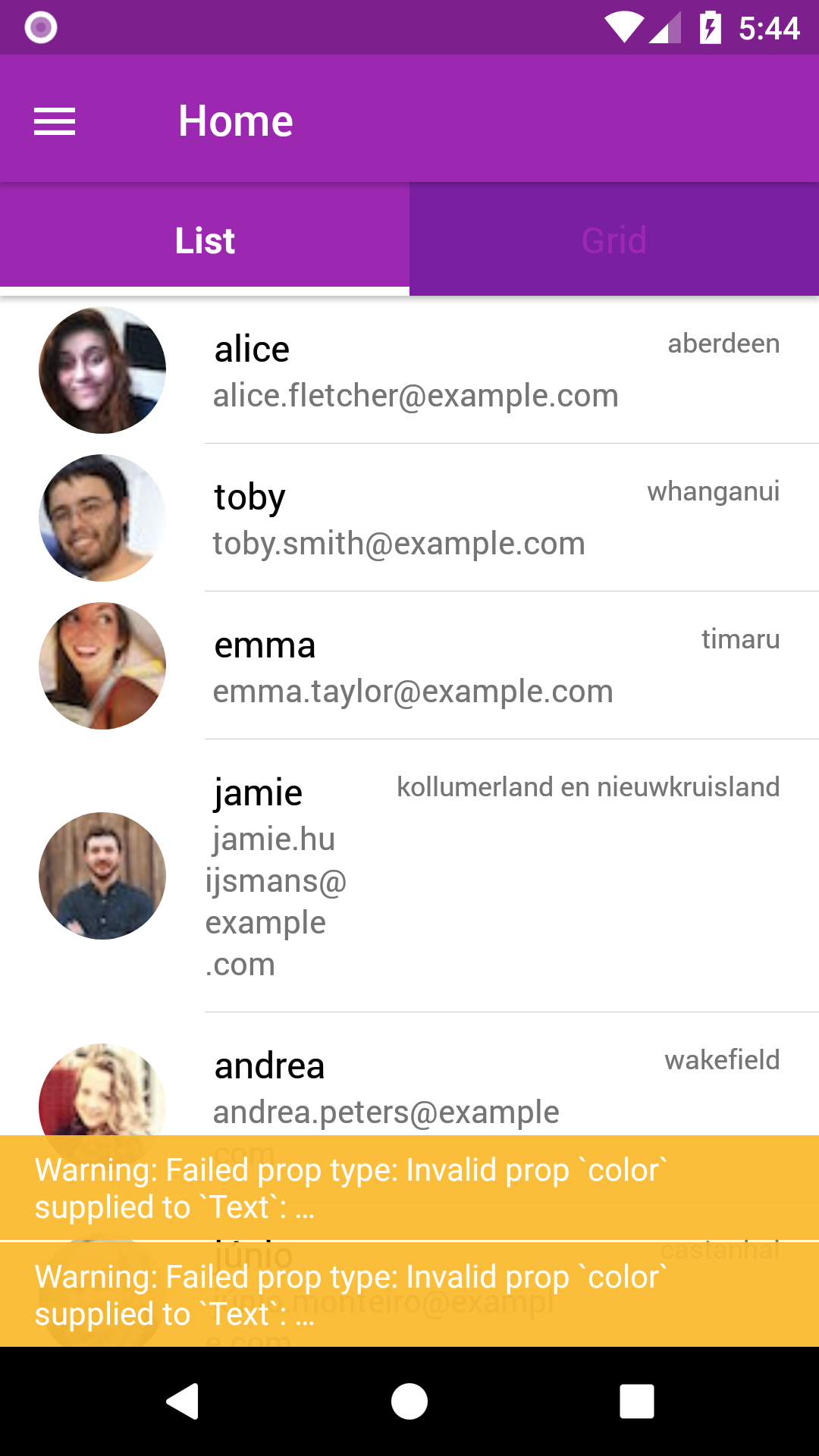

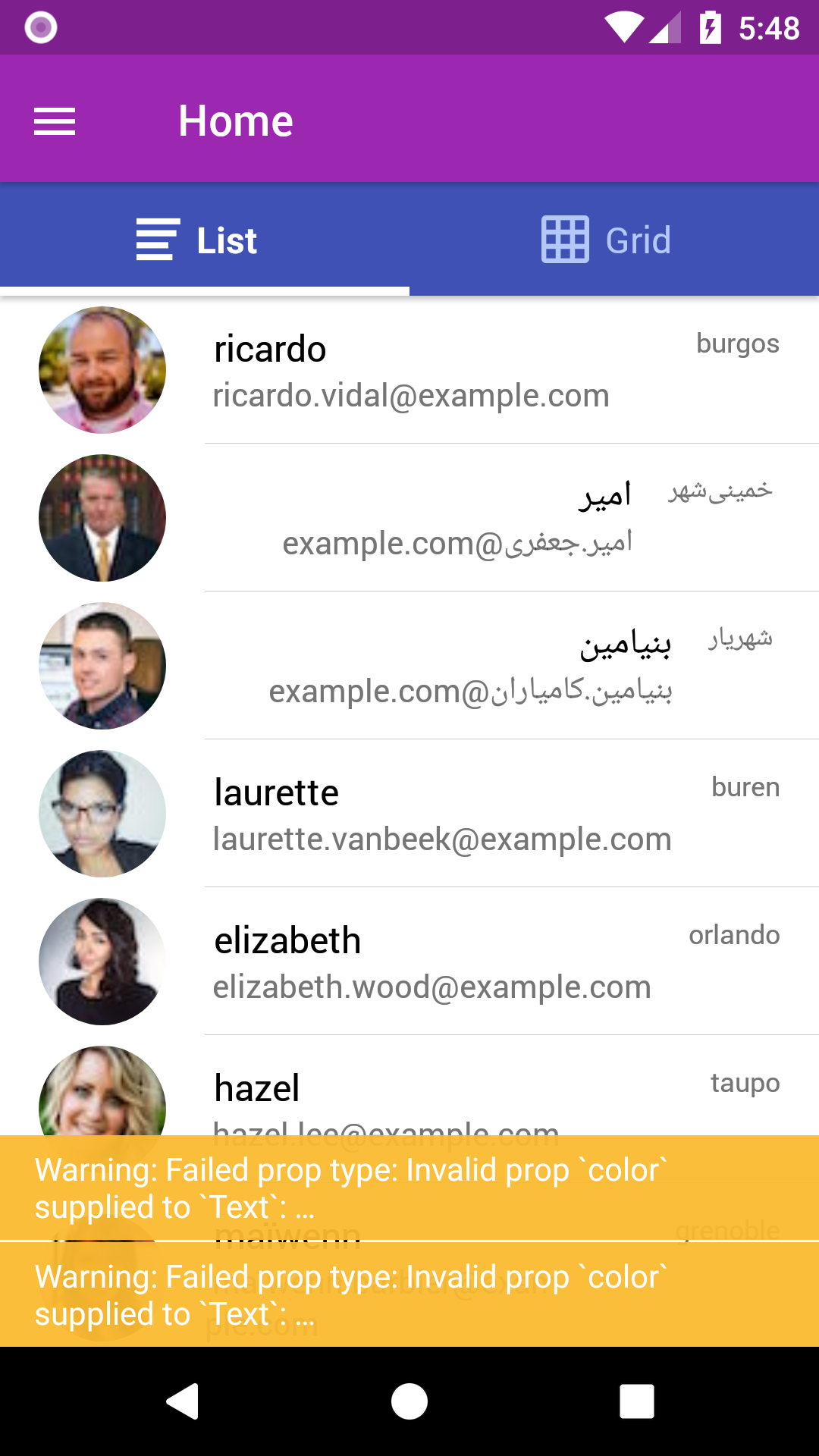

Screenshot of emulator/device

screenshot_1518178735

screenshot_1518178487

awaiting response

Source

nitin0331

👍2

Most helpful comment

@nitin0331 As <TabHeading/> is another component, active/normal tabStyles are not useful. You can handle the styles in the code by getting the current tab index. An example is given below

Code

import React, { Component } from 'react';
import { Container, Header, Tab, Tabs, TabHeading, Icon, Text, Left, Body, Right, Button, Title } from 'native-base';
import { StyleSheet } from 'react-native';
export default class TabsAdvancedExample extends Component {
  constructor(props) {
    super(props)
    this.state = { currentTab: 0 }
  }
  render() {
    return (
      <Container>
        <Header style={{ backgroundColor: '#AB00B5' }}>
          <Left>
            <Button transparent>
              <Icon name='menu' style={{ color: 'white' }} />
            </Button>
          </Left>
          <Body>
            <Title>Header</Title>
          </Body>
          <Right />
        </Header>
        <Tabs initialPage={this.state.currentPage} onChangeTab={({ i }) => this.setState({ currentTab: i })}>
          <Tab
            tabStyle={{ backgroundColor: 'red' }}
            activeTabStyle={{ backgroundColor: 'blue' }}
            heading={<TabHeading style={this.state.currentTab === 0 ? styles.activeTabStyle : styles.tabStyle}><Icon name="list" /><Text>List</Text></TabHeading>}>
            <Text>Tab one</Text>
          </Tab>
          <Tab
            tabStyle={{ backgroundColor: 'red' }}
            activeTabStyle={{ backgroundColor: 'blue' }}
            heading={<TabHeading style={this.state.currentTab === 1 ? styles.activeTabStyle : styles.tabStyle}><Icon name="grid" /><Text>Grid</Text></TabHeading>}>
            <Text>Tab two</Text>
          </Tab>
        </Tabs>
      </Container>
    );
  }
}

const styles = StyleSheet.create({
  activeTabStyle: {
    backgroundColor: '#AB00B5'
  },
  tabStyle: {
    backgroundColor: '#8800A7'
  }
})

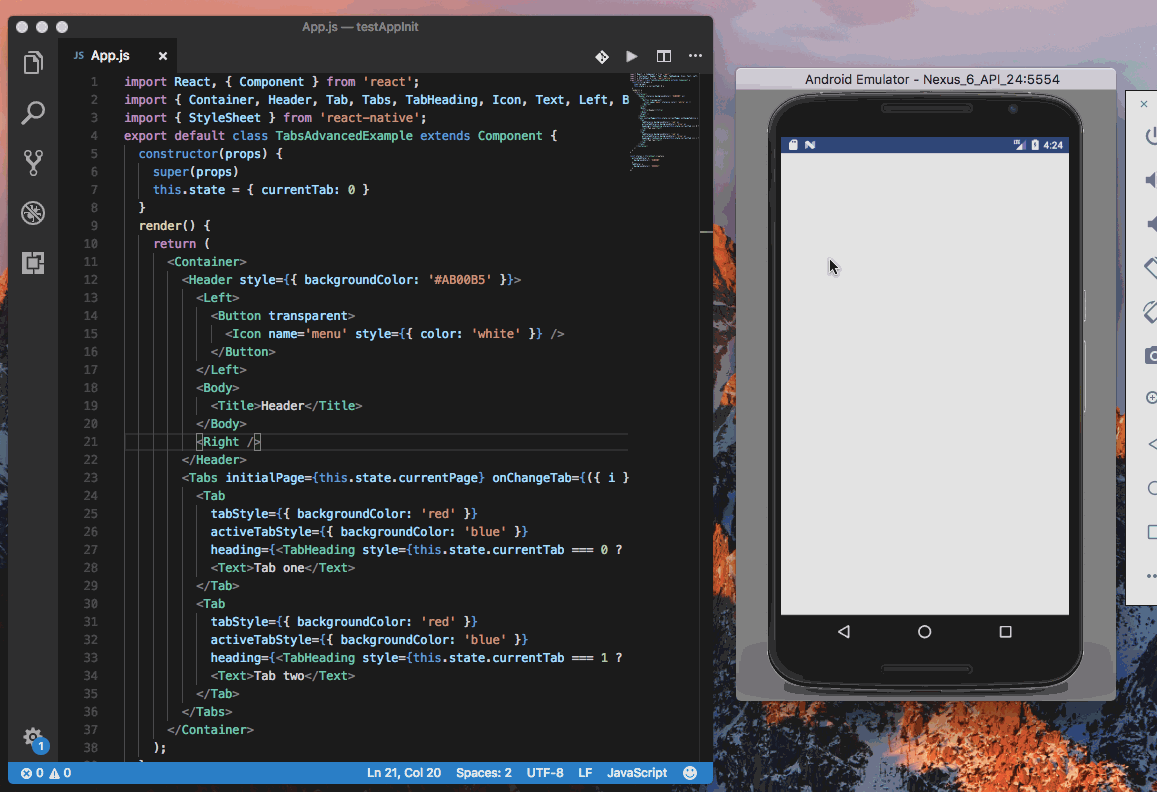

Gif

tabs

akhil-geekyants on 12 Feb 2018

🎉2 👍2

All 3 comments

@nitin0331 As <TabHeading/> is another component, active/normal tabStyles are not useful. You can handle the styles in the code by getting the current tab index. An example is given below

Code

import React, { Component } from 'react';
import { Container, Header, Tab, Tabs, TabHeading, Icon, Text, Left, Body, Right, Button, Title } from 'native-base';
import { StyleSheet } from 'react-native';
export default class TabsAdvancedExample extends Component {
  constructor(props) {
    super(props)
    this.state = { currentTab: 0 }
  }
  render() {
    return (
      <Container>
        <Header style={{ backgroundColor: '#AB00B5' }}>
          <Left>
            <Button transparent>
              <Icon name='menu' style={{ color: 'white' }} />
            </Button>
          </Left>
          <Body>
            <Title>Header</Title>
          </Body>
          <Right />
        </Header>
        <Tabs initialPage={this.state.currentPage} onChangeTab={({ i }) => this.setState({ currentTab: i })}>
          <Tab
            tabStyle={{ backgroundColor: 'red' }}
            activeTabStyle={{ backgroundColor: 'blue' }}
            heading={<TabHeading style={this.state.currentTab === 0 ? styles.activeTabStyle : styles.tabStyle}><Icon name="list" /><Text>List</Text></TabHeading>}>
            <Text>Tab one</Text>
          </Tab>
          <Tab
            tabStyle={{ backgroundColor: 'red' }}
            activeTabStyle={{ backgroundColor: 'blue' }}
            heading={<TabHeading style={this.state.currentTab === 1 ? styles.activeTabStyle : styles.tabStyle}><Icon name="grid" /><Text>Grid</Text></TabHeading>}>
            <Text>Tab two</Text>
          </Tab>
        </Tabs>
      </Container>
    );
  }
}

const styles = StyleSheet.create({
  activeTabStyle: {
    backgroundColor: '#AB00B5'
  },
  tabStyle: {
    backgroundColor: '#8800A7'
  }
})

Gif

tabs

akhil-geekyants on 12 Feb 2018

🎉2 👍2

Closing this issue due to no response

akhil-geekyants on 22 Feb 2018

I think this issue has to be reopened. The solution above applies styles but it causes a glitch when changing between tabs (as it updates the component state)

Update: this happens only when using scrollable tabs
