Mudlet: [Win] colored buttons often show grey

[Kebap]

Brief summary of issue / Description of requested feature:

Select a color but you won't see it displayed for long

Steps to reproduce the issue / Reasons for adding feature:

1. Open trigger editor, activate the highlight checkbox, select a color
2. The selected color should be shown in the button afterwards
3. The button stays grey instead

Error output / Expected result of feature

See 2.

Extra information, such as Mudlet version, operating system and ideas for how to solve / implement:

Noted in PTB 2021-02-03 on win

The color trigger is also affected, most basic colors do not show.
At least colors 16+ are rendered in popup, but not shown in trigger editor.

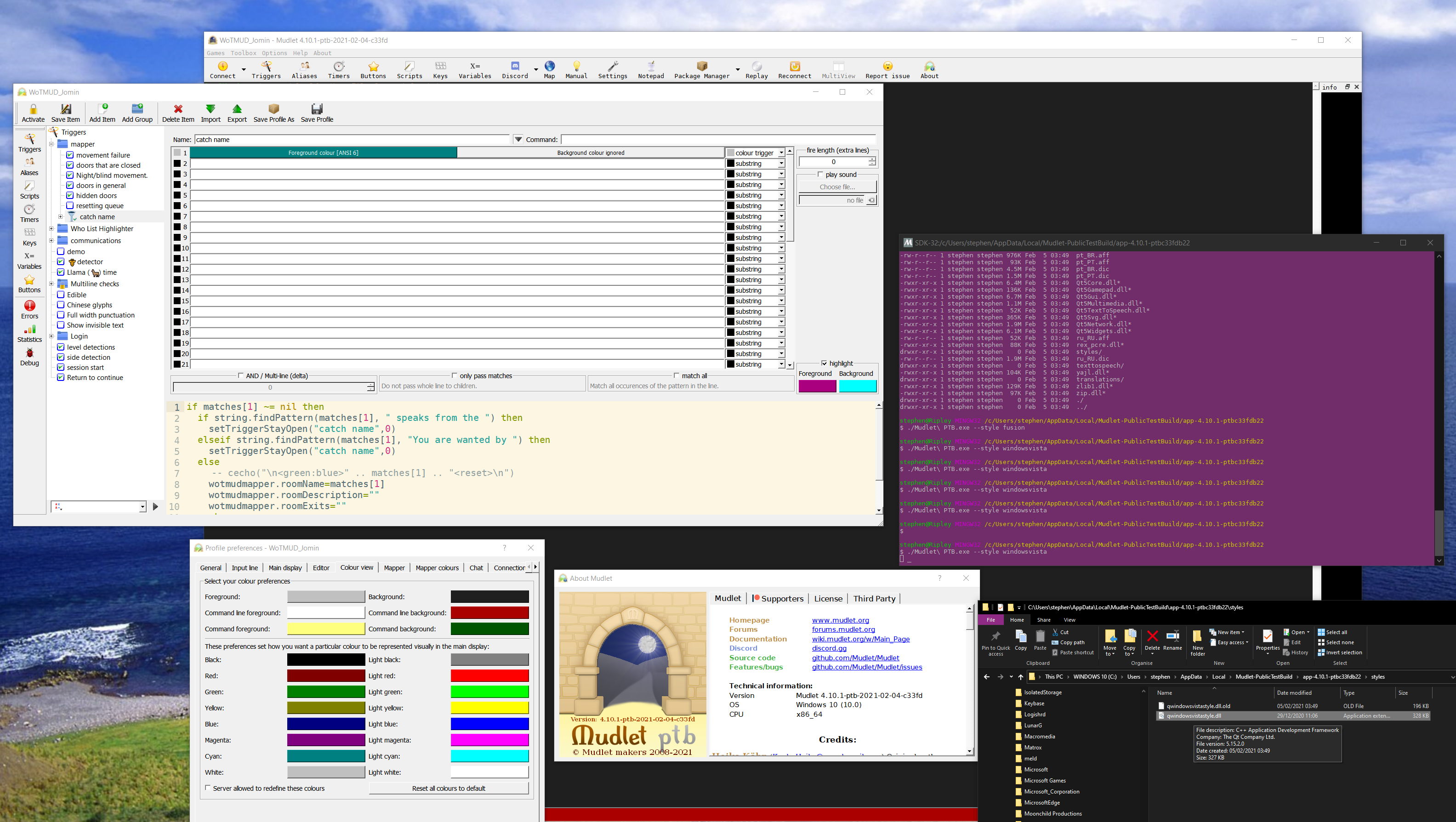

A few tests to show the color buttons staying grey regardless:

•

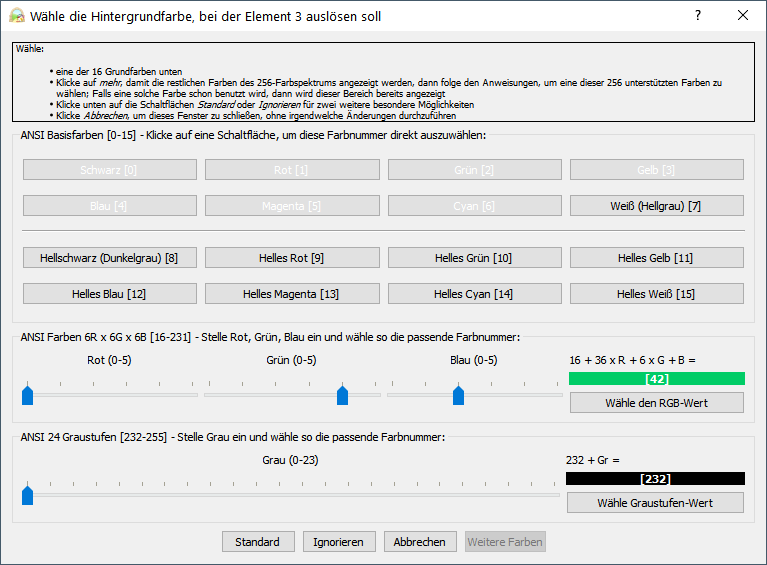

Color selection popup missing most colors:

•

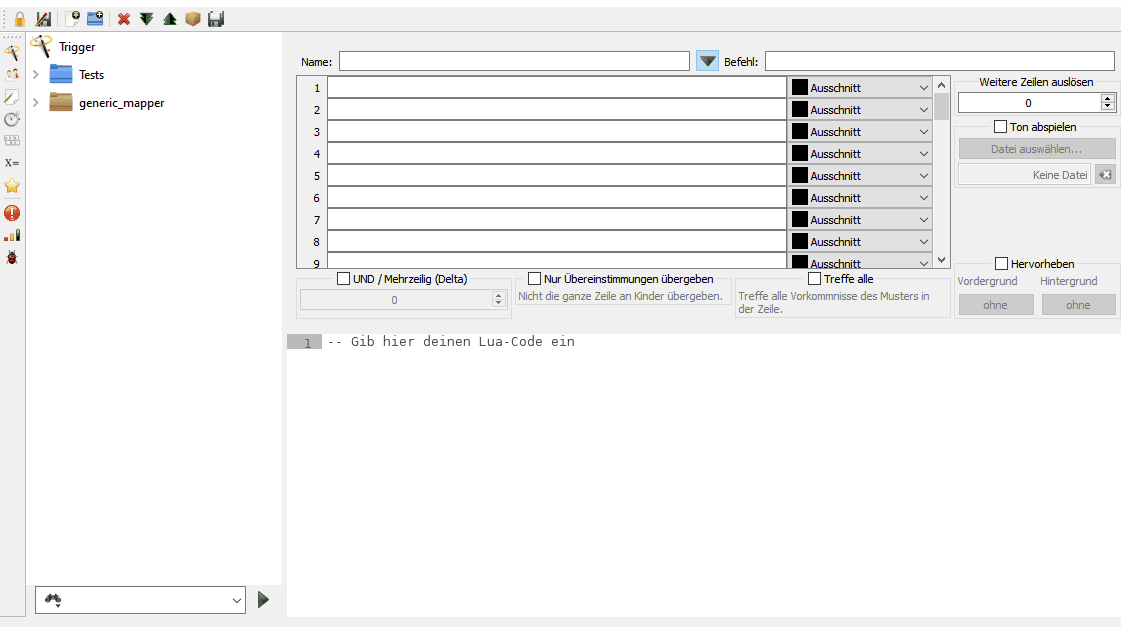

Background color 42 is selected but shown as grey:

•

[SlySven]

I and someone else have also seen this in other places on Windows - the colour selections on the preferences for the console and mapper colours. I think this is could be linked to that but I cannot find the issue...

... but it could be something broken about painting QPushButtions (ironically I think MacOs had a bug in that area a few years back and it was down to something being borked in the Qt code for them on that OS).

[vadi2]

I suspect this was due to the removal of all of the QPalettes.

Issue you mentioned: https://github.com/Mudlet/Mudlet/pull/4546#issuecomment-770282292

[SlySven]

On Windows at the moment and did not see this issue in a self-build of the current development code (3609e945a134b1e8046cabdf96ec3fb2456df55e) or in the official 4.10.0 release, but it is present in the 2021-02-04 PTB as well as the previous day's one. As I suspected it also manifests in the color setting buttons in the preferences for the main console and the mapper. TBH It is hard to connect this with anything to do with QPalettes (or their removal) especially as it seems to be a Windows specific defect. I will try and do a bisect with the previous PTBs...

Bug also present in 2021-010-25 PTB (f5763a0575cd9183b25bfa232598c14e081a603b) which is the oldest PTB still in the system.

[SlySven]

Ah, I think i might have it - it is something wrong with the WindowsVista style which is the default for Windows but not other OSes - I first tried using a different version of the Qt libs - the current PTBs are using Qt 5.12.10 but the latest release seems to be using 5.13.2 but that didn't make any difference when I copied them all across (as you can see from the following):

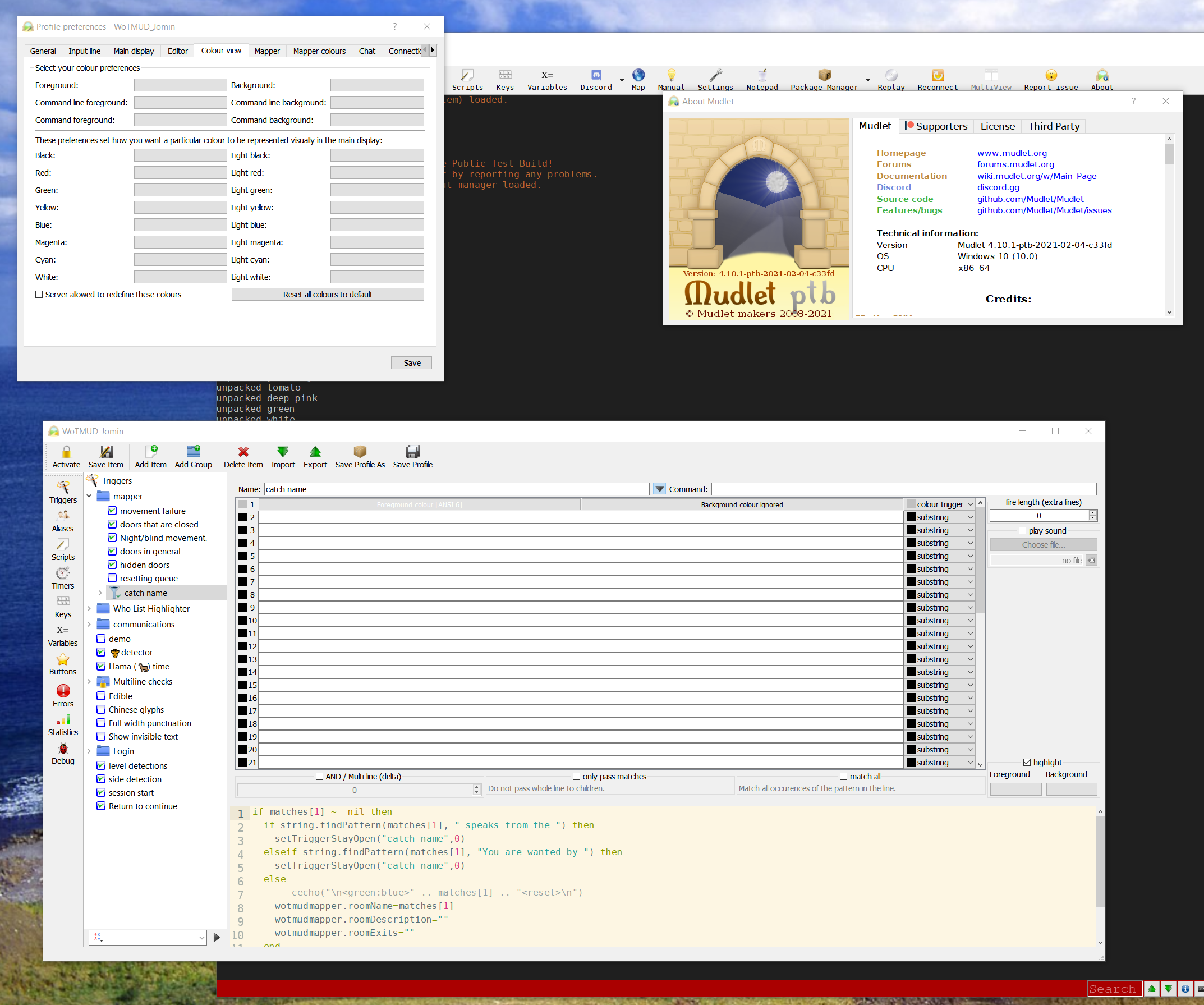

Later libraries, using Qt's own "Fusion" style:

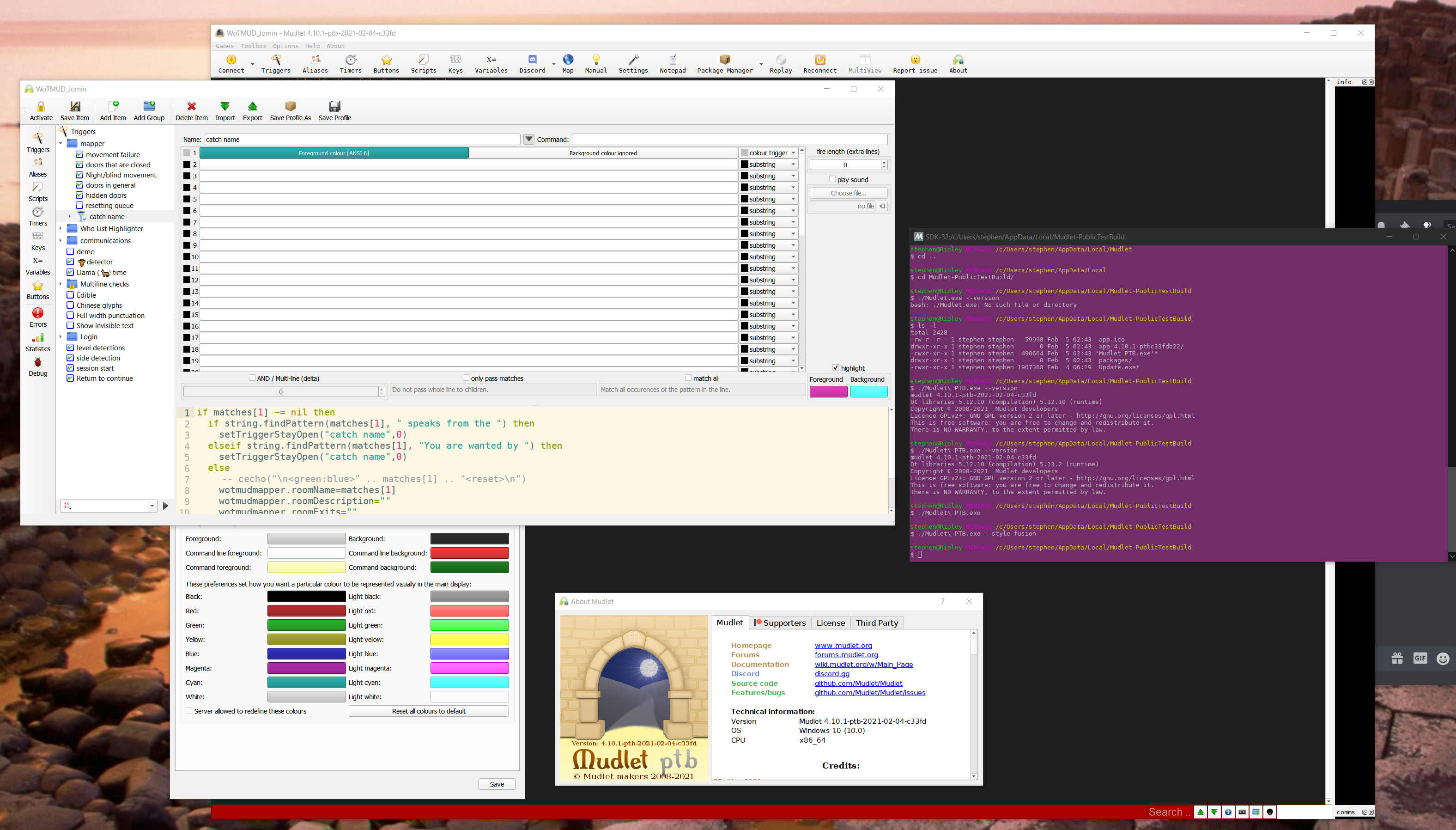

Later libraries using "WindowsVista" style:

This is identical to the way that it appears without a style command line argument as well.

[SlySven]

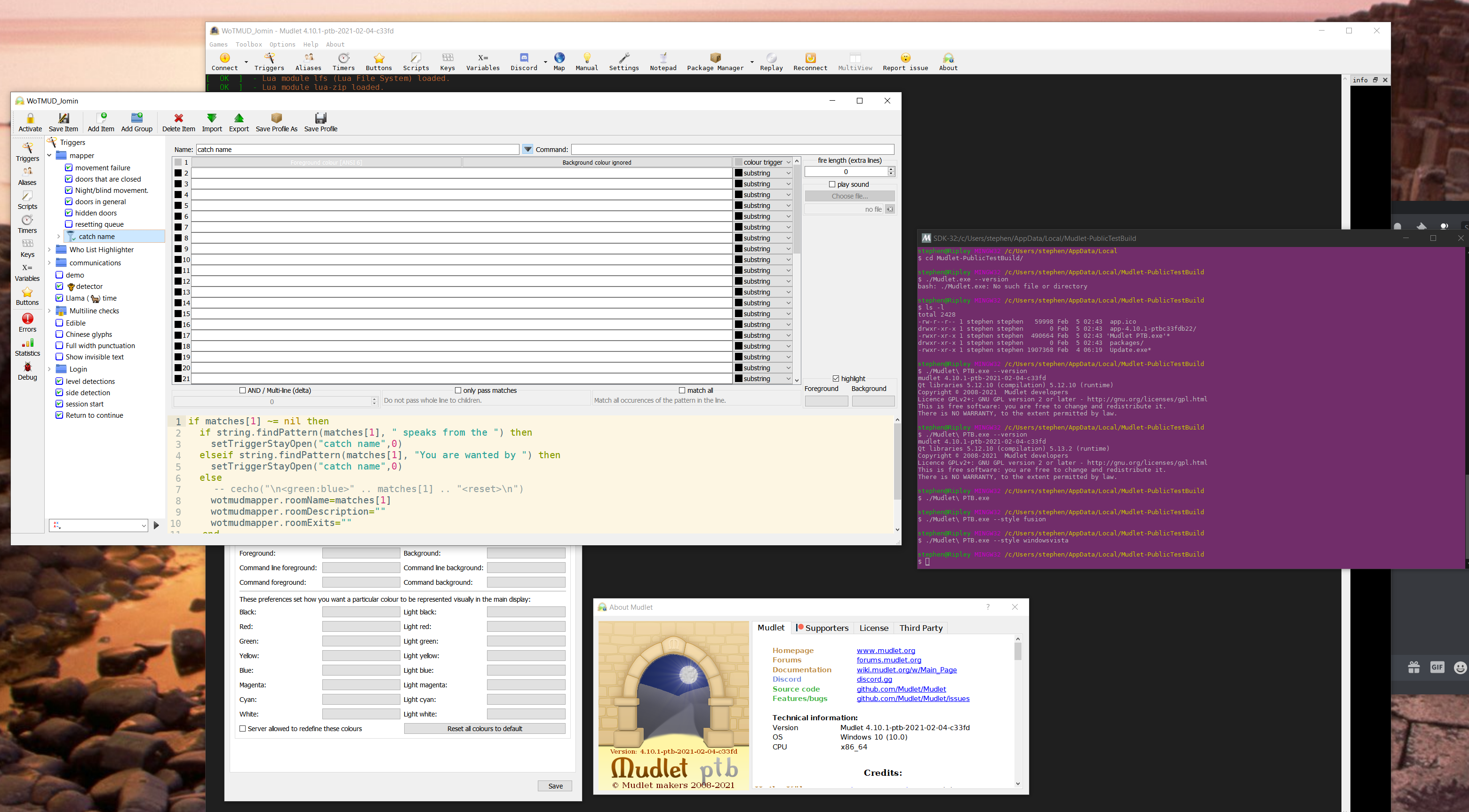

:bulb: I have found that if I replace the C:/Users/my user name/AppData/Local/Mudlet-PublicTestBuild/app-4.10.1-ptbSHORTSHA1/styles/qwindowsvistastyle.dll (5.12.10.0 in the PTB version available tonight) with the corresponding but later one from my (32-Bit NOT 64-Bit) MSYS2/Mingw-w64 - which has a version number of 5.15.2.0 then I get colour back in all the places it was missing. Note that that is the ONLY file I replaced:

[Kebap]

Seems like a bug we need to raise upstream?
Is there anything we can do to mitigate the next release being affected?

[vadi2]

Yeah, we can change the Qt version we're using, we do have a few to select from - maybe it's been fixed since.

[Kebap]

However:

latest release seems to be using 5.13.2 but that didn't make any difference

[vadi2]

Yes, but 5.15.2 seems to do the job:

which has a version number of 5.15.2.0 then I get colour back in all the places it was missing

So I've opened https://github.com/Mudlet/Mudlet/pull/4756 where we use it.
