Mobile-ffmpeg: [IOS] Invalid Bundle Error

[ghost]

Hey,
On trying to upload the app build with a library using this mobile-ffmpeg I am getting the following errors -

ERROR ITMS-90208: "Invalid Bundle. The bundle Application.app/Frameworks/libavcodec.framework does not support the minimum OS Version specified in the Info.plist."
An unknown error occurred.

ERROR ITMS-90208: "Invalid Bundle. The bundle Application.app/Frameworks/libavdevice.framework does not support the minimum OS Version specified in the Info.plist."
An unknown error occurred.

ERROR ITMS-90208: "Invalid Bundle. The bundle Application.app/Frameworks/libavfilter.framework does not support the minimum OS Version specified in the Info.plist."
An unknown error occurred.

Likewise with all the other frameworks inside this mobile-ffmpeg.
I have MinimumOSVersion is the plist of all these frameworks set to 8.0.
Please help. Kind of urgent.

Thanks.

[tanersener]

Hi, which version you're using v2.0?

[tanersener]

Info.plist included in frameworks does not define a Minimum OS Version parameter, it shouldn't cause any conflicts. You can see all parameters below.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
        <key>CFBundleDevelopmentRegion</key>
        <string>en</string>
        <key>CFBundleExecutable</key>
        <string>libavfilter</string>
        <key>CFBundleIdentifier</key>
        <string>com.arthenica.mobileffmpeg.FFmpeglibavfilter</string>
        <key>CFBundleInfoDictionaryVersion</key>
        <string>6.0</string>
        <key>CFBundleName</key>
        <string>libavfilter</string>
        <key>CFBundlePackageType</key>
        <string>FMWK</string>
        <key>CFBundleShortVersionString</key>
        <string>7.16.100</string>
        <key>CFBundleVersion</key>
        <string>7.16.100</string>
        <key>NSPrincipalClass</key>
        <string></string>
</dict>
</plist>

[ghost]

Initially, I was using 2.0. It didn't work out quite right so switched back to 1.2.

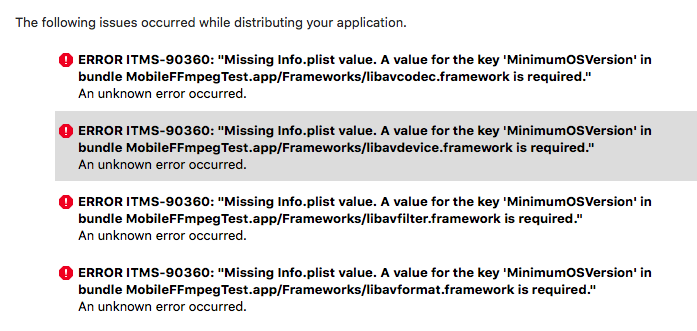

So initially it was giving me the following error -

ERROR ITMS-90360: "Missing Info.plist value. A value for the key 'MinimumOSVersion' in bundle Application.app/Frameworks/libavcodec.framework is required." An unknown error occurred.

So to fix that I added "MinimumOSVersion" in all the frameworks and then it started to give me the other error that I mentioned in my problem.

Do you think I am doing something wrong while adding it to my framework or some configuration?

[tanersener]

On trying to upload the app build with a library ...

Hmm, MinimumOSVersion never caused me a problem, on which step do you receive this error, while uploading to AppStore?

[ghost]

Yes. Working fine otherwise in the simulator, on a real device, in tests. Just when uploading to the AppStore.

[ghost]

So to re-reiterate the process -

1. Add to the podfile and do a pod install.
2. Add #import
3. Write code and run.
   Is there any other config that you feel I should do? Maybe build the entire ffmpeg again or using it straight from pods will be fine?

[tanersener]

Well, the next step is to check Build Settings in Xcode. Sometimes I see this error when some linking flags are not compatible with framework options. But it would prevent you from running/testing. You can run and test, so this is not the case.

There are a few other options to try:

• There are universal fat binaries released but not published. Using them is an option
• Adding MinimumOSVersion in Info.plist and publishing new version is another option. I'm releasing v2.1 right now, I can add this option and push the version to cocoapods

[ghost]

Yes, I think we can try those things.
One question here, where are these fat binaries available so I can get my hands on them?
Also, will try to use v2.1 once you publish it, and then see how things work out.

[tanersener]

They are not very easy to use, this why I don't publish them. Also, they are not available online, I need to upload them somewhere. Is there a specific package (min, full, full-gpl) you need? I can upload it on my Dropbox.

By the way, you have MinimumOSVersion = 8.0 setting in you application, am I right?

[ghost]

Yes, I also want to avoid using them, a lot of configs involved there.

I am using MinimumOSVersion = 10.0.

[tanersener]

Hmm, some stackoverflow posts recommend using the same MinimumOSVersion on both application and frameworks. So setting MinimumOSVersion = 10.0 might be a solution. You can test it if you want.

Below is the link for full-gpl-v2.1 universal binaries. You can test them too.
https://www.dropbox.com/sh/5ypukqxoxd5wv2i/AABv-YajCrm7N-FBr3rjNjnva?dl=0

[ghost]

Thank you so much. I will give them a go and let you know.
Also any particular recommendation on how to use these fat binaries?

[tanersener]

Sorry, I forgot to mention, v2.1 IOS API is completely new. You may receive too many compile errors. I'm working on documentation but https://github.com/tanersener/mobile-ffmpeg/tree/dev-v2.x includes a basic example about the new API.

Fat binaries are generally added to project by drag & drop to xcode. Then you need to update #include statements and application should work.

[ghost]

Got it. I will try these things out and let you know my results. Cheers!!!

[ghost]

I cannot find the pod by using

pod 'mobile-ffmpeg-full', '~> 2.1'
in my pod file.

[ghost]

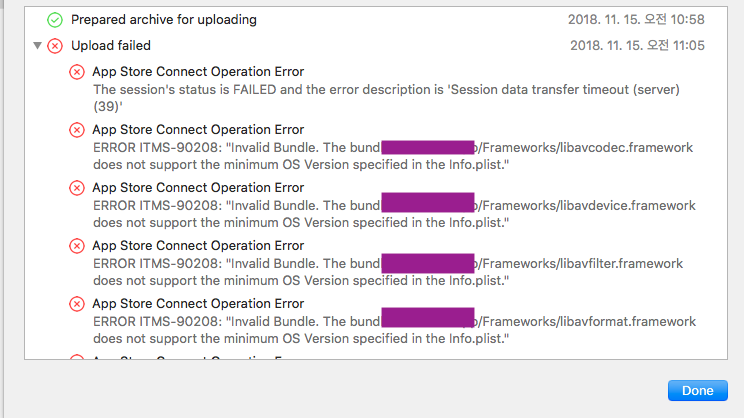

After applying a MinimumOSVersion of 10.0 to both the app and the frameworks I am getting the errors -

ERROR ITMS-90208: "Invalid Bundle. The bundle Application.app/Frameworks/libavcodec.framework does not support the minimum OS Version specified in the Info.plist."
An unknown error occurred.

Any ideas about this?

[tanersener]

v2.1 of mobile-ffmpeg-full is not published to cocoapods yet, it takes time to build each package and publish. Can you try with mobile-ffmpeg-min.

[ghost]

Okay, I will try with that.

[ghost]

I tried min version, but I think the MinimumOSVersion is not there in it yet, is it?

[tanersener]

Actually it was added, and I can see it inside Info.plist from Cocoapods. Do you still get the same error?

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
        <key>CFBundleDevelopmentRegion</key>
        <string>en</string>
        <key>CFBundleExecutable</key>
        <string>libavfilter</string>
        <key>CFBundleIdentifier</key>
        <string>com.arthenica.mobileffmpeg.FFmpeglibavfilter</string>
        <key>CFBundleInfoDictionaryVersion</key>
        <string>6.0</string>
        <key>CFBundleName</key>
        <string>libavfilter</string>
        <key>CFBundlePackageType</key>
        <string>FMWK</string>
        <key>CFBundleShortVersionString</key>
        <string>7.16.100</string>
        <key>CFBundleVersion</key>
        <string>7.16.100</string>
        <key>MinimumOSVersion</key>
        <string>8.0</string>
        <key>NSPrincipalClass</key>
        <string></string>
</dict>
</plist>

[tanersener]

All v2.1 versions are published in cocoapods.

[ghost]

I tried out the v2.1 full and now I can see the minimum OS version there in the plist but I am still getting the error -

ERROR ITMS-90208: "Invalid Bundle. The bundle Application.app/Frameworks/libavcodec.framework does not support the minimum OS Version specified in the Info.plist."
An unknown error occurred.

[tanersener]

Sorry mate, I'm out of solutions. Any chance of asking this issue to Apple support?

[ghost]

No worries buddy. Thank you for doing so much. I'll see what can be done, will update once I have something good.

[tanersener]

Just created a wiki page about Using IOS Universal Binaries. You might want to give it a try if you are still having problems with frameworks.

[tanersener]

Earlier IOS versions of the library had errors about bitcode, but it was fixed in v2.1.

[ghost]

I am still working on why this error

ERROR ITMS-90208: "Invalid Bundle. The bundle Application.app/Frameworks/libavcodec.framework does not support the minimum OS Version specified in the Info.plist."
An unknown error occurred.

is still persisting. I'll update here once I know the root cause.

[tanersener]

I'll update here once I know the root cause.

Ok mate, please let me know if you need anything

[ghost]

I sure will. Thank you. :)

[ghost]

I tried uploading your iOS test-app to the test flight of the app store, and it is also giving me the same error. :(

[tanersener]

I tried uploading your iOS test-app to the test flight of the app store, and it is also giving me the same error. :(

What happens when you delete MinimumOSVersion property from Info.plist files for test-app? Do you still have the same error?

[tanersener]

I tried uploading your iOS test-app to the test flight of the app store, and it is also giving me the same error. :(

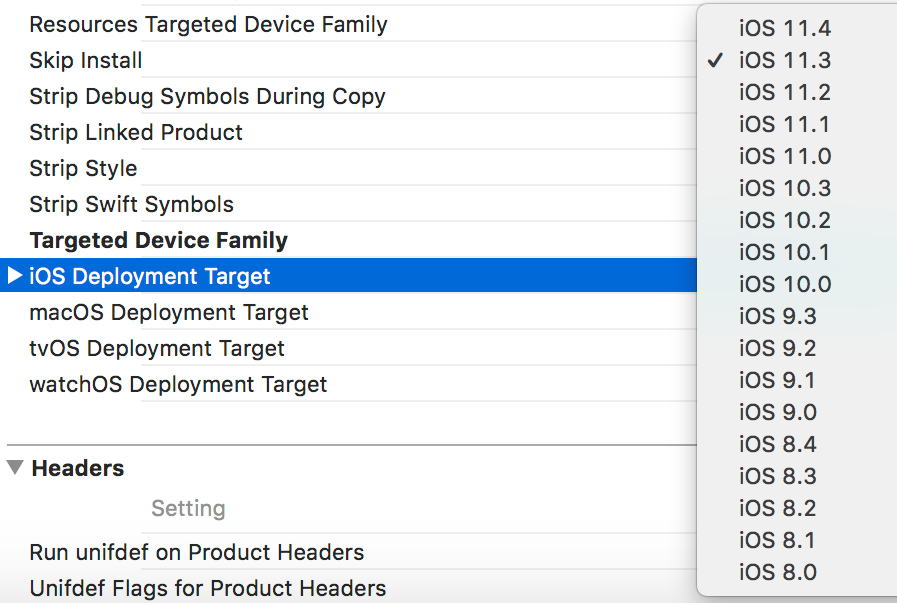

Build Settings -> Deployment -> iOS Deployment Target setting includes all targets supported by Xcode. By default it is set to 11.3, could you please try setting it to IOS 8.0? Does it make any difference, with or without MinimumOSVersion?

[ghost]

Just testing all those various combinations. Give me a few moments and will update.

[ghost]

Nope, same errors.

[tanersener]

Hmm, which error message do you have for test-app when 'MinimumOSVersion' is removed from Info.plist?

ERROR ITMS-90360: "Missing Info.plist value. ... or ERROR ITMS-90208: "Invalid Bundle. ...

[ghost]

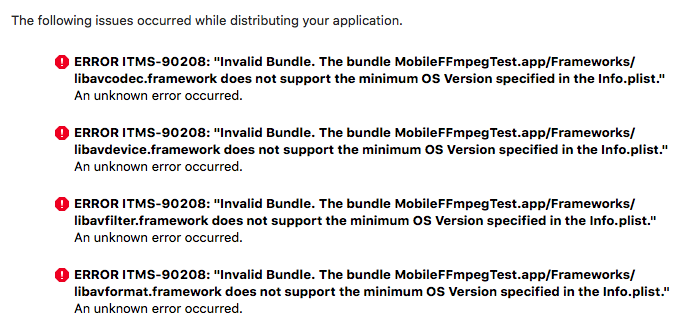

These ones -

[tanersener]

OK mate, sorry if I'm asking too much, just trying to make it work for you.

In test-app Podfile the first line is platform :ios, '8.0' it is possible to:

1. Remove the version and use only platform :ios
2. Then run pod install again
3. Remove MinimumOSVersionkey & values from all .framework/Info.plist files

These changes will generate a few new warnings but does this make any difference?

[tanersener]

BTW, this is what Apple dev documentation tells about MinimumOSVersion.

MinimumOSVersion MinimumOSVersion (String - iOS). When you build an iOS app, Xcode uses the iOS Deployment Target setting of the project to set the value for the MinimumOSVersion key. Do not specify this key yourself in the Info.plist file; it is a system-written key. When you publish your app to the App Store, the store indicates the iOS releases on which your app can run based on this key. It is equivalent to the LSMinimumSystemVersion key in macOS.

[ghost]

Don't be sorry dude. I'll go for that.

[ghost]

I have a new error -
ERROR ITMS-90081: "This bundle is invalid. Applications built for more than one architecture require an iOS Deployment Target of 3.0 or later." An unknown error occurred.
Also, the other errors are still present, ie the MinimimOSVersion key missing and the framework does not support the minimum OS version specified in the Info.plist.

I think the .frameworks are only built for 64-bit architectures or some build script when you are making compiling the project. Is that a place that we could check?

[tanersener]

Build flags are set by functions in ios-common.sh, but unfortunately there is not a single line containing all the flags. They are all separated into CFLAGS, CXXFLAGS and LDFLAGS.

lipo can be used to check architectures included in .frameworks.
lipo -i Pods/mobile-ffmpeg-full/mobileffmpeg.framework/mobileffmpeg
lipo -i Pods/mobile-ffmpeg-full/libavcodec.framework/libavcodec

[ghost]

Yeah, I checked, all the architectures are present. I don't know what is wrong then. It is just getting bad now.

[tanersener]

Well, I'm out of ideas too.

Unfortunately, I don't have an active 'Apple Developer Program Membership'. Do you know any other way to test application submission?

[ghost]

There is none, not at least to my knowledge.

[tanersener]

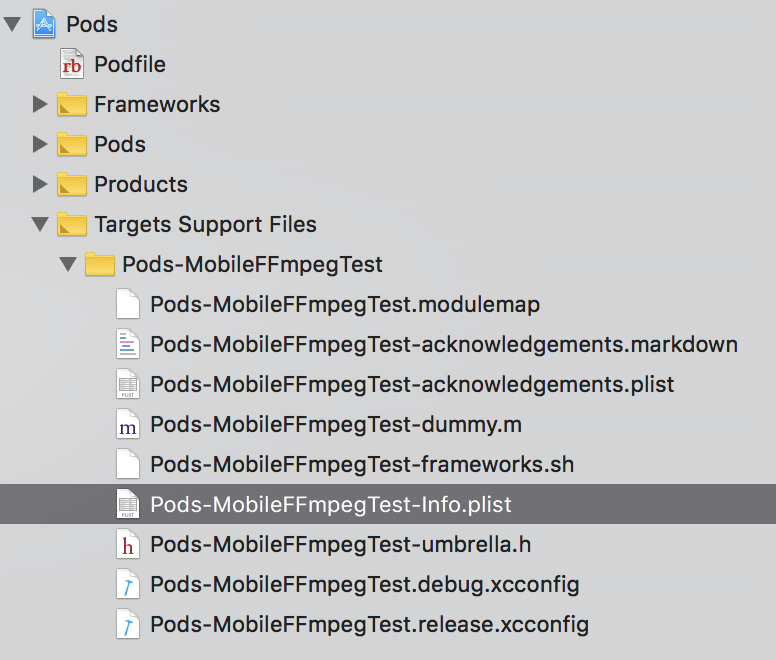

I noticed there is a Pods-MobileFFmpegTest-Info.list file under Pods-MobileFFmpegTest section. Content of this file is similar to Info.plist files of frameworks but there are small differences. Neither MinimumOSVersion nor LSMinimumSystemVersion is defined here. Can you test if defining one of these two properties makes a difference?

[ghost]

I will try that and update.

[ghost]

No luck. It is the same error -
ERROR ITMS-90208: "Invalid Bundle. The bundle Application.app/Frameworks/libavcodec.framework does not support the minimum OS Version specified in the Info.plist."
An unknown error occurred.

[ghost]

Hey buddy, I just need one last favor, I think I am very close to getting this working. Do you have any idea where I can get a precompiled static library of mobileffmpeg. I just need it for mobileffmpeg and not for the others like libavfilter, libavutil, etc etc.

[tanersener]

Unfortunately all released/published libraries are dynamic.

It is possible to modify build scripts and create a static mobileffmpeg library. But licensing terms are tight for static linked libraries using LGPL-3.0 and GPL-3.0. This is why they are not built & released.

If you are familiar with compiling/building a library on bash, it won't be very hard for you to clone master branch and build the static version of mobilefffmpeg. If you are not, I can build it for you but I'll need some time to do it, and I'll need to know package you'd like to use (min, full, https, audio, video, ...)?

[ankitsiliconithub]

Hey buddy,
Same Issue Please build it for me full & video both
Thanks

[tanersener]

Same Issue Please build it for me full & video both

Have you tried Using IOS Universal Binaries?

[tanersener]

@tprakhar Created a static build for min package. Could you please try it?

mobileffmpeg-min-v2.1.1-static

[ghost]

I'll try that and update you. :)

[ghost]

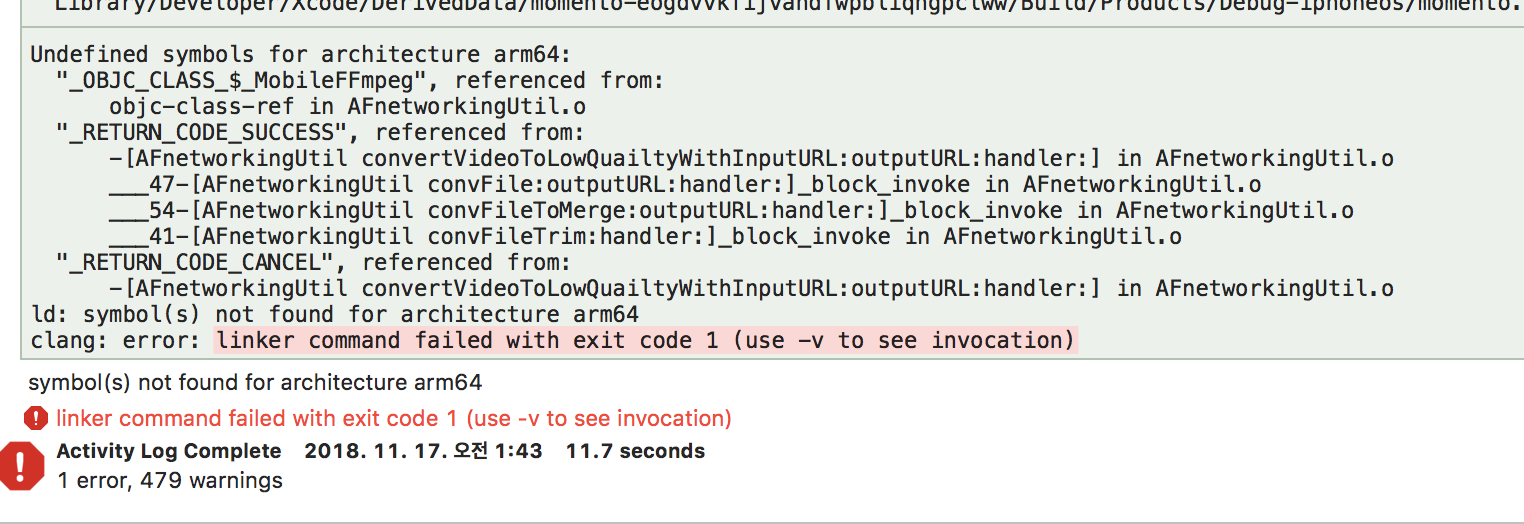

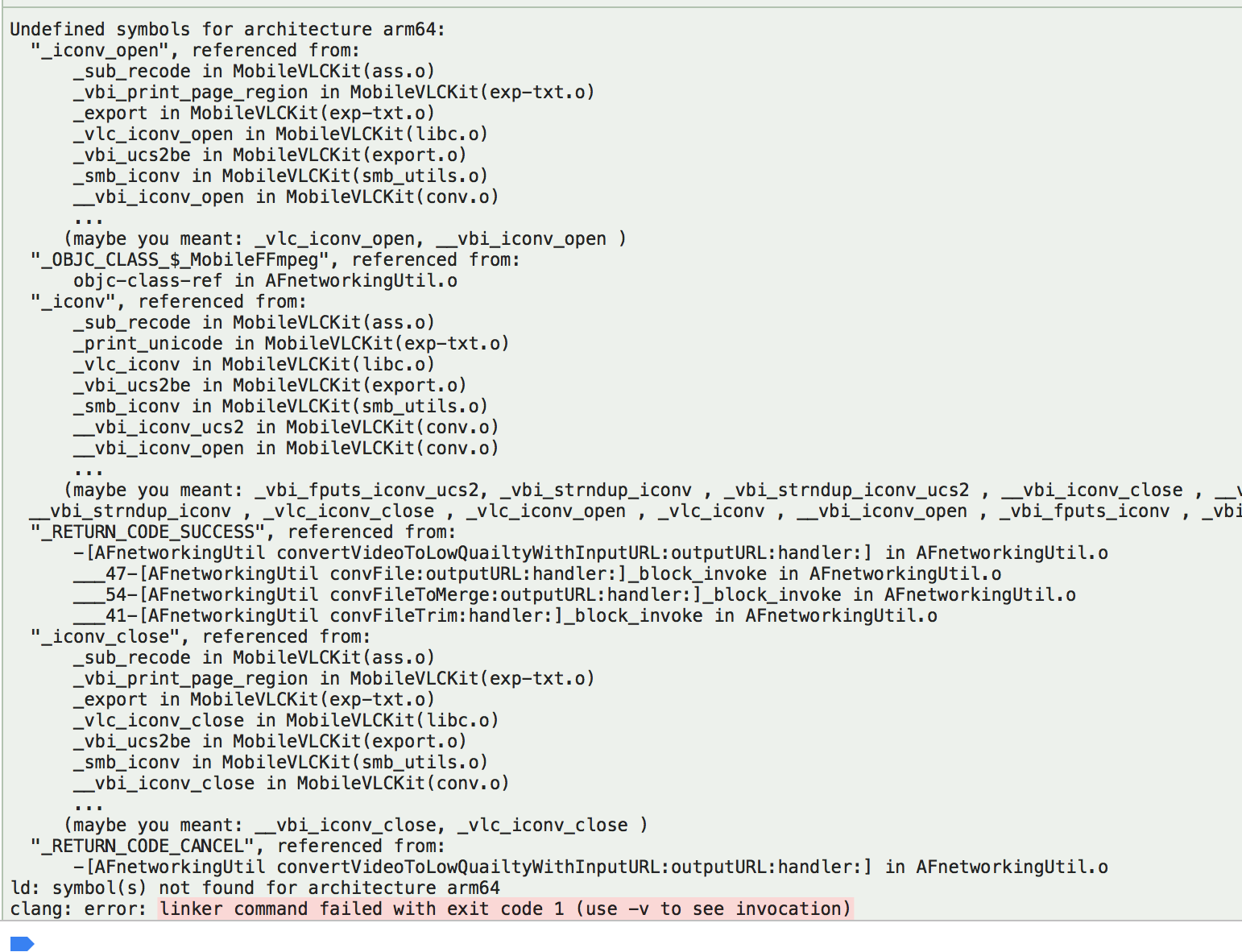

I am getting this error, which states that the static library is missing the arm64 architecture.

ld: symbol(s) not found for architecture arm64
clang: error: linker command failed with exit code 1 (use -v to see invocation)

[tanersener]

Below you can see what is inside the static library; arm64 symbols are actually there. Also, I must remind that this library includes only mobileffmpeg objects/symbols as you've requested. But ffmpeg libraries (libavcodec libavdevice libavfilter libavformat libavutil libswresample libswscale) are still required to link/run. Are they available on path when you try to link with this library?

otool -L libmobileffmpeg.a
Archive : libmobileffmpeg.a
libmobileffmpeg.a(libmobileffmpeg_la-ArchDetect.o):
libmobileffmpeg.a(libmobileffmpeg_la-fftools_cmdutils.o):
libmobileffmpeg.a(libmobileffmpeg_la-fftools_ffmpeg.o):
libmobileffmpeg.a(libmobileffmpeg_la-fftools_ffmpeg_filter.o):
libmobileffmpeg.a(libmobileffmpeg_la-fftools_ffmpeg_hw.o):
libmobileffmpeg.a(libmobileffmpeg_la-fftools_ffmpeg_opt.o):
libmobileffmpeg.a(libmobileffmpeg_la-MobileFFmpeg.o):
libmobileffmpeg.a(libmobileffmpeg_la-MobileFFmpegConfig.o):
libmobileffmpeg.a(libmobileffmpeg_la-mobileffmpeg_exception.o):
libmobileffmpeg.a(libmobileffmpeg_la-Statistics.o):

lipo -i libmobileffmpeg.a
Architectures in the fat file: libmobileffmpeg.a are: armv7 armv7s i386 x86_64 arm64

[ghost]

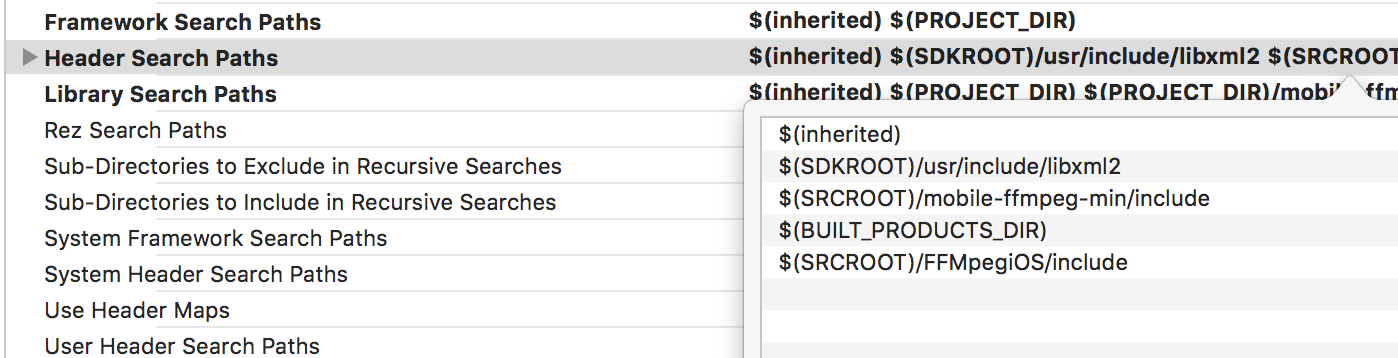

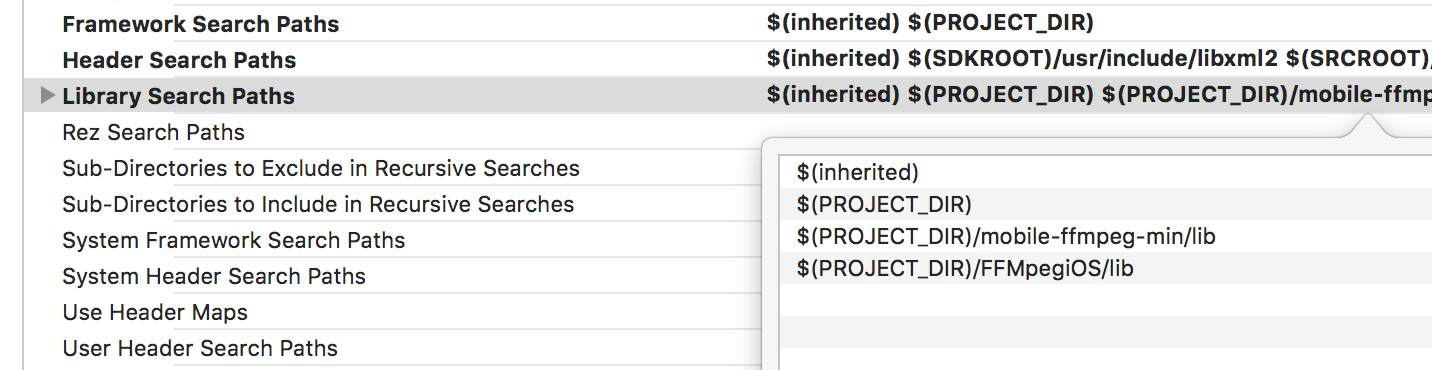

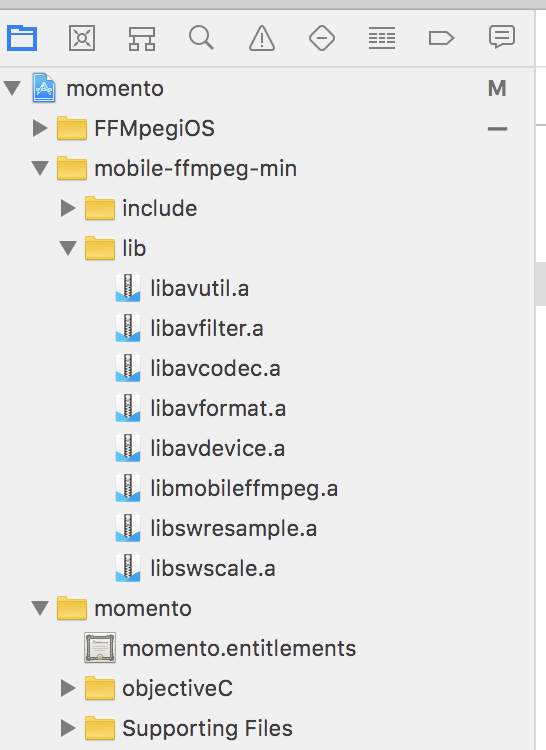

I actually need a .h file also for ffmpeg like other static libraries have.

[ankitsiliconithub]

Just Use this steps
https://github.com/tanersener/mobile-ffmpeg/wiki/Using-IOS-Universal-Binaries
and it work perfect also upload in itunes for demo for check it's work or not but it work Perfect
Thanks @tanersener

[tanersener]

@tprakhar Here you can find them too mobileffmpeg-min-v2.1.1-universal-static-library

@ankitsiliconithub glad it worked for you

[tanersener]

@tprakhar ,

Just added the following static universal packages for v2.1.1 release.

mobile-ffmpeg-full-2.1.1-ios-static-universal
mobile-ffmpeg-full-gpl-2.1.1-ios-static-universal

Also updated Using IOS Universal Binaries wiki page to cover static universal libraries.

I hope they work for you.

[ghost]

Thank you so much for all your input here. I will try out these things by end of the day today and update you.

[tanersener]

Thank you so much for all your input here. I will try out these things by end of the day today and update you.

Ok mate :+1:

[tanersener]

Hi mate, just published all static and shared universal binaries for v2.1.1 in a new v2.1.1 IOS Universal Binaries release.

[ghost]

Hey buddy, Thank you for your help and patience on this, but I tried using the 2.1.1 full static universal and added them all properly in my framework as given under the instructions and I am still getting the error -

.
.
      ...
  "_shine_set_config_mpeg_defaults", referenced from:
      _libshine_encode_init in libavcodec.a(libshine.o)
  "_lame_get_framesize", referenced from:
      _mp3lame_encode_init in libavcodec.a(libmp3lame.o)
  "_opus_multistream_decoder_ctl", referenced from:
      _libopus_decode_init in libavcodec.a(libopusdec.o)
      _libopus_flush in libavcodec.a(libopusdec.o)
  "_aom_codec_encode", referenced from:
      _aom_encode in libavcodec.a(libaomenc.o)
  "_aom_codec_get_cx_data", referenced from:
      _aom_encode in libavcodec.a(libaomenc.o)
ld: symbol(s) not found for architecture x86_64
clang: error: linker command failed with exit code 1 (use -v to see invocation)

[tanersener]

Hmm, I’ve tested the libraries before publishing them but I didn’t test all the packages. This error basically says that package is not linked successfully. I might have missed something for ‘full’ package. I’ll need some time to test it. Until then you could try one of the other packages if you want.

[ghost]

Sure thing, take all the time you need, please. Till then, I will try with the other packages.

[ghost]

Hey @tanersener I am successful in running and uploading a static min version of the 2.1.1
Is there some place where we could connect, linkedIn/FB?

[tanersener]

I am successful in running and uploading a static min version of the 2.1.1

Great 👍, we finally made a working solution for you. Off course, here's my LinkedIn profile.

I spent hours working on linking errors of static libraries. I guess, I misjudged the whole static linking concept for universal libraries. Anyway, I fixed the errors and updated static packages in v2.1.1 IOS Universal Binaries release. Now all static packages work, for me. But it would be great if somebody else also tries them out.

[ghost]

I will try out the other libraries also for you, most probably by end of the day today. I cannot thank you enough, but nonetheless, Thank you so much for sticking with me through this.

[tanersener]

No mate, I'm the one who should thank you 👍

Also, I'm happy we found a solution for you but Invalid Bundle Error is still there so this issue must remain open until a solution is found.

[ghost]

Yes, that is also true as that was the core problem and this is just a workaround. That is the right way to go about.

[IanField90]

@tanersener I'd just like to say thanks very much for all your help with my colleague @tprakhar's issue here. You're a 🌟! 🎉

[tanersener]

@IanField90 Well, don't know what to say. Thank you for using this library. You are very kind.

[jlorencelim]

@tanersener I am also experiencing this issue when uploading a test build through TestFlight.
I am using the mobile-ffmpeg-min-gpl ~> 2.1.1
and throws me this error:

ERROR ITMS-90208: "Invalid Bundle. The bundle boxborders.app/Frameworks/libavcodec.framework does not support the minimum OS Version specified in the Info.plist."
ERROR ITMS-90208: "Invalid Bundle. The bundle boxborders.app/Frameworks/libavdevice.framework does not support the minimum OS Version specified in the Info.plist."
ERROR ITMS-90208: "Invalid Bundle. The bundle boxborders.app/Frameworks/libavfilter.framework does not support the minimum OS Version specified in the Info.plist."
ERROR ITMS-90208: "Invalid Bundle. The bundle boxborders.app/Frameworks/libavformat.framework does not support the minimum OS Version specified in the Info.plist."
ERROR ITMS-90208: "Invalid Bundle. The bundle boxborders.app/Frameworks/libavutil.framework does not support the minimum OS Version specified in the Info.plist."
ERROR ITMS-90208: "Invalid Bundle. The bundle boxborders.app/Frameworks/libswresample.framework does not support the minimum OS Version specified in the Info.plist."
ERROR ITMS-90208: "Invalid Bundle. The bundle boxborders.app/Frameworks/libswscale.framework does not support the minimum OS Version specified in the Info.plist."

Is there a way to fix this or any alternate solution for this as it is urgent. Thank you.

[tanersener]

@jlorencelim Unfortunately I don't have a solution for this issue yet. If you read entire thread from the beginning, you'll see that we tried many things but didn't found a fix for this.

Using Universal Binaries Release is a workaround. You can apply it if you want.

Alternatively, you can manually edit Info.plist files to try some of the suggestions written in the previous posts. They didn't work for us but they may work for you.

Currently, I don't have an active Apple Developer Program membership, so I can't test the issue described here. If you have any suggestions about the solution, the testing, please share it; I'm open to everything.

[jlorencelim]

Just to confirm, if I use the Universal Binaries Release, I won't be using the cocoapods anymore, right?

[tanersener]

Just to confirm, if I use the Universal Binaries Release, I won't be using the cocoapods anymore, right?

You can still use cocoapods, but your Podfile won't have mobile-ffmpeg pod inside.

[jlorencelim]

Hi @tanersener. I used the Universal Binaries Release work around. It worked and was able to upload the build.

I encountered an error though when uploading the build:
ld: could not reparse object file in bitcode bundle: 'Invalid bitcode version (Producer: '1000.11.45.2_0' Reader: '902.0.39.2_0')', using libLTO version 'LLVM version 9.1.0, (clang-902.0.39.2)' for architecturearmv7
which I set the Enable Bitcode to No in the Build Settings. I am not sure if this solution is fine but it works just fine.

Thanks for your help!

[tanersener]

Hi @jlorencelim. Thanks for letting me know. It is an Xcode incompatibility issue. Binaries were built using the latest Xcode version, but you have version 9.4, this is causing this error.

I created a new issue for this, Support older Xcode versions, planning to resolve it in the next release.

[jlorencelim]

Cool, thanks a lot for your help. I really appreciate it.

[thecsy]

same upload error , help me.....

I'm try Pod And universal min version

first (Pod version 3.1)
pod -> only Pod install > ipa export Success
but pod -> only Pod install > arcive & upload > Error

next
pod remove -> Download : min version universal > ipa export & Run Success
but, arcive & upload > Error

no more other solution?

[tanersener]

Hi @thecsy,

This issue is about dynamic frameworks distributed from Cocoapods. We tried many things to solve it but none of them worked.

The only working solution is using universal binaries instead of pod files. Universal binaries are released on github and inlude .a or .dylib files.

According to your output you still use MobileFFmpeg from Cocoapods. If you disable it and import universal binaries then these errors will be resolved.

[tanersener]

By the way, this error occurs due to incompatibility between entries in Info.plist and your build settings. If you have tips on resolving it I'll be more than happy to help.

[thecsy]

thank you reply
but not complete.

Pod remove and universal install

first. universal 2.1.1 min version
second. universal 3.0 full version
last universal 3.0 min version

2.1.1 min = VlcMobileKit Complict , ARM64 error.....

3.0 full = VlcMobileKit Complict

3.0 min = upload Ok, Build Ok but ffmpeg function excute not working

before when i used POD, thet is complete.
but now i use universal version it was not working

[tanersener]

Hi @thecsy, linking errors show that something is wrong in your Xcode Build Settings. I'd recommend validating each step in Using IOS Universal Binaries guide.

I don't see any errors about execute() method in your output. Can you explain the error and share command output please?

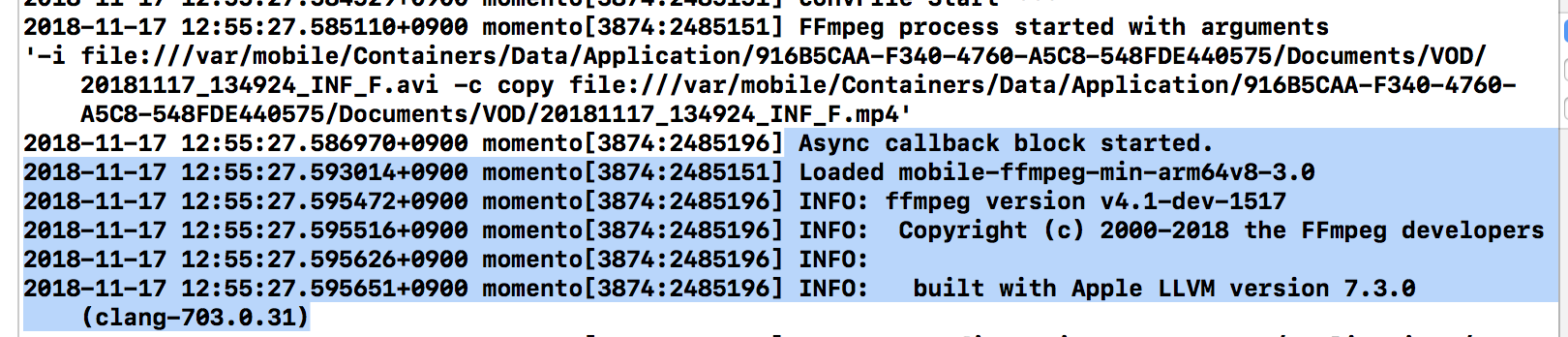

[thecsy]

mm..

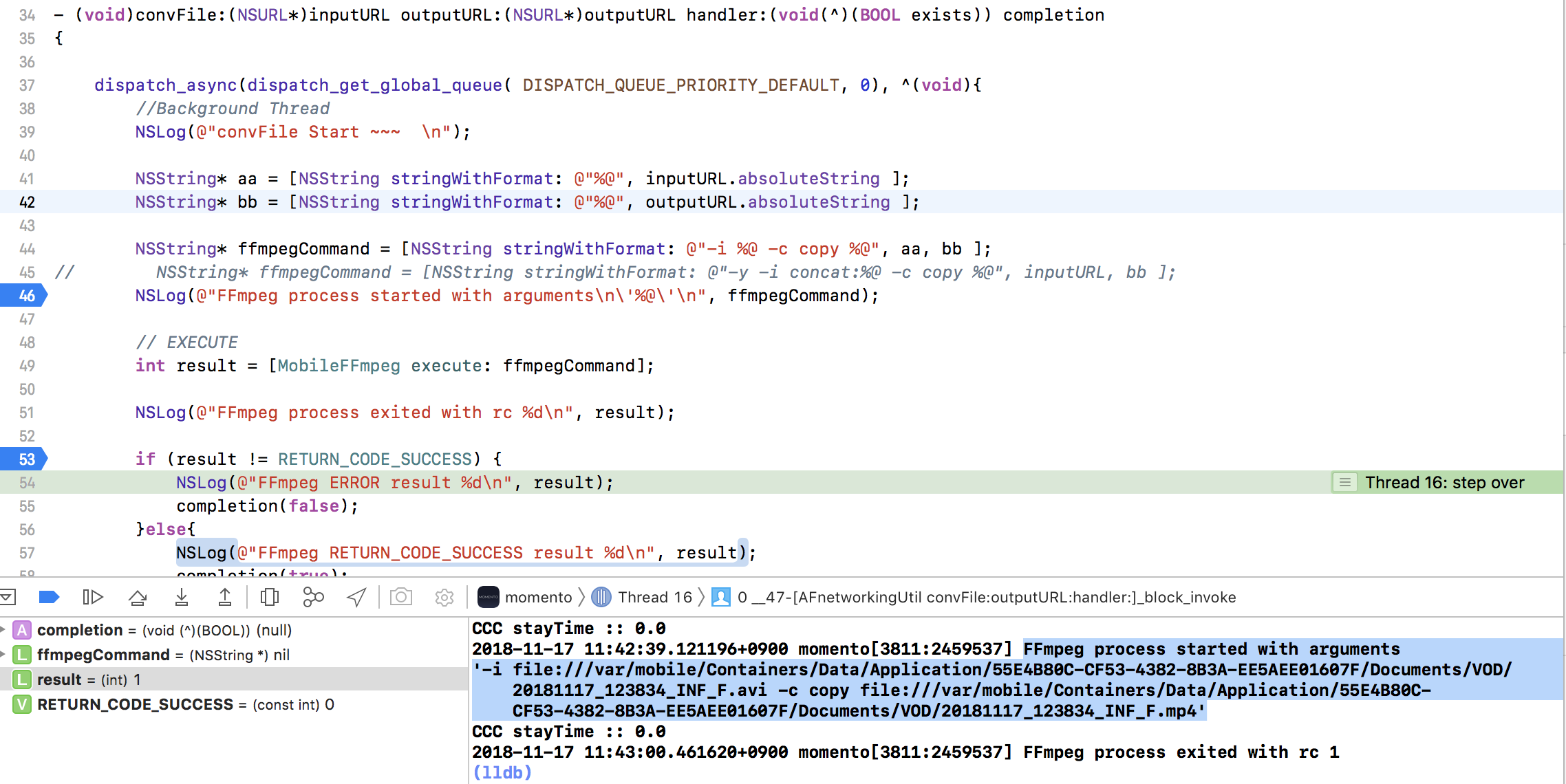

im use 2.1.1 Universal Binaries
always fail, "excute()".

before when i used POD, not problem.

guide

[thecsy]

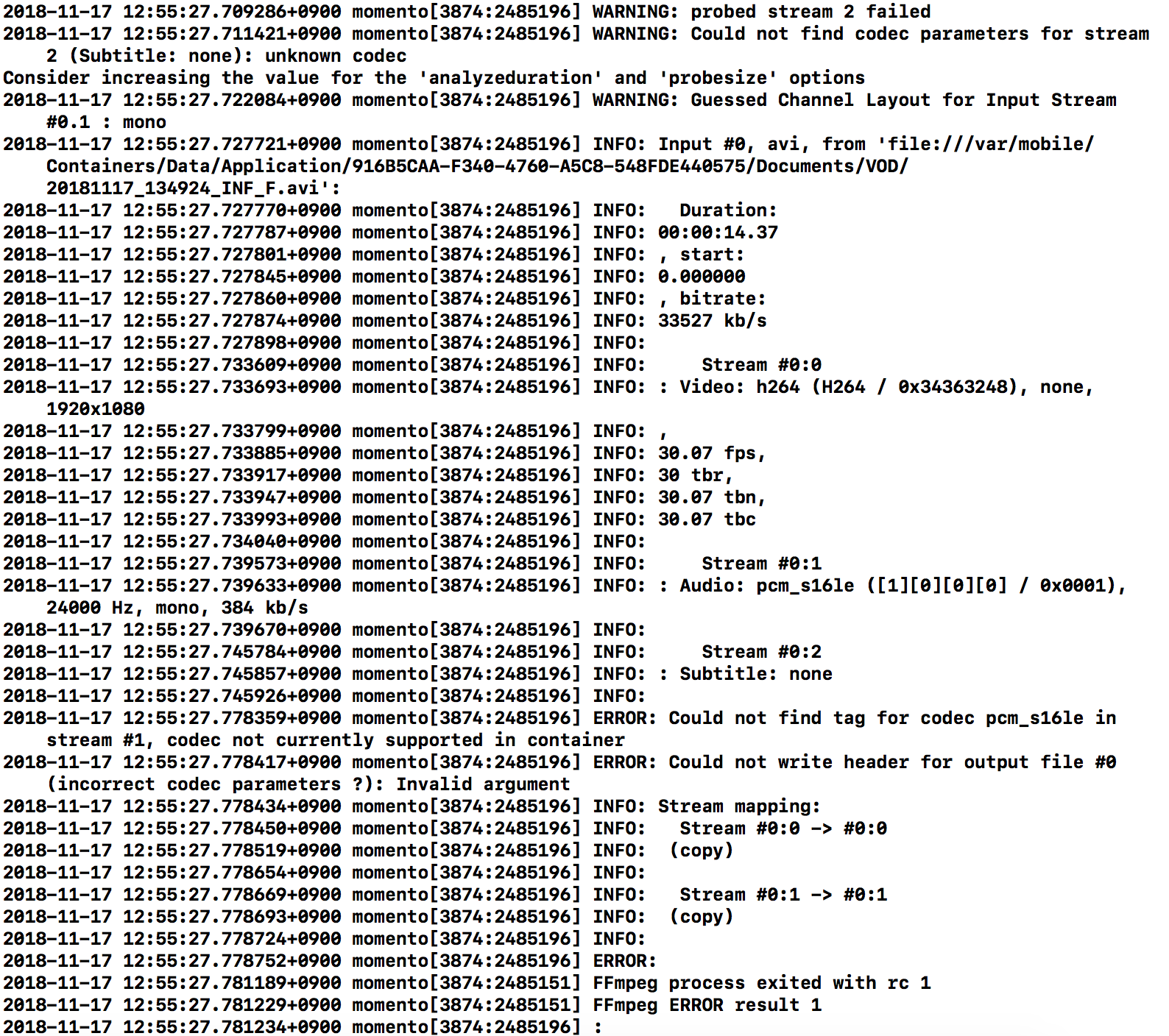

3.0 min install is others error.
codec not found....

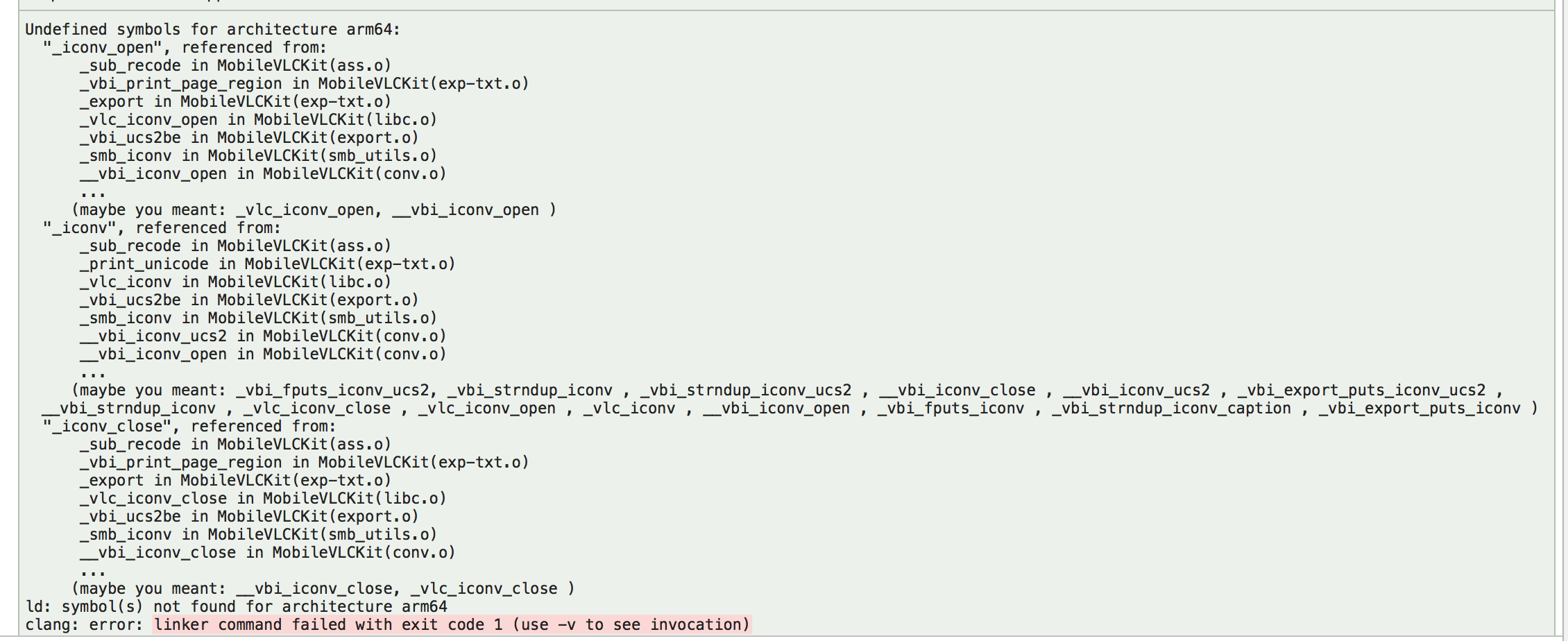

3.0 full version is conflict in iconv

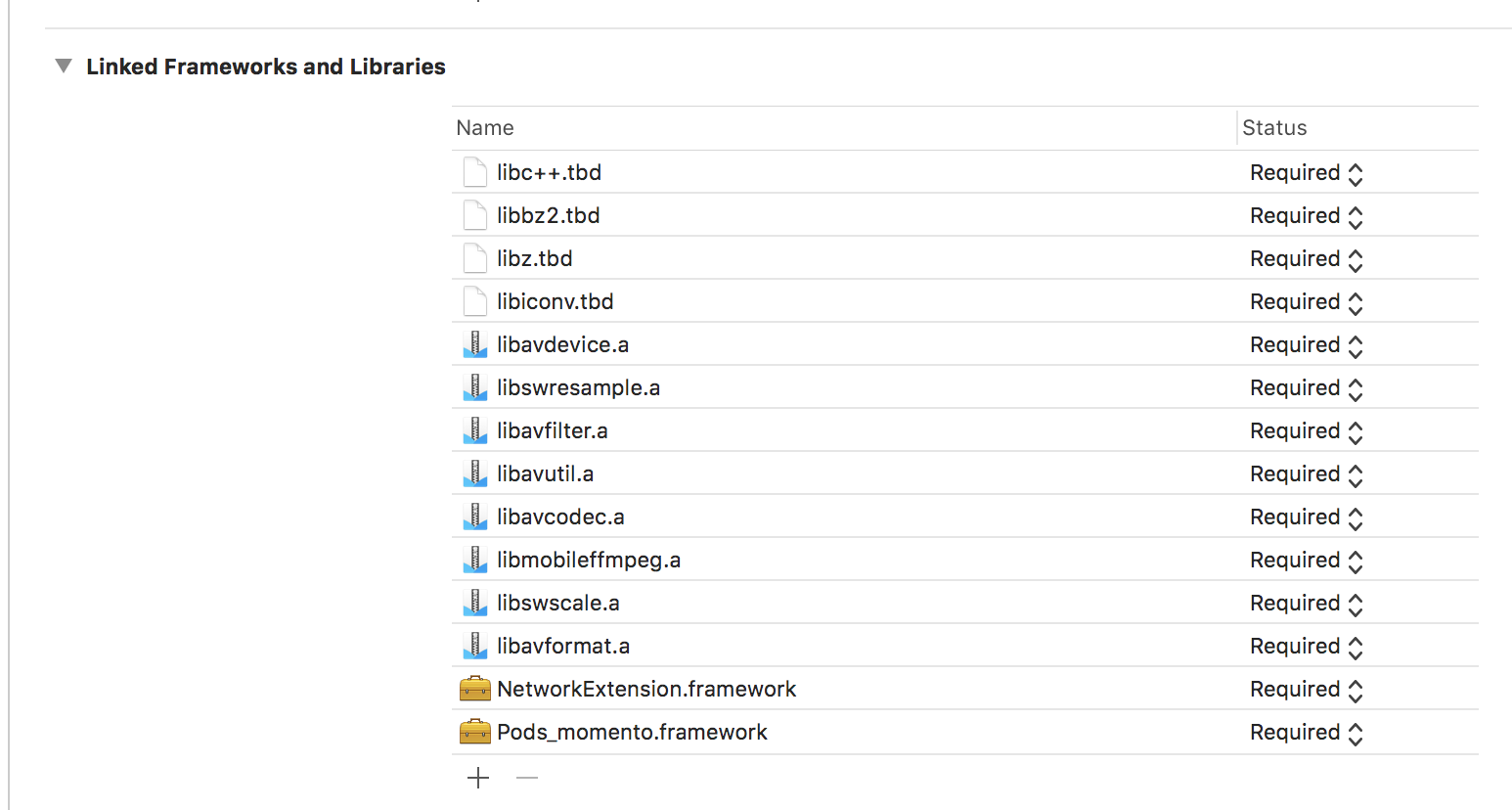

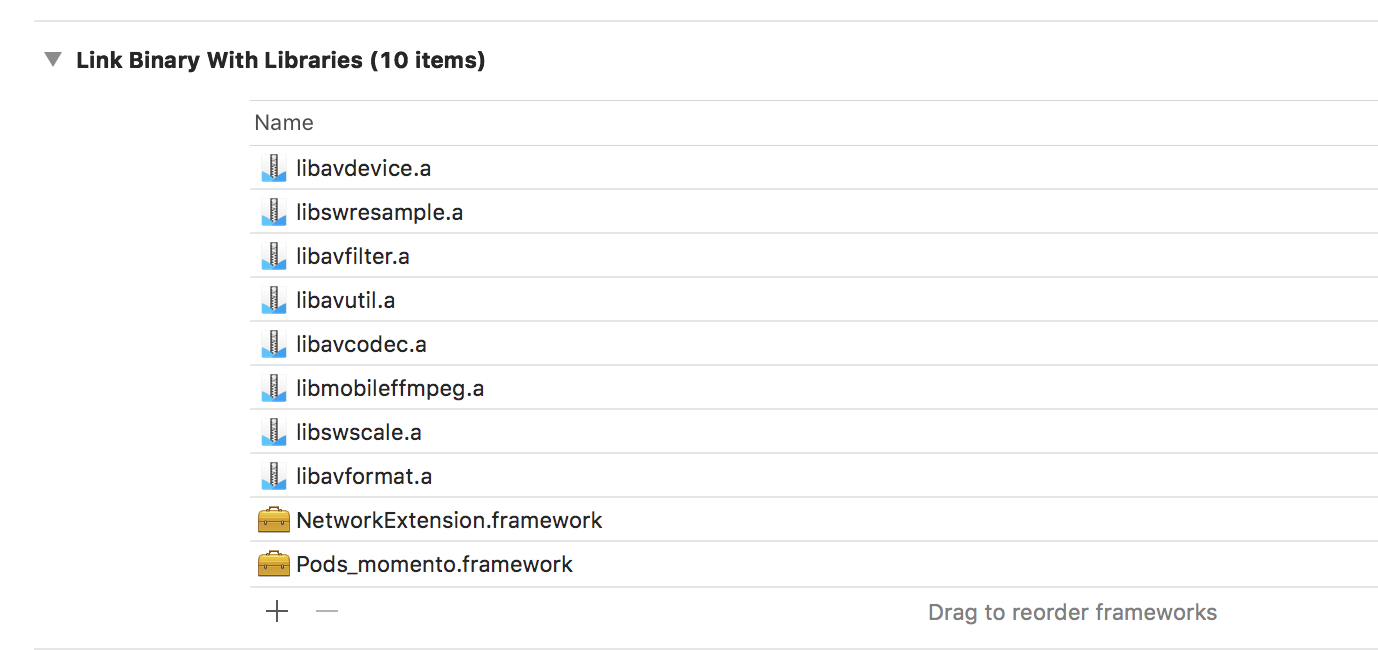

Required libraries in VLCKit

libiconv.tbd
libbz2.tbd
libz.tbd
libc.tbd

Because of 'libiconv.tbd' , full version can not be used.
Is 'pod' difficult to use?

[thecsy]

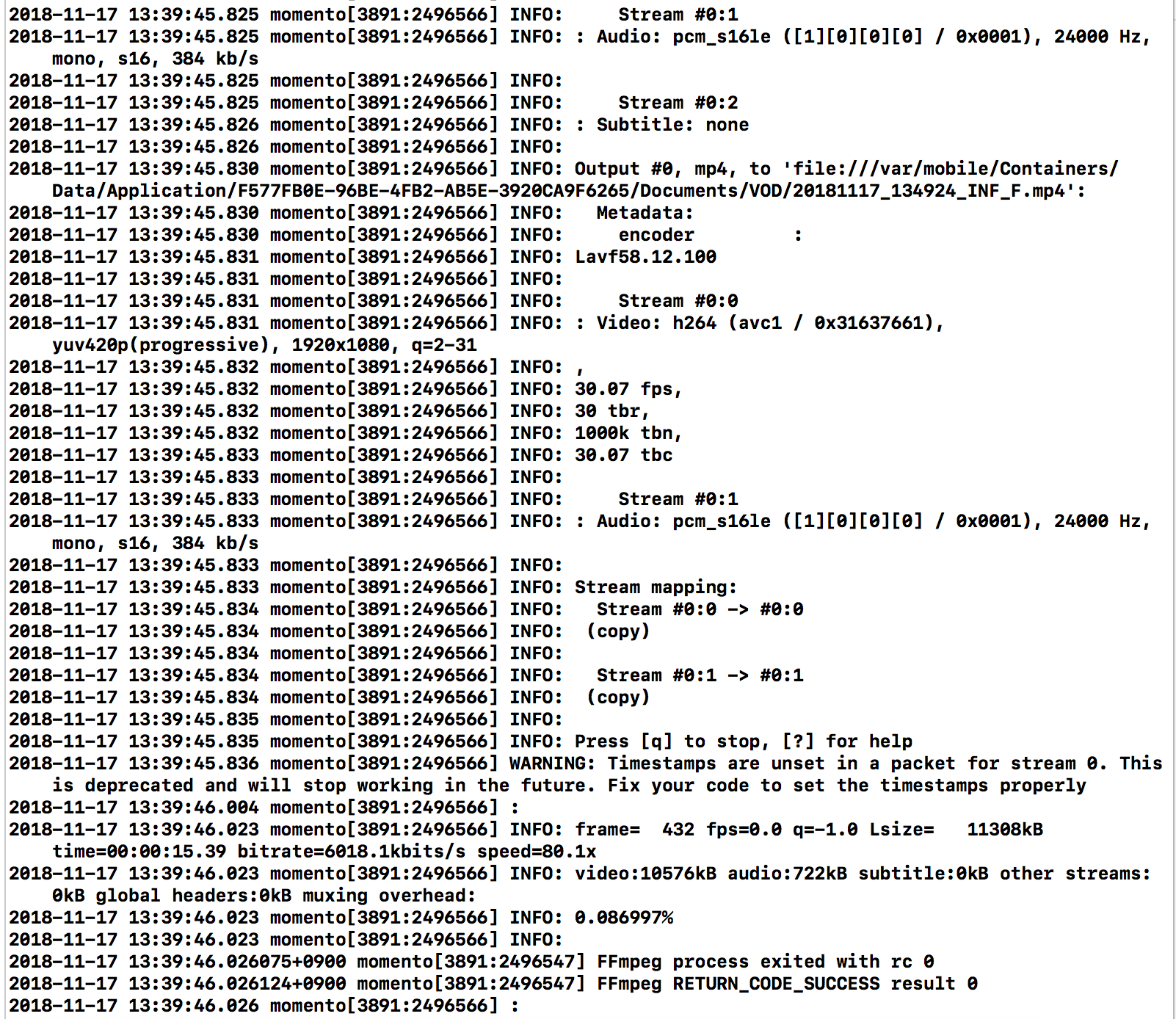

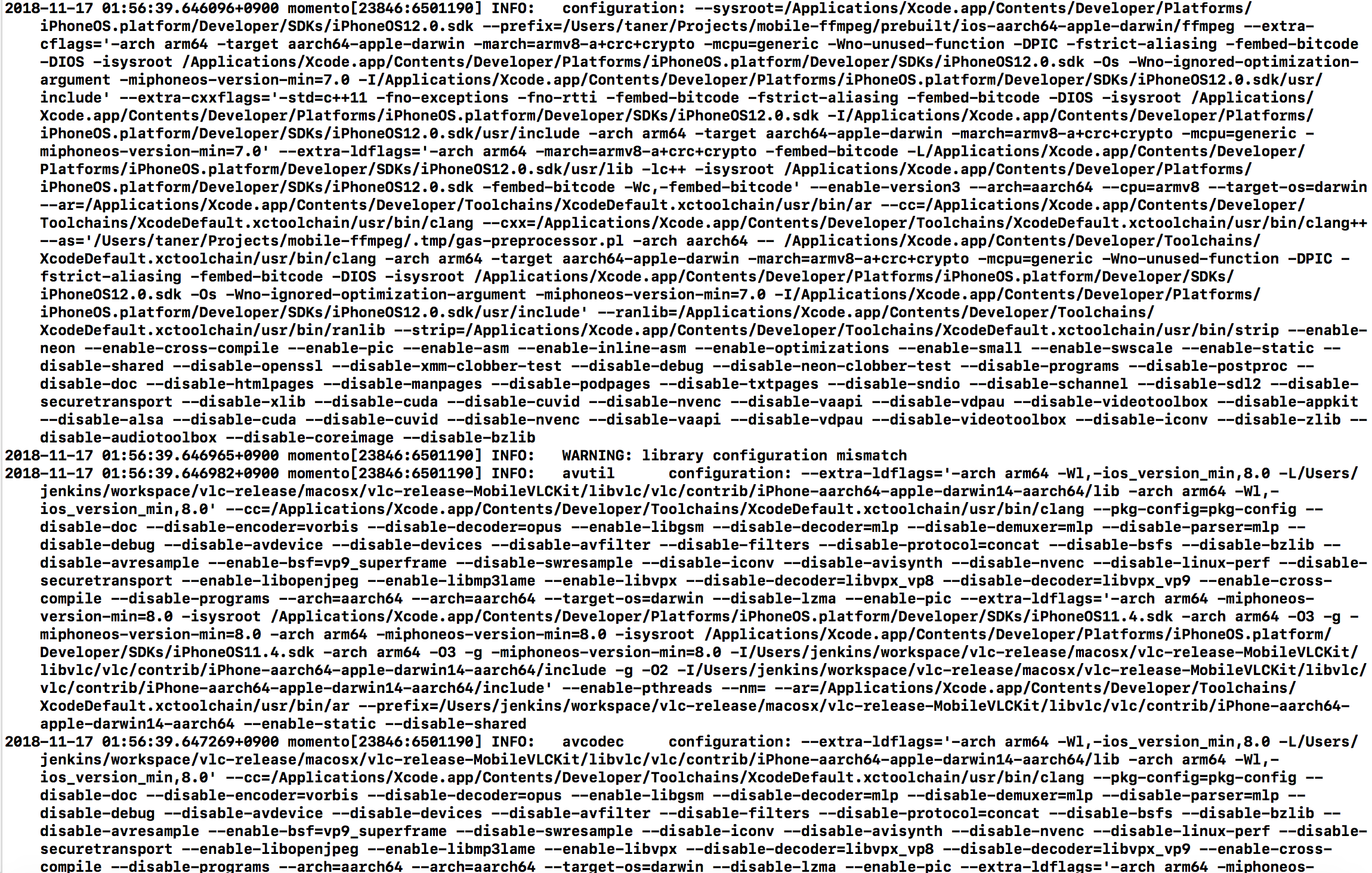

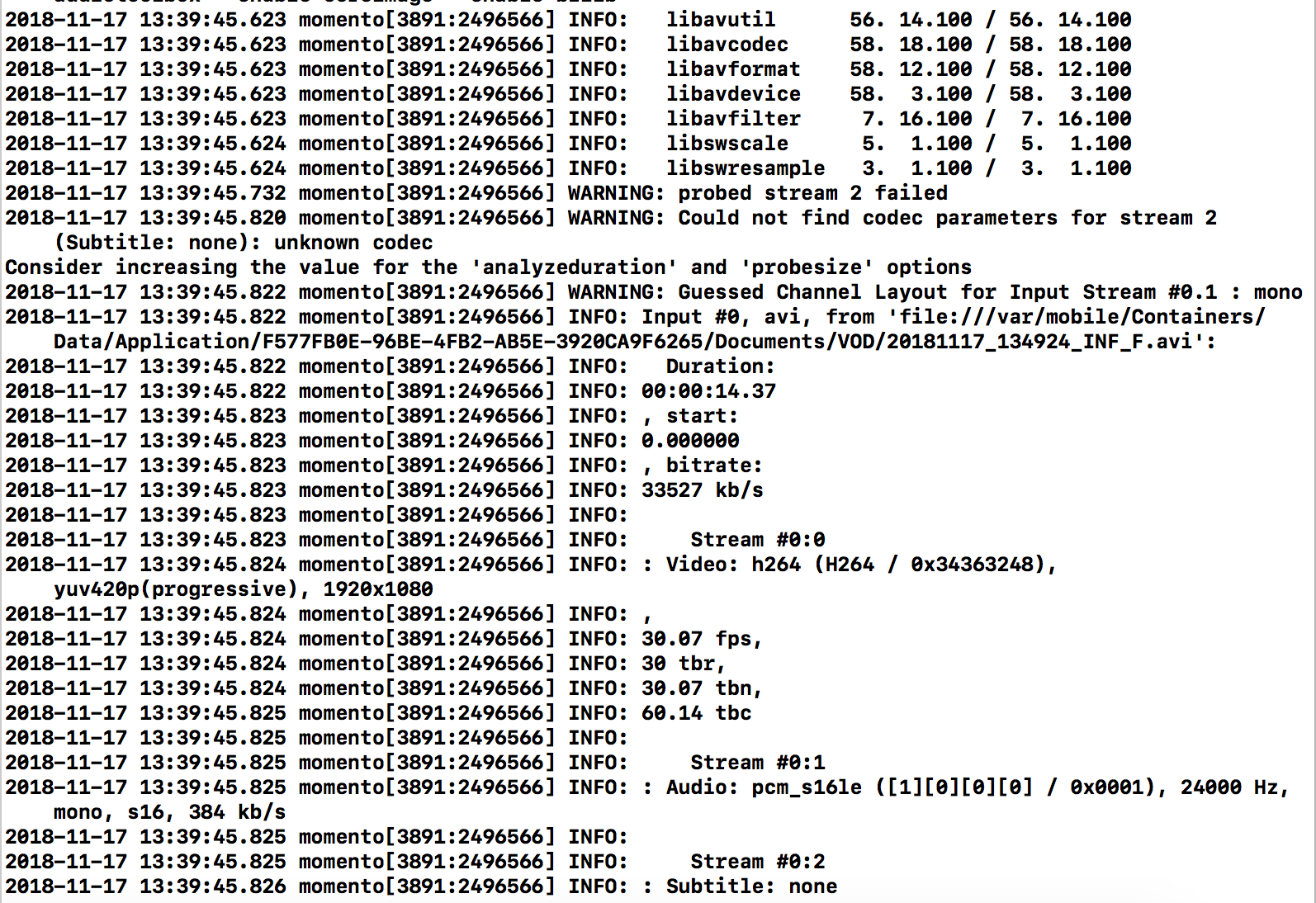

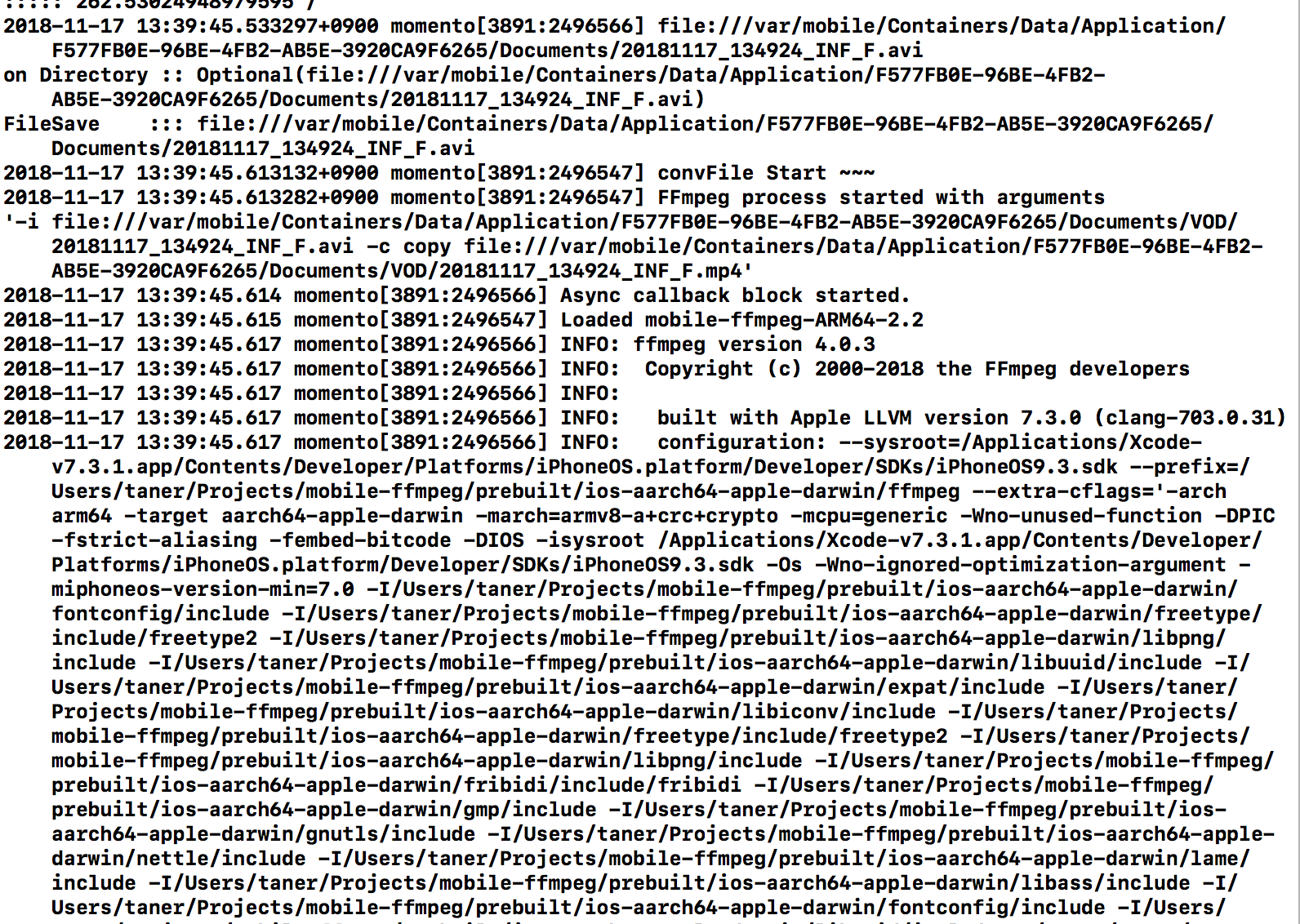

last capture

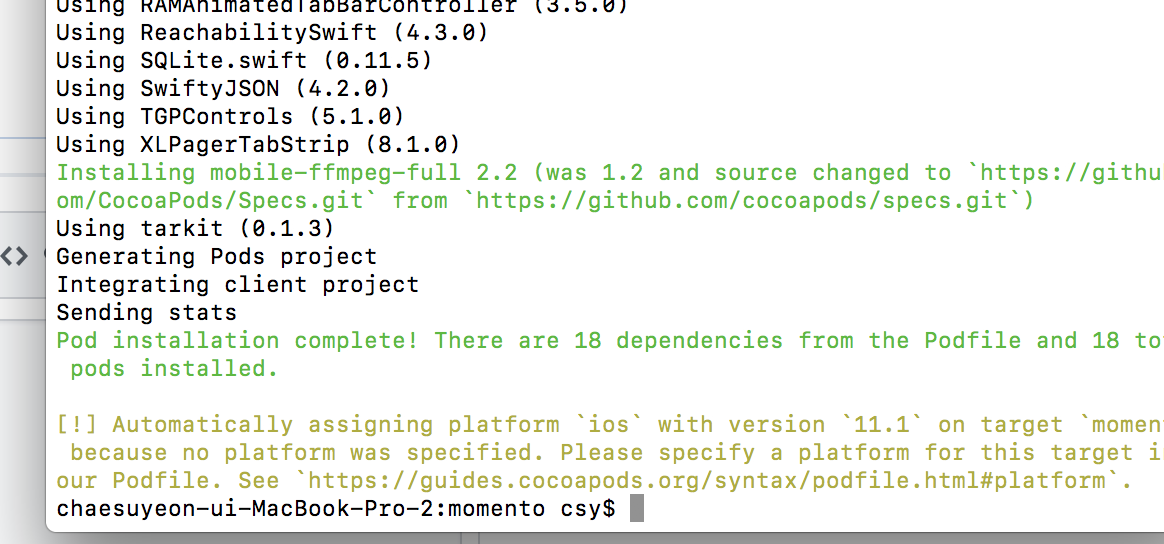

pod use

[thecsy]

all code same...

Result Succes only for last version

[tanersener]

im use 2.1.1 Universal Binaries
always fail, "excute()".

Your command fails but the reason is not printed. You may try to increase the log severity and try again; but I guess error for this version is the same as v3.0.

3.0 min install is others error.
codec not found...

Min versions does not include any external libraries so some formats/codecs are not supported. According to logs pcm_s16le and h264 codecs are not found. It means you need to use another package, other than min.

3.0 full version is conflict in iconv
Required libraries in VLCKit

libiconv.tbd
libbz2.tbd
libz.tbd
libc.tbd

According to step 7 in Using IOS Universal Binaries guide you need add all shared/static libraries under mobile-ffmpeg-<package-name>-universal/lib to Link Binary With Libraries section. Your screenshot shows that all static files are not added.

Because of 'libiconv.tbd' , full version can not be used.

static libraries for full package needs libiconv.a but it is not added in your project. So they try to use libiconv.tbd and it causes linking errors. You can use shared version of full package. It doesn't need libiconv to be exclusively added.

Is 'pod' difficult to use?

Pod is easy to use but you need to solve Invalid Bundle Error error, which doesn't have a solution right now.

[thecsy]

oh sorry
i find it, embed menu

"Success EXECUTE()"

Thank you Guide & miss point check

[thecsy]

oh return, first stage....

share version build ok, but not upload

dylib error... my Xcode 10.1 version

[tanersener]

share version build ok, but not upload
dylib error... my Xcode 10.1 version

@thecsy I opened a new issue #45 about this. Can we talk it there?

[Mcgode]

Issue was solved by using the 3.1 distributed frameworks for me

[tanersener]

Issue was solved by using the 3.1 distributed frameworks for me

@Mcgode Do I understand correctly? Your application was getting Invalid Bundle Error with v3.0 frameworks, with v3.1 frameworks Invalid Bundle Error errors are gone, right?

[Mcgode]

@tanersener Yup exactly, but only for the framework version, I still get issue #45 with the shared library

[tanersener]

@tanersener Yup exactly, but only for the framework version, I still get issue #45 with the shared library

@Mcgode Great, by the way how do you install frameworks, using Cocoapods or manually?

I made some custom builds for #45 but they didn't work as far as I remember. Did you try applying them or would you like to try them If you have time?

[Mcgode]

@tanersener I installed those manually, from your releases (the mobile-ffmpeg-video version), here on Github

[tanersener]

@Mcgode Thank you very much, your comments helped a lot.

[Mcgode]

Okay... So... For some reason, one of the build scripts for my app unlinked the whole library when archiving the entire app :/
After having fixed that issue, it turns out I still run into the issue of this topic. Sorry for giving you a fake hope :/

[codaman]

Is there a solution about Invalid Bundle "does not support the minimum OS Version specified in the Info.plist"

I added MinimumOSVersion as 10.0 also my deployment target is 10.0

[codaman]

I tried 2.1 3.0 and 3.1 framework but no fixes :(

[tanersener]

After having fixed that issue, it turns out I still run into the issue of this topic. Sorry for giving you a fake hope :/

No problem, it will be fixed sooner or later.

Is there a solution about Invalid Bundle "does not support the minimum OS Version specified in the Info.plist"

Can you try Universal Binaries?

[codaman]

OMG I passed invalid binary. I just added frameworks manually and minimum iOS version is 11.0. I didn't try 10.0 with manually. Yes i tried with Universal Binaries. Also thank you Taner with this amazing project. It saved my life :)

Ellerine sağlık hocam :)

[tanersener]

OMG I passed invalid binary. I just added frameworks manually and minimum iOS version is 11.0. I didn't try 10.0 with manually. Yes i tried with Universal Binaries. Also thank you Taner with this amazing project. It saved my life :)

Ellerine sağlık hocam :)

Thanks, my friend. But I didn't fully understand how the problem was solved. You used frameworks and you have minimum iOS version 11.0 in your Info.plist file, right?

[codaman]

I tried minimumosversion as 10 and 11. I didnt try below ios version may be it works. I just added frameworks manually

[tanersener]

@codaman great, thanks 👍

[codaman]

@tanersener i didn't successed. 2 days ago. Time is late. I ran wrong project. I didn't add universal library as embedded. Yes it successfully uploaded store but i tested wrong project. Issue continue. I tried universal library also. But not yet succeeded. Has anybody find out the solution

[codaman]

I am trying to add universal library But I got an interesting error.

dyld: Library not loaded: /Users/taner/Projects/mobile-ffmpeg/prebuilt/ios-aarch64-apple-darwin/ffmpeg/lib/libavfilter.7.dylib
Referenced from: /var/containers/Bundle/Application/81FB16BE-A478-4295-A273-0CC0B0EAD7F9/xxx.app/xxx
Reason: image not found

[tanersener]

@codaman Did you follow all steps defined in Using IOS Universal Binaries guide? Most of the time your error is received when step #8 is not applied. Can you check that?

[codaman]

@tanersener thank you I passed this problem. Now I am trying upload to the store

[codaman]

"Invalid Segment Alignment. The app binary at 'xxx.app/Frameworks/libmobileffmpeg.dylib' does not have proper segment alignment. I am searching the solution

[tanersener]

@codaman There is an issue about that: #45. Can you try using binaries posted in that page?

[tanersener]

This issue will be fixed in the next maintenance release. You can apply the following patch for the released versions.

Please note that this issue occurs only on frameworks (installed manually or via Cocoapods). Other errors reported in this thread are different issues. If you need support about them please submit a new issue.

1. Go to Build Phases section under Xcode and add a new Run Script Phase as the last phase of your build.

2. Use the following code block as the source of your new run phase.

echo "Applying patch for https://github.com/tanersener/mobile-ffmpeg/issues/18"
cd "${BUILT_PRODUCTS_DIR}/${FRAMEWORKS_FOLDER_PATH}"

INFO_PLIST_FILES=$(find . -name Info.plist | grep 'libswresample\|libavfilter\|libavformat\|libavutil\|libswscale\|libavdevice\|libavcodec\|mobileffmpeg')

for INFO_PLIST in ${INFO_PLIST_FILES};
do
        existing_key_line_number=$(sed -n '/MinimumOS/=' ${INFO_PLIST})
        if [[ -z ${existing_key_line_number} ]]; then
            sed -i .tmp "s/<\/dict/    <key>MinimumOSVersion<\/key>\\
    <string>9.3<\/string>\\
<\/dict/g" ${INFO_PLIST}
            rm -f "${INFO_PLIST}.tmp"
            echo "Patch added MinimumOSVersion key & value at ${INFO_PLIST}"
        else
            sed -i .tmp "$((existing_key_line_number+1))s/.*/        <string>9.3<\/string>/" ${INFO_PLIST}
            rm -f "${INFO_PLIST}.tmp"
            echo "Patch replaced MinimumOSVersion value at ${INFO_PLIST}"
        fi
done

The final view of the Build Phases tab should be similar to the following screenshot.

[tanersener]

This issue is fixed in the latest v4.2 release.
