Microsoft-authentication-library-for-js: MSAL does not return the new token after an acquireSilent()

[scambier]

I'm submitting a...

[ ] Regression (a behavior that used to work and stopped working in a new release)
[x] Bug report
[ ] Performance issue
[ ] Feature request
[ ] Documentation issue or request
[ ] Other... Please describe:

Browser:

• [x] Chromium version 74 (with Brave)
• [ ] Firefox version XX
• [ ] IE version XX
• [ ] Edge version XX
• [ ] Safari version XX

Library version

Library version: 1.0.1

Current behavior

• I'm using MSAL with VueJS
• I use the localStorage (and not the sessionStorage)
• I use axios to intercept outgoing requests to my API, and inject the accessToken from acquireTokenSilent() as a bearer token

When the token expires, MSAL fetches a new one (using acquireTokenSilent()), updates the localStorage accordingly, but still returns the old one. As a result, when I call my API, I have 401 errors.

• When I refresh the page, acquireTokenSilent() returns the new token.
• When I open a new tab from the same app, the new tab acquireTokenSilent() returns the new token. However, the old tab still uses the old token

The localStorage just after a login:

After a token refresh:

The new token is present (in green), while the old one is still there in red. MSAL still returns the old one when calling acquireTokenSilent()

Expected behavior

MSAL should use the new token

Minimal reproduction of the problem with instructions

The ajax interceptor:

    axios.interceptors.request.use(
      async request => {
        await setToken(request)
        return request
      },
      error => {
        return Promise.reject(error)
      }
    )

    const setToken = async (request: any) => {
      const res = await authService.getAuthResponse() as Msal.AuthResponse
      request.headers.common['Authorization'] = `Bearer ${res.accessToken}` // This fails if MSAL requested a new token
    }

The authService:

  public async getAuthResponse(): Promise<null | Msal.AuthResponse> {
    const tokenRequest = {
      scopes: this.graphScopes
    }

    try {
      return await this.userAgentApp.acquireTokenSilent(tokenRequest)
    }
    catch (e) {
      this.userAgentApp.acquireTokenRedirect(tokenRequest)
      return null
    }
  }

UPDATED WORKAROUND:

To manually retrieve the correct token:

function extractMSALToken() {
  const timestamp = Math.floor((new Date()).getTime() / 1000)
  let token = null

  for (const key of Object.keys(localStorage)) {
    if (key.includes('"authority":')) {
      const val: any = JSON.parse(localStorage.getItem(key)!)

      if (val.expiresIn) {
        // We have a (possibly expired) token

        if (val.expiresIn > timestamp && val.idToken === val.accessToken) {
          console.log(key)
          // Found the correct token
          token = val.idToken
        }
        else {
          console.log('will remove ' + key)
          // Clear old data
          localStorage.removeItem(key)
        }
      }
    }
  }
  if (token) return token
  throw new Error('No valid token found')
}

Old workaround (invalid):

    const setToken = async (request: any) => {
      // Make sure that MSAL token is up-to-date
      const res = await authService.getAuthResponse() as Msal.AuthResponse
      // DIRTY FIX : directly fetch the token from the localStorage
      request.headers.common['Authorization'] = `Bearer ${localStorage.getItem('msal.idtoken')}`
      // request.headers.common['Authorization'] = `Bearer ${res.accessToken}` // This doesn't work
    }

[DarylThayil]

This is really interesting, thanks for sharing!
@pkanher617 can you take a look at this?
Looks like we may be fumbling something in the cache of refreshed tokens

[tylerjwatson]

+1. I get this as well.

Question for @scambier if I may: In your 'workaround', I noticed this line:

request.headers.common['Authorization'] = `Bearer ${localStorage.getItem('msal.idtoken')}`

Is there any specific reason why the id token is getting injected into your Authorization header and not the access token? The workaround seems succinct, apart from this one line.

Cheers! 👍

[tylerjwatson]

Team, I also noticed something of particular interest:

In the localStorage container, tokens acquired on initial boot have the expiredIn property set to a number:

whereas subsequents (or tokens requested by acquireTokenSilent) are strings:

This may be breaking some of your comparison logic for clearing expired stuff and may be part of the reason why erroneous tokens are being returned from these calls.

Cheers

[scambier]

Is there any specific reason why the id token is getting injected into your Authorization header and not the access token? The workaround seems succinct, apart from this one line.

Cheers!

@tylerjwatson I have two objects containing an access_token in the localStorage (cf. my second screenshot), and their keys (that are also objects) don't make them easy to retrieve and compare, so I'm just picking the msal.idtoken value. Since it's a workaround, I didn't give it much thought and went with the first "it seems to work" solution

[scambier]

Updated workaround: getting msal.idtoken from the localStorage does not work reliably, as the value is sometimes (often) not correctly updated by msal.

This function seems to get the correct, up-to-date token more reliably:

function extractMSALToken() {
  const timestamp = Math.floor((new Date()).getTime() / 1000)
  let token = null

  for (const key of Object.keys(localStorage)) {
    if (key.includes('"authority":')) {
      const val: any = JSON.parse(localStorage.getItem(key)!)

      if (val.expiresIn) {
        // We have a (possibly expired) token

        if (val.expiresIn > timestamp && val.idToken === val.accessToken) {
          // Found the correct token
          token = val.idToken
        }
        else {
          // Clear old data
          localStorage.removeItem(key)
        }
      }
    }
  }
  if (token) return token
  throw new Error('No valid token found')
}

[tylerjwatson]

Guys,

This is a severe issue with a Microsoft product. Can we please get an update and an ETA to fix?

Cheers

[sameerag]

@pkanher617 Will your PR #799 solve some of the issues above?

[dluc]

I'm experiencing the same issue, which is causing my app to stop working every 24 hours (when token expires).

As a workaround I have to manage token expiration and clearing localstorage with dedicated code, which is far from ideal (and duplicates what MSAL should be doing) - the workaround could stop working anytime MSAL decides to use different storage keys, ie. I would prefer not knowing how the lib use localstorage and not deal with internal implementation details.

Could you provide an ETA for the fix?

[DarylThayil]

Adding this bug to our October 2019 miletsone

[jasonnutter]

@scambier Is this still an issue with the latest version (1.1.3)?

[bjornicus]

@jasonnutter yes this is still a problem with 1.1.3

[sameerag]

@scambier We pushed up some cache fixes(nonce clearance) in the recent msal beta releases. Can you please try msal 1.2.0-beta.2 and report to us if the issue is still seen? The package is available in npm for download.

[scambier]

@sameerag I've updated a few hours ago, and so far the token seems to refresh itself correctly, thanks.

[sameerag]

Thanks @scambier. Closing this issue.

[scambier]

@sameerag actually, it seems to still not work as expected, but maybe I'm misunderstanding. My setup is still the one described in the first post, but MSAL still often fails to refresh the token by itself.

Basicall, each ajax request I do is preceded by a call to this function:

  public async getAuthResponse(): Promise<Msal.AuthResponse> {
    try {
      return await this.userAgentApp.acquireTokenSilent(this.tokenRequest)
    }
    catch (e) {
      try {
        return await this.userAgentApp.acquireTokenPopup(this.tokenRequest)
      }
      catch (e) {
        console.error('Cannot retrieve token')
        throw e
      }
    }
  }

So, 401 responses shouldn't happen, right? Because they still happen. I have to intercept those responses, call acquireTokenSilent/Popup() once more, inject that new token, and replay the request.

Edit: it's almost like the acquireSilent() is sending a false positive "your token is still fresh", when actually it should have caught an error to subsequently call acquirePopup() or acquireRedirect()

Edit 2: the minimal code for my axios response interceptor:

    axios.interceptors.response.use(
      response => response,
      async (error) => {
        if (error.config && error.response && error.response.status === 401) {
          const res = await authService.getAuthResponse()
          error.config.headers['Authorization'] = `Bearer ${res.accessToken}`
          return axios.request(error.config)
        }
      })

[mbondoso]

I tested it on beta 1.2.0-4 but still not working.

[sameerag]

@scambier How frequent are the 401 errors? Ideally a token is valid for an hour and acquireTokenSilent if called within an hour will be able to refresh the token silently before the token expires as long as the session is valid. If the AAD session is invalid, that is when the user is prompted for interaction and may need to call acquireTokenPopup.

Can you paste the response you are seeing in the catch when acquireTokenSilent fails? What is the error thrown?

[scambier]

@sameerag

How frequent are the 401 errors?

They're infrequent, but they happen. I had 1 between 8am and 1pm today, for example. That's why I thought the issue was fixed in https://github.com/AzureAD/microsoft-authentication-library-for-js/issues/759#issuecomment-545877042

if called within an hour will be able to refresh the token silently before the token expires as long as the session is valid.

Yes, and that works most of the time. Just once in a while, it doesn't.

Can you paste the response you are seeing in the catch when acquireTokenSilent fails? What is the error thrown?

It does not fail per se. Like I said in my previous post https://github.com/AzureAD/microsoft-authentication-library-for-js/issues/759#issuecomment-548260376, it's almost like the acquireTokenSilent() is sending a false positive "your token is still fresh", when it should have been renewed. So when I call my API, it responds with a 401.

To circumvent this, I had to write an interceptor to catch the 401 responses. All it does is call acquireTokenSilent _again_, then retry my API call.

[jasonnutter]

@scambier I wonder if you are encountering some sort of edge case, where MSAL thinks the token is still valid, but the API does not. Would you be able to share the access token (privately) with us next time this happens (along with the exact timestamp of the request)? Email is on my profile. Thanks!

[scambier]

@jasonnutter I was wrong on my assumptions: the accessToken is not invalid, it's null. So yeah, it's normal to have a 401 response, since I'm sending "Bearer null" as my Authorization. But I guess it's not normal to have a null accessToken

However, everything else in the acquireToken() response is valid, even the idToken.rawIdToken. So when I re-query acquireToken(), the accessToken is correctly filled, and is identical to the previous idToken.rawIdToken.

This was the response I got today at 09:48 GMT. The expiration value is good (valid until 10:41 GMT)

Edit: what's the role of idToken.rawIdToken?

[jasonnutter]

@scambier Ah, I see. Note, that acquireTokenSilent can be used to retrieve access tokens and ID tokens, and it looks like the first time you call acquireTokenSilent in this scenario, you are returned an ID token, not an access token. I assume you are using the same scopes for both requests? Might be a bug if you are getting back an ID token the first time you make the call for a set of scopes and then an access token token the second time (with the same set of scopes). cc: @sameerag

[scambier]

@jasonnutter

Note, that acquireTokenSilent can be used to retrieve access tokens and ID tokens, and it looks like the first time you call acquireTokenSilent in this scenario, you are returned an ID token, not an access token

It looks like it. There are some differences in the "Id Token" :

• uniqueId is filled (empty string in the Access Token)
• tenantId is filled (empty string in the Access Token)
• accessToken is null (filled in the Access Token)
• scopes are empty (filled in the Access token)
• accountState is different

If you still need them, I can send you both responses (id token and access token) privately by e-mail.

I assume you are using the same scopes for both requests?

Indeed.

Thank you for your help :)

[jasonnutter]

@scambier Which scopes are you passing to acquireTokenSilent?

[scambier]

@jasonnutter only our ClientId (application Id), in the form of xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx

[jasonnutter]

@scambier Ah, that would explain why you are getting back an ID token. To properly protect a custom web API using AAD access tokens, you need to register a custom scope in the Azure Portal, and then pass that custom scope to your login call as well as acquireTokenSilent. Your web API will need to use one of our middlewares to verify the access token.

See this comment for more info: https://github.com/AzureAD/microsoft-authentication-library-for-js/issues/1040#issuecomment-540810355

[jasonnutter]

Closing, as no further action at this time.

[arunprasathv]

@jasonnutter @sameerag Is the issue fixed for Angular Wrapper Library as well ?

[jasonnutter]

@arunprasathv This issue ended up being a usage problem. Any bugs that are fixed in the latest version of msal are fixed for MSAL Angular if you use the latest version of both msal and @azure/msal-angular.

If you are encountering behavior you believe is a bug, please open a new issue, thanks!

[arunprasathv]

@jasonnutter I see auth pop showing once the token expires when the user is in middle of something it pops up for auth which bad user experience. Any examples would be great.

[jasonnutter]

@arunprasathv Please open a new issue, thanks!

[mxswat]

@jasonnutter I need to create a custom scope also if I'm using Azure Function Apps?
Because like scambier I'm passing only our ClientId

[jasonnutter]

@mxswat Yes, if you are using access tokens for a custom API (e.g. an Azure Function), you should create a custom scope.

[rosiejaneenomar]

Hi, I'm having this problem using azure-msal in angular

"msal": "^1.3.2",
"@azure/msal-angular": "^1.0.0",

I have this custom checker if msal.idtoken is expired then i called this function to get new idtoken

1. when it is success the existing msal.idtoken coming from your first login doesn't refresh. (not that i was not using the msalInterceptor because i made a custom httpinceptor)

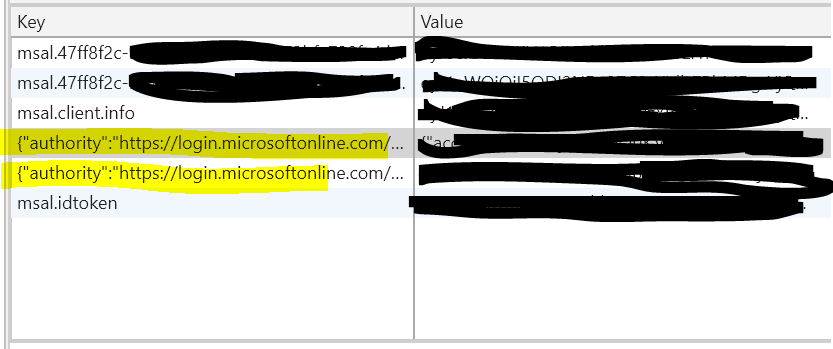

2. it also added a new key the one that is highlighted in yellow.

may i know someone who encountered this and found workaround? or any suggestions?
