Mbed-os: [API] Request API change configure ADC sampling time

[LMESTM]

Description

There have been 2 recent fixes where we needed to increase sampling time of ADCs #4326 and #4641,

This raises the question of optionally configuring this sampling time from the application, for instance
as MIN / MAX / DEFAULT or MEDIUM. That would require a modification of the AnalogIn.h API, whether in a new constructor variant or by adding a new method.

[LMESTM]

Adding more comments and suggestions from @ohagendorf regarding ADC:

Maybe two features or three would be nice to have:

setting sampling time
setting resolution
But curently for a fast conversion there is another huge problem. We analysed the adc read function:

float read() {
    lock();
    float ret = analogin_read(&_adc);
    unlock();
    return ret;
}

and lock()+unlock() need much more time than analogin_read(). I had to look into the project documentation for the exact numbers but it was something around 1.5µs for the conversion and 5...6µs for calling lock()+unlock() (Nucleo_F446RE).
One idea would be to add another read function with a callback under timer control or use continuous mode. In this case a fast equidistant conversion corresponding to the maximum conversion rate of the hardware would be possible. Or in combination with the above function to set the sampling time with a slower timing.
[Mirrored to Jira]

[adbridge]

Internal Jira reference: https://jira.arm.com/browse/IOTHAL-343

[farrenv]

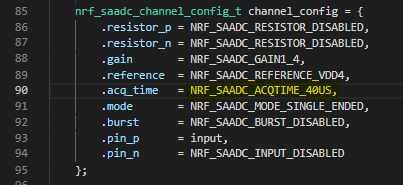

I had a similar issue working with the Nordic nrf52840 dev kit. I had to step into the analogin function until i reached analogin_api.c. From here i had to modify the following from 10 microseconds to 40. This immediately improved the results with a battery monitoring circuit that we are using. It would be nice to not have to modify the OS to get this functionality.

https://github.com/ARMmbed/mbed-os/blob/a477354292a3c6b6478e6e5833a4a5fc90ccb432/targets/TARGET_NORDIC/TARGET_NRF5x/TARGET_NRF52/analogin_api.c#L90

[cmonr]

@elm3 ?

[elm3]

The request to extend the ADC interface is in the backlog of the appropriate team. I have just pinged them asking if there are plans that I can share.

[ciarmcom]

Thank you for raising this issue. Please note we have updated our policies and
now only defects should be raised directly in GitHub. Going forward questions and
enhancements will be considered in our forums, https://forums.mbed.com/ . If this
issue is still relevant please re-raise it there.
This GitHub issue will now be closed.
