Mavsdk: No support of VTOL TAKEOFF and LAND in mission plugin

[dangviethieu]

Hello guys

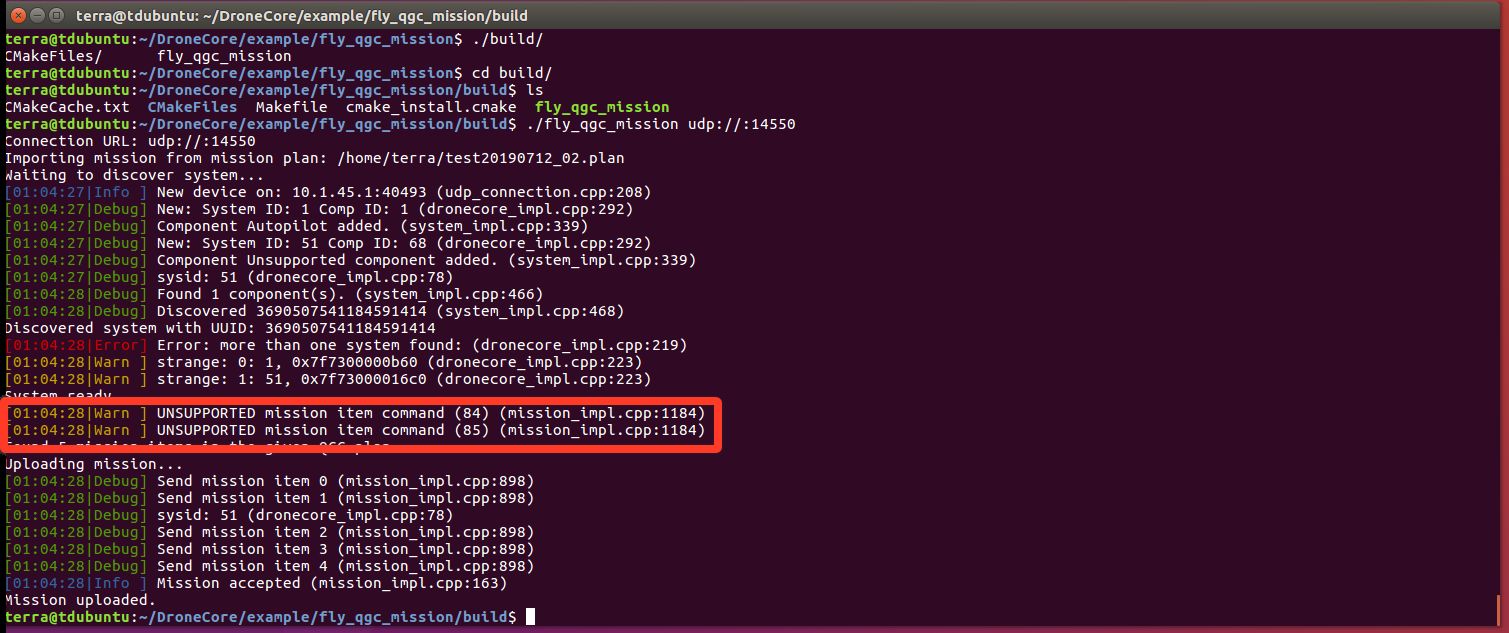

I get problems while test fly_qgc_mission function with vtol-simulator(https://docs.deltaquad.com/simulator.html)

Anyone can help me with it? I check in mission_impl.cpp and it seems no support for MAV_CMD_NAV_VTOL_TAKEOFF and MAV_CMD_NAV_VTOL_LAND command.
I want know why? please help me? Thanks

[julianoes]

Correct, the mission plugin does not support VTOL items yet.

If you need support for that you would have to use the mission_raw plugin for now.

[dangviethieu]

@julianoes thank you for reply.
We does haven't example for mission_raw yet?
In mission plugin, we have MissionItem class for setup waypoint, but mission_raw is don't have.
So how to we can create mission use mission_raw plugin?

[julianoes]

Yes, with mission_raw you basically get a default MAVLink style mission and there is no easy types or examples to use.

[julianoes]

Alternatively, you could add support for VTOL actions to the mission plugin and that way enable it.

[itrigitech]

Any progress on that? I also need to add support for VTOL missions.

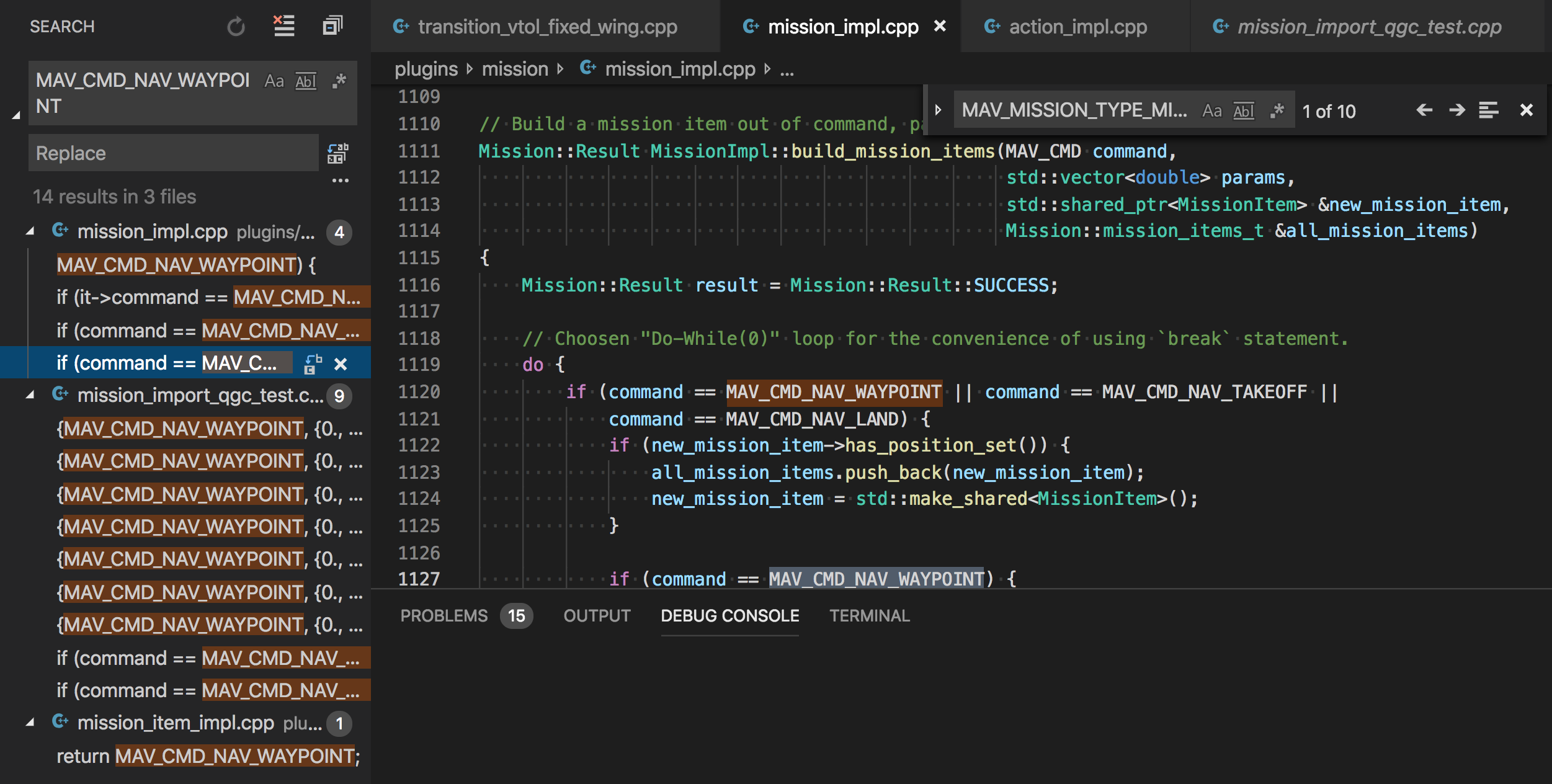

Checking the code i see how the mission plugin is implemented and for example it checks if the first mission item is a waypoint. I thought that this item could be a takoff. In fact it stops downloading the mission if is not a waypoint.

Do you know why is that? I don't understand why this check exists.

[hamishwillee]

@itrigitech Adding to old items is frowned upon. The right way to handle this would be to raise in discussion board or slack and link here.

That said, I have responded to your query in https://github.com/mavlink/MAVSDK/issues/938

The current check is waypoint because the plugin doesn't support takeoff items. It should IMO.

[JonasVautherin]

The current check is waypoint because the plugin doesn't support takeoff items. It should IMO.

Agreed. And @julianoes does, as well:

Alternatively, you could add support for VTOL actions to the mission plugin and that way enable it.

We are open for contributions :blush:
