Material-ui: [Grid] Automatic height adjustment (Responsive Layout)

[HelloEdit]

Problem description

Hello,

I work on a dashboard and actually, it's look like this:

I do not know if it is wanted, but grid could automatically push the music card against that from above ! It's could be a great feature !

Thank,

Material UI: next

[oliviertassinari]

I have the feeling that what you are trying to accomplish can be implemented on userland and target a niche, for those reasons, I'm closing the issue. Let's keep the code base simple.

[HelloEdit]

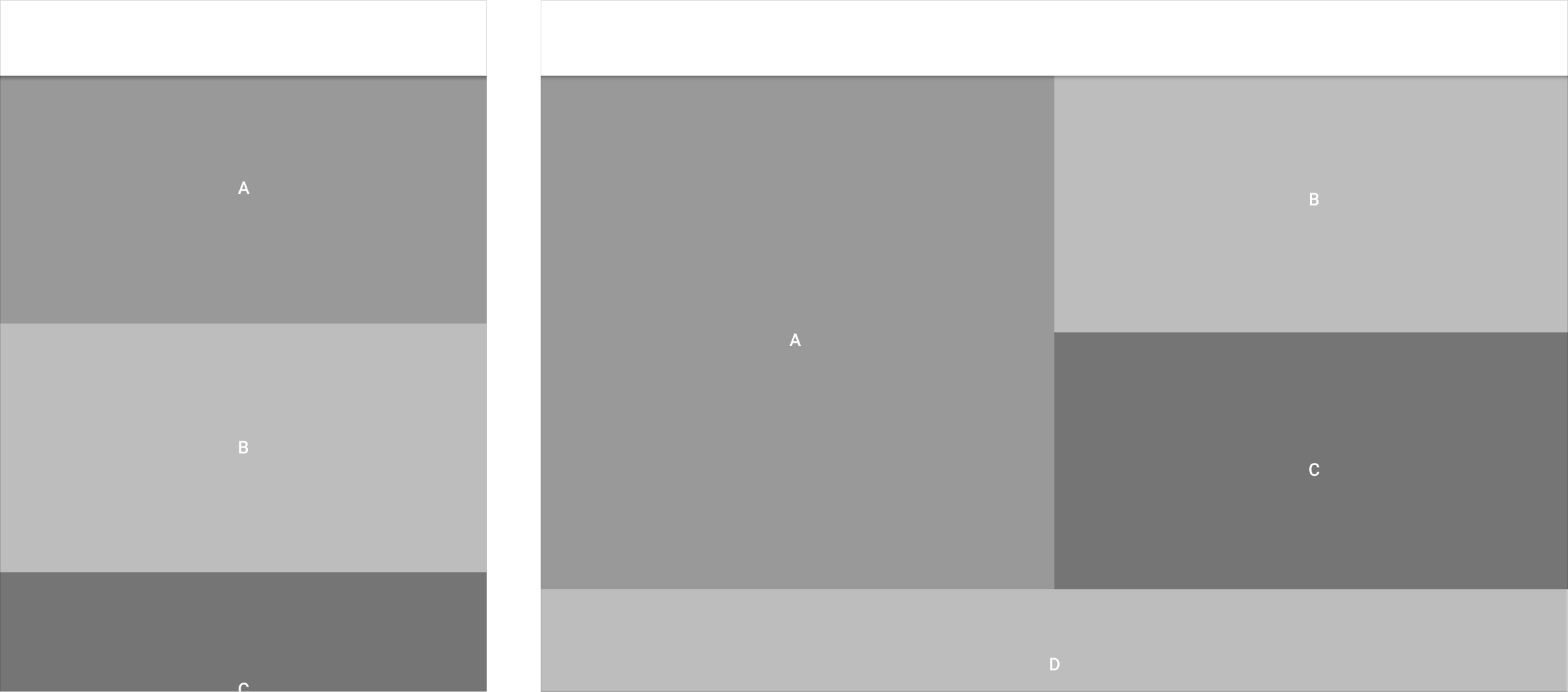

I fully understand the fact that the basis of the code has remained simple, but the material specification declares: "Elements from a single-column format may reflow to fill the content area in various combinations."

But currently the best I can do with Grid is this:

Then I seriously think that a code can remain simple while having funtionalities

Thank,

PS: If you know a SMALL component to make the same result as the specification, let me know.
(But I still think that integration in Material UI would be beneficial for everyone)

[oliviertassinari]

Maybe you are looking for a masonry library: https://masonry.desandro.com/layout.html.

[HelloEdit]

Yeah, This is a good idea while awaiting native integration in Material UI _{^{If it comes one day :)}}

PS: Can you consider the reopening of the issue ?

Thank,

[HelloEdit]

If you need help for integrate this feature, I think you can take support on the CSS code of the material framework of Google here

Material ui is certainly the best set of React components !

[stunaz]

I dont think that getmdl could do it, I havent checked but I am pretty sure that the link you provided is a static example. For dynamic content, I have seen it working only in angular material 2 grid list or angular material 1 grid list. But they use a complex algorithm ...

[HelloEdit]

Yep, you are right, but I never specified that the contents of the dashboard should not be static 😄
Apparently, material angular does very well what grid does not do... But with too complex logic !

[oliviertassinari]

Actually, from what I understand, that something you can already implement with the responsive break points of the Grid xs, sm, md, etc.
If you need something "100%" automatic then a masonry library will be better suited for you need but it is outside of the scope of the project.

[HelloEdit]

Hello @oliviertassinari,
But Material specifications for the grid ? As I explained in my previous comment ?

I do not understand how I could implement it with the breakpoints, the grid does not allow a modification of its size ! The problem is here !

Why the second music card can not go sticking to the "aperçu" card ? This is contrary to the material specification.

More generally, why grid does not leave the choice to the user to place his cards as he wishes ?

I hope you will understand my request, and that you will reopen the issue
And sincerely, I do not think this is outside the project, material.angular integrated it.

[oliviertassinari]

• You can use the withWidth() higher order component to change the grid structure for the different breakpoints. The grid is a slim wrapper over the flexbox model, anything that this layout model is allowing to do can be achieved with the Grid component.
• Also, you can change the direction from row to column to have the wanted behavior.

[HelloEdit]

Hum, I think I'll be able to cope, but if it is possible to add this example in the documentation for beginners asking the same question ?
I need to think about how I will implement my dashboard ... thanks for your help

[marco-silva0000]

Hey, I would also like this feature, and I didn't understand how could it be implemented as suggested. HelloEdit, did you manage to get this working? can you provide an example? I think this use case should be in the documentation.

[HelloEdit]

Hey, I did not find a solution (use an external library like masonry could work) But none natively. I still maintain my idea to implement this feature natively!

[marco-silva0000]

We ended up creating 2 columns and split the data evenly. The problem is that if one of the columns ends up with all the bigger cards, one side can be way longer than the other.

[CorayThan]

I agree with @HelloEdit . This is a big problem to not be included in the grid. I feel kinda lame for ever using the Material-UI grid in the first place, because why would I want to use a grid that looks bad with ugly gaps most of the time and doesn't follow the Material-UI specifications?

I don't have a single grid in my app where I would want it to work like the Material-UI grid does and your grid documentation page is too simplistic to show that this is how your grids work, so I didn't realize this was a "feature" of your grid before discovering it in my app.

I did the same thing as @marco-silva0000 did in one instance, but it's an obvious hack and unless your items are all about the same size it's likely to look ugly at the bottom too.

[0011001011]

Please reopen @HelloEdit I agree this is a huge problem, the provided "solution" is not satisfactory.
Moreover, as stated before, it does not follow material guidelines.

I understand you have a lot of work and your library is amazing, but this specific point is really problematic if you want to implement a fully responsive layout.

[mbrookes]

@oliviertassinari Potential here for an example layout...

[gitofanarghya]

Any progress on this?

[rohanshenoy96]

Grid rowHeight property can be set manually or by default assumes to be 1:1. If we display a card inside which dynamic data are looped, then height is not adjusted.

1. Case 1, if card can hold 5 data and only two data are present then card height is adjusted but grid height remains to be 1:1.
2. Case 2, If the card can hold 5 values but 7 are present then the remaining data is cut and never displayed on the screen.

[janik6n]

If any solution to this issue is available, would appreciate an example? My vote towards the native support. I think this is kind of a fundamental functionality for the Grid component.

[joshwooding]

Would something like this be what you want: https://codesandbox.io/s/p5v42zrrzm
It's powered by CSS grid so it can't be used everywhere: https://caniuse.com/#feat=css-grid

[janik6n]

@joshwooding Based on what I can see on my iPad, looks very good! Will check tomorrow on desktop.

EDIT after checking on desktop, couple of issues with this solution:

1. This would need to be responsive based on breakpoints just as the Grid is now.
2. I added couple of Typography elements to MacCard Component (to simulate variable height cards, which is my use case), making it taller. After that the result has these unwanted empty spaces between rows. Thus, this does not work after all. Screenshot below:


[AshUK]

Masonry layout support in Grid would be awesome 👍, in theory using JS could work but not ideal

css grid layout is not intended for this, see: https://github.com/w3c/csswg-drafts/issues/945

[nikandlv]

A temporary solution will be creating columns as you want and spreading them
for example
here i have two columns and divide them if their key is odd
and 1 main grid with all in one column for mobile
i hide the first one on smDown
and hide the main in mdUp

[EduardoRicardez]

Some news about this?

[MDangleben]

When it's easier to just use flexbox surely there must be a problem.

[mbrookes]

@CloudNineK Flexbox doesn't solve this problem (Grid is flexbox based). You need to use a masonary library if you wish to distribute content evenly between a varying number of columns.

[weiluntong]

I would just like to chime in saying that I would like to have see some sort of masonry functionality from MUI as well. Maybe not change MuiGrid to support the functionality, but maybe add a new component that supports it instead. As such, I drew up a crude component to wrap MuiGrid for a Masonry effect. I hope that this can maybe be a start to creating a component?

Here it is for those interested: https://codesandbox.io/s/masonryplusmui-xk8rr?fontsize=14

Of course there's problems though. The way it works currently works is that it takes predefined breakpoints (I pull that from theme.breakpoints.values) and it calculates how many columns to make based on that. I know that's not how any of MUI's components behave, but at this point, I could really only set the width of an entire column with this method.

[nikandlv]

@weiluntong That also is a possible solution however I don't think it's elegant
maybe someone should fork the lab and make a pr or a proposal for this as a new component

[weiluntong]

@nikandlv I completely agree with you. Currently the thing is in a sort of limbo where it's not quite MUI nor is quite a Masonry layout. I'd be more than happy to create a component and make a PR. In fact, that's what I was hoping would be my end goal here, but I created the sandbox because I wasn't sure where I'd start. Again, I was hoping it might be a start? Or am I completely left field as to the base structure of the component? I'd love input to get me going.

[nikandlv]

@weiluntong I think you are on the right track with the component, it probably needs a bit more work. however, you should ask the maintainers if they want this as a part of MUI or just as a library you can publish
and as https://github.com/mui-org/material-ui/blob/master/CONTRIBUTING.md says

When submitting a new component, please add it to the lab.

https://github.com/mui-org/material-ui/tree/master/packages/material-ui-lab

[oliviertassinari]

We would need more upvotes on the issue to consider solving the problem.

[janik6n]

If @weiluntong you still feel you got the time to prepare a proposal, I might cast my vote towards a separate dedicated masonry component. Might be the easiest option for maintenance, and use.

[wallzero]

I was using the react-virtualized Masonry component. However, react-virtualized is not working with the latest babel and core-js. It appears its successor react-window is also unlikely to include a Masonry component. Perhaps the react-virtualized Masonry component could be updated and adopted into material-ui?

[weiluntong]

I wouldn't mind putting together a proposal where we can consolidate upvotes. Is there a proposal template I should use?

[nikandlv]

@weiluntong i guess as https://github.com/mui-org/material-ui/blob/master/CONTRIBUTING.md you should submit an issue and describe the component request there and ask for upvotes

[mbrookes]

@weiluntong There is a template when you create a new issue.

[dylanmartin]

Correct me if I am missing something, but I was able to solve what appears to be this exact problem by applying this solution from stack overflow:
Simply apply height: 100% to the children of Grid items.
https://stackoverflow.com/questions/50743402/material-ui-grid-item-height

[nikandlv]

Thats not the case @dylanmartin we don't want it to stretch out we want the next row fill that gap!

[oliviertassinari]

Closing for #17000
