Material-table: Virtualized scroll for table data

[avkonst]

Is your feature request related to a problem? Please describe.
I have got many many rows in the table data. Pagination is not usable in this case. Rendering all rows and using external div-scrollbar is doable, but large dataset slows down rendering, so it is not practical to use. Instead, I would like to see virtualized scrolling over the data.

Describe the solution you'd like
The table should render only "visible" rows. "Visible" according to the current scroll position. The table should show scroll bar on right to indicate how much data to scroll and the current relative position of the data.

Additional context
Add any other context or screenshots about the feature request here.
Here is the example from another project: https://devexpress.github.io/devextreme-reactive/react/grid/docs/guides/virtual-scrolling/

[sshanzel]

I want to contribute, just let me know how.

[klappy]

I was able to pull this off by implementing a custom column renderer that has a built in visibility detection to render, using react-waypoint.

I also use the following options:

options={{
    paging: false,
    maxBodyHeight: height,
    headerStyle: { position: 'sticky', top: 0 },
}}

I am left with one odd limitation, rendering after search filters results that have yet to render. This doesn't fire the waypoint. I have a question in an issue of that repo, and may explore another library in the mean time.

[jayarjo]

@sshanzel would be great if you could come up with a way to solve this yourself somehow :) Also there are lots of simpler issues in the backlog marked as help wanted - in case you are looking for an easier entry point.

[sshanzel]

Would definitely give it a shot! Thanks a lot for letting me know!

[arheinjohnson]

Has anyone successfully implemented virtualization for material-table?

[sshanzel]

Sadly, I feel that the maintainer of this package has been busy for a long time and the library has become overwhelming. This has been a great package though. With that I understand people have priorities in life, and I wanna thank everyone!

[dwootton]

I was able to pull this off by implementing a custom column renderer that has a built in visibility detection to render, using react-waypoint.

I also use the following options:

options={{
    paging: false,
    maxBodyHeight: height,
    headerStyle: { position: 'sticky', top: 0 },
}}

I am left with one odd limitation, rendering after search filters results that have yet to render. This doesn't fire the waypoint. I have a question in an issue of that repo, and may explore another library in the mean time.

@klappy, would you be able to share an example codepen with this implementation? I'm working through this for my table right now, and it would be super helpful to have a reference.

[klappy]

@dwootton: Here's a library that we use material-table implementation that you can see it functioning at multiple levels of stickiness.:
https://datatable-translatable.netlify.app/

The trick was a combination of setting maxBodyHeight like I mentioned above but the rest was handled in the MUI Theme overrides:
https://github.com/unfoldingWord/datatable-translatable/blob/master/src/components/datatable/muiTheme.js

[dwootton]

The stickiness looks great @klappy! Did you happen to ever get virtualization working for Material Table so that it only renders the rows that are scrolled into view?

[mackankowski]

Hi all,

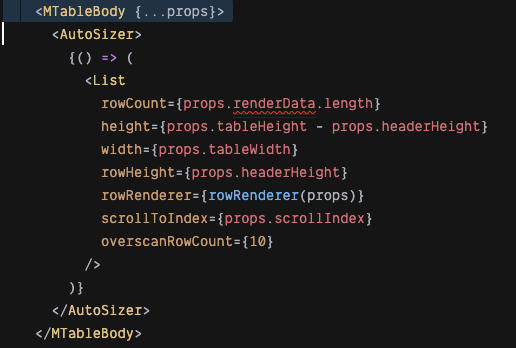

I'd like to share my virtualization concept for material-table using react-virtualized (react-window and react-virtual works the same way for me)

demo: https://28umv.csb.app/
source: https://codesandbox.io/s/virtualized-material-table-28umv

Be aware that my solution isn't perfect yet but I hope maybe we could extend material-table by this feature someday.

Following issues appear:

• [x] styling: the traditional way of width setting and text aligning (using columns: https://material-table.com/#/docs/features/styling) don't work as expected (edit: partly fixed)
• [x] filtering option doesn't work as expected, probably because of a lack of tbody element.
• [ ] validateDOMNesting(...) warning because of incorrect element nesting (not so crucial)

Feel free to share your experience with a combination material-table and virtualization solution for extending such a nice library as it is!

Best regards,
Maciej

[yurivangeffen]

@mackankowski do you have an idea about how to do this with variable row heights? Right now if the row height is larger than the specified props.headerHeight in TableBody the layouting breaks. I don't know upfront what the height of elements will be (also, they can change when making the window narrower). Any suggestions?

[yurivangeffen]

Never mind, using the CellMeasurer this is fixed :+1: . How would you suggest to set cell widths?

[mackankowski]

Never mind, using the CellMeasurer this is fixed 👍 . How would you suggest to set cell widths?

Yes, I define some custom function that is spread into each column definition like this:

 const columns =
      {
        field: 'someColumnId',
        title: 'someColumnTitle.',
        tooltip: 'someColumnTooltip',
        ...columnStyle(50, 'center'),
      },
      ...

import { CSSProperties } from '@material-ui/core/styles/withStyles';

export const columnStyle = (
  width: CSSProperties['width'],
  align?: CSSProperties['textAlign'],
): CSSProperties => ({
  width: width,
  maxWidth: width,
  cellStyle: {
    width: width,
    maxWidth: width,
    textAlign: align,
    textOverflow: 'ellipsis',
    whiteSpace: 'nowrap',
    overflow: 'hidden',
  },
  headerStyle: {
    width: width,
    maxWidth: width,
    textAlign: align,
    textOverflow: 'ellipsis',
    whiteSpace: 'nowrap',
    overflow: 'hidden',
  },
});

You can try to manipulate with some different sizes and text alignment as params. Take a notice that also there's text truncation already implemented.

Let me know if it helps,

BR,
Maciej

[mackankowski]

Hi all,

I'd like to share my virtualization concept for material-table using react-virtualized (react-window and react-virtual works the same way for me)

demo: https://28umv.csb.app/
source: https://codesandbox.io/s/virtualized-material-table-28umv

Be aware that my solution isn't perfect yet but I hope maybe we could extend material-table by this feature someday.

Following issues appear:

• styling: the traditional way of width setting and text aligning (using columns: https://material-table.com/#/docs/features/styling) don't work as expected (edit: partly fixed)
• filtering option doesn't work as expected, probably because of lack of tbody element.
• validateDOMNesting(...) warning because of incorrect element nesting (not so crucial)

Feel free to share your experience with combination material-table and virtualization solution for extending such a nice library as it is!

Best regards,
Maciej

Hi All,

Together with my teammate @keemor, we figured out how to makes filters working. I've already updated the previous link.

Enjoy!

[jgleal]

Hi @mackankowski ,

I've been trying your approach, but it is not working for me in sandbox. I see the 1000 rows in DOM but if I increment to 10k, table starts with performance issues... am I missing something?

Best regards!

[mackankowski]

Hi @mackankowski ,

I've been trying your approach, but it is not working for me in sandbox. I see the 1000 rows in DOM but if I increment to 10k, table starts with performance issues... am I missing something?

Best regards!

Hi @jgleal ,

I guess that codesandbox is pretty slow - try to render 10k rows in the production build on the local environment.

I've already extended my sample to 10k records and no issues have been noticed (although the initial loading of codesandbox preview is not so fast).

Good luck!

[jgleal]

Morning @mackankowski,

I'm not talking about loading (although it is slow too). The DOM always has all rows.

If you remove MTableBody, it works fine, but lost table body styles and appear UI issues (incorrect alignment, etc.)

Thanks

[mackankowski]

Hey @jgleal, thanks for getting attention!

You're completely right and this is my little oversight during the implementation of filters... I have already a working solution but let me provide the final code later today...

---

UPDATE: My sample should work fine again - with sticky filters and a text truncation.

BR,
Maciej

[jgleal]

Thanks @mackankowski !!! great job!!

If you want improve it, another thing that is not working with your virtualization approach, is grouping 😸

Best regards!

[mackankowski]

Hi @jgleal, I will consider it one day... If you need this quicker, you can follow the material-table source code:

https://github.com/mbrn/material-table/blob/master/src/components/m-table-body.js

Let's start from line 202 - there's a code that I reused in my sample. By following line 261, you can see the logic for grouped/ungrouped rows (missing in my sample).
