Masstransit: Messages with nested MessageData is sending to error queue

[rafaelcaviquioli]

Is this a bug report?

Yes

Can you also reproduce the problem with the latest version?

Yes, MT version 6.3.2

Environment

1. Operating system: Linux
2. Dotnet version: 3.1.101

Steps to Reproduce

1. Create a Message with nested MessageData:

```c#
public interface MyCustomizedFile
{
string Name { set; get; }
MessageData Content { set; get; }
}
public interface MyEventMessage
{
MyCustomizedFile MyFile { get; set; }
}

2. Send the event massage including file content.
3. So the message is not consumed and is sent to error queue.
4. Send the event massage with null file content.
5. So the message is consumed normally.

### Expected Behavior

I expect the `MyEventMessage.MyCustomizedFile.FileContent` contains the sent file.

### Actual Behavior

The message event is sent normally, but when the nested message data is filled the consumer don't receive the message.

### Reproducible Demo

1. Clone the repository: https://github.com/rafaelcaviquioli/MassTransitMessageDataTest
2. Start RabbitMQ: `docker-compose up rabbitmq`
3. Run the console app.
4. The console app is sending two events.
5. This is the expected log because only the event which has no file content is received:

```bash
$ dotnet run
Listening for events, press a key to exit...
Received the event MyEvent with null message data - Doesn't have file value

[phatboyg]

Can you post an error from the logs? Nested message data is supported and there are unit tests covering it.

Might be that you’re using a class, instead of an interface for the message contract. Or it might be something else

[rafaelcaviquioli]

Sorry my bad, I already tested with just interfaces, I updated the repository of reproducible demo now.

Currently, I'm not receiving any error log. Are there any way to active log about this message that was sent to error queue?

I saw that unit test to cover this use case, this is why I tested with different ways ex: using memory repository, file repository, List, nested classes and none worked.

[phatboyg]

Look in the RabbitMQ Management console and review the headers of the message in the _error queue.

[rafaelcaviquioli]

These are the message headers:

MT-Fault-ExceptionType: | MassTransit.MessageDataException
MT-Fault-Message: | The message data is empty
MT-Fault-StackTrace:

at MassTransit.MessageData.Values.EmptyMessageData`1.get_Address()
at MassTransit.MessageData.PropertyProviders.GetMessageDataPropertyProvider`2.GetProperty[T](InitializeContext`2 context)
at MassTransit.Initializers.PropertyInitializers.ProviderPropertyInitializer`3.Apply(InitializeContext`2 context)
at MassTransit.Initializers.MessageInitializer`2.<>c__DisplayClass14_0.<InitializeMessage>b__0(IPropertyInitializer`2 x)
at System.Linq.Enumerable.SelectArrayIterator`2.MoveNext()
at System.Threading.Tasks.Task.WhenAll(IEnumerable`1 tasks)
at MassTransit.Initializers.MessageInitializer`2.InitializeMessage(InitializeContext`1 messageContext, TInput input)

I'll perform some tests using different types of MessageData instead of string.

[rafaelcaviquioli]

This is the message payload:

{
  "messageId": "470a0000-559a-e0db-7ef2-08d8008a9892",
  "conversationId": "470a0000-559a-e0db-46fa-08d8008a9897",
  "sourceAddress": "rabbitmq://localhost/rafaelubuntu_MassTransitMessageDataTest_bus_ehfyyyniumopz19ubdcybnwzge?temporary=true",
  "destinationAddress": "rabbitmq://localhost/my-event-channel",
  "messageType": [
    "urn:message:MassTransitMessageDataTest:MyEvent"
  ],
  "message": {
    "name": "MyEvent",
    "myFile": {
      "name": "My file name",
      "content": {}
    }
  },
  "sentTime": "2020-05-25T09:04:13.8149618Z",
  "headers": {},
  "host": {
    "machineName": "rafael-ubuntu",
    "processName": "MassTransitMessageDataTest",
    "processId": 21738,
    "assembly": "MassTransitMessageDataTest",
    "assemblyVersion": "1.0.0.0",
    "frameworkVersion": "3.1.1",
    "massTransitVersion": "6.3.2.0",
    "operatingSystemVersion": "Unix 5.3.0.53"
  }
}

[rafaelcaviquioli]

I performed a test with an array of messageData string type and I haven't success. In this case the list came filled with items, but they don't have content.

```c#
public interface ArrayFilesMessage
{
string Name { get; set; }
MessageData[] Files { get; set; }
}

---

await endpoint.Send(new
{
Name = "MyEvent with message data",
Files = new string[]
{
"File 1 content...",
"File 2 content..."
},
});
```

[phatboyg]

There are a ton of tests that pass every build in this directory:

https://github.com/MassTransit/MassTransit/blob/develop/src/MassTransit.Tests/MessageData/DataBus_Specs.cs

You might look there, to see what's different. It's unlikely I'll have time to pull this down and verify it today.

[rafaelcaviquioli]

Hi @phatboyg, now I have had success sending nested messages. I believe that I was sending the message in a wrong way. May you confirm it?

Initially, I was sending messages this way:

```c#
await endpoint.Send(new
{
Name = "MyEvent with message data",
Files = new []
{
Encoding.ASCII.GetBytes("File 1 content..."), // byte[]
Encoding.ASCII.GetBytes("File 2 content...") // byte[]
},
});

So, now, looking for the test file that you sent me I realized that you are using something like a factory to construct the `messageData` object. I too saw on the MassTransit documentation that I can use `putBytes` method from message data repository to obtain a `messageData` object and upload the file.

**This is working well:**

```c#
byte[] fileData = Guid.NewGuid().ToByteArray();

await endpoint.Send<ArrayFilesMessage>(new
{
    Name = "MyEvent with file array",
    Files = new []
    {
        await messageDataRepository.PutBytes(fileData),
        await messageDataRepository.PutBytes(fileData)
    },
});

My questions are:

• Must I always use this repository to upload a file for the first time?
• Or are there another message data initializer to create a message data for the first time? It will upload the file automatically when the message is sent?

[phatboyg]

There are initializer conversions for many of the types, but I'm not sure about a regular array of MessageData<>. I'm pretty sure you'd have to put it inside of a file.

public interface File
{
    MessageData<byte[]> Data {get;}
}

Then have in your message contract, File[] Files and use new [] { new { Data = byteArray } };

Then it would write them to the repository for you.

[phatboyg]

Did you sort this out on your end?

[rafaelcaviquioli]

For now, I'll work with implicit repository what work well with nested objects.

But I have implemented conform your suggestion but is not working yet:

https://github.com/rafaelcaviquioli/MassTransitMessageDataTest/commit/eddbd8f958e974100a263c7321a444dcad2023fb

```c#
public interface MyCustomizedFile
{
string Name { get; }
MessageData }
public interface ArrayFilesMessage
{
string Name { get; }
MyCustomizedFile[] Files { get; }
}

---

byte[] fileData = new byte[10000];
await endpoint.Send<ArrayFilesMessage>(new
{
    Name = "MyEvent with file array",
    Files = new []
    {
        new { Content = fileData, Name = "File 1" },
        new { Content = fileData, Name = "File 2" },
    },
});

On Rabbit:

MT-Fault-Message: | The message data is empty
at MassTransit.MessageData.Values.EmptyMessageData`1.get_Address()

"message": {
"name": "MyEvent with file array",
"files": [
{
"name": "File 1",
"content": {}
},
{
"name": "File 2",
"content": {}
}
]
},
```

[rafaelcaviquioli]

I found a new situation that is not working well.

As can be reproduced in this last commit: https://github.com/rafaelcaviquioli/MassTransitMessageDataTest/tree/fe0ece19c0fcf5e0adc92977120b9e069738fe41

I'm sending a nested object with data and messageData together, then when it comes to consumer the messageData is ok but other properties with any data is null.

Looking for message on RabbitMQ it is ok, the message is populates with all data:

"message": {
    "name": "MyEvent with file array",
    "files": [
      {
        "name": "File 1",
        "content": {
          "data-ref": "urn:msgdata:yyyywth4kzp6bsbqbdcyf57gdc"
        }
      },
      {
        "name": "File 2",
        "content": {
          "data-ref": "urn:msgdata:yyyywth4kzp6ydoibdcyf57gdp"
        }
      }
    ]
  },

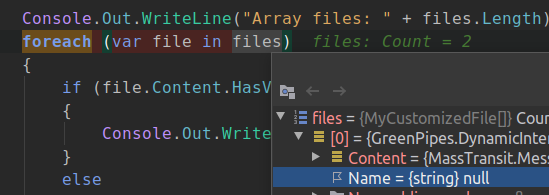

This case is an array of MyCustomizedFile with string Name and MessageData Context

c# public interface ArrayFilesMessage { string Name { get; } MyCustomizedFile[] Files { get; } } public interface MyCustomizedFile { string Name { get; } MessageData<byte[]> Content { get; } }

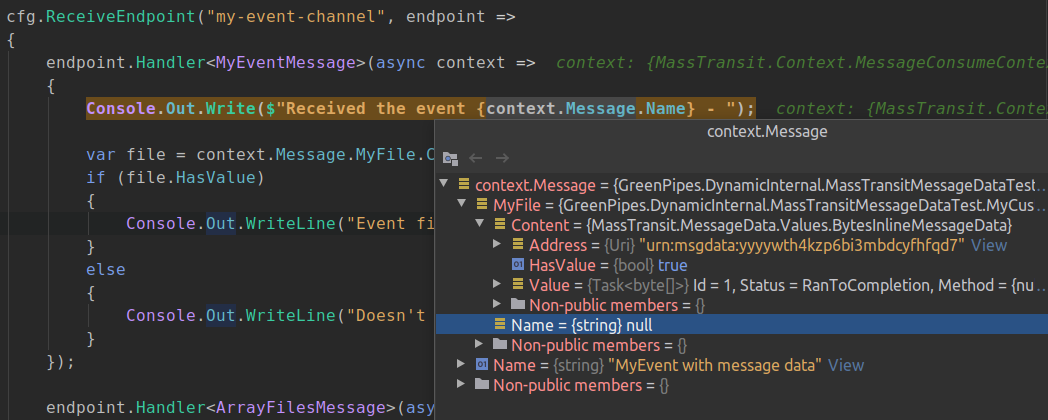

This case is just one MyCustomizedFile inside the message

[phatboyg]

I have an idea of why it’s happening. The failure I see is with initializers and then the convention to store the data. I can reproduce it so I can fix it.

[tonholis]

Hi @phatboyg ,

Rafael is my teammate :)

Here is the repo of my tests https://github.com/tonholis/MTEncTest, as requested in Discord.

As I mentioned, the tests pass but the actual application/service doesn't work. The response message containing the complex structure with MessageData is not fully populated.

[phatboyg]

Right - and I know the exact line where it's happening, I just need to step through it again with a fresh set of eyes since it wasn't obvious to me why I wrote it the way I did.

_It's probably another one of those single-line fixes_

[tonholis]

Awesome. Thanks @phatboyg !

Could you share with us what line/file are you talking about? At least we can learn something :)

[phatboyg]

So this fixes what I found, I haven't tested it with your projects yet. Once the latest 7.0.0 packages build you can update and see if it resolves the issue.

You shouldn't have to use the repository at all, just use the initializer with byte[] and it works.

[tonholis]

Great @phatboyg ,

I'll test that. Thanks!

We were upgrading our system from MT v5 to v6. Are there any breaking changes from v6 to v7?

[tonholis]

I've updated my test project to use the latest build (7.0.0.2747) and the issue is still there... :(

In the consumer, the message is not complete. Only the top-level message has the correct values.

[phatboyg]

This is what I get when I run your program (and all the unit tests pass as well).

================================================================================
TEST 1
================================================================================
Start - Request message--------------
 Message.TopText=A message WITH NO messageData at the top-level
 Message.Foo.SomeText=Animal world
 Message.Foo.File.Length=4
 Message.Foo.Bars.Count=1
 Message.Foo.Bars[0] - SomeNumber=999, SomeText=It barks, SomeEnum=Dog, SomeDatetime=05/29/2020 13:38:37, File.Length=4
 Message.Bars[0] - SomeNumber=888, SomeText=It meows, SomeEnum=Cat, SomeDatetime=05/30/2020 13:38:37, File.Length=4
End - Request message--------------

----------- Consuming A message WITH NO messageData at the top-level

Start - Response message--------------
 Message.TopText=Message 1 consumed
 Message.File.Length=3
 Message.DataReceived.Foo.SomeText=
 Message.DataReceived.File.Length=4
 Message.DataReceived?.Foo?.Bars.Count=1
 Message.DataReceived.Foo.Bars[0] - SomeNumber=0, SomeText=, SomeEnum=Unknown, SomeDatetime=01/01/0001 00:00:00, File.Length=4
 Message.DataReceived.Bars[0] - SomeNumber=0, SomeText=, SomeEnum=Unknown, SomeDatetime=01/01/0001 00:00:00, File.Length=4
End - Response message--------------

================================================================================
TEST 2
================================================================================
Start - Request message--------------
 Message.TopText=A message WITH messageData at the top-level
 Message.Foo.SomeText=Animal world
 Message.Foo.File.Length=4
 Message.Foo.Bars.Count=1
 Message.Foo.Bars[0] - SomeNumber=999, SomeText=It barks, SomeEnum=Dog, SomeDatetime=05/29/2020 13:38:38, File.Length=4
 Message.Bars[0] - SomeNumber=888, SomeText=It meows, SomeEnum=Cat, SomeDatetime=05/30/2020 13:38:38, File.Length=4
End - Request message--------------

----------- Consuming A message WITH messageData at the top-level

Start - Response message--------------
 Message.TopText=Message 2 consumed
 Message.File.Length=3
 Message.DataReceived.File.Length=19481
 Message.DataReceived.Foo.SomeText=
 Message.DataReceived.Foo.File.Length=4
 Message.DataReceived.Foo.Bars.Count=1
 Message.DataReceived.Foo.Bars[0] - SomeNumber=0, SomeText=, SomeEnum=Unknown, SomeDatetime=01/01/0001 00:00:00, File.Length=4
 Message.DataReceived.Bars[0] - SomeNumber=0, SomeText=, SomeEnum=Unknown, SomeDatetime=01/01/0001 00:00:00, File.Length=4
End - Response message--------------

[phatboyg]

Oh, I see, it isn't initializing the other properties – only the message data.

[tonholis]

Oh, I see, it isn't initializing the other properties – only the message data.

Exactly! That's the issue

[phatboyg]

Okay, maybe this time I actually fixed it.

[phatboyg]

Packages are built if you want to check it again.

[tonholis]

And that works like a charm. 👏 🎉

================================================================================
TEST 1
================================================================================
Start - Request message--------------
 Message.TopText=A message WITH NO messageData at the top-level
 Message.Foo.SomeText=Animal world
 Message.Foo.File.Length=4
 Message.Foo.Bars.Count=1
 Message.Foo.Bars[0] - SomeNumber=999, SomeText=It barks, SomeEnum=Dog, SomeDatetime=05/30/2020 11:07:11, File.Length=4
 Message.Bars[0] - SomeNumber=888, SomeText=It meows, SomeEnum=Cat, SomeDatetime=05/31/2020 11:07:11, File.Length=4
End - Request message--------------

----------- Consuming A message WITH NO messageData at the top-level
 Message.Foo.File.Length=4

Start - Response message--------------
 Message.TopText=Message 1 consumed
 Message.File.Length=1000
 Message.DataReceived.Foo.SomeText=Animal world
 Message.DataReceived.File.Length=4
 Message.DataReceived?.Foo?.Bars.Count=1
 Message.DataReceived.Foo.Bars[0] - SomeNumber=999, SomeText=It barks, SomeEnum=Dog, SomeDatetime=05/30/2020 11:07:11, File.Length=4
 Message.DataReceived.Bars[0] - SomeNumber=888, SomeText=It meows, SomeEnum=Cat, SomeDatetime=05/31/2020 11:07:11, File.Length=4
End - Response message--------------

================================================================================
TEST 2
================================================================================
Start - Request message--------------
 Message.TopText=A message WITH messageData at the top-level
 Message.Foo.SomeText=Animal world
 Message.Foo.File.Length=4
 Message.Foo.Bars.Count=1
 Message.Foo.Bars[0] - SomeNumber=999, SomeText=It barks, SomeEnum=Dog, SomeDatetime=05/30/2020 11:07:12, File.Length=4
 Message.Bars[0] - SomeNumber=888, SomeText=It meows, SomeEnum=Cat, SomeDatetime=05/31/2020 11:07:12, File.Length=4
End - Request message--------------

----------- Consuming A message WITH messageData at the top-level

Start - Response message--------------
 Message.TopText=Message 2 consumed
 Message.File.Length=3
 Message.DataReceived.File.Length=19481
 Message.DataReceived.Foo.SomeText=Animal world
 Message.DataReceived.Foo.File.Length=4
 Message.DataReceived.Foo.Bars.Count=1
 Message.DataReceived.Foo.Bars[0] - SomeNumber=999, SomeText=It barks, SomeEnum=Dog, SomeDatetime=05/30/2020 11:07:12, File.Length=4
 Message.DataReceived.Bars[0] - SomeNumber=888, SomeText=It meows, SomeEnum=Cat, SomeDatetime=05/31/2020 11:07:12, File.Length=4
End - Response message--------------

Thank you very much @phatboyg!

Last question:
We were upgrading our system from MT v5 to v6. Are there any breaking changes from v6 to v7?

[NooNameR]

there are no breaking changes you can notice, except you are using parts marked as obsolete
