Marlin: [BUG] Y axis only moving 25% of what it should

Created on 13 Jun 2020 · 12Comments · Source: MarlinFirmware/Marlin

Bug Description

I just installed an SKR Mini E3 v2.0 on my Ender 5 and flashed with the latest bugfix.

Oddly, my Y axis is moving only 25% of what it should. My e-steps are 80,80,400.

This has been discussed with @txt4nk from BigTreeTech at:
https://github.com/bigtreetech/BIGTREETECH-SKR-mini-E3/issues/266#issuecomment-643467988 -- he seems just as stomped as me.

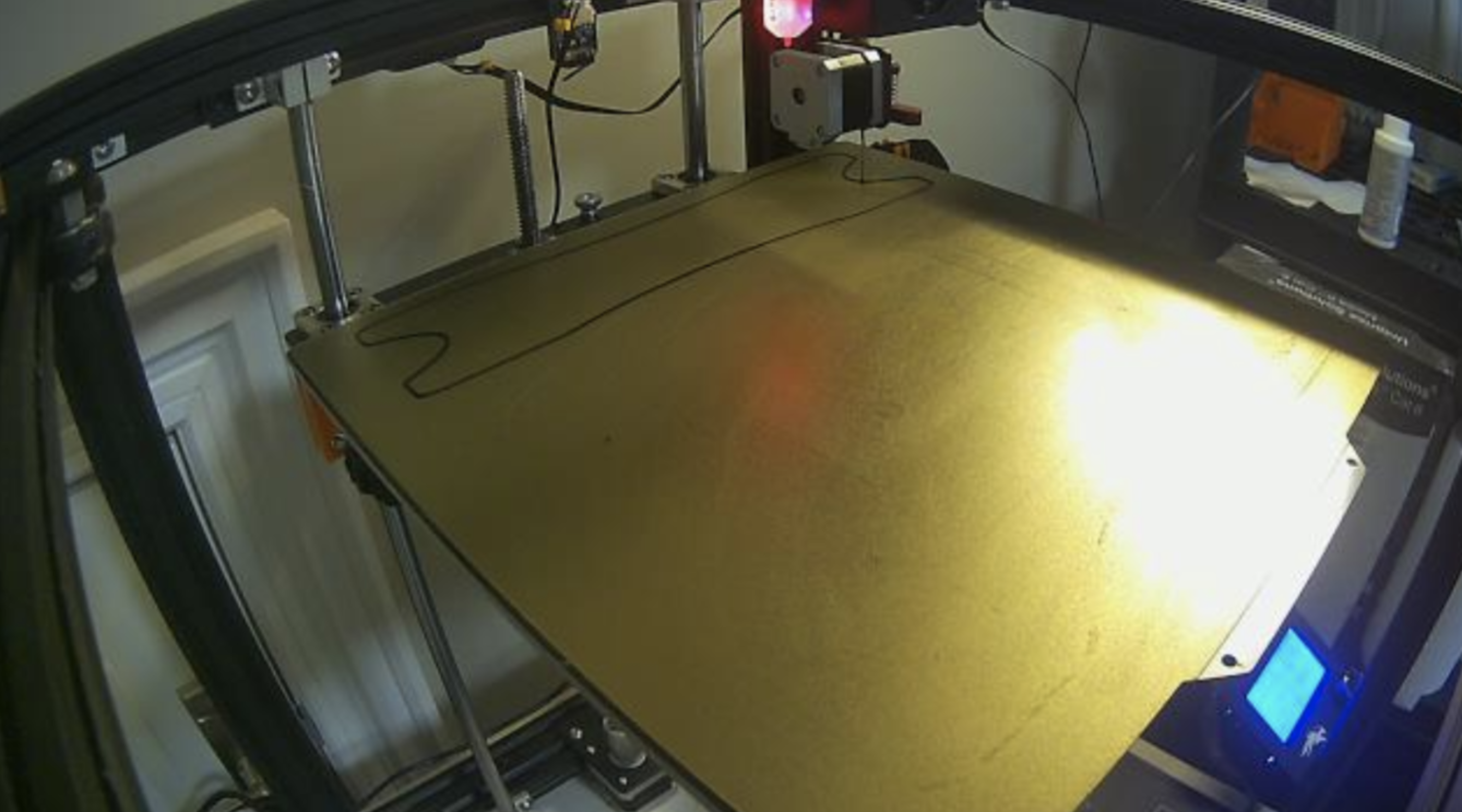

The following line should be around the entire bed.

My Configurations

See: https://github.com/cmer/creality_ender5_config_and_notes/tree/master/marlin-2.0.x

Steps to Reproduce

The same happens wether I print a sliced model, or if I manually move the Y axis with the printer screen.

Expected behavior: Y axis able to navigate the entire 220mm

Actual behavior: Every Y axis movement is 25% of what it should be. Maximum Y distance is 55mm.

Source

cmer

Most helpful comment

The examples for the SKR E3 Mini 2.0 already set these.

This family is a little confusing, because 1.0/2.0 use hardware serial with slave addresses, but 1.2 uses software serial and needs them all set to 0.

sjasonsmith on 14 Jul 2020

👍2

All 12 comments

Just as an additional note, the first firmware I supplied was from scratch using the latest bugfix and example configurations. I went through the firmware and couldn't see anything blatantly obvious. I've got an ender 5 on an E3 Mini V1.2, so I modified my personal firmware and updated the board to the V2.0, and the result is the same.

txt4nk on 13 Jun 2020

@txt4nk just to clarify you were also able to reproduce the issue on an E3 Mini v2 board?

cmer on 13 Jun 2020

Negative, my V2.0 board is on the way. But taking in to account that A. a known working configuration on a V1.2 was used and you are still getting this result. B. Your printer was working just find on your previous board, which tells me it is not a printer issue.. I dont see how this is not a bug.

txt4nk on 13 Jun 2020

👍1

Send: M122 S1
Recv:       X   Y   Z   E
Recv: Address       0   0   0   0
Recv: Enabled       false   false   false   false
Recv: Set current   580 650 580 650
Recv: RMS current   550 642 550 642
Recv: MAX current   776 905 776 905
Recv: Run current   17/31   20/31   17/31   20/31
Recv: Hold current  8/31    10/31   8/31    10/31
Recv: CS actual 10/31   10/31   10/31   10/31
Recv: PWM scale 33  33  33  33
Recv: vsense        1=.18   1=.18   1=.18   1=.18
Recv: stealthChop   true    true    true    true
Recv: msteps        16  16  16  16
Recv: tstep     max max max max
Recv: PWM thresh.
Recv: [mm/s]
Recv: OT prewarn    false   false   false   false
Recv: off time  4   4   4   4
Recv: blank time    24  24  24  24
Recv: hysteresis
Recv:  -end     2   2   2   2
Recv:  -start       1   1   1   1
Recv: Stallguard thrs   0   0   0   0
Recv: DRVSTATUS X   Y   Z   E
Recv: sg_result 54  54  54  54
Recv: stst
Recv: olb
Recv: ola
Recv: s2gb
Recv: s2ga
Recv: otpw
Recv: ot
Recv: 157C
Recv: 150C
Recv: 143C
Recv: 120C
Recv: s2vsa
Recv: s2vsb
Recv: Driver registers:
Recv:       X   0xC0:0A:00:00
Recv:       Y   0xC0:0A:00:00
Recv:       Z   0xC0:0A:00:00
Recv:       E   0xC0:0A:00:00
Recv:
Recv:
Recv: Testing X connection... OK
Recv: Testing Y connection... OK
Recv: Testing Z connection... OK
Recv: Testing E connection... OK

cmer on 13 Jun 2020

Send: M503
Recv: echo:  G21    ; Units in mm (mm)
Recv: echo:  M149 C ; Units in Celsius
Recv:
Recv: echo:; Filament settings: Disabled
Recv: echo:  M200 S0 D1.75
Recv: echo:; Steps per unit:
Recv: echo: M92 X80.00 Y80.00 Z400.00 E93.00
Recv: echo:; Maximum feedrates (units/s):
Recv: echo:  M203 X500.00 Y500.00 Z5.00 E25.00
Recv: echo:; Maximum Acceleration (units/s2):
Recv: echo:  M201 X500.00 Y500.00 Z100.00 E5000.00
Recv: echo:; Acceleration (units/s2): P<print_accel> R<retract_accel> T<travel_accel>
Recv: echo:  M204 P500.00 R500.00 T500.00
Recv: echo:; Advanced: B<min_segment_time_us> S<min_feedrate> T<min_travel_feedrate> J<junc_dev>
Recv: echo:  M205 B20000.00 S0.00 T0.00 J0.08
Recv: echo:; Home offset:
Recv: echo:  M206 X0.00 Y0.00 Z0.00
Recv: echo:; Auto Bed Leveling:
Recv: echo:  M420 S0 Z0.00
Recv: echo:; Material heatup parameters:
Recv: echo:  M145 S0 H200 B60 F255
Recv: echo:  M145 S1 H240 B70 F255
Recv: echo:; PID settings:
Recv: echo:  M301 P21.73 I1.54 D76.55
Recv: echo:; Z-Probe Offset (mm):
Recv: echo:  M851 X-45.00 Y-14.00 Z-1.40
Recv: echo:; Stepper driver current:
Recv: echo:  M906 X580 Y650 Z580
Recv: echo:  M906 T0 E650
Recv:
Recv: echo:; Driver stepping mode:
Recv: echo:  M569 S1 X Y Z
Recv: echo:  M569 S1 T0 E
Recv: ok

cmer on 13 Jun 2020

Okey bud, do you mean by Y axis the heated bed? also if you have a newer vesion of the Ender 5 your Z axis Steps/mm should be 1600. because the sleadscrew moves 2mm per rotation.

I think you meant to say Z instead of Y

Rikthepixel on 14 Jun 2020

No it is his Y.. its the front/back horizontal movement.

And the new lead screw version of the ender 5 is 800/mm, not 1600.

txt4nk on 14 Jun 2020

I oddly got it to work. I don't understand why. I rebuilt my config file by hand from the vanilla Marlin config file. This commit works for me: https://github.com/cmer/creality_ender5_config_and_notes/commit/83aae28058b7ae6b8cf9e455c590fd0e5217a67a -- You can see the diff with my old config files.

I will update this thread if I find out why it didn't work before.

cmer on 14 Jun 2020

👍1

The core of the issue is the improper setting of the slave addresses for the serial communications.
In "Configuration_adv.h"

This needs to be changed:

  #define  X_SLAVE_ADDRESS 0
  #define  Y_SLAVE_ADDRESS 0
  #define  Z_SLAVE_ADDRESS 0
  #define X2_SLAVE_ADDRESS 0
  #define Y2_SLAVE_ADDRESS 0
  #define Z2_SLAVE_ADDRESS 0
  #define Z3_SLAVE_ADDRESS 0
  #define Z4_SLAVE_ADDRESS 0
  #define E0_SLAVE_ADDRESS 0
  #define E1_SLAVE_ADDRESS 0
  #define E2_SLAVE_ADDRESS 0
  #define E3_SLAVE_ADDRESS 0
  #define E4_SLAVE_ADDRESS 0
  #define E5_SLAVE_ADDRESS 0
  #define E6_SLAVE_ADDRESS 0
  #define E7_SLAVE_ADDRESS 0

To this:

  #define  X_SLAVE_ADDRESS 0
  #define  Y_SLAVE_ADDRESS 2
  #define  Z_SLAVE_ADDRESS 1
  #define X2_SLAVE_ADDRESS 0
  #define Y2_SLAVE_ADDRESS 0
  #define Z2_SLAVE_ADDRESS 0
  #define Z3_SLAVE_ADDRESS 0
  #define Z4_SLAVE_ADDRESS 0
  #define E0_SLAVE_ADDRESS 3
  #define E1_SLAVE_ADDRESS 0
  #define E2_SLAVE_ADDRESS 0
  #define E3_SLAVE_ADDRESS 0
  #define E4_SLAVE_ADDRESS 0
  #define E5_SLAVE_ADDRESS 0
  #define E6_SLAVE_ADDRESS 0
  #define E7_SLAVE_ADDRESS 0

coolio986 on 13 Jul 2020

👍1

The core of the issue is the improper setting of the slave addresses for the serial communications.

@coolio986 — That is an issue for the MarlinFirmware/Configurations repository, and any fixes you submit should target the specific configuration(s) which need these settings.

thinkyhead on 14 Jul 2020

The examples for the SKR E3 Mini 2.0 already set these.

This family is a little confusing, because 1.0/2.0 use hardware serial with slave addresses, but 1.2 uses software serial and needs them all set to 0.

sjasonsmith on 14 Jul 2020

👍2

This issue has been automatically locked since there has not been any recent activity after it was closed. Please open a new issue for related bugs.
