Marlin: [FR] Update Creality Ender 3/5 configuration from original source
Description
In the configuration folder for ender 3 they say that the configuration is based on reverse engineering from firmware because creality didn't release the source code.
There's the source code from apr.2019 on the official website. You should take the official configuration from there to be as much close to the official firmware.
Steps to Reproduce
None.
Additional Information
Firmware source code at:
https://www.creality3d.cn/download/source-code_c0001
LinoBarreca
All 36 comments
That readme should probably be deleted, especially since the bit about U8GLIB no longer applies 馃檪
As for updating from Creality鈥檚 version, that鈥檚 not the best idea since the configs in Marlin鈥檚 repo have been improved over stock.
thisiskeithb
on 15 Jul 2019
As for updating from Creality鈥檚 version, that鈥檚 not the best idea since the configs in Marlin鈥檚 repo have been improved over stock.
...not really since enabling bltouch gives compilation errors complaining about SERVO0_PIN undefined.
LinoBarreca
on 15 Jul 2019
@LinoBarreca Can you zip your Configuration.h & Configuration_adv.h files and attach them for review?
Which pins are you connecting the BLTouch to? Due to the limited pins on the stock boards, there are a couple options like Pin 27 or 35, but depending on how you connect it, you have to update your configs/pins definition for the board.
thisiskeithb
on 15 Jul 2019
From the original source code we can see that they defined
define SERVO0_PIN 27 in pins_MELZI_CREALITY.h
LinoBarreca
on 15 Jul 2019
Did you comment out #SPEAKER?
thisiskeithb
on 15 Jul 2019
@LinoBarreca Can you zip your Configuration.h & Configuration_adv.h files and attach them for review?
Which pins are you connecting the BLTouch to? Due to the limited pins on the stock boards, there are a couple options, but depending on how you connect it, you have to update your configs/pins definition for the board.
I connect it according to the original instructions.
https://drive.google.com/file/d/1-3PtiTeqI25Coe9icmI6_saBq0BQ-Q3f/view?usp=sharing
LinoBarreca
on 15 Jul 2019
Did you comment out
#SPEAKER?
well...I took the source from 1.1.9 bugfix, moved configuration.h and configuration dv replacing defaults, activated bltouch and compiled.....
LinoBarreca
on 15 Jul 2019
Did you comment out
#SPEAKER?
What you mentioned isn't contained in 1.1.9-bugfix.
LinoBarreca
on 15 Jul 2019
1.1.x is no longer being developed/only receiving critical patches, so please test with the latest bugfix-2.0.x branch.
To use a BLTouch on Creality machines with a "Pin 27 board", make sure to disable #SPEAKER.
thisiskeithb
on 15 Jul 2019
1.1.x is no longer being developed/only receiving critical patches, so please test with the latest bugfix-2.0.x branch.
To use a BLTouch on Creality machines with a "Pin 27" board, make sure to disable
#SPEAKER.
Man... the 1.1.9 should be the most stable version around...
I understand it is not maintained anymore but still it should compile..also I want to run it as stock as possible. original firmware is on 1.1.6 that's why I choose 1.1.9. it should be the most stable version which should be able to run original config files. Also...our ARM has very little space so 2.0 should be bigger and most likely it won't fit as easy as 1.1.x....am I wrong?
LinoBarreca
on 15 Jul 2019

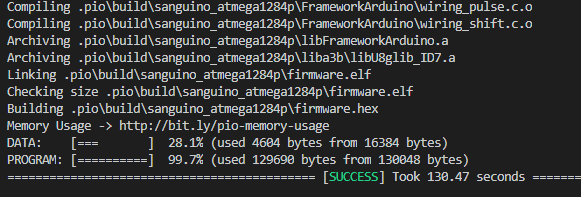

Compiling 1.1.9 with bltouch support takes 99.7% of program space.
I think 2.0 will not fit...but I can try.
LinoBarreca
on 15 Jul 2019
I just built a stock Ender-3 config from the latest bugfix-2.0.x with BLTouch enabled and SPEAKER disabled and it compiled successfully:
Checking size .pioenvs/sanguino_atmega1284p/firmware.elf
Building .pioenvs/sanguino_atmega1284p/firmware.hex
Memory Usage -> http://bit.ly/pio-memory-usage
DATA: [=== ] 28.1% (used 4610 bytes from 16384 bytes)
PROGRAM: [==========] 97.8% (used 127230 bytes from 130048 bytes)
I did it too (successfully) with 1.1.9-bugfix, stock (creality) config files and the define of pin 27.
I don't really like the custom config here because they define different parameters for movement and PID constants from creality defined ones. I understand that those here might be better but unless I have an explanation about what is modified and why I'd rather stick to stock values (I winmerged both)
Heating elements are critical (and print quality for stock is good). if prints aren't as good or something catches fire it's a problem.
LinoBarreca
on 15 Jul 2019
archive, pliz, no paste
sl1pkn07
on 15 Jul 2019
For heating parameters you should never depend on stock settings - you should always run a PID tune (M303) to get the best performance for your specific printer.
ManuelMcLure
on 15 Jul 2019
orginal ender3 config was bad in past and u should rather trust marlins default example as those chinese configs...
e.g. thermal runaway, jerks values
after months/years complaining they finally fixed it. but still they use an old marlin version from stoneage with 1.1.6.
reloxx13
on 15 Jul 2019
archive, pliz, no paste
sorry. zip here.
Warning I also changed the language.
Stock Configuration 1.1.9 with bltouch.zip
LinoBarreca
on 15 Jul 2019
orginal ender3 config was bad in past and u should rather trust marlins default example as those chinese configs...
in past. those config files source are from april 2019. I feel safer using theirs. since I've run my printer for months with their configuration. in my job they say "if something works, don't fix it". I have to reflash for bltouch....the less I change the better.
LinoBarreca
on 15 Jul 2019
in past. those config files source are from april 2019. I feel safer using theirs. since I've run my printer for months with their configuration. in my job they say "if something works, don't fix it". I have to reflash for bltouch....the less I change the better.
That's the beauty of Marlin (and open source software in general). You're free to use whichever fork fits your particular config/preference.
thisiskeithb
on 15 Jul 2019
You're free to use whichever fork fits your particular config/preference.
true but then maybe the readme.md which has been deleted should be included again with what has been changed and why it is better over the stock config.
(or even better start with default config and then comment each check-in place by place so it remains in check-in comments)
LinoBarreca
on 15 Jul 2019
true but then maybe the readme.md which has been deleted should be included again with what has been changed and why it is better over the stock config.
Someone would have to maintain the list of changes over what Crealtiy has released and watch for new releases.
Keep in mind that what Creality released doesn't match what they are shipping because they are still shipping printers & replacement boards with an old version of Marlin & thermal runaway protection disabled.
If you're looking for the "most up to date" version, you're going to find it within this repo since configs are updated en masse as new features are implemented.
thisiskeithb
on 15 Jul 2019
If you're looking for the "most up to date" version, you're going to find it within this repo since configs are updated en masse as new features are implemented.
okay mate I'll give 2.0bugfix a try.
keep fingers crossed.
LinoBarreca
on 15 Jul 2019
okay. It's definitely a no-go.
With ender3 config files (BLTOUCH enabled) I see these problems:
1) I don't have the "bed-level" menu option (1.1.9 has it)
2) if I start printing from the sd card the bltouch doesn't home properly. it tries to sense the bed outside the bed itself.
The bltouch on marlin 2.0 / ender 3 is definitely configured wrong. (I don't know on 1.1.9 marlin). on 1.1.6creality it works okay.
LinoBarreca
on 15 Jul 2019
These aren't bugs. You need to enable those options.
- I don't have the "bed-level" menu option (1.1.9 has it)
Pick one of the AUTO_BED_LEVELING_* options as well as LCD_BED_LEVELING & enable it.
- if I start printing from the sd card the bltouch doesn't home properly. it tries to sense the bed outside the bed itself.
Enable Z_SAFE_HOMING
I'd recommend that you give Marlin's Automatic Bed Leveling documentation a read before proceeding further.
Also, due to the melzi board's limited memory, you may need to enable SLIM_LCD_MENUS if you run into space constraints.
thisiskeithb
on 15 Jul 2019
...and that's why I didn't want to start with default config files.
I mean....I should be supposed to #define bltouch and all the related setting should take a working default....the maintainer of config files should set those default without leaving the advanced customization to the user (as every other setting). I'll take a look at the configuration and change it to a working default.
is there any other setting that I should look at because it's different from the default before I break the printer? (like endstop setting or so?)
LinoBarreca
on 15 Jul 2019
this is definitely wrong.
define X_PROBE_OFFSET_FROM_EXTRUDER 10 // X offset: -left +right [of the nozzle]
the probe is 45.5mm to the left (looking at the printer, closer to 0.0)
LinoBarreca
on 15 Jul 2019
There are no standard probe offsets because there are many different mods that place the probe in various locations in relation to the nozzle. You have to set those options depending on which mod/mount you install on your printer.
Here's some additional information on configuring Marlin that should help with your mods.
thisiskeithb
on 15 Jul 2019
it makes sense but if the configuration is for ender 3 the default should be for ender 3 official BLTOUCH kit..anyway..too much hassle with configuration. I revert to stock config and 1.1.9.
Use this issue if you want to plan adapting the configuration to something more useful for the standard machine/bltouch or just close it as won't fix.
bye.
LinoBarreca
on 15 Jul 2019
Or, _you_ could help the _volunteers_ that put their time and effort into providing this firmware by expending a bit of effort and producing a new, better configuration file.
ManuelMcLure
on 15 Jul 2019
Or, _you_ could help the _volunteers_ that put their time and effort into providing this firmware by expending a bit of effort and producing a new, better configuration file.
I am signaling what FOR ME is wrong and should be changed. if the project maintainer says that "we don't change 1.1.9" or "it makes no sense because there are many configurations" it means that what I think is logical and should be changed isn't as logical for the one maintaining the software...so I already put time and effort in downloading 1.1.9, changing the config to make it run properly on ender-3+standard bltouch. they said to download version 2 because it's better and more up-to-date. I did. I compiled, I flashed, I found things which didn't work "out of the box" I signaled it and it was deemed logical that it didn't work. okay then. I gave the suggestions. take them or reject them. if you reject them what am I doing here? wasting anyone's time? I go back to what I need, I fix it for my use and leave the decisions to someone else here.
have a nice day.
LinoBarreca
on 15 Jul 2019
@LinoBarreca If you want something more specifically tuned and maintained, can look at the Creality branch that I maintain with Tinymachines - https://github.com/InsanityAutomation/Marlin/tree/Creality_2.0_Bleeding
It turns many options on or off depending on what actually fits on the tiny board. Its optimized to fit as many functions as possible on the board, note that this means trimming many of the options on the LCD in favor of getting the gcode behind functions.
Given that the Ender 3 is sold in versions with and without the BLTouch, maybe we could toss in a separate config for both this and the CR20.
That said, remember the original Creality versions had most safeties like thermal runaway disabled. They got a working config for one machine and most things were kept identical with only changes to build volume or other machine specific things. They are definitely not the most well tuned values out there.
InsanityAutomation
on 16 Jul 2019
Given that the Ender 3 is sold in versions with and without the BLTouch, maybe we could toss in a separate config for both this and the CR20.
This would be a good idea. I had planned on submitting one for the Ender-3/"Official" Creality BLTouch kit, but feel free to put in a PR if you have something. This might be tricky depending on which version of the BLTouch the user receives, but we can cross that bridge later 馃檪
thisiskeithb
on 16 Jul 2019
Given that the Ender 3 is sold in versions with and without the BLTouch, maybe we could toss in a separate config for both this and the CR20.
This would be a good idea. I had planned on submitting one for the Ender-3/"Official" Creality BLTouch kit, but feel free to put in a PR if you have something. This might be tricky depending on which version of the BLTouch the user receives, but we can cross that bridge later 馃檪
Yeah, ive supported it with toggles in my configs since before an official creality kit existed! They saw what we were doing at ERRF last year then about a month later their kits showed up... lol
InsanityAutomation
on 16 Jul 2019
This issue is stale because it has been open 30 days with no activity. Remove stale label / comment or this will be closed in 5 days.
![github-actions[bot] picture](https://avatars2.githubusercontent.com/in/15368?v=4&s=40)
github-actions[bot]
on 1 Jul 2020
As I read through this, I think the primary BLTouch concern has been addressed, and there isn't really anything actionable here to justify keeping it open.
If somebody has specific improvements they would like to make to examples or pins file, they can go ahead submit a pull request in the configurations repo: https://github.com/MarlinFirmware/Configurations.
sjasonsmith
on 18 Jul 2020
This issue has been automatically locked since there has not been any recent activity after it was closed. Please open a new issue for related bugs.
github-actions[bot]
on 17 Sep 2020
