Marlin: [2.0.X] Compilation fails

[th33xitus]

Everything was set up correctly but compilation of the firmware fails.
Error message tells me:

#error "SENSORLESS_HOMING requires X_MIN_ENDSTOP_INVERTING when homing to X_MIN."

But i have it inverted:

#define X_MIN_ENDSTOP_INVERTING true

Chosen board:

#define MOTHERBOARD BOARD_RAMPS4DUE_EFB

Screenshot of config and error message:

[Ludy87]

Disable ENDSTOP_INTERRUPTS_FEATURE and try to compile.
If it still does not work, post your Configuration.h + Configuration_adv.h.

[thinkyhead]

The error will only appear if X_MIN_ENDSTOP_INVERTING is false. It's possible that you've edited a different configuration file from the one in the root folder. Quit Arduino IDE and re-start it. Double-check that the correct file (Marlin/Configuration.h) has in fact been edited. Then re-build. The error should go away if those conditions are confirmed.

[th33xitus]

@thinkyhead I can assure you, that the files i am changing are in the right folders.
How do i know? I made a change in the config, saved it, looked at the "last modified timestamp" in my explorer and it tells me the current time. So it is definitely the right config-files i am editing here.
Error doesn't go away.

Here are my configuration files:
configuration.h_configuration_adv.h.zip
Commit i used:
a474a7e

Also i get another problem with compiling while having TMC2130 and SD_SUPPORT enabled both at a time. You want me to make a new bugreport for it or is it okay to discuss it here as well?
Having TMC2130 and SD_SUPPORT enables gives me the following error message while trying to compile:
DUE software SPI is required but is incompatible with TMC2130 hardware SPI. Enable TMC_USE_SW_SPI to fix.
Enabling software SPI is actually not an option since i want to use hardware SPI.
But i would love to use SD_SUPPORT as well.

[thinkyhead]

Well that is interesting! This prints both error lines:

#if X_MIN_ENDSTOP_INVERTING == true
  #error "X_MIN_ENDSTOP_INVERTING == true"
#endif
#if DISABLED(X_MIN_ENDSTOP_INVERTING)
  #error "X_MIN_ENDSTOP_INVERTING is also somehow 'DISABLED'!"
#endif

My guess at this point is that something in the DUE platform is messing with the DISABLED macro. Some more investigation to follow…

[th33xitus]

Okay :stuck_out_tongue:
I "bruteforced" the compilation with just deleting the corresponding sanity check for sensorless homing and then it compiled fine. But i get an instant driver error on startup. Didn't figure out the exact driver error i get since i wasn't able to get my OctoPrint connected to the Due (doesn't recognizes the USB-port for whatever reason) so i couldn't get the console output yet.

But i guess it's better to wait anyways so you guys can take a look and might fix the stuff which is broken instead of me doing workarounds with disabling sanitychecks and such stuff :smiley:

[thinkyhead]

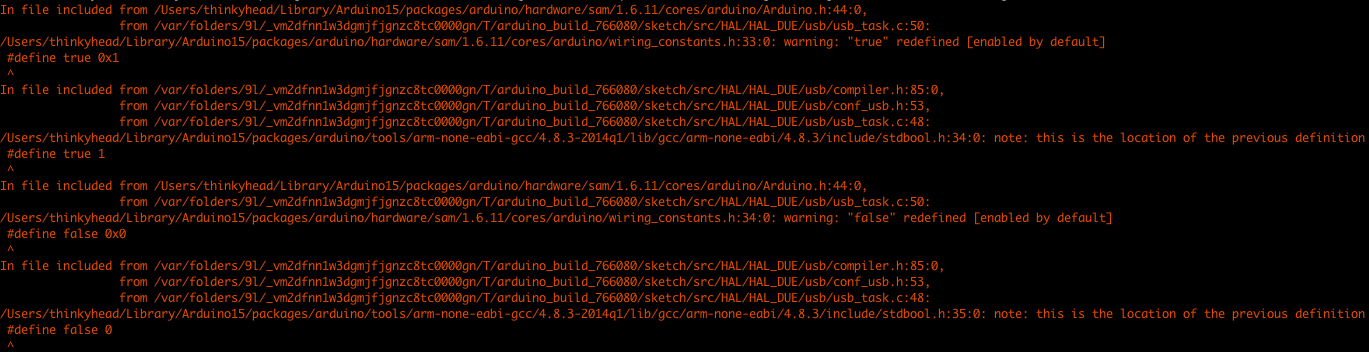

The Due platform defines false as 0x0 and true as 0x1…

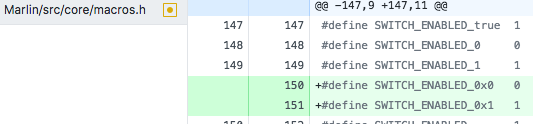

…so this change has to be made to macros.h:

[thinkyhead]

Now merged into bugfix-2.0.x.

[th33xitus]

@thinkyhead
Thank you for the fast solution. It actually compiled without any error now!
I will test the firmware in a few minutes, i have to reassemble my TMC2130 configuration again and then i will see.

Do you have any solution for the SD_SUPPORT and TMC2130 HW SPI conflict?
EDIT: I see you already closed this topic, you want me to make a new one? I guess so?

[thinkyhead]

you want me to make a new one?

Not if the "SD_SUPPORT and TMC2130 HW SPI conflict" issue already has a topic. Instead, post there. Anyway, no, I'm not working on that issue. That's outside my purview.

[StealthNinja1O1]

I downloaded the latest marlin, and still got that error. I commented it, and i'll report back when i finaly get the printer in. SKR V1.3 TMC2209 btw.

#if ENABLED(DELTA) && !BOTH(STEALTHCHOP_XY, STEALTHCHOP_Z)
    #error "SENSORLESS_HOMING on DELTA currently requires STEALTHCHOP_XY and STEALTHCHOP_Z."
  //#elif X_SENSORLESS && X_HOME_DIR == -1 && (X_MIN_ENDSTOP_INVERTING != X_ENDSTOP_INVERTING || DISABLED(ENDSTOPPULLUP_XMIN))
    //#error "SENSORLESS_HOMING requires X_MIN_ENDSTOP_INVERTING and ENDSTOPPULLUP_XMIN when homing to X_MIN."
  #elif X_SENSORLESS && X_HOME_DIR ==  1 && (X_MAX_ENDSTOP_INVERTING != X_ENDSTOP_INVERTING || DISABLED(ENDSTOPPULLUP_XMAX))
    #error "SENSORLESS_HOMING requires X_MAX_ENDSTOP_INVERTING and ENDSTOPPULLUP_XMAX when homing to X_MAX."
  //#elif Y_SENSORLESS && Y_HOME_DIR == -1 && (Y_MIN_ENDSTOP_INVERTING != Y_ENDSTOP_INVERTING || DISABLED(ENDSTOPPULLUP_YMIN))
    //#error "SENSORLESS_HOMING requires Y_MIN_ENDSTOP_INVERTING and ENDSTOPPULLUP_YMIN when homing to Y_MIN."
  #elif Y_SENSORLESS && Y_HOME_DIR ==  1 && (Y_MAX_ENDSTOP_INVERTING != Y_ENDSTOP_INVERTING || DISABLED(ENDSTOPPULLUP_YMAX))
    #error "SENSORLESS_HOMING requires Y_MAX_ENDSTOP_INVERTING and ENDSTOPPULLUP_YMAX when homing to Y_MAX."
  //#elif Z_SENSORLESS && Z_HOME_DIR == -1 && (Z_MIN_ENDSTOP_INVERTING != Z_ENDSTOP_INVERTING || DISABLED(ENDSTOPPULLUP_ZMIN))
    //#error "SENSORLESS_HOMING requires Z_MIN_ENDSTOP_INVERTING and ENDSTOPPULLUP_ZMIN when homing to Z_MIN."
