Maps: ShapeSource and SymbolLayer as PointAnnotation.

[tomasamado97]

Problem:
As the docs say PointAnnotation is deprecated and shouldn't be used so I'm trying to switch to ShapeLayer and SymbolLayer. What I'm trying to do is something like this:

And the number should change dynamically, according to props.
Any tips? I managed to make the chat icon appear but I have no idea how to add the number.
What I have so far:

const feature = {
type: 'Feature',
id: marker.id,
      geometry: {
        type: 'Point',
        coordinates: [marker.lat, marker.lng],
      },
};
return (
<MapboxGL.MapView style={sheet.matchParent}>
     <MapboxGL.Camera
          zoomLevel={17}
          centerCoordinate={[loc.lat, loc.lng]}
        />
     <MapboxGL.ShapeSource
         id="exampleShapeSource"
         shape={feature}
       >
        <MapboxGL.SymbolLayer id={markerOne + 1} style={{ iconImage: image, iconSize: 1 }} />
    </MapboxGL.ShapeSource>
</MapboxGL.MapView>);

Thanks in advance.

[arnaudambro]

@tomasamado97 note that you can add a <View /> as a <SymbolLayer> child. Maybe that's how you would put the number.

[tomasamado97]

Cool, its working for IOS but for android it doesn't even show.

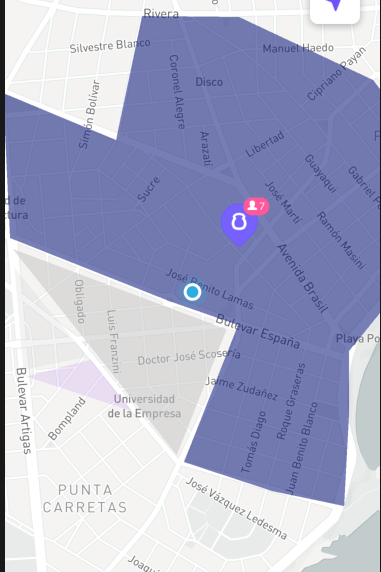

IOS:

Plus I want to dynamically change the purple picture to a green one, and its always staying on the same one.

[Friis1978]

@arnaudambro did you know how to implement SymbolLayers ?

Is this the way?

<MapboxGL.ShapeSource id="exampleShapeSource" shape={featurelist} cluster={false} > <MapboxGL.SymbolLayer id="exampleIconName" style={layerStyles.iconBlue} /> </MapboxGL.ShapeSource>

The points are not shown on my map in Android, anyone have a working example ?

[arnaudambro]

you can check these examples from the repo:

• ./example/src/examples/CustomIcon.js
• ./example/src/examples/ShapeSourceIcon.js

[Friis1978]

@arnaudambro
That is the example i tried to use, but somehow the icon does not show on the android mapview.

[arnaudambro]

can you show your code ?

[tomasamado97]

I can show you my code. I'm having the same issue as @Friis1978. Plus I'm facing the issue that the markers don't update when I change props.
Image is supposed to change, making the marker change.
I also tried adding a key to the shapeSource to make it update when the key changes, to no result.

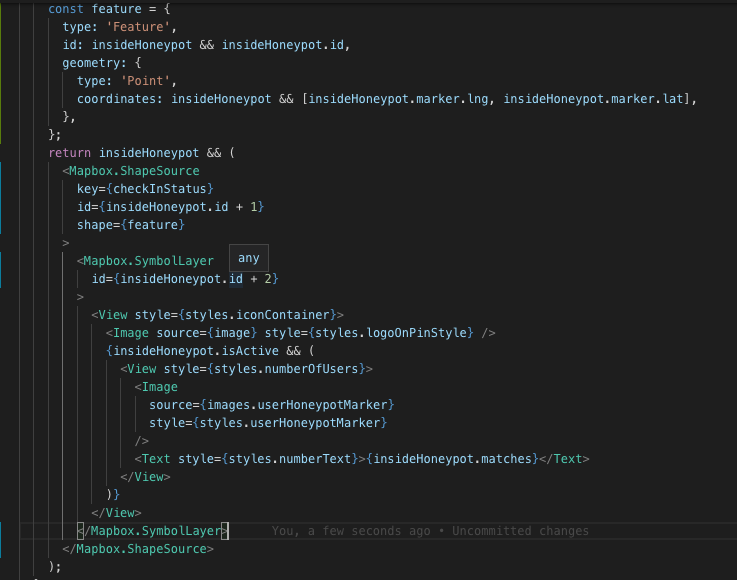

Code:

[arnaudambro]

In the shape prop of ShapeSource, you are passing a feature whereas you should be passing a feature collection, check again the ShapeSourceIcon example

[tomasamado97]

Still having the same issue, it shows on IOS but it doesn't on Android

[tomasamado97]

I was able to make the markers show and change dynamically by using styles on SymbolLayer but now the view with the amount of matches disappeared.

[Friis1978]

@tomasamado97 can you show your new code with the symbollayer styles also?

[tomasamado97]

I just added:
const markerStyle= isMarkerOne ? { iconImage: imageOne, iconSize: 0.55 } ? { iconImage: imageTwo, iconSize: 1 };

And then add it to the SymbolLayer like:

      <Mapbox.SymbolLayer
          id={insideHoneypot.id + 2}
          styles={markerStyle}
       />

But adding this makes the <View /> inside the Symbol not work, so I lose the numbers for the matches.

[justincrich]

Which version of this library deprecated PointAnnotation

[luisfuertes]

Maybe not related but if use something like const featureCollection = MapboxGL.geoUtils.addToFeatureCollection(this.state.featureCollection, feature) map dont re-render

U need clone items like:

const featureCollection = _.cloneDeep(MapboxGL.geoUtils.addToFeatureCollection(this.state.featureCollection, feature))

Maybe u have to clone ur item

[dancherb]

@arnaudambro @tomasamado97

Are there any docs or examples for adding custom component children (Views) to SymbolLayers? This is a revelation for me but I can't get it working (maybe because of the same Android issue..)

[Friis1978]

@dancherb here is an example of use. This is from my code, and it works perfectly.

`renderAllAnnotations() {
const { userlist } = this.props;

return (
  <MapboxGL.ShapeSource
    id="symbolLocationSource"
    hitbox={{ width: 20, height: 20 }}
    onPress={this.onActiveClick}
    shape={userlist}
  >
    <MapboxGL.CircleLayer
      id="pointCircles"
      style={{ circleStrokeColor: this.props.colors.btnColor, circleStrokeWidth: 2, circleRadius: 20, circleColor: this.props.colors.white }}
    />
    <MapboxGL.SymbolLayer
      id="pointSymbols"
      aboveLayerID="pointCircles"
      belowLayerID="homeSymbols"
      filter={['==', 'icon', 'point']}
      style={layerStyles.iconBlue}
    />

    <MapboxGL.SymbolLayer
      id="homeSymbols"
      aboveLayerID="pointCircles"
      filter={['==', 'icon', 'home']}
      style={layerStyles.iconHome}
    />
  </MapboxGL.ShapeSource>
);

}`

Perhaps its not what you are looking for afterall, I can see now, that it was children of symbollayer, and about that I dont know, just wanted to give an example of use.

[kristfal]

Nice! Would really appreciate this as an example in the project if you’re
up for it.

On Fri, 20 Sep 2019 at 18:05, Friis1978 [e-mail] wrote:

@dancherb https://github.com/dancherb here is an example of use. This
is from my code, and it works perfectly.

`renderAllAnnotations() {
const { userlist } = this.props;

return (
id="symbolLocationSource"
hitbox={{ width: 20, height: 20 }}
onPress={this.onActiveClick}
shape={userlist}
>
id="pointCircles"
style={{ circleStrokeColor: this.props.colors.btnColor, circleStrokeWidth: 2, circleRadius: 20, circleColor: this.props.colors.white }}
/>
id="pointSymbols"
aboveLayerID="pointCircles"
belowLayerID="homeSymbols"
filter={['==', 'icon', 'point']}
style={layerStyles.iconBlue}
/>

<MapboxGL.SymbolLayer
  id="homeSymbols"
  aboveLayerID="pointCircles"
  filter={['==', 'icon', 'home']}
  style={layerStyles.iconHome}
/>

);

}`

—
You are receiving this because you are subscribed to this thread.
Reply to this email directly, view it on GitHub
https://github.com/react-native-mapbox-gl/maps/issues/266?email_source=notifications&email_token=ABLAPW53QYIXI6SISONCBM3QKTYDVA5CNFSM4IFIOLE2YY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGOD7HFHBA#issuecomment-533615492,
or mute the thread
https://github.com/notifications/unsubscribe-auth/ABLAPW3P6M36RXOSAOMUPYLQKTYDVANCNFSM4IFIOLEQ
.

[dancherb]

@dancherb here is an example of use. This is from my code, and it works perfectly.

}`

Perhaps its not what you are looking for afterall, I can see now, that it was children of symbollayer, and about that I dont know, just wanted to give an example of use.

Ah this is standard practice for symbol layers AFAIK - I was looking to avoid a couple issues (with regards to overlapping, custom text etc) by having each symbol layer made up of more complex shapes (instead of only a circle/icon/text) by feeding children into them, like a couple others have suggested in their code. Thanks for the reply nonetheless :)

[Friis1978]

@kristfal you're welcome to use the code in the project, but perhaps an example of the layerstyle, and shape should be there too.

`
// Png images could be any pictures, without background.
import blueLocation from '../assets/location-marker-blue.png';
import blueHome from '../assets/home_blue.png';

/*
feature example to be used in the userlist

const feature = {
type: 'Feature',
icon: 'home',
id: marker.id,
geometry: {
type: 'Point',
coordinates: [marker.lat, marker.lng],
},
};

*/

renderAllAnnotations() {
const { userlist } = this.props;

return (
id="symbolLocationSource"
hitbox={{ width: 20, height: 20 }}
onPress={this.onActiveClick}
shape={userlist}
>
id="pointCircles"
style={{ circleStrokeColor: this.props.colors.btnColor, circleStrokeWidth: 2, circleRadius: 20, circleColor: this.props.colors.white }}
/>
id="pointSymbols"
aboveLayerID="pointCircles"
belowLayerID="homeSymbols"
filter={['==', 'icon', 'point']}
style={layerStyles.iconBlue}
/>

<MapboxGL.SymbolLayer
  id="homeSymbols"
  aboveLayerID="pointCircles"
  filter={['==', 'icon', 'home']}
  style={layerStyles.iconHome}
/>

);

const layerStyles = {
iconHome: {
iconAllowOverlap: true,
iconIgnorePlacement: true,
iconSize: 0.4,
iconImage: blueHome,
},
iconBlue: {
iconAllowOverlap: true,
iconIgnorePlacement: true,
iconSize: 0.4,
iconImage: blueLocation,
},
};`

[horva]

Here is full example we can include to repository.

import React, { Component } from "react";
import { StyleSheet, View, Text, Image } from "react-native";
import MapboxGL from "@react-native-mapbox-gl/maps";
import sheet from '../examples/styles/sheet';
import exampleIcon from '../examples/assets/example.png';

const point = {
  id: "1",
  lat: 40.723279,
  lng: -73.970895
}

const featureCollection = {
  "type": "FeatureCollection",
  "features": [
    {
      type: "Feature",
      id: point.id,
      properties: {
        id: point.id
      },
      geometry: {
        type: "Point",
        coordinates: [point.lng, point.lat],
      },
    }
  ]
}

export default class App extends Component {

  state = {
    count: 0
  }

  onPress = async () => {
    this.setState((prevState) => ({
      count: prevState.count + 1
    }));
  }

  render() {
    return (
      <MapboxGL.MapView
        style={sheet.matchParent}
      >
        <MapboxGL.Camera
          zoomLevel={10}
          centerCoordinate={[point.lng, point.lat]}
        />
        <MapboxGL.ShapeSource
          id="symbolLocationSource"
          hitbox={{ width: 30, height: 30 }}
          onPress={this.onPress}
          shape={featureCollection}
        >
          <MapboxGL.CircleLayer
            id="pointCircles"
            style={{
              circleStrokeColor: "#0000FF",
              circleStrokeWidth: 2,
              circleRadius: 30,
              circleColor: "#FFFFFF"
            }}
          />
          <MapboxGL.SymbolLayer
            id="teaCup"
            aboveLayerID="pointCircles"
            style={{
              iconImage: exampleIcon,
              iconSize: 1
            }}
          />
          <MapboxGL.CircleLayer
            id="notificationCircle"
            style={{
              circleColor: "#F00",
              circleRadius: 14,
              circleTranslate: [22, -22]
            }}
          />
          <MapboxGL.SymbolLayer
            id="notificationCount"
            style={{
              iconOptional: true,
              textIgnorePlacement: true,
              textField: this.state.count.toString(),
              textSize: 15,
              textMaxWidth: 50,
              textColor: '#FFF',
              textAnchor: 'center',
              textTranslate: [22, -22],
              textAllowOverlap: true
            }}
          />
        </MapboxGL.ShapeSource>
      </MapboxGL.MapView>
    );
  }
}

Usage looks like this - count is updated on icon press

[mxhryvo]

So do you have to render one "notificationCount"-symbolLayer for each point? if you have multiple points on the map that have different notification counters.

[tomasamado97]

@mxhryvo I think you need a feature collection for that, and you set a feature for each of the points of the map you want to render. I think there is an example on the docs of the library.

Apart from that I think this has been resolved so I'm closing the issue. If you need any help, feel free to ask me.

[drik]

So do you have to render one "notificationCount"-symbolLayer for each point? if you have multiple points on the map that have different notification counters.

Hi, @mxhryvo, if you want to dynamically display data on symbolLayers, you have to do it like this :

<MapboxGL.SymbolLayer
            id="notificationCount"
            style={{
              iconOptional: true,
              textIgnorePlacement: true,
              textField: '{notificationCount}',
              textSize: 15,
              textMaxWidth: 50,
              textColor: '#FFF',
              textAnchor: 'center',
              textTranslate: [22, -22],
              textAllowOverlap: true
            }}
          />

where notificationCount is a property in your features like this :
{ type: 'Feature', id: '11', properties: { icon: 'exempleIcon', notificationCount : dynamicValue }, geometry: { type: 'Point', coordinates: [-117.205908, 52.180843], }, }

[arnaudambro]

@drik I understand the SymbolLayer textField: {notificationCount} will render the dynamicValue value of the feature:properties:notificationCount.
But is there a reason why, or does it matter that the id for the SymbolLayer is notificationCount also ?
