Mail: Subfolders and Dovecot

[reubenlillie]

Please pardon my confusion, @ChristophWurst and @oparoz, but has the Dovecot namespace prefixing issue (e.g., #185) been fixed via #271 or not? I know #185 was closed, but was it premature, or is my issue new? That is, does the "not working correctly" that I'm experiencing relate to what #271 attempted to fix, or is my issue, like #372, a separate kind of bug? The readme is still vague, and I'd like to know if it's something I'm doing wrong or a limitation for the current software.

In any case, I'm having difficulty similar to #372 on my instance (unless I'm also misunderstanding #372):

Expected behaviour

"Show all folders" displays folders beyond inbox (e.g., Archive, Sent, Drafts, Junk, etc.)

Actual behaviour

"Show all folders" displays no more folders, instead only "Collapse folders" toggle prompt.

Mail app

Mail app version: 0.6.4

Mailserver or service: Dovecot

Transport security - IMAP: SSL

Transport security - SMTP: SSL

Number of accounts: 1 (testing for development, ~250 accounts planned for client)

Server configuration

Server configuration

Operating system: Linux server.{DOMAIN} 2.6.32-696.el6.x86_64 #1 SMP Tue Mar 21 19:29:05 UTC 2017 x86_64

Web server: Apache (cgi-fcgi)

Database: mysql 5.6.35

PHP version: 7.1.5
Modules loaded: Core, date, libxml, openssl, pcre, zlib, filter, hash, pcntl, readline, Reflection, SPL, session, standard, cgi-fcgi, bcmath, calendar, ctype, curl, dom, mbstring, ftp, gd, gettext, imap, json, exif, mcrypt, mysqlnd, PDO, Phar, posix, pspell, SimpleXML, soap, sockets, sqlite3, tidy, tokenizer, xml, xmlwriter, xsl, zip, mysqli, pdo_mysql, pdo_sqlite, wddx, xmlreader, xmlrpc

Nextcloud version: 12.0.0 - 12.0.0.29

Updated from an older Nextcloud/ownCloud or fresh install: fresh install

Where did you install Nextcloud from: https://nextcloud.com/install/

Signing status:

Signing status

[]

List of activated apps:

App list

Enabled:
 - activity: 2.5.2
 - bruteforcesettings: 1.0.2
 - calendar: 1.5.3
 - comments: 1.2.0
 - contacts: 1.5.3
 - dav: 1.3.0
 - external: 2.0.3
 - federatedfilesharing: 1.2.0
 - federation: 1.2.0
 - files: 1.7.2
 - files_pdfviewer: 1.1.1
 - files_sharing: 1.4.0
 - files_texteditor: 2.4.1
 - files_trashbin: 1.2.0
 - files_versions: 1.5.0
 - files_videoplayer: 1.1.0
 - firstrunwizard: 2.1
 - gallery: 17.0.0
 - issuetemplate: 0.2.1
 - logreader: 2.0.0
 - lookup_server_connector: 1.0.0
 - mail: 0.6.4
 - nextcloud_announcements: 1.1
 - notifications: 2.0.0
 - oauth2: 1.0.5
 - password_policy: 1.2.2
 - provisioning_api: 1.2.0
 - serverinfo: 1.2.0
 - sharebymail: 1.2.0
 - survey_client: 1.0.0
 - systemtags: 1.2.0
 - tasks: 0.9.5
 - theming: 1.3.0
 - twofactor_backupcodes: 1.1.1
 - updatenotification: 1.2.0
 - workflowengine: 1.2.0

Disabled:
 - admin_audit
 - encryption
 - files_external
 - user_external
 - user_ldap

The content of config/config.php:

Config report

{
    "instanceid": "ocn3td528q7q",
    "passwordsalt": "***REMOVED SENSITIVE VALUE***",
    "secret": "***REMOVED SENSITIVE VALUE***",
    "trusted_domains": [
        "cloud.***{DOMAIN}***"
    ],
    "datadirectory": "\/home\/***{DOMAIN}***\/public_html\/cloud\/data",
    "overwrite.cli.url": "https:\/\/cloud.***{DOMAIN}***",
    "dbtype": "mysql",
    "version": "12.0.0.29",
    "dbname": "***{DOMAIN}***_nextcloud",
    "dbhost": "localhost",
    "dbport": "",
    "dbtableprefix": "oc_",
    "dbuser": "***REMOVED SENSITIVE VALUE***",
    "dbpassword": "***REMOVED SENSITIVE VALUE***",
    "installed": true,
    "mail_domain": "***{DOMAIN}***",
    "mail_smtpmode": "php",
    "mail_smtpauthtype": "LOGIN",
    "mail_from_address": "cloud",
    "app.mail.imaplog.enabled": true,
    "app.mail.smtplog.enabled": true,
    "app.mail.imap.timeout": 20,
    "app.mail.smtp.timeout": 2,
    "app.mail.transport": "php-mail"
}

Are you using external storage, if yes which one: files_external is disabled

Are you using encryption: no

Are you using an external user-backend, if yes which one: LDAP/ActiveDirectory/Webdav/...

Client configuration

Browser: Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:53.0) Gecko/20100101 Firefox/53.0

Operating system:

Logs

Web server error log (data/horde_imap.log)

Web server error log

```
------------------------------

Wed, 31 May 2017 19:05:16 +0000
Connection to: imap://mail.{DOMAIN}.org:993/
Server connection took 0.0262 seconds.
S: * OK [CAPABILITY IMAP4rev1 LITERAL+ SASL-IR LOGIN-REFERRALS ID ENABLE IDLE NAMESPACE AUTH=PLAIN AUTH=LOGIN] Dovecot ready.
C: 1 AUTHENTICATE PLAIN [INITIAL CLIENT RESPONSE (username: [email protected])]
S: 1 OK [CAPABILITY IMAP4rev1 LITERAL+ SASL-IR LOGIN-REFERRALS ID ENABLE IDLE SORT SORT=DISPLAY THREAD=REFERENCES THREAD=REFS THREAD=ORDEREDSUBJECT MULTIAPPEND URL-PARTIAL CATENATE UNSELECT CHILDREN NAMESPACE UIDPLUS LIST-EXTENDED I18NLEVEL=1 CONDSTORE QRESYNC ESEARCH ESORT SEARCHRES WITHIN CONTEXT=SEARCH LIST-STATUS BINARY MOVE NAMESPACE NOTIFY SPECIAL-USE COMPRESS=DEFLATE QUOTA] Logged in
Command 1 took 0.0632 seconds.
C: 2 LIST () "" (*) RETURN (SPECIAL-USE)
S: * LIST () "." INBOX
S: * LIST (\UnMarked \Archive) "." INBOX.Archive
S: * LIST (\UnMarked \Junk) "." INBOX.spam
S: * LIST (\UnMarked \Junk) "." INBOX.Junk
S: * LIST (\UnMarked \Trash) "." INBOX.Trash
S: * LIST (\UnMarked \Drafts) "." INBOX.Drafts
S: * LIST (\UnMarked \Sent) "." INBOX.Sent
S: 2 OK List completed (0.001 + 0.000 + 0.001 secs).
Command 2 took 0.0018 seconds.
C: 3 STATUS INBOX.Junk (MESSAGES)
S: * STATUS INBOX.Junk (MESSAGES 0)
S: 3 OK Status completed (0.001 + 0.000 secs).
Command 3 took 0.0005 seconds.
C: 4 STATUS INBOX.Junk (MESSAGES)
S: * STATUS INBOX.Junk (MESSAGES 0)
S: 4 OK Status completed (0.001 + 0.000 secs).
Command 4 took 0.0003 seconds.
C: 5 STATUS INBOX.spam (MESSAGES)
S: * STATUS INBOX.spam (MESSAGES 0)
S: 5 OK Status completed (0.001 + 0.000 secs).
Command 5 took 0.0003 seconds.
C: 6 STATUS INBOX (MESSAGES RECENT UIDNEXT UIDVALIDITY UNSEEN)
S: * STATUS INBOX (MESSAGES 2 RECENT 0 UIDNEXT 3 UIDVALIDITY 1496251615 UNSEEN 0)
S: 6 OK Status completed (0.001 + 0.000 secs).
Command 6 took 0.0008 seconds.
C: 7 LOGOUT
S: * BYE Logging out
S: 7 OK Logout completed (0.001 + 0.000 secs).
Command 7 took 0.0009 seconds.
```

Nextcloud log (data/nextcloud.log)

Nextcloud log

empty

Browser log

Browser log

```
Insert your browser log here, this could for example include:

a) The javascript console log

Content Security Policy: Directive ‘frame-src’ has been deprecated. Please use directive ‘child-src’ instead. (unknown)
JQMIGRATE: Migrate is installed, version 1.4.0 core.js:7:542
Starting Mail … mail.min.js:157:26485
initializing cache… mail.min.js:152:21641
[ui] "content:loading" Array [ ] mail.min.js:148:14867
[ui] "notification:request" Array [ ] mail.min.js:148:14867
[account] "entities" Array [ ] mail.min.js:148:14867
[ui] "sidebar:loading" Array [ ] mail.min.js:148:14867
[ui] "search:set" Array [ "" ] mail.min.js:148:14867
[ui] "content:loading" Array [ "Loading Inbox" ] mail.min.js:148:14867
[ui] "composer:leave" Array [ ] mail.min.js:148:14867
[folder] "setactive" Array [ Object, Object ] mail.min.js:148:14867
[message] "entities" Array [ Object, Object, Object ] mail.min.js:148:14867
[folder] "setactive" Array [ Object, Object ] mail.min.js:148:14867
[ui] "folder:changed" Array [ ] mail.min.js:148:14867
[ui] "navigation:newmessage:show" Array [ ] mail.min.js:148:14867
[ui] "sidebar:accounts" Array [ ] mail.min.js:148:14867
[ui] "foldercontent:show" Array [ Object, Object, Object ] mail.min.js:148:14867
[ui] "title:update" Array [ ] mail.min.js:148:14867
[ui] "messagesview:message:setactive" Array [ null ] mail.min.js:148:14867
[message] "bodies" Array [ Object, Object, Array[2] ] mail.min.js:148:14867
[message] "fetch:bodies" Array [ Object, Object, Array[2] ] mail.min.js:148:14867
[ui] "composer:leave" Array [ ] mail.min.js:148:14867
[ui] "message:loading" Array [ ] mail.min.js:148:14867
[ui] "title:update" Array [ ] mail.min.js:148:14867
[ui] "messagesview:message:setactive" Array [ Object ] mail.min.js:148:14867
[message] "entity" Array [ Object, Object, 2 ] mail.min.js:148:14867
[ui] "composer:events:undelegate" Array [ ] mail.min.js:148:14867
[message] "flag" Array [ Object, Object, Object, "unseen", false ] mail.min.js:148:14867
[ui] "messagesview:messageflag:set" Array [ 2, "unseen", false ] mail.min.js:148:14867
[ui] "message:show" Array [ Object ] mail.min.js:148:14867
[message] "load" Array [ Object, Object, Object ] mail.min.js:148:14867
Use of getPreventDefault() is deprecated. Use defaultPrevented instead. mail
[keyboard] "keyup" Array [ Object, 9 ] mail.min.js:148:14867
[ui] "search:set" Array [ "" ] mail.min.js:148:14867
[ui] "content:loading" Array [ "Loading Inbox" ] mail.min.js:148:14867
[ui] "composer:leave" Array [ ] mail.min.js:148:14867
[folder] "setactive" Array [ Object, Object ] mail.min.js:148:14867
[message] "entities" Array [ Object, Object, Object ] mail.min.js:148:14867
[ui] "foldercontent:show" Array [ Object, Object, Object ] mail.min.js:148:14867
[ui] "title:update" Array [ ] mail.min.js:148:14867
[ui] "messagesview:message:setactive" Array [ null ] mail.min.js:148:14867
[message] "bodies" Array [ Object, Object, Array[2] ] mail.min.js:148:14867
[message] "fetch:bodies" Array [ Object, Object, Array[2] ] mail.min.js:148:14867
[ui] "composer:leave" Array [ ] mail.min.js:148:14867
[ui] "message:loading" Array [ ] mail.min.js:148:14867
[ui] "title:update" Array [ ] mail.min.js:148:14867
[ui] "messagesview:message:setactive" Array [ Object ] mail.min.js:148:14867
[message] "entity" Array [ Object, Object, 2 ] mail.min.js:148:14867
[ui] "composer:events:undelegate" Array [ ] mail.min.js:148:14867
[message] "flag" Array [ Object, Object, Object, "unseen", false ] mail.min.js:148:14867
[ui] "messagesview:messageflag:set" Array [ 2, "unseen", false ] mail.min.js:148:14867
[ui] "message:show" Array [ Object ] mail.min.js:148:14867
[message] "load" Array [ Object, Object, Object ] mail.min.js:148:14867
[message] "entities" Array [ Object, Object, Object ] mail.min.js:148:14867
[ui] "messagesview:messages:update" Array [ ] mail.min.js:148:14867
[folder] "setactive" Array [ Object, Object ] mail.min.js:148:14867
[navigation] "folder" Array [ 3, "SU5CT1g=", false ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "title:update" Array [ ] mail.min.js:148:14867
[ui] "messagesview:message:setactive" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[notification] "favicon:change" Array [ "/apps/mail/img/favicon.png" ] mail.min.js:148:14867
[keyboard] "keyup" Array [ Object, 73 ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[ui] "document:click" Array [ Object ] mail.min.js:148:14867
[keyboard] "keyup" Array [ Object, 65 ] mail.min.js:148:14867
[keyboard] "keyup" Array [ Object, 17 ] mail.min.js:148:14867

```

---

Want to back this issue? Post a bounty on it! We accept bounties via Bountysource.

[reubenlillie]

@ChristophWurst, what if any info do you still need from me?

[ChristophWurst]

Hi @reubenlillie,

could you please try with a recent nightly build? PR #271 has not been released yet.

[ChristophWurst]

I've created a new build: https://github.com/nextcloud/mail/releases/tag/nightly-20170612 😉

[reubenlillie]

Thanks. I'll try to test within the next 48 hours.

[reubenlillie]

Here are the logs from my latest test using https://github.com/nextcloud/mail/releases/tag/nightly-20170612

Undefined index: messages at ~/NEXTCLOUD_DIRECTORY/apps/mail/lib/Folder.php#163
Undefined index: messages at ~/NEXTCLOUD_DIRECTORY/apps/mail/lib/Folder.php#162
Undefined index: unseen at ~/NEXTCLOUD_DIRECTORY/apps/mail/lib/Folder.php#161
Creating account failed: Authentication failed. 2017-06-14T09:38:58-0500
Undefined index: messages at ~/NEXTCLOUD_DIRECTORY/apps/mail/lib/Folder.php#163
Undefined index: messages at ~/NEXTCLOUD_DIRECTORY/apps/mail/lib/Folder.php#162
Undefined index: unseen at ~/NEXTCLOUD_DIRECTORY/apps/mail/lib/Folder.php#161
Allowed memory size of 268435456 bytes exhausted (tried to allocate 92274385 bytes) at ~/NEXTCLOUD_DIRECTORY/lib/private/Security/Crypto.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL: Connection reset by peer at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL: Connection reset by peer at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL: Connection reset by peer at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL operation failed with code 1. OpenSSL Error messages: error:1409F07F:SSL routines:SSL3_WRITE_PENDING:bad write retry at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL: Connection reset by peer at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99
fwrite(): SSL: Connection reset by peer at ~/NEXTCLOUD_DIRECTORY/apps/mail/vendor/pear-pear.horde.org/Horde_Smtp/Horde/Smtp/Connection.php#99

Not sure if these come from the BlueHost/cPanel/Dovecot configuration or something else with the app codebase itself. I'm willing to experiment with guidance on my end. Please advise.

[japerezULT]

I'm experiencing this problem too, my Dovecot server follows the structure INBOX.sent, INBOX.trash, etc. But, even with the nightly build provided above, only the main one with received mail shows up.

The logs don't show anything extraordinay apart from this:
{"reqId":"UvVxGIls4dZFwIxZC7CC","level":3,"time":"2017-07-07T11:40:41+00:00","remoteAddr":"192.168.100.230","user":"ultreia","app":"PHP","method":"GET","url":"\/nextcloud\/index.php\/apps\/mail\/accounts\/1\/folders","message":"Undefined index: unseen at \/var\/www\/html\/nextcloud\/apps\/mail\/lib\/Folder.php#161","userAgent":"Mozilla\/5.0 (X11; Ubuntu; Linux x86_64; rv:53.0) Gecko\/20100101 Firefox\/53.0","version":"12.0.0.29"} {"reqId":"UvVxGIls4dZFwIxZC7CC","level":3,"time":"2017-07-07T11:40:41+00:00","remoteAddr":"192.168.100.230","user":"ultreia","app":"PHP","method":"GET","url":"\/nextcloud\/index.php\/apps\/mail\/accounts\/1\/folders","message":"Undefined index: messages at \/var\/www\/html\/nextcloud\/apps\/mail\/lib\/Folder.php#162","userAgent":"Mozilla\/5.0 (X11; Ubuntu; Linux x86_64; rv:53.0) Gecko\/20100101 Firefox\/53.0","version":"12.0.0.29"} {"reqId":"UvVxGIls4dZFwIxZC7CC","level":3,"time":"2017-07-07T11:40:41+00:00","remoteAddr":"192.168.100.230","user":"ultreia","app":"PHP","method":"GET","url":"\/nextcloud\/index.php\/apps\/mail\/accounts\/1\/folders","message":"Undefined index: messages at \/var\/www\/html\/nextcloud\/apps\/mail\/lib\/Folder.php#163","userAgent":"Mozilla\/5.0 (X11; Ubuntu; Linux x86_64; rv:53.0) Gecko\/20100101 Firefox\/53.0","version":"12.0.0.29"}

[alexhass]

I have seen the documentation about the inbox prefixing, checked my server and this is disabled. However if I look into maildir folder the folders are prefixed. Not sure what dovecot /postfix really do now. In roundcube all folders and subfolders are there.

I only see the send / junk and 2 other folders, but not the full tree of inbox folders.

I installed the latest official version of mail app for next cloud. Looking forward to a fix to get rid of roundcube.

[reubenlillie]

Friendly update: I just tried the August 1 nightly build and the same issue persists.

Do we know if this issue is unique to Dovecot or if it is similar to the other open subfolder issues related to the "Show Folders"/"Collapse Folders" script?

Thanks for your help.

[douzepouze]

I can confirm the issue in the same configuration that @reubenlillie used.

[alexhass]

This should also be the same for Courier IMAP. The INBOX prefix is typically set to prepare yourself for Courier and Dovecot compatibility.

[ftoledo]

I can confirm over Courier too.

[andreas-wolf]

Same problem with Cyrus IMAP. All I can see is a long list of Folders like INBOX.Archive.R... Furthermore the folder column is not resizeable making the whole app completely useless.

[winnieXY]

I can confirm this bug alsow with dovecot - with ~100 subfolders this looks like a complete mess and is not usable at all

[joe-speedboat]

Today I started with fresh dovecot installation and it drove mi crazy.
Folders are: INBOX.subfolder1.subfolder2
No way to fix from dovecot side.
Thunderbird and Nextcloud-Rainloop are working as expected.

NextCloud: 12.03 (stable)
OS: CentOS7 (up2date)
Dovecot: up2date
Tried everything you mentioned in Readme, it does not help at all.
Would be great to get that fixed.

[ChristophWurst]

Hey everyone,

could someone please do me a favor and test the fix in #652? For convenience, I've packed it into a tarball:
mail.tar.gz. Let me know if the folder hierarchy is correct with the patched app. Note that the UI will still show the prefix in the folder's name.

Btw, if anybody has a Docker image at hand that would allow us to test against one of the effected IMAP implementations, that would be great. I'd like to write an integration test for this and include it in our CI test suite.

[ChristophWurst]

Btw, if anybody has a Docker image at hand that would allow us to test against one of the effected IMAP implementations, that would be great. I'd like to write an integration test for this and include it in our CI test suite.

Put differently: if anybody volunteers to search an appropriate Docker image from Docker hub, that would be awesome 😉

[ChristophWurst]

🏓 anybody got the chance to test my fix?

[ftoledo]

@ChristophWurst I could do the test, i have same behavior:

[ChristophWurst]

@ftoledo could you please enable debug mode and post your data/horde_image.log entries where the server lists your folders? Thanks.

[ChristophWurst]

Little reminder: I'm still waiting for someone to test my PR and give detailed feedback in case it does not work. If there's no or too little feedback from the community, I will close the PR and remove this ticket from my task list and leave this to the community to fix.

[japerezULT]

@ChristophWurst I tried to test the patched version, however, if I overwrite the mail app folder with the new one, an "App upgrade required" screen pops up and re downloads the version from the store. If you could give me some guidance around this I can try to test the folders problem.

[ChristophWurst]

@japerezULT I've created a tarball for you: https://github.com/nextcloud/mail/pull/652#issuecomment-352427619

[ftoledo]

@ChristophWurst im attach here the log (sorry i put them in #652 too)
horde_imap.log

[japerezULT]

@ChristophWurst That tarball worked, thanks! However I had some unexpected behaviour that I would like to confirm if its intended or not:

The mail app was working fine with the older mail app I had in the server, however, after updating and overwriting, it stopped working and got an error, the culprit was a ".dovecot.sieve" file that was placed insice the user's Maildir, as soon as I removed that file it started working again. Don't know if this is the expected behaviour but at least with the older version it was working.

After that, all the Folders showed up, however I couldn't get the horde_imap.log to show up, correct me if I'm wrong, but adding:

'app.mail.imaplog.enabled' => true, 'app.mail.smtplog.enabled' => true,

to config.php should suffice right?

[ChristophWurst]

The mail app was working fine with the older mail app I had in the server, however, after updating and overwriting, it stopped working and got an error, the culprit was a ".dovecot.sieve" file that was placed insice the user's Maildir, as soon as I removed that file it started working again.

What version was installed before? Was it the latest from the app store. Actually, that error should be fixed now. If not, please file a separate ticket for that.

After that, all the Folders showed up, however I couldn't get the horde_imap.log to show up, correct me if I'm wrong, but adding:

That used to be correct. Now we simply check whether 'debug' is set to true.

[japerezULT]

@ChristophWurst

I will recheck that and file a new ticket if I run into it again.

Regarding the subfolders here is my horde log, there should me a mix of prefix and non prefix folders.

horde_imap.log

[Ninos]

Sometimes inbox, trash, sent or draft-folder also have subfolders. Don't forget these default folders :-)

[ChristophWurst]

This is blocked by https://github.com/nextcloud/mail/issues/386#issuecomment-348917648. As long as I'm unable to locally reproduce the issues, fix them and have integration tests run on every build, I'm not continuing here.

So, again, if anybody has a working dovecot config that causes the issues above, please create a simple docker image with a single hard-coded user and let me know where to find it. I'll then fix the issue, write tests for it and integrate it into our CI builds. Thanks.

[j0s]

This is a reminder that pull request #728 is a temporary workaround to a problem that should no longer be needed once this has been resolved. When closing this bug, revert pull request #728.

[ChristophWurst]

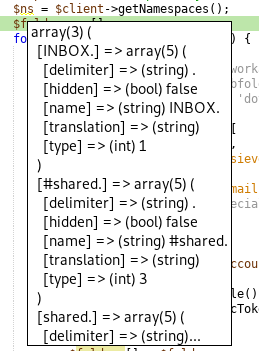

New insights: horde detects the namespace capability

… and I have no clue how to handle those

I probably cannot just blindly remove them.

[ChristophWurst]

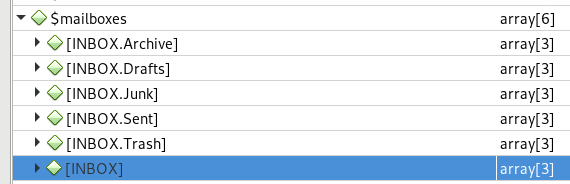

@ftoledo I'm a bit confused. I'm using your test account (thanks a lot for providing it) but the folders are not prefixed. The only remaining issue is that all folders are shown as subfolder of the inbox.

[ChristophWurst]

Never mind, this was false positive. The folder names are only correct (non-prefixed) because the all have a special use set (inbox, sent, drafts, junk, …) and thus we translate the folder name automatically.

[ChristophWurst]

📖 https://tools.ietf.org/html/rfc2342

[ChristophWurst]

My observations:

• App works (at least no errors are thrown)
• Folders are shown as subfolders of the inbox (which other mail clients show that way too, but not all)



  • There's a bug with the collapse icon, it's hidden for the inbox


  • You can still click the inbox icon and subfolders will expand


• For some accounts, subfolder names include the parent folder prefix



  • Hence the INBOX.xxx names


  • They are removed on Gmail for some reason



[flesser]

I am running Mail 0.7.10 on Nextcloud 13.0.0 and still see this issue.
Folders on the root level are displayed correctly, but if I click on "expand", nested folders still show up as Folder.sub-folder.third-level etc. (As the actual maildir folders in the file system on the mailserver are named, but without the very first dot prefix). Thunderbird shows the folder structure correctly.

As for the Docker image you mentioned earlier in this thread:
I use https://github.com/hardware/mailserver without any modification of dovecot settings.
(Dovecot itself runs in the mailserver service defined in their docker-compose.yml, you can skip the other stuff)

[ChristophWurst]

@flesser thanks for your feedback. Could you please file a new ticket?

Thanks a lot for the Docker info. It would be great if the Docker image is also somewhat runnable without Docker Compose.
