Linkerd2: linkerd-proxy throwing load balancer discovery error
Bug Report
What is the issue?
linkerd-proxy started throwing an error and was unable to connect to other meshed services
How can it be reproduced?
Unknown
Logs, error output, etc
ERR! [249010.471746s] outbound:accept{peer.addr=100.96.11.27:34552}:source{target.addr=100.69.16.83:80}: linkerd2_app_core::errors unexpected error: buffered service failed: load balancer discovery error: discovery task failed
linkerd check output
kubernetes-api
--------------
√ can initialize the client
√ can query the Kubernetes API
kubernetes-version
------------------
× is running the minimum Kubernetes API version
Kubernetes is on version [1.11.8], but version [1.13.0] or more recent is required
see https://linkerd.io/checks/#k8s-version for hints
√ is running the minimum kubectl version
linkerd-config
--------------
√ control plane Namespace exists
√ control plane ClusterRoles exist
√ control plane ClusterRoleBindings exist
√ control plane ServiceAccounts exist
√ control plane CustomResourceDefinitions exist
√ control plane MutatingWebhookConfigurations exist
√ control plane ValidatingWebhookConfigurations exist
√ control plane PodSecurityPolicies exist
linkerd-existence
-----------------
√ 'linkerd-config' config map exists
√ heartbeat ServiceAccount exist
√ control plane replica sets are ready
√ no unschedulable pods
√ controller pod is running
√ can initialize the client
√ can query the control plane API
linkerd-identity
----------------
√ certificate config is valid
√ trust roots are using supported crypto algorithm
√ trust roots are within their validity period
√ trust roots are valid for at least 60 days
√ issuer cert is using supported crypto algorithm
√ issuer cert is within its validity period
√ issuer cert is valid for at least 60 days
√ issuer cert is issued by the trust root
linkerd-api
-----------
√ control plane pods are ready
√ control plane self-check
√ [kubernetes] control plane can talk to Kubernetes
√ [prometheus] control plane can talk to Prometheus
linkerd-version
---------------
√ can determine the latest version
‼ cli is up-to-date
is running version 20.1.2 but the latest edge version is 20.1.3
see https://linkerd.io/checks/#l5d-version-cli for hints
control-plane-version
---------------------
‼ control plane is up-to-date
is running version 20.1.2 but the latest edge version is 20.1.3
see https://linkerd.io/checks/#l5d-version-control for hints
√ control plane and cli versions match
Environment
- Kubernetes Version:
- Cluster Environment: (GKE, AKS, kops, ...)
- Host OS:
- Linkerd version:
Possible solution
Additional context
Verfied the linkerd-proxy sidecar version was also 20.1.2. Similar to https://github.com/linkerd/linkerd2/issues/3935
gamer22026
All 30 comments
As per https://github.com/linkerd/linkerd2/issues/3935#issuecomment-576891452, The Proxy is moved back to the stable version.
Can you confirm if it is not because of the min k8s version supported error, by running it in >= 1.13?
× is running the minimum Kubernetes API version
Kubernetes is on version [1.11.8], but version [1.13.0] or more recent is required
see https://linkerd.io/checks/#k8s-version for hints
Pothulapati
on 28 Jan 2020
Can't test on >=1.13 for the moment. Also, I have lots of meshed services. Only saw this error on one service(3 pods) and all 3 pods exhibited the same error. I also verified that linkerd-proxy is running v2.84.0.
gamer22026
on 28 Jan 2020
Had this happen again. Same service, different namespace. Prior to installing 20.1.2, I was on 19.12.2 and didn't see this error. Again validated that the linkerd-proxy sidecar on the affected pods was running v2.84.0
gamer22026
on 28 Jan 2020
Additional info. I rolled back the linkerd-proxy version on the service that's been throwing the error to 19.12.3 (v2.82.0) but I left the control plane at 20.1.2 and I still see the same error.I never saw this error at all prior to my upgrade to 20.1.2. Also the fact that I only ever see this error on one service out of the many I have meshed would seem to indicate that there's some "trigger" related to this particular service causing this error to happen.
gamer22026
on 29 Jan 2020
Just upgraded everything to 20.1.4(latest) but same error. One more tidbit. The service that's throwing this error is the only one that connects to the downstream service via websocket. I have other meshed services that use standard HTTP as well as one service that uses HTTP/2 grpc and they are all fine. The error also doesn't happen right away, only after some period of time. (in the last test case it lasted about 1-1/2 hours before erroring out).
gamer22026
on 29 Jan 2020
Full testing scenario (using linkerd edge-20.1.4 as the controlplane) with my (now) 2 failing services that utilize a websocket connection:
PROXY_VERSION RESULT
v2.84.0 buffered service failed error
v2.82.0 buffered service failed error
v2.81.0 OK
I did notice that https://github.com/linkerd/linkerd2-proxy/commit/588609becbe9372b4bb3cfa752630ed320f76d3b made changes to the buffer settings between v2.81.0 and v2.82.0. Don't know how to troubleshoot further on why these websocket services throw that error on linkerd-proxy version >=v2.82.0
gamer22026
on 30 Jan 2020
Upgraded to edge-20.2.1.Now getting a slightly different "buffer service failed" error.
[329592.297712814s] WARN outbound:accept{peer.addr=100.96.28.225:40908}:source{target.addr=100.69.16.83:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
Still causes the meshed service to fail with a 502.
gamer22026
on 10 Feb 2020
This sounds like one of the staleness issues that we're working on getting taken care of right now. The next major version of the proxy will have quite a few updates to hopefully address this style of issue. We'll make sure to update the issue and ask for testing when it is ready to go.
grampelberg
on 10 Feb 2020
Guess my options at this point are to stay on 2.6.1 (the last working version for me) or unmesh the failing services. I know the proxy in 2.7 and 2.6.1 are "supposed" to be the same but there's no getting around the fact that in my use case, v2.81.0 works and any version after has the buffer failure issues.
gamer22026
on 11 Feb 2020
@gamer22026 when you see this error, is there a message containing the string "dropping resolution due to watchdog" in the logs as well?
hawkw
on 11 Feb 2020
@hawkw Nope just those. Over 5K failures on one pod in a little over an hour.
gamer22026
on 11 Feb 2020
Hmm, that's interesting, thanks!
The change in linkerd/linkerd2-proxy@588609b added a "watchdog" timeout that fires to cancel and restart a service discovery resolution for a given destination if it is observed to not be updated after a period of time. This is in order to help prevent stuck service discovery resolutions. I think if your discovery tasks were being killed by the watchdog timeout introduced in that change, we should see that log message as well. It's emitted here: https://github.com/linkerd/linkerd2-proxy/blob/588609becbe9372b4bb3cfa752630ed320f76d3b/linkerd/proxy/discover/src/buffer.rs#L143-L149
hawkw
on 11 Feb 2020
I wonder if the watchdog timeout fired way in the past (and the corresponding log line was lost due to log rotation or something), but the discovery task was never restarted?
hawkw
on 11 Feb 2020
Got it all in ELK so think I got all the lines.
gamer22026
on 12 Feb 2020
@hawkw Apologize. You were right! (bad Kibana mojo on my part).
Feb 7, 2020 @ 17:10:50.292 [102569.774966826s] WARN outbound:accept{peer.addr=100.96.28.225:49722}:source{target.addr=100.69.16.83:80}:addr{addr=engine:80}:logical{dst.logical=engine.qa3.svc.cluster.local:80}:concrete{dst.concrete=engine.qa3.svc.cluster.local:80}: linkerd2_proxy_discover::buffer: Dropping resolution due to watchdog timeout=60s
Feb 10, 2020 @ 08:03:26.399 [328925.881430445s] WARN outbound:accept{peer.addr=100.96.28.225:44098}:source{target.addr=100.69.16.83:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
That's first appearance of the failure after the watchdog timeout fired.
gamer22026
on 12 Feb 2020
Happened again. (second entry is from linkerd-destination pod, which happened at the same time as the watchdog). The timing of the watchdog corresponds to the time the pods backing the service engine:80 were redeployed.
Feb 11, 2020 @ 17:20:53.143 [ 20017.560711102s] WARN outbound:accept{peer.addr=100.96.7.45:37696}:source{target.addr=100.69.16.83:80}:addr{addr=engine:80}:logical{dst.logical=engine.qa3.svc.cluster.local:80}:concrete{dst.concrete=engine.qa3.svc.cluster.local:80}: linkerd2_proxy_discover::buffer: Dropping resolution due to watchdog timeout=60s
Feb 11, 2020 @ 17:20:53.144 time="2020-02-12T00:20:53Z" level=info msg="Stopping watch on endpoint [qa3/engine:80]" addr=":8086" component=endpoints-watcher
Feb 12, 2020 @ 08:52:16.279 [ 75900.696150835s] WARN outbound:accept{peer.addr=100.96.7.45:54224}:source{target.addr=100.69.16.83:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
Oh, fantastic, that's definitely a clue! Thanks for catching that.
hawkw
on 13 Feb 2020
We just had the same issue. Suddenly, network connections staled. A lot of inkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed appeared. As well as the 'watchdog' messages: linkerd2_proxy_discover::buffer: Dropping resolution due to watchdog timeout=60s
We were using linkerd stable-2.7.0 on kubernetes 1.15.10. Let me know if you need further info.
kforsthoevel
on 18 Feb 2020

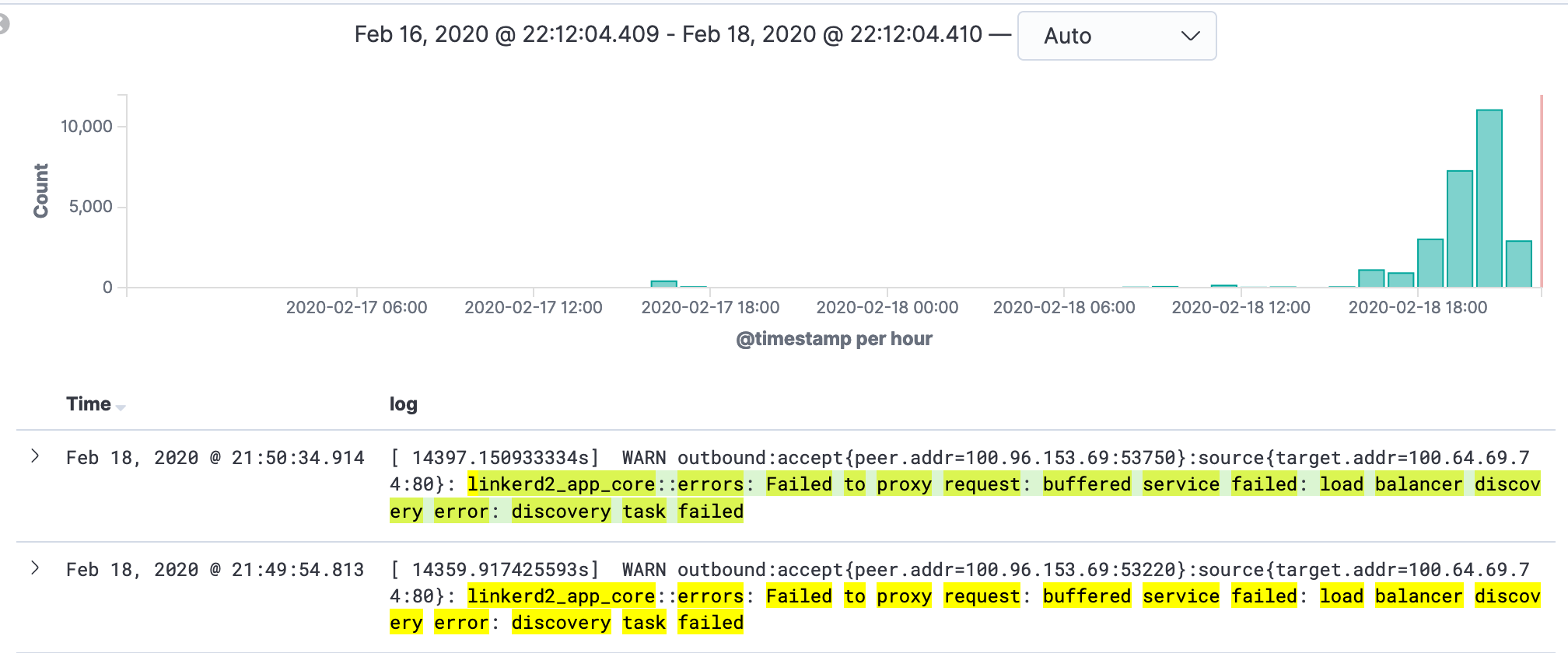

So I've just witnessed the same thing in one of our pods in our staging environment on :
~ ❯ kubectl logs daedalus-updater-69fbb949fc-6mc6s linkerd-proxy -f
time="2020-02-17T15:49:54Z" level=info msg="running version stable-2.7.0"
[ 0.10338367s] INFO linkerd2_proxy: Admin interface on 0.0.0.0:4191
[ 0.10365568s] INFO linkerd2_proxy: Inbound interface on 0.0.0.0:4143
[ 0.10371468s] INFO linkerd2_proxy: Outbound interface on 127.0.0.1:4140
[ 0.10393368s] INFO linkerd2_proxy: Tap interface on 0.0.0.0:4190
[ 0.10491068s] INFO linkerd2_proxy: Local identity is default.one.serviceaccount.identity.linkerd.cluster.local
[ 0.10513669s] INFO linkerd2_proxy: Identity verified via linkerd-identity.linkerd.svc.cluster.local:8080 (linkerd-identity.linkerd.serviceaccount.identity.linkerd.cluster.local)
[ 0.10519369s] INFO linkerd2_proxy: Destinations resolved via linkerd-dst.linkerd.svc.cluster.local:8086 (linkerd-destination.linkerd.serviceaccount.identity.linkerd.cluster.local)
[ 0.12083579s] INFO inbound: linkerd2_app_inbound: serving listen.addr=0.0.0.0:4143
[ 0.32760114s] INFO daemon:identity: linkerd2_app: Certified identity: default.one.serviceaccount.identity.linkerd.cluster.local
[154791.991986182s] WARN outbound:accept{peer.addr=10.1.0.31:46516}:source{target.addr=172.16.12.128:80}:addr{addr=hermes-api:80}:logical{dst.logical=hermes-api.one.svc.cluster.local:80}:concrete{dst.concrete=hermes-api.one.svc.cluster.local:80}: linkerd2_proxy_discover::buffer: Dropping resolution due to watchdog timeout=60s
[155203.91360616s] WARN outbound:accept{peer.addr=10.1.0.31:35284}:source{target.addr=172.16.12.128:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
[155224.476833031s] WARN outbound:accept{peer.addr=10.1.0.31:35780}:source{target.addr=172.16.12.128:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
[155329.657839425s] WARN outbound:accept{peer.addr=10.1.0.31:37844}:source{target.addr=172.16.12.128:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
[156882.508075123s] WARN outbound:accept{peer.addr=10.1.0.31:40094}:source{target.addr=172.16.12.128:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
[157461.359183618s] WARN outbound:accept{peer.addr=10.1.0.31:51468}:source{target.addr=172.16.12.128:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
[157507.388896661s] WARN outbound:accept{peer.addr=10.1.0.31:52394}:source{target.addr=172.16.12.128:80}: linkerd2_app_core::errors: Failed to proxy request: buffered service failed: load balancer discovery error: discovery task failed
Output of kubectl version
~ ❯ kubectl version
Client Version: version.Info{Major:"1", Minor:"15", GitVersion:"v1.15.7", GitCommit:"6c143d35bb11d74970e7bc0b6c45b6bfdffc0bd4", GitTreeState:"clean", BuildDate:"2019-12-11T12:42:56Z", GoVersion:"go1.12.12", Compiler:"gc", Platform:"darwin/amd64"}
Server Version: version.Info{Major:"1", Minor:"15", GitVersion:"v1.15.9", GitCommit:"2e808b7cb054ee242b68e62455323aa783991f03", GitTreeState:"clean", BuildDate:"2020-01-18T23:24:23Z", GoVersion:"go1.12.12", Compiler:"gc", Platform:"linux/amd64"}
Output of linkerd version
~ ❯ linkerd version
Client version: stable-2.7.0
Server version: stable-2.7.0
Output of linkerd check
~ took 6s ❯ linkerd check
kubernetes-api
--------------
√ can initialize the client
√ can query the Kubernetes API
kubernetes-version
------------------
√ is running the minimum Kubernetes API version
√ is running the minimum kubectl version
linkerd-existence
-----------------
√ 'linkerd-config' config map exists
√ heartbeat ServiceAccount exist
√ control plane replica sets are ready
√ no unschedulable pods
√ controller pod is running
√ can initialize the client
√ can query the control plane API
linkerd-config
--------------
√ control plane Namespace exists
√ control plane ClusterRoles exist
√ control plane ClusterRoleBindings exist
√ control plane ServiceAccounts exist
√ control plane CustomResourceDefinitions exist
√ control plane MutatingWebhookConfigurations exist
√ control plane ValidatingWebhookConfigurations exist
√ control plane PodSecurityPolicies exist
linkerd-identity
----------------
√ certificate config is valid
√ trust roots are using supported crypto algorithm
√ trust roots are within their validity period
√ trust roots are valid for at least 60 days
√ issuer cert is using supported crypto algorithm
√ issuer cert is within its validity period
√ issuer cert is valid for at least 60 days
√ issuer cert is issued by the trust root
linkerd-api
-----------
√ control plane pods are ready
√ control plane self-check
√ [kubernetes] control plane can talk to Kubernetes
√ [prometheus] control plane can talk to Prometheus
√ tap api service is running
linkerd-version
---------------
√ can determine the latest version
√ cli is up-to-date
control-plane-version
---------------------
√ control plane is up-to-date
√ control plane and cli versions match
linkerd-ha-checks
-----------------
√ pod injection disabled on kube-system
Status check results are √
Deleting the pod resolved the issue.
cpressland
on 19 Feb 2020
I have another instance of this problem.
derrickburns
on 4 Mar 2020
I am not sure if they are related, however, I am using opencensus tracing and I know that the trace collector backend is full, so linkerd cannot write spans.
On my production system I do not have tracing and have not seen this bug.
derrickburns
on 4 Mar 2020
I have a proxy version which I believe fixes these issues. It should be released in tomorrow's edge release, but it can be tested manually by adding an annotation to your workload:
config.linkerd.io/proxy-version: ver-backpressure-2020-03-04.0
Please let us know if you observe any similar issues with the newer version!
olix0r
on 5 Mar 2020
Just rolled 20.3.1 into our testing environment. Will update this issue accordingly.
gamer22026
on 6 Mar 2020
I've finally deployed 20.3.1 into our Dev, Staging and Sandbox environments. I'll report back if I see anything odd.
cpressland
on 10 Mar 2020
Thanks @gamer22026 and @cpressland looking forward to hearing the results
cpretzer
on 10 Mar 2020
@gamer22026 @cpressland thanks for checking this out! I currently lack time, but appreciate your efforts!
christianhuening
on 11 Mar 2020
Think we can close this one out. Any idea when the edge fixes will land in a 2.x release?
gamer22026
on 25 Mar 2020
There isn't a date set yet, but we're getting good feedback about the edge releases.
Assuming no new issues come up, my best guess is that one of the upcoming edges will be an RC.
cpretzer
on 25 Mar 2020
We're starting to prepare stable-2.7.1 to include this fix, hopefully released later this week.
In the meantime, I suggest setting the annotation to:
config.linkerd.io/proxy-version: edge-20.3.4
Please report back if you experience this issue again! Thanks
olix0r
on 30 Mar 2020
That's awesome news! Thanks
christianhuening
on 31 Mar 2020
