Lens: Unable to connect to remote clusters in 2.6.x

[kbristow]

Describe the bug

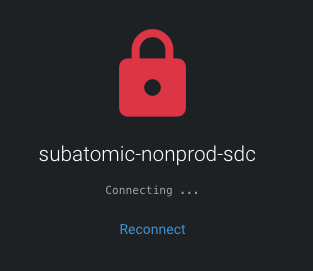

Cannot connect to any of my Rancher Kubernetes clusters since the 2.6.x updates. I am presented with the following result on all my Rancher clusters:

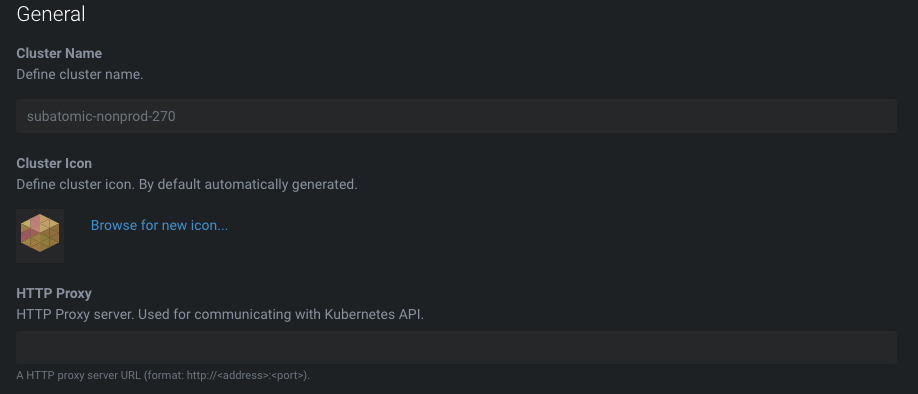

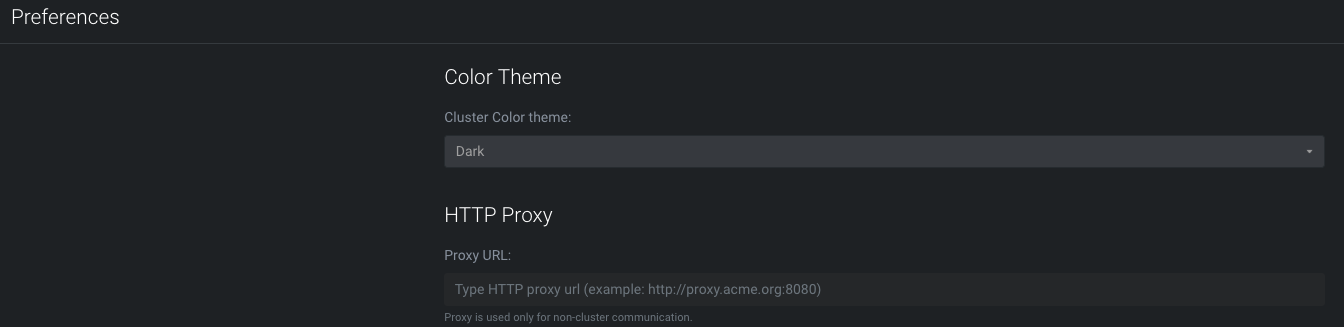

Looking at the logs, Lens appears to be trying to go through 127.0.0.1 to connect to my clusters. I have no proxy configured as seen here:

Note that all my local Minikube clusters are still connectable.

To Reproduce
Steps to reproduce the behaviour:

1. Open Lens
2. Click on cluster icon
3. See error image appear as above

Expected behavior
Lens dashboard should appear for the cluster once connected.

Environment:

• Lens Version: 2.6.2
• OS: OSX
• Installation method: From the dmg file download for OSX

Logs:

info: initializing server for 127.0.0.1:49152 on port 49156
error: Failed to connect to cluster subatomic-nonprod-270: {
  "name": "StatusCodeError",
  "statusCode": 404,
  "message": "404 - \"default backend - 404\"",
  "error": "default backend - 404",
  "options": {
    "json": true,
    "timeout": 10000,
    "headers": {
      "host": "bb6abba0-feb0-4953-8415-ec6fea9c15dd.localhost:49152"
    },
    "uri": "http://127.0.0.1:49152/api-kube/version",
    "simple": true,
    "resolveWithFullResponse": false,
    "transform2xxOnly": false
  },
  "response": {
    "statusCode": 404,
    "body": "default backend - 404",
    "headers": {
      "content-length": "21",
      "content-type": "text/plain; charset=utf-8",
      "date": "Fri, 22 Nov 2019 08:42:57 GMT",
      "server": "nginx/1.15.6",
      "strict-transport-security": "max-age=15724800; includeSubDomains",
      "connection": "close"
    },
    "request": {
      "uri": {
        "protocol": "http:",
        "slashes": true,
        "auth": null,
        "host": "127.0.0.1:49152",
        "port": "49152",
        "hostname": "127.0.0.1",
        "hash": null,
        "search": null,
        "query": null,
        "pathname": "/api-kube/version",
        "path": "/api-kube/version",
        "href": "http://127.0.0.1:49152/api-kube/version"
      },
      "method": "GET",
      "headers": {
        "host": "bb6abba0-feb0-4953-8415-ec6fea9c15dd.localhost:49152",
        "accept": "application/json"
      }
    }
  }
}
error: [object Object]
error: Failed to connect to cluster subatomic-nonprod-270: {
  "name": "StatusCodeError",
  "statusCode": 404,
  "message": "404 - \"default backend - 404\"",
  "error": "default backend - 404",
  "options": {
    "json": true,
    "timeout": 10000,
    "headers": {
      "host": "bb6abba0-feb0-4953-8415-ec6fea9c15dd.localhost:49152"
    },
    "uri": "http://127.0.0.1:49152/api-kube/version",
    "simple": true,
    "resolveWithFullResponse": false,
    "transform2xxOnly": false
  },
  "response": {
    "statusCode": 404,
    "body": "default backend - 404",
    "headers": {
      "content-length": "21",
      "content-type": "text/plain; charset=utf-8",
      "date": "Fri, 22 Nov 2019 08:42:59 GMT",
      "server": "nginx/1.15.6",
      "strict-transport-security": "max-age=15724800; includeSubDomains",
      "connection": "close"
    },
    "request": {
      "uri": {
        "protocol": "http:",
        "slashes": true,
        "auth": null,
        "host": "127.0.0.1:49152",
        "port": "49152",
        "hostname": "127.0.0.1",
        "hash": null,
        "search": null,
        "query": null,
        "pathname": "/api-kube/version",
        "path": "/api-kube/version",
        "href": "http://127.0.0.1:49152/api-kube/version"
      },
      "method": "GET",
      "headers": {
        "host": "bb6abba0-feb0-4953-8415-ec6fea9c15dd.localhost:49152",
        "accept": "application/json"
      }
    }
  }
}
error: [object Object]
error: server http://127.0.0.1:49152/bb6abba0-feb0-4953-8415-ec6fea9c15dd exited with code null
error: proxy subatomic-nonprod-270 exited with code null

Kubeconfig:

apiVersion: v1
kind: Config
clusters:
- name: "subatomic-nonprod-sdc"
  cluster:
    server: "https://rancher.caas.absa.co.za/k8s/clusters/c-pnclq"
    certificate-authority-data: "cert is here"

users:
- name: "u-fwengx4xqg"
  user:
    token: "token is here"

contexts:
- name: "subatomic-nonprod-sdc"
  context:
    user: "u-fwengx4xqg"
    cluster: "subatomic-nonprod-sdc"

current-context: "subatomic-nonprod-sdc"

[kke]

(beautified the jsons in error log)

[andrejonathan]

Same issue but when connecting on 2.6.1

[raswinraaj]

I have the same issue as well with 2.6.3

[jakolehm]

@andrejonathan @raswinraaj are you also using Rancher?

[nielsvz]

@andrejonathan @raswinraaj are you also using Rancher?

I am seeing the same with Rancher and Lens 2.6 on Windows 10

@jakolehm

[jakolehm]

@nielsvz is Rancher installed using "HA" installation guide (= runs on top of RKE)?

[kbristow]

@jakolehm Just with regards to the original issue, the Rancher I am trying to connect to is an HA install using RKE.

[jnummelin]

I managed to setup test Rancher to play with and got the issue re-produced.

So the problem boils down to kubectl proxy not working with Rancher managed clusters at all! In 2.6.0 Lens moved to use kubectl proxy functionality to handle all the authentication to the cluster API. So basically all the requests from UI are proxied through this auth handler so the UI does not need to know anything about cluster auth mechanisms.

So I got my Rancher managed DO cluster with kube config:

apiVersion: v1
clusters:
- cluster:
    server: https://mydomain.org/k8s/clusters/c-s2w4y
  name: rancher-do-test
contexts:
- context:
    cluster: rancher-do-test
    user: rancher-do-test
  name: rancher-do-test
current-context: rancher-do-test
kind: Config
preferences: {}
users:
- name: rancher-do-test
  user:
    token: <token>

I start proxy manually:

$ kubectl proxy -v 9
I1128 13:27:11.845064   10709 loader.go:375] Config loaded from file:  kubeconfig_rancher
Starting to serve on 127.0.0.1:8001

But all request to the proxy just hit the default backend (as there's ingress with TLS in front of my Rancher manager)

$ curl -s -o /dev/null -w "%{http_code}" localhost:8001/api/v1/pods?limit=500
404

Some Rancher issues instruct to use the cluster path as part of the proxied request, but it still fails:

$ curl -s -o /dev/null -w "%{http_code}" localhost:8001/k8s/clusters/c-j2q4x/api/v1/pods?limit=500
404

Since the requests through kubectl proxy seems to be always directed to the default backend of the ingress controller (nginx ingress in my case) I'm actually not sure whether this is really a Rancher issue or kubectl proxy issue. Or maybe the way Rancher sets up the ingress&TLS. Need to dig deeper how Rancher sets up everything and how to possibly fix things.
https://media.giphy.com/media/PSRhz4Qj4m82Q/giphy.gif

[jakolehm]

Fix is already done, we just need to make sure that it does not break other (non-rancher) clusters.

[jnummelin]

Fix is already done, we just need to make sure that it does not break other (non-rancher) clusters.

Well, I'd call this more like a workaround. 😺 IMO the actual bug is in kubectl proxy functionality which sets the Host header wrongly when proxying. We're anyway able to make Lens work soon with Rancher managed clusters.

[kbristow]

Thanks guys!

[raswinraaj]

Hi.
I am not using rancher.
However the issue got resolved after I updated and restarted lens a couple
of times.

On Thu, Nov 28, 2019, 2:08 PM Jari Kolehmainen [e-mail]
wrote:

@andrejonathan https://github.com/andrejonathan @raswinraaj
https://github.com/raswinraaj are you also using Rancher?

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/kontena/lens/issues/91?email_source=notifications&email_token=AL77WLSGLE6E7DUJ26TSHHDQV57RTA5CNFSM4JQNTMZKYY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGOEFL27JI#issuecomment-559394725,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AL77WLT7WBK5AMFOKQMJ5CTQV57RTANCNFSM4JQNTMZA
.

[jakolehm]

Fix will be included in v2.6.5.
