Konga: Konga redirects to /register instead of /konga/register

[reloaded]

This issue a bug related to #357.

The goal is to host Konga at /konga, but Konga redirects to /register instead of /konga/register. I've not customized any configuration for Kong or Konga so both their database configurations are vanilla.

This seems to be a bug that only impacts the HTTP 302 /register redirect when opening Konga on a clean, out of the box install. The developer tools show all Konga requests are going to /konga/ except for the HTTP 302 /register redirect.

I tried accessing Konga two different ways. The first is through ingress and the second is bypassing ingress and using kubectl port-forward.

First attempt, through the Ingress

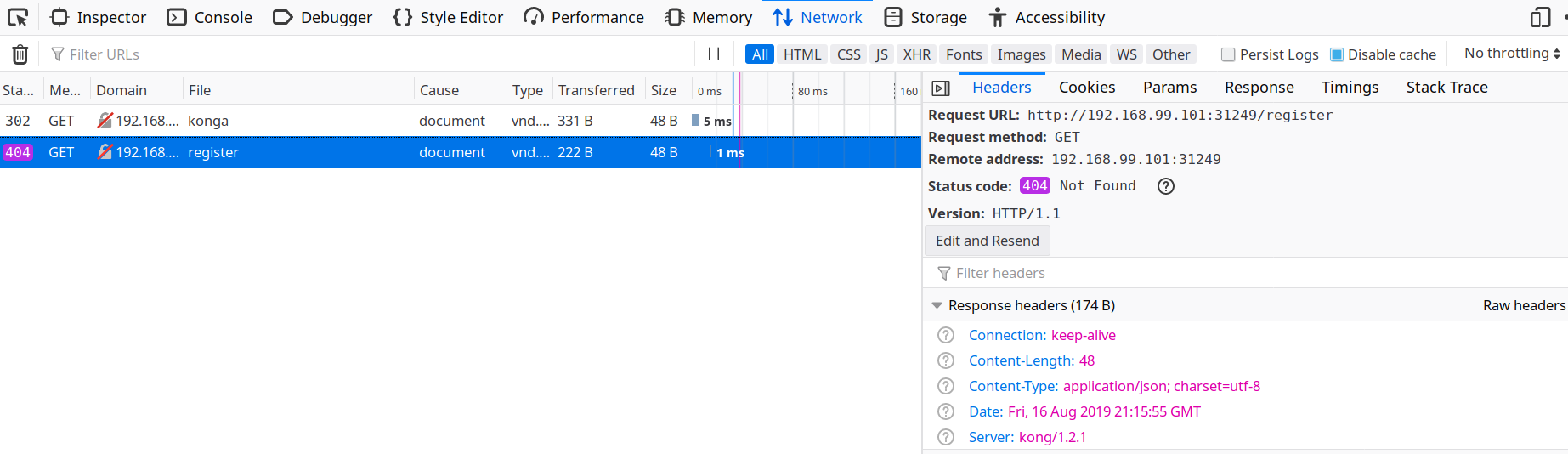

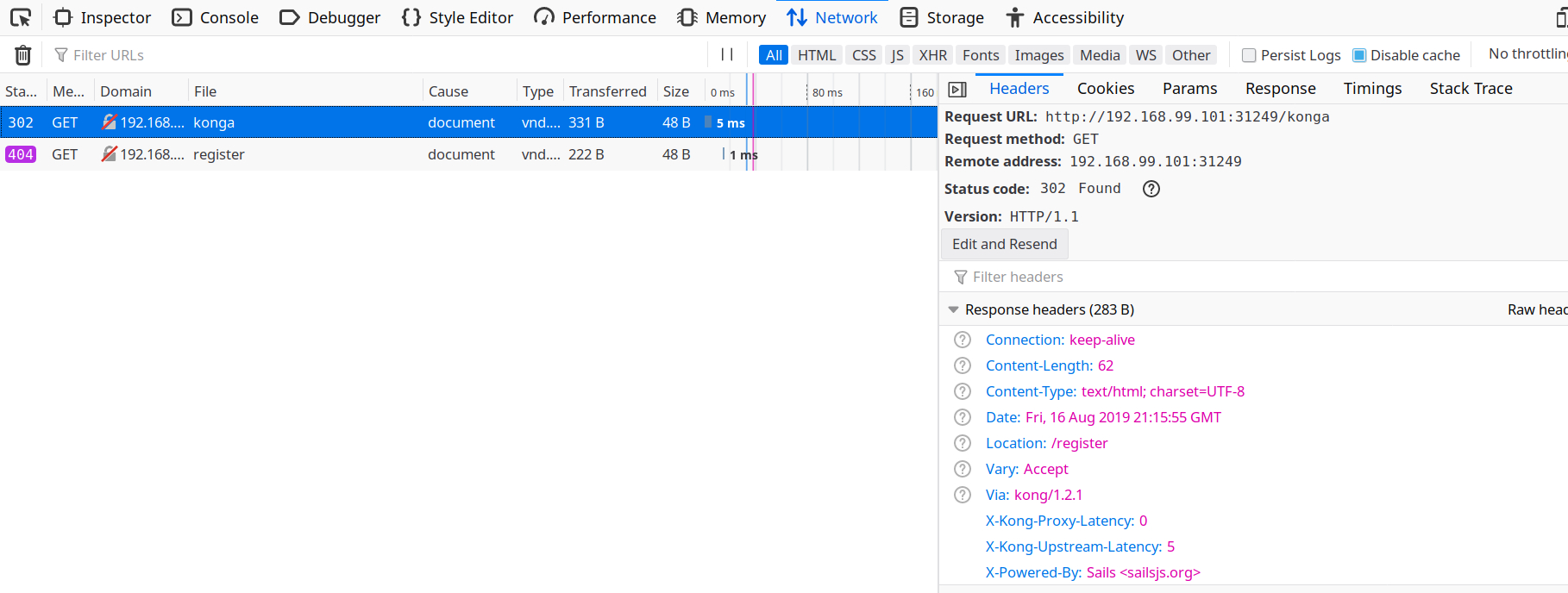

As shown above, Konga sends a HTTP 320 /register to the browser when access my ingress at /konga.

Second attempt, bypassing ingress with kubectl port-forward

To rule out Ingress configuration issues I thought it was a good idea to access Konga directly without involving Kong or k8s Ingress. This revealed Konga is redirecting everything to /konga/ except for the HTTP 302 /register redirect.

First I establish a direct connection to the Konga pod.

Then I accessed Konga directly and as seen below Konga successfully loads /register. This is expected because I'm bypassing my ingress. Keep in mind I left Konga's BASE_URL environment variable set to /konga/ in my deployment file.

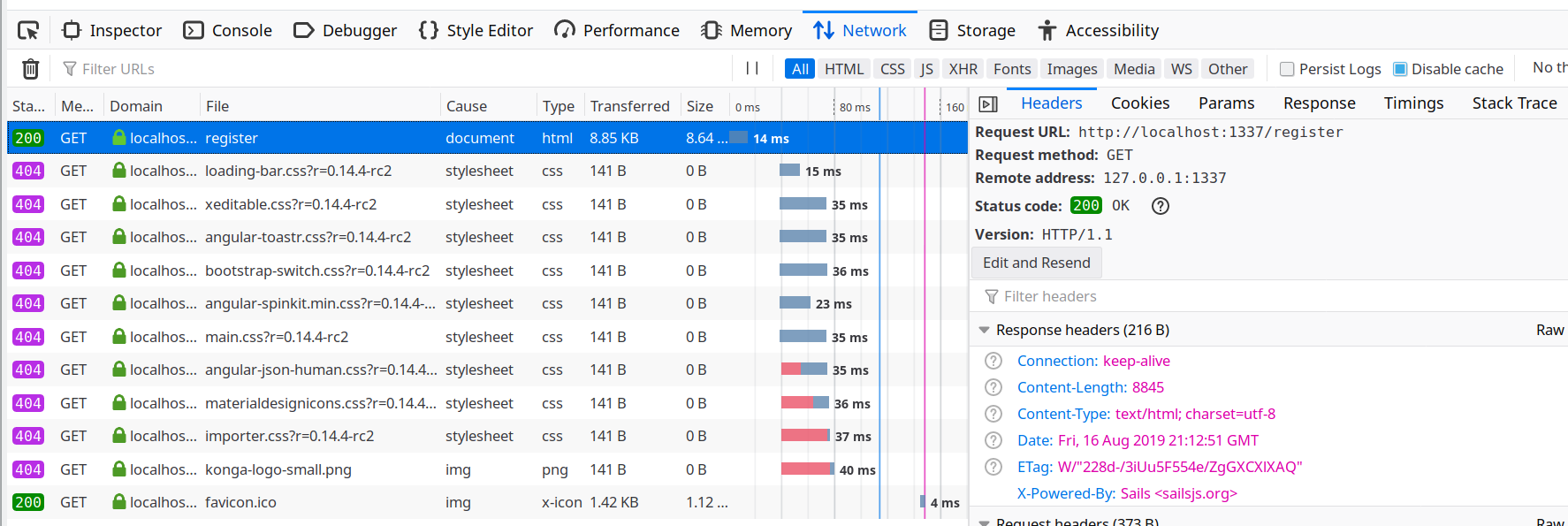

Here is where the bug rears it's ugly head. The web page rendered incorrectly and I immediately knew web assets were not loaded. Sure enough all web assets 404'd except for the /register page itself.

Here's my YAML configuration.

# Source: konga/templates/konga.svc.yaml
kind: Service
apiVersion: v1
metadata:
  name: "konga-konga-svc"
spec:
  ports:
    - name: http
      port: 80
      targetPort: 1337
  selector:
    app: "konga-konga"
    release: "konga"
    chart: "konga-0.1.0"
  type: ClusterIP
---
# Source: konga/templates/konga.deploy.yaml
apiVersion: apps/v1beta1
kind: Deployment
metadata:
  name: "konga-konga"
  labels:
    app: "konga-konga"
    release: "konga"
    chart: "konga-0.1.0"
spec:
  replicas: 1
  selector:
    matchLabels:
      app: "konga-konga"
      release: "konga"
      chart: "konga-0.1.0"
  template:
    metadata:
      labels:
        app: "konga-konga"
        release: "konga"
        chart: "konga-0.1.0"
    spec:
      imagePullSecrets:
        []

      containers:
      - name: konga
        image: "pantsel/konga:next"
        imagePullPolicy: IfNotPresent
        ports:
          - name: http
            containerPort: 1337
            protocol: TCP
        resources:
            {}

        env:

            - name: NODE_ENV
              value: development
            - name: TOKEN_SECRET
              value: 9GbbT5Oa2XaH
            - name: BASE_URL
              value: /konga/
---
# Source: konga/templates/ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: "konga-konga-ingress"
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  rules:

  - http:
      paths:
      - path: /konga
        backend:
          serviceName: "konga-konga-svc"
          servicePort: 80

[pantsel]

@reloaded , The current version of Konga doesn't play well with relative paths.
You can instead try the next branch or pantsel/konga:next from docker hub.

Check out the changelog
https://github.com/pantsel/konga/blob/next/CHANGELOG.md

I think that's what you need.

[reloaded]

@reloaded , The current version of Konga doesn't play well with relative paths.
You can instead try the next branch or pantsel/konga:next from docker hub.

Check out the changelog
https://github.com/pantsel/konga/blob/next/CHANGELOG.md

I think that's what you need.

@pantsel You overlooked my kubernetes manifest definitions at the end of the post. I am already referencing "pantsel/konga:next".

This bug is in the "next" branch.

[pantsel]

You're right. Let me see what I can do.

[reloaded]

Thank you for the superb support @pantsel

[reloaded]

@pantsel this still seems to be an issue. I'm referencing pantsel/konga:next and setting the BASE_URL environment variable to /konga/ but it's still redirecting me to /register for a new Konga instance without prior Konga configurations.

[reloaded]

kubectl describe pod kops-konga-deploy-6ccc6dd86c-m2dkj

Name:           kops-konga-deploy-6ccc6dd86c-m2dkj
Namespace:      etl
Priority:       0
Node:           bmk8ngpunode/10.251.96.21
Start Time:     Fri, 06 Sep 2019 10:39:35 -0700
Labels:         app.kubernetes.io/instance=kops-konga
                app.kubernetes.io/name=kops-konga
                pod-template-hash=6ccc6dd86c
Annotations:    <none>
Status:         Running
IP:             10.32.0.9
Controlled By:  ReplicaSet/kops-konga-deploy-6ccc6dd86c
Containers:
  konga:
    Container ID:   docker://a2144579b1bee5a684aa61b46c3e2d692f6f2701687f08bbbd17efdd78a70076
    Image:          pantsel/konga:next
    Image ID:       docker-pullable://pantsel/konga@sha256:a064b58e44f755acd0bba3bbef068d9edf6af9b5461d336ce00bdb26d35a77d5
    Port:           1337/TCP
    Host Port:      0/TCP
    State:          Running
      Started:      Fri, 06 Sep 2019 10:41:18 -0700
    Last State:     Terminated
      Reason:       Completed
      Exit Code:    0
      Started:      Fri, 06 Sep 2019 10:40:26 -0700
      Finished:     Fri, 06 Sep 2019 10:40:26 -0700
    Ready:          True
    Restart Count:  4
    Environment:
      DB_ADAPTER:    <set to the key 'db-adapter' in secret 'kops-konga-secrets'>    Optional: false
      DB_HOST:       <set to the key 'db-host' in secret 'kops-konga-secrets'>       Optional: false
      DB_PORT:       <set to the key 'db-port' in secret 'kops-konga-secrets'>       Optional: false
      DB_USER:       <set to the key 'db-username' in secret 'kops-konga-secrets'>   Optional: false
      DB_PASSWORD:   <set to the key 'db-password' in secret 'kops-konga-secrets'>   Optional: false
      BASE_URL:      <set to the key 'base-url' in secret 'kops-konga-secrets'>      Optional: false
      NODE_ENV:      <set to the key 'node-env' in secret 'kops-konga-secrets'>      Optional: false
      TOKEN_SECRET:  <set to the key 'token-secret' in secret 'kops-konga-secrets'>  Optional: false
    Mounts:
      /var/run/secrets/kubernetes.io/serviceaccount from default-token-p26z6 (ro)
Conditions:
  Type              Status
  Initialized       True
  Ready             True
  ContainersReady   True
  PodScheduled      True
Volumes:
  default-token-p26z6:
    Type:        Secret (a volume populated by a Secret)
    SecretName:  default-token-p26z6
    Optional:    false
QoS Class:       BestEffort
Node-Selectors:  <none>
Tolerations:     node.kubernetes.io/not-ready:NoExecute for 300s
                 node.kubernetes.io/unreachable:NoExecute for 300s
Events:
  Type     Reason     Age                   From                   Message
  ----     ------     ----                  ----                   -------
  Normal   Scheduled  5m8s                  default-scheduler      Successfully assigned etl/kops-konga-deploy-6ccc6dd86c-m2dkj to bmk8ngpunode
  Normal   Pulling    4m18s (x4 over 5m7s)  kubelet, bmk8ngpunode  Pulling image "pantsel/konga:next"
  Normal   Pulled     4m18s (x4 over 5m6s)  kubelet, bmk8ngpunode  Successfully pulled image "pantsel/konga:next"
  Normal   Created    4m18s (x4 over 5m6s)  kubelet, bmk8ngpunode  Created container konga
  Normal   Started    4m17s (x4 over 5m5s)  kubelet, bmk8ngpunode  Started container konga
  Warning  BackOff    3m37s (x9 over 5m)    kubelet, bmk8ngpunode  Back-off restarting failed container

Pod Environment Variables:

BASE_URL=/konga/
DB_PORT=5432
DB_HOST=postgresql-postgresql
HOSTNAME=kops-konga-deploy-6ccc6dd86c-m2dkj
DB_USER=postgres
NODE_ENV=development
DB_PASSWORD=xxxx
DB_ADAPTER=postgres
TOKEN_SECRET=xxxxx

[reloaded]

@pantsel Is this related to the fact that the :next docker image hasn't been updated in months even after your recent BASE_URL bug patch?

[reloaded]

@pantsel any movement on this issue?

[pantsel]

@reloaded , I'm terribly sorry for the delayed response.

The branch wasn't updated due to a change on github's integration with 3rd party platforms.

That is something I recently noticed as well.

Anyway, the integration with dockerhub is working again and a new release is out, that includes all fixes and updates from the next branch.

[alvindaiyan]

Hi, I think the issue still exist

[fgsalomon]

Hi @pantsel.

I think that @alvindaiyan is right and this issue is still not fixed.

I've tried the Docker images with tags 0.14.7, next and latest and none of them worked. They all give a 404 error code when using BASE_URL env variable.

If I set the log level to silly and execute inside the container this:

bash-4.4# echo $BASE_URL
/konga/
bash-4.4# wget localhost:1337/konga/
Connecting to localhost:1337 (127.0.0.1:1337)
wget: server returned error: HTTP/1.1 404 Not Found
bash-4.4# wget localhost:1337/
Connecting to localhost:1337 (127.0.0.1:1337)
wget: server returned error: HTTP/1.1 404 Not Found

I 2019-12-03T08:39:44.613393143Z Sending 404 ("Not Found") response
I 2019-12-03T08:39:44.612447920Z Disabling CSRF protection for /konga/register since request has no session.
I 2019-12-03T08:39:44.598342754Z Disabling CSRF protection for / since request has no session.
I 2019-12-03T08:39:40.843727636Z Sending 404 ("Not Found") response
I 2019-12-03T08:39:40.836683866Z Disabling CSRF protection for /konga/ since request has no session.
E 2019-12-03T08:39:17.619950049Z -------------------------------------------------------
E 2019-12-03T08:39:17.619925640Z Port        : 1337
E 2019-12-03T08:39:17.619873427Z Host        : 0.0.0.0
E 2019-12-03T08:39:17.619816573Z Environment : production
I 2019-12-03T08:39:17.619740200Z
E 2019-12-03T08:39:17.619698667Z :: Tue Dec 03 2019 08:39:17 GMT+0000 (Coordinated Universal Time)
E 2019-12-03T08:39:17.619644125Z -------------------------------------------------------
I 2019-12-03T08:39:17.619481242Z
I 2019-12-03T08:39:17.619307438Z To shut down Sails, press <CTRL> + C at any time.
I 2019-12-03T08:39:17.619290175Z To see your app, visit http://0.0.0.0:1337
I 2019-12-03T08:39:17.618783368Z Server lifted in `/app`
I 2019-12-03T08:39:17.618771047Z
I 2019-12-03T08:39:17.618751746Z  ____---___--___---___--___---___--___-__
I 2019-12-03T08:39:17.618745677Z    __---___--___---___--___---___--___
I 2019-12-03T08:39:17.618727224Z                 `--'-------'
I 2019-12-03T08:39:17.618602753Z                 .-'.-==|/_--'
I 2019-12-03T08:39:17.618593929Z                    ,'  |'  \
I 2019-12-03T08:39:17.618501995Z                      / || \
I 2019-12-03T08:39:17.618494376Z                       /|.\
I 2019-12-03T08:39:17.618489459Z    v0.12.14            |\
I 2019-12-03T08:39:17.618481665Z    Sails              <|    .-..-.
I 2019-12-03T08:39:17.618446324Z
I 2019-12-03T08:39:17.618435877Z                .-..-.
I 2019-12-03T08:39:17.618341491Z
I 2019-12-03T08:39:17.615531668Z Restricting access to explicit host: 0.0.0.0

[btkelly]

Any update on this? I'm experiencing the same issues.

[wangfeng-1]

Any update on this? I'm experiencing the same issues.

[chenguang-Steve]

Same issue for me.

[zffocussss]

Any update on this? I'm experiencing the same issues.

BASE_URL=/konga/

set service and router in kong to proxy to konga (strip path /konga/)
